JVC KD NX5000 - Navigation System With HDD Bedienungsanleitung

KD-NX5000

HDD NAVIGATION/DVD RECEIVER

NAVEGACIÓN HDD/RECEPTOR DVD

SYSTÈME DE NAVIGATION À DISQUE DUR/RÉCEPTEUR DVD

For installation and connections, refer to the separate manual.

Para la instalación y las conexiones, refiérase al manual separado.

Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

LVT1627-001A

[J]

MANUAL DE INSTRUCCIONES

MANUEL D’INSTRUCTIONS

For customer Use:

Enter below the Model

No. and Serial No. which

are located on the top or

bottom of the cabinet.

Retain this information

for future reference.

Model No.

Serial No.

FRANÇAIS ESPAÑOL ENGLISH

Cover_NX5000.indd 4Cover_NX5000.indd 4 7/12/06 4:36:27 pm7/12/06 4:36:27 pm

ENGLISH

Warning:

If you need to operate the unit while driving,

be sure to look ahead carefully or you may be

involved in a traffic accident.

Every time you turn on the unit, the screen

below appears. Take enough care when

operating the unit and make sure safe driving.

CAUTION!

DRIVER IS RESPONSIBLE FOR

DRIVING DECISIONS AND

KEEPING EYES ON THE ROAD!

Please see owner’s manual

for complete safety

instructions.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave

all servicing to qualified service personnel.

3. CAUTION:

(For U.S.A.) Visible and/or invisible class II laser radiation when open. Do not stare into beam.

(For Canada) Visible and/or invisible class 1M laser radiation when open. Do not view directly

with optical instruments.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

Caution:

Changes or modifications not approved by

JVC could void the user’s authority to operate

the equipment.

Caution:

Never try to analyse or retrieve the data

stored in the Hard Disk Drive (HDD).

Otherwise, you may have your warranty

invalid, and be penalized by law. The

manufacturer assumes no liability for any

damage resulting from such conduct as

mentioned above.

KDNX5000_J.indb 2KDNX5000_J.indb 2 23/1/07 6:59:12 pm23/1/07 6:59:12 pm

When the temperature is low, the HDD may

take some time to start up, or may reboot

automatically.

It should be noted that it may be unlawful to

re-record pre-recorded tapes, records, or discs

without the consent of the owner of copyright

in the sound or video recording, broadcast or

cable programme and in any literary, dramatic,

musical, or artistic work embodied therein.

• DO NOT install any unit in locations

where:

– it may obstruct the steering wheel and

gearshift lever operations.

– it may obstruct the operation of safety

devices such as air bags.

– it may obstruct visibility.

• DO NOT operate the unit while driving. If

you need to operate the unit while driving,

be sure to look ahead carefully.

• The driver must not watch the monitor

while driving.

• If the parking brake is not engaged,

“

Parking Brake

” flashes on the monitor,

and no playback picture will be shown.

– This warning appears only when the

parking brake wire is connected to the

parking brake system built in the car

(refer to the Installation/Connection

Manual).

Hard Disk Drive (HDD)

Installation

This unit has a built-in HDD, which is a device

to read minute magnetic changes. The inside of

the device is precision components, requiring

you to notice the following when installing the

unit:

Install the unit at a place where the following

conditions are satisfied:

• Dry and neither too hot nor too cold—

between 5°C (41°F) and 35°C (95°F).

If the temperature is too low, the HDD will

not work. Wait until the temperature in the

car becomes normal before operating the

unit.

• At an altitude between –300 m (–980 ft) below

sea level and +3000 m (9800 ft) above sea

level.

• With adequate ventilation to prevent internal

heat buildup in the unit.

Before using HDD

While the unit is turned on, the hard disk

is constantly rotating at a high speed. This

requires you to notice the following:

• DO NOT impart vibration or shock.

• DO NOT allow anything having strong

magnetism or emitting strong electromagnetic

waves (cellular phones, etc.) near the unit.

• DO NOT disconnect the power cords from

the car battery when the unit is turned on.

Failure in following the above cautions may

damage the HDD (the stored data will be lost

and be never restored).

WARNINGS:

To prevent accidents and damage

KDNX5000_J.indb 3KDNX5000_J.indb 3 23/1/07 6:59:20 pm23/1/07 6:59:20 pm

ENGLISH

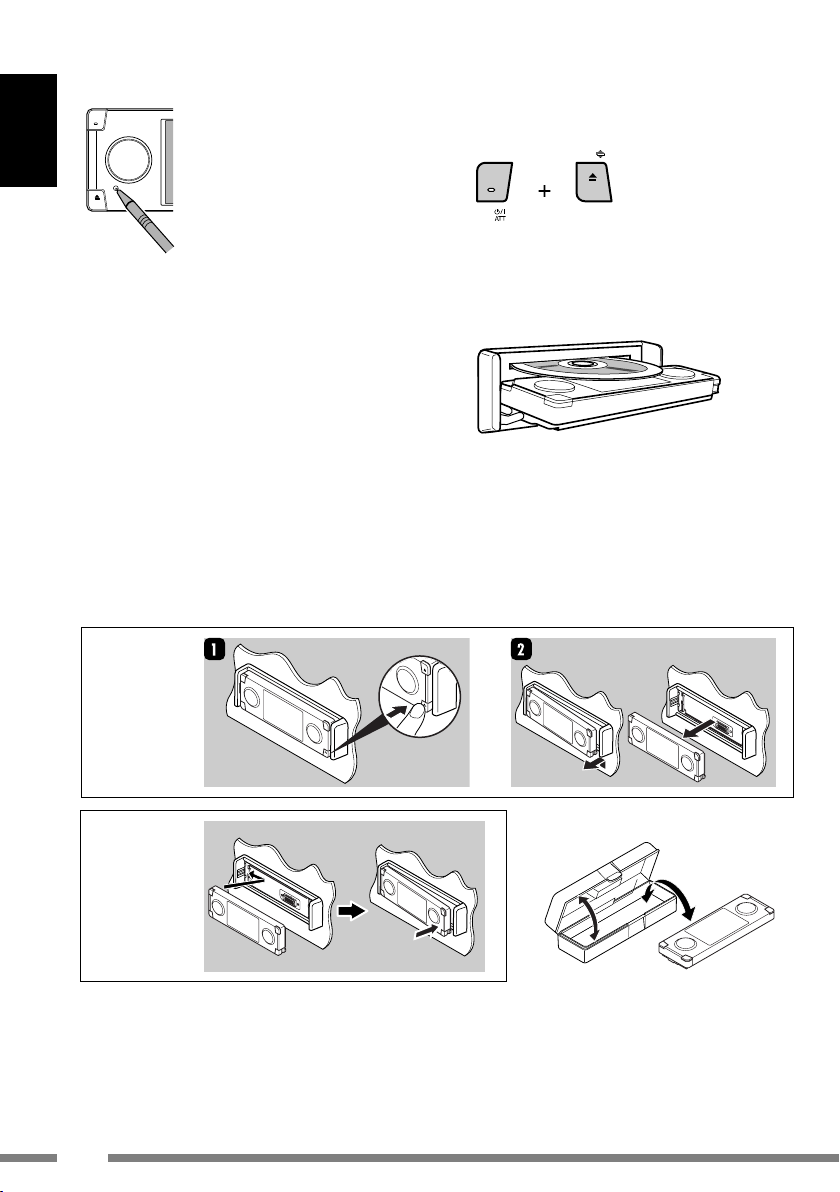

How to detach/attach the control panel

Detaching

Attaching

How to forcibly eject a disc

If a disc cannot be recognized by the unit or

cannot be ejected, eject the disc as follows.

Emergency Eject

and

No Eject

(or

Eject

) appear on the monitor.

Press 5/ ∞repeatedly to select

Emergency

Eject

, then press ENT.

• If this does not work, reset your unit.

• Be careful not to drop the disc when it ejects.

[Hold]

How to reset your unit

• Your preset adjustments

will also be erased.

KDNX5000_J.indb 4KDNX5000_J.indb 4 23/1/07 6:59:21 pm23/1/07 6:59:21 pm

[European Union only]

INFORMATION (For U.S.A.)

This equipment has been tested and found

to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in

a residential installation. This equipment

generates, uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference

to radio or television reception, which can be

determined by turning the equipment off and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/

TV technician for help.

This product incorporates copyright

protection technology that is protected

by U.S. patents and other intellectual

property rights. Use of this copyright

protection technology must be authorized

by Macrovision, and is intended for home

and other limited viewing uses only unless

otherwise authorized by Macrovision.

Reverse engineering or disassembly is

prohibited.

For safety...

• Do not raise the volume level too much, as

this will block outside sounds, making driving

dangerous.

• Stop the car before performing any

complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot

or cold weather, wait until the temperature in

the car becomes normal before operating the

unit.

Caution on volume setting:

Discs produce very little noise compared with

other sources. Lower the volume before playing

a disc to avoid damaging the speakers by the

sudden increase of the output level.

• The monitor built in this unit has been

produced with high precision, but it may

have some ineffective dots. This is inevitable

and is not malfunction.

• Do not expose the monitor to direct

sunlight.

Cautions on the monitor:

KDNX5000_J.indb 5KDNX5000_J.indb 5 23/1/07 6:59:21 pm23/1/07 6:59:21 pm

ENGLISHENGLISH

8 Introduction

Initial settings

Basic operations

Parts index

Remote controller—RM-RK250

18 Navigation system

Basic operations

Registering your home

Starting guidance

Searching for a place

How you are guided

Arranging your route

Registering favorite points

Traffic information on map

Navigation menu items

Contents

KDNX5000_J.indb 6KDNX5000_J.indb 6 23/1/07 6:59:22 pm23/1/07 6:59:22 pm

51 Radio

Listening to the radio

Listening to the satellite radio

59 Discs and HDD

Disc operations

Music server operations

CD changer operations

79 Other functions

iPod/D. player operations

Playing other external components

Using Bluetooth devices

AV Menu items

Sound equalization

109 Troubleshooting

117 Specifications

KDNX5000_J.indb 7KDNX5000_J.indb 7 23/1/07 6:59:23 pm23/1/07 6:59:23 pm

ENGLISH

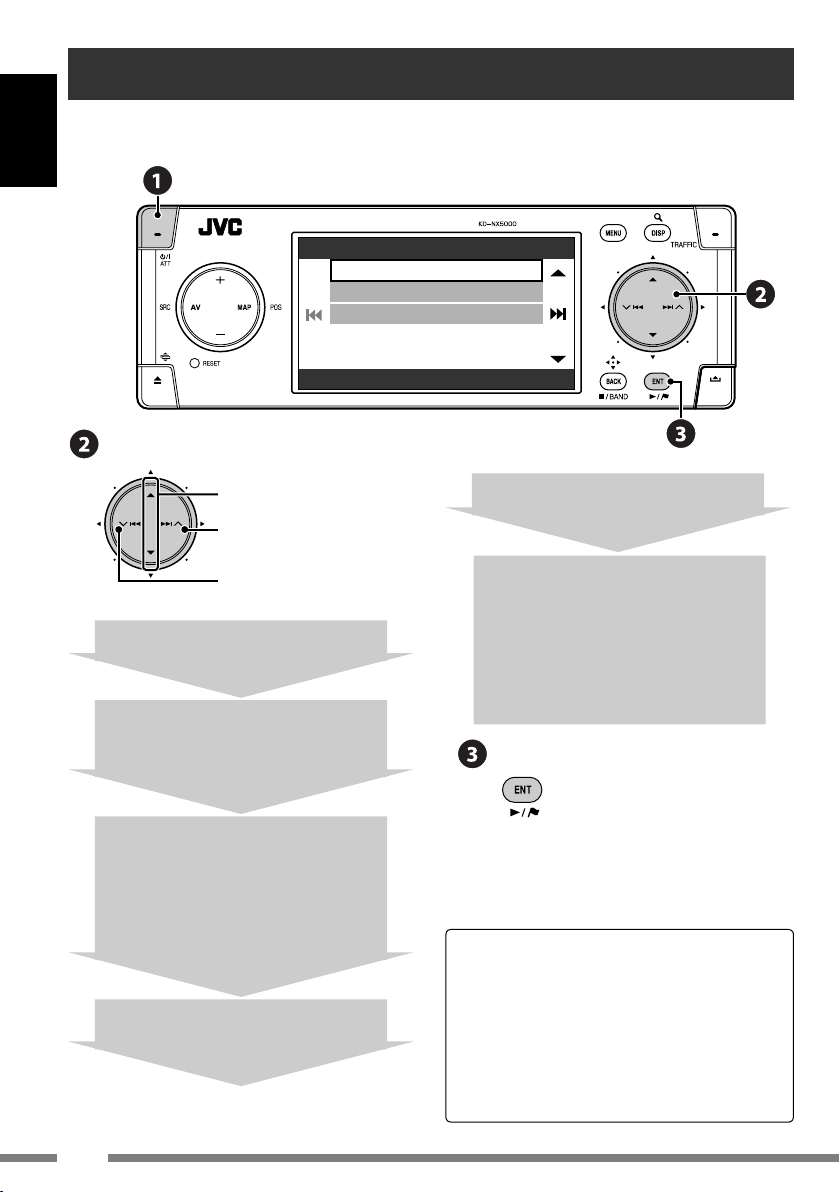

Initial settings

When you turn on the unit for the first time, the initial setup screen appears. Follow the procedure

below and make necessary settings.

DST

Select

Auto

if your residential area is

subject to DST (Daylight Saving Time).

Reverse Polarization

Engage the parking brake, step on the

brake pedal, then switch the gear lever.

Forward

and

Reverse

alternates

on the display, connection is correct.

Select one of the alternatives (

GND

Battery

) that shows the gear position

correctly.

You can also change these settings (except

Store Display Mode

) through

Setup

Menu and

AV Menu

when necessary.

•

Language

☞[46]

•

Installation Angle

☞[46]

•

Time Zone

☞[91]

•

DST

☞[91]

•

Reverse Polarization

☞[94]

Back to the previous setting

Select an item

Proceed to the next setting

Turn on the power.

Adjust the following settings.

Finish the procedure.

Language

English US

Español

Français

Language

Select the language you want for the

display and the voice guidance.

Store Display Mode

Select

Off

• If you select

, the System starts in

the navigation demonstration mode

for shops. (☞[47])

Installation Angle

Select which angle your unit is installed

at. This setting is necessary for the

precise functioning of the Navigation

System.

• See “Measuring the installation

angle” on the Installation/Connection

Manual.

Time Zone

Select your residential area for clock

adjustment.

KDNX5000_J.indb 8KDNX5000_J.indb 8 23/1/07 6:59:23 pm23/1/07 6:59:23 pm

Sensor Status

Learning Lv. :0

GPS Antenna :OK [5]

Speed Signal :12.0

Parking Brake :On

Direction :Forward

Calibrating...

Calibration

Before using the Navigation System first time, it is required to calibrate the Navigation System.

• After deleting the calibration data (☞[46]

Reset Calibration

) or changing the installation

angle (☞[46]

Installation Angle

), calibration is also required.

1 Display the map screen.

2 Display the detail screen and check the

connections.

GPS Antenna

•

]Connection is OK. (

[5]

: number of the GPS

satellites whose signal is detected.)

•

]Antenna is disconnected or short-circuited.

Speed Signal

Drive the car for a while.

• If the number increases as you speed up the car,

connection is OK.

Parking Brake

Step on the brake pedal, then disengage and engage the

parking brake repeatedly.

• If

Off

appears when disengaged and

appears when engaged, connection is OK.

If the result is not good, check the connection.

• You can see detailed information on the items of

Sensor Status

Information

]

Connection

. (☞[43])

3 After confirming all the above connections, drive the car to start

calibration.

• This process can take five minutes or more depending on the average speed driven.

• A certain speed (greater than 25 mi/h (40 km/h)) is required for calibration.

• Calibration time differs among the cars.

• During calibrating, you can use the AV functions of the unit (you can listen to the music,

etc.)

• If you turn off the ignition switch, calibration is temporarily stopped. When it is turned

on, calibration will restart.

Once calibration is finished, the arrowhead icon turns red and the current position information

appears instead of

Calibrating...

Learning Lv.

(maximum level is

) reaches

after

calibration finished.

Navigation (functions such as guidance or route simulation) cannot be used until calibration

is complete.

Initial settings

[Hold]

Calibrating... Detail

: Calibration not in

progress.

: Calibration in progress.

KDNX5000_J.indb 9KDNX5000_J.indb 9 23/1/07 6:59:25 pm23/1/07 6:59:25 pm

ENGLISH

Reset the unit.

• Use only when the internal

system malfunctions.

Basic operations

To turn on the power

To turn off the power

[Hold]

To drop the volume in a moment (ATT)

ATT indicator flashes.

To restore the sound, press the same

button again.

To adjust the volume

To change the source

TUNER

SAT*

DISC*

HDD

CD-CH/

EXT-IN/iPod/D. PLAYER*

Bluetooth Audio*

(Back to the beginning)

* You cannot select these sources if they are not

ready.

To turn off the AV function

[Hold]

The display switches to the map screen.

• To activate the AV function, press the

button briefly.

For navigation operations,

☞

[18]

For radio operations,

☞

[51]

For disc/HDD operations,

☞

[59]

For Bluetooth operations,

☞

[83]

For other sources,

☞

[79]

KDNX5000_J.indb 10KDNX5000_J.indb 10 23/1/07 6:59:26 pm23/1/07 6:59:26 pm

Andere Handbücher für KD NX5000 - Navigation System With HDD

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere JVC Auto-Navigationssystem Handbücher

JVC

JVC KW-NT500HDT Bedienungsanleitung

JVC

JVC EXAD KD-NX901 Bedienungsanleitung

JVC

JVC KD NX5000 - Navigation System With HDD Leitfaden

JVC

JVC KV-PX9BJ Bedienungsanleitung

JVC

JVC KW-NT50HDT Leitfaden

JVC

JVC KD NX5000 - Navigation System With HDD Bedienungsanleitung

JVC

JVC KV-PX501 Bedienungsanleitung

JVC

JVC KW NX7000 - Double Din Navigation Bedienungsanleitung

JVC

JVC KW-NT700 Bedienungsanleitung

JVC

JVC KW-NT300 Bedienungsanleitung

JVC

JVC KW-NT700 Bedienungsanleitung

JVC

JVC KD NX5000 - Navigation System With HDD Bedienungsanleitung

JVC

JVC KW-NT30 Bedienungsanleitung

JVC

JVC KW-NT800HDT Bedienungsanleitung

JVC

JVC KW-NT700 Installationshandbuch

Beliebte Auto-Navigationssystem Handbücher anderer Marken

Clarion

Clarion Navigation In-Car Entertainment Bedienungsanleitung

Rosen

Rosen DP-1001 Bedienungsanleitung

Alpine

Alpine INE-W970HD Bedienungsanleitung

Skoda

Skoda AMUNDSEN+ Bedienungsanleitung

Blaupunkt

Blaupunkt TravelPilot DX-N Bedienungsanleitung

Pioneer

Pioneer MZ360500EX Bedienungsanleitung

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Bedienungsanleitung

Kenwood

Kenwood DNN991HD Bedienungsanleitung

AvMap

AvMap Geosat 2C Bedienungsanleitung

Eonon

Eonon GE01B Bedienungsanleitung

Pioneer

Pioneer AVIC-Z920DAB Bedienungsanleitung

Nextar

Nextar M3-MX - Automotive GPS Receiver Bedienungsanleitung

Furrion

Furrion NV2200 Bedienungsanleitung

Mio

Mio MOOV 200-Series Bedienungsanleitung

Prestigio

Prestigio GeoVision 5150 Bedienungsanleitung

Hummer

Hummer 2006 H3 Bedienungsanleitung

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Konfigurationshandbuch

Garmin

Garmin StreetPilot c510 Bedienungsanleitung
