– 1 –

Introduction

About This Manual

This manual is organized as follows:

•The manual mainly explains operations using the

buttons and controls on the unit. You can also use the

buttons on the remote control if they have the same or

similar names (or marks) as those on the unit.

If operation using the remote control is different from

that using the unit, it is then explained.

• Basic and common information that is the same for many

functions is grouped in one place, and is not repeated in

each procedure. For instance, we do not repeat the

information about turning on/off the unit, setting the

volume, changing the sound effects, and others, which are

explained in the section “Common Operations” on pages 9

to 11.

• The following marks are used in this manual:

Gives you warnings and cautions to prevent

damage or risk of fire/electric shock.

Also gives you information which is not good

for obtaining the best possible performance

from the unit.

Gives you information and hints you had better

know.

Precautions

Installation

• Install in a place which is level, dry and neither too hot nor

too cold — between 5˚C (41˚F) and 35˚C (95˚F).

• Install the unit in a location with adequate ventilation to

prevent internal heat built-up in the unit.

• Leave sufficient distance between the unit and the TV.

• Keep the speakers away from the TV to avoid interference

with TV.

DO NOT install the unit in a location near heat

sources, or in a place subject to direct sunlight,

excessive dust or vibration.

We would like to thank you for purchasing one of our JVC products.

Before operating this unit, read this manual carefully and thoroughly to

obtain the best possible performance from your unit, and retain this manual

for future reference.

Power sources

• When unplugging from the wall outlet, always pull the

plug, not the AC power cord.

DO NOT handle the AC power cord with wet

hands.

Moisture condensation

Moisture may condense on the lens inside the unit in the

following cases:

• After starting heating in the room

• In a damp room

• If the unit is brought directly from a cold to a warm place

Should this occur, the unit may malfunction. In this case,

leave the unit turned on for a few hours until the moisture

evaporates, unplug the AC power cord, and then plug it in

again.

Others

• Should any metallic object or liquid fall into the unit,

unplug the unit and consult your dealer before operating

any further.

• If you are not going to operate the unit for an extended

period of time, unplug the AC power cord from the wall

outlet.

DO NOT disassemble the unit since there are no

user serviceable parts inside.

If anything goes wrong, unplug theAC power cord and

consult your dealer.

EN01-14.MXJ500,etc[B]/f 00.1.10, 2:08 PM1

– 2 –

Contents

Location of the Buttons and Controls....................... 3

Front Panel ................................................................. 3

Remote Control .......................................................... 5

Getting Started............................................................ 6

Unpacking .................................................................. 6

Putting the Batteries into the Remote Control ........... 6

Connecting Antennas ................................................. 6

Connecting Speakers .................................................. 7

Connecting Other Equipment..................................... 8

Common Operations .................................................. 9

Turning On or Off the Power ....................................... 9

Setting the Clock ........................................................ 9

Selecting the Sources................................................... 9

Adjusting the Volume ............................................... 10

Reinforcing the Bass Sound ..................................... 10

Selecting the Sound Modes ...................................... 10

CreatingYour Own Sound Mode

— Manual Mode................................................. 11

Listening to FM and AM (LW/MW) Broadcasts ... 12

Tuning in a Station ................................................... 12

Presetting Stations .................................................... 12

Tuning in a Preset Station ........................................ 12

Receiving FM Stations with RDS ............................ 13

Changing the RDS Information ............................... 13

Searching for Programs by PTY Codes

(PTY Search) ...................................................... 13

Switching to a Program Type of Your

Choice Temporarily ............................................ 14

Playing Back CDs ..................................................... 15

Loading CDs ............................................................ 15

Playing Back the Entire Discs

— Continuous Play............................................. 15

Basic CD Operations................................................ 15

Programming the Playing Order of the Tracks

— Program Play ................................................. 16

Playing at Random — Random Play ....................... 17

Repeating Tracks or CDs — Repeat Play ................ 17

Prohibiting Disc Ejection — Tray Lock................... 17

Playing Back Tapes................................................... 18

Playing Back a Tape ................................................. 18

Locating the Beginning of a Song — Music Scan ... 18

Recording .................................................................. 19

Recording a Tape on Deck B.................................... 19

Dubbing Tapes.......................................................... 20

CD Direct Recording................................................. 20

Auto Edit Recording.................................................. 21

Using the Timers ....................................................... 22

Using Daily Timer.................................................... 22

Using Recording Timer ............................................ 23

Using Sleep Timer.................................................... 24

Timer Priority ........................................................... 24

Maintenance .............................................................. 25

Troubleshooting ........................................................ 26

Additional Information ............................................ 27

Specifications............................................................. 28

EN01-14.MXJ500,etc[B]/f 00.1.10, 2:08 PM2

– 3 –

CA-MXJ750R

CA-MXJ552R

CA-MXJ550R

CA-MXJ500

;

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

Front Panel

Powered Rolling Panel

Press PANEL OPEN/

CLOSE to open the panel.

To close the panel, press

the button again.

Front Panel

EN01-14.MXJ500,etc[B]/f 00.1.10, 2:08 PM3

– 4 –

See pages in the parentheses for details.

Front Panel

1Disc trays

2(On/Standby) button and STANDBY lamp (9)

3Display window

4For CA-MXJ750R:

SUBWOOFERVOLUME control (10)

For CA-MXJ552R/CA-MXJ550R/CA-MXJ500:

ACTIVE BASS EX. (extension) LEVEL control (10)

5Remote sensor

6TAPE 23button and lamp (9, 18)

Pressing this button also turns on the unit.

7AUX button and lamp (9)

Pressing this button also turns on the unit.

8Deck A cassette holder (18)

90EJECT button for deckA (18)

pDisc number buttons (CD1, CD2, and CD3) (15)

Pressing one of these buttons also turns on the unit.

q0(CD tray open/close) buttons (15)

Pressing one of these buttons also turns on the unit.

wVOLUME control (10)

eCD £¥8 (play/pause) button and lamp (9, 15)

Pressing this button also turns on the unit.

rPANEL OPEN/CLOSE button (9)

Pressing this button also turns on the unit.

tPHONES jack (10)

yFM/AM button and lamp (9, 12)

Pressing this button also turns on the unit.

uDeck B cassette holder (18, 19)

iEJECT 0button for deck B (18, 19)

Powered Rolling Panel

oPRESET – / + buttons (12)

4/ ¢(reverse search/forward search) buttons

(9, 11, 16, 21 – 24)

;REVERSE MODE button (18 – 21)

aREC START/STOP button (19, 21)

sDUBBING button (20)

dCD REC START button (20, 21)

fTAPE A/B button (18)

gCLOCK/TIMER button (9, 22 – 24)

Continued

hSET button (9, 12, 22 – 24)

j7(stop) button (15 – 21)

kTUNING – / + buttons (12)

1/ ¡(fast left/fast right) buttons (11, 16, 18)

lSEA CONTROL button (11)

/PROGRAM/RANDOM button (16, 17, 20)

zEDIT button (21)

xREPEAT button (17)

cDISPLAY button (9)

vSOUND MODE button (10)

bCANCEL button (9, 17, 22)

DEMO button (8)

nFor CA-MXJ750R/CA-MXJ552R/CA-MXJ550R ONLY:

RDS operation buttons (13)

• DISPLAY MODE, PTY/EON, and SELECT – / +

buttons

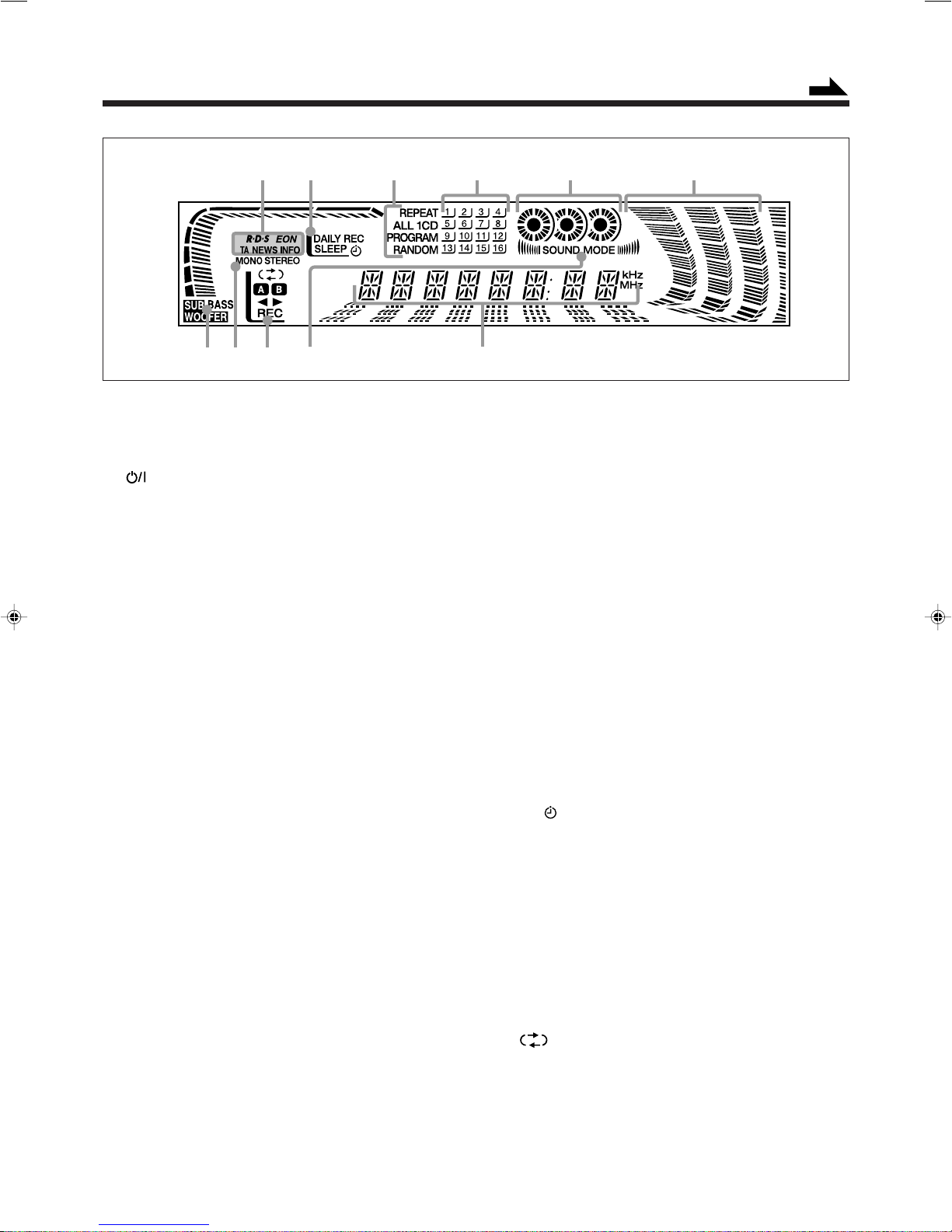

Display window

1For CA-MXJ750R/CA-MXJ552R/CA-MXJ550R ONLY:

RDS operation indicators

• RDS, EON, and TA/NEWS/INFO indicators

2Timer indicators

• DAILY (Daily Timer), REC (Recording Timer), SLEEP,

and (Timer) indicators

3CD play mode indicators

• REPEAT (ALL/1CD/1), PROGRAM, and RANDOM

indicators

4CD track number indicators

5Disc indicators

6SEA (Sound Effect Amplifier) pattern indicator

7For CA-MXJ750R: SUBWOOFER indicator (10)

For CA-MXJ552R/CA-MXJ550R/CA-MXJ500:

BASS indicator (10)

8Tuner operation indicators

• MONO and STEREO indicators

9Tape operation indicators

•(reverse mode), A/B (operating deck), 23(tape

direction), and REC (recording) indicators

pSOUND MODE indicator

qMain display

• Shows the source name, frequency, etc.

Display Window

1 2 3

EN01-14.MXJ500,etc[B]/f 00.1.13, 11:13 AM4

– 5 –

When using the remote control, point it at

the remote sensor on the front panel.

Remote Control

1Disc number buttons (CD1, CD2, and CD3) (15)

Pressing one of these buttons also turns on the unit.

2SOUND MODE button (10)

3TAPE A/B button (18)

4REC START/STOP button (19, 21)

5For CA-MXJ750R: SUBWOOFER + / – buttons (10)

For CA-MXJ552R/CA-MXJ550R/CA-MXJ500:

ACTIVE BASS EX. (extension) + / – buttons (10)

61/ 4(fast left/reverse search) button (16 – 18)

7TAPE 23button (9, 18)

Pressing this button also turns on the unit.

8FADE MUTING button (10)

9AUX button (9)

Pressing this button also turns on the unit.

p(On/Standby) button (9)

qSLEEP button (24)

wFor CA-MXJ750R/CA-MXJ552R/CA-MXJ550R ONLY:

RDS operation buttons (13)

• DISPLAY MODE, PTY/EON, and SELECT – / +

buttons

eNumber buttons (12, 16)

rFM MODE button (12)

t¢/ ¡(forward search/fast right) button (16 – 18)

yCD £¥8 button (9, 15)

Pressing this button also turns on the unit.

u7(stop) button (15 – 21)

iFM/AM button (9, 12)

Pressing this button also turns on the unit.

oVOLUME + / – buttons (10)

TAPE

A/B

FADE

MUTING

FM MODE

SLEEP

SOUND

MODE

REC

START/STOP

–

ACTIVE

BASS EX.

CA-MXJ750R

CA-MXJ552R

CA-MXJ550R

CA-MXJ500

DISPLAY

MODE PTY/EON – SELECT +

EN01-14.MXJ500,etc[B]/f 00.1.10, 2:08 PM5

– 6 –

Getting Started

Unpacking

After unpacking, check to be sure that you have all the

following items.

The number in the parentheses indicates the quantity of the

pieces supplied.

• AM (LW/MW) loop antenna (1)

• FM antenna (1)

• Remote control (1)

• Batteries (2)

If any is missing, consult your dealer immediately.

Putting the Batteries into the Remote Control

Insert the batteries — R6(SUM-3)/AA(15F) — into the

remote control, by matching the polarity (+ and –) on the

batteries with the + and – markings on the battery

compartment.

When the remote control can no longer operate the unit,

replace both batteries at the same time.

• DO NOT use an old battery together with a new one.

• DO NOT use different types of batteries together.

• DO NOT expose batteries to heat or flame.

• DO NOT leave the batteries in the battery

compartment when you are not going to use the

remote control for an extended period of time.

Otherwise, it will be damaged from battery leakage.

Continued

Connecting Antennas

FM antenna

1Attach the FM antenna to the FM 75 Ω

COAXIAL terminal.

2Extend the FM antenna.

3Fasten it up in the position which gives you

the best reception, then fix it on the wall, etc.

About the supplied FM antenna

The FM antenna supplied with this unit can be used as temporary

measure. If reception is poor, you can connect an outdoor FM

antenna.

To connect an outdoor FM antenna

Before connecting it, disconnect the supplied FM antenna.

FM antenna (supplied)

Outdoor FM antenna

(not supplied)

A 75 Ωantenna with coaxial type connector (DIN 45325)

should be used.

FM75

COAXIAL

ANTENNA

LOOP

AMEXT

FM75

COAXIAL

ANTENNA

LOOP

AM EXT

R6(SUM-3)/AA(15F)

EN01-14.MXJ500,etc[B]/f 00.1.10, 2:08 PM6

– 7 –

1Connect theAM (LW/MW) loop antenna to

the AM LOOP terminals as illustrated.

2Turn the AM (LW/MW) loop antenna until

you have the best reception.

To connect an outdoor AM (LW/MW) antenna

When reception is poor, connect a single vinyl-covered wire

to the AM EXT terminal and extend it horizontally. (The AM

(LW/MW) loop antenna must remain connected.)

For better reception of both FM and AM (LW/MW)

• Make sure the antenna conductors do not touch any other

terminals and connecting cords.

• Keep the antennas away from metallic parts of the unit,

connecting cords, and theAC power cord.

AM (LW/MW) antenna

Vinyl-covered wire

(not supplied)

AM (LW/MW) loop

antenna (supplied)

COAXIAL

ANTENNA

AM LOOP

FM 75

AM EXT

Connecting Speakers

Blue

Speaker

cord

(blue/black)

12, 3

To right

speaker To left

speaker

Black

Red

Speaker cord

(red/black)

Speaker

cord

(blue/black)

FOR CA-MXJ750R

To right

speaker To left

speaker

Black

Red

FOR CA-MXJ552R/CA-MXJ550R/CA-MXJ500

Speaker

cord

(red/black)

Speaker

cord

(red/black)

EN01-14.MXJ500,etc[B]/f 00.1.10, 2:08 PM7

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Lautsprechersystem Handbücher

JVC

JVC MX-K30 Bedienungsanleitung

JVC

JVC TH-WL707H Bedienungsanleitung

JVC

JVC NX-PN10 Bedienungsanleitung

JVC

JVC NX-DV3 Bedienungsanleitung

JVC

JVC SPEAKER SYSTEM SP-SB101 Bedienungsanleitung

JVC

JVC Dolby Atmos TH-D689B Bedienungsanleitung

JVC

JVC XS-SR 3 Bedienungsanleitung

JVC

JVC MXDVA5 - 3 DVD/CD Home Theater Mini System Bedienungsanleitung

JVC

JVC SP-MXKB25 Bedienungsanleitung

JVC

JVC 1203SKMMODJSC Bedienungsanleitung

JVC

JVC CA-FSB70 Bedienungsanleitung

JVC

JVC NX-T5E Bedienungsanleitung

JVC

JVC FS-V5 Bedienungsanleitung

JVC

JVC MX-KB4 Bedienungsanleitung

JVC

JVC LVT2011-001B Bedienungsanleitung

JVC

JVC HX-Z3 Bedienungsanleitung

JVC

JVC GVT0291-004B Bedienungsanleitung

JVC

JVC LVT1286-003A Bedienungsanleitung

JVC

JVC GVT0298-003B Bedienungsanleitung

JVC

JVC SP-F303 Bedienungsanleitung

JVC

JVC 0405MWMMDWBET Bedienungsanleitung

JVC

JVC NX-D4 Bedienungsanleitung

JVC

JVC CA-D702T Bedienungsanleitung

JVC

JVC CA-MXG950V Bedienungsanleitung

Beliebte Lautsprechersystem Handbücher anderer Marken

LG NB4532B Bedienungsanleitung

5Core

5Core Pro Series Bedienungsanleitung

EAW

EAW MQV1394e Bedienungsanleitung

Lynx

Lynx GXR-LA10A Bedienungsanleitung

iLive

iLive ITB066B Bedienungsanleitung

RDX

RDX QuickStation 4 Bedienungsanleitung

Electro-Voice

Electro-Voice S-122 Bedienungsanleitung

Sven

Sven SPS-619 GOLD Bedienungsanleitung

Pioneer

Pioneer CS-7070 Bedienungsanleitung

EAW

EAW UB82e Bedienungsanleitung

Sondpex

Sondpex Active Speaker System and Digital Music... Bedienungsanleitung

Marshall Amplification

Marshall Amplification AR-DM61-BT Bedienungsanleitung

Yamaha

Yamaha NX-A01 - Speaker Sys Bedienungsanleitung

SE Audiotechnik

SE Audiotechnik I-LINE Bedienungsanleitung

Gemini

Gemini WRX-843 Series Bedienungsanleitung

TCL

TCL 6100 Series Bedienungsanleitung

JBL

JBL gto6506c Bedienungsanleitung

Legacy

Legacy FOCUS SE Bedienungsanleitung
