COLOUR TELEVISION

INSTRUCTIONS

Thank you for purchasing this JVC

colour television.

To ensure your complete

understanding, please read this

manual thoroughly before operation.

AV-14A10

AV-14F10

AV-20N10

AV-21A10

AV-21D10

AV-21F10

15 cm

10 cm 15 cm

10 cm

CAUTION:

• TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS TV.

• Operate only from the power source specified on the TV.

• Avoid damaging the power plug and power cord.

• Avoid improper installation and never position this TV where good ventilation is

unattainable. When installing this TV

distance recommendations must be

maintained between the floor and

wall, as well as installment in a tightly

enclosed area or piece of furniture.

Adhere to the minimum distance

guidelines shown for safe operation.

• Do not allow objects or liquid into the cabinet openings.

• In the event of a fault, unplug this TV and call a service technician. Do not

attempt to repair it by yourself or remove the rear cover.

• When you don’t use this TV for a long period of time, be sure to disconnect the

power plug from the AC outlet.

LCT1039-001A-H

0701-Ki-NV-JMT

2001 VICTOR COMPANY OF JAPAN, LIMITED

Locations ................................

Preparation .............................

Basic operation ......................

Remote control buttons

and functions........................

Using the TV’s menus ..........

Using the button on the TV ...

Troubleshooting ...................

Specifications .......................

Contents

WARNING:

TO PREVENT FIRE OR SHOCK

HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR

MOISTURE.

LCT1039-001A-H_cover 7/5/1, 4:51 PM1

Black

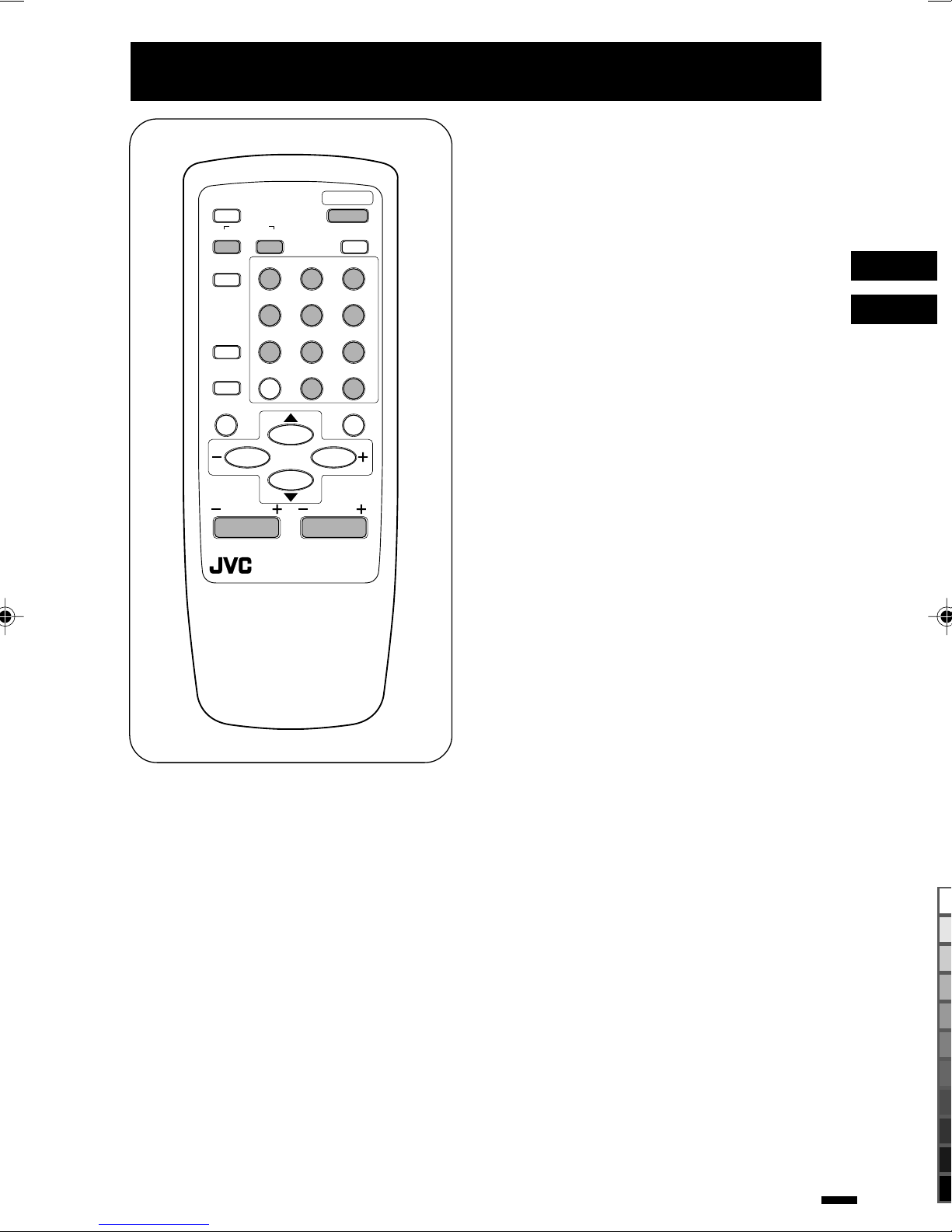

Locations

1ECO SENSOR button p.11

2SOUND SYSTEM button p.10

3COLOUR SYSTEM button p.10

4TV/VIDEO button p.9

5OFF TIMER button p.11

6CHANNEL SCAN button p.12

7RETURN + button p.12

8DISPLAY button p.11

9CHANNEL –/+ buttons p.9

POWER

123

456

789

RETURN

+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

ECO

SENSOR

DISPLAY

VOLUME

MUTING

SOUND

CHANNEL

REMOTE CONTROL UNIT

RM-C364GY

0POWER button p.5,9

-PICTURE MODE button p.10

=Number buttons p.9

~-/-- button p.9

!MUTING button p.11

@MENU buttons

•MENU

buttons

•MENU –/+ buttons

#VOLUME –/+ buttons p.9

RM-C364GY RM-C360GY

POWER

123

456

789

RETURN+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

DISPLAY

VOLUME

MUTING

SOUND

CHANNEL

REMOTE CONTROL UNIT

RM-C360GY

LCT1039-001A-H 7/5/1, 4:47 PM2

Black

Preparation

1. Connecting the aerial and external devices

Notes: .........................................................................................................................

•For further details, refer to the manuals provided with the devices you are connecting.

•Connecting cables are not supplied.

•The front and rear AUDIO/VIDEO input jacks are directly connected so that input to either

jack is output through both.You cannot provide input to both the front and rear jacks at the

same time. Disconnect one input, or use one of the jacks as an output jack only (for

monitoring or recording).

•The rod aerial is supplied with the AV-14A10 and AV-14F10.

....................................................................................................................................

■Connecting the aerial and VCR

Connecting the aerial

To install rod aerial:

Install into the top-rear aerial holder. Once installed, it cannot be removed.

To RF

output

To video

output

To aerial input

To audio

output

VCR

VHF/UHF outdoor aerial

VIDEO AUDIO

OUT

•Illustration of AV-14F10.

Connecting the aerial and VCR

•Illustration of AV-14F10.

VHF/UHF outdoor aerial

VIDEO AUDIO

OUT

Indoor aerial

Rod aerial

LCT1039-001A-H 7/5/1, 4:47 PM3

Black

■Connecting other external devices

Preparation

Note: ..................................................................................................................

•Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect

the headphones, the TV speakers go off.

...........................................................................................................................

•Illustration of AV-21D10.

VIDEO

OUT

AUDIO

VCR (for recording)

VCR (for playing)

To audio

output

To video

output

To audio

input

To video

input

•Illustration of AV-21D10.

VIDEO AUDIO

To audio

output

To video

output

Headphones

Camcorder

TV game

LCT1039-001A-H 7/5/1, 4:47 PM4

Black

Preparation

CAUTION: ...........................................

•Follow the cautions printed on the

batteries.

............................................................

Notes: .................................................

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work

properly, fit new batteries.

The supplied batteries are for testing, not

regular use.

............................................................

4. Turning your TV on

Press the Main power button on the TV to turn the TV’s main power

on.

The POWER lamp or POWER/ON TIMER lamp lights.

If image does not appear:

Your TV is in the standby mode. Press the POWER button on the remote control

to turn your TV on.

•You can also turn on your TV by pressing the CHANNEL –/+ button on your TV.

To turn your TV off:

Press the POWER button on the remote control.Your TV enters the standby

mode.

To turn the TV’s main power off:

Press the Main power button on the TV.

2. Connecting the power cord

Insert the Power plug into an AC outlet.

3. Inserting batteries into the remote control

Correctly insert two batteries, observing the and polarities and inserting the

end first.

LCT1039-001A-H 7/5/1, 4:48 PM5

Black

Preparation

MENU 3

AUTO CH PRESET

MANUAL CH PRESET

LANGUAGE ENGLISH

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

5. Selecting the on-screen language

You can select the language for the on-screen display.

Press MENU

to display the

MENU 3

menu,

then select

LANGUAGE

Press MENU –/+ to select language.

The on-screen displays indications are in the selected

language.

6. Presetting TV stations

To view a TV programme, you must first preset TV channels to channels on the TV.

This TV has 100 channels (channel 1 to 99 and channel AV).

■Auto Channel Preset

You can automatically preset all TV channels that can be received by your TV to

channels.

•The Auto Channel Preset function does not preset a TV channel to the AV channel

(channel number 0).

•If the TV cannot preset the TV channel you want to view, preset it manually. For details see

“Manual Channel Preset”on page 7.

Press MENU

to display the

MENU 3

menu,

then select

AUTO CH PRESET

Press MENU –/+ to start the Auto Channel

Preset function.

ON SEARCH

is displayed on the screen.

When you have finished presetting all TV channels that can be received on your

TV, the display will go out and the Auto Channel Preset function will end.

•To stop the Auto Channel Preset, press the MENU –/+ button.

MENU 3

AUTO CH PRESET

MANUAL CH PRESET

LANGUAGE ENGLISH

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

LCT1039-001A-H 7/5/1, 4:48 PM6

Black

Preparation

■Manual Channel Preset

You can manually preset the desired TV channels to the desired channels.

Press MENU

to display the

MENU 3

menu,

then select

MANUAL CH PRESET

Press MENU –/+.

The sub-menu is displayed.

•The channel No. is displayed as a PR No.

Press MENU –/+ to select the channel

number.

Press VOLUME –/+ to start searching for

the TV channel.

or is displayed on the screen.

When a TV channel is received, the or display goes out, and the TV

station is preset to the currently selected channel No.

•If the TV channel you want to preset is not displayed, repeat step 4 until the TV finds the

TV channel you want to preset.

•To stop the Manual Channel Preset function, press any button other than the VOLUME

–/+ button.

If the picture is not clear:

Use the Fine function to fine-tune the TV station.

1. Press MENU

to select

FINE

2. Hold VOLUME –/+ down to fine-tune the TV station

so that the best image is displayed on screen.

or indicates that the TV station is being

fine-tuned.

Press MENU

to select

SOUND SYSTEM

Press VOLUME –/+ to select the appropriate

sound system.

•For the sound systems in each country or region, refer to the

table “Broadcasting systems”on page 19.

Press MENU

to select

MANUAL

Repeat steps 3 to 7 if you want to preset another TV station to a

channel.

Press DISPLAY to turn the display off.

MENU 3

AUTO CH PRESET

MANUAL CH PRESET

LANGUAGE ENGLISH

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

MANUAL

FINE

SKIP NO

SOUND SYSTEM B/G

EXIT

SELECT BY PR 1 VL

PROGRAM BY -+ EXIT BY

SEARCH BY VOL-+

DISPLAY

Channel

No.

MANUAL

FINE

SKIP NO

SOUND SYSTEM B/G

EXIT

SELECT BY PR 3 VL

PROGRAM BY -+ EXIT BY

FINE BY VOL-+

DISPLAY

MANUAL

FINE

SKIP NO

SOUND SYSTEM B/G

EXIT

SELECT BY PR 3 VL

PROGRAM BY -+ EXIT BY

CHANGE BY VOL-+

DISPLAY

LCT1039-001A-H 7/5/1, 4:48 PM7

Black

Preparation

■Skip

You can set undesired channels to be skipped.

Channels set to be skipped cannot be selected by the CHANNEL –/+ buttons nor

the CHANNEL SCAN button.

•Channels to which a station has not been preset are automatically set to be skipped.

Press MENU

to select

MANUAL CH

PRESET

Press MENU –/+.

The sub-menu is displayed.

Press MENU

to select

SKIP

•The channel No. is displayed as a PR No.

Press MENU –/+ to select the channel

you want to skip.

Press VOLUME –/+ to select

YES

The channel you selected is set to be skipped.

To cancel the Skip:

select

Repeat steps 4 and 5 if you want to set another channel to skip.

Press DISPLAY to turn the display off.

MENU 3

AUTO CH PRESET

MANUAL CH PRESET

LANGUAGE ENGLISH

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

MANUAL

FINE

SKIP NO

SOUND SYSTEM B/G

EXIT

SELECT BY PR 1 VL

PROGRAM BY -+ EXIT BY

SEARCH BY VOL-+

DISPLAY

MANUAL

FINE

SKIP NO

SOUND SYSTEM B/G

EXIT

SELECT BY PR 1 VL

PROGRAM BY -+ EXIT BY

YES/NO BY VOL-+

DISPLAY

Channel

No.

MANUAL

FINE

SKIP YES

SOUND SYSTEM B/G

EXIT

SELECT BY PR 5 VL

PROGRAM BY -+ EXIT BY

YES/NO BY VOL-+

DISPLAY

LCT1039-001A-H 7/5/1, 4:48 PM8

Black

Press the POWER button to

turn your TV on.

•If your TV does not turn on, press the

Main power button on the TV then

press the POWER button again.

•You can also turn on your TV by

pressing any of the following buttons;

–the CHANNEL –/+ button

–the Number buttons

–the TV/VIDEO button

Select a channel.

■Press the CHANNEL –/+

button.

•Up/down selection cannot be selected

for channels to which the Skip has

been set to

YES

. (See page 8.)

■Press the Number buttons

to enter the channel

number.

•If you want to enter a two-digit

number, press the -/-- button to select

the two digit mode “--”, then enter the

channel number.

If the colour is abnormal:

Repeatedly press the COLOUR

SYSTEM button to select the

appropriate colour system. For

details, see “Colour System”on

page 10.

Press VOLUME –/+ to adjust

the sound.

If the sound is abnormal:

Repeatedly press the SOUND

SYSTEM button to select the

appropriate sound system. For

details, see “Sound System”on

page 10.

To turn your TV off, press

POWER.

•We recommend that you press the

Main power button on the TV to turn

the main power off if you do not plan

to use your TV for a long time or if you

wish to save energy.

Viewing Images from an

External Device:

Press the TV/VIDEO button to

select the VIDEO mode.

•You can also use the Input function to

select the VIDEO mode. For details,

refer to page 13.

Basic operation

POWER

123

456

789

RETURN+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

ECO

SENSOR

DISPLAY

CHANNEL

REMOTE CONTROL UNIT

RM-C364GY

VOLUME

MUTING

SOUND

LCT1039-001A-H 7/5/1, 4:48 PM9

Black

Remote control buttons and functions

Colour System

If the colour is abnormal, select the

appropriate colour system. Each press

of the COLOUR SYSTEM button

changes the colour system as follows.

In TV mode (channel 1 to 99 and

AV):

AUTO PAL SECAM

In VIDEO mode:

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•For the colour systems in each country or

region, see the table “Broadcasting

Systems”on page 19.

•If the colour is abnormal even though you

selected

AUTO

, change the appropriate

colour system manually.

Sound System

If the sound is abnormal, select the

appropriate sound system. Each press

of the SOUND SYSTEM button

changes the sound system as follows.

B/G I D/K

•For the sound systems in each country or

region, see the table “Broadcasting

Systems”on page 19.

•You cannot select any sound system

when in VIDEO mode.

Picture Mode

You can select one of three picture

adjustment modes.

Repeatedly press the PICTURE

MODE button to select the desired

mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing the PICTURE MODE button

returns all the picture settings in the

MENU 4

menu to their default settings.

LCT1039-001A-H 7/5/1, 4:48 PM10

Black

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC LT-43C888 Bedienungsanleitung

JVC

JVC AV-28GT1BJF, AV-28GT1SJF Bedienungsanleitung

JVC

JVC LT-22HD32U Bedienungsanleitung

JVC

JVC AV-30W475 Bedienungsanleitung

JVC

JVC AV-21F1EG Bedienungsanleitung

JVC

JVC AV-28X5BU Bedienungsanleitung

JVC

JVC AV-21QS5SE Bedienungsanleitung

JVC

JVC InteriArt AV-21QT4BU Bedienungsanleitung

JVC

JVC AV-32F475/Y Bedienungsanleitung

JVC

JVC AV-21KM3SN Bedienungsanleitung

JVC

JVC AV-21D33, AV-20N33, AV-14F33, Bedienungsanleitung

JVC

JVC LT-32X676 Bedienungsanleitung

JVC

JVC AV-28BH8EPB Bedienungsanleitung

JVC

JVC AV-21F4EE Bedienungsanleitung

JVC

JVC AV-36F802/Y Bedienungsanleitung

JVC

JVC AV-2100QE Bedienungsanleitung

JVC

JVC AV-29V514 Bedienungsanleitung

JVC

JVC AV 27260 Bedienungsanleitung

JVC

JVC AV-27530/SC Bedienungsanleitung

JVC

JVC AV-14F43, AV-20N43, AV-21D43 Bedienungsanleitung

JVC

JVC AV29A10EUS Bedienungsanleitung

JVC

JVC AV-29BH11ENS Bedienungsanleitung

JVC

JVC LT-55C760 Bedienungsanleitung

JVC

JVC LT-40C590 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
