COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-2112Y1

AV-2111Y1

Contents

Safety precautions 2

Preparation 3

1 Confirm which remote control you have .. 3

2 Inserting the batteries ................................ 3

3 Connecting the aerial and external devices .. 4

4 Connecting the power cord ....................... 5

5 SETUP TOUR .............................................. 6

Basic operation 7

Remote control buttons and functions 8

PICTURE MODE button ................................. 8

COLOUR SYSTEM button ............................. 8

SOUND SYSTEM button ............................... 8

DISPLAY button ............................................. 8

CHANNEL SCAN button ................................ 8

RETURN + button .......................................... 9

MUTING button ............................................. 9

PICTURE BOOSTER button ........................... 9

OFF TIMER button ......................................... 9

Viewing teletext programmes 10

Using the TV’s menus 12

Basic operation ............................................ 12

INPUT ........................................................... 13

ON TIMER ..................................................... 13

AUTO SHUTOFF .......................................... 14

CHILD LOCK ................................................. 14

BLUE BACK .................................................. 14

AUTO CH PRESET ....................................... 15

SETUP TOUR ............................................... 15

LANGUAGE .................................................. 15

MANUAL CH PRESET .................................. 16

SKIP .............................................................. 17

Picture Adjustments .................................... 17

TV buttons and parts 18

Using the buttons on the TV 19

Troubleshooting 20

Specifications 21

GGT0008-2112Y1-E701_Cover 11/7/03, 9:01 am3

Safety precautions

WARNING

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES REGARDING

THE USE OF THIS TV.

•Operate only from the power source specified on the TV.

•Avoid damaging the power cord and main plug. When you unplug the TV, pull it out

by the main plug. Do not pull on the power cord.

•Never block or cover the cabinet

openings for ventilation. Never install

the TV where good ventilation is

unattainable. When installing this TV,

leave spaces for ventilation around the

TV more than the minimum distances

shown in the diagram.

•Do not allow objects or liquid into the

cabinet openings.

•In the event of a fault, unplug the TV and bring to JVC service centre. Do not attempt

to repair it by yourself or remove the rear cover.

• The surface of the TV screen is easily damaged. Be very careful with it when

handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any cleaner or detergent on it.

•When you don’t use this TV for a long period of time, be sure to disconnect the

power plug from the AC outlet.

• The apparatus shall not be exposed to dripping or splashing and that no objects filled

with liquids, such as vases, shall be placed on the apparatus.

15 cm

10 cm 15 cm10 cm

*GGT0008-2112Y1-E701 11/7/03, 9:03 am2

Preparation

1Confirm which remote control you have

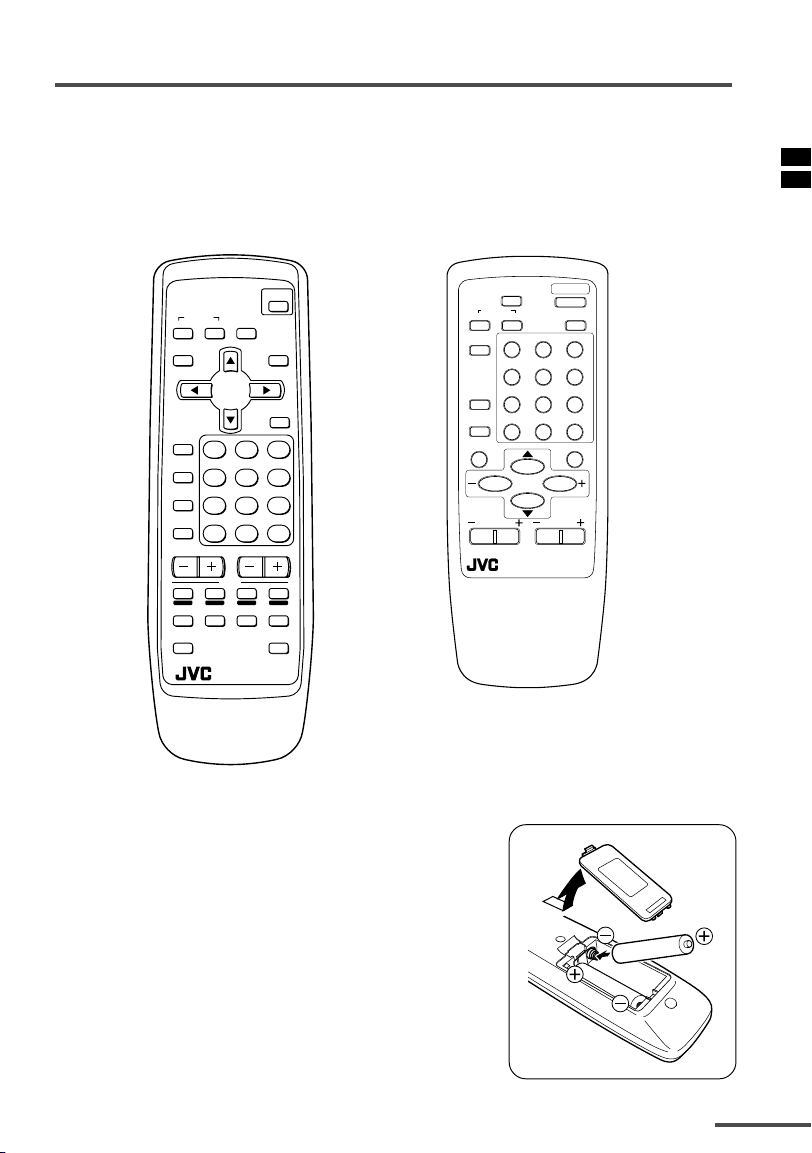

Your TV comes with one of the two remote controls shown below. Functions you

can operate differ depending on the type of remote control.

RM-C92 RM-C375GY

AV-2112Y1 AV-2111Y1

OFF

TIMER


MODE

CHANNEL

SCAN

REVEAL

SUBPAGE CANCEL

TEXT

HOLD

RM-C92

INDEX SIZE

SYSTEM

COLOUR SOUND MUTING

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

TV/TEXT

VOLUME

123

456

789

0-/--


BOOSTER

POWER

123

456

789

RETURN

+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER


BOOSTER

DISPLAY

VOLUME

MUTING

SOUND

CHANNEL

RM-C375GY

2Inserting the batteries

Correctly insert two batteries, observing the ,and .

polarities and inserting the .end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly, fit new batteries.

The supplied batteries are for testing, not regular use.

*GGT0008-2112Y1-E701 11/7/03, 9:03 am3

Preparation

3Connecting the aerial and external devices

•For further details, refer to the manuals provided with the devices you are connecting.

•Connecting cables are not supplied.

•The front and rear AUDIO/VIDEO input jacks are directly connected so that input to either

jack is output through both. You cannot provide input to both the front and rear jacks at

the same time. Disconnect one input, or use one of the jacks as an output jack only (for

monitoring or recording).

■Connecting the aerial and VCR

Connecting the aerial

To RF

output

To video

output

To aerial input

To audio

output

VCR

VHF/UHF outdoor aerial

VIDEO AUDIO

OUT

Connecting the aerial and VCR

VHF/UHF outdoor aerial

VIDEO AUDIO

OUT

*GGT0008-2112Y1-E701 11/7/03, 9:03 am4

Preparation

■Connecting other external devices

•Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

VIDEO AUDIO

OUT

VCR (for recording)

VCR (for playing)

To audio

output

To video

output

To audio

input

To video

input

VIDEOIN

AUDIO MENU

To audio

output

To video

output

Headphones

Camcorder

TV game

4Connecting the power cord

Connect the power cord to the AC outlet.

Operate only from the power source indicated on the rear of the TV.

*GGT0008-2112Y1-E701 11/7/03, 9:03 am5

Preparation

5SETUP TOUR

When the TV is first turned on, it enters the SETUP TOUR mode, and the JVC logo

is displayed. Follow the instructions on the on-screen display to perform the SETUP

TOUR.

• In case of resetting that the reason for such as removal, you can set the AUTO CH PRESET

function on the “MENU 3” menu. For details, see page 15.

When all the TV channels that can be

received on your TV have been

preset, the display goes out and the

AUTO PROGRAMMING function

operation is completed.

• If a TV channel you want to view is not

set to the channel, set it with the

MANUAL CH PRESET function. For

details, see page 16.

4 Upon the completion of

AUTO PROGRAMMING

function, the message below is

displayed.

SETUP TOUR

THANK YOU!

POWER lamp Main power button

ON TIMER

OFF

TIMER

SYSTEM

COLOUR SOUND

MUTING

DISPLAY

TV/VIDEO

123

DISPLAY

button

MENU t

buttons

CHANNEL –/+

buttons


MODE

CHANNEL

SCAN

CHANNEL

RETURN+

VOLUME

456

789

0-/--

TV/TEXT


BOOSTER

1Press the Main power button

on the TV.

The POWER lamp lights. After the

JVC logo has been displayed, the TV

automatically switches to the

language setting mode.

SETUP TOUR

2Press the CHANNEL –/+ or the

buttons to select

the on-screen language.

SETUP TOUR

LANGUAGE

ENGLISH

EXIT BY

OPERATE BY -+

DISPLAY

3The AUTO PROGRAMMING

function will start and the

indicator blinks.

STOP BY

SETUP TOUR

NOW PROGRAMMING

•To stop the AUTO PROGRAMMING

function, press the CHANNEL mor the

buttons.

*GGT0008-2112Y1-E701 11/7/03, 9:03 am6

Basic operation

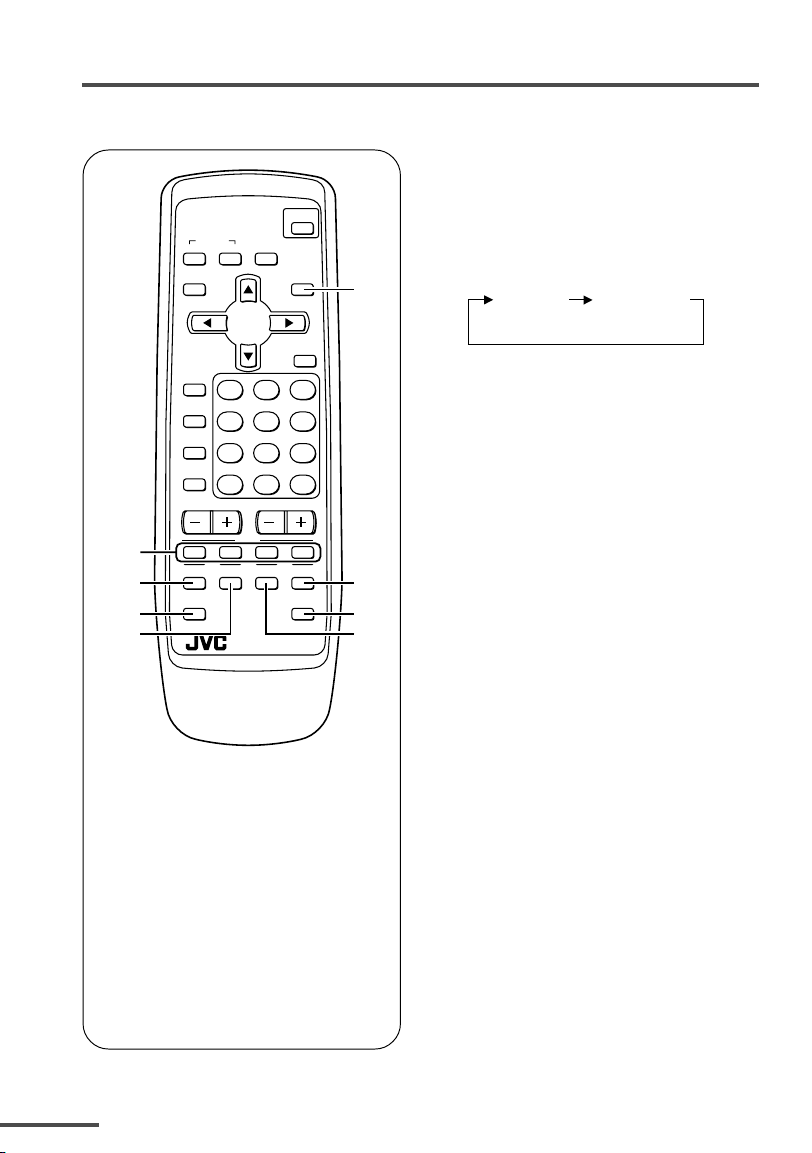

The illustration below is for the remote

control RM-C375GY. Your remote

control may not look exactly like the

illustration.

POWER

123

456

789

RETURN+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER


BOOSTER

DISPLAY

CHANNEL

RM-C375GY

VOLUME

MUTING

SOUND

1Press the POWER button to

turn your TV on.

•If your TV does not turn on, press the

Main power button on the TV then press

the POWER button again.

•You can also turn on your TV by

pressing any of the following buttons;

-the CHANNEL mbutton

-the Number buttons

-the TV/VIDEO button

2Select a channel.

■Press the CHANNEL mbutton.

•Up/down selection cannot be selected

for channels to which the SKIP has

been set to “YES”. See page 17.

■Press the Number buttons to enter

the channel number.

•If you want to enter a two-digit

number, press the -/-- button to select

the two digit mode “--”, then enter the

channel number.

3Press the VOLUME Mbutton

to adjust the sound.

4To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the

main power off if you do not plan to use

your TV for a long time or if you wish

to save energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see page 8.

If the sound is not clear:

Press the SOUND SYSTEM button to

select another sound system, see page 8.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to

select the VIDEO mode. For details, refer to

page 13.

*GGT0008-2112Y1-E701 11/7/03, 9:03 am7

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

B/G D/K

• For the sound systems in each country or

region, see the table “Broadcasting systems”

on page 21.

•You cannot select any sound system when

in a VIDEO mode.

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a channel or VIDEO mode

with no signal, indication of the VIDEO

mode becomes fixed on the screen.

CHANNEL SCAN button

You can quickly view all TV channels

programmes that you can view on your

TV, and search for the programme you

want to view.

1Press this button to start scanning

TV channels.

The TV channel programmes are each

displayed for several seconds.

• The programmes of TV channels for

which the SKIP function is set to “YES”

are not displayed. (See page 17.)

2When you find the programme you

want to view, press this button

again to stop scanning.

Remote control buttons and functions

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standarizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture

settings in the “MENU 4” to their default

settings.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour

system to another colour system.

Press this button to select the colour

system.

In TV mode (channel 1 to 99 and AV):

AUTO PAL SECAM

In VIDEO mode:

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•For the colour system in each country or

region, see the table “Broadcasting systems”

on page 21.

•If the picture is not normal in the AUTO

mode, change the AUTO mode to another

colour system.

*GGT0008-2112Y1-E701 11/7/03, 9:03 am8

PICTURE BOOSTER button

When the picture is unclear because the

reception level of the TV signal is low,

activating the Picture Booster improves

the picture clarity in some situations.

Repeatedly press the PICTURE BOOSTER

button to select the desired mode.

HIGH:

The Picture Booster is functioning at

maximum.

LOW:

The Picture Booster is functioning at

minimum.

OFF:

The Picture Booster is off.

•If the picture becomes abnormal when you

set the Picture Booster to HIGH, then set it

to LOW or OFF.

OFF TIMER button

You can set the TV to automatically turn

off after a set time.

Press this button to select the period

of time.

•You can set the period of time to a

maximum of 120 minutes in 10 minute

increments.

•1minute before the OFF TIMER function

turns off the TV, “GOOD NIGHT!” appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function,

press this button to set the period of

time to “0”.

•The OFF TIMER function will not turn off

the TV’s main power.

Remote control buttons and functions

RETURN + button

You can set a channel you frequently

view to the Return Channel and you can

view that channel at any time with

one-touch.

To set the channel to the Return

Channel:

1Select the channel you want to set

to the Return Channel.

2Press this button and hold until the

message “RETURN PLUS

PROGRAMMED!” appears.

•When you turn off the TV, the Return

Channel setting is canceled.

To view the Return Channel:

Press this button.

•You can view two channels (current channel

and Return Channel) alternately by pressing

this button.

To view the Return Channel setting:

Press this button and hold until the

message “RETURN PLUS CANCELLED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

*GGT0008-2112Y1-E701 11/7/03, 9:03 am9

1TV/TEXT button

2Coloured buttons

3REVEAL button

4SUBPAGE button

5HOLD button

6SIZE button

7CANCEL button

8INDEX button

OFF

TIMER


MODE

CHANNEL

SCAN

REVEAL

SUBPAGE CANCEL

TEXT

HOLD

RM-C92

INDEX SIZE

SYSTEM

COLOUR SOUND MUTING

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

TV/TEXT

VOLUME

123

456

789

0-/--


BOOSTER

<AV-2112Y1 only> ■Basic operation

1Select a TV channel with a

teletext programme.

2Press the TV/TEXT button to

change the TV mode to the

teletext mode.

TV mode TEXT mode

(TEXT only)

3Select a teletext page by

pressing the CHANNEL –/+

button, number buttons or

coloured buttons.

To return to the TV mode, press the

TV/VIDEO button or the TV/TEXT

button.

•If you have trouble receiving teletext

broadcasts, consult your local dealer or

the teletext station.

Viewing teletext programmes

*GGT0008-2112Y1-E701 11/7/03, 9:03 am10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-21QT19 Bedienungsanleitung

JVC

JVC AV-28WFT1EPG Bedienungsanleitung

JVC

JVC AV-27F734/SA Bedienungsanleitung

JVC

JVC AV-28GT15UF Bedienungsanleitung

JVC

JVC AV-27750 Bedienungsanleitung

JVC

JVC AV-16KG21 Bedienungsanleitung

JVC

JVC AV-2956BE Bedienungsanleitung

JVC

JVC AV-14F3 Bedienungsanleitung

JVC

JVC InteriArt AV32S2EK Bedienungsanleitung

JVC

JVC AV-20N43 Bedienungsanleitung

JVC

JVC AV-21MT16 Bedienungsanleitung

JVC

JVC AV-28ED5BN, AV-28ED5SN Bedienungsanleitung

JVC

JVC Emerald EM32T Bedienungsanleitung

JVC

JVC AV-2106BE, AV-21B16/L, AV-21BMG6B Bedienungsanleitung

JVC

JVC AV-N29F45/S Bedienungsanleitung

JVC

JVC PD-42V31BJE Bedienungsanleitung

JVC

JVC AV-29BH11EPS Bedienungsanleitung

JVC

JVC AV 20D202 Bedienungsanleitung

JVC

JVC AV 32320 Bedienungsanleitung

JVC

JVC Select Series Bedienungsanleitung

JVC

JVC AV-28RT4SU Bedienungsanleitung

JVC

JVC LT-42ED82G Bedienungsanleitung

JVC

JVC AV-14A10 Bedienungsanleitung

JVC

JVC AV-14F3PX Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
