COLOUR TELEVISION

INSTRUCTIONS

AV-29Q317B

AV-29RXP8

AV-29S357

AV-21Q317B

AV-21R318

AV-21RXP8

AV-21S357

The illustrations of AV-29S357 is used in this instruction manual for explanation

purpose. Your TV may not look exactly the same as illustrated.

This illustration shows AV-29S357.

GGT0158-001B-E-EN.indd 1GGT0158-001B-E-EN.indd 1 19-09-07 09:10:4019-09-07 09:10:40

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

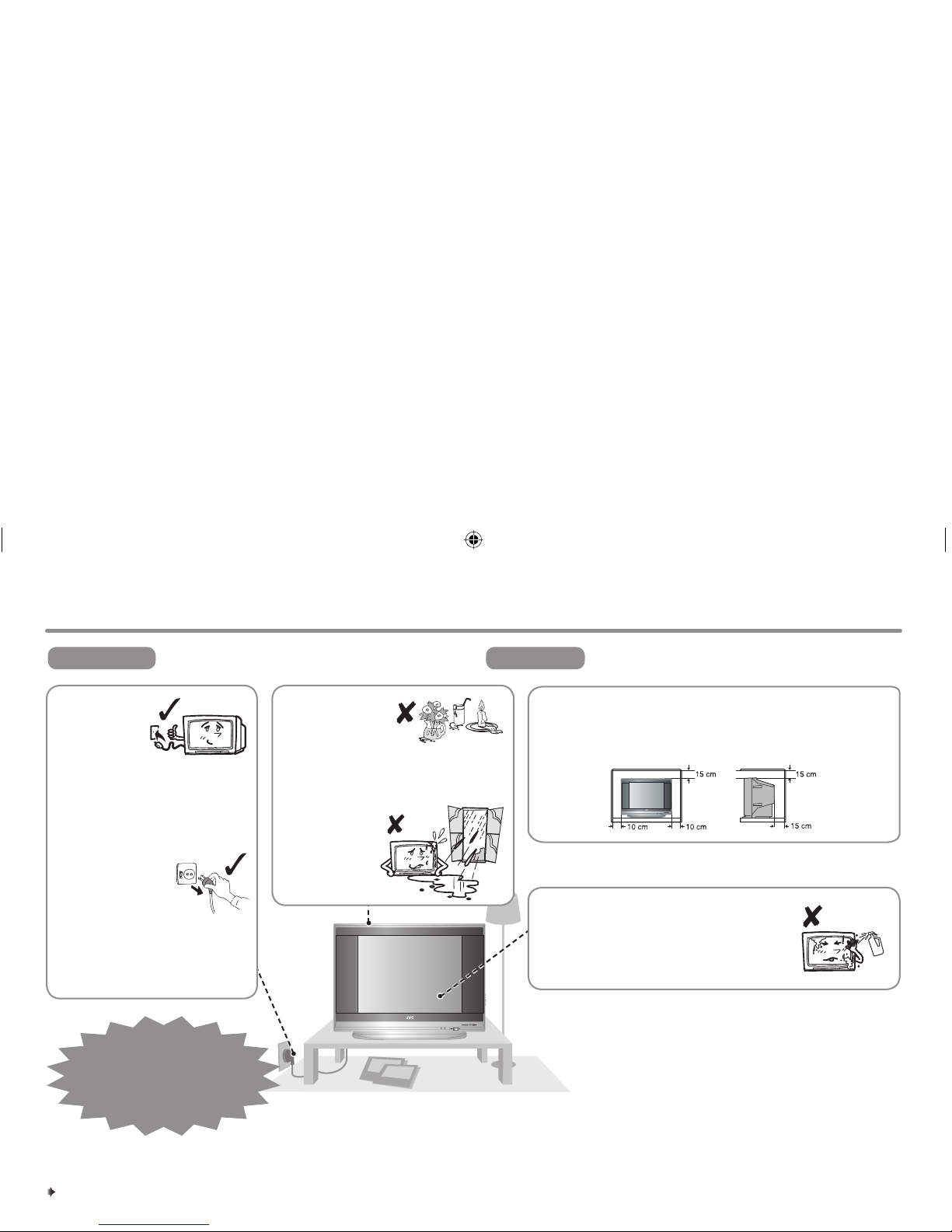

CAUTION TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF

THIS TV.

• Operate only

from the

power source

indicated on

the rear of the

TV.

• Avoid damaging the power

cord and mains plug. When

unplugging the TV, grasp the

mains plug. Do not pull on the

power cord.

• This TV can be

turned on/off power

by connecting/

disconnecting the

AC plug into AC outlet. While this

TV is being installed, enough

space should be reserved for

connection/disconnecting the AC

plug into AC outlet by hand.

WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

• Never block or cover the ventilation openings.

• Never install the TV where good ventilation is unattainable.

• When installing this TV, leave spaces for ventilation around

the TV of more than the minimum distances as shown.

• The apparatus

shall not be

exposed to

dripping or

splashing and that no objects filled

with liquids, such as vases, shall be

placed on the apparatus.

• Do not allow

objects or liquid

into the cabinet

openings.

• The surface of the TV screen is easily

damaged. Be very careful with it when

handling the TV. Should the TV screen

become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any

cleaner or detergent on it.

In the event of a

fault, unplug the unit and

call a service technician. Do

not attempt to repair it yourself

or remove the

rear cover.

GGT0158-001B-E-EN.indd 2GGT0158-001B-E-EN.indd 2 19-09-07 09:10:4619-09-07 09:10:46

Knowing your TV’s features Contents

Knowing your TV’s features...................3

Connections ..........................................4

Initial settings.........................................5

Remote control buttons and basic

functions ................................................6

TV buttons and functions.......................7

Operating the menus.............................7

Picture setting........................................9

Picture in picture (PIP) operation ........11

Sound setting ......................................11

Customized setting..............................13

TV channel presetting .........................15

Troubleshooting...................................17

Specifications ......................................18

PREPARATION FUNCTIONS REFERENCE

Function

Please see the chart below and check the function are equipped for your TV's model number.

The model number is indicated at the rear of your TV. When you press a button concerned to a function

that is not available for your TV, it does not work and the logo "Ø" appears on the screen.

Model No.

Function

AV-29Q317B

AV-29RXP8

AV-29S357

AV-21Q317B

AV-21R318

AV-21RXP8

AV-21S357

PIP control buttons (Green label) – ••––••

PICTURE TILT •••––––

MaxxBass – ••–•••

AI ECO SENSOR – ••–•••

ECO MODE •––•–––

PICTURE BOOSTER •–•••–•

Features Descriptions

DVD MENU Just connect DVD player to the television. The television will detect DVD signal and

display picture on the screen automatically and you can adjust pictures and sound while

you are watching DVD as your desire. When disconnect DVD player, the television will

display the previous channel.

MaxxBass MaxxBass enhances bass sound that cannot be reproduced by normal speakers to be

heard by our ears.

PIP (Picture in Picture) You can view two screens (Main picture and Sub picture) at the same time.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

AI ECO SENSOR TV detects the brightness of your room and automatically adjust the picture brightness to

a suitable level for a better eyecare.

ECO MODE You can adjust TV screen contrast according to the brightness of your room to suitable

level for a better eyecare.

AI VOLUME TV adjusts the volume automatically for all TV channels to avoid sudden change of the

volume when selecting different TV channels or selecting Video Mode.

TINT You can adjust TINT setting for all colour systems, including PAL.

Note : Some functions written in this instruction manual may not be available for your TV.

GGT0158-001B-E-EN.indd 3GGT0158-001B-E-EN.indd 3 19-09-07 09:10:4819-09-07 09:10:48

RVL/MONO

IN(VIDEO-3)

The illustration of AV-29S357 is shown here for explanation purpose. Your TV may not look exactly the same as illustrated.

CAUTION

Ensure to turn off all equipments including the TV before connecting the AC mains plug to the AC outlet.

Connections

After all the connections have been made,

insert the mains plug to the AC outlet.

• When connecting to COMPONENT (VIDEO-2) input,

depending on the connection, choose the appropriate

video input using the menu (\page 14).

Connecting to the front video input terminal

Connecting to the rear component/video

input terminal and output terminal

75-ohm

coaxial cable

(not supplied)

VHF/UHF

outdoor

aerial

Rear of VCR

Camcorder or TV game

Headphones

DVD player

(with component

video signals

input)

VCR (for playing)

DVD player

(composite signals)

VCR (for recording)

Connecting to the aerial cable and VCR

(Connect

directly if not

using a VCR)

Aerial cable RF output

Video output

(Connect via a VCR)

Audio output

S-video output

RF input

TV rear terminals

GGT0158-001B-E-EN.indd 4GGT0158-001B-E-EN.indd 4 19-09-07 09:10:4819-09-07 09:10:48

AUTO PROGRAM

OK / : EDIT

22%

%$)4

-/6%

02  #(##

  #(

  #(

  #(

  #(

  #(

  #(

 -%.5%8)4

).3%24

$%,%4%

-!.5!,

PREPARATION

Initial settings

1or wait 15 seconds to

run Setup Tour

2,!.'5!'%

/+3%,%#4

$)30,!9"!#+

-%.5%8)4

%.',)3(

Vieät

To stop or wait until AUTO PROGRAM

finishes

Select a language

Searching for the channels (AUTO PROGRAM)

4Edit the channel list

To complete

Setup Tour

To edit the

channel list,

\page 15.

JVC logo appears

1Select

2Confirm

Turn on the TV

To restart Setup Tour after above setup has completed

(while the cursor is pointing to

PICTURE MODE and within 3

seconds)

GGT0158-001B-E-EN.indd 5GGT0158-001B-E-EN.indd 5 19-09-07 09:10:5119-09-07 09:10:51

Remote control buttons and basic functions

Turn the TV on from standby and vice versa

Programme and recall 4 favourite channels

(colour buttons: red, green, yellow, blue)

Choose the TV channel you wish to programme

Press and hold

any button

PROGRAMMED! ■

Repeat to programme another favourite channel.

To recall the favourite channel, press the

corresponding colour button.

• When the TV is in Text function or MENU mode, the

favourite channel function is not available.

• When the TV is in PIP function, the favourite channel

function cannot be programmed but can recall the

favourite channel.

TV or video terminal input selection, Exit from the menu

Turn the volume Off / On

Programme number selection

For two digits :

Adjust the volume level, Turn off Muting

• Display the programme or video terminal number and

stereo/bilingual broadcast system.

• To return to the previous menu

Channel selection

Select the desired channel number.

For Hyper Scan

Press and hold

RETURN PLUS function

Return to the frequently viewed channel.

Choose the channel you want to programme

Press and hold

RETURN PLUS

PROGRAMMED!

To cancel

Press and hold

RETURN PLUS

CANCELED!

RETURN function

If you have not set or have canceled the RETURN PLUS

channel, this will return to the previously viewed channel. PR changes without changing the

picture. Once you stop pressing

CHANNEL+ or CHANNEL– button,

picture will change to the desired PR.

Operating the menus (\page 7)

• Insert two batteries by following the

and polarities and inserting the end

first.

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work

properly, fit new batteries. The supplied

batteries are for testing, not regular use.

GGT0158-001B-E-EN.indd 6GGT0158-001B-E-EN.indd 6 19-09-07 09:10:5619-09-07 09:10:56

PREPARATION

TV buttons and functions

Operating the menus

To display the

MENU.

To select a Top menu. To select a second menu. To select, adjust or

choose the setting of a

function.

When the cursor is at MENU. To display

other pages.

To return to

the previous

menu.

TOP menuMENU 2nd menu 3rd menu

SET UP menuMENU EDIT/MANUAL EDIT

Example:

To select for go to third

menu.

Depend to the on screen

guide.

Select

Adjust

To exit.

Select

Depend to the on screen

guide.

or Select

Video and audio

input jacks for

VIDEO-3 mode

Remote control sensor TV’s main power on/off

Power lamp - Indicates the TV’s status.

No colour: TV’s main power is being turned off.

Red: TV’s main power is turned on.

Blink: While the TV is in standby mode, ON TIMER function is in used.

While the TV is in turn on mode, OFF TIMER function is in used.

Note: When you turn off the power switch while TV is in standby mode,

the power lamp will go off in 5-10 seconds. When you operate the

TV, POWER Lamp will blink.

ECO sensor

Headphone jack

The illustration of AV-29S357 is shown here for explanation purpose. Your TV may not look exactly the same as illustrated.

Display the menu and exit after finish setting

Channel selection, To select menu function

Volume level adjustment, To choose a Top

menu and adjust the desired menu function

TV or Video terminal input selection,

Exit from the menu

GGT0158-001B-E-EN.indd 7GGT0158-001B-E-EN.indd 7 19-09-07 09:11:0119-09-07 09:11:01

Operating the menus (continued)

You can use the DVD MENU by switch channel to VIDEO-2 or press the DVD MENU button on the remote control. See the menus location in the below table.

For RF / Video-1 / Video-3 (MENU) For Video-2 (DVD MENU)

Top menu Page 2nd menu 3rd menu / Adjustments 3rd menu / Adjustments

9 PICTURE MODE USER / VIVID / SOFT

DVD THEATER STATUS set to OFF : USER / SHARP / CLEAR / VIVID / SOFT

DVD THEATER STATUS set to ON : USER / SHARP / CLEAR


10 PICTURE SETTING

PICTURE MODE set to USER : CONTRAST / BRIGHT/ SHARP/

COLOUR / TINT

PICTURE MODE set to SOFT or VIVID:–

PICTURE MODE set to USER : CONTRAST / BRIGHT/ SHARP / COLOUR / TINT

PICTURE MODE set to SHARP or CLEAR or SOFT or VIVID : –

9 WHITE BALANCE NORMAL / COOL / WARM DVD THEATER STATUS set to OFF : NORMAL / COOL / WARM

DVD THEATER STATUS set to ON : –

DVD MENU


13 VNR

(Only available in RF, VIDEO-1 and VIDEO-3)

OFF / AUTO / MIN / MAX –

9 PICTURE BOOSTER OFF / HIGH / LOW –

13 AUTO SIGNAL DETECT

(Only available in VIDEO-2) – ON / OFF

13 DVD THEATER STATUS

(Only available in VIDEO-2) – ON / OFF

12 AI VOLUME ON / OFF ON / OFF

SOUND

12 SOUND MODE USER / MUSIC / CINEMA / NEWS USER / MUSIC / CINEMA / DRAMA

EQUALIZER (SOUND MODE set to USER

and CINEMA SURROUND set to OFF only)

Adjust the sound level of each frequencies. Adjust the sound level of each frequencies.

DVD MENU

SOUND

12 BALANCE Left Stronger / Right Stronger Left Stronger / Right Stronger

11 CINEMA SURROUND ON / OFF ON / OFF

11 MaxxBass OFF / HIGH / LOW OFF / HIGH / LOW

14 ON TIMER Set timer for turn on the TV Set timer for turn on the TV

14 OFF TIMER Set timer for turn off the TV Set timer for turn off the TV

14 CHILD LOCK ON / OFF ON / OFF

9 COMPRESS (16:9 ) ON / OFF ON / OFF

FEATURES

10 AI ECO SENSOR or

ECO MODE

OFF / MODE-1 / MODE-2 / DISPLAY or

OFF / ECO-1 / ECO-2

DVD THEATER STATUS set to OFF : OFF / MODE-1 / MODE-2 / DISPLAY or

OFF / ECO-1 / ECO-2

DVD THEATER STATUS set to ON : –

14 VIDEO-2 SETTING VIDEO / COMPONENT VIDEO / COMPONENT

9 PICTURE BOOSTER HIGH / LOW / OFF HIGH / LOW / OFF

10 BLUE BACK ON / OFF ON / OFF

10 PICTURE TILT Tilt the picture. Tilt the picture.

14 BEEP ON / OFF ON / OFF

15 AUTO PROGRAM Register the TV channel. Register the TV channel.

15 EDIT / MANUAL MOVE / INSERT / DELETE / MANUAL MOVE / INSERT / DELETE / MANUAL

SET UP

9 COLOUR SYSTEM AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43

ViDEO-2 SETTING set to COMPONENT : AUTO

ViDEO-2 SETTING set to VIDEO : AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43

13 LANGUAGE Select the languages. Select the languages.

* For DVD THEATER STATUS set to ON only

GGT0158-001B-E-EN.indd 8GGT0158-001B-E-EN.indd 8 19-09-07 09:11:0419-09-07 09:11:04

FUNCTIONS

Picture setting

COLOUR SYSTEM

You can select the appropriate colour system when the picture is not clear

or no colour appears.

AUTO →PAL →SECAM →NTSC3.58 →NTSC4.43

You can also operate this function from the menu.

SET UP menuMENU COLOUR SYSTEM

For the colour system in each country or region, see the table below:

Area Country or Region System

Asia,

Middle East

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen,

Indonesia, Malaysia, Singapore, Thailand, India, China, Vietnam,

Hong Kong, etc.

PAL

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM

Philippines, Taiwan, Myanmar, etc. NTSC

Europe Russia, etc. SECAM

Czech Republic, Poland, Germany, Holland, Belgium, UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Africa Republic of South Africa, Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

PICTURE MODE

You can choose the desired picture setting with one-touch.

USER You can change this picture setting (CONTRAST,

BRIGHT, SHARP, COLOUR, TINT) as you like.

(\PICTURE SETTING)

SHARP To sharpen this picuture.

VIVID Heightens contrast and sharpness.

SOFT Softens contrast and sharpness.

CLEAR To soften the picture.

You can also operate this function from the menu.

PICTURE menuMENU PICTURE MODE

To return the USER setting to default, press the blue button when the

PICTURE SETTING menu is displayed.

See details for the location menus in "Operating the menus" \Page 8.

PICTURE BOOSTER

You can improve picture clarity when the picture is unclear due to the low

signal reception.

PICTURE menuMENU PICTURE BOOSTER

OFF Cancel the function

HIGH Perform at maximum level.

LOW Perform at minimum level.

COMPRESS (16:9)

You can convert a normal picture (4:3 aspect ratio) into a wide picture

(16:9 aspect ratio).

(Choose ON or OFF)

FEATURES menuMENU COMPRESS (16:9)

WHITE BALANCE

You can change the white balance of the picture to better match the type

of video being viewed.

PICTURE menuMENU WHITE BALANCE

NORMAL Normal white balance

COOL Bluish white

WARM Reddish white

When DVD THEATER STATUS set to ON, WHITE BALANCE is not

available in VIDEO-2. \Page 8.

GGT0158-001B-E-EN.indd 9GGT0158-001B-E-EN.indd 9 19-09-07 09:11:0519-09-07 09:11:05

Picture setting (continued)

AI ECO SENSOR (ECO)/ECO MODE

You can automatically adjust TV screen contrast according to the

brightness of your room.

OFF

Cancel the function.

MODE-1/ECO-1

Mild contrast (recommended).

MODE-2/ECO-2

Even contrast.

DISPLAY (for Al ECO SENSOR only)

Display the graphic of the function.

You can also operate this function from the menu.

FEATURES menuMENU AI ECO SENSOR / ECO MODE

Note: Al ECO SENSOR for S and R series.

ECO MODE for Q series.

When DVD THEATER STATUS set to ON, Al ECO SENSOR / ECO

MODE is not available in VIDEO-2. \Page 8.

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the

sound if the signal is weak or absent, or when there is no input from an

antenna.

FEATURES menuMENU BLUE BACK (Choose ON or OFF)

This function is only available in RF mode.

PICTURE SETTING

You can adjust the desired picture setting when selecting USER in

PICTURE MODE.

1PICTURE menuMENU PICTURE MODE USER

2PICTURE menuMENU PICTURE SETTING

CONTRAST 2: Lower contrast 3: Higher contrast

BRIGHT 2: Darker 3: Brighter

SHARP 2: Softer 3: Higher

COLOUR 2: Lighter 3: Deeper

TINT 2: Reddish 3: Greenish

See details for the location menus in “Operating the menus” \Page 8.

Correcting the Slanting Picture (PICTURE TILT)

You can correct the picture tilt caused by the earth’s magnetic force.

1FEATURES menuMENU PICTURE TILT

The following display appears.

PICTURE TILT

DISPLAY : BACK

MENU : EXIT

2Tilt the picture

becomes level

To confirm

GGT0158-001B-E-EN.indd 10GGT0158-001B-E-EN.indd 10 19-09-07 09:11:0719-09-07 09:11:07

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-2988SE Bedienungsanleitung

JVC

JVC AV-48P575 Series Bedienungsanleitung

JVC

JVC HD-ILA TV HD-65S80DDU Bedienungsanleitung

JVC

JVC 0402-Ki-NV-JMT Bedienungsanleitung

JVC

JVC AV-1406FE Bedienungsanleitung

JVC

JVC AV-21PS Administratorhandbuch

JVC

JVC I' Art AV-27F802 Bedienungsanleitung

JVC

JVC AV-21VT11 Bedienungsanleitung

JVC

JVC AV-14F703 Bedienungsanleitung

JVC

JVC LT32P679 - 32" LCD TV Bedienungsanleitung

JVC

JVC AV-14F4 Bedienungsanleitung

JVC

JVC AV-21KT1BPF Bedienungsanleitung

JVC

JVC AV-28WFT1EPG Bedienungsanleitung

JVC

JVC AV-29JS25, AV-29MS25, AV-29MX7 Bedienungsanleitung

JVC

JVC AV28X10EK Bedienungsanleitung

JVC

JVC LT-32EX177 Bedienungsanleitung

JVC

JVC AV-20N8(BK) Bedienungsanleitung

JVC

JVC AV-21KM3BN Bedienungsanleitung

JVC

JVC LT-49K880 Bedienungsanleitung

JVC

JVC AV-21F1EG Bedienungsanleitung

JVC

JVC 0403-NIC-JMT Bedienungsanleitung

JVC

JVC AV-14A4EE Bedienungsanleitung

JVC

JVC PD-35DX, PD-42DX Bedienungsanleitung

JVC

JVC AV-29L6SU, AV-29L6BU Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
