JVC AV-21U3 Bedienungsanleitung

LCT1188-001B-H

COLOUR TELEVISION

INSTRUCTIONS

Thank you for buying this JVC

colour television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-14A3

AV-14F3

AV-1435

AV-1438

AV-20N3

AV-21D3

AV-21E3

AV-21F3

AV-21FR3

AV-21LT3

AV-21LTR3

AV-21Q3

AV-21U3

Contents

Safety precautions 2

Preparation 3

1 Confirm which remote control you have ...... 3

2 Inserting the batteries ................................... 3

Connecting the aerial and external devices ...

4 Connecting the power cord ........................ 6

5 SETUP TOUR .............................................. 6

Basic operation 7

Remote control buttons and functions 8

ECO SENSOR button ..................................... 8

PICTURE MODE button ................................. 8

COLOUR SYSTEM button ............................. 8

SOUND SYSTEM button ............................... 8

DISPLAY button ............................................. 9

RETURN + button .......................................... 9

CHANNEL SCAN button ................................ 9

MUTING button ............................................. 9

OFF TIMER button ......................................... 9

Viewing teletext programmes 10, 11

Using the TV’s menus 12

Basic operation ............................................ 12

ON TIMER ..................................................... 13

INPUT ........................................................... 13

VNR ............................................................... 14

AUTO SHUTOFF .......................................... 14

CHILD LOCK ................................................. 14

BLUE BACK .................................................. 15

AI ECO DISPLAY .......................................... 15

SETUP TOUR ............................................... 16

LANGUAGE .................................................. 16

AUTO CH PRESET ....................................... 16

MANUAL CH PRESET .................................. 17

SKIP .............................................................. 18

Picture Adjustments .................................... 18

Using the buttons on the TV 19

Troubleshooting 21

Specifications 22

LCT1188-001A-H_Cover 3/30/04, 11:51 PM3

Black

Safety precautions

WARNING

• To prevent fire or shock hazard, do not expose the TV to rain or moisture.

CAUTION

• Operate only from the power source indicated on the rear of the TV.

• Avoid damaging the power cord and mains plug. When you unplug the TV, pull it out by

the mains plug. Do not pull on the power cord.

• Never block or cover the cabinet openings for

ventilation. Never install the TV where good

ventilation is unattainable. When installing

this TV, leave spaces for ventilation around

the TV more than the minimum distances

shown in the diagram.

• Do not allow objects or liquid into the

cabinet openings.

• In the event of a fault, unplug the TV and call a service technician. Do not attempt to

repair it by yourself or remove the rear cover.

• The surface of the TV screen is easily damaged. Be very careful with it when handling

the TV. Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it

forcefully. Never use any cleaner or detergent on it.

• When you don’t use this TV for a long period of time, be sure to unplug it.

15 cm

10 cm 15 cm

10 cm

LCT1188-001A-H 3/30/04, 11:58 PM2

Black

Preparation

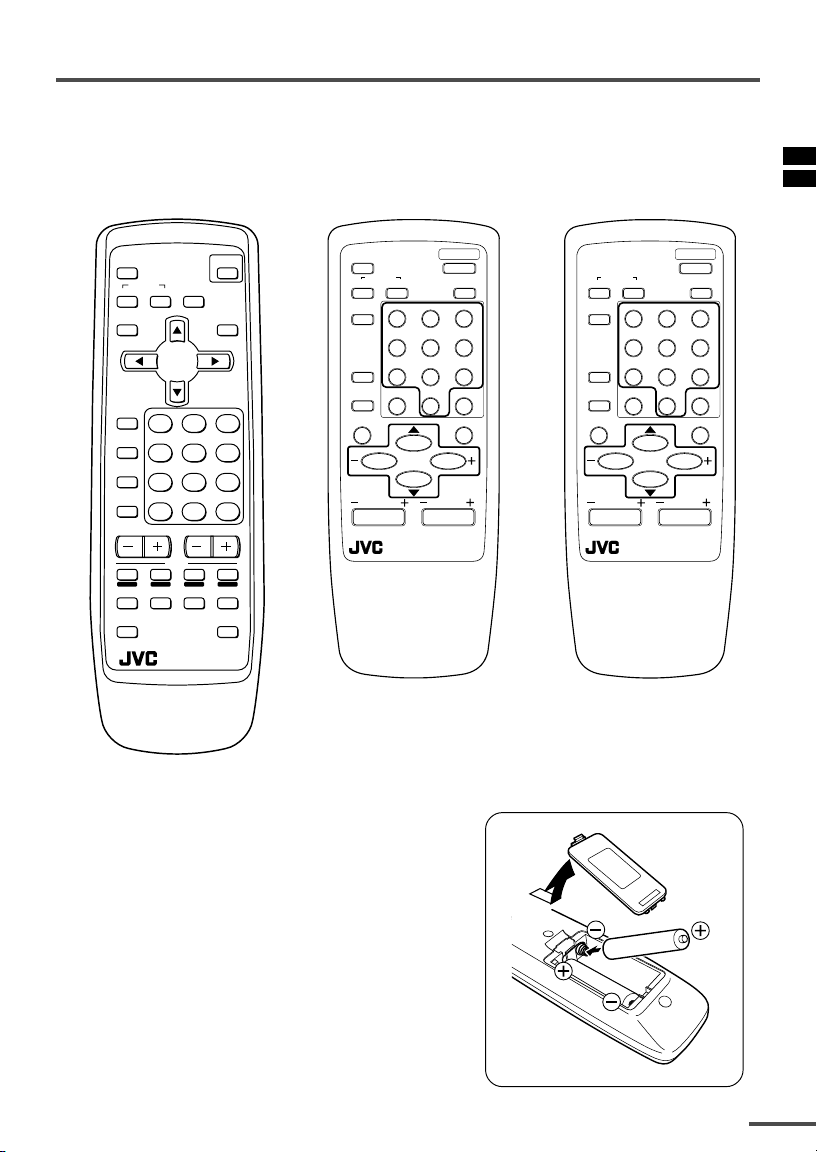

1 Confirm which remote control you have

Your TV comes with one of the three remote controls shown below. Functions you can

operate differ depending on the type of remote control.

RM-C90 RM-C364GY RM-C360GY

ECO

SENSOR

OFF

TIMER


MODE

CHANNEL

SCAN

REVEAL

SUBPAGE CANCEL

TEXT

HOLD

RM-C90

INDEX SIZE

SYSTEM

COLOUR SOUND MUTING

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

TV/TEXT

VOLUME

123

456

789

0-/--

POWER

123

456

789

RETURN+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

ECO

SENSOR

DISPLAY

VOLUME

MUTING

SOUND

CHANNEL

REMOTE CONTROL UNIT

RM-C364GY

POWER

123

456

789

RETURN+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

DISPLAY

VOLUME

MUTING

SOUND

CHANNEL

REMOTE CONTROL UNIT

RM-C360GY

2 Inserting the batteries

Correctly insert two batteries, observing the ,and

.polarities and inserting the .end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

•Use AA/R6/UM-3 dry cell batteries.

•If the remote control does not work properly, fit new

batteries.

The supplied batteries are for testing, not regular use.

LCT1188-001A-H 3/30/04, 11:58 PM3

Black

Preparation

3 Connecting the aerial and external devices

•For further details, refer to the manuals provided with the devices you are connecting.

•Connecting cables are not supplied.

•The front and rear AUDIO/VIDEO input jacks are directly connected so that input to either jack

is output through both. You cannot provide input to both the front and rear jacks at the same

time. Disconnect one input, or use one of the jacks as an output jack only (for monitoring or

recording).

•The rod aerial is supplied with the AV-14A3/AV-14F3/AV-1435/AV-1438.

■Connecting the aerial and VCR

Connecting the aerial

To install rod aerial:

Install into the top-rear aerial holder. Once installed, it cannot be removed.

• Illustration of AV-14F3.

VHF/UHF outdoor aerial

VIDEO AUDIO

OUT

Indoor aerial

Rod aerial

To RF

output

To video

output

To aerial input

To audio

output

VCR

VHF/UHF outdoor aerial

VIDEO AUDIO

OUT

•Illustration of AV-14F3.

Connecting the aerial and VCR

LCT1188-001A-H 3/30/04, 11:58 PM4

Black

VIDEO AUDIO

To audio

output

To video

output

To audio

output

To video

output

Headphones Headphones

Camcorder or TV game

Preparation

■Connecting other external devices

•Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

For AV-1438:

•Because the front AUDIO jacks are monaural, even stereo input becomes monaural.

•Illustration of AV-21D3.

VIDEO

OUT

AUDIO

VCR (for recording)

VCR (for playing)

To audio

output

To video

output

To audio

input

To video

input

•Illustration of AV-1438.

•Illustration of AV-21D3.

LCT1188-001A-H 3/30/04, 11:58 PM5

Black

Preparation

4 Connecting the power cord

Connect the power cord to the AC outlet.

Operate only from the power source indicated on the rear of the TV.

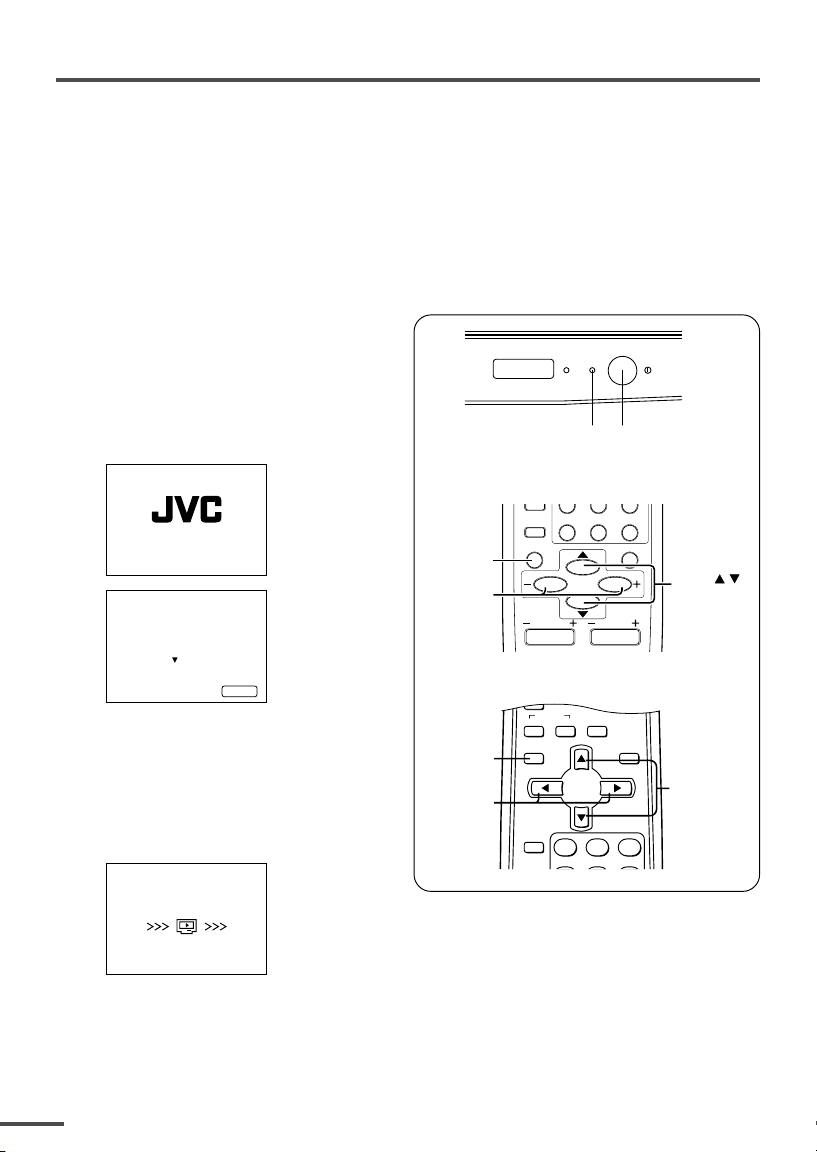

5 SETUP TOUR

When the TV is first turned on it enters the SETUP TOUR mode, and the JVC logo is

displayed. Follow the instructions on the on-screen display to perform the SETUP TOUR.

•In case of resetting that the reason for such as removal, you can set the SETUP TOUR

function on the “MENU 3”menu. For details, see page 16.

1 Press the Main power button

on the TV.

The POWER lamp or POWER/ON

TIMER lamp lights. After the JVC

logo has been displayed, the TV

automatically switches to the

language setting mode.

SETUP TOUR

EXIT BY

OPERATE BY -+

DISPLAY

SETUP TOUR

LANGUAGE

ENGLISH

2 Press the MENU Mbuttons to

select the on-screen language.

3 Press the MENU ybutton.

The AUTO PROGRAMMING function

will start and the indicator blinks.

STOP BY -+

SETUP TOUR

NOW PROGRAMMING

•To stop the AUTO PROGRAMMING function, press the MENU mbuttons.

When all the TV channels that can be received on your TV have been preset, the

display goes out and the AUTO PROGRAMMING function operation is completed.

•If a TV channel you want to view is not set to the channel, set it with the MANUAL CH

PRESET function. For details, see page 17.

TIMER POWER

POWER lamp Main power button

DISPLAY

button

MENU t

buttons

MENU m

buttons

OFF

TIMER

SYSTEM

COLOUR SOUND MUTING

DISPLAY

TV/VIDEO

TV/TEXT

123

RETURN

+0-/--

CHANNEL

SCAN

DISPLAY

VOLUME

MUTING

DISPLAY

button

MENU /

buttons

MENU –/+

buttons

CHANNEL

<RM-C360GY/RM-C364GY>

<RM-C90>

LCT1188-001A-H 3/30/04, 11:58 PM6

Black

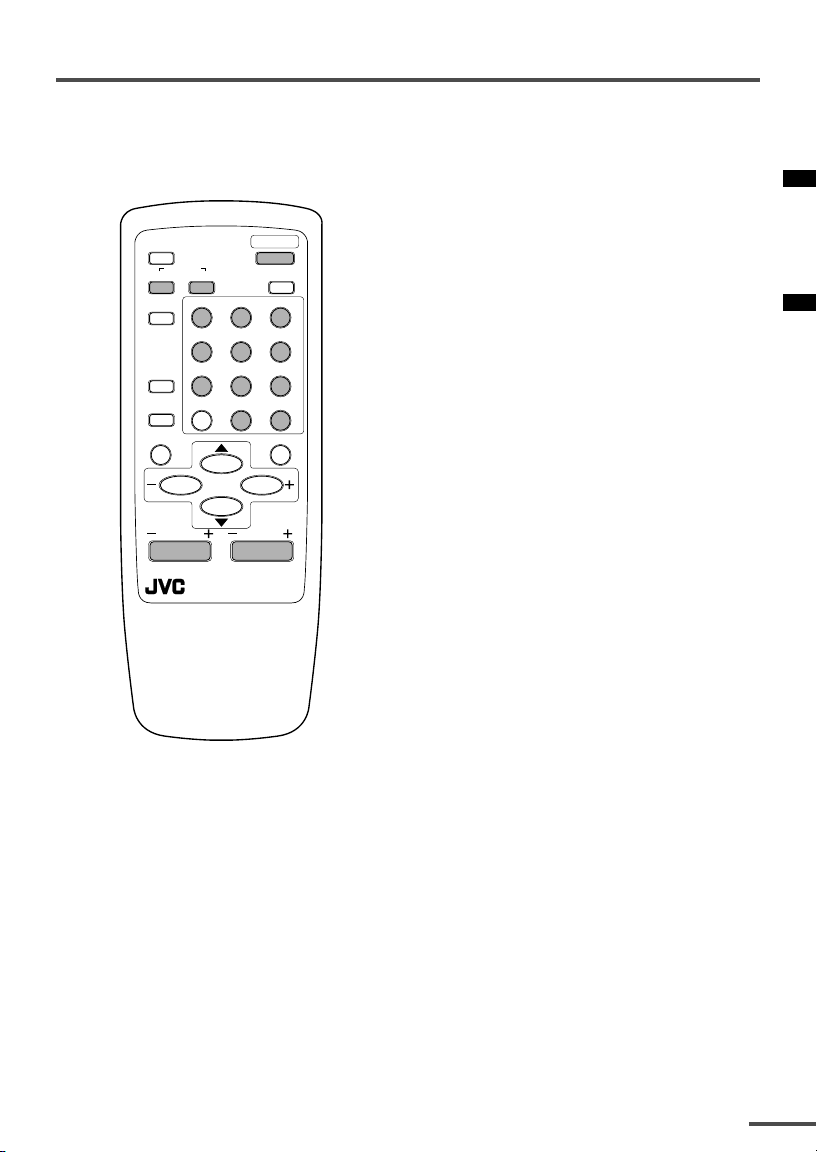

Basic operation

•The illustration below is for the remote

control RM-C364GY. Your remote control may

not look exactly like the illustrations.

POWER

123

456

789

RETURN+0-/--


MODE

SYSTEM

COLOUR

TV/VIDEO

CHANNEL

SCAN

OFF

TIMER

ECO

SENSOR

DISPLAY

CHANNEL

REMOTE CONTROL UNIT

RM-C364GY

VOLUME

MUTING

SOUND

1 Press the POWER button to turn

your TV on.

•If your TV does not turn on, press the

Main power button on the TV then press

the POWER button again.

•You can also turn on your TV by pressing

any of the following buttons;

- the CHANNEL mbutton

- the Number buttons

- the TV/VIDEO button

2 Select a channel.

■Press the CHANNEL mbutton.

•Up/down selection cannot be selected

for channels to which the SKIP has been

set to “YES”. See page 18.

■Press the Number buttons to enter

the channel number.

•If you want to enter a two-digit number,

press the -/-- button to select the two

digit mode “--”, then enter the channel

number.

3 Press the VOLUME Mbutton to

adjust the sound.

4 To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the main

power off if you do not plan to use your

TV for a long time or if you wish to save

energy.

If the picture is not clear:

Press the COLOUR SYSTEM button to

select another colour system, see page 8.

If the sound is not clear:

Press the SOUND SYSTEM button to select

another sound system, see page 8.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to select

the VIDEO mode. For details, refer to page 13.

LCT1188-001A-H 3/30/04, 11:58 PM7

Black

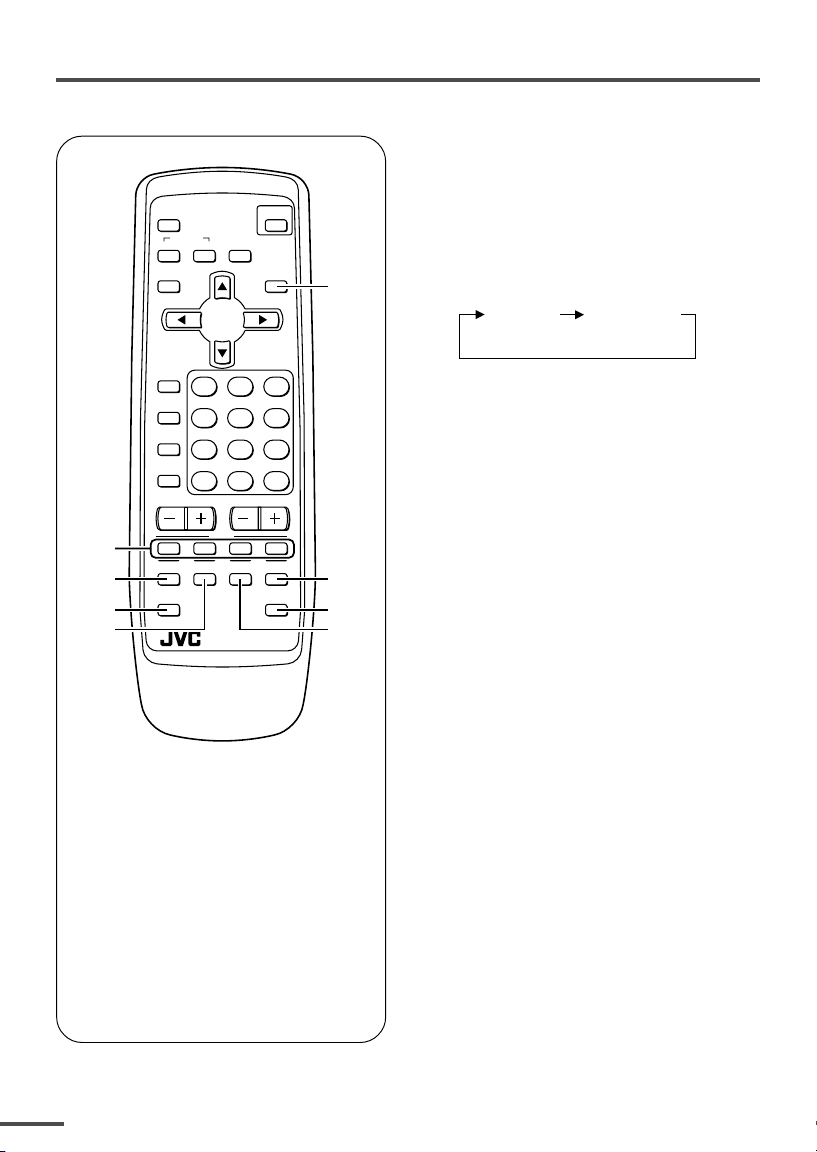

Remote control buttons and functions

ECO SENSOR button

<AV-14A3 and AV-21U3 do not have this

function.>

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of

your room. This function reduces eye

strain and the power consumption of this

TV.

Press this button to select the desired

mode.

AI ECO SENSOR 1:

The AI ECO SENSOR function switches

on.

Usually, it is recommended to watch the

TV in this mode.

AI ECO SENSOR 2:

The AI ECO SENSOR function switches

on.

If you feel the screen in the “AI ECO

SENSOR 1”mode is too dark, select this

mode.

AI ECO SENSOR OFF:

The AI ECO SENSOR function switches

off.

•You can display on the screen the effect of the

AI ECO SENSOR function.

For details, see “AI ECO DISPLAY”on page 15.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture

settings in the “MENU 4” to their default

settings.

COLOUR SYSTEM button

If the picture is not clear or no colour

appears, change the current colour system

to another colour system.

Press this button to select the colour

system.

In TV mode (channel 1 to 99 and AV):

<AV-1438>

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO PAL SECAM

In VIDEO mode:

AUTO PAL SECAM

NTSC3.58

NTSC4.43

AUTO:

Automatic colour system selection.

•For the colour systems in each country or

region, see the table“Broadcasting systems”

on page 22.

•If the picture is not normal in the AUTO

mode, change the AUTO mode to another

colour system.

SOUND SYSTEM button

If the sound is not clear even when the

picture appears normal, change the

current sound system to another sound

system.

Press this button to select the sound

system.

<AV-1438>

B/G I D/K M

B/G I D/K

•For the sound systems in each country or

region, see the table “Broadcasting systems”

on page 22.

•You cannot select any sound system when in

a VIDEO mode.

LCT1188-001A-H 3/30/04, 11:58 PM8

Black

Remote control buttons and functions

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a channel or VIDEO mode

with no input signal, indication of selected

channel or VIDEO mode becomes fixed on the

screen.

RETURN + button

You can set a channel you frequently view

to the Return Channel and you can view

that channel at any time with one-touch.

To set the channel to the Return

Channel:

1 Select the channel you want to set

to the Return Channel.

2 Press this button and hold until the

message “RETURN PLUS

PROGRAMMED!”appears.

•When you turn off the TV, the Return

Channel setting is cancelled.

To view the Return Channel:

Press this button.

•You can view two channels (current channel

and Return Channel) alternately by pressing

this button.

To cancel the Return Channel setting:

Press this button and hold until the

message“RETURN PLUS CANCELLED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

CHANNEL SCAN button

You can quickly view all TV channels

programmes that you can view on your

TV, and search for the programme you

want to view.

1 Press this button to start scanning

TV channels.

The TV channel programmes are each

displayed for several seconds.

•The programmes of TV channels for which

the SKIP function is set to “YES”are not

displayed. (See page 18.)

2 When you find the programme you

want to view, press this button

again to stop scanning.

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

OFF TIMER button

You can set the TV to automatically turn

off after a set time.

Press this button to select the period of

time.

•You can set the period of time to a maximum

of 120 minutes in 10 minute increments.

•1 minute before the OFF TIMER function

turns off the TV, “GOOD NIGHT!”appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function, press

this button to set the period of time to 0.

•The OFF TIMER function will not turn off the

TV’s main power.

LCT1188-001A-H 3/30/04, 11:58 PM9

Black

Viewing teletext programmes

1TV/TEXT button

2Coloured buttons

3REVEAL button

4SUBPAGE button

5HOLD button

6SIZE buttonI

7CANCEL button

8INDEX button

ECO

SENSOR

OFF

TIMER


MODE

CHANNEL

SCAN

REVEAL

SUBPAGE CANCEL

TEXT

HOLD

RM-C90

INDEX SIZE

SYSTEM

COLOUR SOUND MUTING

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

TV/TEXT

VOLUME

123

456

789

0-/--

■Basic operation

1 Select a TV channel with a

teletext programme.

2 Press TV/TEXT button to change

the TV mode to the teletext

mode.

TV mode TEXT mode

(TEXT only)

3 Select a teletext page by

pressing the CHANNEL –/+

button, number buttons or

coloured buttons.

To return to the TV mode, press the

TV/VIDEO button or the TV/TEXT

button.

•If you have trouble receiving teletext

broadcasts, consult your local dealer or the

teletext station.

<AV-21FR3/AV-21LTR3 only>

LCT1188-001A-H 3/30/04, 11:58 PM10

Black

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-2186ME Bedienungsanleitung

JVC

JVC AV-29BD3EN Bedienungsanleitung

JVC

JVC AV-32H35SAE Bedienungsanleitung

JVC

JVC AV-21PS4N Bedienungsanleitung

JVC

JVC AV-21VT11 Bedienungsanleitung

JVC

JVC AV-21D114/B Administratorhandbuch

JVC

JVC InteriArt AV-32H40SU Bedienungsanleitung

JVC

JVC AV-29BH11EES Bedienungsanleitung

JVC

JVC LT-43C870(A) Bedienungsanleitung

JVC

JVC pd-42dxt Bedienungsanleitung

JVC

JVC LT-37DS6FJ/p Bedienungsanleitung

JVC

JVC PD-35DX, PD-42DX Bedienungsanleitung

JVC

JVC AV20BJ8EES Bedienungsanleitung

JVC

JVC 56028 Gebrauchs- und Wartungshandbuch

JVC

JVC AV-29WS3 Bedienungsanleitung

JVC

JVC AV 14F704 Bedienungsanleitung

JVC

JVC AV-29BH11EPS Bedienungsanleitung

JVC

JVC I'Art Pro AV-32S565 Bedienungsanleitung

JVC

JVC AV28R100EKS Bedienungsanleitung

JVC

JVC AV-14F4 Bedienungsanleitung

JVC

JVC AV-2168TEE Bedienungsanleitung

JVC

JVC AV-21BS26 Bedienungsanleitung

JVC

JVC LT-52GZ79 Bedienungsanleitung

JVC

JVC AV-29MXP6/V Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
