Thank you for buying this JVC

color television.

To make sure you understand how to

use your new TV, please read this

manual thoroughly before you begin.

AV-21W33

AV-25L33

AV-29W33

AV-21W33B

AV-25L33B

AV-29W33B

Contents

Safety precautions 2

Preparation 3

1 Confirm which remote control you have ... 3

2 Insert the batteries into the remote control ... 3

3 Connecting the antenna and VCR ............. 4

4 Connecting other devices .......................... 5

5 Connect the power cord to the AC outlet ... 5

6 Initial setting ............................................... 6

Basic operation 7

Remote control buttons and functions 8

ECO SENSOR button ..................................... 8

PICTURE MODE button ................................. 8

CLOSED CAPTION button ............................. 8

BASS button .................................................. 8

OFF TIMER button ......................................... 8

COLOR SYSTEM button ................................ 8

CHANNEL SCAN button ................................ 9

CINEMA SURROUND button ........................ 9

RETURN + button .......................................... 9

DISPLAY button ............................................. 9

MUTING button ............................................. 9

Using the TV’s menus 10

Basic operation ............................................ 10

INPUT ........................................................... 11

PICTURE TILT ............................................... 11

VNR ............................................................... 11

COMPRESS (16:9) ........................................ 11

CLOSED CAPTION ....................................... 12

CHILD LOCK ................................................. 12

BLUE BACK .................................................. 12

AUTO SHUTOFF .......................................... 12

VIDEO-2 SET ................................................ 13

AUTO CH PRESET ....................................... 13

CHANNEL SKIP ............................................ 14

LANGUAGE .................................................. 14

MTS .............................................................. 14

Picture adjustment ...................................... 15

Sound adjustment ....................................... 15

AI VOLUME .................................................. 15

Attaching the Twin Port Bass Blaster Unit

TV buttons and parts 17

Using the buttons on the TV 18

Troubleshooting 19

Specifications Back cover

15 cm

10 cm 15 cm

10 cm

Safety precautions

WARNING

• To prevent fire or shock hazard, do not expose the TV to rain or moisture.

CAUTION

• Operate only from the power source indicated on the rear of the TV.

• Avoid damaging the power cord and mains plug. When you unplug the TV, pull it

out by the mains plug. Do not pull on the power cord.

• Never block or cover the cabinet openings

for ventilation. Never install the TV where

good ventilation is unattainable. When

installing this TV, leave spaces for

ventilation around the TV more than the

minimum distances shown in the diagram.

• Do not allow objects or liquid into the

cabinet openings.

• In the event of a fault, unplug the TV and call a service technician. Do not attempt to

repair it by yourself or remove the rear cover.

• The surface of the TV screen is easily damaged. Be very careful with it when

handling the TV. Should the TV screen become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any cleaner or detergent on it.

• When you don’t use this TV for a long period of time, be sure to unplug it.

<AV-21W33B/AV-25L33B/AV-29W33B only>

The Twin Port Bass Blaster Unit is packaged together with the TV.

Before you use the TV, mount the Twin Port Bass Blaster Unit correctly on the TV.

Preparation

1 Confirm which remote control you have

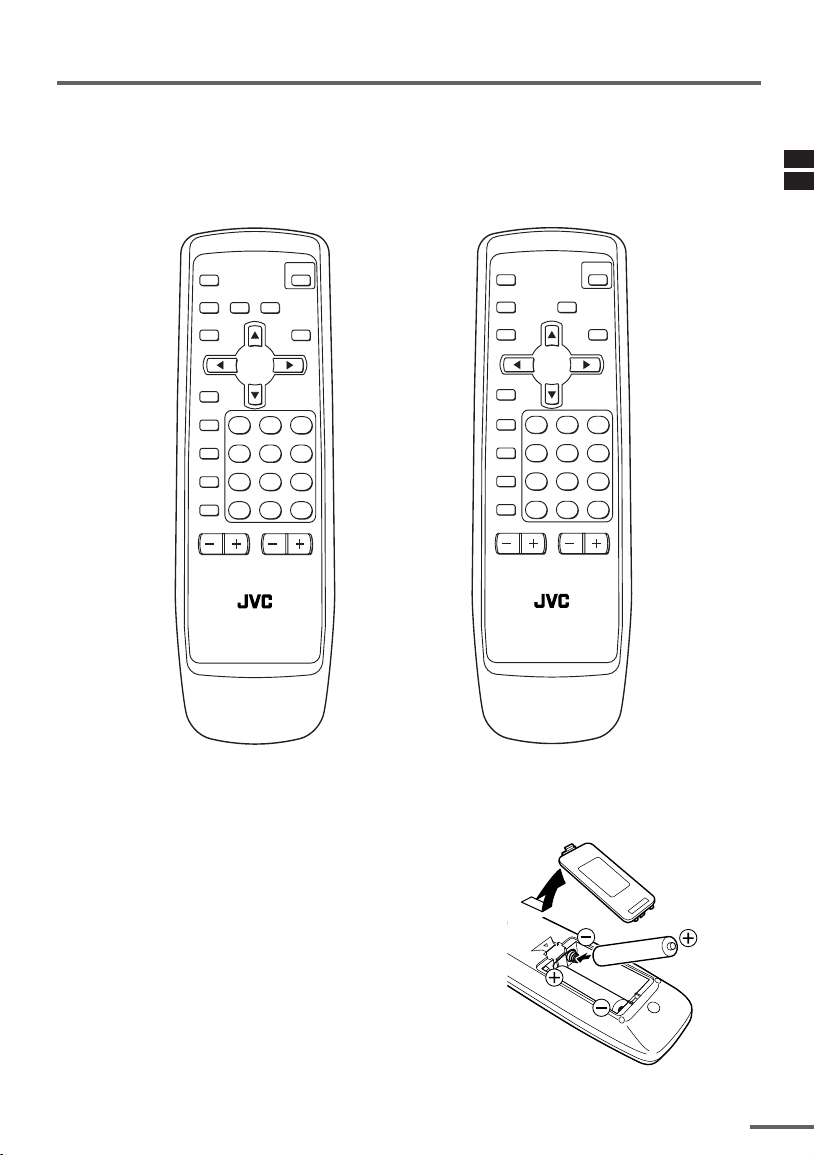

Your TV comes with one of the two remote controls shown below. Functions you can

operate differ depending on the type of remote control.

<RM-C1018> <RM-C1019>

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

VOLUME

123

456

789

CINEMA

SURROUND

COLOR

SYSTEM BASS

CLOSED

CAPTION

100+

RM-C1018

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

VOLUME

123

456

789

CINEMA

SURROUND

COLOR

SYSTEM

CLOSED

CAPTION

100+

RM-C1019

2 Insert the batteries into the remote control

Correctly insert two batteries, observing the ,

and .polarities and inserting the .end first.

CAUTION:

Follow the cautions printed on the batteries.

Notes:

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work properly,

replace with new batteries.

The supplied batteries are for testing, not regular

use.

Connecting the antenna

Connecting the antenna and VCR

Preparation

3 Connecting the antenna and VCR

•Read the manuals provided with the devices. Depending on the device, the connection method

may be different from the diagrams. Also the device settings may need to change depending on

the connection method.

•Turn off all the devices including the TV.

•Connecting cables are not supplied.

•When connecting monaural audio to the TV, use the L/MONO jack.

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

MONO

VHF/UHF outdoor antenna

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRRC

To RF

output

To video

output

VCR

VHF/UHF outdoor antenna

To antenna input 1

To audio

output

MONO

Preparation

4 Connecting other devices

If you are not connecting any other devices, skip step 4 and perform step 5.

• Use the headphones with a stereo mini jack (3.5 mm in diameter). When you connect the

headphones, the TV speakers go off.

•The OUTPUT terminal outputs the video and sound signals which you are viewing on the TV.

You can dub them onto the VCR connected to the OUTPUT terminal.

(The OUTPUT terminal cannot output component video signals. Also it cannot output any

signals when the TV is turned off.)

•Connect components outputting a component signal (Y/CB/CRsignal), such as a DVD player, to

the VIDEO-2 terminal, and set VIDEO-2 SET function to “COMPONENT”. (See page 13.)

•The following illustrations are for the AV-29W33. Your TV’s front and rear pannels may not look

exactly like the illustrations.

L/MONOVR

IN (VIDEO-3)

Headphones

Camcorder or TV game

VIDEO-1

INPUT OUTPUT

COMPONENT

(VIDEO-2)

INPUT

RRR

VVV

VCR (for playing)

VCR (for recording)

DVD player

(composite signals)

DVD player

(component video signals)

RCR

MONO

L/CB

5 Connect the power cord to the AC outlet

Operate only from the power source indicated on the rear of the TV.

Front

Rear

Preparation

6 Initial setting

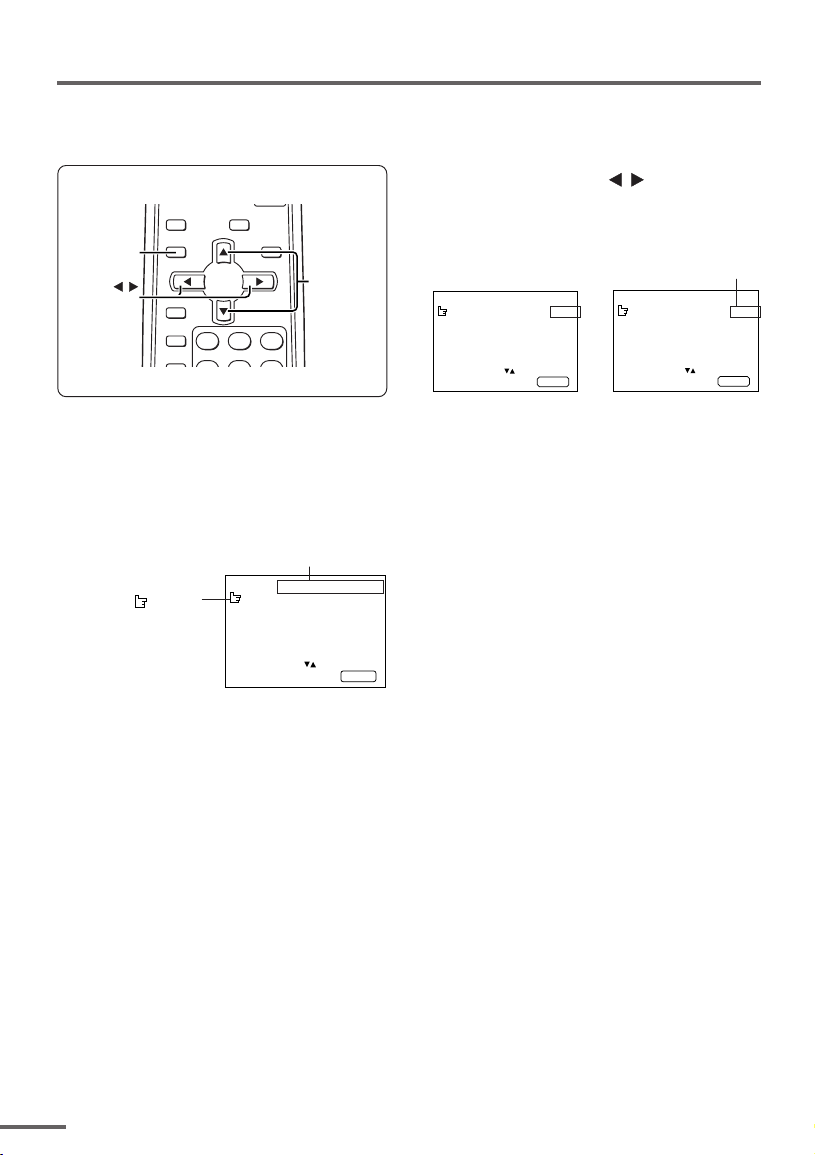

When the TV is first turned on, it enters the initial setting mode, and the JVC logo is

displayed. Follow the instructions on the on-screen display to perform the initial

settings.

1 Press the Main power button

on the TV.

The POWER lamp lights. After the JVC

logo has been displayed, the TV

automatically switches to the language

setting mode.

MENU 3

AUTO CH PRESET

CHANNEL SKIP

LANGUAGE ENGLISH

MTS STEREO SAP MONO

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

•The JVC logo does not appear if your TV

has been turned on once before. In this

case, use the LANGUAGE and AUTO CH

PRESET functions to perform the initial

settings. For details, see page 13 and 14.

2 Press the MENU

buttons to select language.

3 Press the MENU Tbuttons to select “AUTO CH PRESET”.

4 Press the MENU

buttons.

The sub-menu is displayed.

TUNER MODE:CABLE AIR

START

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

5 Press the MENU

buttons to select “CABLE” or “AIR”.

6 Press the MENU Tbuttons to select “START”.

7 Press the MENU

buttons to start the AUTO CH PRESET function.

“>>>ON SEARCH” is displayed on the screen.

When all the TV channels that can be received on your TV have been preset, the

display goes out and the AUTO CH PRESET function operation is completed.

To stop the AUTO CH PRESET function, press the MENU

buttons.

DISPLAY

button

MENU t

buttons

POWER lamp Main power button

CINEMA

SURROUND

OFF

TIMER

ECO

SENSOR

COLOR

SYSTEM

DISPLAY

TV/VIDEO

123

456

CAPTION

Basic operation

•The illustration below is for the remote control

RM-C1019 supplied with L33 and W33 series

models. Your remote control may not look ex-

actly like the illustrations.

MUTING

OFF

TIMER

ECO

SENSOR


MODE

CHANNEL

SCAN

COLOR

SYSTEM

CHANNEL

RETURN+

POWER

DISPLAY

TV/VIDEO

VOLUME

123

456

789

CINEMA

SURROUND

100+

CLOSED

CAPTION

RM-C1019

1 Press the POWER button to turn

your TV on.

•If your TV does not turn on, press the Main

power button on the TV then press the

POWER button again.

•You can also turn on your TV by pressing

any of the following buttons;

- the CHANNEL mbutton

- the TV/VIDEO button

2 Select a channel.

■Press the CHANNEL mbutton.

•Up/down selection cannot be selected for

channels to which the CHANNEL SKIP

function has been set to “YES”. See page

14.

■Press the Number buttons to enter

the channel number.

•When you want to select a channel num-

ber over 100, enter the two-digit number

after pressing the 100+ button.

3 Press the VOLUME Mbutton to

adjust the sound.

4 To turn your TV off, press the

POWER button.

•We recommend that you press the Main

power button on the TV to turn the main

power off if you do not plan to use your TV

for a long time or if you wish to save energy.

Viewing Images from an External

Device:

Press the TV/VIDEO button to select the

VIDEO mode.

•You can also use the INPUT function to select

the VIDEO mode. For details, refer to page 11.

If the picture is not clear:

Press the COLOR SYSTEM button to select

another color system, see page 8.

•Color system cannot be changed in TV mode.

BASS button

< AV-21W33B/AV-25L33B/AV-29W33B only >

You can enjoy a powerful bass sound by

using the SUPER BASS (Bass Reflex)

function.

Press this button to turn the SUPER

BASS function on or off.

•To use this function, you must first mount the

Twin Port Bass Blaster Unit packaged with the

TV on top of the TV. For details, see page 16.

OFF TIMER button

You can set the TV to automatically turn off

after a set time.

Press this button to select the period of

time.

•You can set the period of time to a maximum of

120 minutes in 10 minute increments.

•1 minute before the OFF TIMER function turns

off the TV, “GOOD NIGHT!”appears.

To display the remaining time, press this

button once.

To cancel the OFF TIMER function, press

this button to set the period of time to 0.

•The OFF TIMER function will not turn off the

TV’s main power.

COLOR SYSTEM button

If the picture is not clear or no color

appears, change the current color system

to another color system.

Press this button to select the color

system.

In TV mode:

NTSC3.58 (fixed)

In VIDEO mode:

AUTO

NTSC4.43

PAL

NTSC3.58

AUTO:

Automatic color system selection

•If the picture is abnormal in the AUTO mode,

change the AUTO mode to another color system.

•Only in VIDEO mode, “COLOR SYSTEM”is

displayed in MENU 2 and can be changed.

Remote control buttons and functions

ECO SENSOR button

You can adjust this TV so that the screen

automatically adjusts to the optimum

contrast according to the brightness of your

room. This function reduces eye strain and

the power consumption of this TV.

Press this button to select the desired

mode.

DIGITAL ECO SENSOR DISPLAY:

The ECO SENSOR function switches on. In

this mode, the clover mark indicating the

brightness of your room is displayed for

several seconds each time the brightness

changes. The number of clover marks

displayed on screen increases as your room

becomes darker.

DIGITAL ECO SENSOR:

The ECO SENSOR function switches on.

However, in this mode, the clover mark will

not be displayed.

DIGITAL ECO SENSOR OFF:

The ECO SENSOR function switches off.

PICTURE MODE button

You can select one of three picture

adjustment settings as you like.

Press this button to select a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustments.

SOFT:

Softens contrast and sharpness.

•Pressing this button returns all the picture set-

tings in “MENU 4”to their default settings.

CLOSED CAPTION button

If they are included in a program, you can

view closed captions or text information.

Press this button to select the mode.

OFF CLOSED CAPTION TEXT

•To change caption or text channels see page 12.

Remote control buttons and functions

CHANNEL SCAN button

You can quickly view all TV channels

programs that you can view on your TV,

and search for the program you want to

view.

1 Press this button to start scanning

TV channels.

The TV channel programs are each

displayed for several seconds.

•The programs of TV channels for which

the CHANNEL SKIP function is set to “YES”

are not displayed.

2 When you find the program you

want to view, press this button again

to stop scanning.

CINEMA SURROUND button

You can enjoy an enhanced sound for a

wider audience by using CINEMA

SURROUND function.

Press this button to select one of the

CINEMA SURROUND mode.

HIGH/LOW:

When you listen to the stereo sound,

please select HIGH mode or LOW mode.

You can enjoy the sound for a wider

audience similar to the experience at the

theatre.

•In case that you setting up the CINEMA SUR-

ROUND function to HIGH mode, there may be

slight volume distortion. In case that occurs,

please switch the HIGH mode to LOW mode,

the effect of CINEMA SURROUND functions will

be less noticeable, however, the volume distor-

tion will be corrected.

MONO SURROUND:

Select the MONO SURROUND mode,

when you listen to the mono sound.

You can enjoy the sound for a wider

audience similar to stereo sound.

OFF:

The CINEMA SURROUND function

switches off.

RETURN + button

You can set a channel you frequently view

to the Return Channel and you can view

that channel at any time with one-touch.

To set the channel to the Return

Channel:

1 Select the channel you want to set

to the Return Channel.

2 Press this button and hold until the

message “RETURN PLUS

PROGRAMMED!” appears.

•When you turn off the TV, the Return Chan-

nel setting is cancelled.

To view the Return Channel:

Press this button.

•You can view two channels (current channel

and Return Channel) alternately by pressing this

button.

To cancel the Return Channel setting:

Press this button and hold until the

message“RETURN PLUS CANCELLED!”

appears.

If no channel is set to the Return

Channel:

You can view the channel selected right

before the current channel by pressing

this button.

DISPLAY button

You can continuously display the current

channel number or VIDEO mode on the

screen.

Press this button.

To turn the display off, press this button

again.

•When selecting a VIDEO mode with no signal,

indication of the VIDEO mode becomes fixed

on the screen.

MUTING button

You can turn the sound off instantly.

Press this button.

To turn the sound on, press this button

again.

4 Press the MENU

buttons to

change function settings.

Example:

MENU 2

AUTO SHUTOFF OFF

CHILD LOCK OFF

BLUE BACK ON

VIDEO-2 SET COMPONENT

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

⇔

MENU 2

AUTO SHUTOFF ON

CHILD LOCK OFF

BLUE BACK ON

VIDEO-2 SET COMPONENT

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

•With some functions, the operation method

may differ.

5 Press the DISPLAY button to turn

the display off.

•To operate a menu using the buttons on

the front panel of the TV, refer to

“Operating menus” on page 18.

MENU 1

INPUT TV

VNR ON

COMPRESS(16: ) ON

SELECT BY EXIT BY

OPERATE BY -+

DISPLAY

PICTURE TILT 00

CLOSED CAPTION

Using the TV’s menus

This TV has a number of functions you can operate using the menus. To use all your TV’s

functions fully, you need to understand how to use the menus.

DISPLAY

button

MENU t

buttons

CINEMA

SURROUND

OFF

TIMER

ECO

SENSOR

COLOR

SYSTEM

DISPLAY

TV/VIDEO

123

456

CAPTION

■Basic operation

1 Press the MENU Tbuttons.

One of the 5 menus is displayed.

2 Repeatedly press the MENU T

buttons to display a desired

menu.

•If you hold down the ybutton, the next

menu is displayed.

•If the selected function is on the first line,

pressing the rbutton displays the preced-

ing menu.

3 Repeatedly press the MENU T

buttons to select a desired

function.

MENU number

The icon on the

left indicates the

currently selected

function.

Changes the AUTO

SHUTOFF setting.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-32X5SU Bedienungsanleitung

JVC

JVC I'ART AV-27F704 Bedienungsanleitung

JVC

JVC AV28CH1EU Bedienungsanleitung

JVC

JVC 0305MKH-CR-MU Bedienungsanleitung

JVC

JVC AV-28RT4SU Bedienungsanleitung

JVC

JVC AV-21PB4N Bedienungsanleitung

JVC

JVC AV 20F704 Bedienungsanleitung

JVC

JVC AV-28RT4BU Kurzanleitung

JVC

JVC AV-27F703 - 27" Real Flat TV Bedienungsanleitung

JVC

JVC AV-14F702 Bedienungsanleitung

JVC

JVC LT19D200 - 19" LCD TV Bedienungsanleitung

JVC

JVC InteriArt AV32H20EUS Bedienungsanleitung

JVC

JVC SELECT LT-58EC3508 Bedienungsanleitung

JVC

JVC HV-L29PRO Bedienungsanleitung

JVC

JVC AV-2134EE Bedienungsanleitung

JVC

JVC PD-50X575 Bedienungsanleitung

JVC

JVC LT-32D200 Bedienungsanleitung

JVC

JVC AV-28MS1SN Bedienungsanleitung

JVC

JVC InteriArt AV28H20EUS Bedienungsanleitung

JVC

JVC AV-36D501 Bedienungsanleitung

JVC

JVC AV-28RH4SU Systemhandbuch

JVC

JVC AV-21PS4N Bedienungsanleitung

JVC

JVC AV-21RT4SP Bedienungsanleitung

JVC

JVC AV-20NX50 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
