COLOUR TELEVISION

INSTRUCTIONS

AV-29QS17B AV-21QS17B

AV-21QS19B

The illustrations of AV-29QS17B is used in this instruction manual for

explanation purpose. Your TV may not look exactly the same as illustrated.

This illustration shows AV-29QS17B.





If a television is not positioned in a sufﬁciently stable location,

it can be potentially hazardous due to falling. Many injuries,

particularly to children, can be avoided by taking simple

precautions such as:

• Using cabinets or stands recommended by the manufacturer of

the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the

supporting furniture.

• Not placing the television on tall furniture (for example, cupboards

or bookcases) without anchoring both the furniture and the

television to a suitable support.

• Not standing the televisions on cloth or other materials placed

between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to

reach the television or its controls.

• Never listen to headphones at high volume!

- It may damage your hearing.

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.

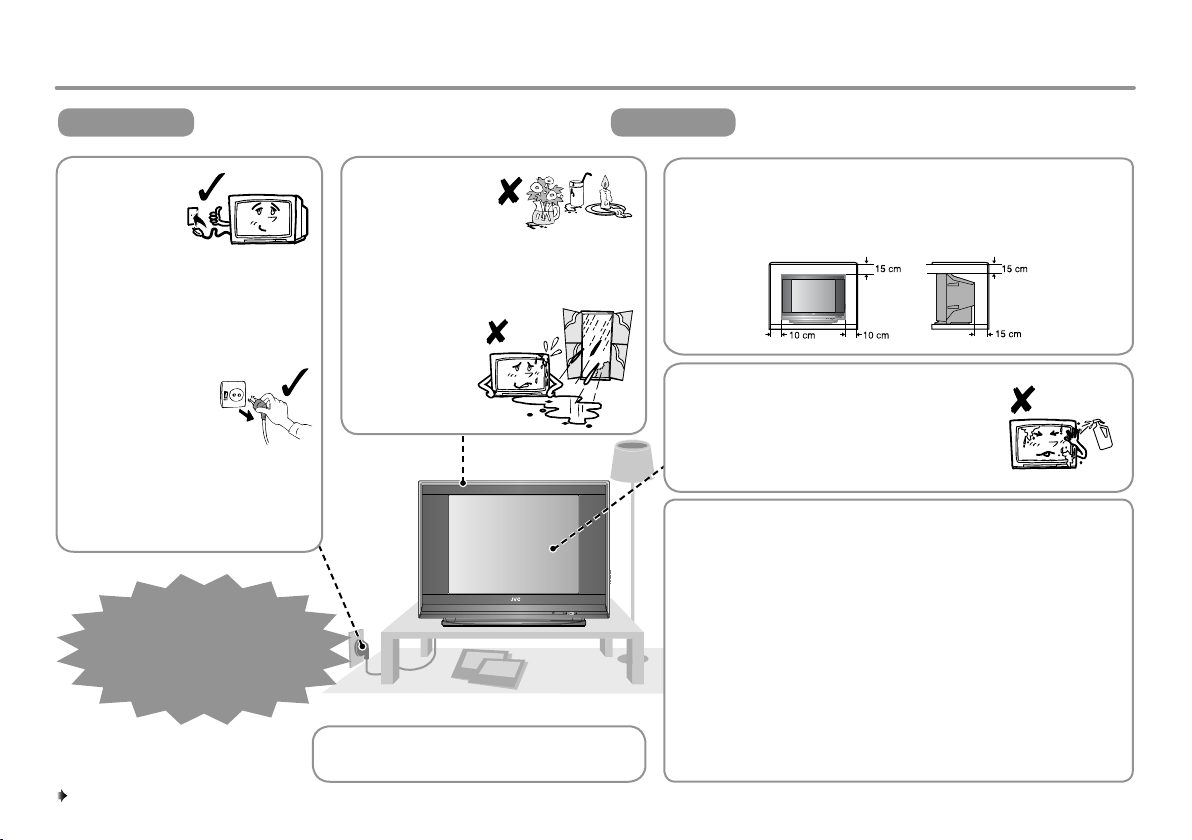

CAUTION TO ENSURE PERSONAL SAFETY, OBSERVE THE

FOLLOWING RULES REGARDING THE USE OF

THIS TV.

• Operate only

from the

power source

indicated on

the rear of the

TV.

• Avoid damaging the power

cord and mains plug. When

unplugging the TV, grasp the

mains plug. Do not pull on the

power cord.

• This TV can be

turned on/off power

by connecting/

disconnecting the

AC plug into AC outlet. While this

TV is being installed, enough

space should be reserved for

connection/disconnecting the AC

plug into AC outlet by hand.

WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO

NOT EXPOSE THIS APPLIANCE TO RAIN OR

MOISTURE.

• Never block or cover the ventilation openings.

• Never install the TV where good ventilation is unattainable.

• When installing this TV, leave spaces for ventilation around

the TV of more than the minimum distances as shown.

• The apparatus

shall not be

exposed to

dripping or

splashing and that no objects filled

with liquids, such as vases, shall be

placed on the apparatus.

• Do not allow

objects or liquid

into the cabinet

openings. • The surface of the TV screen is easily

damaged. Be very careful with it when

handling the TV. Should the TV screen

become soiled, wipe it with a soft dry cloth.

Never rub it forcefully. Never use any

cleaner or detergent on it.

In the event of a

fault, unplug the unit and

call a service technician. Do

not attempt to repair it yourself

or remove the

rear cover.

Knowing your TV’s features Contents

Knowing your TV’s features ...................3

Connections ..........................................4

Initial settings .........................................5

Remote control buttons and basic

functions ................................................6

TV buttons and functions .......................7

Operating the menus .............................7

Picture setting ........................................9

Sound setting ......................................11

Customized setting ..............................13

TV channel presetting .........................15

Troubleshooting ...................................17

Specifications ......................................18

PREPARATION FUNCTIONS REFERENCE

Function

Features Descriptions

DVD MENU Just connect DVD player to the television. The television will detect DVD signal and

display picture on the screen automatically and you can adjust pictures and sound while

you are watching DVD as your desire. When disconnect DVD player, the television will

display the previous channel.

FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.

A2/NICAM

(STEREO / I†II)

You can listen to the stereo sound or bilingual sound from TV programme broadcasting

by A2 or NICAM Sound-multiplex system.

ECO MODE You can adjust TV screen contrast according to the brightness of your room to suitable

level for a better eyecare.

AI VOLUME TV adjusts the volume automatically for all TV channels to avoid sudden change of the

volume when selecting different TV channels or selecting Video Mode.

VNR You can reduce the picture noise when viewing noisy TV programmes or video sources.

WHITE BALANCE You can choose one of three tones of white to match to the video source such as movie,

sport, etc. Changing White balance affects the appearance of all other colours on the

screen.

TINT You can adjust TINT setting for all colour systems, including PAL.

Note : Some functions written in this instruction manual may not be available for your TV.

Please see the chart below and check the function are equipped for your TV's model number.

The model number is indicated at the rear of your TV. When you press a button concerned to a function that is not

available for your TV, it does not work and the logo "Ø" appears on the screen.

Model No.

Function

AV-29QS17B

AV-21QS17B

AV-21QS19B

PICTURE TILT •– –































The illustration of AV-29QS17B is shown here for explanation purpose. Your TV may not look exactly the same as illustrated.

CAUTION

Ensure to turn off all equipments including the TV before connecting the AC mains plug to the AC outlet.

Connections

After all the connections have been made,

insert the mains plug to the AC outlet.

• When connecting to COMPONENT (VIDEO-2) input,

depending on the connection, choose the appropriate

video input using the menu (\ page 14).

Connecting to the front video input terminal

Connecting to the rear component/video

input terminal and output terminal

75-ohm

coaxial cable

(not supplied)

VHF/UHF

outdoor

aerial

Rear of VCR

Camcorder or TV game

DVD player

(with component

video signals

input)

VCR (for playing)

DVD player

(composite signals)

VCR (for recording)

Connecting to the aerial cable and VCR

(Connect

directly if not

using a VCR)

Aerial cable RF output

Video output

(Connect via a VCR)

Audio output

S-video output

RF input

TV rear terminals

Headphones

AUTO PROGRAM

OK / : EDIT

22%





  



  

  

  

  

  

  

 

















PREPARATION

Initial settings

1or wait 15 seconds to

run Setup Tour

To stop or wait until AUTO PROGRAM

finishes

Select a language

Searching for the channels (AUTO PROGRAM)

4Edit the channel list

To complete

Setup Tour

To edit the

channel list,

\ page 15.

JVC logo appears

1 Select

2 Confirm

Turn on the TV

To restart Setup Tour after above setup has completed

(while the cursor is pointing to

PICTURE MODE and within 3

seconds)

WARNING:

Batteries shall not be exposed

to excessive heat such as direct

sunshine, ﬁre or the like.

If this symbol is

shown, it is only valid

in the European

Union.

Remote control buttons and basic functions

Turn the TV on from standby and vice versa

Programme and recall 4 favourite channels

(colour buttons: red, green, yellow, blue)

Choose the TV channel you wish to programme

Press and hold

any button

PROGRAMMED! ■

Repeat to programme another favourite channel.

To recall the favourite channel, press the

corresponding colour button.

• When the TV is in Text function or MENU mode, the

favourite channel function is not available.

• When the TV is in PIP function, the favourite channel

function cannot be programmed but can recall the

favourite channel.

TV or video terminal input selection, Exit from the menu

Turn the volume Off / On

Programme number selection

For two digits :

Adjust the volume level, Turn off Muting

Channel selection

Select the desired channel number.

For Hyper Scan

Press and hold

RETURN PLUS function

Return to the frequently viewed channel.

Choose the channel you want to programme

Press and hold

RETURN PLUS

PROGRAMMED!

To cancel

Press and hold

RETURN PLUS

CANCELED!

RETURN function

If you have not set or have canceled the RETURN PLUS

channel, this will return to the previously viewed channel.

PR changes without changing the

picture. Once you stop pressing

CHANNEL+ or CHANNEL– button,

picture will change to the desired PR.

Operating the menus (\ page 7)

• Insert two batteries by following the

and polarities and inserting the end

first.

• Use AA/R6/UM-3 dry cell batteries.

• If the remote control does not work

properly, fit new batteries. The supplied

batteries are for testing, not regular use.

• Display the programme or video terminal number and

stereo/bilingual broadcast system.

• To return to the previous menu

PREPARATION

TV buttons and functions

Operating the menus

To display the

MENU.

To select a Top menu. To select a second menu. To select, adjust or

choose the setting of a

function.

When the cursor is at MENU. To display

other pages.

To return to

the previous

menu.

TOP menuMENU 2nd menu 3rd menu

SET UP menuMENU EDIT/MANUAL EDIT

Example:

To select for go to third

menu.

Depend to the on screen

guide.

Select

Adjust

To exit.

Select

Depend to the on screen

guide.

or Select

Video and audio

input jacks for

VIDEO-3 mode

Remote control sensor TV’s main power on/off

Power lamp - Indicates the TV’s status.

No colour: TV’s main power is being turned off.

Red: TV’s main power is turned on.

Blink: While the TV is in standby mode, ON TIMER function is in used.

While the TV is in turn on mode, OFF TIMER function is in used.

Note: When you turn off the power switch while TV is in standby mode,

the power lamp will go off in 5-10 seconds. When you operate the

TV, POWER Lamp will blink.

The illustration of AV-29QS17B is shown here for explanation purpose. Your TV may not look exactly the same as illustrated.

Display the menu and exit after finish setting

Channel selection, To select menu function

Volume level adjustment, To choose a Top

menu and adjust the desired menu function

TV or Video terminal input selection,

Exit from the menu

Headphone jeck

Operating the menus (continued)

You can use the DVD MENU by switch channel to VIDEO-2. See the menus location in the below table.

For RF / Video-1 / Video-3 (MENU) For Video-2 (DVD MENU)

Top menu Page 2nd menu 3rd menu / Adjustments 3rd menu / Adjustments

PICTURE MODE USER / VIVID / SOFT DVD THEATER STATUS set to OFF : USER / SHARP / CLEAR / VIVID / SOFT

DVD THEATER STATUS set to ON : USER / SHARP / CLEAR


PICTURE SETTING

PICTURE MODE set to USER : CONTRAST / BRIGHT/ SHARP/

COLOUR / TINT

PICTURE MODE set to SOFT or VIVID:

–

PICTURE MODE set to USER : CONTRAST / BRIGHT/ SHARP / COLOUR / TINT

PICTURE MODE set to SHARP or CLEAR or SOFT or VIVID :

–

WHITE BALANCE NORMAL / COOL / WARM DVD THEATER STATUS set to OFF : NORMAL / COOL / WARM

DVD THEATER STATUS set to ON :

–

DVD MENU


VNR

(Only available in RF, VIDEO-1 and VIDEO-3) OFF / AUTO / MIN / MAX

–

AUTO SIGNAL DETECT

(Only available in VIDEO-2)

–

ON / OFF

DVD THEATER STATUS

(Only available in VIDEO-2)

–

ON / OFF

STEREO / IRII (Only available in RF)

m / u / I / II –

AI VOLUME ON / OFF ON / OFF

SOUND

SOUND MODE USER / MUSIC / CINEMA / NEWS USER / MUSIC / CINEMA / DRAMA

EQUALIZER (SOUND MODE set to USER

and CINEMA SURROUND set to OFF only) Adjust the sound level of each frequencies. Adjust the sound level of each frequencies.

DVD MENU

SOUND

BALANCE Left Stronger / Right Stronger Left Stronger / Right Stronger

CINEMA SURROUND ON / OFF ON / OFF

ON TIMER Set timer for turn on the TV Set timer for turn on the TV

OFF TIMER Set timer for turn off the TV Set timer for turn off the TV

CHILD LOCK ON / OFF ON / OFF

COMPRESS (16:9 ) ON / OFF ON / OFF

FEATURES

ECO MODE OFF / ECO-1 / ECO-2 DVD THEATER STATUS set to OFF :

OFF / ECO-1 / ECO-2

DVD THEATER STATUS set to ON :

–

VIDEO-2 SETTING VIDEO / COMPONENT VIDEO / COMPONENT

BLUE BACK ON / OFF ON / OFF

PICTURE TILT Tilt the picture. Tilt the picture.

BEEP ON / OFF ON / OFF

AUTO PROGRAM Register the TV channel. Register the TV channel.

EDIT / MANUAL MOVE / INSERT / DELETE / MANUAL MANUAL / MOVE / DELETE / INSERT

SET UP

COLOUR SYSTEM AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43 ViDEO-2 SETTING set to COMPONENT : AUTO

ViDEO-2 SETTING set to VIDEO : AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43

LANGUAGE Select the languages. Select the languages.

* For DVD THEATER STATUS set to ON only

FUNCTIONS

Picture setting

COLOUR SYSTEM

You can select the appropriate colour system when the picture is not clear

or no colour appears.

AUTO → PAL → SECAM → NTSC3.58 → NTSC4.43

You can also operate this function from the menu.

SET UP menuMENU COLOUR SYSTEM

For the colour system in each country or region, see the table below:

Area Country or Region System

Asia,

Middle East

Bahrain, Kuwait, Oman, Qatar, United Arab Emirates, Yemen,

Indonesia, Malaysia, Singapore, Thailand, India, China, Vietnam,

Hong Kong, etc.

PAL

Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM

Philippines, Taiwan, Myanmar, etc. NTSC

Europe Russia, etc. SECAM

Czech Republic, Poland, Germany, Holland, Belgium, UK, etc. PAL

Oceania Australia, New Zealand, etc. PAL

Africa Republic of South Africa, Nigeria, etc. PAL

Egypt, Morocco, etc. SECAM

WHITE BALANCE

You can change the white balance of the picture to better match the type

of video being viewed.

PICTURE menuMENU WHITE BALANCE

NORMAL Normal white balance

COOL Bluish white

WARM Reddish white

When DVD THEATER STATUS set to ON, WHITE BALANCE is not

available. \ Page 8.

COMPRESS (16:9)

You can convert a normal picture (4:3 aspect ratio) into a wide picture

(16:9 aspect ratio).

(Choose ON or OFF)

FEATURES menu

MENU COMPRESS (16:9)

PICTURE MODE

You can choose the desired picture setting with one-touch.

USER You can change this picture setting (CONTRAST,

BRIGHT, SHARP, COLOUR, TINT) as you like.

(\ PICTURE SETTING)

SHARP To sharpen this picuture.

VIVID Heightens contrast and sharpness.

SOFT Softens contrast and sharpness.

CLEAR To soften the picture.

You can also operate this function from the menu.

PICTURE menuMENU PICTURE MODE

To return the USER setting to default, press the blue button when the

PICTURE SETTING menu is displayed.

See details for the location menus in "Operating the menus" \ Page 8.

PICTURE SETTING

You can adjust the desired picture setting when selecting USER in

PICTURE MODE.

1 PICTURE menuMENU PICTURE MODE USER

2 PICTURE menuMENU PICTURE SETTING

CONTRAST 2 : Lower contrast 3 : Higher contrast

BRIGHT 2 : Darker 3 : Brighter

SHARP 2 : Softer 3 : Higher

COLOUR 2 : Lighter 3 : Deeper

TINT 2 : Reddish 3 : Greenish

See details for the location menus in “Operating the menus” \ Page 8.

BLUE BACK

You can set the TV to automatically change to a blue screen and mute the

sound if the signal is weak or absent, or when there is no input from an

antenna.

FEATURES menuMENU BLUE BACK (Choose ON or OFF)

This function is only available in RF mode.

Picture setting (continued)

ECO MODE

You can adjust TV screen contrast according to the brightness of your

room.

OFF Cancel the function.

ECO-1 Mild contrast (recommended).

ECO-2 Even contrast.

You can also operate this function from the menu.

When DVD THEATER STATUS set to ON, ECO MODE is not available.

\ Page 8.

Correcting the Slanting Picture (PICTURE TILT)

You can correct the picture tilt caused by the earth’s magnetic force.

1 FEATURES menuMENU PICTURE TILT

The following display appears.

PICTURE TILT

DISPLAY : BACK

MENU : EXIT

2 Tilt the picture

becomes level

To confirm

FEATURES menuMENU ECO MODE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-20N33 Bedienungsanleitung

JVC

JVC InteriArt T-V LINK AV-32H4SU Bedienungsanleitung

JVC

JVC AV-28RT4BU Bedienungsanleitung

JVC

JVC AV-28GH1BUF Bedienungsanleitung

JVC

JVC LT-42ED82G Bedienungsanleitung

JVC

JVC AV29BF10EPS Bedienungsanleitung

JVC

JVC LT-26B60BU Bedienungsanleitung

JVC

JVC AV-14FN15 Bedienungsanleitung

JVC

JVC AV-29FT5BU Kurzanleitung

JVC

JVC AV-28BH8ENS Bedienungsanleitung

JVC

JVC AV-21FT1BUG Bedienungsanleitung

JVC

JVC AV-21AT Bedienungsanleitung

JVC

JVC AV-21B16 Bedienungsanleitung

JVC

JVC AV-29WX14/G Bedienungsanleitung

JVC

JVC AV-21QS27 Bedienungsanleitung

JVC

JVC AV-1414F/E Bedienungsanleitung

JVC

JVC AV-29VT11/P Bedienungsanleitung

JVC

JVC HD-56FH97 - 56" Rear Projection TV Bedienungsanleitung

JVC

JVC AV-28WFR1EKS Bedienungsanleitung

JVC

JVC TM-2001U Bedienungsanleitung

JVC

JVC InteriArt AV-21QT4BU Bedienungsanleitung

JVC

JVC AV32Z10EU Bedienungsanleitung

JVC

JVC LT-58VU3005 Bedienungsanleitung

JVC

JVC AV-28F3SJ Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
