SERVICE MANUAL

COLOUR TELEVISION

AV-29RSB(AU)

AV-29RSB

Sep. 2000

HOW TO IDENTIFY MODEL

While referring to the illustration given below, identify model name on the rating label affixed to the rear cover.

This service manual mainly consists of the following items:

• The items which differ from those for the AV-29RSB service manual.

• The initial value for each setting item.

For details other than those described in this manual, please refer to the following service manual.

Reference Service Manual: AV-29RSB Service Manual (No. 51726, May 2000)

Note: The page in parentheses shows the one for the AV-29RSB service manual (No. 51726, May 2000).

AV-29RSB

AV-29RSB-AU

AV-29RSB

No. 560412

AV-29RSB AV-29RSB(AU)

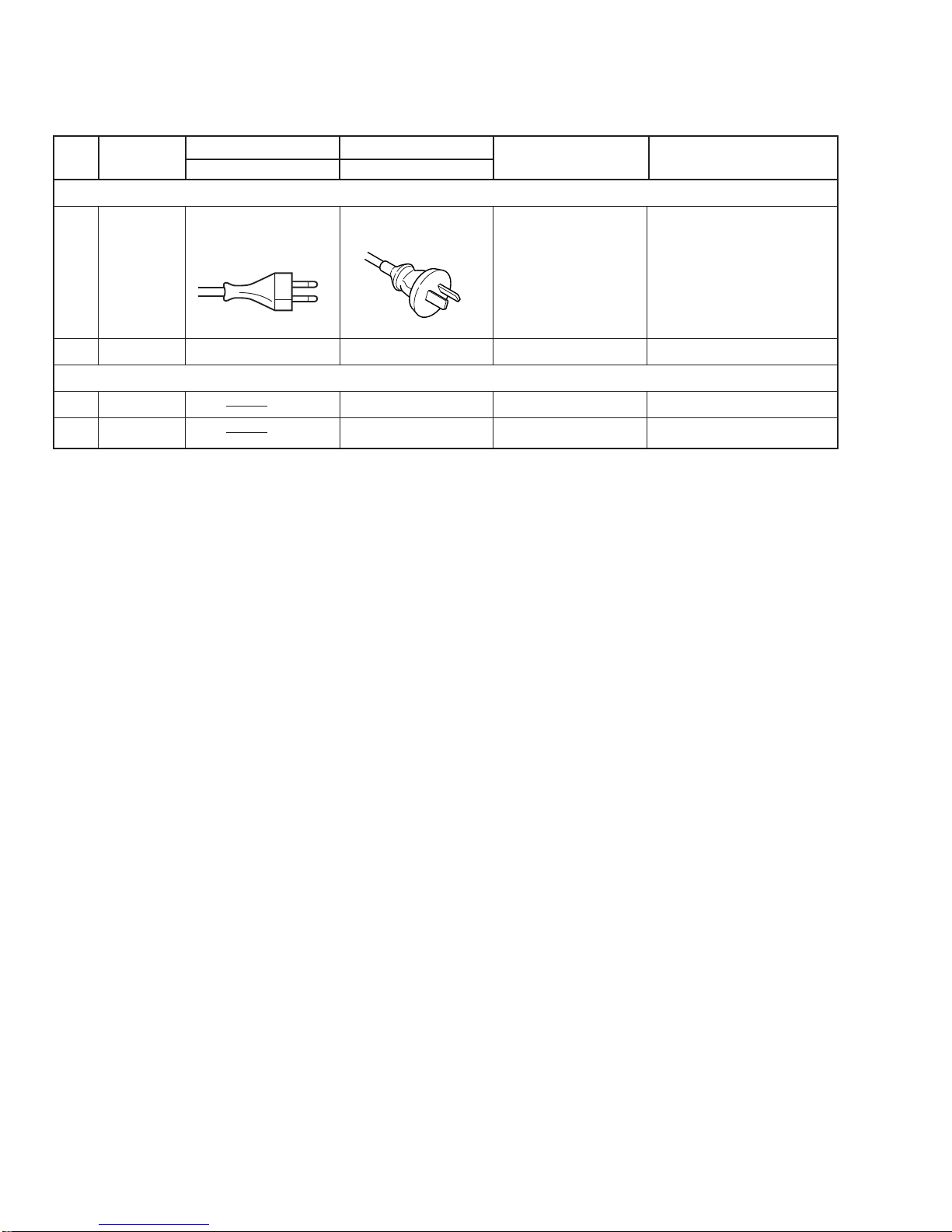

!REF. NO. PART NAME DESCRIPTION

PART No. PART No.

■EXPLODED VIEW PARTS LIST (Page 36)

!13 QMP40D0-200J5 QMP2980-185J5 POWER CORD

or QMP40D0-200J3

!16 LC20377-001B-H LC20377-013B-H RATING LABEL

■PACKING PARTS LIST (Page 49)

— BT-56001-2 WARRANTY CARD

— BT-56002-2 SERVICE CENTER LIST

PARTS DIFFERENCE TABLE

The different parts between AV-29RSB and AV-29RSB(AU) are described below:

AV-29RSB

No. 56041 3

Item CONTENTS

Dimensions (W ×H ×D) 732mm ×588mm ×508mm

Mass 50kg

TV RF System B, G, I, D, K, K1, M

Colour System PAL, SECAM, NTSC3.58, NTSC4.43

Stereo System A2 / NICAM (B,G)

Teletext System FLOF (Fastext), WST (World standard system)

Receiving Frequency VHF (L) 46.25MHz ~ 168.25MHz

VHF (H) 175.25MHz ~ 463.25MHz

UHF 471.25MHz ~ 863.25MHz

CATV Mid (X-Z, S1-S10), Super (S11-S20), Hyper (S21-S41) bands receivable

Intermediate Frequency

VIF Carrier 38.0MHz

SIF Carrier 33.5MHz(4.5MHz), 32.5MHz(5.5MHz), 32.0MHz(6.0MHz), 31.5MHz(6.5MHz)

Colour Sub Carrier Frequency

PAL 4.43MHz

SECAM 4.40625MHz, 4.25MHz

NTSC 3.58MHz / 4.43MHz

Power Input AC110 ~ 240V, 50/60Hz

Power Consumption 233W (Max) / 163W (Avg)

Picture Tube Visible size : 68cm measured diagonally

High Voltage 32.0kV ±1.5kV (at zero beam current)

Speaker & Audio Output Closed dome speaker with TWIN PORT BASS system

L / R : 15W+15W (10cm round x 2, +3.5cm round x 2)

Center : 5W (4 x 12cm oval x 1)

Video Audio Input terminals

Video1 S-Video Y: 1Vp-p Positive (Negative sync provided, when terminated with 75Ω)

C: 0.286Vp-p (Burst signal, when terminated with 75Ω)

Video 1Vp-p 75Ω(RCA pin jack)

Audio (L/R) 500mVrms (−4dBs), High impedance (RCA pin jack)

Video2 Video 1Vp-p 75Ω(RCA pin jack)

Audio (L/R) 500mVrms (–4dBs), High impedance (RCA pin jack)

Video3 Video/Y Composite video 1Vp-p 75Ω(RCA pin jack)

Component video 1Vp-p 75Ω(RCA pin jack)

Cb Component video B-Y 0.7Vp-p 75Ω(RCA pin jack)

Cr Component video R-Y 0.7Vp-p 75Ω(RCA pin jack)

Audio (L/R) 500mVrms (–4dBs), High impedance (RCA pin jack)

Video4 S-Video Y: 1Vp-p Positive (Negative sync provided, when terminated with 75Ω)

(Front terminal) C: 0.286Vp-p (Burst signal, when terminated with 75Ω)

Video 1Vp-p 75Ω(RCA pin jack)

Audio (L/R) 500mVrms (−4dBs), High impedance (RCA pin jack)

Video Audio Output terminal

Video 1Vp-p 75Ω(RCA pin jack)

Audio (L/R) 500mVrms (−4dBs), High impedance (RCA pin jack)

Aerial Input Terminal 75ΩUnbalanced, Coaxial

Headphone Jack Stereo mini jack (3.5ø)

AV Compu Link terminal AV Compu Link II, mini jack (3.5ø)

Remote Control Unit RM-C110 (AA/R06 / UM-3 dry battery ×2)

Design & specifications are subject to change without notice.

SPECIFICATIONS(Page 2)

AV-29RSB

No. 560414

SETTING OF SYSTEM CONSTANT SET (Page 10)

Table 1

SPECIFIC SERVICE INSTRUCTIONS

CONTENTS VARIABLE RANGE INITIAL SETTING VALUE

COLOUR MULTI

MSP YES

SUPER BASS YES

CENTER SPEAKER YES

TEXT YES

BLUE BACK MUTE NO

VOLUME LIMIT YES

COLOUR AUTO NO

TILT YES

C-TRAP 1

E.M.C. NO

N/S WHITE BACK NO

7 LED SPEED 100

MULTI TRIPLE PAL

YES NO

1 0

YES NO

00 10 20 ... 1250

1270 1260

USER SETTING CONDITIONS (Page 10)

Table 2

PICTURE SETTING FEATURES

PICTURE MODE BRIGHT SLEEP TIMER OFF

CONTRAST CENTER ON TIMER PR1 0:00

BRIGHT CENTER BLUE BACK ON

SHARP CENTER CHILD LOCK OFF

COLOUR CENTER CHANNEL GUARD --

TINT CENTER AUTO SHUT OFF OFF

WHITE BALANCE COOL VIDEO-3 SETTING COMPONENT

PICTURE FEATURES INSTALL

A.A.C ON LANGUAGE ENGLISH

AUTO VNR AUTO AUTO PROGRAM --

COLOUR SYSTEM TV: According to preset CH EDIT / MANUAL PRESET CH only

VIDEO: AUTO PAL Others: blank

ZOOM REGULAR DEMO

ECO SENSOR OFF DEMO OFF

PICTURE TILT CENTER OTHERS

SOUND SETTING VOLUME Appropriate sound level

SETERO / I• II CHANNEL PRESET Refer to Operating Instructions.

BASS CENTER CHANNEL POSITION 1 POSITION

TREBLE CENTER SUB POWER ON

BALANCE CENTER ON SCREEN DISPLAY POSITION INDICATION

AI VOLUME ON TV/VIDEO TV

BBE ON SOUND SYSTEM B/G

SPATIALIZER OFF

SUPER BASS ON

AV-29RSB

No. 56041 5

SERVICE ADJUSTMENTS

■Initial Setting Value

[INITIAL SETTING VALUES OF VSM PRESET (SUB MENU 5. VSM PRESET)]

[SETTING OF WHITE BALANCE PRESET (SUB MENU 6. WB PRESET)]

■SETTING OF VSM PRESET (Page 19)

2. CONT +17 +0−4

3. COLOR +0+0−1

4. SHARP +0 +0 −3

5. TINT +0 +0 +0


MODE BRIGHT STANDARD SOFT

ITEM

1. BRIGHT +0 +0 +0

■SETTING OF WHITE BALANCE PRESET (Page 20)

WHITE BALANCE COOL MID WARM

ITEM

1. R DRIVE 0 −3+26

2. B DRIVE 0 −23 −27

: Do not adjust.

AV-29RSB

No. 560416

Adjustment of SUB COLOUR-II (Page 23)

Adjustment of SUB TINT-II (Page 24)

Adjustment part Description

5. COLOUR

PAL COLOUR Value (A) in the figure: Set to −3V (W & G).

SECAM COLOUR Value (A) in the figure: Set to −5V (W & G).

NTSC 3.58 COLOUR Value (A) in the figure: Set to +3V (W & G).

Adjustment part Description

6. TINT

NTSC 3.58 TINT Value (B) in the figure: Set to +4V (W & Cy).

CONTENTS PAL SECAM NTSC 3.58 NTSC 4.43

R−60

1. CUTOFF G −60

B−60

2. DRIVE R +0

B+0

3. BRIGHT TV 0+3+1—

VIDEO −1+2+2—

COMPONENT −2

4. CONT TV −15 0 0 —

VIDEO 000—

COMPONENT +2

5. COLOUR TV / VIDEO +10 +18 +00

COMPONENT +8+17

6. TINT TV +6+6+70

VIDEO +6+6+14 0

COMPONENT +60

7. BLACK OFFSET R-Y —0——

B-Y —0——

8. SHARP TV −14 −13 −12 —

VIDEO −8−7−9—

COMPONENT −10

■VIDEO / CHROMA CIRCUIT ADJUSTMENT (Page 20)

: Do not adjust.

AV-29RSB

No. 56041 7

Initial setting value

Setting item Adjustment name REGULAR ZOOM 16:9

50Hz 60Hz 50Hz 60Hz 50Hz 60Hz

1. V-SHIFT Vertical shift −5−10+10 0

2. V-SIZE Vertical size +7−1+36 +35 −39 −39

3. SUBTITLE Subtitle 0 +1−7+70 0

4. H-CENT Horizontal center −10 +5−1−10−1

5. H-SIZE Horizontal size −12 −1−4−40−1

6. EW-PIN Side pin correction −3+1−4−4+20

7. TRAPEZ Trapezoidal distortion correction +4−20−10+1

8. EW.COR.L Corner pin correction Low side −20−1−1+1+1

9. EW.COR.H Corner pin correction High side −20 0 0+1+1

10. V.S-COR Vertical size correction +1300000

11. V-LIN Vertical Linearity +2−1−1−1+10

12. H-BLK-R Horizontal Blanking Right 0 0 0 0 +77 0

13. H-BLK-L Horizontal Blanking Left 0 0 0 0 +20

14. V-EHT V size correction level caused by EHT change −400000

15. H-EHT H size correction level caused by EHT change −300000

16. EHT-GAIN Size correction gain caused by EHT change +300000

■DEFLECTION CIRCUIT ADJUSTMENT (Page 26)

[DEFLECTION ADJUSTMENTS INITIAL SETTING VALUE (SUB MENU 4. DEF)]

: Do not adjust.

■AUDIO CIRCUIT ADJUSTMENT (Page 30)

[AUDIO ADJUSTMENTS INITIAL SETTING VALUE (SUB MENU 3. AUDIO)]

Setting item Variable range Fixed value

1. ERROR LIMIT 000H ~ FF0H 100H

2. A2 ID THR 00H ~ FFH 14H

3. BASS −17 ~ +17 +0

4. TREBLE −17 ~ +17 +0

: Do not adjust.

AV-29RSB

No. 560418 CTH 0009

CRT

AV29RSBAU-H #3

VICTOR COMPANY OF JAPAN, LIMITED

TELEVISION RECEIVER DIVISION 1106 Heta, Iwai-city, Ibaraki-prefecture, 306-0698, Japan
