JVC AV28T20EP Bedienungsanleitung

AV32/28T20EP / LCT1154-001A-U / All cover

Cover01

COLOUR TELEVISION INSTRUCTIONS

FARBFERNSEHGERÄT BEDIENUNGSANLEITUNG

TELEVISEUR COULEUR MANUEL D’INSTRUCTIONS

KLEURENTELEVISIE GEBRUIKSAANWIJZING

TELEVISOR A COLOR MANUAL DE INSTRUCCIONES

TELEVISORE A COLORI ISTRUZIONI

TELEVISOR A CORES INSTRUÇÕES

AV32T20EP

AV28T20EP

ENGLISH

DEUTSCH

FRANÇAIS

NEDERLANDS

CASTELLANO

ITALIANO

PORTUGUÊS

LCT1154-001A-U_Cover.fm Page 1 Saturday, March 9, 2002 4:03 PM

Cover02

AV32/28T20EP / LCT1154-001A-U / All cover

LCT1154-001A-U_Cover.fm Page 2 Saturday, March 9, 2002 4:03 PM





Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this manual thoroughly before you

begin.

Avoid improper installation and never position the unit where good

ventilation is unattainable.

When installing this television, distance recommendations must be

maintained between the floor and wall, as well as installation in a tightly

enclosed area or piece of furniture.

Adhere to the minimum distance guidelines shown for safe operation.

Failure to heed the following precautions may result in damage to the

television or remote control.

DO NOT block the TV’s ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be

able to get out.)

DO NOT place anything on top of the TV.

(such as cosmetics or medicines, flower vases, potted plants, cups, etc.)

DO NOT allow objects or liquid into the cabinet openings.

(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

DO NOT place any naked flame sources, such as lighted candles, on the TV.

CONTENTS

Setting up your TV. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

TV buttons and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote control buttons and functions . . . . . . . . . . . . . . . . . . . . . . 9

Teletext function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the TV’s menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Additional menu operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Additional preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

CH/CC numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

• Operate only from the power source specified

(AC 220 – 240 V, 50 Hz) on the unit.

• Avoid damaging the AC plug and power cord.

• When you are not using this unit for a long

period of time, it is recommended that you

disconnect the power cord from the main

outlet.

• The main power button on the TV does not

fully isolate the TV from the AC supply. If you

are not going to use this TV for a long period

of time, be sure to disconnect the AC plug from

the AC socket.

The surface of the TV screen is easily damaged. Be very careful with it when handling the TV.

Should the TV screen become soiled, wipe it with a soft dry cloth. Never rub it forcefully.

Never use any cleaner or detergent on it.

In the event of a fault, unplug the unit and call a service technician. Do not attempt to repair it

yourself or remove the rear cover.

AV32&28T20EP_Eng.fm Page 1 Saturday, March 9, 2002 4:06 PM



Setting up your TV

Caution

• Turn off all the equipment including the TV before connecting anything.

Connecting the aerial and VCR

• The connecting cables are not provided.

• For further details, refer to the manuals provided with the devices to be connected.

If connecting a VCR, follow A

A→

B→C

If not connecting a VCR, follow 1

To operate T-V LINK functions, a T-V

LINK compatible VCR must be connected to

the EXT-2 terminal on the TV. For details

about T-V LINK functions, see “T-V LINK

FUNCTIONS” on page 5.

• A video can be viewed from the VCR

without performing C. For details, refer

to your VCR instruction manual.

• To connect additional external devices,

please see “Additional preparation” on

page 35.

• To connect speakers and amplifier, please

see “Connecting Speakers/Amplifier” on

page 36.

• When a decoder is connected to a T-V

LINK compatible VCR, set the

DECODER (EXT-2) function to ON. For

details, see “Using the DECODER (EXT-

2) function” on page 34. Otherwise, you

will not be able to view scrambled

channels.

Rear Panel

1Aerial socket (2)

2EXT-1 terminal (2, 22, 35)

3EXT-2 terminal (2, 5, 22, 35)

4EXT-3 terminal (22, 35)

5AUDIO OUT terminal (36)

EXT-1

EXT-2

S S

EXT-3

AUDIO OUT

75-ohm

Coaxial

Cable

21-pin

SCART

Cable

Back of the TV

75-ohm

Coaxial

Cable

AV IN/OUT

Terminal

To Aerial

Output

To Aerial

Input

VCR

Aerial

AUDIO OUT

EXT-1

EXT-2

EXT-3

AV32&28T20EP_Eng.fm Page 2 Saturday, March 9, 2002 4:06 PM

Setting up your TV





Connecting the power cord to

the AC outlet

Caution

• Operate only from the power source

specified (AC 220 – 240 V, 50 Hz) on the

unit.

Putting the batteries into the

Remote control

Use two AAA/R03 dry cell batteries.

Insert the batteries from the -end, making

sure the +and -polarities are correct.

• Follow the warnings printed on the

batteries.

• Battery life is about six months to one

year, depending on your frequency of use.

• The batteries we supply are only for

setting up and testing your TV, please

replace them as soon as necessary.

• If the remote control does not work

properly, replace the batteries.

Initial settings

When the TV is first turned on, it enters the

initial setting mode, and the JVC logo is

displayed. Follow the instructions on the on-

screen display to make the initial settings.

1 Press the Main power button on the

The Power lamp lights red (for power on),

then green (for TV on) and the JVC logo

is displayed.

TV OK

Blue

button

Main power

button

Power lamp

AV32&28T20EP_Eng.fm Page 3 Saturday, March 9, 2002 4:06 PM

Setting up your TV



• If the power lamp stays red and does

not change to green:

Your TV is in the standby mode. Press

the #(Standby) button on the remote

control to turn your TV on.

• The JVC logo does not appear when

your TV has been turned on once. In

this case, use the “LANGUAGE” and

“AUTO PROGRAM” functions to

make the initial settings. For details,

see “INSTALL” on page 26.

2 Press the a

abutton

The LANGUAGE menu appears.

3 Press the 5

5and 6

6buttons to

choose ENGLISH. Then press the

abutton

English is set for the on-screen display

description. The COUNTRY menu

appears as a sub-menu of the AUTO

PROGRAM function.

4 Press the 5

5and 6

6buttons to

choose the country where you are

now located

5 Press the blue button to start the

AUTO PROGRAM function

The AUTO PROGRAM menu appears

and received TV channels are

automatically registered in the

Programme numbers (PR).

• To cancel the AUTO PROGRAM

function:

Press the bbutton.

After the TV channels have been

registered in the Programme

numbers (PR), the EDIT menu

appears

• You can proceed to edit the

Programme numbers (PR) using the

EDIT/MANUAL function. For details,

see “EDIT/MANUAL” on page 28.

• If you do not need to use the EDIT/

MANUAL function, go to the next

step.

AV32&28T20EP_Eng.fm Page 4 Saturday, March 9, 2002 4:06 PM

Setting up your TV





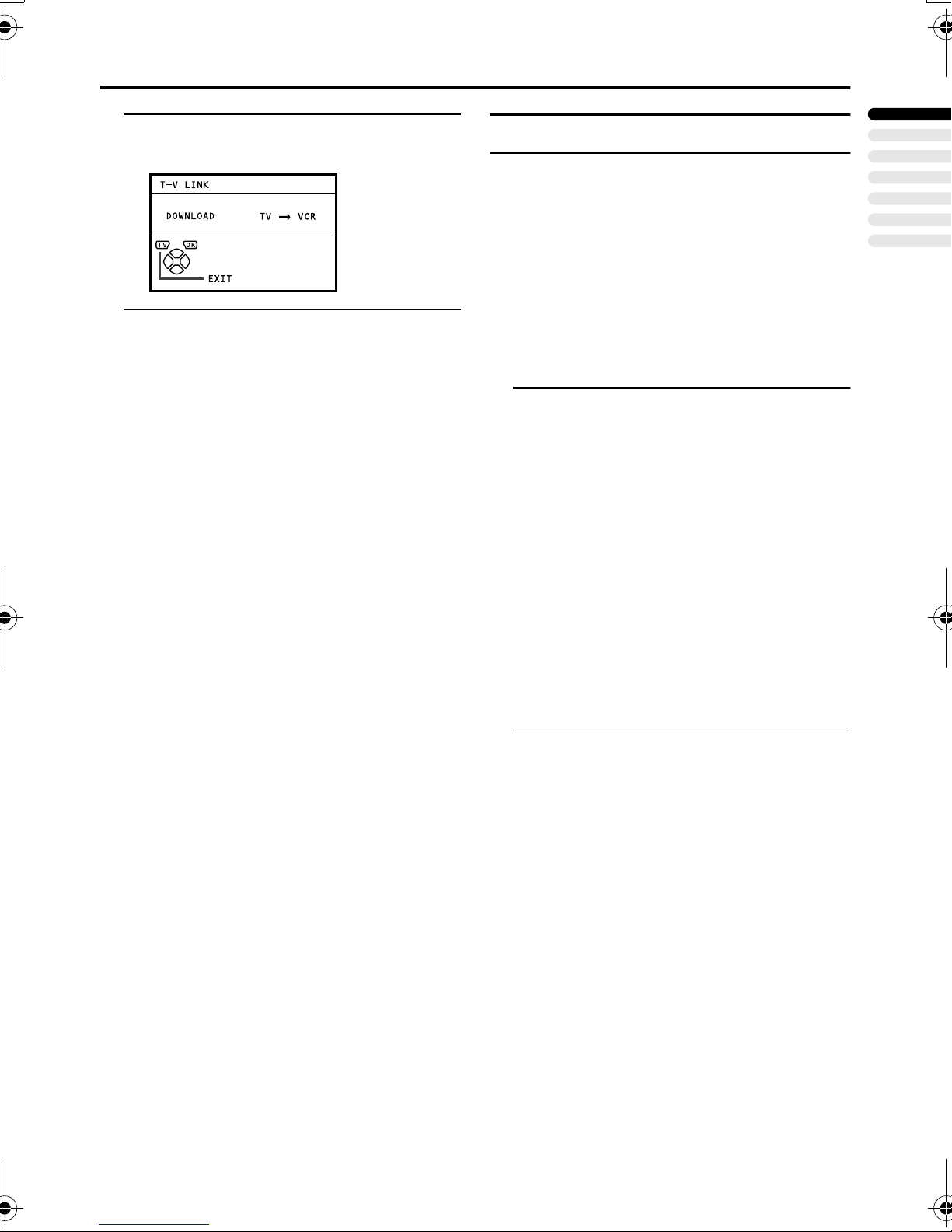

6 Press the a

abutton to display the

T-V LINK menu

7 If you do not have a T-V LINK

compatible VCR connected:

Press the bbutton to exit the T-V LINK

menu.

The T-V LINK menu disappears.

If you have a T-V LINK compatible

VCR connected to the EXT-2

terminal:

Follow the operating procedure

“Downloading the data to VCR” on

page 33 to transmit the Programme

number (PR) data.

Now, the initial settings are complete,

and you can watch the TV

• When your TV can detect the TV channel

name from the TV channel broadcast

signal, it automatically registers the TV

channel name (ID) to the Programme

number (PR) in which the TV channel has

been registered.

• If a TV channel you want to view is not

set to a Programme number (PR),

manually set it using the MANUAL

function. For details, see “EDIT/

MANUAL” on page 28.

• The TV channel is not registered in

Programme number PR 0 (AV). When

you want to register a TV channel to PR 0

(AV), manually set it using the

MANUAL function. For details, see

“EDIT/MANUAL” on page 28.

T-V LINK FUNCTIONS

When a T-V LINK compatible VCR is

connected to the EXT-2 Terminal on the TV,

it is easier to set up the VCR and to view

videos. T-V LINK uses the following

features:

To use T-V LINK functions:

A T-V LINK compatible VCR is necessary.

The VCR must be connected to the EXT-2

terminal on the TV by a fully wired SCART

cable.

A “T-V LINK compatible VCR” means a

JVC VCR with the T-V LINK logo or a VCR

with one of the following logos. However,

these VCRs may support some or all of the

features described below. For details, refer to

your VCR instruction manual.

“Q-LINK” (a trademark of Panasonic

Corporation)

“Data Logic” (a trademark of Metz

Corporation)

“Easy Link” (a trademark of Phillips

Corporation)

“Megalogic” (a trademark of Grundig

Corporation)

“SMARTLINK” (a trademark of Sony

Corporation)

AV32&28T20EP_Eng.fm Page 5 Saturday, March 9, 2002 4:06 PM

Setting up your TV



Pre-set Download

Download the registered data on the TV

channels from the TV to the VCR.

The Preset Download function automatically

begins when the initial setting is complete or

whenever the AUTO PROGRAM or EDIT/

MANUAL operations are performed.

• This function can be operated via VCR

operation.

When “FEATURE NOT AVAILABLE” is

displayed:

If “FEATURE NOT AVAILABLE” is

displayed, the download was not performed

correctly. Before trying to download again,

ensure the following:

• The VCR power is turned on.

• The VCR is T-V LINK compatible.

• The VCR is connected to the EXT-2

terminal.

• The SCART cable is fully wired.

Direct Rec

“What You See Is What You Record”

You can record to VCR the images that you

are currently viewing on TV by a simple

operation. For details, read the manual for

your VCR. Operate via the VCR. “VCR IS

RECORDING” is displayed.

In the following conditions, the VCR

will stop recording if the TV is turned

off, if the TV channel or input is

switched, or if the menu is displayed

on the TV:

• When recording images from an external

device connected to the TV.

• When recording a TV channel after it has

been unscrambled on a decoder.

• When recording a TV channel by using

the TV’s output because that TV channel

cannot be properly received on the VCR’s

tuner.

• Operation via the TV is not possible.

• Generally, the VCR cannot record a TV

channel that cannot be received properly

by the VCR’s tuner, even though you can

view that TV channel on the TV.

However, some VCRs can record a TV

channel by using the TV’s output if that

channel can be viewed on the TV, even

though the TV channel cannot be received

properly by the VCR’s tuner. For details,

refer to your VCR instruction manual.

TV Auto Power On/VCR Image

View

When the VCR starts playing, the TV

automatically turns on and the images from

EXT-2 terminal are displayed on the screen.

When the VCR menu is operated, the TV

automatically turns on and the images from

EXT-2 terminal are displayed on the screen.

• This function does not operate if your

TV’s main power is turned off. Set your

TV’s main power to on (standby mode).

AV32&28T20EP_Eng.fm Page 6 Saturday, March 9, 2002 4:06 PM





TV buttons and functions

Refer to the pages in parentheses for details.

1Remote control sensor

2Power lamp (3, 7)

3Main power button (3, 7)

4Headphone jack (mini jack) (35)

5P pbuttons/ qbuttons (8)

6r(Volume) button (8)

7EXT-4 terminal (22, 35)

Turn the Main power on

Press the Main power button on the

TV.

The Power lamp lights red and your TV is in

the standby mode.

• If the Power lamp lights green, the TV is

already on.

To turn the Main power off:

Press the Main power button again.

The Power lamp goes off.

Caution

• The main power button on the TV does

not fully isolate the TV from the AC

supply. If you are not going to use this TV

for a long period of time, be sure to

disconnect the AC plug from the AC

socket.

AV32&28T20EP_Eng.fm Page 7 Tuesday, March 12, 2002 1:36 PM

TV buttons and functions



Turn the TV on from standby

mode

Press the P p

pbuttons to turn the TV

on from standby mode

Choose a TV channel

Press the P p

pbuttons to choose a

programme number (PR) or an EXT

terminal

Adjust the volume

1 Press the r

r(Volume) button

The volume level indicator appears.

2 Press the q

qbuttons while the

volume level indicator is displayed

AV32&28T20EP_Eng.fm Page 8 Saturday, March 9, 2002 4:06 PM

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere JVC Fernseher Handbücher

JVC

JVC AV-14F3 Bedienungsanleitung

JVC

JVC InteriArt AV-28E50SK Bedienungsanleitung

JVC

JVC AV-25TS1EN Bedienungsanleitung

JVC

JVC I'Art AV-27MF36 Installationsanleitung

JVC

JVC LT-55K890B Bedienungsanleitung

JVC

JVC LT-32EC3208 Bedienungsanleitung

JVC

JVC AV-36D503/Y Bedienungsanleitung

JVC

JVC 0902-NIC-JET Bedienungsanleitung

JVC

JVC InteriArt AV32H20EUS Bedienungsanleitung

JVC

JVC InteriArt Natural Vision T_V LINK AV28H20EU Bedienungsanleitung

JVC

JVC AV-21F1EG Bedienungsanleitung

JVC

JVC AV-21L24 Bedienungsanleitung

JVC

JVC AV-27F704/BSA Bedienungsanleitung

JVC

JVC HD-56FH97 - 56" Rear Projection TV Bedienungsanleitung

JVC

JVC AV-21M316 Bedienungsanleitung

JVC

JVC AV 14F704 Bedienungsanleitung

JVC

JVC AV-21BX16S Bedienungsanleitung

JVC

JVC AV 20F704 Bedienungsanleitung

JVC

JVC AV-20320/S Bedienungsanleitung

JVC

JVC AV-28BK5ECB Bedienungsanleitung

JVC

JVC AV-21F9 Bedienungsanleitung

JVC

JVC I'Art Palette PD-42V475 Bedienungsanleitung

JVC

JVC AV-29MX7 Bedienungsanleitung

JVC

JVC AV-21AT Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
