HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

INSTRUCTIONS

COLOUR TELEVISION

HV-34LZ

HV-29WZ

Contents

Setting up your TV

TV buttons and functions

Remote control buttons

and functions

Using the TV's menu

Basic operation

PICTURE SETTING menu

PICTURE FEATURES menu

SOUND SETTING menu

FEATURES menu

INSTALL menu

Additional preparation

Troubleshooting

Specification

. . . . . . . . . . . . . 3

. . . . . . . . 6

. . . 8

. . . . . . . . . . . . 15

. . . . . . . . . . . . . . 15

. . . . . 17

. . . 18

. . . . . . 21

. . . . . . . . . . . 22

. . . . . . . . . . . . . . 25

. . . . . . . . . . 31

. . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . 38

LCT1200-001A-H

0702-CR-JMT

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM1

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

Thank you for buying this JVC colour television.

To make sure you understand how to use your new TV, please read this

manual thoroughly before you begin.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS

APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING

RULES REGARDING THE USE OF THIS TV.

1 Operate only from the power source indicated on the rear of the TV.

2 Avoid damaging the power cord and mains plug. When unplugging the TV,

grasp the mains plug. Do not pull on the power cord.

3 Never block or cover the ventilation openings.

Never install the TV where good ventilation is unattainable.

When installing this TV, leave spaces for ventilation around the TV of more

than the minimum distances as shown.

4 Do not allow objects or liquid into the cabinet openings.

5 In the event of a fault, unplug the unit and call a service technician.

Do not attempt to repair it yourself or remove the rear cover.

6 The surface of the TV screen is easily damaged. Be very careful with it

when handling the TV. Should the TV screen become soiled,

wipe it with a soft dry cloth. Never use rub it forcefully.

Never use any cleaner or detergent on it.

7 If you are not going to use this TV for a long period of time, be sure to

disconnect the AC plug from the AC socket.

15 cm

10 cm 10 cm 15 cm

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM2

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

CAUTION

• Turn off all the equipment including the

TV before connecting anything.

1 Connecting the aerial

and VCR

• Aerial cable is not supplied. Use a good

quality 75-ohm coaxial cable.

• Read the manual that came with the VCR

before connecting.

If not connecting a VCR (see fig.A):

Connect an aerial cable to the aerial

socket on this TV .

If connecting a VCR (see fig.B):

1 Connect the aerial cable to the

aerial input socket on the VCR,

and connect the VCR and TV

with another aerial cable.

2 Connect the VCR's VIDEO OUT

(video output) jack and the TV's

VIDEO jack with a video cable.

To connect a VCR to the TV with an S-VIDEO

cable:

Connect the VCR's S-VIDEO OUT (S-VIDEO

output) connector and TV's S connector with

an S-VIDEO cable A, instead of connecting

with a video cable .

3 Connect the VCR's VIDEO OUT

(audio L/R output) jacks and the

TV's AUDIO jacks (L/MONO and

R) with an audio cable.

• If the VCR's audio output is in mono,

connect the VCR's AUDIO OUT (audio

output) jack and the TV's AUDIO L/

MONO jack with an audio cable.

• You can use the AV COMPU LINK

function if your VCR has an AV COMPU

LINK terminal. For details, see

"Connecting AV COMPU LINK Supported

Devices" on page 33.

Setting up your TV

L/MONO

AUDIO

L/MONOR AUDIO

C Y/VIDEO

VIDEO

VIDEO-2

VIDEO

OVER

VIDEO-3/

COMPONENT

VIDEO-1

OUTPUT

AV COMPULINK

Back of the TV

L/MONO

AUDIO

L/MONOR AUDIO

C Y/VIDEO

VIDEO

VIDEO-2

VIDEO

OVER

VIDEO-3/

COMPONENT

VIDEO-1

OUTPUT

AV COMPULINK

Back of the TV

Fig.A

Fig.B

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM3

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

:EXIT

:OK

:BACK

DISP

2 Connecting the power cord

Connect the mains plug to the AC

outlet.

3 Putting the batteries into the

Remote control

Use two AA/R6 batteries.

Insert the batteries from the end, making sure

the and polarities are correct.

•Follow the warnings printed on the batteries.

•If the remote control does not work properly,

replace the batteries.

•The batteries we supply are only for setting up

and testing your TV. Please replace them as

soon as necessary.

4 Making the initial settings

When the TV is first turned on, it enters the initial

setting mode, and the JVC logo is displayed.

1 Press the main power button on the TV

The TV is turned on, and the JVC logo appears.

•If the power lamp on the TV lights red and

does not change to green, your TV is in the

standby mode. Press the POWER button on

the remote control to turn the TV on.

•If the JVC logo does not appear, your TV has

already been turned before .In this case, use

the "LANGUAGE" and "AUTO PROGRAM"

functions to make the initial settings. For

details, see "INSTALL" on page 25.

2 Press the MENU/OK button

The LANGUAGE menu appears. You can

choose a language for the on-screen

language.

Setting up your TV

CINEMA

SURROUND

ECO POWER

34LZ

Main power button

POWER lamp

CINEMA

SURROUND

ECO POWER

29WZ

Main power button

POWER lamp

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM4

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

3 Press the

buttons to choose

ENGLISH. Then press the MENU/

OK button.

The AUTO PROGRAM function starts.

The TV channels you receive are

automatically stored in the programme

numbers list.

•To stop the AUTO PROGRAM function,

press the OK button.

4 After the TV channels have been

stored in the programme number

(PR) list, the EDIT menu appears.

•You can proceed to edit the programme

numbers list using the EDIT/MANUAL

function. For details, see "EDIT/MANUAL"

on page 26.

•If a TV channel you want to view is not

stored in the programme numbers list, you

can register it using the MANUAL function.

For details, see "EDIT/MANUAL" on page 26.

•The AUTO PROGRAM function does not

store a TV channel to the programme

number 0 (AV).

•If you do not need to use the EDIT/

MANUAL function, press the MENU/OK

button to close the EDIT menu.

Now, setting up is complete.

Please enjoy your new JVC TV!

:OK

CH 10

AUTO PROGRAM

20%

Setting up your TV

CH/CC

PR ID

INSERT

DE ETE

MANUA

MOVE

EDIT

:EXIT

:OK

:BACK

DISP

RETURN+

MUTING

COLOUR

SYSTEM

SOUND

CINEMA

SURROUND

DISPLAY

ZOOM

TV/TEXT

TV/VIDEO


MODE

CHANNEL VOLUME

REVEAL

SUBPAGE

HOLD

STORE

RM-C1030 TV

INDEX

MODE

SIZE

TEXT

CANCEL

POWER

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM5

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

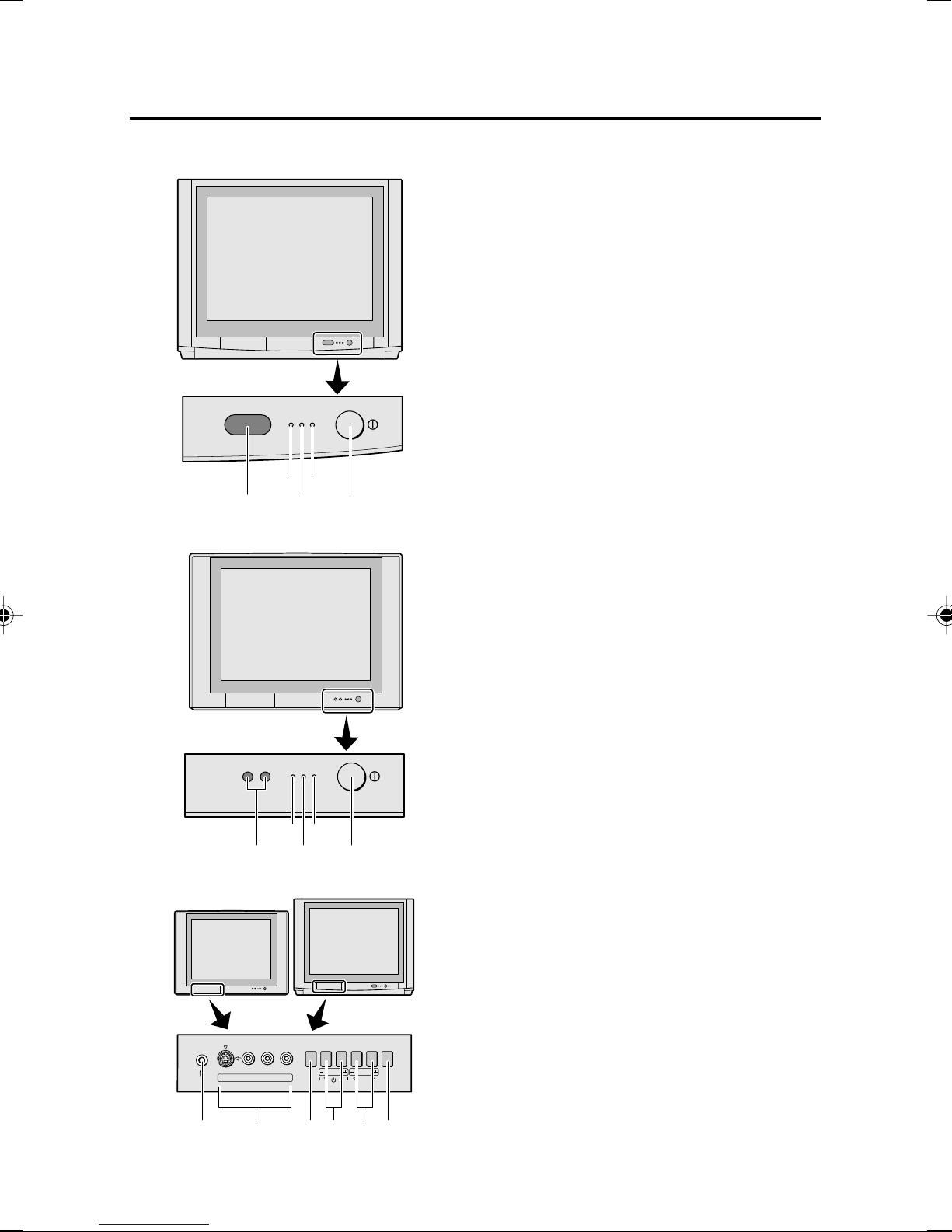

Turn the main power on

Press the main power button 1.

The POWER lamp 2lights red and your TV

is in the standby mode.

To turn the main power off:

press the main power button again.

The POWER lamp 2goes off.

Turn the TV on from standby

mode

Press the CHANNEL-/+ buttons 5.

The POWER lamp 2lights red to green and

your TV will be turned on.

•You can also turn on the TV by pressing the

TV/VIDEO button 3while it is in standby

mode.

Choose a TV channel

Press the CHANNEL-/+ buttons 5.

Choose a VIDEO terminal

Press the TV/VIDEO button 3or

CHANNEL-/+ buttons 5.

Adjust the volume

Press the VOLUME-/+ buttons 4.

The volume level indicator appears.

MENU button 6

Press to open the menu.

For details, see "Operation with the buttons

on the TV" on page 16.

Remote control sensor

and ECO sensor 9

ECO lamp 7

If you set the AI ECO SENSOR function to

mode 1 or mode 2, the ECO lamp lights.

CINEMA SURROUND lamp 8

If you set the CINEMA SURROUND function

to HIGH, LOW or MONO, the CINEMA

SURROUND lamp lights.

TV buttons and functions

(Behind the cover)

IN (VIDEO-4)

L/MONO

OVER

CHANEL VOLUME

TV/VIDEO

EXIT

0-6543

29WZ HV

34LZ

CINEMA

SURROUND

ECO POWER

197

34LZ

CINEMA

SURROUND

ECO POWER

29WZ

197

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM6

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

VIDEO

VIDEO-1

VIDEO-2

VIDEO-3

COMPONENT

OUTPUT

Y/VIDEOC

VIDEO

AVCOMPU LINK

L/MONO

AUDIO

OVER

L/MONO

AUDIO

VIDEO

VIDEO-1

VIDEO-2

VIDEO-3/

COMPONENT

OUTPUT

Y/VIDEOC

VIDEO

AV COMPU LINK

L/MONO

AUDIO

OVER

L/MONO

AUDIO

Headphone jack 0

Connect the headphones with a stereo

mini-jack (3.5mm in diameter).

VIDEO-1 terminal =

•See page 3 and 31.

VIDEO-2 terminal ~

•See page 31.

VIDEO-3/COMPONENT

terminal !

•See page 24 and 31.

VIDEO-4 terminal -

•See page 31.

OUTPUT terminal @

•See page 31.

Aerial socket #

Connect the aerial cable.

•See page 3.

AV COMPU LINK terminal $

•See page 31 and 33.

TV buttons and functions

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM7

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

Turn the TV on from standby

mode

Press the POWER button.

The POWER lamp lights red to green and

your TV will be turned on.

•You can turn on the TV from the standby

mode by pressing the TV/VIDEO button,

the CHANNEL-/+ buttons or the number

buttons.

To turn the TV off:

Press the POWER button again.

The POWER lamp changes from green to red

and the TV enters standby mode.

Choose a TV channel

Choose a programme number in which a TV

channel has been set.

Press the CHANNEL-/+ buttons or

enter the programme number (PR)

with the number buttons.

•If you want to put a two-digit channel into

the TV, press the -/--button to change to

the two-digit entry system.

•You can select a channel from the PR

LIST. For details, see "DISPLAY button"

on page 11.

•If you do not have a clear picture or no

colour appears, follow the operation

procedure "COLOUR SYSTEM button" on

page 11.

Adjust the volume

Press the VOLUME-/+ buttons.

Watch images from external

devices

Choose a VIDEO terminal to which the

external device has been connected.

Press the TV/VIDEO button.

•You can choose a VIDEO terminal with

the CHANNEL-/+ buttons or from the PR

LIST.

To return to a TV channel:

Press the TV/VIDEO button, the CHANNEL-/+

buttons or the number buttons.

Remote control buttons and functions

RETURN+

MUTING

COLOUR

SYSTEM

SOUND

CINEMA

SURROUND

DISPLAY

ZOOM

TV/TEXT

TV/VIDEO


MODE

CHANNEL VOLUME

REVEAL

SUBPAGE

HOLD

STORE

RM-C1030 TV

INDEX

MODE

SIZE

TEXT

CANCEL

POWER

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:11PM8

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

MUTING button

Press the MUTING button to turn off

the volume. Pressing the MUTING

button again resumes the previous

volume level.

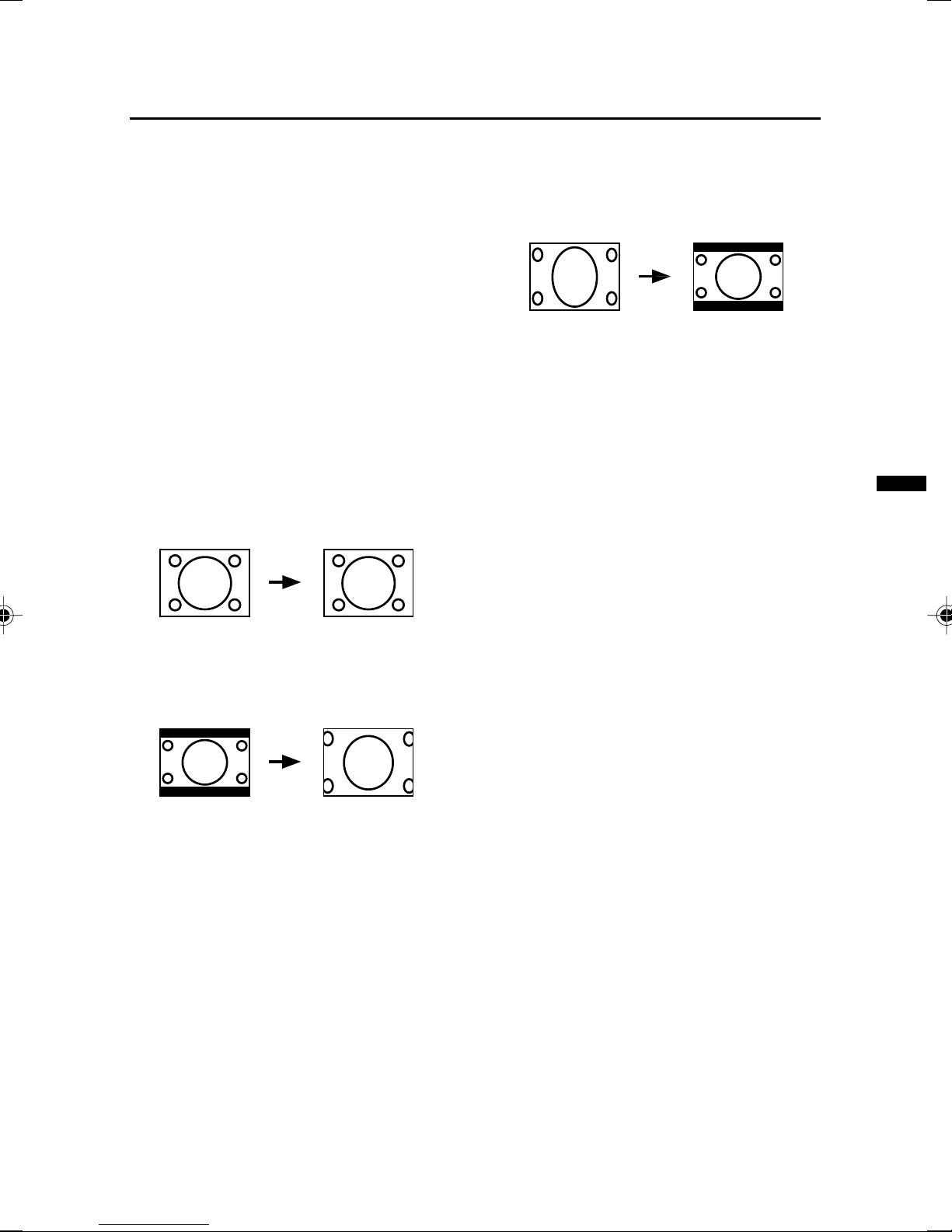

ZOOM button

You can change the screen size according to

the picture aspect ratio. Choose the optimum

one from the following ZOOM modes.

Press the ZOOM button to choose a

mode.

REGULAR

Use to view a normal picture (4:3 aspect

ratio) as its original size is.

ZOOM

You can zoom up the Wide picture (16:9

aspect ratio) to fill the TV screen.

•The left side and right side of the Wide

picture (16:9 aspect ratio) will be cut off.

16:9

This mode converts a normal picture (4:3

aspect ratio) into a Wide picture (16:9 aspect

ratio).

•Use for picture with a 16:9 aspect ratio

that have been squeezed into a normal

picture (4:3 aspect ratio), you can restore

their original dimensions.

CINEMA SURROUND button

You can enjoy an enhanced sound for a

wider audience by using CINEMA

SURROUND function.

Press this button to select one of the

CINEMA SURROUND mode.

HIGH/LOW:

When you listen to the stereo sound, please

select HIGH mode or LOW mode.

You can enjoy the sound for a wider

audience similar to the experience at the

theatre.

•In case that you setting up the CINEMA

SURROUND function to HIGH mode,

there may be slight volume distortion. In

case that occurs, please switch the

HIGH mode to LOW mode, the effect of

CINEMA SURROUND functions will be

less noticeable, however, the volume

distortion will be corrected.

MONO SURROUND:

Select the MONO SURROUND mode, when

you listen to the mono sound.

You can enjoy the sound for a wider

audience similar to stereo sound.

OFF:

The CINEMA SURROUND function switches

off.

Remote control buttons and functions

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:12PM9

HV-34LZ/29WZ / LCT1200-001A-H / ENGLISH

PICTURE MODE button

You can choose one of three PICTURE

MODEs (three kinds of picture setting) to

adjust the picture settings automatically.

Press the PICTURE MODE button

choose a mode.

BRIGHT:

Heightens contrast and sharpness.

STANDARD:

Standardizes picture adjustment.

SOFT:

Softens contrast and sharpness.

RETURN+ button

The RETURN+ button has two functions;

the RETURN+ function and the RETURN

function. If a channel has been registerd as

the "Return Channel", the RETURN+

function operates. If there is no setting for the

"Return Channel", the RETURN

function operates.

RETURN+ function:

By registering a channel you frequently view

as the "Return Channel", you can select that

channel at any time simply by pressing the

RETURN+ button.

To register a TV channel as the

"Return Channel":

Choose the Programme number to which the

channel you want to register has been set,

and press the RETURN+ button and hold for

more than 3 seconds continuously.

"RETURN PLUS PROGRAMMED!" is

displayed and the registration is completed.

Remote control buttons and functions

To cancel register a TV channel as the

"Return Channel":

while viewing any TV channel, press the

RETURN+ button and hold for more than 3

seconds continuously. "RETURN PLUS

CANCELED!" is displayed and the

registration is cancelled.

•When you turn off the TV, the registration

for the "Return Channel" is cancelled.

•If you want to view the "Return Channel"

and another TV channel alternately, first

choose a channel other than the "Return

Channel". And then press the RETURN+

button to change the channel to the

"Return Channel" In this way, you can

view two channels alternately by

pressing the RETURN+ button.

RETURN function:

The TV temporarily memorises the TV

channel that was choosen right before the

current TV channel as the "Last Channel". By

pressing the RETUTN+ button, you can

alternately view the current TV channel and

the "Last Channel".

•If you want to view two channels

alternately by using the RETURN

function, first choose one TV channel

and then choose the other TV channel

with the Number buttons. If you choose

the TV channel without using the Number

buttons, there are cases where a channel

other than the one you first chose is

registered as the "Last Channel".

LCT1200-001A-H_P01-18.p65 9/8/2002, 15:12PM10

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere JVC Fernseher Handbücher

JVC

JVC AV-36F802, AV-36F702, AV-32F802, AV-32F702, AV-27F802,... Bedienungsanleitung

JVC

JVC LT-43C870(A) Bedienungsanleitung

JVC

JVC AV-48WP30 Bedienungsanleitung

JVC

JVC AV-32920 Bedienungsanleitung

JVC

JVC AV-32220/G Bedienungsanleitung

JVC

JVC AV-14FTG2 Bedienungsanleitung

JVC

JVC AV-29BH11ENS Bedienungsanleitung

JVC

JVC AV-21CS24 Bedienungsanleitung

JVC

JVC AV-21D116 Bedienungsanleitung

JVC

JVC AV-28PH4N Bedienungsanleitung

JVC

JVC AV-27750 Bedienungsanleitung

JVC

JVC AV-21BT8ENS Bedienungsanleitung

JVC

JVC AV-32WL1EU Bedienungsanleitung

JVC

JVC HD70G886 - 70" CRT TV Handbuch

JVC

JVC LT-32FX77 Bedienungsanleitung

JVC

JVC LT- 43C775 Bedienungsanleitung

JVC

JVC I'Art AV-27F476 Bedienungsanleitung

JVC

JVC AV-14F703 Bedienungsanleitung

JVC

JVC AV-21W33 Bedienungsanleitung

JVC

JVC AV-32D501 Bedienungsanleitung

JVC

JVC AV-28R4SK Bedienungsanleitung

JVC

JVC AV-21QT5BU Bedienungsanleitung

JVC

JVC AV-21BS26 Bedienungsanleitung

JVC

JVC AV-36260 Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
