OVERVIEW 03

FEATURES 03

FUNCTION MODULE INTRODUCTION 04

OLED SCREEN MENU INTRODUCTION 08

WEB GUI INTRODUCTION 09

FIRMWARE UPDATES GUIDE 14

A triva true view based upscaler/video converter board

for retro gaming hardware

overview

GBS control is an improved GBS8200 RGB to VGA converter board, and an

alternative firmware for Tvia Trueview5725 based Upscaler / Video converter

board.

NOTE:

1) This device does not support composite and S-video inputs.

2) HDMI and VGA outputs will not work if connected at the same time. You will

only be allowed to have one connected at a time.

3) If you want to switch the video input signal (when you have more than one

input video source connected into this device), you need to power off the

device first to avoid potentially damaging the device.

FEATURES

1) Almost zero latency.

2) Supports most retro video game consoles.

3) Supports RGBS, RGSB, RGBS SCART, RGBHV, Component and VGA

Inputs.

4) Supports RGBS, VGA, Component and HDMI Outputs.

5) Supports high fidelity audio output.

6) Built in Si5351 stable clock generator.

7) Supports Video image adjustment.

8) Ability to balance the amplitude of the three primary colour signals - R, G, B.

9) Supports upscaling up to 1080p.

10) Supports downscaling to 240p/288p (Only through the Saturn AV

Connector).

11) No synchronization loss switching between 240p/480i, 480i/480p or

288p/576i.

12) Supported resolutions include:

(240p/288p/480i/480p/576i/576p/640p/720p/960p/1024p/1080i/1080p).

13) OLED Screen and WIFI web configuration pages help you make settings

FUNCTION MODULE INTRODUCTION

Tvia TruView 5275

RGB KNOB

2MB SD RAM

AUDIO OUTPUT

SCART INPUT

RGBS/YPBPR OUTPUT

(SATURN CONNECTOR)

COMPATIBILITY MODE

SLIDE SWITCH

POWER

SELF-LOCKING BUTTON

RGBS SYNC

SELF-LOCKING BUTTON

SYNC ON GREEN

SELF-LOCKING BUTTON

HDMI

SLIDE SWITCH

RGBHV/RGBS

SLIDE SWITCH

OFF

RGBS INPUT COMPONENT INPUT

AUDIO INPUT

VGA INPUT

MICRO USB

DC 5V 2A

VGA OUTPUT

HDMI OUTPUT

MS9288A

LM1811MX

ROTARY ENCODER

OLED

ESP8266

CH340

Si53351 Clock Generator

PROGRAM POINTS

RGBS

RGBHV

MTV230MV

OFF

MICRO USB:

The micro-USB port only supports firmware updates and does not supply

power to the device. If you need to update the firmware, please see the

“firmware update” guide on page 14.

RGBS SYNC SELF-LOCKING BUTTON:

When you press down the RGBS Sync Self-locking button the LM1881 chip

will “strip” the sync information from composite video. When the switch is not

pressed down it will bypass the composite signal.

SYNC ON GREEN SELF-LOCKING BUTTON:

When the SYNC ON GREEN BUTTON is pressed down, this device will

accept the VGA, RGBHV, RGSB signals. When the button is not pressed in,

this device will accept the RGBS and Component (YPbPr) signals.

NOTE:

When this button is pressed, this device can extract and use the sync on

green signal, so the RGsB signal (such as the progressive scan mode on

the retro game console) is accepted, but the “SYNC ON GREEN SELF-

LOCK¬ING BUTTON” and the “RGBS SYNC SELF-LOCKING BUTTON”

must be pressed simultaneously.

POWER SELF-LOCKING BUTTON:

When this button is pressed down, this device is POWERED ON.

DC 5V 2A:

Connect a suitable 5V2A, 2.1 x 5.5mm PSU.

HDMI OUTPUT:

Standard 3.5mm stereo headphone plug type connector. Outputs High-

Fidelity audio.

DC 5V 2A:

Outputs a HDMI Digital signal.

Tvia TruView 5275

RGB KNOB

2MB SD RAM

AUDIO OUTPUT

SCART INPUT

RGBS/YPBPR OUTPUT

(SATURN CONNECTOR)

COMPATIBILITY MODE

SLIDE SWITCH

POWER

SELF-LOCKING BUTTON

RGBS SYNC

SELF-LOCKING BUTTON

SYNC ON GREEN

SELF-LOCKING BUTTON

HDMI

SLIDE SWITCH

RGBHV/RGBS

SLIDE SWITCH

OFF

RGBS INPUT COMPONENT INPUT

AUDIO INPUT

VGA INPUT

MICRO USB

DC 5V 2A

VGA OUTPUT

HDMI OUTPUT

MS9288A

LM1811MX

ROTARY ENCODER

OLED

ESP8266

CH340

Si53351 Clock Generator

PROGRAM POINTS

RGBS

RGBHV

MTV230MV

OFF

RGBS/YPBPR OUTPUT (SATURN A/V CONNECTOR):

If you want to output RGBS (which you

must through the Saturn A/V connector),

you need to slide across the switch to

“RGBHV/RGBS SLIDE SWITCH”. If you

want Component signal output through

the Saturn A/V connector, you also

need to turn on the “RGBHV/Component

Toggle” in the web settings page.

NOTE:

1. The HDMI Slide Switch much be switched to off if you want to output

RGBS/Component signals through the Saturn AV Connector.

2. The GBSC only outputs lower resolutions such as 240p/288p through the

Saturn AV Connector.

VGA OUTPUT:

Standard D-Sub15 (VGA) connector.

NOTE:

If you want to output VGA signals through this interface, The “HDMI SLIDE

SWITCH” must be turned to “OFF”.

HDMI SLIDE SWITCH:

Toggles the HDMI signal OFF and ON.

RGBHV/RGBS SLIDE SWITCH:

If you want to output RGBS signal, please slide this switch to “RGBS” side. In

other cases, please keep RGBHV by default.

NOTE:

This function is used as RGBHV (VGA) to RGBS signal output.

SCART INPUT:

The European standard SCART interface can only receive RGBS signals.

The less common Japanese JP21 SCART must be used with a converter.

VGA INPUT:

Standard D-Sub15 (VGA) connector, accepts the VGA and RGBHV signals.

It can also receive RGsB signals.

NOTE:

If you use this interface, you must press down the switch ”SYNC ON GREEN

SELF-LOCKING BUTTON”.

COMPONENT INPUT:

Accepts the Component (YPBPR) signal.

NOTE:

The “SYNC ON GREEN SELF-LOCKING BUTTON” and “RGBS SYNC

SELF-LOCKING BUTTON” must stay pressed in.

AUDIO INPUT:

Left and right audio input.

182MM

105MM

RGBS INPUT:

Accepts the RGBS Signal. We recommend you press the “RGBS SYNC

SELF-LOCKING BUTTON” down to get a clean sync signal through the

LM1881 chip when using RGBS.

NOTE:

If you are using this input for a progressive scan RGBS signal (normally

480p or 576p), please press down these two switches at the same time. The

“RGBS SYNC SELF-LOCKING BUTTON” and “SYNC ON GREEN SELF-

LOCKING BUTTON”.

RGB KNOB:

Adjust the red, green and blue signals intensity of the output images.

COMPATIBILITY MODE SLIDE SWITCH:

Toggles compatibility mode ON and OFF.

NOTE:

The “Sega 32x/Neo Geo AES” consoles require the compatibility mode slide

switch to be turned ON. For best results restart the GBSC for the changes to

take effect.

182MM

105MM

OLED SCREEN MENU INTRODUCTION

OLED MENU

ROTARY ENCODER

Resolutions:

• 1920 X 1080

• 1280 x 1024

• 1920 x 720

• 1280 x 960

• Pass-through

• Downscale

• Back

Actions: Use the cotrol knob to switch menu items. Press down to confirm.

Presets:

• Preset Slot:1

• Preset Slot:2

• Preset Slot:3

• Preset Slot:4

• Preset Slot:5

• Preset Slot:6

• Preset Slot:7

• Preset Slot: Back

Misc:

• Restart GBSC

• Restore Factory

• Back

Current Settings:

• Output Resolutions

• Frequency

• Input single

WEB GUI INTRODUCTION

STEP1: Search for WIFI through phone or PC.

WifiName: gbscontrol

Password: qqqqqqqq

STEP2: Enter IP (192.168.4.1) or URL (http://gbscontrol) in the browser

address bar and

STEP3: Click to enter the configuration page.

FIRST PAGE

1. Resolution:

• Your selection will also be used for startup.1280x960 is recommended for

NTSC sources. 1280x1024 for PAL.

• Use the “Matched Presets” option to switch between the two automatically

(Preferences tab).

• Choose an output resolution from these presets.

2. Presets:

• lf you want to save your customizations, first select a slot for your new

preset, then save to or load from that slot.

• Selecting a slot also makes it the new startup preset.

THIRD PAGE

1. Filters:

• Scanlines only work with 240p sources. They look best with the Line

Filter enabled.

• Peaking and Step Response are subtle sharpening filters and recommended.

SECOND PAGE

1. ADC Gain(Brightness):

• Gain +/- adjusts the gain for the currently loaded preset.

2. Picture Control:

• Adjust the screen position, scale and borders.

Second Page Third Page

FOURTH PAGE

SETTINGS

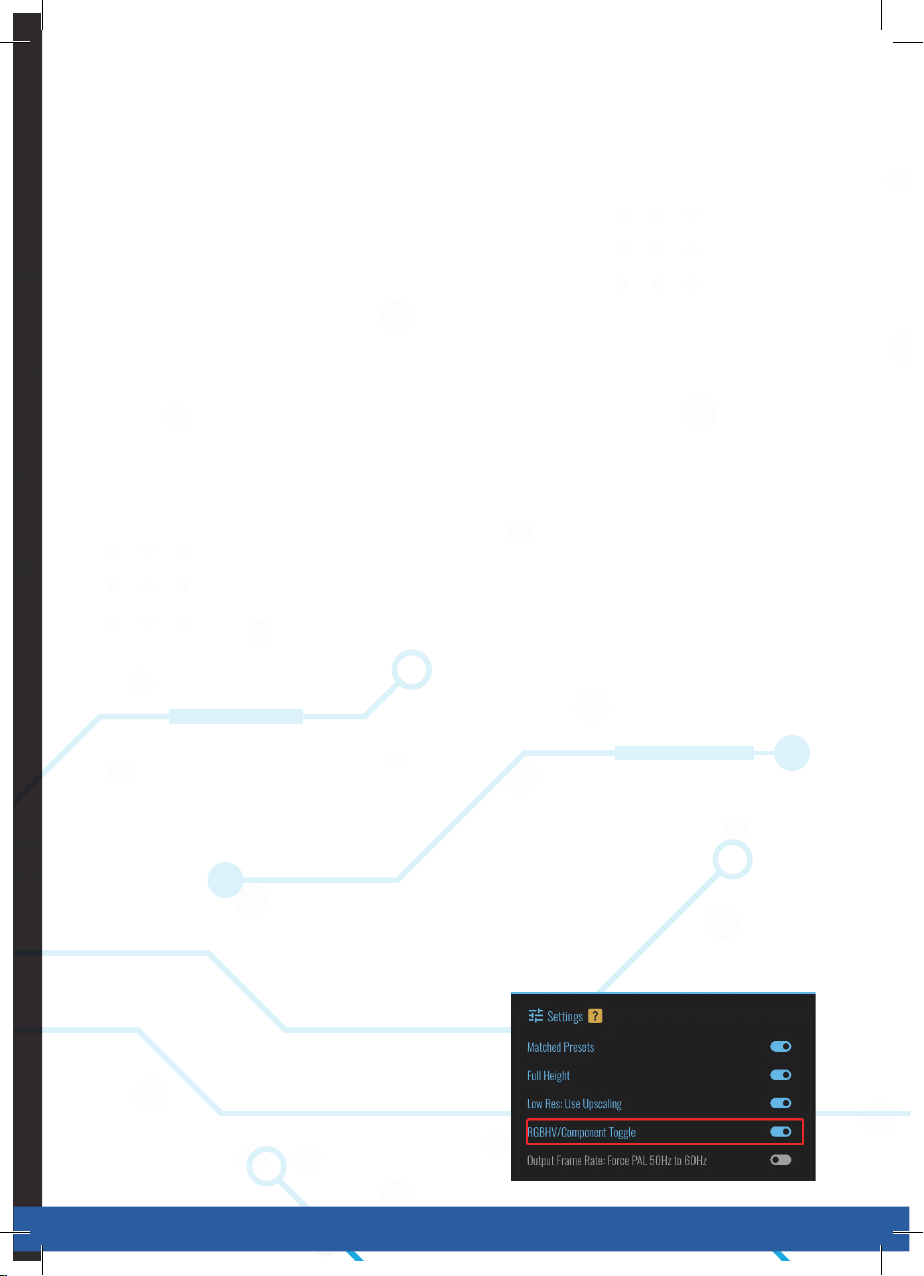

1. Matched Presets

• If enabled. default to 1280x960 for NTSC 60 and 1280x1024 for PAL 50

(does not apply for 720p/1080p presets).

2. Full Height:

• Some presets default to not using the entire vertical output resolution,

leaving some lines black.

• With Full Height enabled, these presets will instead scale to fill more of

the screen height. (This currently only affects 1920 x 1080).

THIRD PAGE

1. Filters:

• Scanlines only work with 240p sources. They look best with the Line

Filter enabled.

• Peaking and Step Response are subtle sharpening filters and recommended.
