www.KALORIK.com

FT 43721 - 210607

3 LITER DEEP FRYER WITH OIL FILTRATION

FREIDORA DE 3 LITROS CON

FILTRACIÓN DE ACEITE

FRITEUSE 3 LITRES AVEC SYSTÈME DE

FILTRATION DE L'HUILE

EN……...2

ES…......24

FR…......48

www.KALORIK.com

FT 43721 - 210607

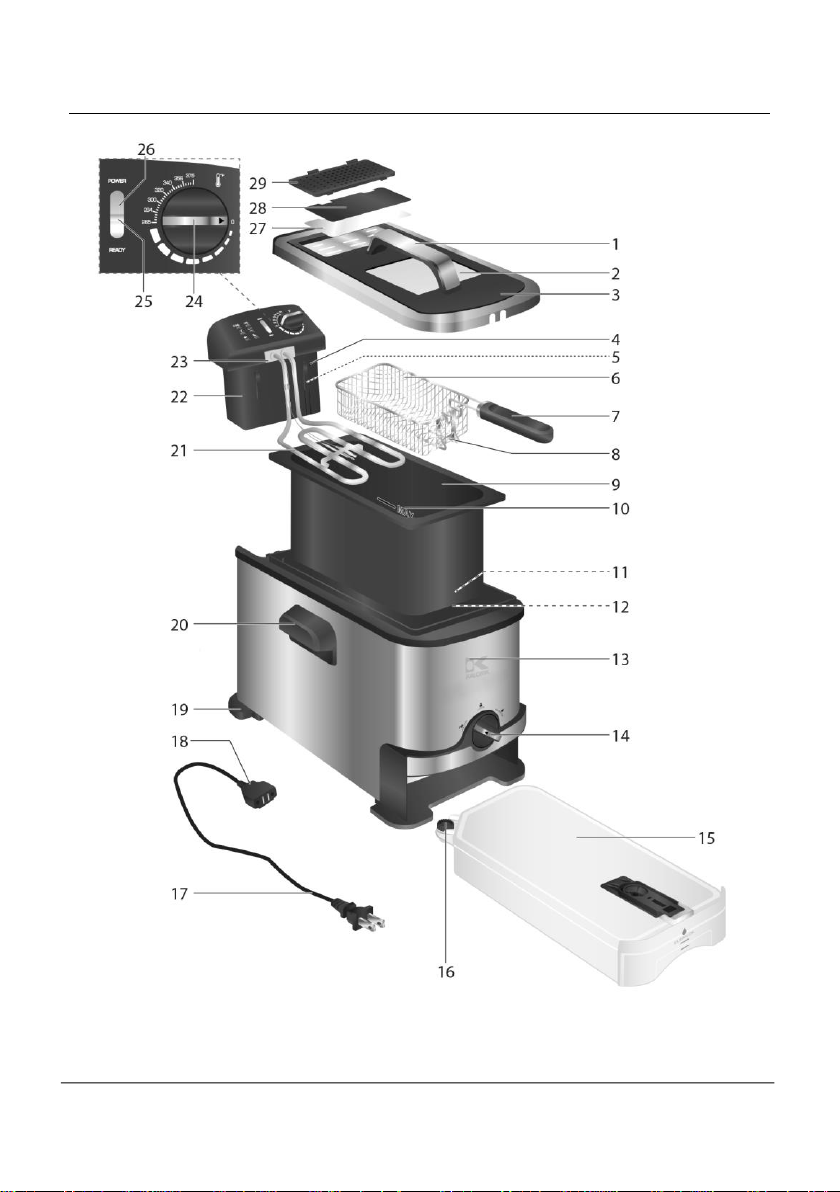

PARTS

www.KALORIK.com

FT 43721 - 210607

PARTS DESCRIPTION

1. Lid handle

2. View window

3. Lid

4. Reset button

5. Safety switch

6. Frying basket

7. Basket handle

8. Basket hook

9. Oil reservoir

10. Oil level marking MIN MAX

11. Oil filter cover

12. Oil valve

13. Housing

14. Oil filtration control knob

15. Oil container

16. Cap

17. Power cord with plug

18. Magnetic plug

19. Anti-slip feet

20. Side handles

21. Immersion heater

22. Control panel assembly

23. Silicon rubber sealing plate

24. Temperature control knob

25. READY indicator (green)

26. POWER indicator (blue)

27. White grease filter

28. Charcoal odor filter

29. Filter cover

TECHNICAL SPECIFICATIONS

Model

Voltage

Wattage

Capacity

FT 43721 BK

120V, 60Hz

1700W

3.2 Qt / 3 L

www.KALORIK.com

FT 43721 - 210607

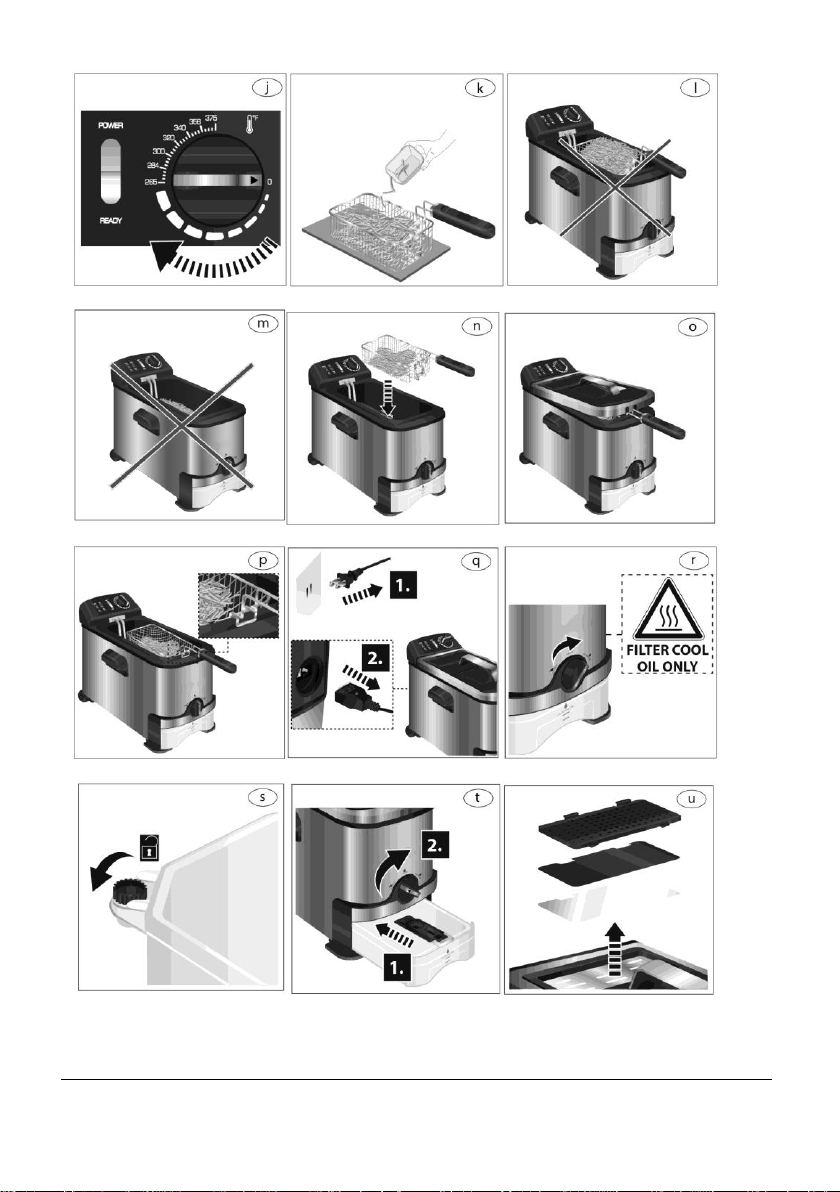

ILLUSTRATIONS

www.KALORIK.com

FT 43721 - 210607

www.KALORIK.com

FT 43721 - 210607

IMPORTANT SAFEGUARDS

1. When using electrical appliances, basic safety precautions should

always be followed, including the following:

2. Read all instructions before use.

3. Do not touch hot surfaces. Use handles or knobs.

‒WARNING - to protect against electric shock, fire and personal

injury: do not immerse cord, plug or motor unit in water or other

liquids;

‒do not immerse the appliance or any electrical components in

water or any other liquids;

‒always switch off and unplug the appliance before cleaning.

4. Close supervision is necessary when any appliance is used by or

near children.

5. Unplug from wall outlet when not in use and before cleaning. Allow

to cool before handling, putting on or taking off parts, and before

cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug, or

after the appliance malfunctions or has been damaged in any

manner. Call our toll-free customer assistance number for

information on examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the

appliance manufacturer may result in fire, electric shock or injuries

to persons.

8. Do not use outdoors or in a damp area.

9. Do not let power cord hang over edge of table or counter, or

touch hot surfaces.

10. Do not place on or near a hot gas or electric burner or in a heated

oven.

11. Extreme caution must be used when moving a fryer containing hot

oil or other hot liquids.

12. Always attach plug to appliance first, then plug cord in the wall

outlet. To disconnect, turn the temperature control knob to 0, then

remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. Be sure handles are properly assembled to basket and locked in

place.

www.KALORIK.com

FT 43721 - 210607

15. Remove excess surface moisture from foods prior to cooking to

prevent heated oil from foaming out when food is added.

16. Ensure both the lid and oil reservoir are completely dry after

washing and before use.

17. Never leave the appliance unattended during operation.

18. A fire may occur if the appliance is covered or touches flammable

material, including curtains, draperies, walls, and the like, when in

operation. Do not store any item on top of the appliance when in

operation.

19. In the event of fire, never try to extinguish the flames with water.

Unplug the appliance from the wall outlet. Place the lid on the

appliance, if it can be done safely. Smother the flames with a

damp cloth, or use a fire extinguisher.

20. Use only heat resistant tools. Do not use metal tools as they may

become hot.

21. Never pull on the power cord to disconnect the appliance from the

wall outlet; instead, grasp the plug and pull on the plug.

22. Do not clean with metal scouring pads. Pieces can break off the

pad and touch electrical parts involving a risk of electric shock.

23. Do not attempt to defeat the safety switch or remove the silicon

rubber sealing plate.

24. WARNING! Always wait 3 to 4 hours until the oil has cooled down

completely, before draining or filtering. Failure to do so may

damage the deep fryer.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

ADDITIONAL SAFEGUARDS

This appliance is for HOUSEHOLD USE ONLY.

WARNING:

•Over tightening can result in stripping of screws or nuts or cracking

of handle, lid or control panel assembly.

Periodically check for looseness and retighten screws or nuts in

accordance with manufacturer’s instructions.

www.KALORIK.com

FT 43721 - 210607

WARNING:

‒SERIOUS HOT OIL BURNS MAY RESULT FROM A DEEP FRYER BEING

PULLED OFF A COUNTERTOP. DO NOT ALLOW THE CORD TO HANG

OVER THE EDGE OF THE COUNTER WHERE IT MAY BE GRABBED BY

CHILDREN OR BECOME ENTANGLED WITH THE USER.

‒DO NOT USE WITH AN EXTENSION CORD.

‒DO NOT OPERATE THIS APPLIANCE, IF THE POWER CORD SHOWS

DAMAGE OR IF APPLIANCE WORKS INTERMITTENTLY OR STOPS

WORKING ENTIRELY.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other).

To reduce the risk of electric shock, this plug is intended to fit into a

polarized outlet only one way. If the plug does not fit fully into the

outlet, reverse the plug. If it still does not fit, contact a qualified

electrician. Do not attempt to modify the plug in any way.

Do not let children handle or put the electrical cord into their mouths.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the hazards resulting

from becoming entangled in, or tripping over a longer cord.

BEFORE THE FIRST USE

•Remove all packaging materials and/or other transportation

means.

•Check package content to verify it is complete and undamaged.

Do not operate the appliance if the content is incomplete or

appears damaged.

Danger of suffocation!

‒Packaging materials are not toys. Always keep plastic bags, foils

and foam parts away from babies and children. Packaging

material could block airways and prevent breathing.

www.KALORIK.com

FT 43721 - 210607

NOTE:

‒The appliance may produce an odor and/or emit smoke when

switched on for the first time, as residues from the production

process are eliminated. This is normal and does not indicate a

defect or hazard. Ensure ample ventilation.

•Clean the appliance thoroughly before using for the first time

(Cleaning and Maintenance).

ASSEMBLY

See Illustrations (page 5 & 6).

•Place the appliance on a clean, flat and heat resistant surface.

•Before using your appliance make sure:

‒the basket handle (7) is locked in place in the basket (6). To lock

the basket handle (7) in place, press the bars together and slide

them between the slots. Inserting the ends of the bars into the

bracket on the basket (6) and push the handle (7) backwards

(ill. a and b). Do not assemble any other way (ill. c).

‒the oil reservoir (9) is secured in the correct position with the oil

filter cover (11) and oil valve (12) on the same side than the oil

filtration control knob (14) (ill. d). Ensure the oil filter cover (11) is

in place inside the oil reservoir (9).

‒the control panel assembly (22) is placed on the connecting

plate on the back of the housing (13). Ensure the grooves of the

connecting plate are in the guides of the control panel

assembly (ill. e).

NOTE:

‒YOUR APPLIANCE IS EQUIPPED WITH A SAFETY SWITCH (5)

LOCATED ON THE CONTROL PANEL ASSEMBLY (22). IF THE

CONTROL PANEL ASSEMBLY (22) IS NOT PLACED PROPERLY IN ITS

POSITION, THE APPLIANCE WILL NOT OPERATE.

‒Incorrect assembly may lead to an unstable setup and might

cause injuries.

‒The silicon rubber sealing plate (23) prevents hot steam

escaping from under the lid. Do not attempt to remove.

www.KALORIK.com

FT 43721 - 210607

USING THE APPLIANCE

This appliance can be used for frying food such as French fries, chicken

or fish pieces (see Recommended frying times and temperatures).

NOTE:

‒The appliance has a rated power of 1700W. Before plugging it

into the wall outlet, ensure that the electrical circuit is not

overloaded with other appliances. This appliance should always

be operated on a separate 120V ~ 60Hz wall outlet.

‒Make sure the appliance is switched off before connecting it to

a wall outlet.

•Place the appliance on a clean, flat and heat-resistant surface.

When using the appliance on wooden surfaces, use a heat resistant

mat to protect the wood from damages. Ensure a minimum

distance around the appliance of at least 4 inches to other objects,

cupboards and walls.

•Ensure the oil container (15) is assembled, empty and in place

inside the appliance, the oil filtration control knob (14) is on the

LOCK position and the oil filter cover (11) is in place inside the oil

reservoir (9). Then, pour suitable cooking oil into the oil reservoir (9)

(ill. f).

Danger of burns!

‒Never refill the oil reservoir (9) during use or while hot. Always

allow the appliance to cool down completely. Do not mix new

oil with old oil.

WARNING:

‒DO NOT OVER OR UNDER FILL (ill. f). The minimum oil capacity is

1.9L (MIN), the maximum oil capacity is 3L (MAX). Ensure the oil

level always remains between the MIN and MAX marking (10).

•Spread a little oil on the inside of the view window (2) to prevent

condensation.

•Place the lid (3) onto the housing (13).

•Ensure the temperature control knob (24) is on the 0 position before

attaching the magnetic plug (18) to the socket on the back side of

the control panel assembly (22) (ill. g).
