KAM LED Quadtrix Bedienungsanleitung

LED Quadtrix

4 lens multi-beam scanning LED lighting effect

256 ultra bright LEDs

96 x red / 96 x green / 64 x blue LEDs

Auto, Sound-to-Light, DMX512 & Master/Slave modes

10 channel DMX512 operation

XLR DMX in and out

Pre-programmed moving patterns in Auto mode

Attractive moulded design

Low power consumption

Adjustable hanging bracket

M A N U A L V E R S I O N 4 .0

For the latest instruction manual updates and information on the entire Kam range visit:

www.kam.co.uk

Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ

Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: [email protected] • Web: www.lambaplc.com

If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.

Due to continuous product development, specifications and appearance are subject to change.

Thank you for purchasing this product, we hope that it serves you for many years to come.

To optimise the performance of this product, please read these operating instructions carefully to

familiarise yourself with the basic operations of this unit.

This unit has been tested at the factory before being shipped to you.

To prevent or reduce the risk of electrical shock or fire, do not expose this unit to high temperature and

rain or moisture.

Unpacking

Please unpack your new product carefully, your new product should reach you in perfect condition. Please

check that no damage has occurred during transit. If any damage is found, do not operate your unit.

Please contact the retailer you purchased it from immediately.

Safety

This unit operates on 240V AC. This appliance must be earthed.

This product is for indoor use only, do not expose to rain or moisture. Always store unit in a dry place.

If there is any damage to the mains cable do not use the device.

Always disconnect the unit from the mains supply when carrying out any servicing or cleaning of the unit.

The unit must not be connected to dimming-packs.

Never look directly into any light source as this may damage eyes.

There are no user serviceable parts in this unit, please consult your retailer for any repair work.

Operation

To prolong the life of your unit it is recommended that the unit is not for constant us. Leaving a break

between long periods of use will increase the life span of your unit.

When choosing the installation position, please make sure that the device is not exposed to extreme

temperature, moisture, and that no air ways are blocked, keep a good distance from materials etc.

When using smoke machines/foggers, make sure that the device is never exposed to the direct smoke jet

and is installed at distance of 0.5 meters away from other surfaces. Always fix the fixture with an

appropriate safety-chain. The maximum ambient temperature Ta = 45°C must never be exceeded.

Installation / Overhead rigging

Caution: any units installed in an overhead position may cause severe injuries if not installed correctly or

safely. Please ensure the mounting structure is secure and stable, and is capable of holding 10 times the

weight of the unit to be installed. Always use suitable hanging/mounting brackets or clamps. Always fit a

suitable safety chain. If in any doubt about installation please contact a qualified technician.

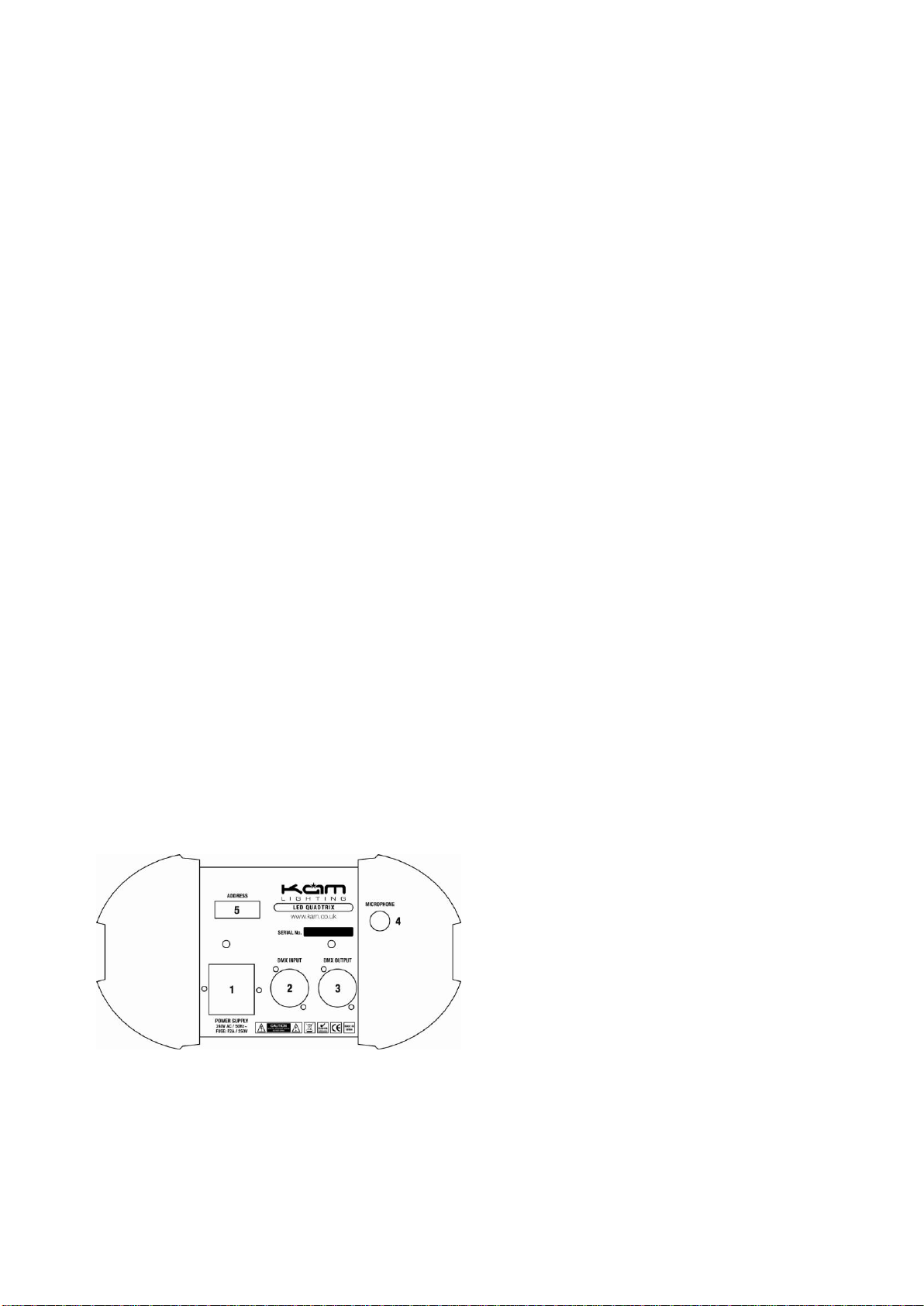

Rear panel

1. Fused mains inlet

2. DMX input

3. DMX output

4. Microphone

5. DMX address switches

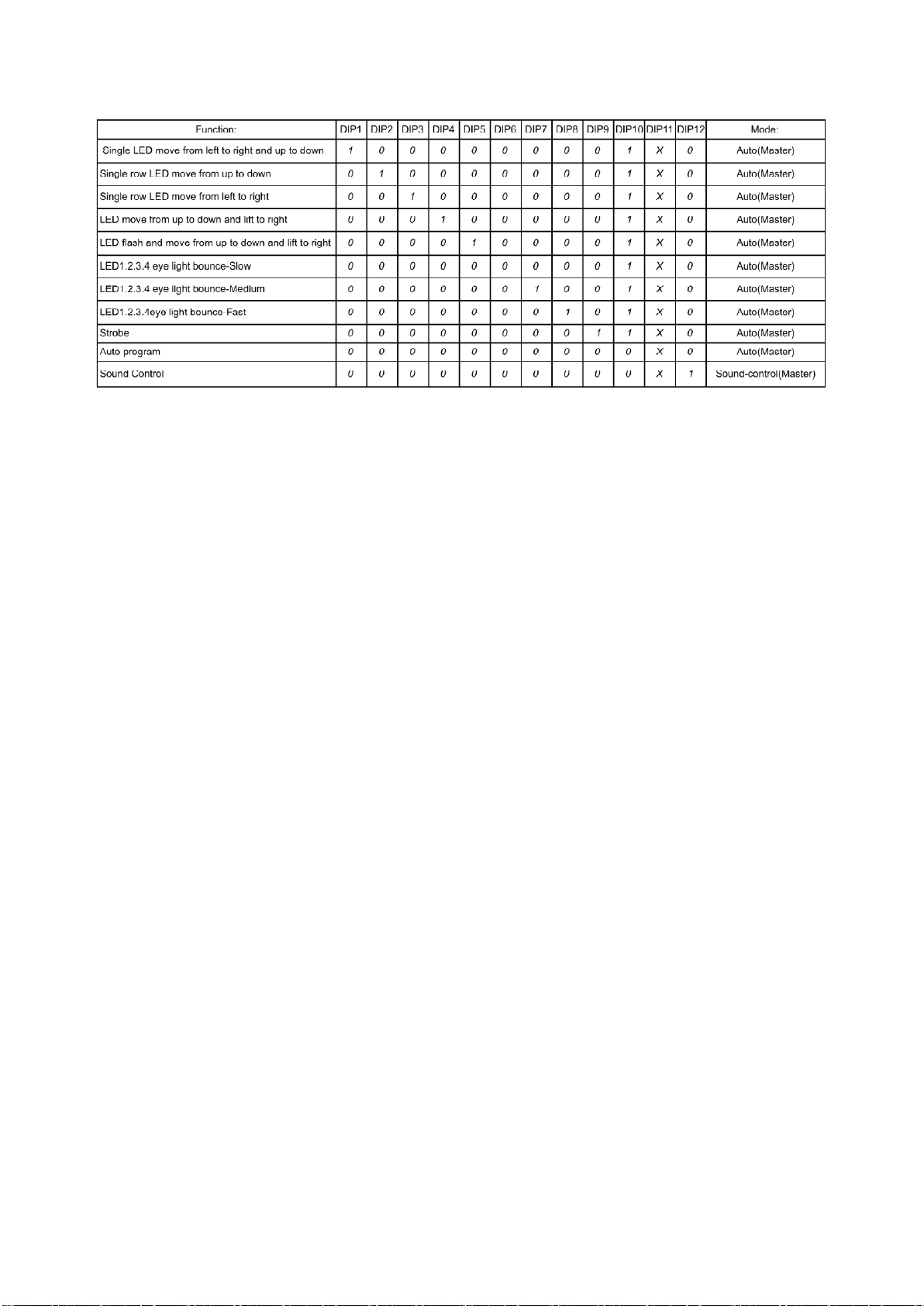

Dip switch functions

1 = ON / 0 = OFF / X = Function

Auto Mode

In order to select Auto mode, set DIP switch 0 to 12 to OFF．

Sound Control

In order to select Sound Controlled Mode, set DIP switch 12 to ON and DIP switch 1 to 10 to OFF.

Master/Slave no controller

MASTER select Sound Controlled Mode, set dips switch 12 to the on position and all other dipswitches

off. Or if a preset program is requires set the dipswitches on the master for the program you require

SLAVE set dip switch 1 to the on position only, all other dipswitches to off. The slave will act as the master

unit.

DMX settings

DMX controller

Each unit uses 10 DMX channels

Each unit will need a dmx start address, using dipswitches 1-10 set the desired DMX start address

If all units are to be controlled at the same time with the same effect, set all units with the same DMX start

address

If individual control of each unit is required then all units will need to be assigned their own unique DMX

start address, make sure all units are set at least 12 channels apart, and that no DMX channels overlap

Example set unit 1 to DMX start address1 set unit 2 to DMX start address 13. Add 12 channels each time

DMX Channels

Channel

Value

Function

CH1

0-14

Black out

15-19

Red

20-24

Green

25-29

Blue

30-34

Red/Green/Blue

35-39

Red/blue

40-44

Green/Blue

45-49

Red/Green/Blue

50-99

DMX control

100-255

Select the automatic program

To use CH 2-10 set the DMX value of CH1 to between 50-99

CH2

0-255

Select the automatic program

CH3

0-255

Speed from fast to slow

CH4

0-255

Up to down,slow to fast

CH5

0-255

Left to right,slow to fast

CH6

0-255

Inside to outside,slow to fast

CH7

0-255

Up to down, left to right, inside to outside,slow to fast

CH8

0-255

Strobe from Slow to fast

CH9

0-14

All bright

15-255

Dimmer

CH10

0-63

4 LED lenses illuminated

64-127

3 LED lenses illuminated

128-190

2 LED lenses illuminated

191-255

1 LED lenS illuminated

CH11

0-255

No function

CH12

0-255

Sound activation

Technical specifications

Sound control: via built-in microphone

DMX-512-connection: 3-pin XLR

Maximum ambient temperature T: 45

Maximum housing temperature T: 50

Fuse: F 2A, 250V

DMX channels: 10

Number of LEDs: 256
