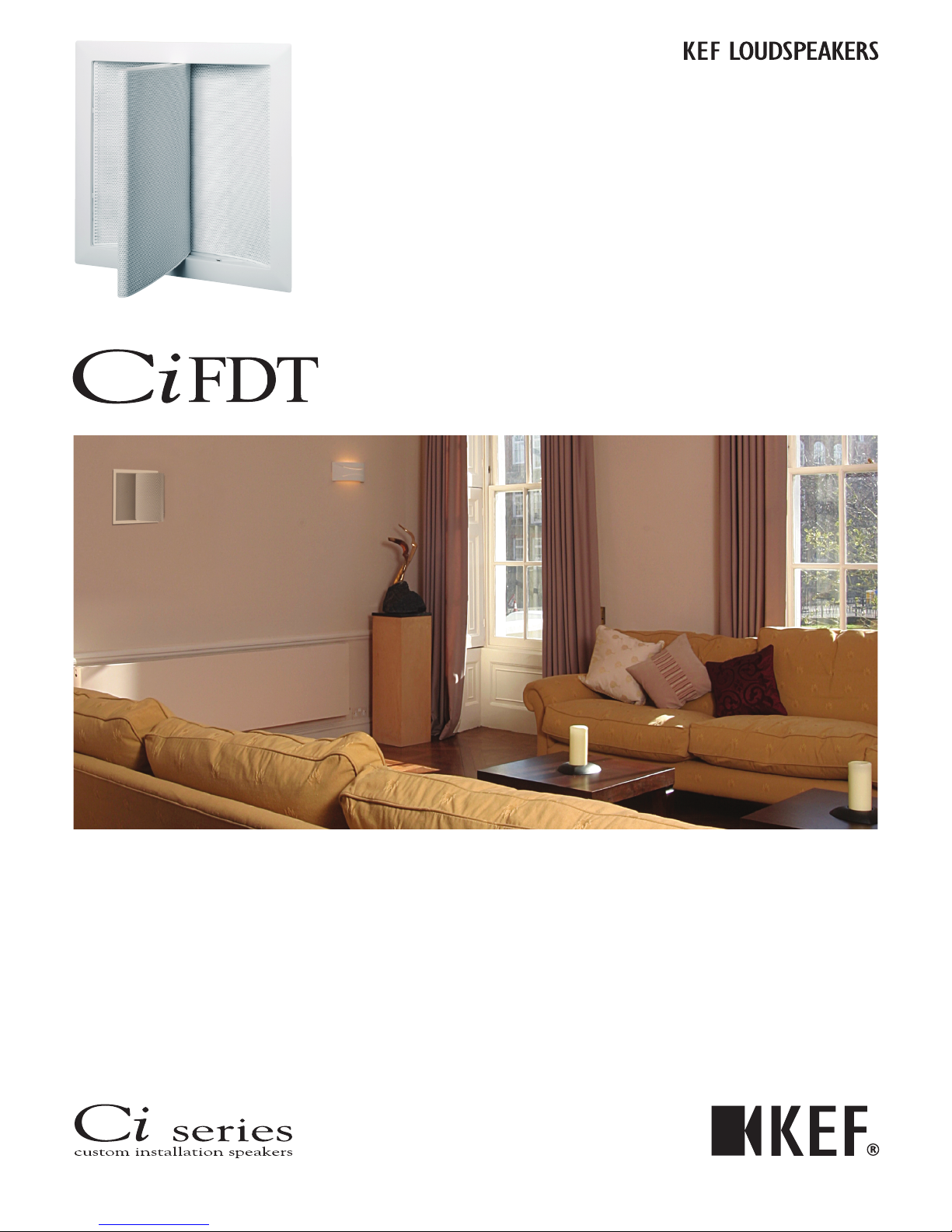

KEF KEF CiFDT Handbuch

A motorised dipole surround sound

speaker, the CiFDT combines genuinely

unobtrusive installation with the ability to

create stunningly realistic background

effects. Lying flush with the wall when not

in use, a sophisticated flat panel driver

moves into position when switched on,

radiating higher frequencies equally front

and back to diffuse the sound evenly

throughout the room, while low frequency

effects are being faithfully reproduced by

the integral 130mm (5”) bass driver.

Acoustically, the two technologies

complement each other perfectly to

generate a richly detailed ambient

soundfield; aesthetically, the appearance

couldn’t be more discreet.

As an architectural audio solution,

it’s imaginative, impeccably engineered and

incredibly satisfying.

Features and Benefits:

Purpose built for flush mounting into walls

,

the CiFDT combines 100W power

handling and 86dB sensitivity.

A 110mm x

180mm (4

1⁄3

” x 7”) Flat panel with a

130mm

(

5

”)

bass driver.

Will require an additional 12 volt supply.

The bezel and grille can be painted or

covered by fabric to match the interior décor.

KEF Audio (UK), Eccleston Road,T

ovil, Maidstone, Kent, ME15 6QP U.K. Telephone: + 44 (0) 1622 672261. Fax: + 44 (0) 1622 750653 www.kef.com

KEF America, 10

Timber Lane,Marlboro,New Jersey, 07746 USA. Telephone: + 1 732 683 2356. Fax: + 1 732 683 2358 www.kefamerica.com

GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Telephone: +49 (0) 231 9860-320. Fax: +49 (0) 231 9860-330. www.kefaudio.de

Information Sheet

Polar graphs

Directivity Index / Beamwidth

Frequency / Power response, Input impedance

Specifications

Installation

Architectural specifications:

The

CiFDT

comprises a

110mm x 180mm

(4

1⁄3

” x 7”) Flat panel with a

130mm (

5

”)

bass driver

. Performance should meet or

exceed the following criteria: frequency

response 1 metre on-axis with swept

sinewave shall be 80Hz to 20kHz, sensitivity

shall be at least 86dB for 2.83V@1m. The

impedance and maximum power shall be

100W at 8 ohms. The

CiFDT

is best suited

for high quality music and home theatre

applications where hi-fi performance is

required, such as:

· Multi Room systems.

· Home Theatre systems.

Frequency range 80Hz - 20kHz

Sensitivity (2.83v @ 1m) 86dB

Rec. amplifier power 20 - 100W

Nominal Impedance 8Ω(min. 3.2Ω)

Crossover Frequency 180Hz

Enclosure material Steel

Terminals terminal blocks up to Ø2.5 mm (0.1”)

conductor

Dimensions (H x W x D) 248 x 248 x 103 mm, 9.75 x 9.75 x 4 in.

Net weight 1.5kg (3.3lbs)

500Hz 1kHz

2kHz 4kHz

8kHz 16kHz

PL1615EN

13

5

2

4

67
