Kelvinator KCS050LW Bedienungsanleitung

P08F0051.eps P08D0641.eps P08C0358.eps P08S0355.eps

Product No. KCS050LW0

Series Commercial

Color white

Volts 115V

Owner's Guide 297147500

Market North America

Electrolux Major Appliances

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995560611

10/03/03

(EN/SERVICE/MLR)

365

FREEZER CHEST

Model No.

KCS050LW

Publication No: 5995560611 KCS050LW0

03/10 2

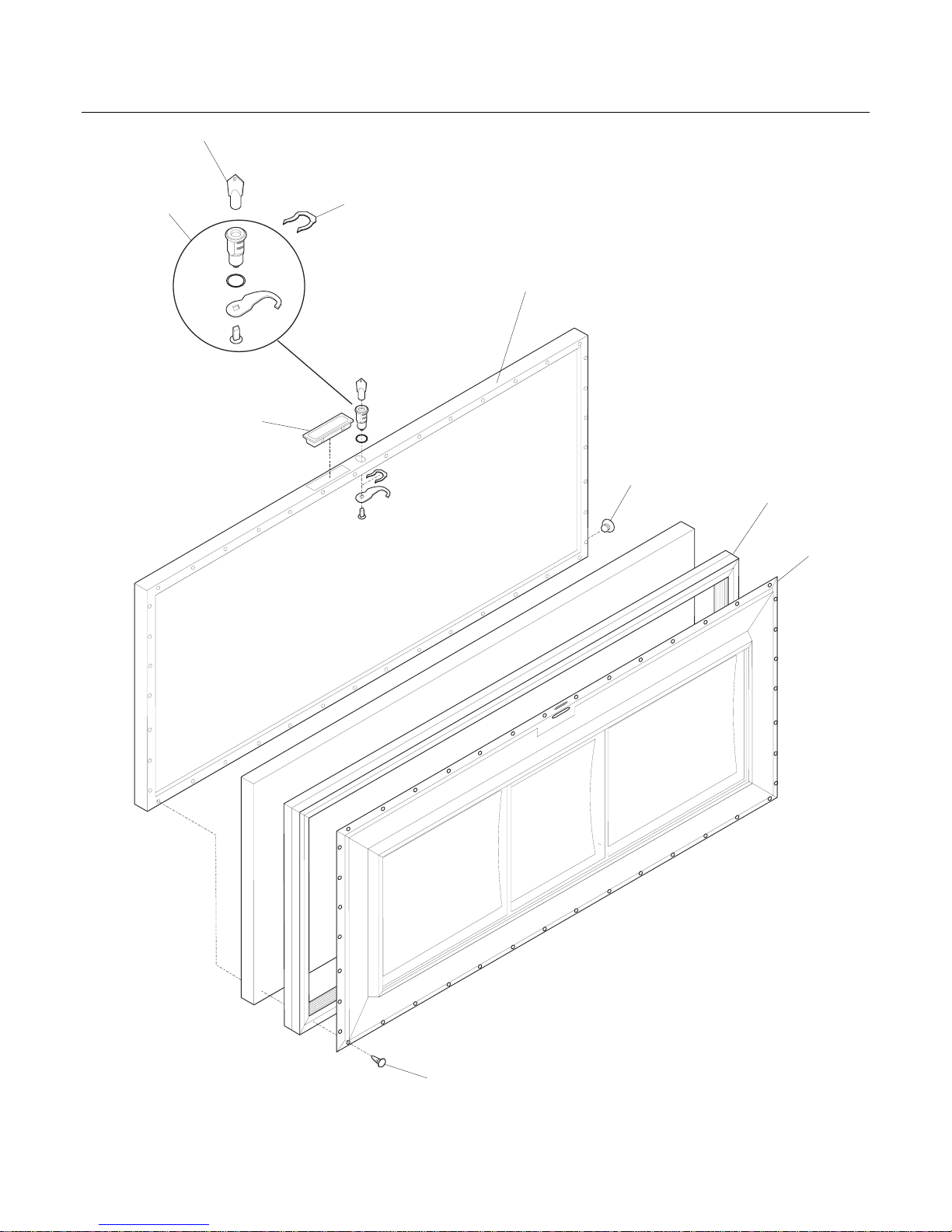

DOOR

P08D0641

22A

KCS050LW0 Publication No: 5995560611

# Functional Parts 3 03/10

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216480811 Gasket-door, white

2 297090200 Lock Assy

2A 297090900 Clip, spring

5 297147700 Key, lock

9 216061504 Panel-inner door, white, frzr

10 216923001 Plug button, 1/4", white

11 216106013 Panel-outer door, white

* 216858001 Screw, 8-18x.50 AB, #10

18 297034202 Handle, recessed, chrome, w/gasket

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

* 5303917276 Insulation-door, fiberglass, (bulk)

Publication No: 5995560611 KCS050LW0

03/10 4

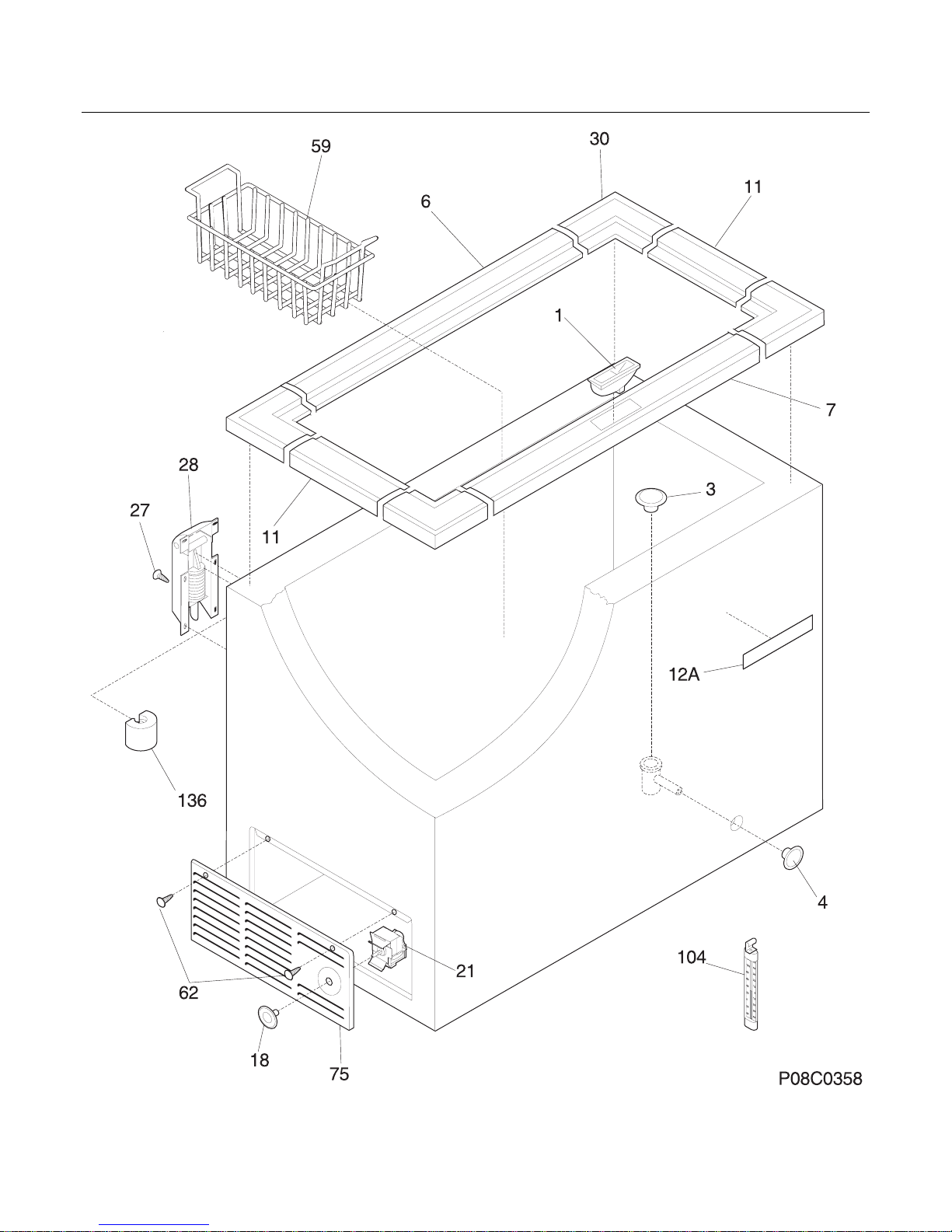

CABINET

KCS050LW0 Publication No: 5995560611

# Functional Parts 5 03/10

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 297014100 Catch-lock, white

3 216502600 Plug, drain, interior

4 297013600 Plug, drain, exterior

6 216855700 Breaker, hinge side

7 216855701 Breaker-lock side, white

11 216855706 Breaker-ends, white

12A 297146600 Nameplate, Commercial

18 216707201 Knob, temp control

21 # 216759300 Control-temperature

27 216337701 Screw, HWH, 10-24 x 0.500, Swage

28 297313200 Hinge Assy

28 297313202 Hinge Assy, w/o spring, white

30 216105500 Breaker-corners, white

59 297118501 Basket

62 5304463819 Screw, AB, 8-18X3/8

75 216782000 Panel-access, white

104 297074200 Thermometer

136 216706700 Guard-splash

* 216621000 Caster

* 297095300 Plug, white

* 297151500 CASTER PACK, 4 casters, wrench, 16 screws

* 5303305324 Paint, touch-up, white

Publication No: 5995560611 KCS050LW0

03/10 6

SYSTEM

P08S0355

86 86

KCS050LW0 Publication No: 5995560611

# Functional Parts 7 03/10

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 5300120779 Condenser

4 216987501 Drier-filter

5 # 216952000 Harness-main

22 216056401 Clip-compressor mtg

27 297293300 Grommet, compressor

29 # 297270400 Compressor, w/o electricals

30 216954222 Controller

32 216649200 Clip, controller

55 216985002 Capacitor, run, 12 MF

85 216818300 Wire-ground

86 216707801 Screw, PH, 8-32 x 1/2, wiring harness
