Kelvinator KSPZ25V9C Bedienungsanleitung

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

KSPZ25V9CS0KSPZ25V9C R134a System stain/blk 220

MARKET

Export

Publication No.

EK30503990

041222

JAD

SIDE BY SIDE

REFRIGERATOR

Model No.

KSPZ25V9C

WIRING DIAGRAM - 240420906

OWNER’S GUIDE - 240417300

SERVICE DATA SHEET - 240420906

FACTORY

PARTS CATALOG

International

3 Parkway Center

Pittsburg, PA 15220

KELVINATOR INTERNATIONAL

05/03 2

Publication No. KSPZ25V9C

EK30503990

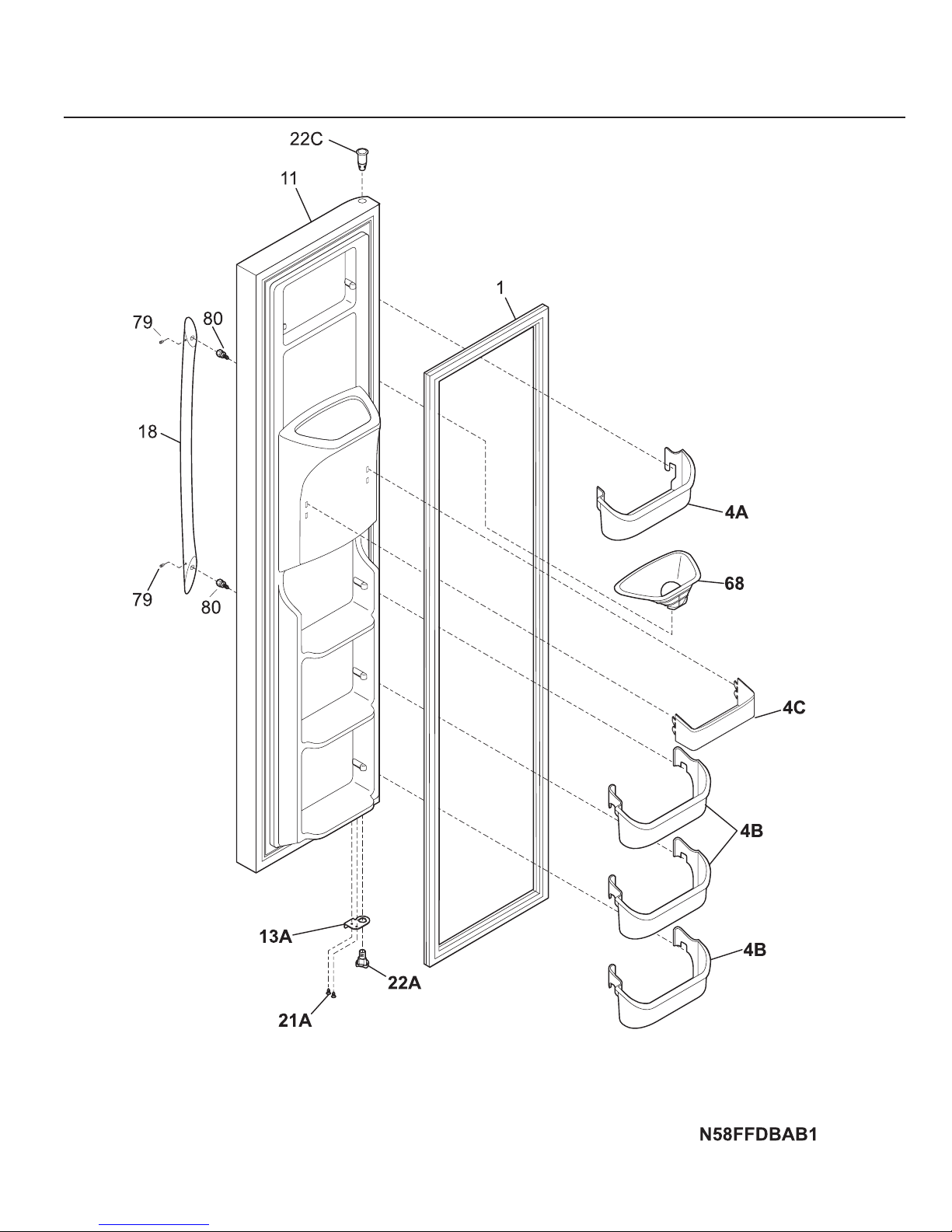

FREEZER DOOR

# = Fast-moving Parts 3 03/03

* = Non-Illustrated Parts

KSPZ25V9C Publication No.

EK30503990

FREEZER DOOR

POS. NO PART NO DESCRIPTION

1 # 240390608 Gasket-frzr door,black ,magnetic

4A 240367302 Bin-door,frzr-upper

4B 240359002 Bin-door

4C 240358402 Bin-door, frzr-dispenser

11 240554215 Door-frzr, stainless steel, complete assy

13A 240537106 Door Stop, black, frzr

18 218756505 Handle-door, stainless steel, with insert & set screw

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

22A 240561602 Bearing-hinge,closer

22C 240328404 Bearing-hinge,black ,upper

68 240465801 Chute-ice

79 218755401 Screw-set,10-32 x 0.375

80 218755503 Screw-shoulder,#10 AB ,handle mounting

* 218490900 Cleaner,stainless steel

* 240545101 Connector-water,straight

* 240552102 Harness-wiring,door

* 240470401 Connector-amp

* 5303918273 Dispenser heater kit,220

05/03 4

Publication No. KSPZ25V9C

EK30503990

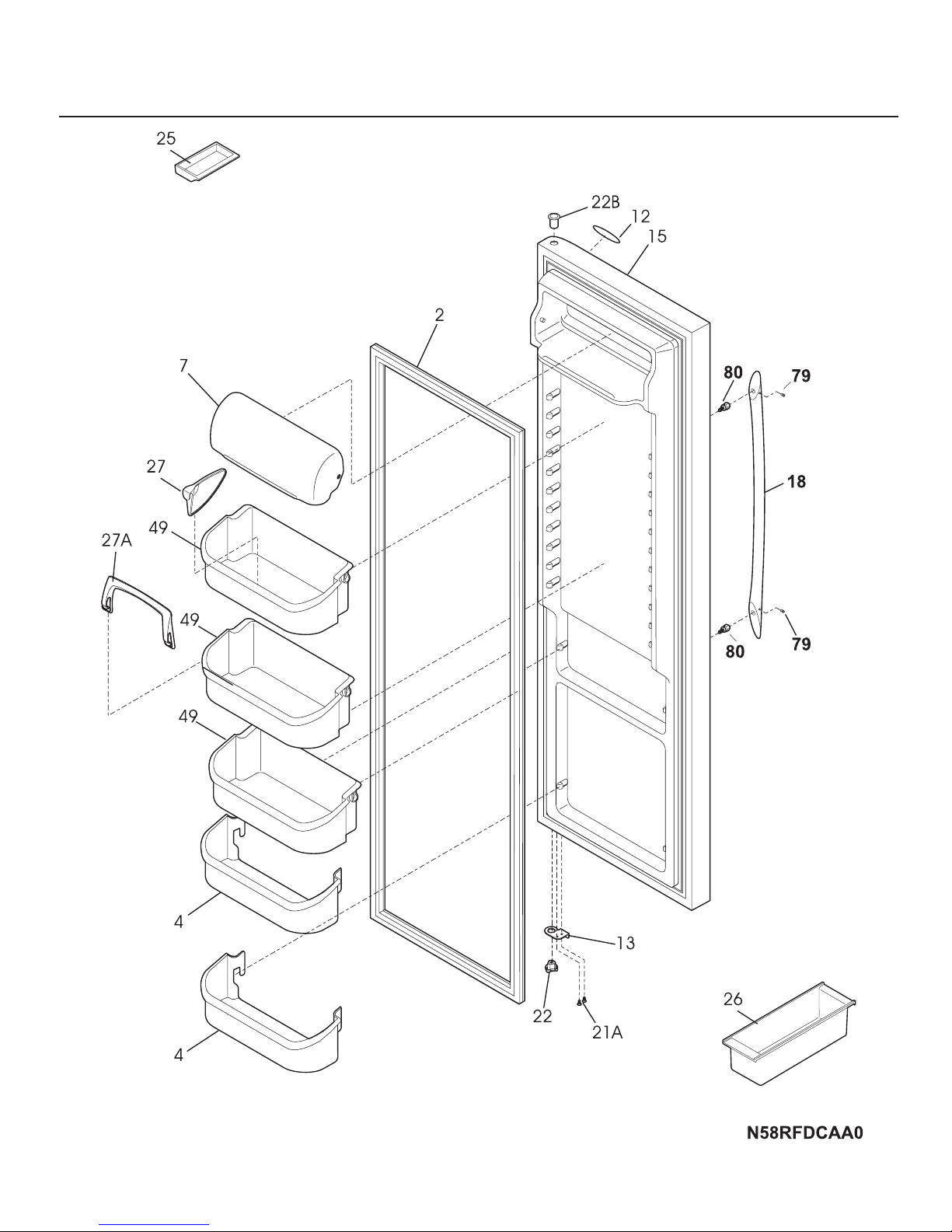

REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/03

* = Non-Illustrated Parts

KSPZ25V9C Publication No.

EK30503990

REFRIGERATOR DOOR

POS. NO PART NO DESCRIPTION

2 # 240390607 Gasket-refr door,black ,magnetic

4 240363702 Bin-door,2-liter

7 240338309 Door-dairy

12 240578001 Label-nameplate -KIC

13 240537105 Door Stop,black ,ref

15 240451971 Door-refr, stainless steel, complete assy

18 218756505 Handle-door, stainless steel, with insert & set screw

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

22 240561601 Bearing-hinge,closer

22B 240328403 Bearing-hinge,upper

25 5308000716 Dish,butter

26 3204522 Container,egg

27 240396302 Snugger,paddle type

27A 240396102 Retainer,tall bottle

49 240324502 Bin-door,gallon

79 218755401 Screw-set,10-32 x 0.375

80 218755503 Screw-shoulder,#10 AB ,handle mounting

* 218490900 Cleaner,stainless steel

05/03 6

Publication No. KSPZ25V9C

EK30503990

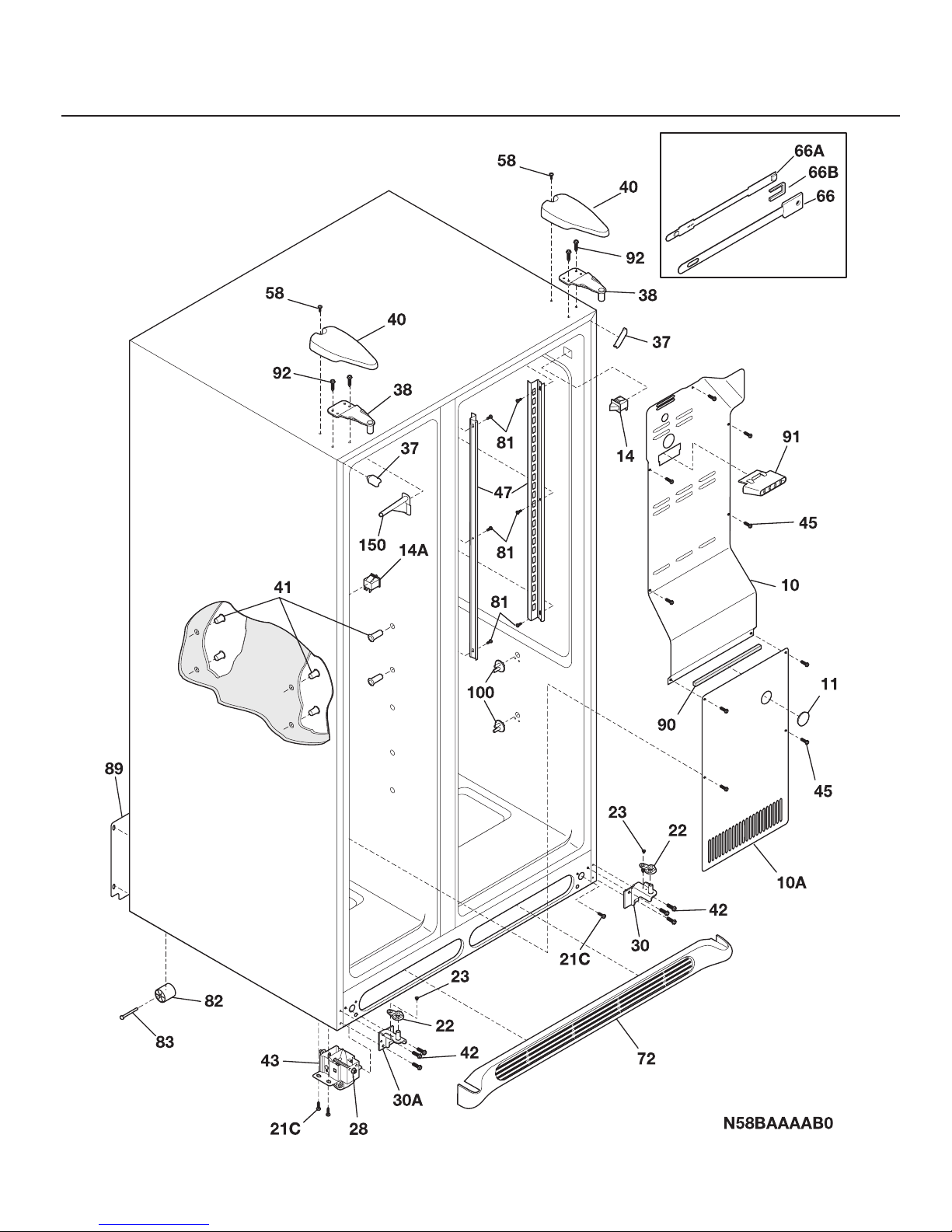

CABINET

# = Fast-moving Parts 7 05/03

* = Non-Illustrated Parts

KSPZ25V9C Publication No.

EK30503990

CABINET

POS. NO PART NO DESCRIPTION

10 240435901 Cover-air duct

10A 240475901 Cover-evap coil,lower

11 5303208309 Plug-hole,factory test

14 # 240505801 Switch,light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj,hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge,black

41 240358701 Grommet-shelf mtg,1.40" long

41* 240358801 Grommet-shelf mtg,.875" long

42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 Roller Assy,front ,(2)

45 241500301 Screw,hex washer head ,8-18AB x 0.500

47 240349402 Channel-shelf mtg,side ,(2)

58 218749600 Screw, #10 pan hd, 8-18 x .5

66 240504901 Cover-damper

66A 240505001 Damper-meat keeper

66B 240355901 Insulation-damper

66B* 240518802 Pin-push,push-in, plastic

72 240324405 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326112 Cover-access,with label

90 218249807 Seal-coil cover

92 216850900 Screw,hex washer hd ,1/4 x 7/8, hinge mtg

91 240380101 Duct-ice maker

100 240423701 Support,crisper cover ,front ,(4)

100* 240350802 Support,crisper cover ,rear ,(4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240479601 Plug,button ,cab liner holes

* 5303305345 Paint,touch-up ,black

* 240481601 Shim-lower hinge

05/03 8

Publication No. KSPZ25V9C

EK30503990

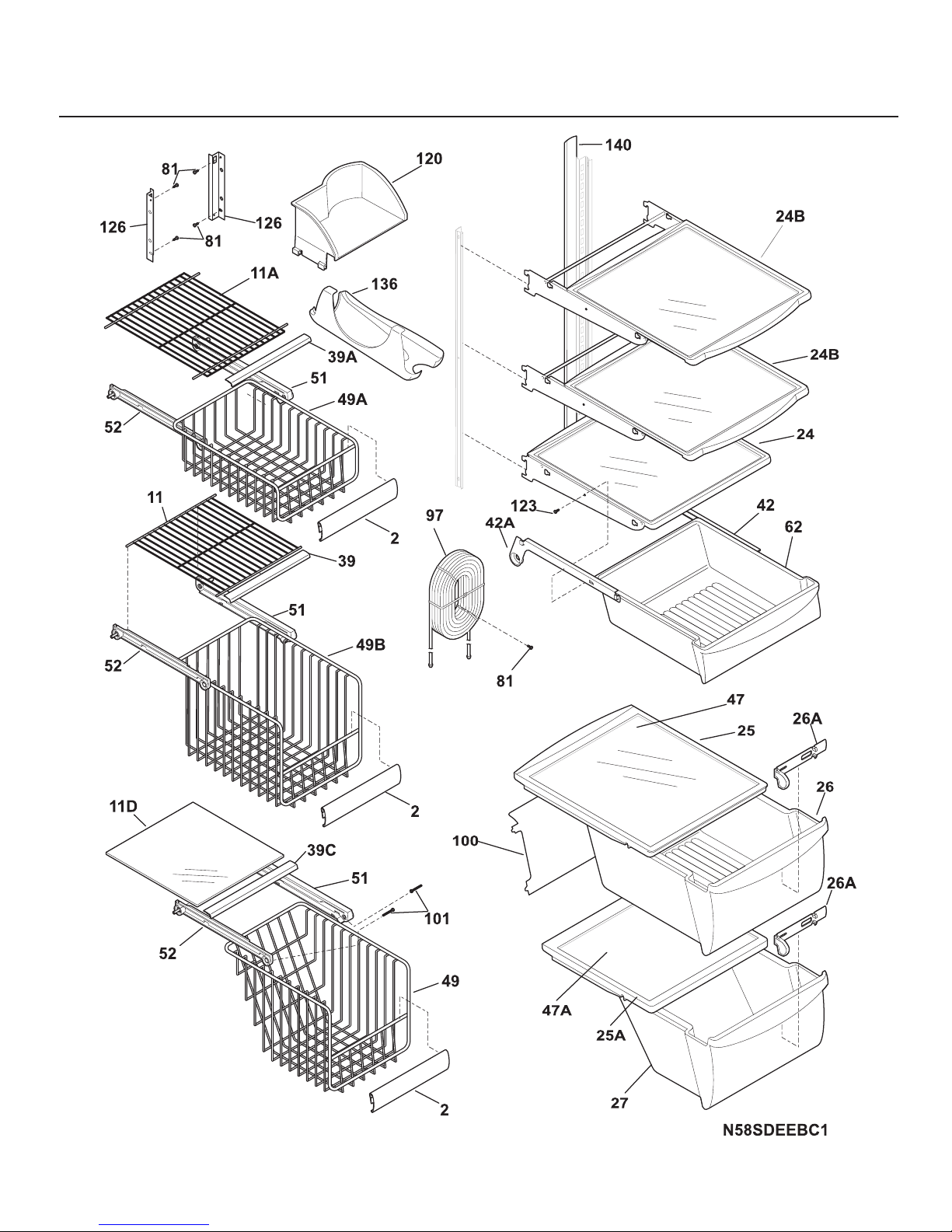

SHELVES

# = Fast-moving Parts 9 05/03

* = Non-Illustrated Parts

KSPZ25V9C Publication No.

EK30503990

SHELVES

POS. NO PART NO DESCRIPTION

2 240434603 Trim-basket

11 240338801 Shelf-freezer,flip-up

11A 240338703 Shelf-freezer,fixed wire

11D 240350642 Shelf-freezer,glass

24 240355230 Shelf-"Spill-Safe",fixed

24B 240350124 Shelf-"Spill-Safe",cantilever ,sliding

25 240354502 Cover-crisper pan,upper

25* 240362101 Clip-slide,cover-crisper

25A 240354602 Cover-crisper pan,lower

26 240354711 Pan-crisper,upper

26* 240349801 Clip-slide,pan-crisper

26A 240351101 Control-humidity

27 240354812 Pan-crisper,lower

39 240430705 Trim-shelf,front

39A 240430701 Trim-shelf,front

39C 240367601 Trim-shelf,front

42 240356501 Track,meat pan hanger ,RH

42A 240349701 Hanger-meat pan,LH

42A* 240349901 Block-meat pan rail,LH

42A* 240350001 Spring-meat pan rail

42A* 240356701 Seal-meat pan

47 240443302 Insert-pan cover,glass ,upper

47A 240350614 Insert-pan cover,glass

49 240530401 Basket-sliding

49A 240530501 Basket-sliding,upper ,half

49B 240530503 Basket-sliding,upper ,full

51 240343002 Hanger-basket,RH

52 240343102 Hanger-basket,LH

62 240355510 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326301 Cover-water tank

101 218493100 Screw,hex washer head ,8-18AB x 1-3/4

120 240342901 Shelf-ice cream

123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438

126 218867405 Channel,auger mtg ,LH

126 218867406 Channel,auger mtg ,RH

136 240424501 Dispenser-can,white

140 240430501 Channel,wtr tube cover

05/03 10

Publication No. KSPZ25V9C

EK30503990

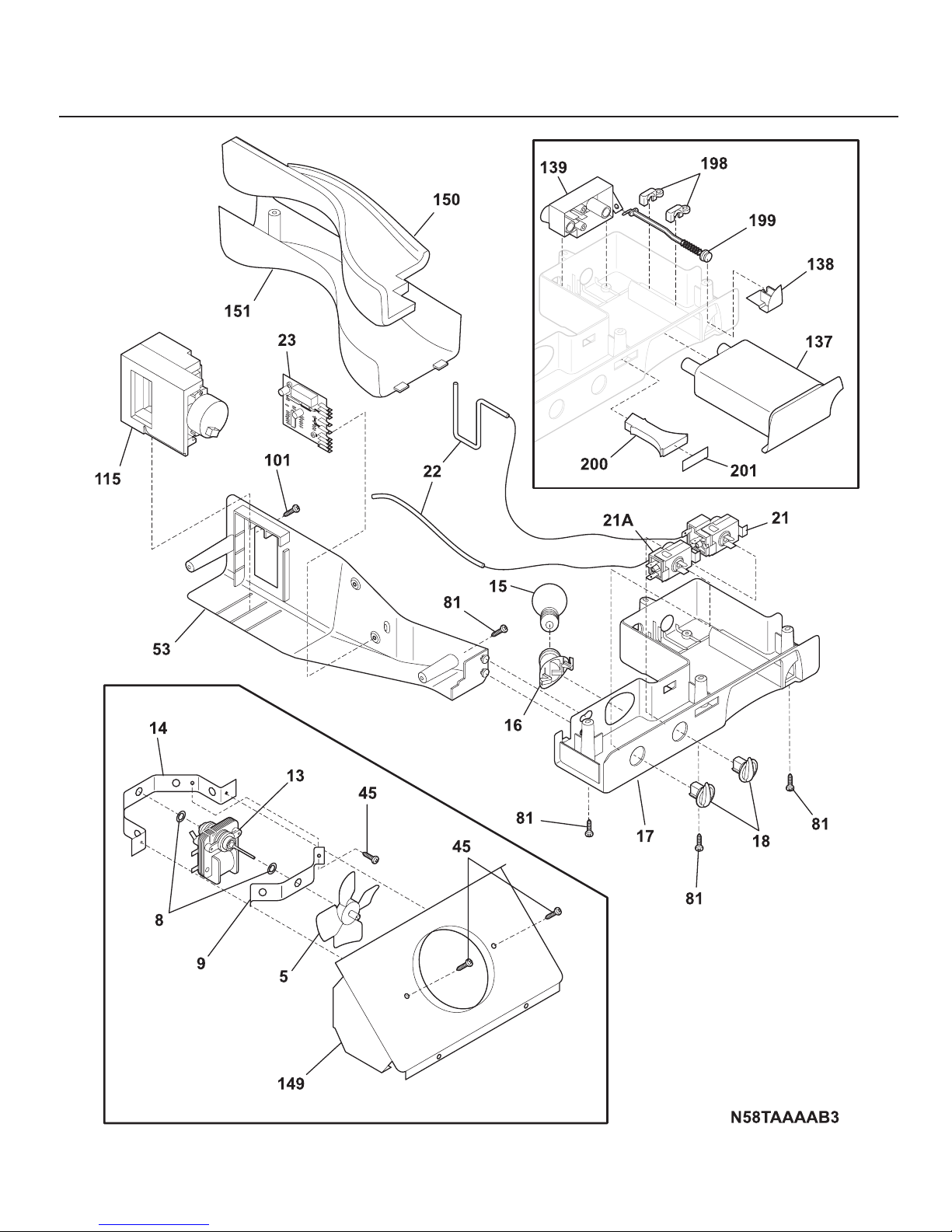

CONTROLS
