REPAIR
PARTS
LIST
Model No.
580.74229400
◆Product Type ◆Part Number
◆Model Number ◆Part Description
Sears, Reobuck and Co., Hoffman Estates, IL 60179 U.S.A.
To Call
Toll Free
For Parts:
1-800-366-PART
(1-800-366-7278)
1-800-4-MY-HOME
(1-800-469-4663)
For Service:
The model number of your Air Conditioner can be found
on the right side of the cabinet.
All repair parts listed are available for immediate
purchase or special order when you visit your nearest
Sears Service Center, or the Service Department at most
Sears stores. To order parts by phone, call the toll free
parts number listed to the left.
When requesting service or ordering parts, always
provide the following information:
®
ROOM AIR CONDITIONER
02/04 - 2 -
Room Air Conditioner To order Parts call Toll Free
Model No. 580.74229400 1-800-4-MY-HOME®(1-800-469-4663)
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

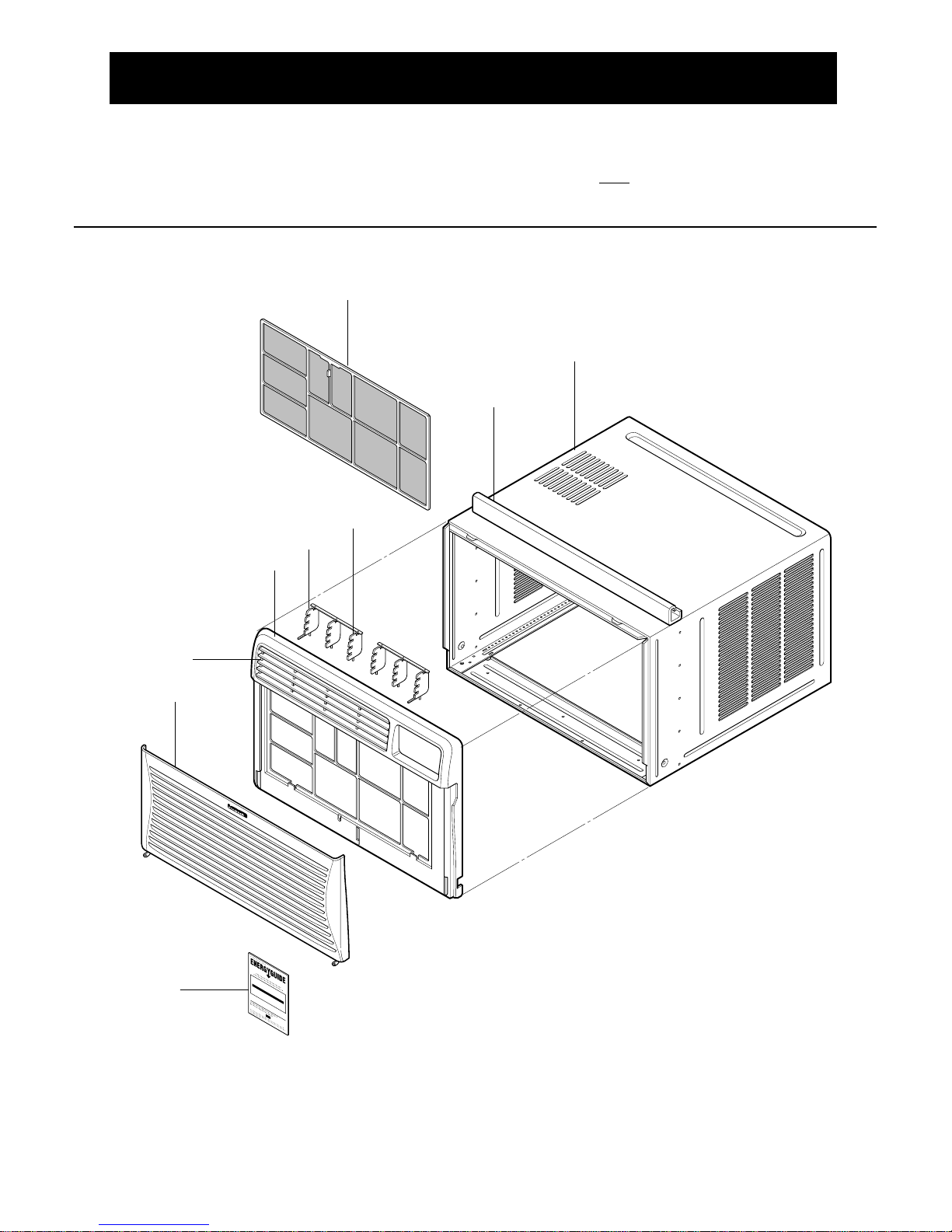

CABINET & FRONT GRILLE ASSEMBLY
2-A
1-A
3-A
5-A 6-A
8-A
7-A
9-A
4-A
REPAIR PARTS
- 3 - 02/04
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CABINET & FRONT GRILLE ASSEMBLY
# = Functional Parts
* = Non-illustrated Parts
1 - A
2 - A
3 - A
4 - A
5 - A
6 - A
7 - A
8 - A
9 - A
*
PART NUMBER
3530A10240A
3530A10241A
5231A20027A
4758A30047A
4758A30050A
4758A30050B
3091A10064B
2H00858E
3850A20783U
3828A20307W
DESCRIPTION
FRONT GRILLE
INLET GRILLE
AIR FILTER ASSEMBLY
VANE
LOUVER
LOUVER
CABINET ASSEMBLY
UPPER GUIDE
LABEL, ENERGY
MANUAL OWNER'S
ILLUSTRATION
NUMBER
02/04 - 4 -
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

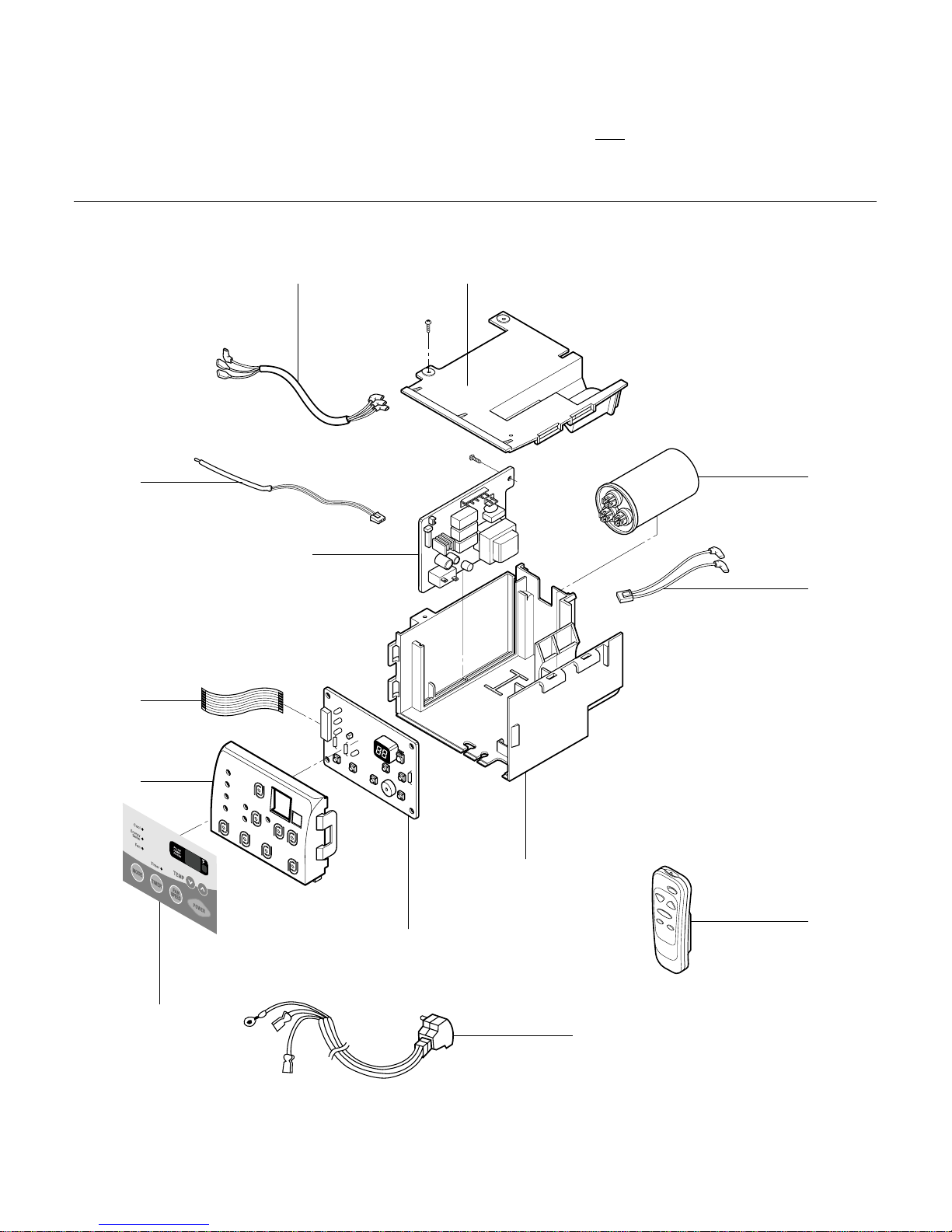

CONTROL BOX ASSEMBLY
9-B 3-B
1-B
5-B
13-B
6-B
11-B
12-B
7-B
2-B
10-B
8-B
4-B
- 5 - 02/04
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
CONTROL BOX ASSEMBLY
# = Functional Parts
* = Non-illustrated Parts
1 - B #
2 - B
3 - B
4 - B
5 - B #
6 - B
7 - B
8 - B
9 - B
10 - B
11 - B
12 - B
13 - B
PART NUMBER
4994A20045A
3720A10112A
3550A30122B
6871A20167D
6871A20325E
6120AR2194Q
6411A20015L
6323A20004E
6877A20002G
6850A90001G
6631A30003A
6711A20056T
3831A20097E
DESCRIPTION
CONTROL BOX
PANEL, CONTROL
COVER, CONTROL BOX
PWB ASSEMBLY, MAIN
PWB ASSEMBLY, DISPLAY
CAPACITOR
POWER CORD ASSEMBLY
THERMISTOR ASSEMBLY
CONNECTOR ASSEMBLY
CABLE FLAT
CONNECTOR ASSEMBLY
REMOTE CONTROL
ESCUTCHEON
ILLUSTRATION
NUMBER
02/04 - 6 -
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

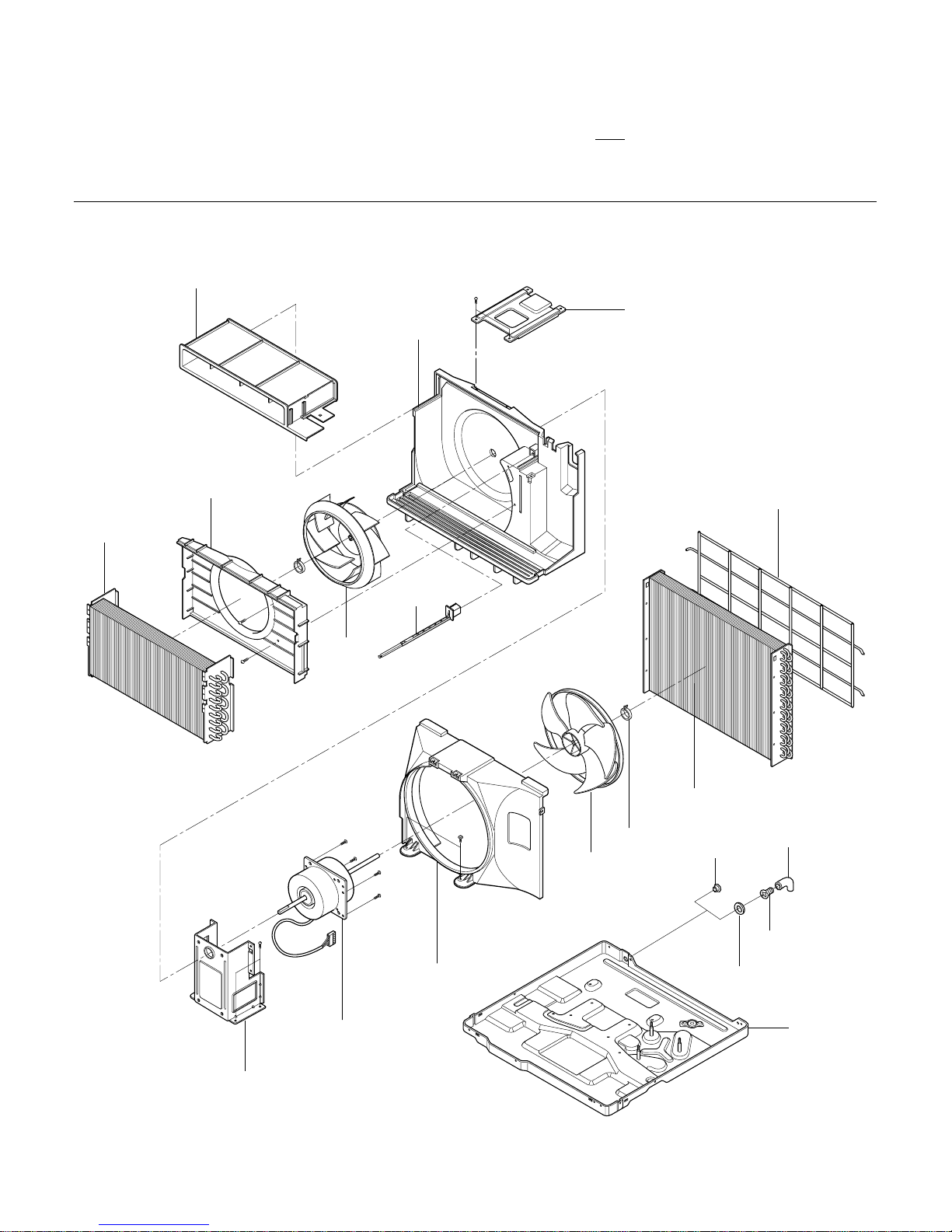

AIR HANDLING & CYCLE PARTS
3-C
4-C
18-C 17-C
2-C
19-C
12-C
14-C
7-C
5-C
15-C
16-C
6-C
10-C
8-C 9-C
13-C
11-C
1-C
- 7 - 02/04
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
AIR HANDLING & CYCLE PARTS
# = Functional Parts
* = Non-illustrated Parts
1 - C
2 - C
3 - C
4 - C
5 - C
6 - C
7 - C #
8 - C #
9 - C #
10 - C
11 - C
12 - C
13 - C #
14 - C #
15 - C
16 - C
17 - C
18 - C
19 - C
PART NUMBER
3041A10050B
5238A10022A
5238A10021A
4900A20016A
4960A20056A
4681A20043K
5900A20045B
5900A10011A
3H02932C
4998A10035A
4800A20001A
5421A20186A
5403A20182B
4948A10024A
4H01029F
3H02773A
4H00261A
4H02023A
3530A20042D
DESCRIPTION
BASE PAN WELD ASSEMBLY
AIR GUIDE LOWER
AIR GUIDE UPPER
DAMPER
MOTOR MOUNT
MOTOR ASSEMBLY
TURBO FAN
AXIAL FAN
CLAMP SPRING
SHROUD
BRACE
EVAPORATOR ASSEMBLY
CONDENSER ASSEMBLY
ORIFICE
WASHER RUBBER
DRAIN PIPE
PIPE ELBOW
HOLE RUBBER
GRILLE, REAR
ILLUSTRATION
NUMBER
02/04 - 8 -
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

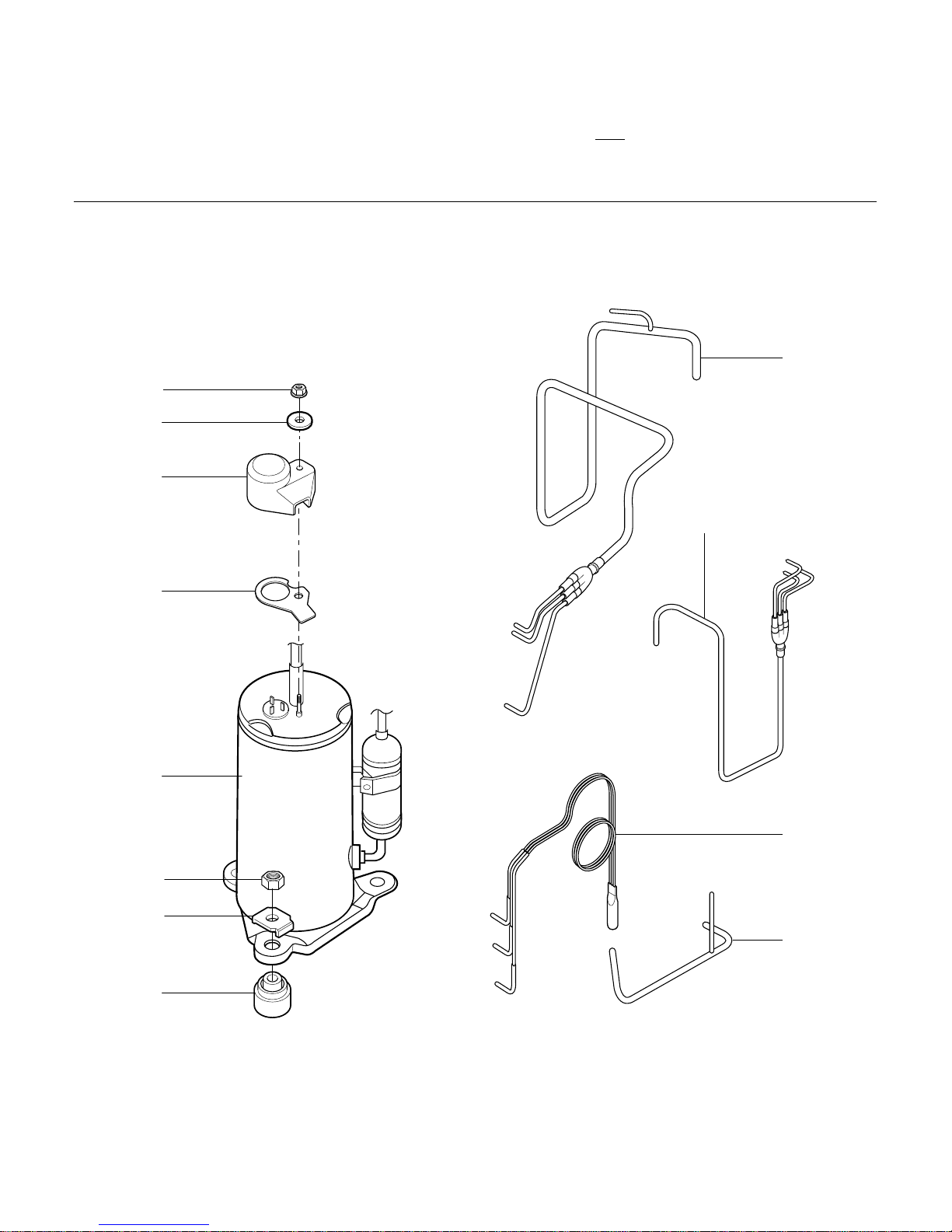

COMPRESSOR PARTS
3-D
4-D
2-D
5-D
8-D
7-D
10-D
9-D
12-D
11-D
6-D
1-D
- 9 - 02/04
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.
COMPRESSOR PARTS
# = Functional Parts
* = Non-illustrated Parts
1 - D
2 - D #
3 - D
4 - D
5 - D
6 - D
7 - D
8 - D
9 - D
10 - D
11 - D
12 - D
PART NUMBER
5014A20003A
2520UMBK1MA
4H01811C
1NHA0801206
4986U-L001G
3550U-L004A
4H01058A
4H00947A
5211A12003B
5211A12002B
5211A12004A
5211A22014B
DESCRIPTION
ISOLATOR, COMP
COMPRESSOR
BRACKET, WASHER
HEXAGON NUTS
GASKET
TERMINAL COVER
GASKET NUT
TERMINAL COVER NUT
TUBE ASSEMBLY DISCHARGE
TUBE ASSEMBLY SUCTION
TUBE, FORMED
TUBE ASSEMBLY CAPILLARY
ILLUSTRATION
NUMBER
02/04 - 10 -
580.74229400
CAUTION: Use the Kenmore part number on all orders, not the illustration number.

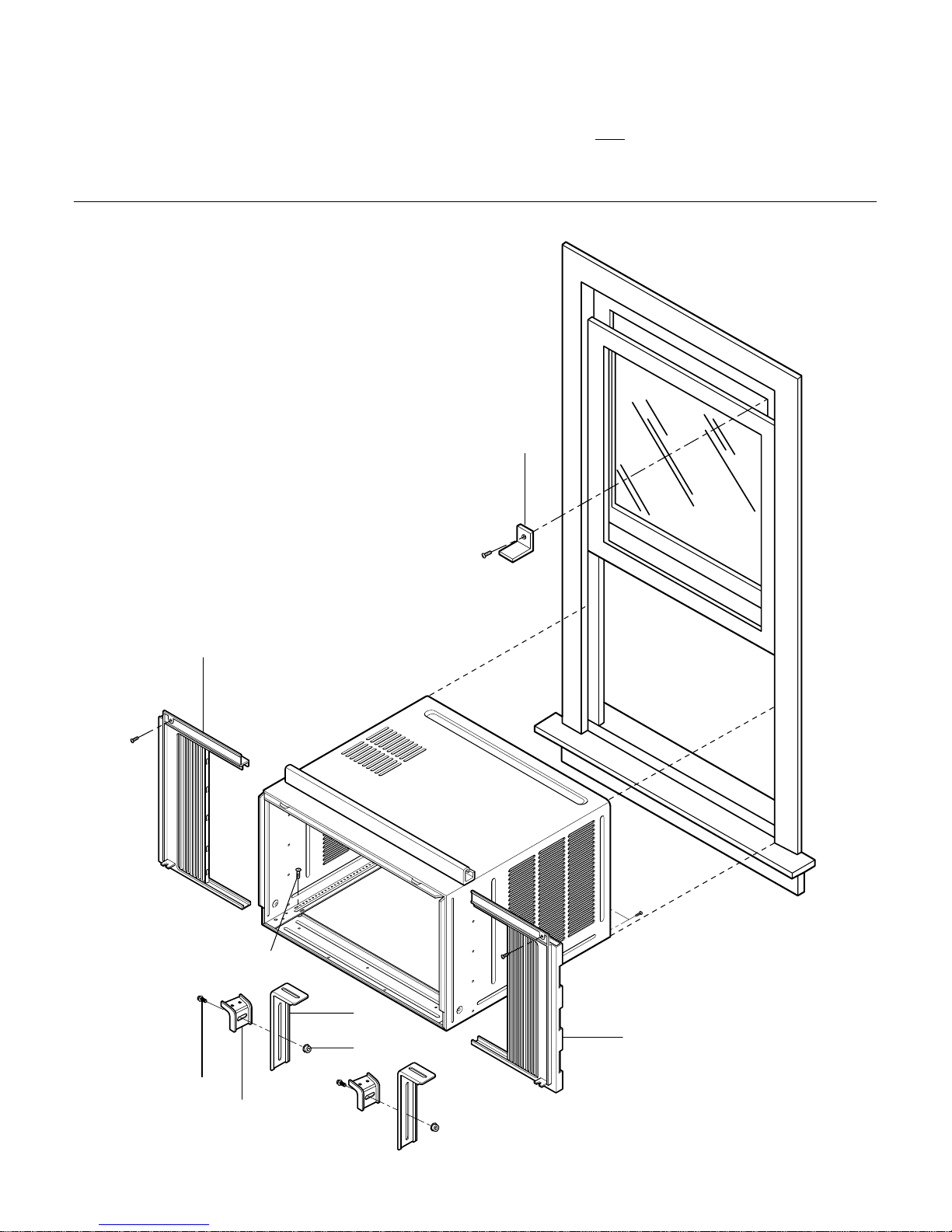

INSTALLATION KIT ASSEMBLY
1-E
4-E
6-E
2-E
7-E 5-E
3-E
8-E
