SEARS

OWNER'S MANUAL

EVAPORATIVE

TABLE TOP

HUMIDIFIER

Model

42.14121

(3 Gallon)

Use Replacement Filter Pad

No. 14804

•Operating Instructions

•Parts List

CAUTION:

Read and follow all Safety

Rules and Operating

Instructions before first

use of this Product.

INFO-LINE

After having read this manual,

if you have any questions or

comments on your Kenmore

Humidifier call:

1-800-332-1110

Sears, Roebuck and Co., Hoffman Estates, IL 601 79 U.S.A.

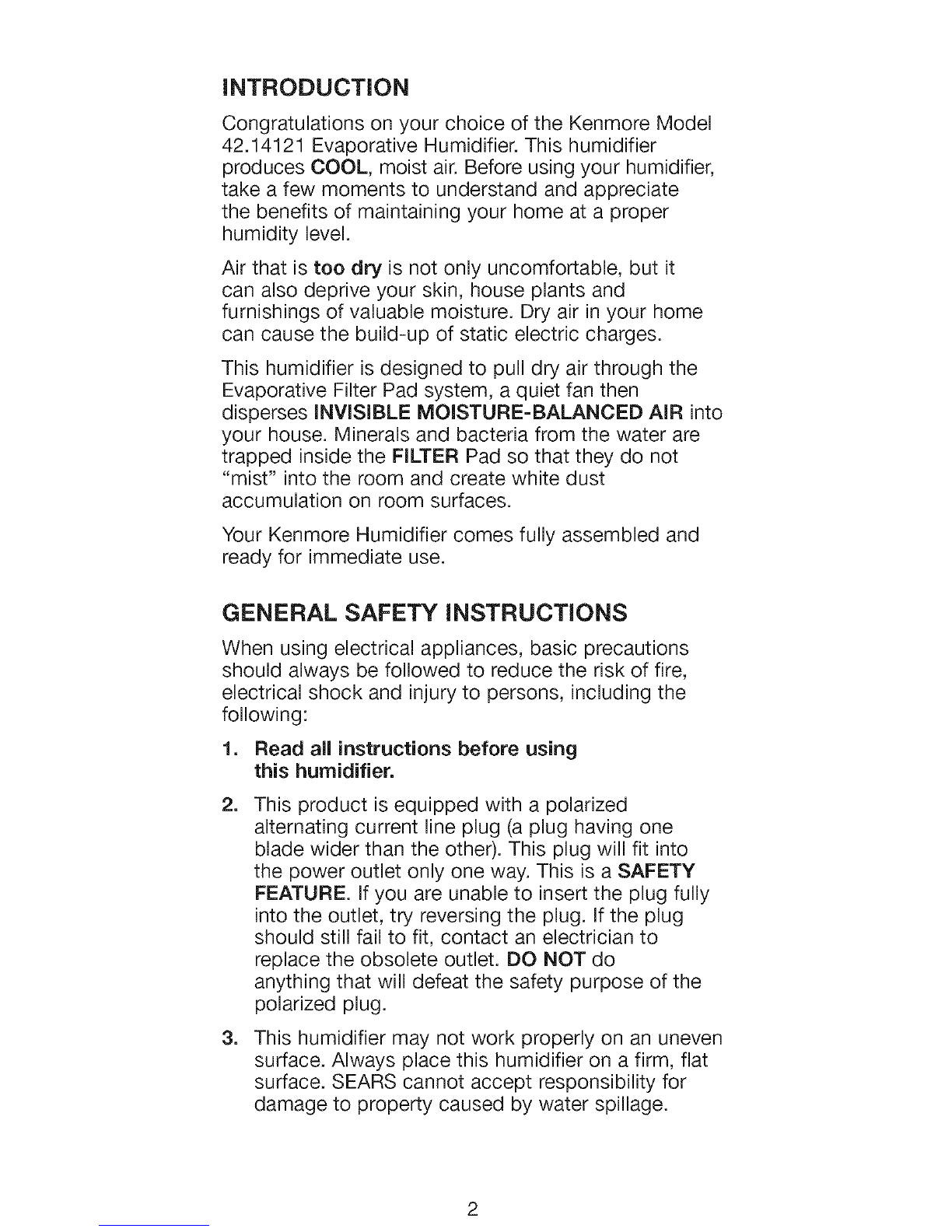

iNTRODUCTiON

Congratulations on your choice of the Kenmore Model

42.14121 Evaporative Humidifier. This humidifier

produces COOL, moist air. Before using your humidifier,

take a few moments to understand and appreciate

the benefits of maintaining your home at a proper

humidity level.

Air that istoo dry is not only uncomfortable, but it

can also deprive your skin, house plants and

furnishings of valuable moisture. Dry air in your home

can cause the build-up of static electric charges.

This humidifier is designed to pull dry air through the

Evaporative Filter Pad system, a quiet fan then

disperses INVISIBLE MOISTURE-BALANCED AIR into

your house. Minerals and bacteria from the water are

trapped inside the FILTER Pad so that they do not

"mist" into the room and create white dust

accumulation on room surfaces.

Your Kenmore Humidifier comes fully assembled and

ready for immediate use.

GENERAL SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions

should always be followed to reduce the risk of fire,

electrical shock and injury to persons, including the

following:

1. Read all instructions before using

this humidifier.

This product isequipped with a polarized

alternating current line plug (a plug having one

blade wider than the other). This plug will fit into

the power outlet only one way. This isa SAFETY

FEATURE. If you are unable to insert the plug fully

into the outlet, try reversing the plug. If the plug

should still fail to fit, contact an electrician to

replace the obsolete outlet. DO NOT do

anything that will defeat the safety purpose of the

polarized plug.

This humidifier may not work properly on an uneven

surface. Always place this humidifier on a firm, flat

surface. SEARS cannot accept responsibility for

damage to property caused by water spillage.

Do not operate the humidifier with a damaged

cord or plug or after the humidifier malfunctions,

has been dropped or damaged in any manner.

Return the unit to SEARS for examination, electrical

or mechanical adjustment or repair.

Do not run the power cord under carpeting. Do not

cover cord with throw rugs, runners or the like.

Arrange the power cord away from traffic areas

and where it will not be tripped over.

Always unplug the humidifier when it is not

operating, when moving or cleaning it, or when

changing its replacement filter or otherwise

servicing it.

Do not place the humidifier near heat sources

such as stoves, radiators and heaters.

.This humidifier requires regular cleaning. Refer

to the CLEANING instructions provided. Never

clean the humidifier in any manner other than as

instructed in this manual.

9. Turn the humidifier OFF if the relative humidity

exceeds 60%. For proper humidity readings,

use a hygrometer (available at Sears).

10. SAVE THESE IMPORTANT INSTRUCTIONS.

HOW YOUR KENMORE EVAPORATIVE

TABLE TOP HUMIDIFIER WORKS

Lack of humidity in the air usually caused by winter

heating and summer air conditioning can dry out your

nose, throat and skin.

KENMORE humidifiers put moisture back into the air

you breathe and may help to relieve symptoms of sinus

and respiratory problems, reduce annoying static

electricity discharges and provide a healthy growing

environment for your indoor plants.

Water is constantly being drawn up from the Base

Reservoir into the Filter Pad. The fan draws dry room

air through the filter's intricate pattern where it

becomes moisture-saturated; this invisible air is then

blown through the Exhaust Grill and into the room.

SEARS built-in moisture balance system naturally

increases moisture output when the air is dry and

lowersthemoistureoutputwhenthehumiditylevelis

high.Thismoisturebalancesystemhelpsreduceany

watercondensationthatmightoccuronwalls,

windowsandfurniture.

DRY ROOM

AIR IN

HEALTHY, MOISTURE-LADEN AIR OUT

WATER

TANK

UPPER MOTOR

HOUSING

BASE RESERVOIR

FILLING

CAUTION: It is recommended that ALL HUMIDIFIERS

BE DISINFECTED prior to use. Please see the

CLEANING section and follow instructions for

RESERVOIR DISINFECTING.

Step #1

Unplug the humidifier. Remove the Upper Motor

Housing Assembly and the Water Tanks from the

Base Reservoir. Remove the Water Tanks by grasping

the handle and pulling straight up. Make sure that the

Evaporative Filter Pad is properly positioned.

Step #2

Prior to filling be sure to remove the Filter Pad and

wipe out any residual water with a clean cloth or paper

towel. Replace the Filter Pads and Upper Motor

Housing Assembly on the Base Reservoir.

Step#3

TurntheWaterTanksupside-downandunscrewthe

capbyturningcounter-clockwise.FilltheWaterTank

withCOOLtapwater.NEVERUSEHOTWATER.

HotwatermaycausedamagetotheFilterPadorto

theHumidifier.

Step#4

ReplacethecapsontheWaterTanksandplacethe

filledWaterTanksontheBaseReservoirandallowit

toempty.

CAUTION: NEVER POUR WATER THROUGH

THE EXHAUST GRILL ON THE UPPER

MOTOR HOUSING, DOING SO MAY CAUSE

DAMAGE AND PERSONAL INJURY.

OPERATION

Step #1

Be sure that the humidifier has been placed on a firm,

flat and level surface. Remember that this product uses

water and always carry the Water Tank carefully. As

with any water-filled appliance, there is always the

possibility of some spillage. Water can damage

furniture and some flooring, so we recommend that the

humidifier be placed on a water resistant surface for

protection from water spillage.

SEARS CANNOT ACCEPT RESPONSIBILITY

FOR DAMAGE TO PROPERTY CAUSED BY

WATER SPILLAGE.

Step #2

With the Moisture Output Control Knob in the OFF

position, plug the humidifier into a polarized 120 volt

AC wall outlet. Do not use an extension cord. DO NOT

FORCE THE POLARIZED PLUG INTO THE OUTLET;

it will only fit one way. DO NOT PLUG IN THE

HUMIDIFIER WITH WET HANDS AS AN ELECTRIC

SHOCK COULD OCCUR.

Step#3

TurntheHumidityLevel(Humidistat)Knobto HIGH(+).

Step#4

SettheMoistureOutputControlKnobtothedesired

position.

-HIGH for fast humidifying. High speed operation will

provide approximately 3 gallons of moisture per day.

-MED for normal operation.

-LOW for quiet nighttime operation. Low speed will

provide up to 20 hours of continuous operation on

each filling.

NOTE: IF THE HUMIDIFIER FAN WILL NOT START

OR RESTART WHEN YOU SELECT A FAN SPEED,

THE HUMIDISTAT MAY BE SET TOO LOW. MOVING

THE HUMIDITY LEVEL KNOB TO A HIGHER

SETTING SHOULD START THE FAN.

The length of time your humidifier runs will vary

depending on the quality of construction and insulation

of your room or house, as well as the fan speed.

Step #5

Adjust the round Air Outlet Grill on the top of the Upper

Motor Housing (above the fan) to direct moisture in the

desired direction. DO NOT aim the moisture flow

toward furniture or walls that could be damaged by

excessive moisture.

When a comfortable humidity level is reached, lower

the Humidity Level (Humidistat) setting slowly until the

fan stops. The DESIRED HUMIDITY light will then

illuminate, indicating that the desired humidity setting

has been reached. The Humidistat will automatically

restart the fan each time the humidity level falls below

this setting. This "ON/OFF" cycle will continue

periodically while the humidifier is in use.

Lower the Humidity level setting if condensation forms

on walls or windows.

Step#6

ResidueontheFilterPadcanreduceitsusablelife.To

preventthebuildupofresidueinandontheFilterPad,

turnthepadover,topto bottom,ateveryfilling.Also,

anywaterleftinthebottomoftheBaseReservoir

shouldbeemptiedateveryfilling.Witheachemptying,

useaspongeorpapertoweltowipetheBase

Reservoirdry.

CLEANING

Weekly cleaning is required for proper operation of

this humidifier. Tap water may contain impurities or

dissolved solids which could leave a residue upon the

inner surfaces of the humidifier and on the Filter Pad.

Water residue can inhibit the wicking ability of the

Evaporative Pad and shorten its usable life.

It is recommended that you clean this humidifier every

week or more often where water quality is poor. More

frequent cleaning may be necessary if you see a heavy

build-up of impurities.

TO CLEAN THE HUMIDIFIER

Step #1

Turn the humidifier OFF and UNPLUG the unit.

Step #2

Remove the Upper Motor Housing, Water Tank and

the Filter Pad from the Base Reservoir.

Step #3

Empty the Base Reservoir and Water Tank and rinse

with clean tap water.

NOTE: FAILURE TO REMOVE THE FILTER PAD

BEFORE CLEANING WiLL DESTROY THE PAD.

Step #4

Scale Removal

(Perform this operation weekly)

A. With the Filter Pad removed, fill the Base Reservoir

with water and add 8 oz. of undiluted

white vinegar.

B. Fill the Water Tank 3/4 full with a mixture of water

and 6 oz. of undiluted white vinegar. Seal and

shake vigorously.

WARNING

DO NOT USE GASOLINE, PAINT

THINNER OR OTHER FLAMMABLE

SOLVENTS TO CLEAN THIS HUMIDIFIER.

O. Clean all interior surfaces of the Base Reservoir

with a soft brush or cloth to remove any scale.

DO NOT USE SOAP OR DETERGENTS AND

NEVER USE AN ABRASIVE CLEANER.

D. Carefully clean the Upper Motor Assembly with a

dry cloth.

E. Empty and rinse the Base Reservoir and Water

Tank with clean water to remove scale and

remaining cleaning solution before disinfecting

the reservoir.

Step #5

Reservoir Disinfecting

(Perform this operation weekly.)

A. With the Filter Pad removed, fill the Base Reservoir

with one gallon of water and add 1 teaspoon of

household bleach. Fill the Water Tank with water

and add 1 teaspoon of household bleach. Let the

solutions stand for 20 minutes, swishing every few

minutes. Wet all inner surfaces.

B. Empty the Base Reservoir and Water Tank and rinse

with water until the bleach odor is gone. Dry the

Base Reservoir with a clean cloth or paper towel.

Step #6

Remember, AgION T"prevents the Evaporative Pad from

growing fungus, mold and bacteria. It is normal

for the filter to discolor from mineral build-up. This will

vary depending on your water quality. However, if the

pad has a noticeable build-up of impurities, rinse it

gently in clean tap water or change it. Do not squeeze

orwringouttheFilterPad.Donotattemptto cleanthe

padwithanychemicalsolution.Ifyounoticea

decreaseintheoutputofthehumidifier,it istimeto

replacetheFilterPad.

FormaximumhumidifyingefficiencytheFilterPad

shouldbechangedatleasteveryseasonand

moreoftendependinguponthewaterqualityand

humidifierusage.

FORTHEBESTANDPROVEN RESULTS, install only

a Sears brand Filter Pad - #14804. The use of an

improper Filter Pad could harm the humidifier's motor

and impair the humidifier's performance.

Step #7

Replace the Filter Pad, Upper Motor Assembly and

Water Tank onto the base.

STORAGE

Step #1

Clean and dry the humidifier thoroughly per the

CLEANING instructions.

Step #2

Be sure all components are dry. DO NOT LEAVE

ANY WATER iN THE HUMiDiFiER WHEN STORING.

WATER LEFT iN THE HUMIDIFIER MAY CAUSE

DEPOSITS OR BACTERIAL GROWTH WHICH

COULD iMPAiR THE HUMiDiFiER'S PERFORMANCE.

Step #3

Dispose of the used pad. NEVER STORE A USED

FILTER PAD iN THE HUMiDiFiER.

NOTE: PLEASE DO NOT THROW AWAY THE FILTER

PAD FRAME; SAVE iT FOR NEXT SEASON.

Step #4

Place the humidifier in its original carton and store it

in a cool, dry place.

Step #5

Visit your local Sears store or call 1-800-FON-PART

(800-366-7278) to purchase your new Filter

Replacement Pad (#14804) now, so it will be handy

when you need it.

ELECTRICAL RATINGS

INPUT VOLTAGE: 120 VAC/60HZ

CURRENT: 0.45 AMPS.

POWER CONSUMPTION: 45.6 WA-FrS

CAUTION

Under no circumstances should you use water

treatments designed for Roto belt or Ultrasonic

humidifiers.

CUSTOMER ASSISTANCE LiNE

There are no consumer serviceable parts inside this

humidifier's Upper Motor Assembly. If you experience

a problem, please see the warranty for information.

Please don't attempt to open the Upper Motor

Assembly yourself, doing so will void your warranty

and could cause damage or personal injury. If you

have any questions regarding this product, please

call Customer Service:

1=800=332-1110

Inhaltsverzeichnis

Andere Kenmore Luftbefeuchter Handbücher

Kenmore

Kenmore 758.296140C Bedienungsanleitung

Kenmore

Kenmore QUIET COMFORT 758.14808 Bedienungsanleitung

Kenmore

Kenmore 758.144162 Bedienungsanleitung

Kenmore

Kenmore 758.15408 Bedienungsanleitung

Kenmore

Kenmore 303.147012 Bedienungsanleitung

Kenmore

Kenmore Sears 758.144107 Quiet comfort Bedienungsanleitung

Kenmore

Kenmore QUIET COMFORT 758.144131 Bedienungsanleitung

Kenmore

Kenmore 2.0 & 3.5 gallon warm mist humidifier... Bedienungsanleitung

Kenmore

Kenmore QUIET COMFORT 758.14451 Bedienungsanleitung

Kenmore

Kenmore 758.15420011 Bedienungsanleitung

Kenmore

Kenmore KEMORE 758.144533 Bedienungsanleitung

Kenmore

Kenmore 758.144161 Bedienungsanleitung

Kenmore

Kenmore KENMORE 758.144151 Bedienungsanleitung

Kenmore

Kenmore KENMORE 1700 Bedienungsanleitung

Kenmore

Kenmore 758.144171 Bedienungsanleitung

Kenmore

Kenmore Quiet comfort 758.144160 whole house humidifier 12 gallon... Bedienungsanleitung

Kenmore

Kenmore Sears 758.144530 Bedienungsanleitung

Kenmore

Kenmore Sears Evaporative table top Humidifier 42.14121 (3... Bedienungsanleitung

Kenmore

Kenmore Sears 758.144071 Quiet comfort Bedienungsanleitung

Kenmore

Kenmore 758.154140 Bedienungsanleitung

Kenmore

Kenmore 758.154080 Bedienungsanleitung

Kenmore

Kenmore 758.15408010 Bedienungsanleitung

Kenmore

Kenmore Kenmore Quiet Comfort 758.144120 Bedienungsanleitung

Kenmore

Kenmore QUIET COMFORT 758.14417 Bedienungsanleitung

Beliebte Luftbefeuchter Handbücher anderer Marken

Boneco

Boneco H300 Bedienungsanleitung

Bionaire

Bionaire CM1 Handbuch

Air-O-Swiss

Air-O-Swiss AOS 7131 Handbuch

KING

KING K 5002 Rainbow Bedienungsanleitung

Crane

Crane EE-6902 Bedienungsanleitung

Glaziar

Glaziar Ness Bedienungsanleitung

Philips

Philips DreamStation Go Abmessungen

Honeywell

Honeywell MISTMATE HUL520BC Bedienungsanleitung

Stadler Form

Stadler Form Hera Bedienungsanleitung

Hunter

Hunter 31206 Bedienungsanleitung

TaoTronics

TaoTronics TT-AH004 Bedienungsanleitung

adorini

adorini Cigar Heaven Bedienungsanleitung

Lanaform

Lanaform Aroma Bedienungsanleitung

Aprilaire

Aprilaire 800 Series Bedienungsanleitung

Pyle

Pyle SereneLife PHUMDIF8 Bedienungsanleitung

Trotec

Trotec B 200 Bedienungsanleitung

Pure Humidifier

Pure Humidifier EC Series Bedienungsanleitung

Crane

Crane EE-864 Bedienungsanleitung
