Kenmore

MICRO E OVEN

Use and Care

Sears, Roebuck and Co., Chicago, IL. 60684, U.S.A.

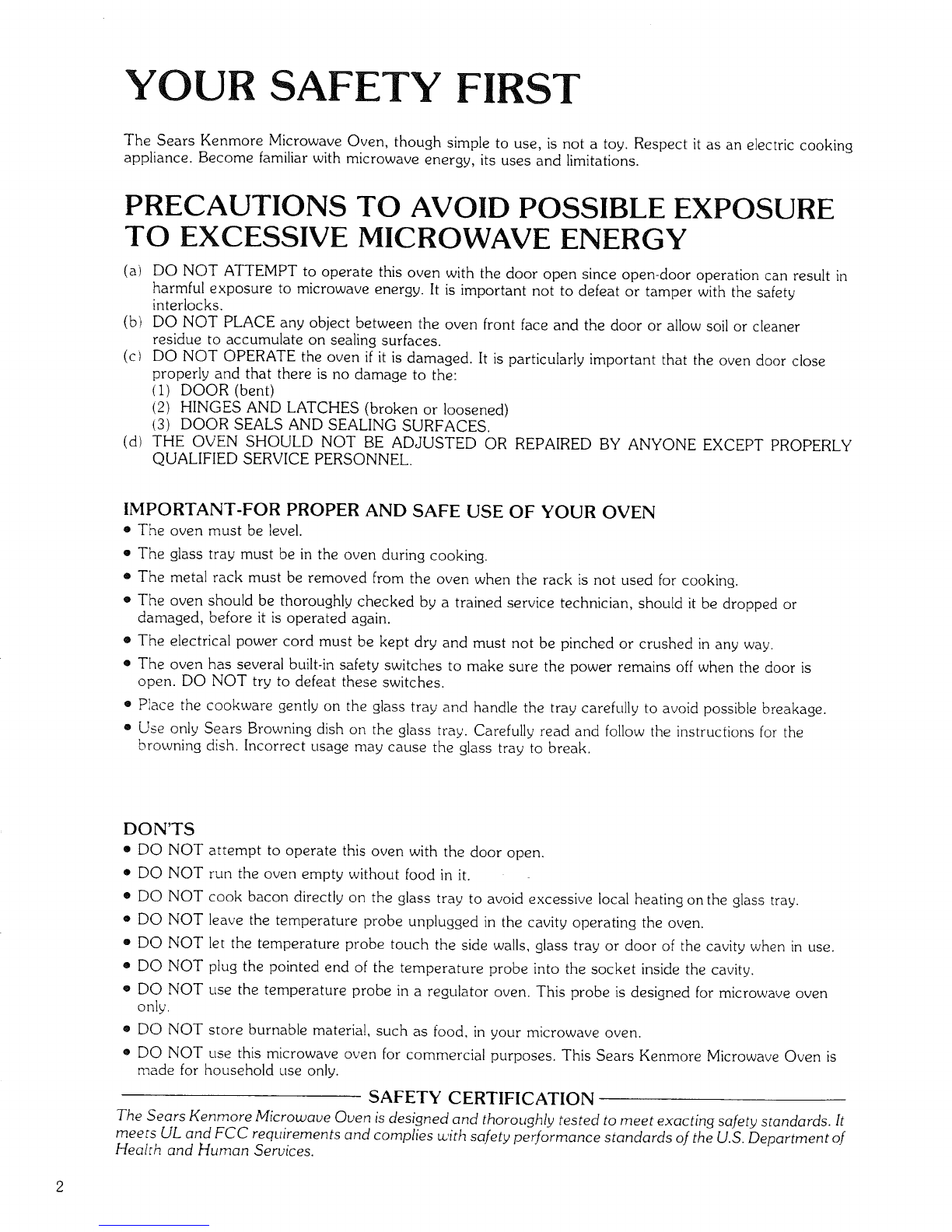

YOUR SAFETY FIRST

The Sears Kenmore Microwave Oven, though simple to use, is not a toy. Respect it as an electric cooking

appliance. Become familiar with microwave energy, its uses and limitations.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY

(a) DO NOT ATTEMPT to operate this oven with the door open since open-door operation can result in

harmful exposure to microwave energy. It is important not to defeat or tamper with the safety

interlocks.

(b) DO NOT PLACE any object between the oven front face and the door or allow soil or cleaner

residue to accumulate on sealing surfaces.

properly and that there is no damage to the:

(I) DOOR (bent)

(2) HINGES AND LATCHES (broken or loosened)

(3) DOOR SEALS AND SEALING SURFACES.

(d) THE OVEN SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY

QUALIFIED SERVICE PERSONNEL.

IMPORTANT-FOR PROPER AND SAFE USE OF YOUR OVEN

• The oven must be level.

• The glass tray must be in the oven during cooking.

• The metal rack must be removed from the oven when the rack is not used for cooking.

• The oven should be thoroughly checked by a trained service technician, should it be dropped or

damaged, before it is operated again.

• The electrical power cord must be kept dry and must not be pinched or crushed in any way.

• The oven has several built-in safety switches to make sure the power remains off when the door is

open. DO NOT try to defeat these switches.

• Place the cookware gently on the glass tray and handle the tray carefully to avoid possible breakage.

• Use only Sears Browning dish on the glass tray. Carefully read and follow the instructions for the

browning dish. Incorrect usage may cause the glass tray to break.

DON'TS

• DO NOT

e DO NOT

• DO NOT

only.

• DO NOT

attempt to operate this oven with the door open.

run the oven empty without food in it.

cook bacon directly on the glass tray to avoid excessive local heating on the glass tray.

leave the temperature probe unplugged in the cavity operating the oven.

let the temperature probe touch the side walls, glass tray or door of the cavity when in use.

plug the pointed end of the temperature probe into the socket inside the cavity.

use the temperature probe in a regulator oven. This probe is designed for microwave oven

store burnable material, such as food, in your microwave oven.

• DO NOT use this microwave oven for commercial purposes. This Sears Kenmore Microwave Oven is

made for household use only.

SAFETY CERTIFICATION

The Sears Kenmore Microwave Oven is designed and thoroughly tested to meet exacting safety standards. It

meets UL and FCC requirements and complies u.'ith safety performance standards of the U.S. Department of

Health and Human Services.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances basic safety precautions should be followed, including the following:

WARNING - Toreducether skofburns,

electric shock, fire, injury to persons or exposure to

excessive microwave energy:

I. Read all instructions before using the appliance.

2. Read and follow the specific "PRECAUTIONS

TO AVOID POSSIBLE EXPOSURE TO EX-

CESSIVE MICROWAVE ENERGY" found on

Page 2.

3. This appliance must be grounded. Connect only

to properly grounded outlet. See "GROUND-

ING INSTRUCTIONS" found on Page 3 of

Installation Instruction manual.

4. Install or locate this appliance only in accordance

with the provided installation instructions.

5. Some products such as whole eggs and sealed

containers--for example, closed glass jars-- may

explode and should not be heated in this oven.

6. Use this appliance only for its intended use as

described in this manual.

7. As with any appliance, close supervision is nec-

essary when used by children.

8. Do not operate this appliance if it has a damaged

cord or plug, if it is not working properly, or if it

has been damaged or dropped.

I0. Do not cover or block any openings on the

appliance.

II. Do not use outdoors.

12. Do not immerse cord or plug in water.

13. Keep cord away from heated surfaces.

14. Do not let cord hang over edge of table or

counter.

15. When cleaning surfaces of door and oven that

comes together on closing the door, use only

mild, non-abrasive soaps or detergents applied

with a sponge or soft cloth. (See "Care and

Cleaning" instructions on Page 21 through 23.)

16. To reduce the risk of fire in the oven cavity:

a. Do not overcook food. Carefully attend appli-

ance if paper, plastic, or other combustible

materials are placed inside the oven to

facilitate cooking.

b. Remove wire twist-ties from paper or plastic

bags before placing bag in oven.

C. If materials inside the oven should ignite,

keep oven door closed, turn oven off, and

disconnect the power cord, or shut off power

at the fuse or circuit breaker panel.

9. This appliance should be serviced only by qualified

service personnel. Contact nearest authorized

service facility for examination, repair or adjust-

ment.

SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

Installation ............................................................................. 6

Names of Oven Parts and Oven Control Panel ............................................. 7--8

Use Instructions ...................................................................... 9--10

[] Easy Use Chart ...................................................................... 10

[] Change or Check a Setting ............................................................ 10

[] Regular Timer ........................................................................ 10

Detailed Directions .................................................................... 11--19

[] "HI-Power" Cooking ................................................................. 11

[] Cooking Guide for "Multi-Power" Settings ............................................... 12

[] "Multi-Power" Cooking ................................................................ 13

[] "Temperature Controlled" Cooking ..................................................... 14--16

[] Temperature Controlled "HI-Power" Cooking and Automatic "Hold Warm". ................. 17

[] Temperature Controlled "Multi-Power" Cooking and Automatic "Hold Warm" . .............. 18

[] Whole Meal Cooking ................................................................. 19

Utensils ................................................................................ 20

Care and Cleaning ...................................................................... 21--23

Questions and Answers .................................................................. 24--25

Before Calling for Service ................................................................ 26

Sears Service ........................................................................... 27

Sears Warranty ..................................................................... Back Cover

SEARS KENMORE MICROWAVE OVEN

"USE AND CARE MANUAL"--

MICROWAVE OVEN USE INSTRUCTIONS

Enjoy a new cooking experience from Sears. Please read this booklet. It takes

just a few minutes- time well spent to learn how to use all of the features.

Advice on the use and care of Sears appliances is always available at your

nearest Sears store. When seeking information, be sure to get the complete

model number located on the plastic label. See below for its location.

MODEL NUMBER

To make a request for service, information or replacement of parts, Sears will require the complete model

number of your microwave oven. The number is on the inner left side of the control panel. (You must open the

door to see the number).

The number will look like this: 564.8000000.

Model Number Label

INSTALLATION

Complete Installation Instructions are included in the separate instruction manual.

If you have any question on installation, please contact your Sears sales person or local Sears Service

Center.

A mounting space of 33" or more from the surface of cooktop to the bottom of kitchen top cabinet, and at

least 30" wide is required to mount the oven.

If your oven does not operate properly, unplug the oven from the 120-volt household outlet and then plug

it back in.

DIMENSIONS

Height

Width

Depth

Weight

19-3/8"

29-7/8"

19-1/4"

104-3/8 lbs.

33"

NAMES OF OVEN PARTS

See-through

door Painted cavity Grillwork

Oven door

handle

interlock system

panel

Metal rack

Glass tray Hood bottom cover Exhaust filters Work light

Temperature probe

Please read "'Requirements For Installation" section in Installation Manual before you remove the rest of

contents from carton.

Your Oven will come with the following items:

Glass Tray ................................... 1 each

Metal Rack .................................. 1 each

Temperature Probe ........................... 1 each

Cookbook ................................... 1 each

Use and Care Manual ......................... 1 each

Installation Instruction Manual .................. 1 each

Top Cabinet Template ......................... 1 each

Wall Template ................................ 1 each

Hardware Package ............................ 1 each

Damper/duct Connector ....................... 1 each

Do not use this Sears Kenmore Microwave Oven for commercial purposes. This Microwave Oven is made for

household use only.

OVEN CONTROL PANEL

Time--Used in setting cooking

time.

Numbers--Used to enter the

• Cooking times.

• Cooking powers.

• Cooking temperatures.

Cook Control--Used to

cooking power levels.

Clear--Clears all entries. Once

cooking has begun, however,

CLEAR will function only after

STOP has been touched.

Start--Starts the Oven.

Cook Guide--Cooking guide

which lists the types of cooking

that most often occur at these

cooking power levels.

Window--Used to show:

• Cooking time.

• Cooking power level.

• Cooking temperature.

• Hold, End.

It also functions as countdown

timer or temperature indicator

when cooking.

Control--Used in setting

the desired cooking temperature.

"Temperature Control" cooking

can be done only when the

temperature probe is plugged

into the socket inside the oven.

p--Stops the oven.

Lp Guide--Temperature

guide lists examples of food that

are best cooked at these tern-

peratures.

Work Light Button--Lights up

cooktop or countertop.

Fan Control Buttons--

Exhausts the air by hood fan.

NOTE: A "beep tone" sounds when a "pad" on the con-

trol panel is touched, to indicate a setting has

been entered.

USE INSTRUCTIONS- COOKING GUIDE

"HI-POWER" COOKING

"HI" gives the highest power cooking possible with your

microwave oven. It is a recommended setting for cooking

foods with a high moisture content or for cooking foods

that need fast cooking to maintain their natural flavor and

texture. Your Kenmore Microwave Cooking cookbook

will tell you which foods are cooked best using the highest

microwave cooking power ("HI"). For detailed directions

on "HI" (maximum power) cooking, see Page 11.

"MULTI-POWER" COOKING

Many foods need slower cooking (at less than fullpower)

in order to give the best results. In addition to "HI", there

are ninety-nine "multi-power" settingst Detailed

directions for "multi-power" cooking are on Page 13.

TEMPERATURE CONTROLLED

"HI-POWER" COOKING

"Hl-Power" with TEMP CONTROL allows you to cook

food to a preset temperature using maximum speed.

Follow the directions on Page 17 and you will be able to

preset the temperature you desire with the aid of the

"Temperature Controlled" cooking guide.

WHOLE MEAL COOKING

The Metal Rack increases the oven cooking space. To

cook two or more different foods at one time, choose

their proper places inside the oven by following the

cookbook directions. See Page 19.

AUTOMATIC HOOD FAN CONTROL

The two-speed fan can be turned on by pressing the Fan

Control Buttons. It will also automatically run at high

speed by a heat sensing device. The sensing device

detects overheating conditions from the cooking surface

below and turns on the fan to prevent damage to the

oven. Once it is turned on by the sensing device, it can

not be defeated by the FAN Control (Low/Off) Buttons.

It will continue to run until the temperature of the Oven

drops to a safe level.

TEMPERATURE CONTROLLED

"MULTI-POWER" COOKING

"Multi-Power" with TEMP CONTROL allows you to

cook more sensitive foods to a preset temperature by

using slower microwave cooking speeds. See Page 18 for

detailed directions.

AUTOMATIC "HOLD WARM"

After reaching the set temperature, the oven switches

into "Hold Warm" to keep the food warm.

"Hold" will show in the display window and will continue

to show for up to sixty minutes or until the door has been

opened or STOP has been touched. See Pages 17 and 18.

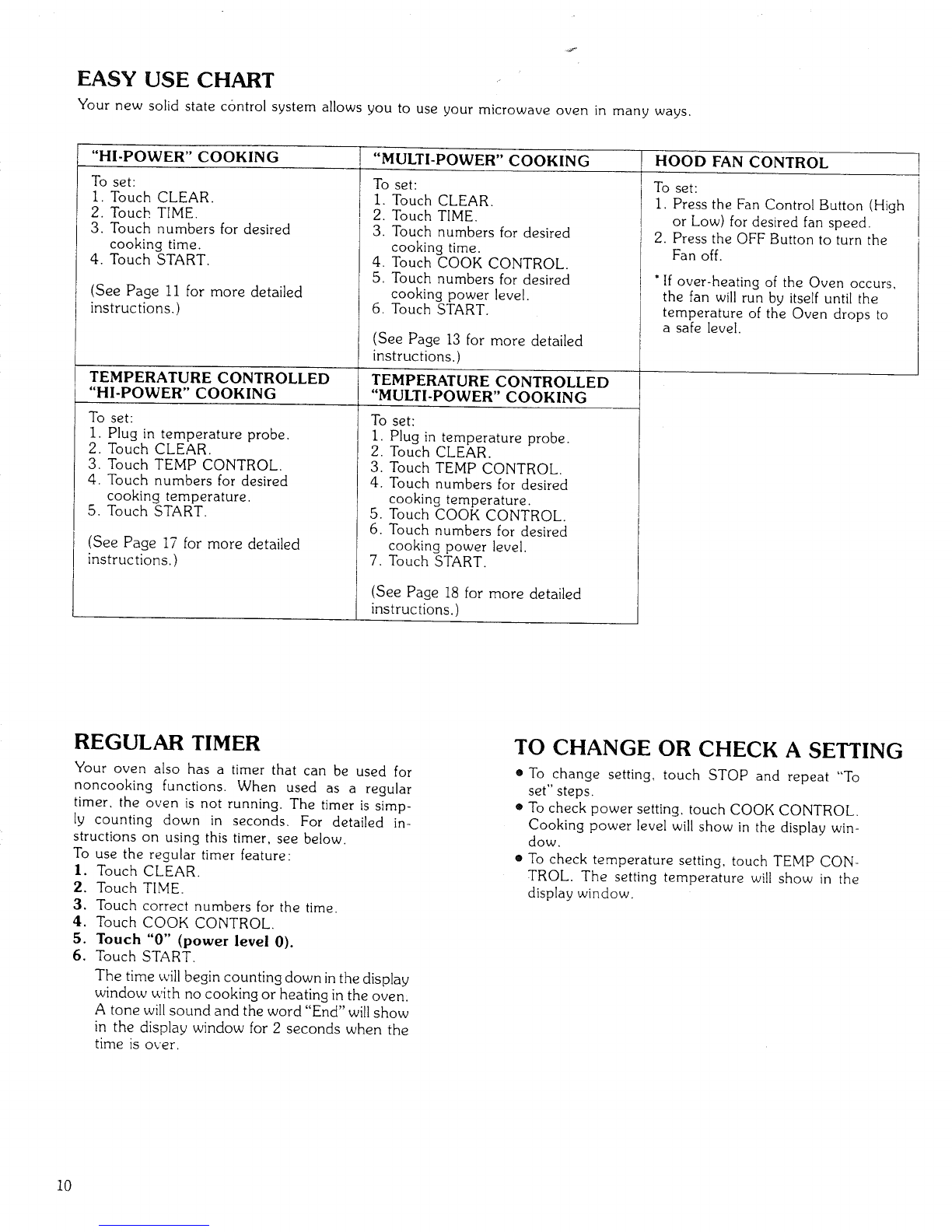

EASY USE CHART

Your new solid state control system allows you to use your microwave oven in many ways.

"HI-POWER" COOKING "MULTI-POWER" COOKING HOOD FAN CONTROL

To set:

1. Touch CLEAR.

2. Touch TIME.

3. Touch numbers for desired

cooking time.

4. Touch START.

(See Page 11 for more detailed

instructions.)

TEMPERATURE CONTROLLED

"HI-POWER" COOKING

To set:

1. Touch CLEAR.

2. Touch TIME,

3. Touch numbers for desired

cooking time.

4. Touch COOK CONTROL.

5. Touch numbers for desired

cooking power level.

6. Touch START.

(See Page 13 for more detailed

instructions.)

TEMPERATURE CONTROLLED

"MULTI-POWER" COOKING

To set:

I. Press the Fan Control Button (High

or Low) for desired fan speed.

2. Press the OFF Button to turn the

Fan off.

* If over-heating of the Oven occurs,

the fan will run by itself until the

temperature of the Oven drops to

a safe level.

To set:

1. Plug in temperature probe.

2. Touch CLEAR.

3. Touch TEMP CONTROL.

4. Touch numbers for desired

cooking temperature.

5. Touch START.

(See Page 17 for more detailed

instructions,)

To set:

I. Plug in temperature probe.

2. Touch CLEAR.

3. Touch TEMP CONTROL.

4. Touch numbers for desired

cooking temperature.

5. Touch COOK CONTROL.

6. Touch numbers for desired

cooking power level.

7. Touch START.

(See Page 18 for more detailed

instructions.)

REGULAR TIMER

Your oven also has a timer that can be used for

noncooking functions. When used as a regular

timer, the oven is not running. The timer is simp-

ly counting clown in seconds, For detailed in-

structions on using this timer, see below.

To use the regular timer feature:

I. Touch CLEAR.

2. Touch TIME.

3. Touch correct numbers for the time.

4. Touch COOK CONTROL.

5. Touch "0" (power level 0).

6. Touch START.

The time will begin counting down in the display

window with no cooking or heating in the oven.

A tone will sound and the word "End" will show

in the display window for 2 seconds when the

time is over.

TO CHANGE OR CHECK A SETTING

• To change setting, touch STOP and repeat "To

set" steps.

•To check power setting, touch COOK CONTROL.

Cooking power level will show in the display win-

dow,

•To check temperature setting, touch TEMP CON-

TROL, The setting temperature will show in the

display window.

Inhaltsverzeichnis

Andere Kenmore Mikrowellenofen Handbücher

Kenmore

Kenmore Toast'n'wave 721.63292 Bedienungsanleitung

Kenmore

Kenmore 721.61102 Bedienungsanleitung

Kenmore

Kenmore PlasmaWave 85450 Bedienungsanleitung

Kenmore

Kenmore 204.73772610 Bedienungsanleitung

Kenmore

Kenmore 721.62462 Bedienungsanleitung

Kenmore

Kenmore 401.85052010 Bedienungsanleitung

Kenmore

Kenmore Sears 721.68280 Bedienungsanleitung

Kenmore

Kenmore 790.4784 Series Bedienungsanleitung

Kenmore

Kenmore Microwave hood combination 721.80802 Bedienungsanleitung

Kenmore

Kenmore Ultra wave Microwave hood combination... Bedienungsanleitung

Kenmore

Kenmore 8206198 Bedienungsanleitung

Kenmore

Kenmore 790.8036 Bedienungsanleitung

Kenmore

Kenmore 721.69113 Bedienungsanleitung

Kenmore

Kenmore 665.60682 Bedienungsanleitung

Kenmore

Kenmore C970 Series Bedienungsanleitung

Kenmore

Kenmore 721.60483000 Bedienungsanleitung

Kenmore

Kenmore 721.66462 Bedienungsanleitung

Kenmore

Kenmore 790.8037 Bedienungsanleitung

Kenmore

Kenmore 721.62222 Bedienungsanleitung

Kenmore

Kenmore 204.74482610 Bedienungsanleitung

Kenmore

Kenmore 401.8505 Bedienungsanleitung

Kenmore

Kenmore 790.8032 Bedienungsanleitung

Kenmore

Kenmore 565.60582 Bedienungsanleitung

Kenmore

Kenmore Ultra wave Microwave hood combination... Bedienungsanleitung

Beliebte Mikrowellenofen Handbücher anderer Marken

Daewoo

Daewoo KOG-574R0S Bedienungsanleitung

LG MH7040SS Bedienungsanleitung

Sharp

Sharp R-895(AL)M Bedienungsanleitung

Dometic

Dometic DOTRM13W Bedienungsanleitung

Sanyo

Sanyo EM-X680 Bedienungsanleitung

Sharp

Sharp R-393M Bedienungsanleitung

KitchenAid

KitchenAid KMCX4510 Montageanleitung

Smeg

Smeg S45MCX1 Bedienungsanleitung

Russell Hobbs

Russell Hobbs RHM2044 Bedienungsanleitung

Sunbeam

Sunbeam SMW759 Bedienungsanleitung

Gallet

Gallet FMOE230S Bedienungsanleitung

Bosch

Bosch CEG732X.1B Bedienungsanleitung

Dometic

Dometic Roadmate 230 Bedienungsanleitung

Samsung

Samsung SJ0396W Bedienungsanleitung

Sanyo

Sanyo EM-P494WS Bedienungsanleitung

Sharp

Sharp R-240 Bedienungsanleitung

Electrolux

Electrolux EMS2840 Bedienungsanleitung

Daewoo

Daewoo KOC-984T2S13 Bedienungsanleitung
