Kenmore ELITE 721.86002 Bedienungsanleitung

Microwave Hood Combination

Combinación Microondas Campana

Part No. MFL57652403 Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A www.sears.com.

INSTALLATION INSTRUCTIONS

INSTRUCCIONES DE INSTALACIÓN

721.86002

721.86003

721.86009

Models/Modelos

Read and save these

installation instructions.

Lea y guarde estas

instrucciones de

instalación

YOUR SAFETY FIRST

BEFORE YOU START

• Proper installation is the installer's responsibility!

– Read the entire manual before you begin.

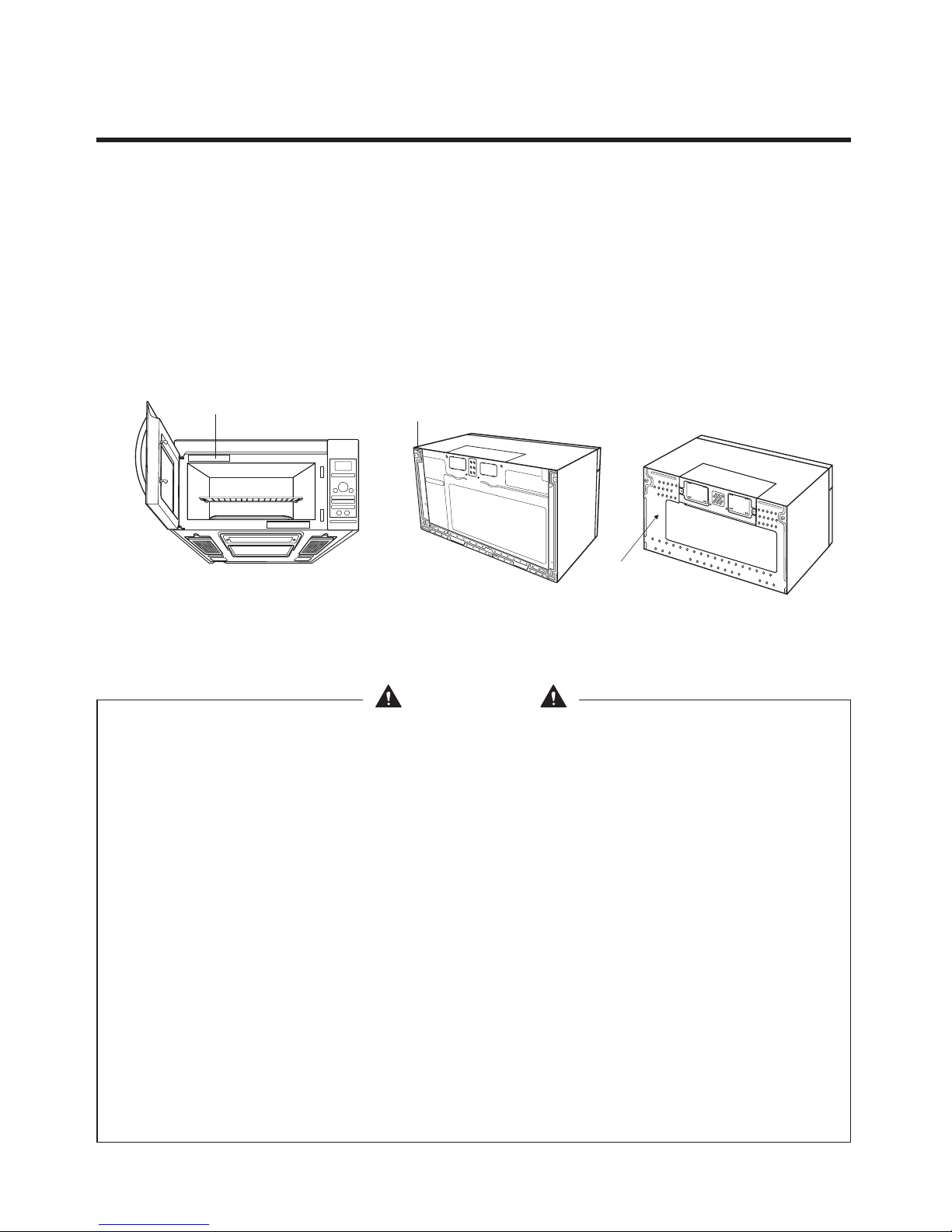

– The model number label is located on the oven front. See Figure 1.

– Mounting plate is located on back side of microwave oven. See Figure 2.

BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:

FOR YOUR SAFETY:

• You will need TWO people to install this oven. It is heavy and could cause personal injury if not

handled properly. The dimensions of the oven are as follows:

Height : 16-7/16 inches

Width : 29-15/16 inches

Depth : 15-3/8 inches

• AVOID ELECTRICAL SHOCK!

– Before you drill into the wall, note where electrical outlets are and where electrical wires might

be concealed behind the wall.

YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires with your drill bit.

– Locate and disconnect the power of any electrical circuits that could be affected by installing this

oven.

IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.

•ELECTRICAL RATING OF THIS OVEN : 120V, 60Hz.

– You need a 120V, 60Hz, AC only, 20A, fused electrical supply (located in the cabinet above the

microwave as close as possible to the microwave circuit) serving only the microwave.

Mounting Plate

Model and Serial

Number Plate

Figure 1 Figure 2

WARNING

YOUR SAFETY FIRST

If you use the grounding plug improperly, you risk electric shock!

– Check with a qualified electrician if you are not sure whether the oven is properly grounded or if

you do not completely understand the grounding instructions.

DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.

WARNING

If you do not use the microwave oven as instructed, you could be exposed

to excessive microwave energy.

WARNING

Improper grounding could result in electric shock or other personal injury.

SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.

• DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!

– DO NOT try to operate the microwave oven with the door open.

– DO NOT tamper with or defeat the safety interlocks.

– DO NOT place objects between the microwave oven front face and the door.

–

DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.

– DO NOT operate the microwave oven if it is damaged.

– The microwave oven door must close properly to operate safely.

– DO NOT use the microwave oven:

• If the door is bent.

• If the hinges or latches are broken or loose.

• If the door seals, sealing surfaces or glass is broken.

– DO NOT attempt to adjust or repair the oven yourself!

It should be adjusted and repaired by a qualified technician who can check for microwave

leakage after repairing the oven.

WARNING

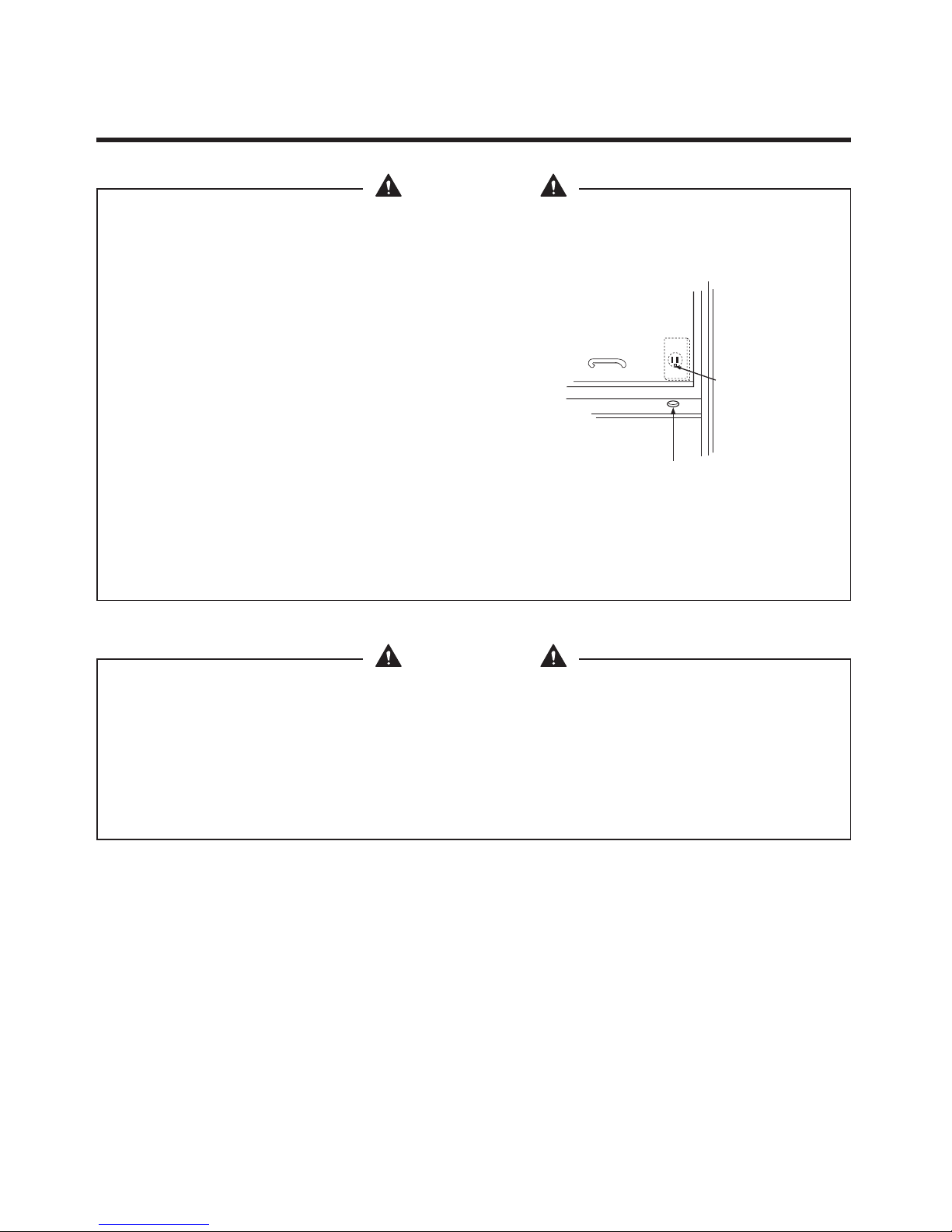

• THIS APPLIANCE MUST BE GROUNDED!

– If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing

an escape wire for the electric current. This appliance is equipped with a cord having a

grounding wire with a grounding plug.

• Place the plug into a properly installed and grounded

outlet. See Figure 3.

• Do not use an extension cord.

• Keep the power cord dry and do not pinch or crush it.

• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE

THE POWER SUPPLY CORD GROUNDING PRONG!

This appliance MUST be grounded!

For best operation, plug this appliance into its own electrical

outlet to prevent flickering of lights, blowing of fuse or tripping

of circuit breaker.

PROPERLY POLARIZED AND

GROUNDED OUTLET

Three-Pronged (Grounding) plug

Figure 3

YOUR SAFETY FIRST

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.

– Mount the oven against a flat, vertical wall, so that it is supported by the wall. The wall should be

constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.

– ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.

– DO NOT mount the microwave oven to an island or peninsula cabinet.

– BE SURE the upper cabinet and rear wall structures are able to support 150 lbs., plus the weight

of any items you place inside the oven or upper cabinet.

– Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.

– BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal

clearance.

If you do not mount the oven as instructed, you risk personal injury and/or

property damage.

WARNING

30" min. cabinet opening width

30" min. clearance from bottom

of cabinet to cooking surface

or countertop before installation.

Grounded Outlet

(inside upper cabinet)

Power Supply Cord Hole

(Use templates included

with installation instructions)

Figure 4

•Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY MATERIAL

(a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.

Failure to protect these surfaces could result inproperty damage.

CAUTION

PARTS, TOOLS, MATERIALS

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:

NOTE: Depending on your ventilation requirements, you may not use all of these parts.

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

Damper/duct connector

(for roof vented or wall vented installation)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

One power cord clamp and

One dark-colored mounting screw

(to hold the power cord)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

Four 1/4" x 2" lag screws

(for wall stud holes)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

Two 1/4" x 3" bolts

(for securing to the upper cabinet)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

One rear wall template

(3 pieces mounting plate only)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

Four spring toggle heads

(for the toggle bolts)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

Two tapping screws

(for attaching the damper duct connector)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

Four 1/4" x 3" toggle bolts

(for drywall holes)

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

One upper cabinet template

REAR WALL TEMPLATE

F. CUT OUT FOR WALL

VENTED ONLY

One power cord clamp bushing (for the cord hole in a metal upper cabinet)

NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall,

and the mounting area must meet the 150 lbs. weight requirement.

PARTS, TOOLS, MATERIALS

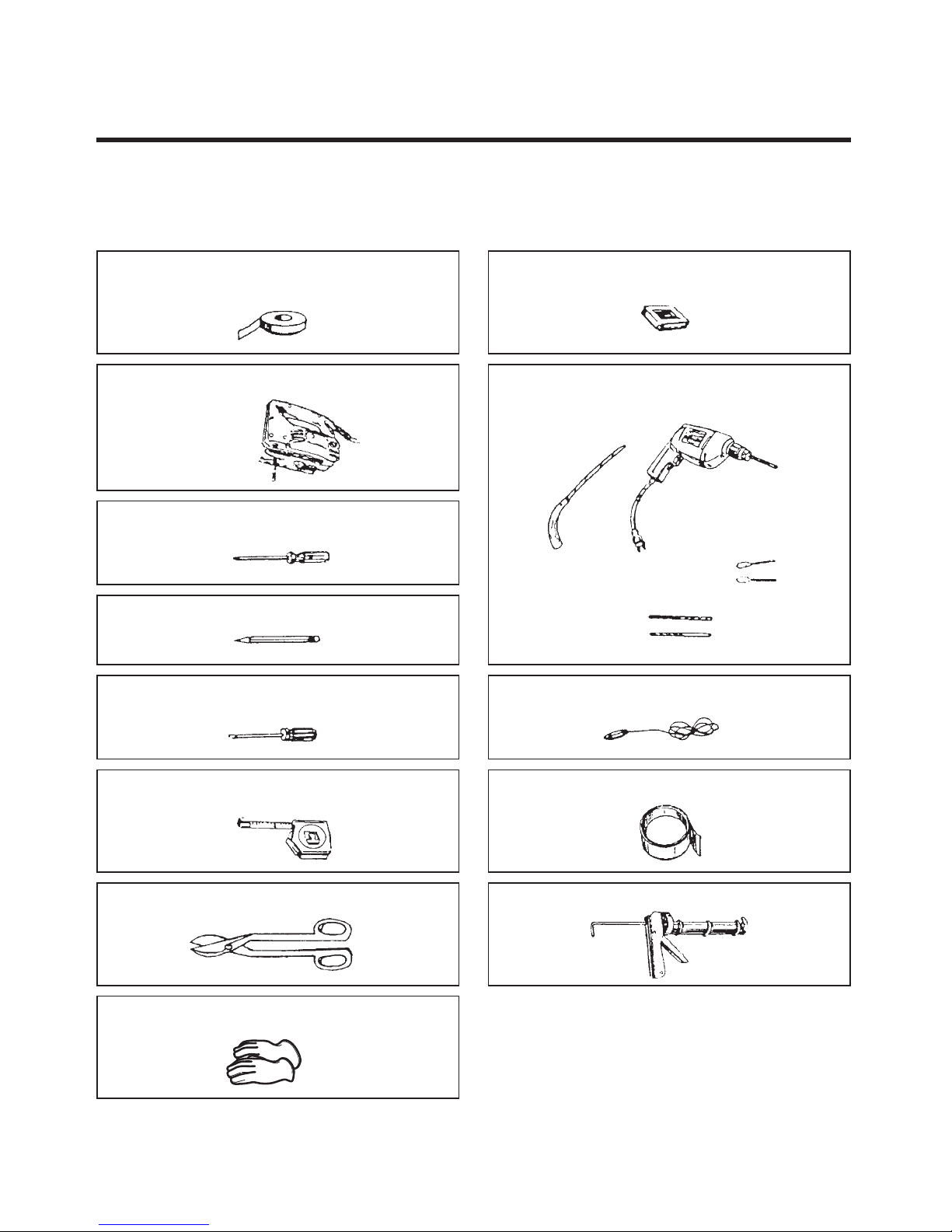

Clear Tape

(for taping the templates to the wall)

Phillips Screwdriver (for the screws)

Pencil

Flat Blade Screwdriver (for the bolts) Plumb Line

Measuring Tape (metal preferred) Duct Tape

Small Side Cutters or Tin Snips

Gloves

Caulking gun

Stud Finder or Thin Nail

Saber Saw (for cutting vent holes for roof

or wall vending)

Keyhole Saw (for the power cord hole)

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE

INSTALLATION:

Carton or other heavy material for covering the counter top.

3/8" and 3/4" wood drill bits

1/2" and 3/16"

drill bits

Electric drill

• If you have brick or masonry walls, you need special hardware and tools.

• The ductwork you need for the installation is not included. All wall and roof caps must have a back-

draft damper.

STEP 1: PREPARE THE

ELECTRICAL CONNECTIONS

Grounded Outlet

(Inside Cabinet)

Upper

Cabinet

Power-Supply-Cord Hole

AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!

1. Locate the grounded electric outlet for this oven in the

cabinet above the oven, as shown in Figure 4 Detail.

NOTE: The outlet should be on a circuit dedicated to the

microwave oven 120V, 60Hz., AC only, with a

20ampere fused electrical supply.

IMPORTANT: If you do not have the proper wall outlet,

you MUST have one installed by a qualified

electrician.

2. You will cut the power-supply-cord hole (shown in

Figure 4 Detail) later when you prepare the wall and

upper cabinet in Step 4.

NOTE: Do not use an extension cord.

Keep the power cord dry and do not pinch or crush it.

WARNING

Improper grounding could result in electric shock or other personal injury.

• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY

CORD GROUNDING PRONG!

• This appliance MUST be grounded!

WARNING

Figure 4 Detail

STEP 2:

PREPARE THE VENTING SYSYTEM

NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard

ductwork fittings and length are shown in Figure 9, page 9.

You may vent your oven in one of three ways:

Roof Venting If your oven is located on an outside wall near the roof, as in Figure 6 (3-1/4" x 10" duct)

and Figure 8 (6" round duct.)

Wall Venting If your oven is located on an outside wall on the first floor of your house, as in

Figure 5 (3-1/4" x 10" duct) and Figure 8 (6" round duct.)

Room Venting If your oven is located on an inside wall of your house, as in Figure 7.

NOTE: If you choose the rear exhaust method (roof or wall venting), be sure there is enough clearance

within the wall for the exhaust duct.

REMEMBER AS YOU INSTALL THE VENTING:

• Keep the length of the ductwork and

the number of elbows to a minimum to

ventilate your oven efficiently.

See examples on page 9.

• Keep the size of the ductwork the

same.

•Do not install two elbows together.

•Use duct tape to seal all joints in the

duct system.

• Use caulking to seal the exterior wall

or roof opening around the cap.

Wall venting

through-the-wall

wall cap

3-1/4"x10"

duct

cabinet

oven through-the-roof

3-1/4"x10"

duct

roof cap

Roof venting

cabinet

oven

6" min.

diameter

round duct

3-1/4" to round

duct transition 3-1/4" to round

ductwork transition

roof cap

wall cap

elbow

cabinet

oven

Wall venting

through-the-wall

wall cap

3-1/4"x10"

duct

cabinet

oven through-the-roof

3-1/4"x10"

duct

roof cap

Roof venting

cabinet

oven

6" min.

diameter

round duct

3-1/4" to round

duct transition 3-1/4" to round

ductwork transition

roof cap

wall cap

elbow

cabinet

oven

Figure 5

Wall Venting

Wall venting

through-the-wall

wall cap

3-1/4"x10"

duct

cabinet

oven through-the-roof

3-1/4"x10"

duct

roof cap

Roof venting

cabinet

oven

6" min.

diameter

round duct

3-1/4" to round

duct transition 3-1/4" to round

ductwork transition

roof cap

wall cap

elbow

cabinet

oven

Figure 6

Roof Venting

Figure 7

Room Venting

Wall venting

through-the-wall

wall cap

3-1/4"x10"

duct

cabinet

oven through-the-roof

3-1/4"x10"

duct

roof cap

Roof venting

cabinet

oven

6" min.

diameter

round duct

3-1/4" to round

duct transition 3-1/4" to round

ductwork transition

roof cap

wall cap

elbow

cabinet

oven

Figure 8

THIS OVEN MUST BE PROPERLY VENTED!

WARNING - FIRE HAZARD

STEP 2:

PREPARE THE VENTING SYSTEM

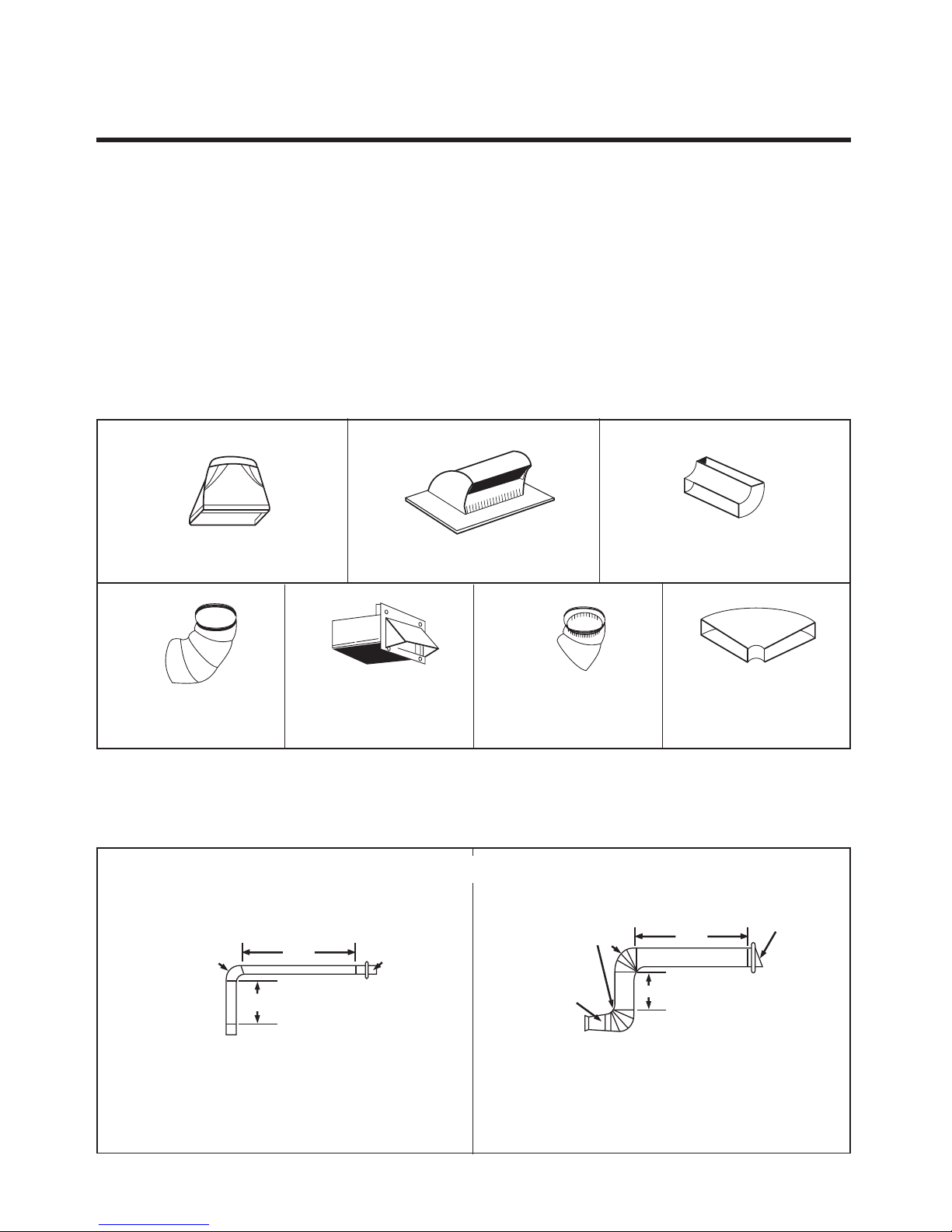

STANDARD FITTINGS

NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3"

extension duct installed between the damper assembly and the adapter to prevent the exhaust

damper sticking.

DUCT LENGTH

The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not

exceed the equivalent of 140 feet.

For best performance, do not use more than three 90 degree elbows.

Below are the standard fittings and their equivalent length in feet.

To calculate the equivalent length of each duct piece used, see the examples below.

Figure 9

3-1/4”x10”

90˚ elbow

90˚ elbows

transition

6ft. wall cap

2ft.

6ft. wall cap

2ft.

3-1/4”x10”

90˚ elbow

90˚ elbows

transition

6ft. wall cap

2ft.

6ft. wall cap

2ft.

For 3-1/4" x 10" SYSTEMS

1 3-1/4” x 10” 90° elbow = 25 ft.

1 Wall Cap = 40 ft.

8 feet straight duct = 8 ft.

TOTAL LENGTH = 73 ft.

1 transition = 5 ft.

2 90° elbows = 20 ft.

1 Wall Cap = 40 ft.

8 feet straight = 8 ft.

TOTAL LENGTH = 73 ft.

For 6" ROUND SYSTEMS

3 1/4” x 10” to 6" = 5 ft.

90˚elbow = 10 ft 45˚elbow = 5 ft

3 1/4” x 10” wall cap

= 40 ft 3-1/4” x 10” flat elbow

= 10 ft

3 1/4” x 10” roof cap = 24 ft 3 1/4” x 10” 90˚ elbow = 25 ft

Examples

STEP 3:

PREPARE THE VENTING BLOWER

Your microwave oven is shipped with the blower assembled for room venting (recirculating). You need to

adjust the blower if you want wall vented or roof vented installation.

REMOVE THE MOUNTING PLATE:

1. Remove any shipping materials and parts from

inside the microwave oven.

2. Cover the counter top or cooktop with a thick,

protective covering to protect it from damage and

dirt. See Figure 10.

NOTE: If you have a free-standing range,

disconnect it, move it onto a piece of

cardboard or hardboard and pull it away

from the wall, so that you can get closer to

the upper cabinet and back wall for easier

measuring and drilling.

3. Remove mounting plate 2 screws from the

mounting plate as shown and discard them.

(See Figure 11.)

4. The mounting plate will also be used to locate and

mark the mounting holes on the rear wall.

5. Locate exhaust adaptor, grease filters and

hardware packet.

6. At this point, remove any adhesive tape (if there is

any), on the exhaust adaptor, the grease filters

and the power supply cord.

ROOM VENTED INSTALLATION:

Go to STEP 4, PREPARE THE WALL AND UPPER

CABINET FOR INSTALLATION located on page 13.

Control panel side

Mounting

plate

Mounting

plate

Control panel side

Mounting

plate screws

Mounting Plate

Screws

A thick, protective

covering

ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.

•DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could

result in electrical shock.

WARNING

Figure 10

Figure 11

Andere Handbücher für ELITE 721.86002

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kenmore Mikrowellenofen Handbücher

Kenmore

Kenmore 721.86012 Bedienungsanleitung

Kenmore

Kenmore 721.63352 Bedienungsanleitung

Kenmore

Kenmore ELITE 665.63792 Bedienungsanleitung

Kenmore

Kenmore 111.71519810 Bedienungsanleitung

Kenmore

Kenmore brewNwave 721.63992 Bedienungsanleitung

Kenmore

Kenmore 721.63652 Bedienungsanleitung

Kenmore

Kenmore 790.4960 series Bedienungsanleitung

Kenmore

Kenmore 721.61283 Bedienungsanleitung

Kenmore

Kenmore MC-1083KS Bedienungsanleitung

Kenmore

Kenmore 911.49485 Bedienungsanleitung

Kenmore

Kenmore PlasmaWave 85450 Bedienungsanleitung

Kenmore

Kenmore 565.61582 Bedienungsanleitung

Kenmore

Kenmore 665.60639 Bedienungsanleitung

Kenmore

Kenmore Sears 721.68280 Bedienungsanleitung

Kenmore

Kenmore 401.8505 Bedienungsanleitung

Kenmore

Kenmore 790.4960 series Bedienungsanleitung

Kenmore

Kenmore 721.66462 Bedienungsanleitung

Kenmore

Kenmore 721.80032 Bedienungsanleitung

Kenmore

Kenmore 6631 - 1.6 cu. Ft. Countertop Microwave Bedienungsanleitung

Kenmore

Kenmore 87100 Bedienungsanleitung

Kenmore

Kenmore 405.74159310 Bedienungsanleitung

Kenmore

Kenmore 721.80522 Bedienungsanleitung

Kenmore

Kenmore 721.64662 Bedienungsanleitung

Kenmore

Kenmore 721.62752 Bedienungsanleitung

Beliebte Mikrowellenofen Handbücher anderer Marken

Daewoo

Daewoo KOG-574R0S Bedienungsanleitung

LG MH7040SS Bedienungsanleitung

Sharp

Sharp R-895(AL)M Bedienungsanleitung

Dometic

Dometic DOTRM13W Bedienungsanleitung

Sanyo

Sanyo EM-X680 Bedienungsanleitung

Sharp

Sharp R-393M Bedienungsanleitung

KitchenAid

KitchenAid KMCX4510 Montageanleitung

Smeg

Smeg S45MCX1 Bedienungsanleitung

Russell Hobbs

Russell Hobbs RHM2044 Bedienungsanleitung

Sunbeam

Sunbeam SMW759 Bedienungsanleitung

Gallet

Gallet FMOE230S Bedienungsanleitung

Bosch

Bosch CEG732X.1B Bedienungsanleitung

Dometic

Dometic Roadmate 230 Bedienungsanleitung

Samsung

Samsung SJ0396W Bedienungsanleitung

Sanyo

Sanyo EM-P494WS Bedienungsanleitung

Sharp

Sharp R-240 Bedienungsanleitung

Electrolux

Electrolux EMS2840 Bedienungsanleitung

Daewoo

Daewoo KOC-984T2S13 Bedienungsanleitung
