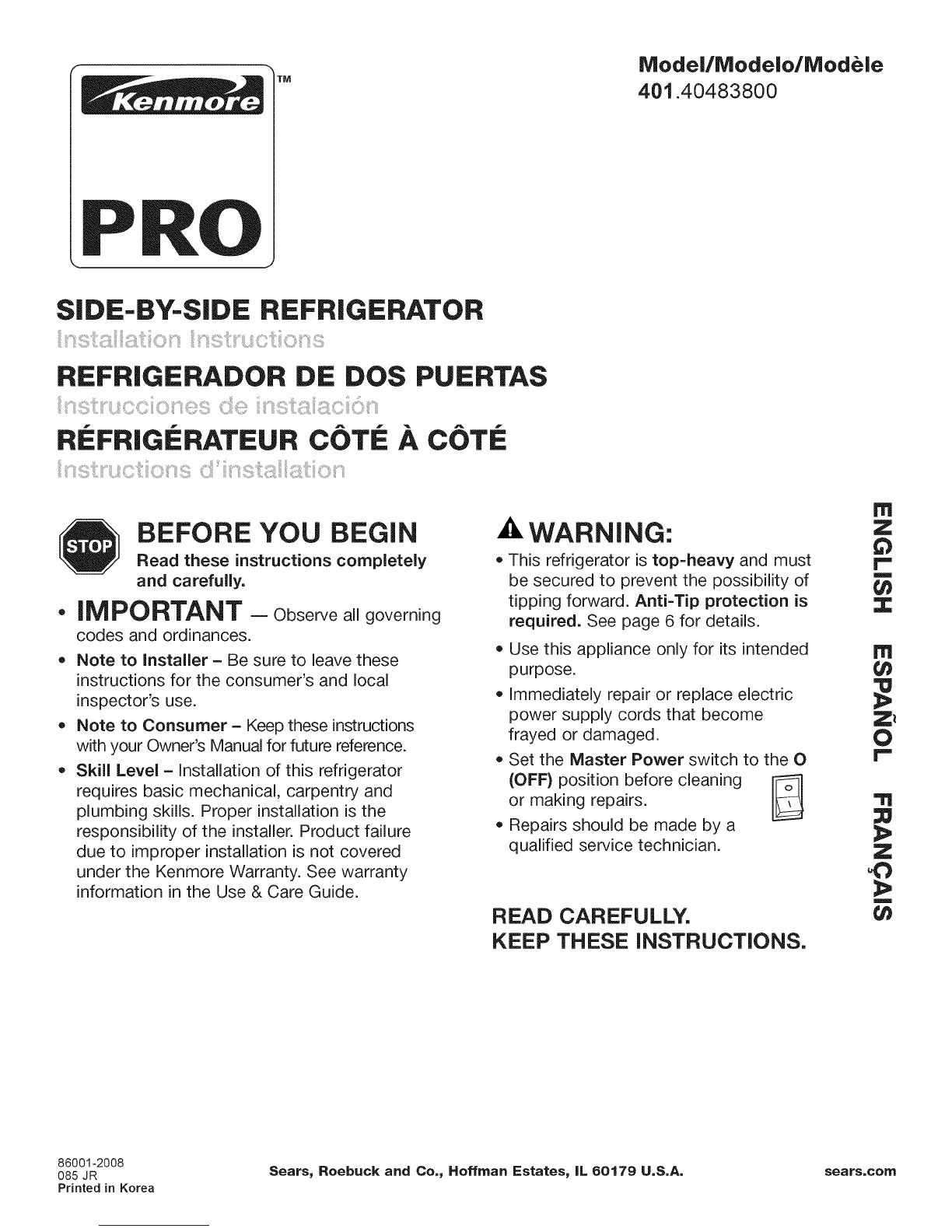

TM Nlodel/Modeio/Mod_le

401.40483800

SIDE-BY-SIDE REFRIGERATOR

REFRIGERADOR DE DOS PUERTAS

RI::FRIGI::RATEUR CbTI_ A CbTI_

BEFORE YOU BEGIN

Read these instructions completely

and carefully.

iMPORTANT -Observea,governing

codes and ordinances.

Note to Installer = Be sure to leave these

instructions for the consumer's and local

inspector's use.

Note to Consumer - Keep these instructions

with your Owner's Manual for future reference.

Skill Level - Installation of this refrigerator

requires basic mechanical, carpentry and

plumbing skills. Proper installation is the

responsibility of the installer. Product failure

due to improper installation is not covered

under the Kenmore Warranty. See warranty

information in the Use & Care Guide.

_WARNING:

,,This refrigerator is top=heavy and must

be secured to prevent the possibility of

tipping forward. Anti=Tip protection is

required. See page 6 for details.

,, Use this appliance only for its intended

purpose.

• Immediately repair or replace electric

power supply cords that become

frayed or damaged.

,, Set the Master Power switch to the O

(OFF) position before cleaning

or making repairs. U

,, Repairs should be made by a

qualified service technician.

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

r =

"11

86001-2008

085 JR

Printed in Korea Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. sears.corn

Installation Preparation

Hardware Supplied ......................... 2

Hardware Not Supplied ...................... 2

Tools You Will Need ........................ 2

Installation Space .......................... 3

Dimensions and Clearances .................. 3

Installation Instructions

Flooring .................................. 4

Grounding the Refrigerator ................... 4

1. Remove Packaging ....................... 4

2. Connect Water Dispenser Line ............. 5

3. Install Water Filter ......................... 5

4. Install Anti-Tip Brackets .................... 6

(Alternate Anti-Tip Instructions) .............. 6

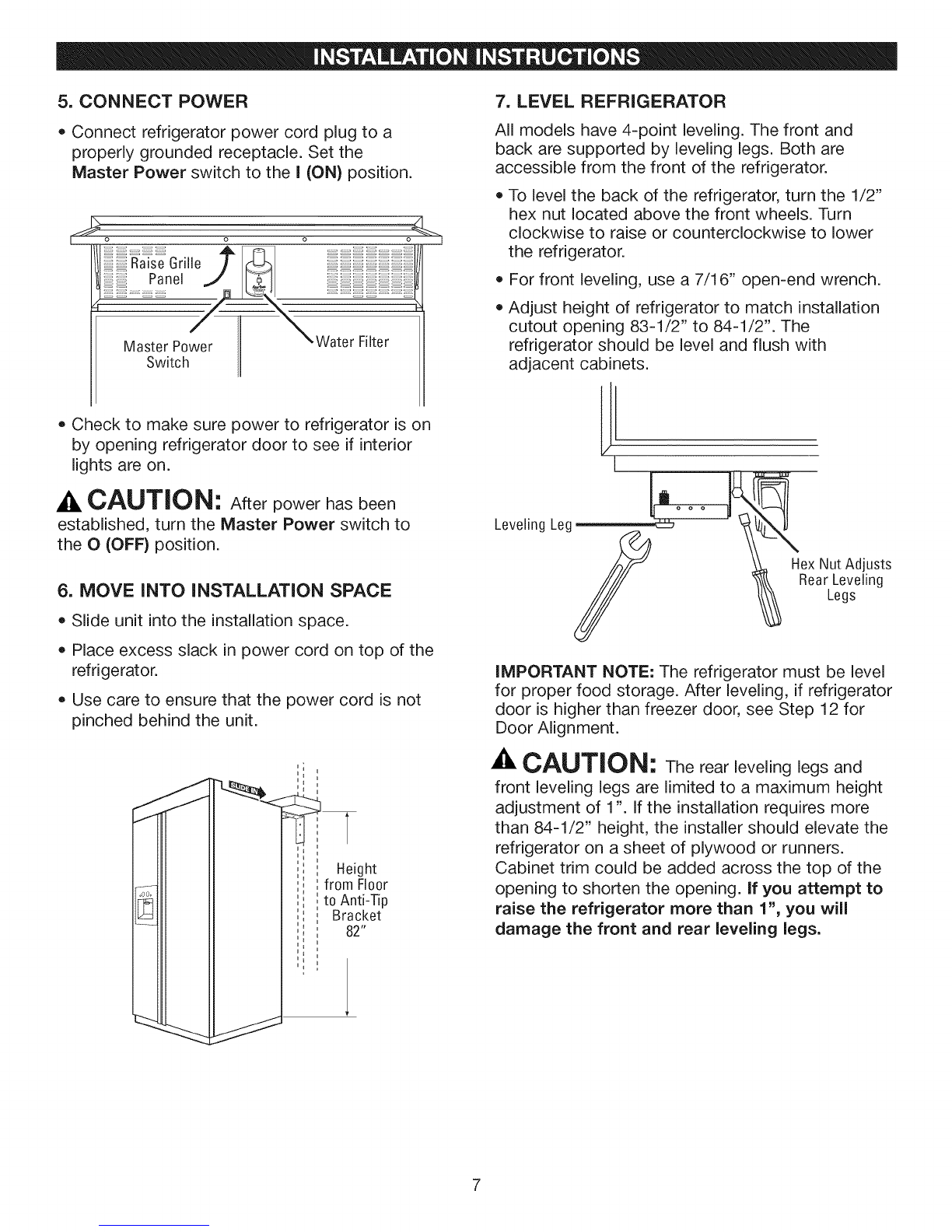

5. Connect Power ........................... 7

6. Move Into Installation Space ................ 7

7. Level Refrigerator ......................... 7

8. Connect Refrigerator to House Water Supply .... 8

9. Turn on Power ............................ 9

10. Start Icemaker .......................... 9

11. Install Kickplate .......................... 9

12. Door Alignment .......................... 9

HARDWARE SUPPLIED TOOLS YOU WiLL NEED

Anti=Tip Bracket

Water

Filter

Compression

Fitting

Cap=Support Filter

Supplied PlasticTubing

Supplied

Compression Nut

Drill and Bits

3/32" Alien Wrench

Tubing Cutter

7/32" and 1/2"

Sockets

Flathead

Screwdriver

Safety Glasses

HARDWARE NOT SUPPLIED

Copper Tubing Ferrule

Compression Nut A

Level

Pliers

1/2" Open=End

Wrench

Bucket

#2 Philips Head

Screwdriver

2" x 4" Wood Block

(36" long)

2Step Ladder

Tin Snips

Appliance Doily

iNSTALLATiON SPACE

1_ *Finished Width

84-1/2" max.

83-1/2" min.

Finished

Opening

74" From

Floor to

Bottom of

Electrical

3-1/2"

*The finished cutout width must be 47=1/2"

for 48" models.

Water and Electrical Locations

The opening must be prepared with the electrical

and water supply located as shown.

Cutout Depth

The cutout depth for the refrigerator must be at

least 24 inches so that the refrigerator will be flush

with the adjacent cabinets, countertops or wails.

Additional Specifications

,, A 115 volt, 60Hz, 15 amp power supply is

required. An individual properly grounded branch

circuit or circuit breaker is recommended. Install a

properly grounded 3-prong electrical receptacle

recessed into the back wall. Electrical must be

located on rear wall as shown.

NOTE: GFI (ground fault interrupter) is not

recommended.

,, The refrigerator should always be plugged into

its own individual electrical outlet which has a

voltage rating that matches the rating plate.

,, Water line can enter the opening through the

floor or rear wall. The water line should be used

to connect the cold water line and the water

connection location. The line should be long

enough to extend to the front of the refrigerator.

Installation of an easily accessible shutoff valve

in the water line is required.

• It is recommended that you use a mat to

prevent the floor from any possible damage.

DIMENSIONS AND CLEARANCES

25-3/8" CaseDepth

**Case Width

84" From

"81-3/4" Floorto

at Rear TopFrame

Frameto Framefor 48" Models

Depth Including

Handles 26-7/8"

*Shipping Height: front height may be adjusted

from 83-1/2" to 84-1/2" by adjusting front and

rear leveling legs a maximum of 1 inch.

**Case Width: must be 47" for 48" models.

Product Clearances

This refrigerator is equipped with a 2-position door

stop. The factory set 130 ° door swing can be

adjusted to 90 ° if clearance to adjacent cabinets

or walls is restricted.

130° Door Swing 90° Door Swing

II: tt

LI.....

I_D4

23-7/8"

Behind

Frame

I-D*!

A B C D

13-7/16" 18-9/16" 28" 4"

Allow minimum clearances for Freezer door

(Dimension A) and Fresh Food door (Dimension B)

for a full 130 ° door swing and to allow for drawer

removal.

Four inch (4") minimum clearance is required when

door swing is adjusted to 90 °. If the 90 ° door stop

position is used, drawer access is maintained, but

drawer removal is restricted.

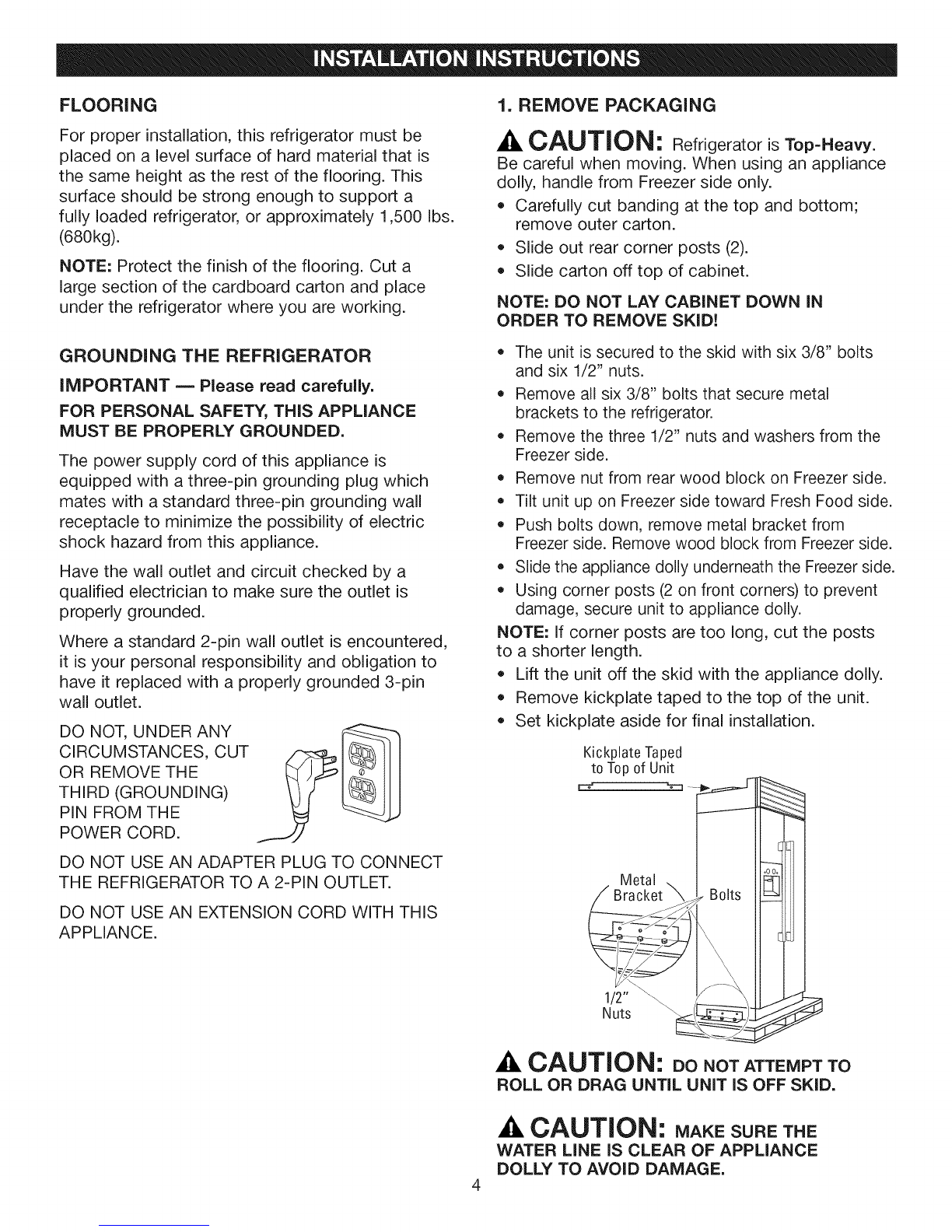

FLOORING

For proper installation, this refrigerator must be

placed on a level surface of hard material that is

the same height as the rest of the flooring. This

surface should be strong enough to support a

fully loaded refrigerator, or approximately 1,500 Ibs.

(680kg).

NOTE: Protect the finish of the flooring. Cut a

large section of the cardboard carton and place

under the refrigerator where you are working.

GROUNDING THE REFRIGERATOR

IMPORTANT m Please read carefully.

FOR PERSONAL SAFETY, THIS APPLIANCE

MUST BE PROPERLY GROUNDED.

The power supply cord of this appliance is

equipped with a three-pin grounding plug which

mates with a standard three-pin grounding wall

receptacle to minimize the possibility of electric

shock hazard from this appliance.

Have the wall outlet and circuit checked by a

qualified electrician to make sure the outlet is

properly grounded.

Where a standard 2-pin wall outlet is encountered,

it is your personal responsibility and obligation to

have it replaced with a properly grounded 3-pin

wall outlet.

DO NOT, UNDER ANY

CIRCUMSTANCES, CUT

OR REMOVE THE

THIRD (GROUNDING)

PIN FROM THE

POWER CORD.

DO NOT USE AN ADAPTER PLUG TO CONNECT

THE REFRIGERATOR TO A 2-PIN OUTLET.

DO NOT USE AN EXTENSION CORD WITH THIS

APPLIANCE.

1. REMOVE PACKAGING

ACAUTION: Refrigerator is Top-Heavy.

Be careful when moving. When using an appliance

dolly, handle from Freezer side only.

,, Carefully cut banding at the top and bottom;

remove outer carton.

,, Slide out rear corner posts (2).

,, Slide carton off top of cabinet.

NOTE: DO NOT LAY CABINET DOWN IN

ORDER TO REMOVE SKID!

• The unit is secured to the skid with six 3/8" bolts

and six 1/2" nuts.

Remove all six 3/8" bolts that secure metal

brackets to the refrigerator.

Remove the three 1/2" nuts and washers from the

Freezer side.

Remove nut from rear wood block on Freezer side.

Tilt unit up on Freezer side toward Fresh Food side.

Push bolts down, remove metal bracket from

Freezer side. Remove wood block from Freezer side.

Slide the appliance dolly underneath the Freezer side.

Using corner posts (2 on front corners) to prevent

damage, secure unit to appliance dolly.

NOTE: If corner posts are too long, cut the posts

to a shorter length.

,, Lift the unit off the skid with the appliance dolly.

,, Remove kickplate taped to the top of the unit.

,, Set kickplate aside for final installation.

Kickplate Taped

to Topof Unit

1/2"

Nuts \

CAUTION: DONOTATTEMPTTO

ROLL OR DRAG UNTIL UNIT IS OFF SKID.

CAUTION: MAKE SURE THE

WATER LINE IS CLEAR OF APPLIANCE

DOLLY TO AVOID DAMAGE.

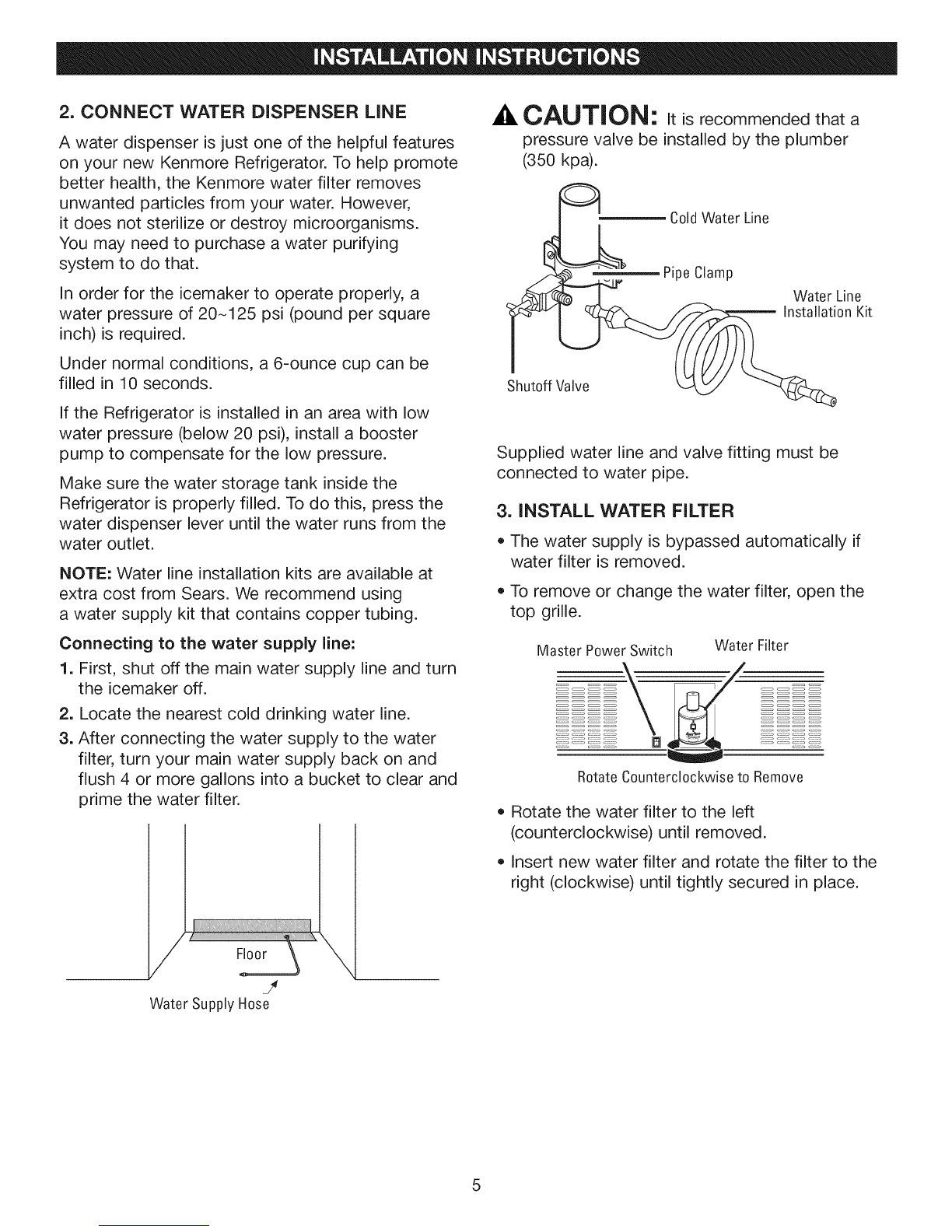

2. CONNECT WATER DISPENSER LINE

A water dispenser is just one of the helpful features

on your new Kenmore Refrigerator. To help promote

better health, the Kenmore water filter removes

unwanted particles from your water. However,

it does not sterilize or destroy microorganisms.

You may need to purchase a water purifying

system to do that.

In order for the icemaker to operate properly, a

water pressure of 20-125 psi (pound per square

inch) is required.

Under normal conditions, a 6-ounce cup can be

filled in 10 seconds.

If the Refrigerator is installed in an area with low

water pressure (below 20 psi), install a booster

pump to compensate for the low pressure.

Make sure the water storage tank inside the

Refrigerator is properly filled. To do this, press the

water dispenser lever until the water runs from the

water outlet.

NOTE: Water line installation kits are available at

extra cost from Sears. We recommend using

awater supply kit that contains copper tubing.

Connecting to the water supply line:

1. First, shut off the main water supply line and turn

the icemaker off.

2. Locate the nearest cold drinking water line.

3. After connecting the water supply to the water

filter, turn your main water supply back on and

flush 4 or more gallons into a bucket to clear and

prime the water filter.

/F,oor

Water Supply Hose

CAUTION: It is recommended that a

pressure valve be installed by the plumber

(350 kpa).

ColdWater Line

Shutoff

Supplied water line and valve fitting must be

connected to water pipe.

3. INSTALL WATER FILTER

,, The water supply is bypassed automatically if

water filter is removed.

,, To remove or change the water filter, open the

top grille.

Master Power Switch Water Filter

Rotate Counterclockwise to Remove

,, Rotate the water filter to the left

(counterclockwise) until removed.

,, Insert new water filter and rotate the filter to the

right (clockwise) until tightly secured in place.

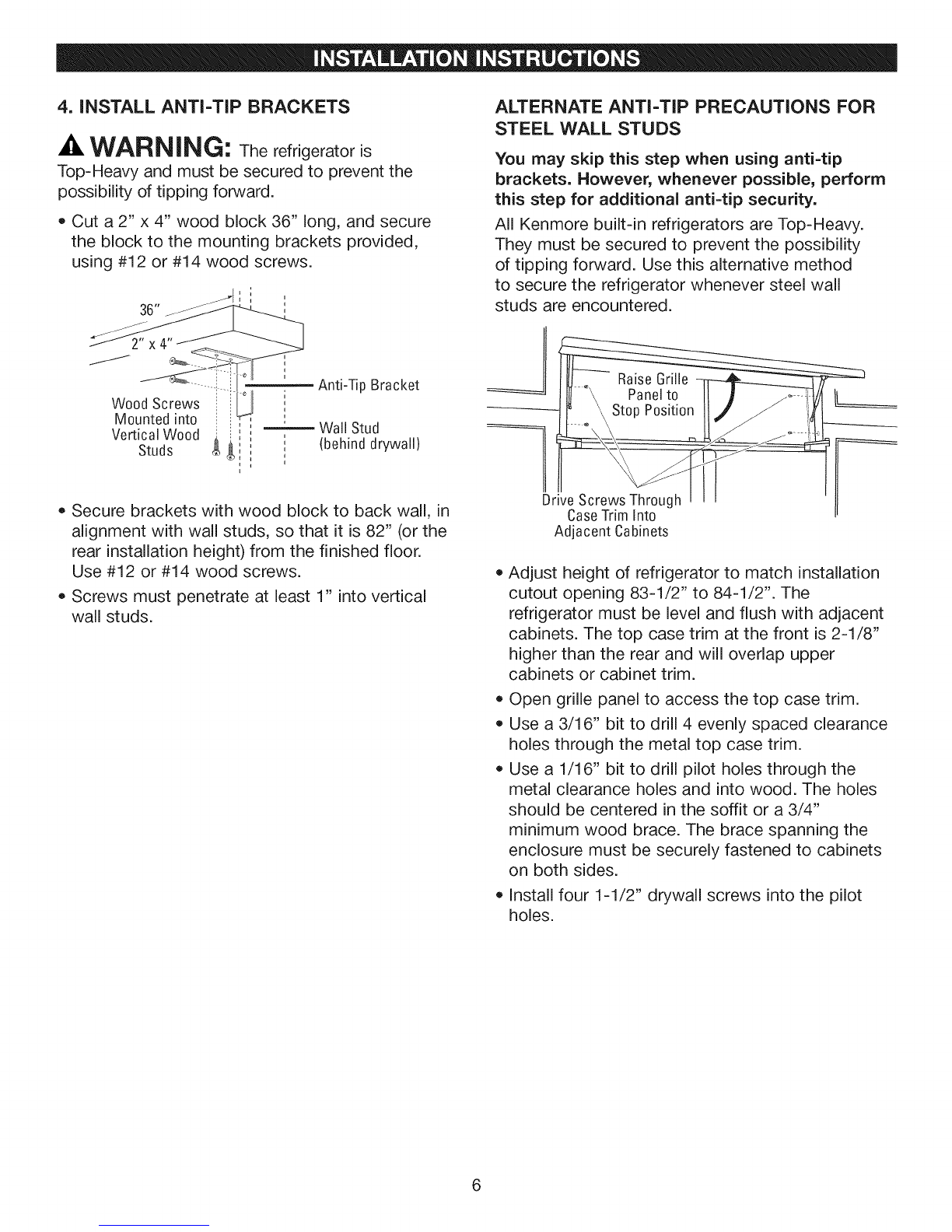

4. iNSTALL ANTI=TIP BRACKETS

WARNING: The refrigerator is

Top-Heavy and must be secured to prevent the

possibility of tipping forward.

,, Cut a 2" x 4" wood block 36" long, and secure

the block to the mounting brackets provided,

using #12 or #14 wood screws.

2" x 4"

Wood Screws

Mounted into

Vertical Wood

Studs

, Anti-Tip Bracket

iWall Stud

,, (behind drywall)

,, Secure brackets with wood block to back wall, in

alignment with wall studs, so that it is 82" (or the

rear installation height) from the finished floor.

Use #12 or #14 wood screws.

,, Screws must penetrate at least 1" into vertical

wall studs.

ALTERNATE ANTI=TIP PRECAUTIONS FOR

STEEL WALL STUDS

You may skip this step when using anti-tip

brackets. However, whenever possible, perform

this step for additional anti-tip security.

All Kenmore built-in refrigerators are Top-Heavy.

They must be secured to prevent the possibility

of tipping forward. Use this alternative method

to secure the refrigerator whenever steel wall

studs are encountered.

Drive Screws Through

Case Trim Int0

Adjacent Cabinets

Adjust height of refrigerator to match installation

cutout opening 83-1/2" to 84-1/2". The

refrigerator must be level and flush with adjacent

cabinets. The top case trim at the front is 2-1/8"

higher than the rear and will overlap upper

cabinets or cabinet trim.

Open grille panel to access the top case trim.

Use a 3/16" bit to drill 4 evenly spaced clearance

holes through the metal top case trim.

Use a 1/16" bit to drill pilot holes through the

metal clearance holes and into wood. The holes

should be centered in the soffit or a 3/4"

minimum wood brace. The brace spanning the

enclosure must be securely fastened to cabinets

on both sides.

Install four 1-1/2" drywall screws into the pilot

holes.

5. CONNECT POWER 7. LEVEL REFRIGERATOR

,, Connect refrigerator power cord plug to a

properly grounded receptacle. Set the

Master Power switch to the I (ON) position.

_o o_1

o o

_se Grille I[_ __

/I1\

Master Power II ",Water Filter

Switch 11

,, Check to make sure power to refrigerator is on

by opening refrigerator door to see if interior

lights are on.

CAUTION: After power has been

established, turn the Master Power switch to

the O (OFF) position.

6. MOVE INTO INSTALLATION SPACE

,, Slide unit into the installation space.

,, Place excess slack in power cord on top of the

refrigerator.

,, Use care to ensure that the power cord is not

pinched behind the unit.

Height

from Floor

to Anti-Tip

Bracket

82"

All models have 4-point leveling. The front and

back are supported by leveling legs. Both are

accessible from the front of the refrigerator.

,, To level the back of the refrigerator, turn the 1/2"

hex nut located above the front wheels. Turn

clockwise to raise or counterclockwise to lower

the refrigerator.

,, For front leveling, use a 7/16" open-end wrench.

,, Adjust height of refrigerator to match installation

cutout opening 83-1/2" to 84-1/2". The

refrigerator should be level and flush with

adjacent cabinets.

LevelingLeg

Hex Nut Adjusts

RearLeveling

Legs

IMPORTANT NOTE: The refrigerator must be level

for proper food storage. After leveling, if refrigerator

door is higher than freezer door, see Step 12 for

Door Alignment.

CAUTION: The rear leveling legs and

front leveling legs are limited to a maximum height

adjustment of 1". If the installation requires more

than 84-1/2" height, the installer should elevate the

refrigerator on a sheet of plywood or runners.

Cabinet trim could be added across the top of the

opening to shorten the opening. If you attempt to

raise the refrigerator more than 1", you will

damage the front and rear leveling legs.

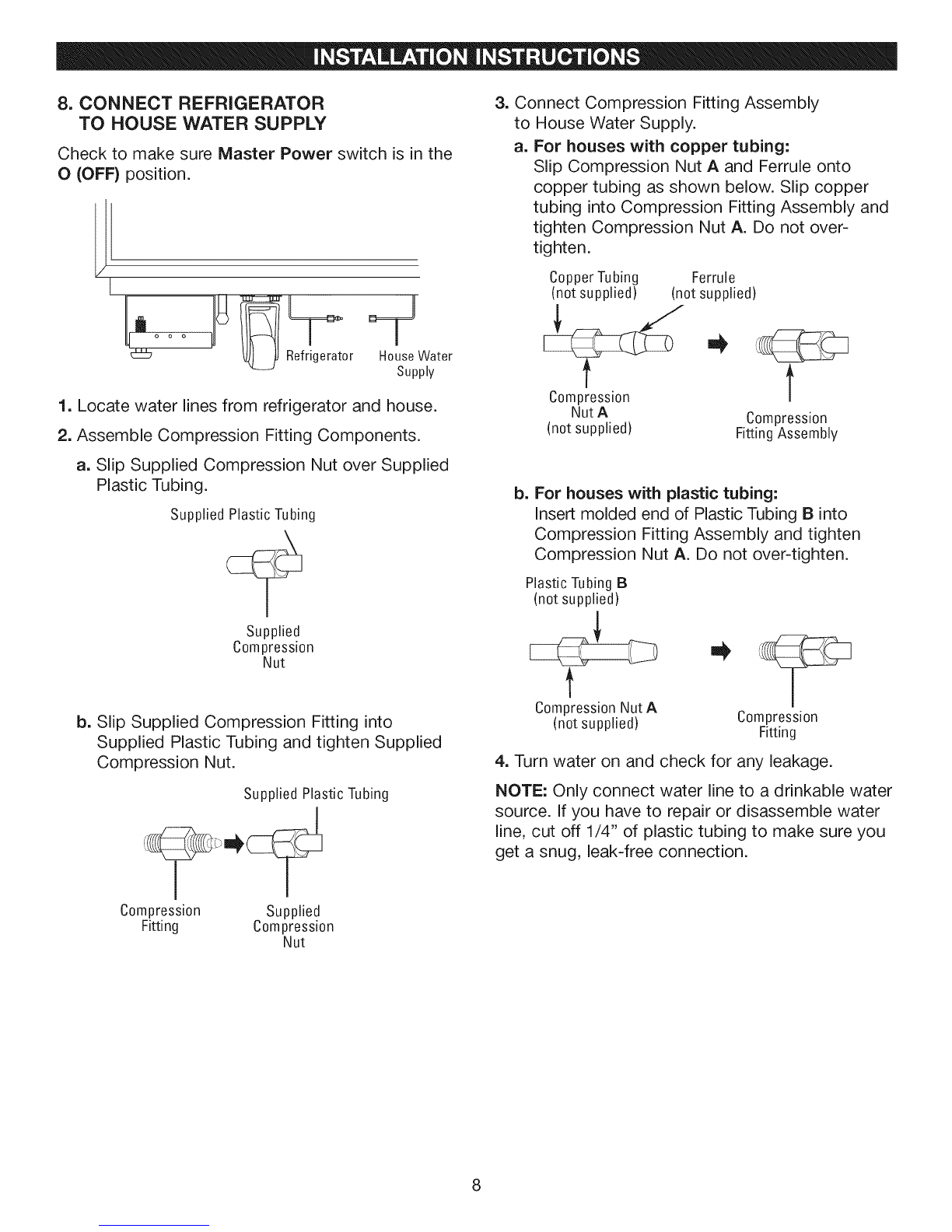

8. CONNECT REFRIGERATOR

TO HOUSE WATER SUPPLY

Check to make sure Master Power switch is in the

O (OFF) position.

House Water

Supply

1. Locate water lines from refrigerator and house.

2. Assemble Compression Fitting Components.

a. Slip Supplied Compression Nut over Supplied

Plastic Tubing.

Supplied Plastic Tubing

Supplied

Compression

Nut

b. Slip Supplied Compression Fitting into

Supplied Plastic Tubing and tighten Supplied

Compression Nut.

Supplied Plastic Tubing

Compression Supplied

Fitting Cornpression

Nut

3. Connect Compression Fitting Assembly

to House Water Supply.

a. For houses with copper tubing:

Slip Compression Nut A and Ferrule onto

copper tubing as shown below. Slip copper

tubing into Compression Fitting Assembly and

tighten Compression Nut A. Do not over-

tighten.

CopperTubing Ferrule

(not supplied) (not supplied)

Compression l

NutA Compression

(not supplied) FittingAssembly

b. For houses with plastic tubing:

Insert molded end of Plastic Tubing B into

Compression Fitting Assembly and tighten

Compression Nut A. Do not over-tighten.

PlasticTubing B

(not supplied)

Compression NutA

(not supplied) Compression

Fitting

4. Turn water on and check for any leakage.

NOTE: Only connect water line to a drinkable water

source. If you have to repair or disassemble water

line, cut off 1/4" of plastic tubing to make sure you

get a snug, leak-free connection.

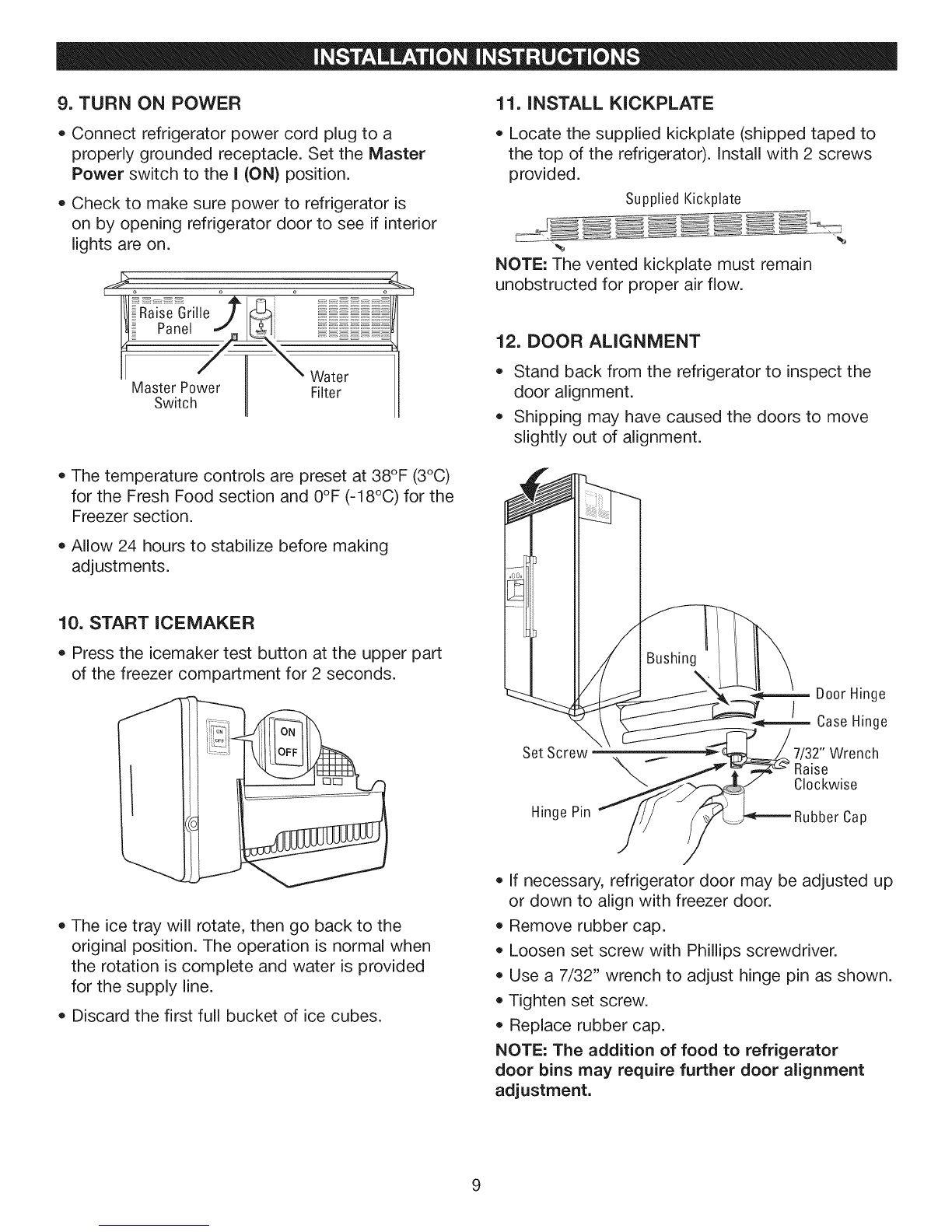

9. TURN ON POWER

,, Connect refrigerator power cord plug to a

properly grounded receptacle. Set the Master

Power switch to the I (ON) position.

,, Check to make sure power to refrigerator is

on by opening refrigerator door to see if interior

lights are on.

'£aii__Gerilie

Master Power

Switch

Water

Filter

11. INSTALL KICKPLATE

,, Locate the supplied kickplate (shipped taped to

the top of the refrigerator). Install with 2 screws

provided.

Supplied Kickpiate

NOTE: The vented kickplate must remain

unobstructed for proper air flow.

12. DOOR ALIGNMENT

,, Stand back from the refrigerator to inspect the

door alignment.

,, Shipping may have caused the doors to move

slightly out of alignment.

,, The temperature controls are preset at 38°F (3°C)

for the Fresh Food section and 0°F (-18°C) for the

Freezer section.

,, Allow 24 hours to stabilize before making

adjustments.

10. START ICEMAKER

,, Press the icemaker test button at the upper part

of the freezer compartment for 2 seconds.

,, The ice tray will rotate, then go back to the

original position. The operation is normal when

the rotation is complete and water is provided

for the supply line.

,, Discard the first full bucket of ice cubes.

Set Screw

_ Door Hinge

_ Case Hinge

_¢ Wrench

Raise

Clockwise

Hinge Pin ubber Cap

,, If necessary, refrigerator door may be adjusted up

or down to align with freezer door.

,, Remove rubber cap.

,, Loosen set screw with Phillips screwdriver.

,, Use a 7/32" wrench to adjust hinge pin as shown.

,, Tighten set screw.

,, Replace rubber cap.

NOTE: The addition of food to refrigerator

door bins may require further door alignment

adjustment.

ANTES DE QUE

EMPIECE

Lea estas instrucciones completa y

cuidadosamente.

IMPORTANTE - Respetetodoslos

c6digos y ordenanzas vigentes.

Nora para el Instalador - AsegOrese de dejar estas

instrucciones disponibles para uso del consumidor y

del inspector de local.

Nota para el Consumidor = Mantenga estas

instrucciones junto a su Manual del duedo para

referencia futura.

Nivel de capacitaci6n -La instalaci6n de este

refrigerador requiere habilidades basicas de

mecanica, de carpinteda y de plomeria. La instalaci6n

adecuada es responsabilidad del instalador. La falla

del producto debida a una instalaci6n inadecuada no

es cubierta pot la Garantia Kenmore. Vea la Guia para

el Uso y Cuidado para informaci6n de garantia.

ADVERTENCIA:

= Estos refrigeradores son pesados en la parte

superior y (:leben sujetarse para prevenir la

posibilidad de inclinaci6n hacia delante. Se requiere

una protecci6n antiinclinaci6n. Ver pagina 15 para

detal les.

• Use este electrodomestico s61o para su fin previsto.

Repare o reemplace inmediatamente cables de

alimentaci6n electrica que luzcan corroidos o

dadados.

Configure el interruptor de eiectricidad

maestro en la posici6n O (OFF} antes de U

efectuar limpieza o reparaciones.

Las reparaciones deben ser hechas pot un tecnico de

mantenci6n calificado.

LEER ATENTAMENTE.

CONSERVE ESTAS INSTRUCCIONES.

Andere Handbücher für 4048 - Pro 29.5 cu. Ft

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Kühlschrank Handbücher

Kenmore

Kenmore Kenmore Side by Side Refrigerator Bedienungsanleitung

Kenmore

Kenmore W10215710A Bedienungsanleitung

Kenmore

Kenmore 218697300 Bedienungsanleitung

Kenmore

Kenmore 795.71303.010 Bedienungsanleitung

Kenmore

Kenmore 596.62822200 Bedienungsanleitung

Kenmore

Kenmore 795.7235 Bedienungsanleitung

Kenmore

Kenmore 106.57572791 Bedienungsanleitung

Kenmore

Kenmore 7997 - 19.0 cu. Ft. Top Freezer Refrigerator Bedienungsanleitung

Kenmore

Kenmore 795.6800 Series Bedienungsanleitung

Kenmore

Kenmore 253.7034 series Bedienungsanleitung

Kenmore

Kenmore Sears 70141 Bedienungsanleitung

Kenmore

Kenmore 253 Series Bedienungsanleitung

Kenmore

Kenmore 106.5117 Bedienungsanleitung

Kenmore

Kenmore 596.50012100 Bedienungsanleitung

Kenmore

Kenmore Top-mount refrigerator 106 Bedienungsanleitung

Kenmore

Kenmore 795.7103 Series Bedienungsanleitung

Kenmore

Kenmore 795.7032 series Bedienungsanleitung

Kenmore

Kenmore W10686857A Bedienungsanleitung

Kenmore

Kenmore 795.7109 Series Bedienungsanleitung

Kenmore

Kenmore 106.4115 Series Bedienungsanleitung

Kenmore

Kenmore 501-54912 Bedienungsanleitung

Kenmore

Kenmore 3638594782 Bedienungsanleitung

Kenmore

Kenmore Side by side refrigerator Bedienungsanleitung

Kenmore

Kenmore 596.7931 SERIES Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
