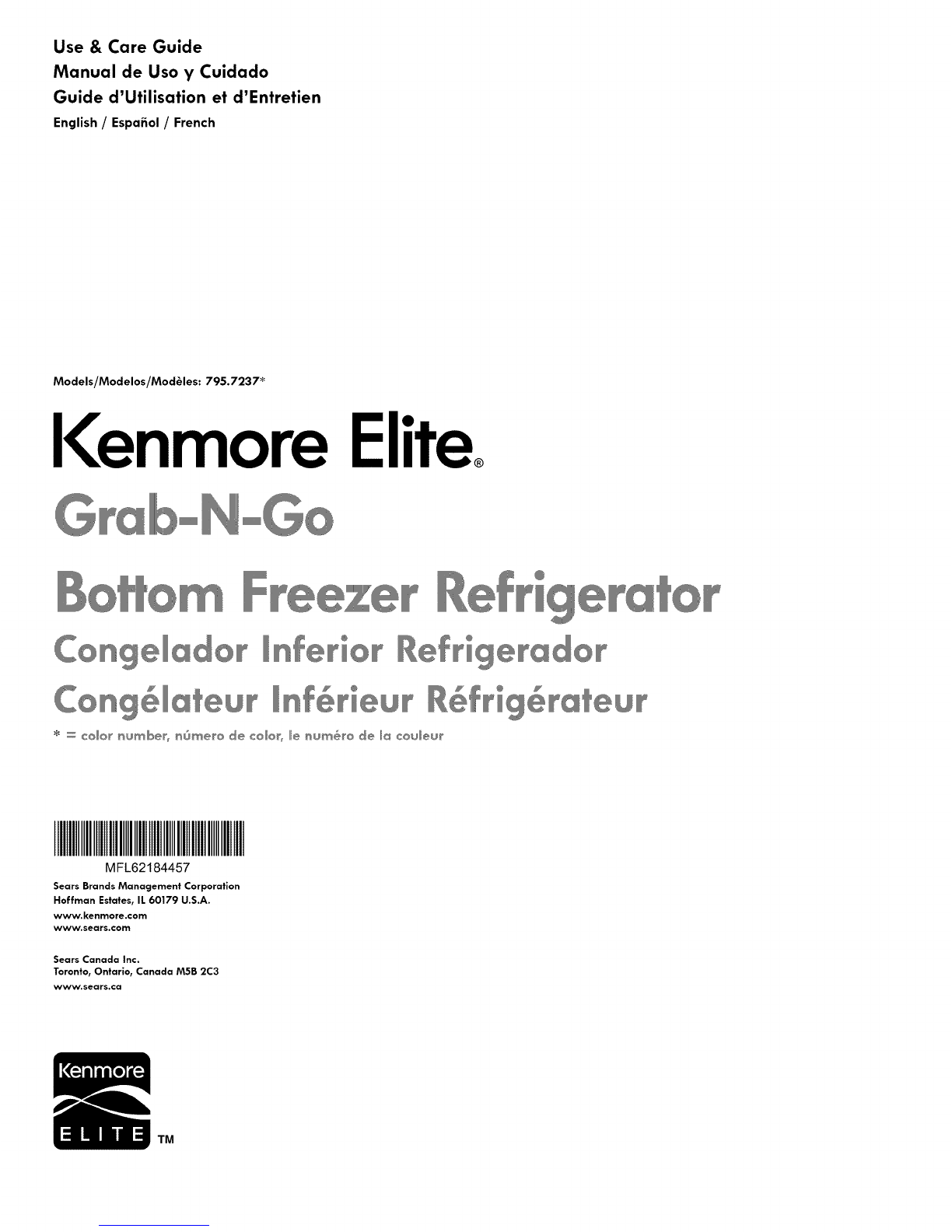

Kenmore 795.7237 Series Bedienungsanleitung

Use & Care Guide

Manual de Uso yCuidado

Guide d'Utilisation et d'Entretien

English /Espafiol /French

Models/Modelos/Mod_les: 795.7237 _

I(enmore I=liteo

FJ-_oC

* _ coll!o_ _u,mllbe_,__G_e_o de colllo_,_Ilie_u,m@o de IIi_cou, llieu,_°

° 6 u_

IIIIIIIIIIIIIIIIIIIIIIIIII

MFL62184457

Sears Brands Management Corporation

Haffman Estates, IL 60179 U.S.A.

www.kenmore.cam

www.sears.com

Sears Canada Inc.

Toronto, Ontario, Canada M5B 2C3

www.sears.ca

Warranty .............................................................................3

Protection Agreements ..............................................4

Important Safety Instructions ...........................5-7

Electrical & Grounding Requirements ..............7

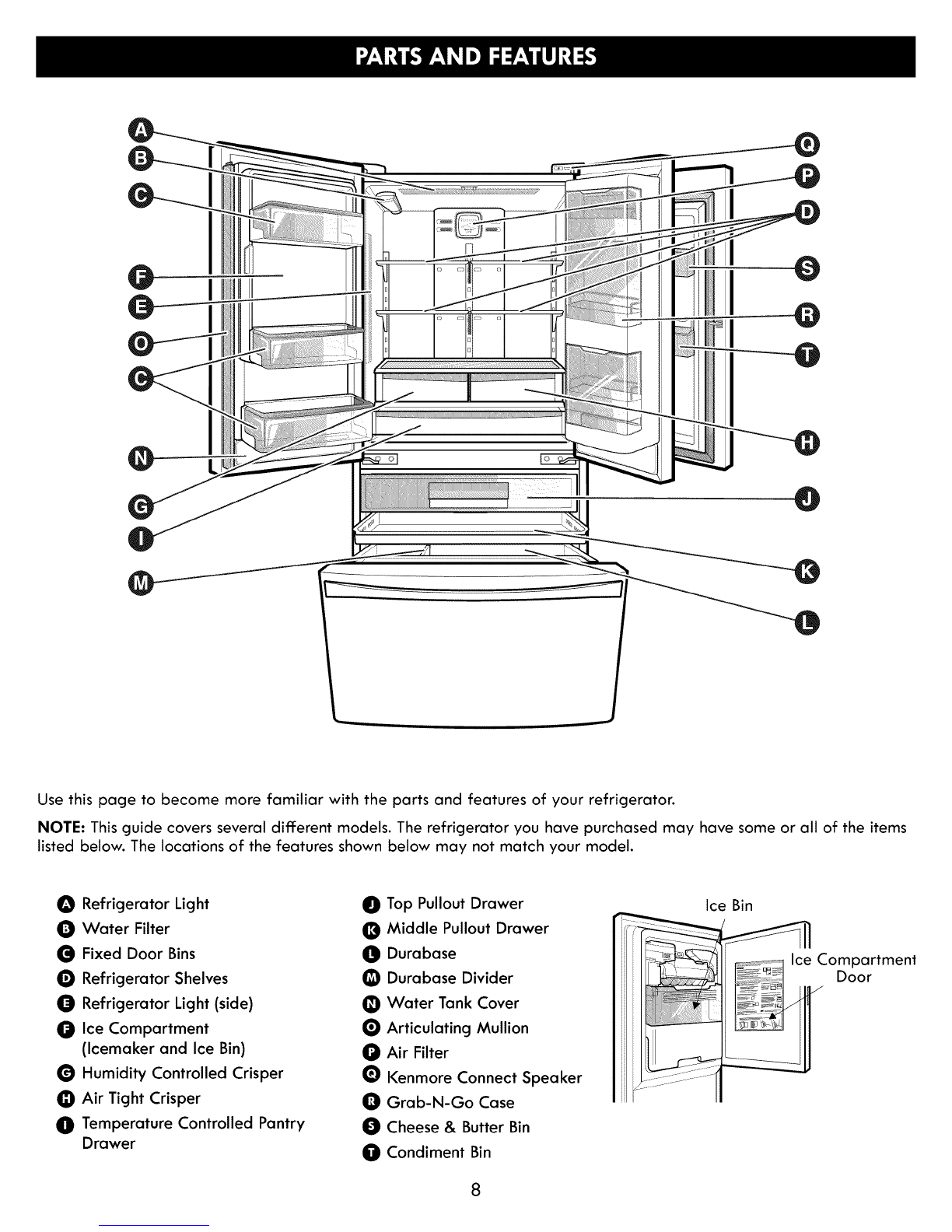

Parts and Features .......................................................8

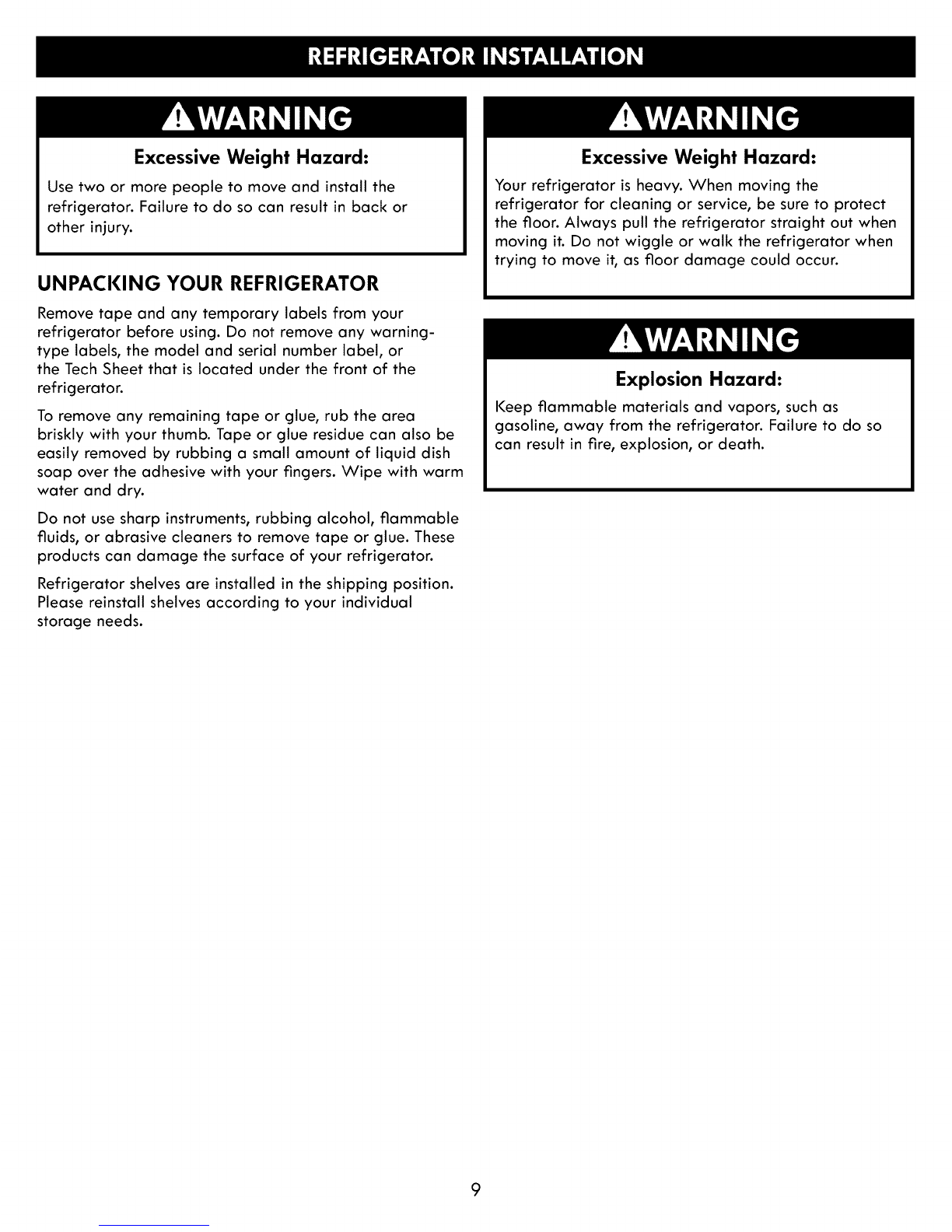

Refrigerator Installation .............................. 9-16

Unpacking Your Refrigerator .......................... 9

Installation ....................................................................10

Removing/Replacing Your Refrigerator and

Freezer Handles, Doors and Drawers .......11-15

Leveling and Door Alignment ...................... 16

Using Your Refrigerator ............................ 17-28

Setting the Controls .................................. 17-19

In-Door Ice Bin ..........................................................20

Automatic Icemaker ................................ 21-22

Food Storage Guide .................................... 23

m,- Refrigerator Section

Water Dispenser ........................................... 24

Refrigerator Shelves ................................................25

Humidity Controlled Crisper ........................ 26

Temperature Controlled Pantry Drawer ....... 26

Grab-N-Go Case .......................................... 27

Replacing the Air Filter ................................ 28

_,- Freezer Section

Extra Ice Bin ................................................. 28

Pullout Drawers ............................................ 29

Durabase ........................................................ 29

Durabase Divider .......................................... 29

Water Filter ............................................... 30-33

Care And Cleaning ................................... 34-35

General Cleaning Tips ................................ 34

Exterior .......................................................... 34

Inside Walls ................................................... 34

Door Liner And Gaskets ............................... 34

Plastic Parts.................................................... 34

Condenser Coils ............................................. 34

Light Bulb Replacement ............................... 35

Power Interruptions ....................................... 35

When You Go On Vacation ........................ 35

When You Move ............................................ 35

Connecting the Water Line ...................... 36-38

Troubleshooting Guide ............................. 39-46

Kenmore Connect ..................................... 47

Service ............................................... Back Cover

I_ III II ii

REFRIGERATOR WARRANTY

I(enmore Elite Limited Warranty

When this appliance is installed, operated and maintained according to all supplied

instructions, the following warranty coverage applies. To arrange for warranty service,

call 1-800-4-MY-HOME® (1-800-469-4663).

•For one year from the date of purchase, free repair will be provided if any non-consumable part of this

appliance fails due to defective materials or workmanship. This coverage applies for only 90 days from

the purchase date if this product is ever used for other than private household purposes.

• For five years from the date of purchase, a defective sealed refrigerant system will be repaired free of

charge. This coverage applies for only one year from the date of purchase if this appliance is ever used

for other than private household purposes.

• For ten years from the date of purchase, a defective compressor will be repaired free of charge. This

coverage applies for only two years from the date of purchase if this appliance is ever used for other

than private household purposes.

This warranty covers only defects in material and workmanship, and will NOT pay for:

1. Consumable parts that can wear out from normal use, including but not limited to filters, belts, light

bulbs, and bags.

2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to the all

instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its

intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils

other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided

herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose,

are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or

consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or

consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so

these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state

to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada MSB 2C3 J

Master Protection Agreements

Congratulations on making a smart purchase. Your new

Kenmore Elite® product is designed and manufactured

for years of dependable operation. But like all products,

it may require preventive maintenance or repair from

time to time. That's when having a Master Protection

Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend

the life of your new product. Here's what the

Agreement* includes:

Parts and labor needed to help keep products

operating properly under normal use, not just defects.

Our coverage goes well beyond the product warranty.

No deductibles, no functional failure excluded from

coverage-- real protection.

•Expert service by a force of more than 10,000

authorized Sears service technicians, which means

someone you can trust will be working on your product.

•Unlimited service calls and nationwide service, as

often as you want us, whenever you want us.

• "No-lemon" guarantee - replacement of your covered

product if four or more product failures occur within

twelve months.

•Product replacement if your covered product can't be

fixed.

•Annual Preventive Maintenance Check at your request

-no extra charge.

•Fast help by phone - we call it Rapid Resolution

- phone support from a Sears representative on all

products. Think of us as a "talking owner's manual."

Power surge protection against electrical damage due

to power fluctuations.

$250 Food Loss Protection annually for any food

spoilage that is the result of mechanical failure of any

covered refrigerator or freezer.

Rental reimbursement if repair of your covered

product takes longer than promised.

10% discount off: the regular price of any non-covered

repair service and related installed parts.

Once you purchase the Agreement, a simple phone call

is all that it takes to schedule service. You can call at

any time day or night, or schedule a service appointment

online.

The Master Protection Agreement is a risk free purchase.

If you cancel for any reason during the product warranty

period, we will provide a full refund or a prorated refund

anytime after the product warranty period expires.

Purchase your Master Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information in the

U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full

details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances,

garage door openers, water heaters, and other major

home items, in the U.S.A. or Canada call

1-800-4-MY-HOME ®.

In the space below, record the date of purchase, model and serial number of your product. You will find the model and

serial number printed on an identification label located on the interior liner of the refrigerator compartment. Have these

items of information available whenever you contact Sears concerning your product.

Model No.

Serial No.

Date of Purchase

Save these instructions and attach your sales receipt for future reference.

BASIC SAFETY PRECAUTIONS

This guide contains many important safety messages. Always read and obey all safety messages.

This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill

or hurt you or others, or cause damage to the product.

All safety messages will be preceded by the safety alert symbol and the hazard

signal word DANGER, WARNING or CAUTION. These words mean:

You will be killed or seriously injured if you do not follow instructions.

You can be killed or seriously injured if you do not follow instructions.

Indicates an imminently hazardous situation which, if not avoided,

may result in minor or moderate injury, or product damage.

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen

if the instructions are not followed.

To reduce the risk of fire, electric shock, or personal

injury when using your product, basic safety precautions

should be followed, including the following.

Read all instructions before using this appliance.

• NEVER unplug your refrigerator by pulling on the

power cord. Always grip the plug firmly and pull it

straight out from the outlet.

If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard. Do not use

a cord that shows cracks or abrasion damage along its

length or at either the plug or connector end.

• Do not modify or extend the power cord length. It

could cause electric shock or fire.

• When moving your refrigerator away from the wall, be

careful not to roll over or damage the power cord.

• DO NOT store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other

appliance.

DO NOT allow children to climb, stand, or hang on the

refrigerator doors or shelves in the refrigerator. They

could damage the refrigerator and seriously injure

themselves.

• Keep fingers out of pinch point areas; clearances

between the doors and cabinets are necessarily small.

Be careful closing doors when children are in the area.

• Unplug your refrigerator before cleaning or

making any repairs.

• If connected to a circuit protected by fuses, use time

delay fuse.

NOTE: It is strongly recommended that any service be

performed by a qualified technician.

SAVE THESE INSTRUCTIONS

Before replacing a burned-out or broken light bulb,

unplug the refrigerator or turn off power at the circuit

breaker or fuse box in order to avoid contact with a live

wire filament. (A burned-out light bulb may break when

being replaced exposing the wire filament.)

NOTE: Some models have LED interior lighting and

service should be performed by a qualified technician.

WARNING: Setting either or both controls to the OFF

position does not remove power to the light circuit.

When you are finished, reconnect the refrigerator to

the electrical source and reset the controls (Thermostat,

Refrigerator Control, and or Freezer Control, depending

on the model) to the desired setting.

This refrigerator must be properly installed in

accordance with the Attention Installer Instructions that

were taped to the front of the refrigerator.

After your refrigerator is in operation, do not touch the

cold surfaces in the freezer compartment when hands

are damp or wet. Skin may adhere to the extremely cold

surfaces.

DO NOT touch the automatic ice making mechanism

while the refrigerator is plugged in.

DO NOT refreeze frozen foods which have thawed

completely. The United States Department of

Agriculture in Home and Garden Bulletin No. 69 says:

...You may safely refreeze frozen foods that have

thawed if they still contain ice crystals or if they are

still cold--below 39°F (4°C).

...Thawed ground meats, poultry or fish that have any

off-odor or off-color should not be refrozen and should

not be eaten. Thawed ice cream should be discarded.

If the odor or color of any food is poor or questionable,

dispose of it. The food may be dangerous to eat.

Even partial thawing and refreezing reduces the

eating quality of foods, particularly fruits, vegetables

and prepared foods. The eating quality of red meats

is affected less than that of many other foods. Use

refrozen foods as soon as possible to save as much of

their quality as you can.

SAVE THESE INSTRUCTIONS

Junked or abandoned refrigerators are dangerous, even

if they are sitting for only a few days. If you are getting

rid of your old refrigerator, please follow the instructions

at right to help prevent accidents (child entrapment and

suffocation). BEFORE YOU THROW AWAY

YOUR OLD REFRIGERATOR

OR FREEZER:

•Take off the doors.

Leave the shelves in place so that

children may not easily climb inside.

Yourold refrigeratormayhaveacoolingsystem

thatusedCFCsorHCFCs(chlorofluorocarbonsor

hydrochlorofluorocarbons).CFCsand HCFCsare

believedto harmstratosphericozoneif releasedto the

atmosphere.Otherrefrigerantsmayalsocauseharmto

theenvironmentif releasedtotheatmosphere.

If youarethrowingawayyourold refrigerator,make

suretherefrigerantisremovedfor properdisposal

byaqualifiedtechnician.If youintentionallyrelease

refrigerant,youmaybesubjectto finesandimprisonment

underprovisionsof environmentallegislation.

IMPORTANT: Please read carefully.

TO CONNECT ELECTRICITY

Electrical Shock Hazard

FOR PERSONAL SAFETY, this appliance must be

properly grounded. Have the wall outlet and the circuit

checked by a qualified electrician to make sure the

outlet is properly grounded.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain

conditions, the use of an extension cord is not

recommended. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a UL-

listed (USA), 3-wire grounding type appliance extension

cord having a grounding type plug and outlet, and that

the electrical rating of the cord be 15 amperes (minimum)

and 120 volts.

Use of an extension cord will increase the clearance

needed for the back of the refrigerator.

3-prong

grounding type

wall receptacle

3-prong

grounding

plug

RECOMMENDED GROUNDING METHOD

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Use a receptacle that cannot be turned off: with a switch

or pull chain. Do not use an extension cord.

Where a standard two-prong wall outlet is encountered,

it is your personal responsibility and obligation to have

it replaced with a properly grounded three-prong wall

outlet.

Use this page to become more familiar with the parts and features of your refrigerator.

NOTE: This guide covers several difi:erent models. The refrigerator you have purchased may have some or all of the items

listed below. The locations of the features shown below may not match your model.

O Refrigerator Light

Water Filter

Fixed Door Bins

Refrigerator Shelves

0 Refrigerator Light (side)

0 Ice Compartment

(Icemaker and Ice Bin)

0 Humidity Controlled Crisper

Q Air Tight Crisper

ql_ Temperature Controlled Pantry

Drawer

Top Pullout Drawer

O Middle Pullout Drawer

O Durabase

Durabase Divider

Q Water Tank Cover

Articulating Mullion

O Air Filter

Kenmore Connect Speaker

Grab-N-Go Case

O Cheese & Butter Bin

O Condiment Bin

Excessive Weight Hazard:

Use two or more people to move and install the

refrigerator. Failure to do so can result in back or

other injury.

UNPACKING YOUR REFRIGERATOR

Remove tape and any temporary labels from your

refrigerator before using. Do not remove any warning-

type labels, the model and serial number label, or

the Tech Sheet that is located under the front of the

refrigerator.

To remove any remaining tape or glue, rub the area

briskly with your thumb. Tape or glue residue can also be

easily removed by rubbing a small amount of liquid dish

soap over the adhesive with your fingers. Wipe with warm

water and dry.

Do not use sharp instruments, rubbing alcohol, flammable

fluids, or abrasive cleaners to remove tape or glue. These

products can damage the surface of your refrigerator.

Refrigerator shelves are installed in the shipping position.

Please reinstall shelves according to your individual

storage needs.

Excessive Weight Hazard:

Your refrigerator is heavy. When moving the

refrigerator for cleaning or service, be sure to protect

the floor. Always pull the refrigerator straight out when

moving it. Do not wiggle or walk the refrigerator when

trying to move it, as floor damage could occur.

Explosion Hazard:

Keep flammable materials and vapors, such as

gasoline, away from the refrigerator. Failure to do so

can result in fire, explosion, or death.

PRIOR TO USE

1. Clean your refrigerator thoroughly and wipe off all

dust that accumulated during shipping.

2. Install accessories such as ice cube bin, drawers,

shelves, etc., in their proper places. They are packed

together to prevent possible damage during shipment.

3. Allow your refrigerator to run for at least two to three

hours before putting food in it. Check the flow of

cold air in the freezer compartment to ensure proper

cooling. Your refrigerator is now ready for use.

INSTALLATION

The refrigerator should always be plugged into its own

individual properly grounded electrical outlet rated for

115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.

This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire

hazard from overheated wires. It is recommended that a

separate circuit serving only this appliance be provided.

Shock Hazard:

To reduce the risk of electric shock, do not install the

refrigerator in a wet or damp area.

INSTALLATION (continued)

lo To avoid noise and vibration, the unit must be leveled

and installed on a solidly constructed floor. If required,

adjust the leveling legs to compensate for unevenness

of the floor. The front should be slightly higher than

the rear to aid in door closing. Leveling legs can be

turned easily by tipping the cabinet slightly. Turn the

leveling legs to the left to raise the unit or to the right to

lower it. (See LEVELING AND DOOR ALIGNMENT.)

NOTE: Installing on carpeting, soft tile surfaces,

a platform or weakly supported structure is not

recommended.

Install this appliance in an area where the temperature

is between 55°F (13°C) and 110°F (43°C). If the

temperature around the appliance is too low or high,

cooling ability may be adversely affected.

Select a place where a water supply can be easily

connected for the automatic icemaker.

NOTE: The water pressure must be between 20 and

120 psi on models without a water filter and between

40 and 120 psi on models with a water filter.

Too small of a distance from adjacent items may

result in lowered freezing capability and increased

electricity consumption charges. Allow at least 24

inches (61 cm) in front of the refrigerator to open the

doors and at least 2 inches (5.08 cm) between the

back of the refrigerator and the wall.

2" (5.08 cm) --_ .4-

Andere Handbücher für 795.7237 Series

Inhaltsverzeichnis

Andere Kenmore Kühlschrank Handbücher

Kenmore

Kenmore Trio 795.7875 Bedienungsanleitung

Kenmore

Kenmore 564.89636 Bedienungsanleitung

Kenmore

Kenmore 7817 - 20.6 cu. Ft. Top Freezer Refrigerator Bedienungsanleitung

Kenmore

Kenmore 795.75192401 Bedienungsanleitung

Kenmore

Kenmore Kenmore Bottom-Mount Refrigerator Bedienungsanleitung

Kenmore

Kenmore 461.91782 Bedienungsanleitung

Kenmore

Kenmore 253.4474 Bedienungsanleitung

Kenmore

Kenmore 596.50012100 Bedienungsanleitung

Kenmore

Kenmore 255.94293 Bedienungsanleitung

Kenmore

Kenmore 3639644284 Bedienungsanleitung

Kenmore

Kenmore Top-mount refrigerator 106 Bedienungsanleitung

Kenmore

Kenmore ELITE 795.7104 Bedienungsanleitung

Kenmore

Kenmore 106.5002 Bedienungsanleitung

Kenmore

Kenmore 7937 - 22.1 cu. Ft. Top Freezer Refrigerator Bedienungsanleitung

Kenmore

Kenmore 253.70722 SERIES Bedienungsanleitung

Kenmore

Kenmore 46-76252 Gebrauchsanweisung

Kenmore

Kenmore 3639557820 Bedienungsanleitung

Kenmore

Kenmore 795.78733.806 Bedienungsanleitung

Kenmore

Kenmore 59679212012 Bedienungsanleitung

Kenmore

Kenmore 596.7931 SERIES Bedienungsanleitung

Kenmore

Kenmore 795.583*.410 Bedienungsanleitung

Kenmore

Kenmore Trio 795.7877 Series Bedienungsanleitung

Kenmore

Kenmore Kenmore Top-mount Refrigerator Bedienungsanleitung

Kenmore

Kenmore 5882 - Elite 26.5 cu. Ft. Refrigerator Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
