Kenmore RFP74KB Series Bedienungsanleitung

Model/Modelo: 111.7302****

* Color number, número de color

REFRIGERATOR

SERVICE MANUAL

CAUTION

BEFORE SERVICING THE UNIT,

READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

BLACK SUS SUS BLACK PCM WHITE PCM

S/M No. RFP7402000

√Caution

In this manual, some parts can be changed for improving their performance without notice. So, If you need the latest parts

information, please visit and refer to PPL (Parts Price List) in Service Information Center.(http://webportal.winiadaewoo.com/sic)

July .2020

Content

1. Warnings and

Precautions for Safety…………………........ 4

2. Specifications ……………………..…........... 5

4. External Dimensions ………………...…..... 9

5. Features ……….………………..…........... 10

6. Flow Diagram

8. Operation and Function

8-1. Display ……….….... 17

8-2. Defrost Mode ……………………... 19

8-3. Forced Defrosting Mode ……….... 20

8-4. Fan Voltage of Control Mode ……….. 20

8-5. DV Heater ………………….. 21

8-6. Water Pipe Heater Control ….. 21

8-8 Control of Interior Light …………….. 22

…………….……..… 22

8-10. Compensation of R-sensor ON/OFF

Temp

9. How to Service

9-1. Faulty Start

(F/R lights Off, F-PCB Power Off) …... 28

9-2. Freezing Failure

(Foods are not frozen/cold.) ……..…... 29

9-3. Ice Formation on F-Louver ……..…... 30

9-4. Disconnection / Breaking

of Freezer Lights Ass’y

……..…... 31

9-5. Refrigeration Failure

(Foods does not get cool or cold soon)

……..…... 32

11. Cooling Cycle Heavy Repair

9-7. Dews on Refrigerator Compartment ... 34

9-8. Comp. Operation Noise ……………... 35

9-9. Refrigerant Flow Sound ……………... 36

9-10. Fan Noise ………………….………... 38

9-11. Pipe Noise ………………….……... 39

9-12. Door opening alarm continues

though the door is closed. ……. 40

11-1. Summary of Heavy Repair ………….. 49

11-2. Precautions During Heavy Repair .... 50

11-3. Practical Work for Heavy Repair .... 51

11-4. Standard Regulations

for Heavy Repair …………….... 53

10. Disassemble/Assemble Procedures

10-1. F Door As …………... 41

10-2. F Louver As …….. 42

10-3. F Fan As ……….. 42

10-5. Eva As …………………………….. 43

10-6. R Door as ……………….. 44

10-7. Cover Multi Duct As …………...….. 44

10-8. Icemaker As …………...….. 46

10-10. Main PCB ….... 48

8-7. Buzzer of Alarm Control ………….... 21

8-9. Demonstration

……..…... 33

10-9. Icemaker & Hose Ice Maker Tube as . 47

3. Sensor / Voltage ………………...…..... 7

……………………..…........... 14

7. Wiring Diagram ……….……………............ 16

10-4. R Fan As ………... 43

………………….…….……..… 23

…………….……..… 24

8-11. Error Display

…………….……..… 27

8-12. Summary of Function

9-6. Disconnection / Breaking

of Refrigerator Lights Ass’y

Content

12. Service Part List

12-1. Cabinet ……………….………..….. 54

Document History

Version

(S/M No.) Date Author Description

RFP7402000 20.07.22 Park Cheolhwan Register a document.

※Refer to user manual for installation

12-2. Machine Room ………………..….. 55

12-3. F-Room ……………………..…..….. 56

12-4. R-Room ……………………..…..….. 57

12-5. R-Door & Handles

………………….……...….. 58

12-6. F-Door ………………. 59

4 / 59

! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

Please observe the following safety precautions in order to use safely and correctly the

refrigerator and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more

than three minutes before replacing PCB parts.

Shut off the power whenever replacing and repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord

was disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall.

If the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire.

Please use its own individual electrical outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

6. Use standard electrical components when replacing them.

7. Make sure the hook is correctly engaged.

Remove dust and foreign materials from the housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components.

Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not touch the icemaker with hands or tools to confirm the operation of geared motor.

11. Do not let the customers repair, disassemble and reconstruct the refrigerator for

themselves.

It may cause accident, electric shock, or fire.

12. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas,

or medicine in the refrigerator.

13. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

14. Do not put glass bottles with full of water into the freezer.

The contents shall freeze and break the glass bottles.

15. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

where children are not accessible.

1. Warnings and Precautions for Safety

5 / 59

!WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

2. Specifications

Item Specification

Model Name RFP74KB* (111.7302****)

Gross

Volume

(Li)

Total 26.1 ft3

Freezer 7.8 ft3

Refrigerator 18.3 ft3

External Dimension

(Width * Depth * Height) 35.98 inch * 69.81 inch * 33.79 inch (w/o Handle)

Rated Voltage 115~120V (60Hz)

Weight 145kg

Comp

Model CMA110NHUM

Motor Type RSCR

Motor Protection 4TM314TFB

Running Capacitor 250VAC/12㎌

Starting Device Type E-PTC

Starting Device LPC322D-01

Refrigerant R600a

Quantity 90g

Evaporator Fin Type

Condenser Fan Cooling System

Dryer Molecular Sieve XH-9

Capillary Tube ID0.7 * T0.55 * L1951

6 / 59

!WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

2. Specifications

Item Specification

Model Name RFP74KB* (111.7302****)

Defrost A3J-41A

Freezer A3R-32D

Refrigerator A3J-41A

Ice Maker A3R-35D

RT A3J-41A

Sheath F AS 200W / 115V

Sheath R AS 200W / 120V

R Motor AS(In URT) 10W / 115V

R Motor AS(Behind EVA) NA

R Return Duct AS 7W / 115V

W/Tank AS NA

Hose AS 5.5W / 115V

DV AS 8W / 115V

Dispenser AS NA

I/Flap AS NA

Fuse Temp (Defrost) AC250V , 10A , 77℃

Freezer-Fan Motor D4612AAA29 / DC13V / 1850±150 rpm

Refrigerator-Fan Motor D4612AAA36 / DC13V / 2100±200 rpm

Condenser-Fan Motor D4612AAA28 / DC13V / 1100±150 rpm

Freezer-Lamp 5-LED

Refrigerator-Lamp 9-LED

Dispenser-Lamp NA

Door Switch(Freezer / Refrigerator) SP201R-7DR/SP101B-201(G)

7 / 59

! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

3. Sensor / Voltage

Temp(℉)Temp(℃) Resistance(kΩ) DC Volts Temp( ℉)Temp(℃) Resistance(kΩ) DC Volts

-22.0 -30.0 129.30 4.02 32.9 0.5 29.34 2.42

-21.1 -29.5 125.90 4.00 33.8 1.0 28.71 2.39

-20.2 -29.0 122.50 3.98 34.7 1.5 28.08 2.36

-19.3 -28.5 119.30 3.96 35.6 2.0 27.47 2.33

-18.4 -28.0 116.20 3.94 36.5 2.5 26.88 2.31

-17.5 -27.5 113.20 3.91 37.4 3.0 26.30 2.28

-16.6 -27.0 110.20 3.89 38.3 3.5 25.74 2.25

-15.7 -26.5 107.40 3.87 39.2 4.0 25.19 2.23

-14.8 -26.0 101.60 3.82 40.1 4.5 24.65 2.20

-13.9 -25.5 101.90 3.82 41.0 5.0 24.13 2.17

-13.0 -25.0 99.30 3.80 41.9 5.5 23.62 2.15

-12.1 -24.5 96.70 3.77 42.8 6.0 23.12 2.12

-11.2 -24.0 94.30 3.75 43.7 6.5 22.63 2.09

-10.3 -23.5 91.90 3.73 44.6 7.0 22.15 2.07

-9.4 -23.0 89.60 3.70 45.5 7.5 21.69 2.04

-8.5 -22.5 87.30 3.68 46.4 8.0 21.24 2.02

-7.6 -22.0 85.10 3.65 47.3 8.5 20.80 1.99

-6.7 -21.5 83.00 3.63 48.2 9.0 20.36 1.97

-5.8 -21.0 80.90 3.60 49.1 9.5 19.94 1.94

-4.9 -20.5 78.90 3.58 50.0 10.0 19.53 1.92

-4.0 -20.0 76.90 3.55 50.9 10.5 19.13 1.89

-3.1 -19.5 75.00 3.52 51.8 11.0 18.74 1.87

-2.2 -19.0 78.20 3.57 52.7 11.5 18.35 1.84

-1.3 -18.5 71.40 3.47 53.6 12.0 17.98 1.82

-0.4 -18.0 69.60 3.45 54.5 12.5 17.61 1.80

0.5 -17.5 67.90 3.42 55.4 13.0 17.26 1.77

1.4 -17.0 66.30 3.39 56.3 13.5 16.91 1.75

2.3 -16.5 64.70 3.37 57.2 14.0 16.37 1.71

3.2 -16.0 63.10 3.34 58.1 14.5 16.26 1.71

4.1 -15.5 61.60 3.31 59.0 15.0 15.91 1.68

5.0 -15.0 60.10 3.28 59.9 15.5 15.59 1.66

5.9 -14.5 58.60 3.26 60.8 16.0 15.28 1.64

6.8 -14.0 57.20 3.23 61.7 16.5 14.98 1.61

7.7 -13.5 55.90 3.20 62.6 17.0 14.66 1.59

8.6 -13.0 54.60 3.17 63.5 17.5 14.39 1.57

9.5 -12.5 53.30 3.15 64.4 18.0 14.10 1.55

10.4 -12.0 52.00 3.12 65.3 18.5 13.83 1.53

11.3 -11.5 50.80 3.09 66.2 19.0 13.56 1.51

12.2 -11.0 49.60 3.06 67.1 19.5 13.29 1.49

13.1 -10.5 48.70 3.04 68.0 20.0 13.03 1.47

14.0 -10.0 47.30 3.01 68.9 20.5 12.78 1.45

14.9 -9.5 46.20 2.98 69.8 21.0 12.53 1.43

15.8 -9.0 45.10 2.95 70.7 21.5 12.29 1.41

16.7 -8.5 44.10 2.92 71.6 22.0 12.05 1.39

17.6 -8.0 43.10 2.89 72.5 22.5 11.82 1.37

18.5 -7.5 42.10 2.86 73.4 23.0 11.60 1.35

19.4 -7.0 41.10 2.83 74.3 23.5 11.37 1.33

20.3 -6.5 40.30 2.81 75.2 24.0 11.16 1.31

21.2 -6.0 39.30 2.78 76.1 24.5 10.95 1.29

22.1 -5.5 37.90 2.73 77.0 25.0 10.74 1.27

23.0 -5.0 37.50 2.72 77.9 25.5 10.54 1.26

23.9 -4.5 36.70 2.69 78.8 26.0 10.34 1.24

24.8 -4.0 35.80 2.66 79.7 26.5 10.14 1.22

25.7 -3.5 35.00 2.64 80.6 27.0 9.945 1.20

26.6 -3.0 34.30 2.61 81.5 27.5 9.768 1.19

27.5 -2.5 33.50 2.58 82.4 28.0 9.586 1.17

28.4 -2.0 32.70 2.55 83.3 28.5 9.408 1.15

29.3 -1.5 32.00 2.52 84.2 29.0 9.234 1.14

30.2 -1.0 31.30 2.50 85.1 29.5 9.063 1.12

31.1 -0.5 30.60 2.47 86.0 30.0 8.896 1.10

32.0 0.0 30.00 2.44

R,F Defrost, R Defrost, RT SENSOR

8 / 59

! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

3. Sensor / Voltage

Temp(℉)Temp(℃) Resistance(kΩ) DC Volts Temp(℉)Temp(℃) Resistance( kΩ) DC Volts

-22.0 -30.0 39.652 3.04 32.9 0.5 7.692 1.16

-21.1 -29.5 38.495 3.01 33.8 1.0 7.508 1.14

-20.2 -29.0 37.375 2.97 34.7 1.5 7.328 1.12

-19.3 -28.5 36.291 2.94 35.6 2.0 7.153 1.10

-18.4 -28.0 35.242 2.90 36.5 2.5 6.983 1.07

-17.5 -27.5 34.227 2.87 37.4 3.0 6.818 1.05

-16.6 -27.0 33.240 2.83 38.3 3.5 6.656 1.03

-15.7 -26.5 31.372 2.76 39.2 4.0 6.500 1.02

-14.8 -26.0 30.926 2.74 40.1 4.5 6.347 1.00

-13.9 -25.5 30.480 2.72 41.0 5.0 6.198 0.98

-13.0 -25.0 29.616 2.69 41.9 5.5 6.054 0.96

-12.1 -24.5 28.780 2.65 42.8 6.0 5.913 0.94

-11.2 -24.0 27.970 2.62 43.7 6.5 5.776 0.92

-10.3 -23.5 27.185 2.58 44.6 7.0 5.642 0.91

-9.4 -23.0 26.425 2.54 45.5 7.5 5.512 0.89

-8.5 -22.5 25.686 2.51 46.4 8.0 5.386 0.87

-7.6 -22.0 24.974 2.47 47.3 8.5 5.262 0.86

-6.7 -21.5 24.283 2.44 48.2 9.0 5.142 0.84

-5.8 -21.0 23.612 2.40 49.1 9.5 5.025 0.82

-4.9 -20.5 22.963 2.37 50.0 10.0 4.911 0.81

-4.0 -20.0 22.333 2.33 50.9 10.5 4.800 0.79

-3.1 -19.5 21.722 2.30 51.8 11.0 4.691 0.78

-2.2 -19.0 21.130 2.27 52.7 11.5 4.586 0.76

-1.3 -18.5 20.557 2.23 53.6 12.0 4.483 0.75

-0.4 -18.0 20.000 2.20 54.5 12.5 4.383 0.73

0.5 -17.5 19.460 2.16 55.4 13.0 4.285 0.72

1.4 -17.0 18.937 2.13 56.3 13.5 4.190 0.71

2.3 -16.5 18.429 2.10 57.2 14.0 4.097 0.69

3.2 -16.0 17.937 2.06 58.1 14.5 4.007 0.68

4.1 -15.5 17.459 2.03 59.0 15.0 3.918 0.67

5.0 -15.0 16.995 2.00 59.9 15.5 3.832 0.65

5.9 -14.5 16.545 1.97 60.8 16.0 3.749 0.64

6.8 -14.0 16.109 1.94 61.7 16.5 3.668 0.63

7.7 -13.5 15.635 1.90 62.6 17.0 3.587 0.62

8.6 -13.0 15.274 1.87 63.5 17.5 3.509 0.60

9.5 -12.5 14.875 1.84 64.4 18.0 3.433 0.59

10.4 -12.0 14.487 1.81 65.3 18.5 3.350 0.58

11.3 -11.5 14.111 1.78 66.2 19.0 3.287 0.57

12.2 -11.0 13.746 1.75 67.1 19.5 3.217 0.56

13.1 -10.5 13.391 1.72 68.0 20.0 3.148 0.55

14.0 -10.0 13.047 1.69 68.9 20.5 3.081 0.54

14.9 -9.5 14.712 1.83 69.8 21.0 3.015 0.53

15.8 -9.0 12.387 1.63 70.7 21.5 2.927 0.51

16.7 -8.5 12.072 1.61 71.6 22.0 2.839 0.50

17.6 -8.0 11.765 1.58 72.5 22.5 2.829 0.50

18.5 -7.5 11.467 1.55 73.4 23.0 2.769 0.49

19.4 -7.0 11.176 1.52 74.3 23.5 2.711 0.48

20.3 -6.5 10.897 1.50 75.2 24.0 2.655 0.47

21.2 -6.0 10.624 1.47 76.1 24.5 2.600 0.46

22.1 -5.5 10.358 1.44 77.0 25.0 2.546 0.45

23.0 -5.0 10.109 1.42 77.9 25.5 2.493 0.45

23.9 -4.5 9.849 1.39 78.8 26.0 2.442 0.44

24.8 -4.0 9.605 1.37 79.7 26.5 2.392 0.43

25.7 -3.5 9.368 1.34 80.6 27.0 2.343 0.42

26.6 -3.0 9.138 1.32 81.5 27.5 2.295 0.41

27.5 -2.5 8.913 1.30 82.4 28.0 2.246 0.40

28.4 -2.0 8.696 1.27 83.3 28.5 2.202 0.40

29.3 -1.5 8.484 1.25 84.2 29.0 2.158 0.39

30.2 -1.0 8.277 1.23 85.1 29.5 2.114 0.38

31.1 -0.5 8.077 1.20 86.0 30.0 2.072 0.38

32.0 0.0 7.882 1.18

F, Icemaker S ensor

9 / 59

! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

4. External Dimensions

10 / 59

! WARNING To avoid risk of electrical shock that can cause death or severe personal injury,

disconnect unit from power before servicing unless tests require power.

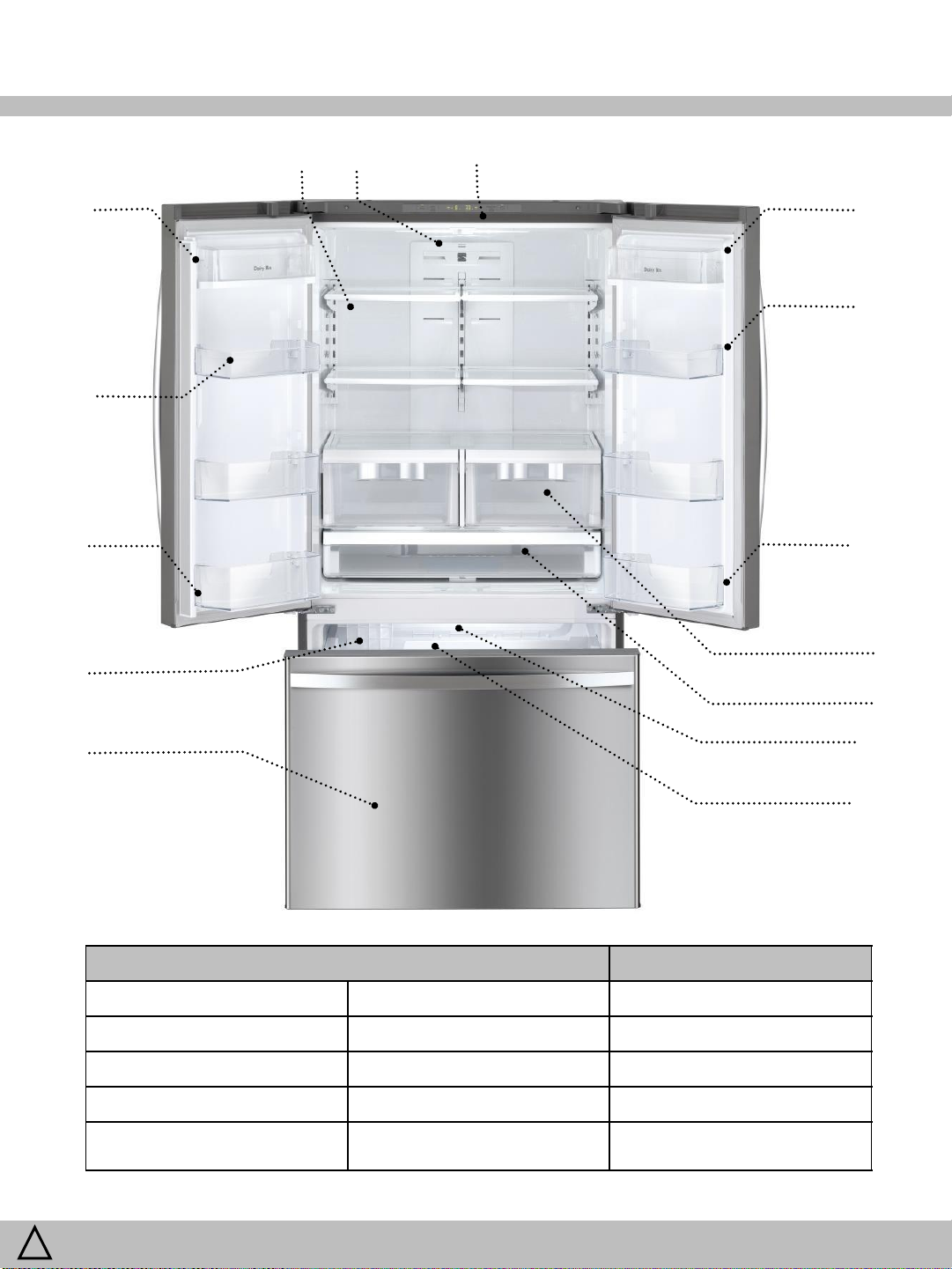

REFRIGERATOR COMPARMENT FREEZER COMPARTMENT

1. SHELF R SM 6. POCKET GALLON 10. FREEZER LAMP

2. REFRIGERATOR LAMP 7. CASE VEGETABLE 11. CASE F DRAW

3. DISPLAY 8. CASE WIDE 12. CASE F

4. POCKET DAIRY 9. ICE MAKER

5. POCKET SM

5-1. Name of Each Parts 21 3

5. Features

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Kenmore Kühlschrank Handbücher

Kenmore

Kenmore 795.76082.600 Bedienungsanleitung

Kenmore

Kenmore 795.751924 Bedienungsanleitung

Kenmore

Kenmore 795.7313 Series Bedienungsanleitung

Kenmore

Kenmore 6523 - 21.9 cu. Ft. Bottom Freezer... Bedienungsanleitung

Kenmore

Kenmore 25370413411 Bedienungsanleitung

Kenmore

Kenmore 253.6152 Series Bedienungsanleitung

Kenmore

Kenmore Grab-n-Go 795.7306 Series Bedienungsanleitung

Kenmore

Kenmore Elite trio 795.7876 Series Bedienungsanleitung

Kenmore

Kenmore 596.50012100 Bedienungsanleitung

Kenmore

Kenmore 253 Series Bedienungsanleitung

Kenmore

Kenmore Sears refrigerator Bedienungsanleitung

Kenmore

Kenmore 795.7206 Series Bedienungsanleitung

Kenmore

Kenmore 596.7238 Bedienungsanleitung

Kenmore

Kenmore 253.6000 Series Bedienungsanleitung

Kenmore

Kenmore 795.78502800 Bedienungsanleitung

Kenmore

Kenmore Side by side refrigerator Bedienungsanleitung

Kenmore

Kenmore 106.57022601 Bedienungsanleitung

Kenmore

Kenmore Sears Top-mount refrigerator Bedienungsanleitung

Kenmore

Kenmore 7897 - 18.2 cu. Ft. Top Freezer Refrigerator Bedienungsanleitung

Kenmore

Kenmore 970-4204 Series Bedienungsanleitung

Kenmore

Kenmore 795.79012.901 Bedienungsanleitung

Kenmore

Kenmore KENMORE 60581 Bedienungsanleitung

Kenmore

Kenmore 5996 - Elite 25.5 cu. Ft. Refrigerator Bedienungsanleitung

Kenmore

Kenmore 111.22202 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
