Kenmore 110.98752 Bedienungsanleitung

24" Wide (61 cm)

LAUNDRY CENTER

Washer -Gas Dryer

CENTRO DE LAVANDERIA

de 24" (61 cm) de ancho

Lavadora -Secadora a gas

Model/Modelo 110.98752 JI t

8576664 Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

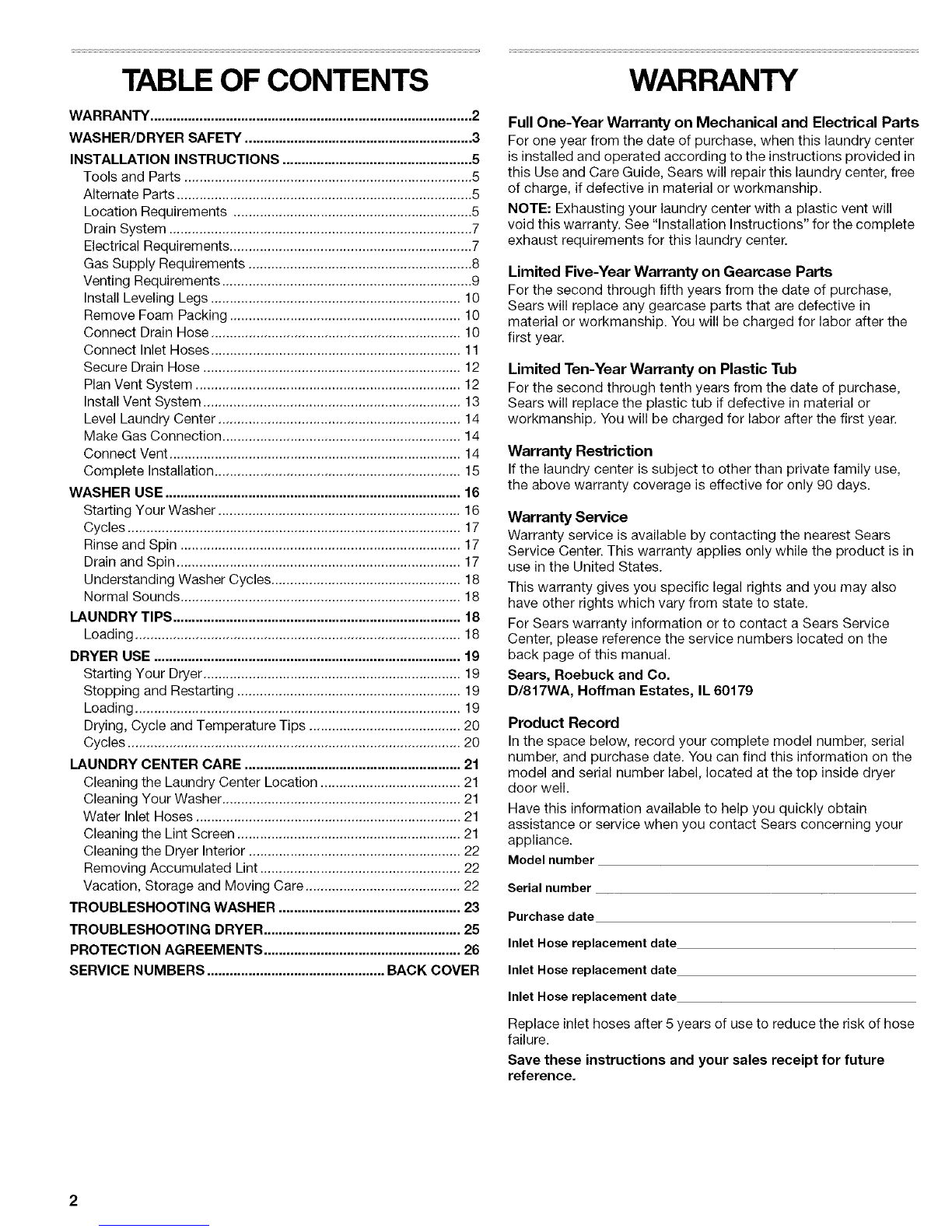

TABLEOF CONTENTS

WARRANTY ..................................................................................... 2

WASHER/DRYER SAFETY ............................................................ 3

INSTALLATION INSTRUCTIONS .................................................. 5

Tools and Parts ............................................................................ 5

Alternate Parts .............................................................................. 5

Location Requirements ............................................................... 5

Drain System ................................................................................ 7

Electrical Requirements ................................................................ 7

Gas Supply Requirements ........................................................... 8

Venting Requirements .................................................................. 9

Install Leveling Legs .................................................................. 10

Remove Foam Packing ............................................................. 10

Connect Drain Hose .................................................................. 10

Connect Inlet Hoses .................................................................. 11

Secure Drain Hose .................................................................... 12

Plan Vent System ...................................................................... 12

Install Vent System .................................................................... 13

Level Laundry Center ................................................................ 14

Make Gas Connection ............................................................... 14

Connect Vent ............................................................................. 14

Complete Installation ................................................................. 15

WASHER USE .............................................................................. 16

Starting Your Washer ................................................................ 16

Cycles ........................................................................................ 17

Rinse and Spin .......................................................................... 17

Drain and Spin ........................................................................... 17

Understanding Washer Cycles .................................................. 18

Normal Sounds .......................................................................... 18

LAUNDRY TIPS ............................................................................ 18

Loading ...................................................................................... 18

DRYER USE ................................................................................. 19

Starting Your Dryer .................................................................... 19

Stopping and Restarting ........................................................... 19

Loading ...................................................................................... 19

Drying, Cycle and Temperature Tips ........................................ 20

Cycles ........................................................................................ 20

LAUNDRY CENTER CARE ......................................................... 21

Cleaning the Laundry Center Location ..................................... 21

Cleaning Your Washer ............................................................... 21

Water Inlet Hoses ...................................................................... 21

Cleaning the Lint Screen ........................................................... 21

Cleaning the Dryer Interior ........................................................ 22

Removing Accumulated Lint ..................................................... 22

Vacation, Storage and Moving Care ......................................... 22

TROUBLESHOOTING WASHER ................................................ 23

TROUBLESHOOTING DRYER .................................................... 25

PROTECTION AGREEMENTS .................................................... 26

SERVICE NUMBERS ............................................... BACK COVER

WARRANTY

Full One-Year Warranty on Mechanical and Electrical Parts

For one year from the date of purchase, when this laundry center

is installed and operated according to the instructions provided in

this Use and Care Guide, Sears will repair this laundry center, free

of charge, if defective in material or workmanship.

NOTE: Exhausting your laundry center with a plastic vent will

void this warranty. See "Installation Instructions" for the complete

exhaust requirements for this laundry center.

Limited Five-Year Warranty on Gearcase Parts

For the second through fifth years from the date of purchase,

Sears will replace any gearcase parts that are defective in

material or workmanship. You will be charged for labor after the

first year.

Limited Ten-Year Warranty on Plastic Tub

For the second through tenth years from the date of purchase,

Sears will replace the plastic tub if defective in material or

workmanship. You will be charged for labor after the first year.

Warranty Restriction

If the laundry center is subject to other than private family use,

the above warranty coverage is effective for only 90 days.

Warranty Service

Warranty service is available by contacting the nearest Sears

Service Center. This warranty applies only while the product is in

use in the United States.

This warranty gives you specific legal rights and you may also

have other rights which vary from state to state.

For Sears warranty information or to contact a Sears Service

Center, please reference the service numbers located on the

back page of this manual.

Sears, Roebuck and Co.

D/817WA, Hoffman Estates, IL 60179

Product Record

In the space below, record your complete model number, serial

number, and purchase date. You can find this information on the

model and serial number label, located at the top inside dryer

door well.

Have this information available to help you quickly obtain

assistance or service when you contact Sears concerning your

appliance.

Model number

Serial number

Purchase date

Inlet Hose replacement date

Replace inlet hoses after 5 years of use to reduce the risk of hose

failure.

Save these instructions and your sales receipt for future

reference.

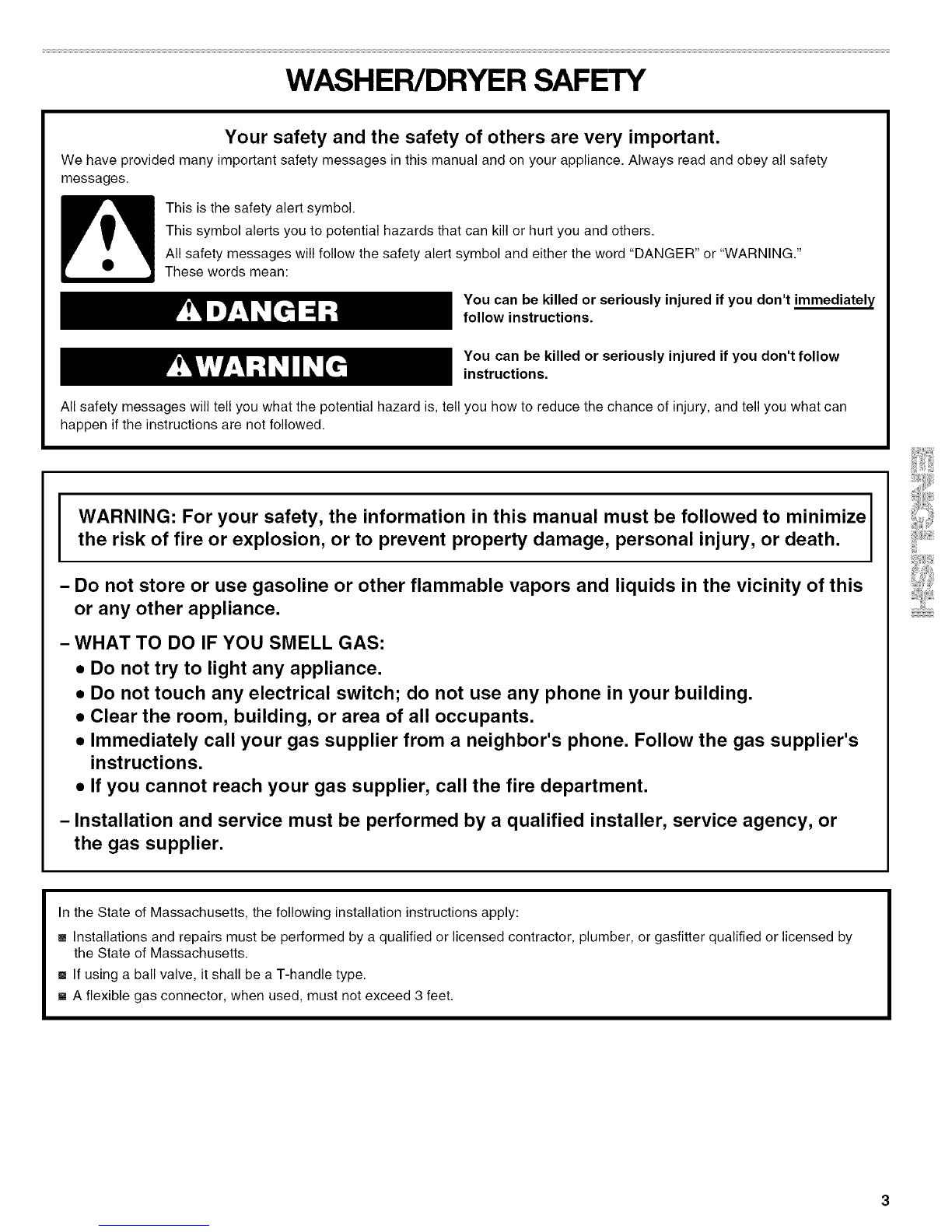

WASHER/DRYER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

I WARNING: For your safety, the information in this manual must be followed to minimize

the risk of fire or explosion, or to prevent property damage, personal injury, or death.

-Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

-WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

•Clear the room, building, or area of all occupants.

•Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

•If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency, or

the gas supplier.

In the State of Massachusetts, the following installation instructions apply:

m Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by

the State of Massachusetts.

m If using a ball valve, it shall be a T-handle type.

m A flexible gas connector, when used, must not exceed 3 feet.

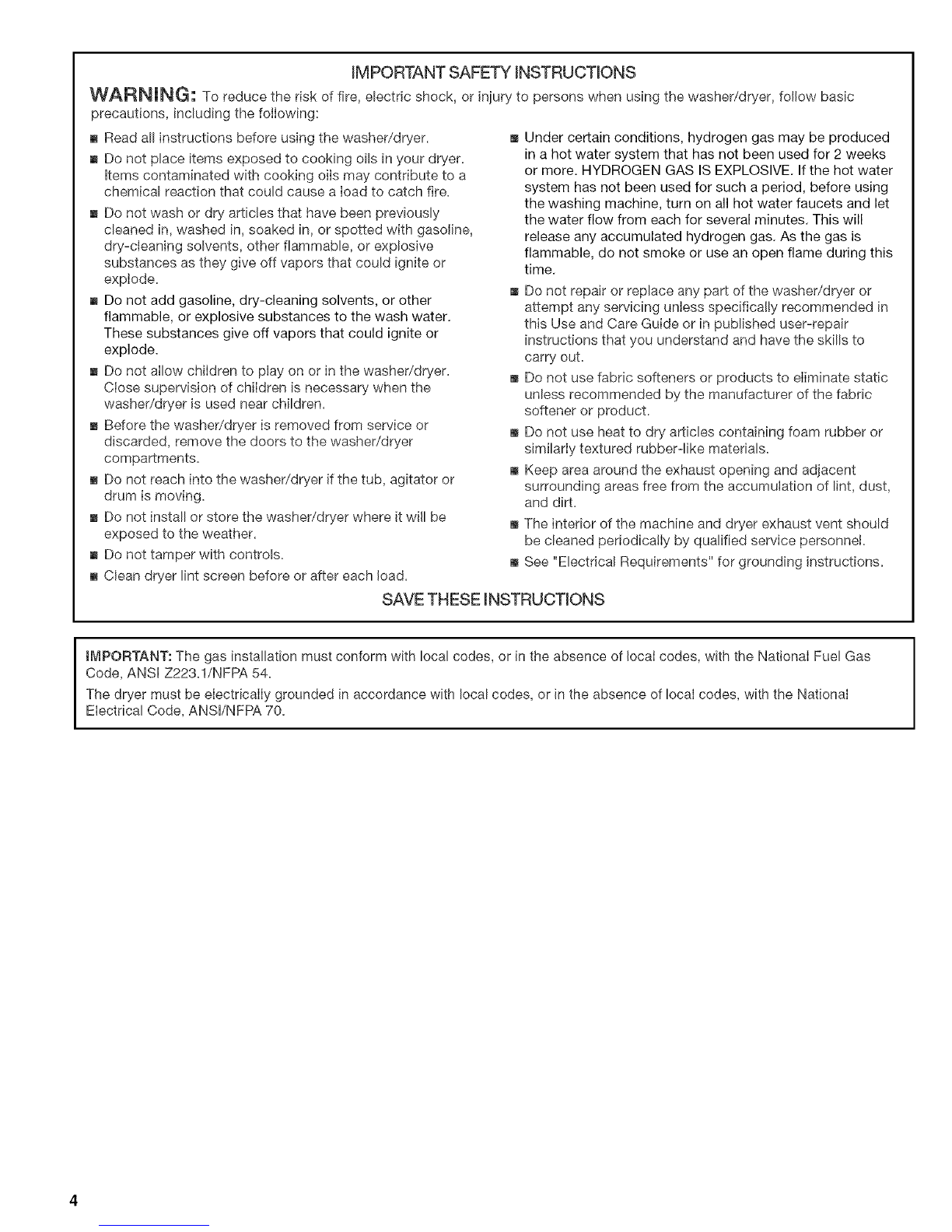

iMPORTANT SAFETY iNSTRUCTiONS

WARNUNG: To reduce the risk of fire, electric shock, or injury to persons when using the washer/dryer, follow basic

precautions, including the foilowing:

Read all instructions before using the washer/dryer.

Do not place items exposed to cooking oils in your dryer.

Htems contaminated with cooking oils may contribute to a

chemical reaction that could cause a Ioad to catch fire.

Do not wash or dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, other flammable, or explosive

substances as they give off vapors that could ignite or

exptode.

Do not add gasoline, dry-cleaning solvents, or other

flammable, or explosive substances to the wash water.

These substances give off vapors that could ignite or

explode.

Do not allow children to piay on or in the washer/dryer.

Close supervision of children is necessary when the

washer/dryer is used near children.

Before the washer/dryer is removed from service or

discarded, remove the doors to the washer/dryer

compartments.

Do not reach into the washer/dryer if the tub, agitator or

drum is moving.

Do not install or store the washer/dryer where it will be

exposed to the weather.

Do not tamper with controls.

Clean dryer lint screen before or after each load.

Under certain conditions, hydrogen gas may be produced

in a hot water system that has not been used for 2 weeks

or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water

system has not been used for such a period, before using

the washing machine, turn on all hot water faucets and let

the water flow from each for several minutes. This will

release any accumulated hydrogen gas. As the gas is

flammable, do not smoke or use an open flame during this

time.

Do not repair or replace any part of the washer/dryer or

attempt any servicing unless specifically recommended in

this Use and Care Guide or in published user-repair

instructions that you understand and have the skills to

carry out.

Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric

softener or product.

Do not use heat to dry articles containing foam rubber or

similarIy textured rubber-like materials.

Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust,

and dirt.

The interior of the machine and dryer exhaust vent should

be cleaned periodically by qualified service personnel.

See "Electrical Requirements" for grounding instructions.

SAVE THESE iNSTRUCTiONS

IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas

Code, ANSH Z223,1/NFPA 54,

The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the Nationai

Electrical Code, ANSH/NFPA 70,

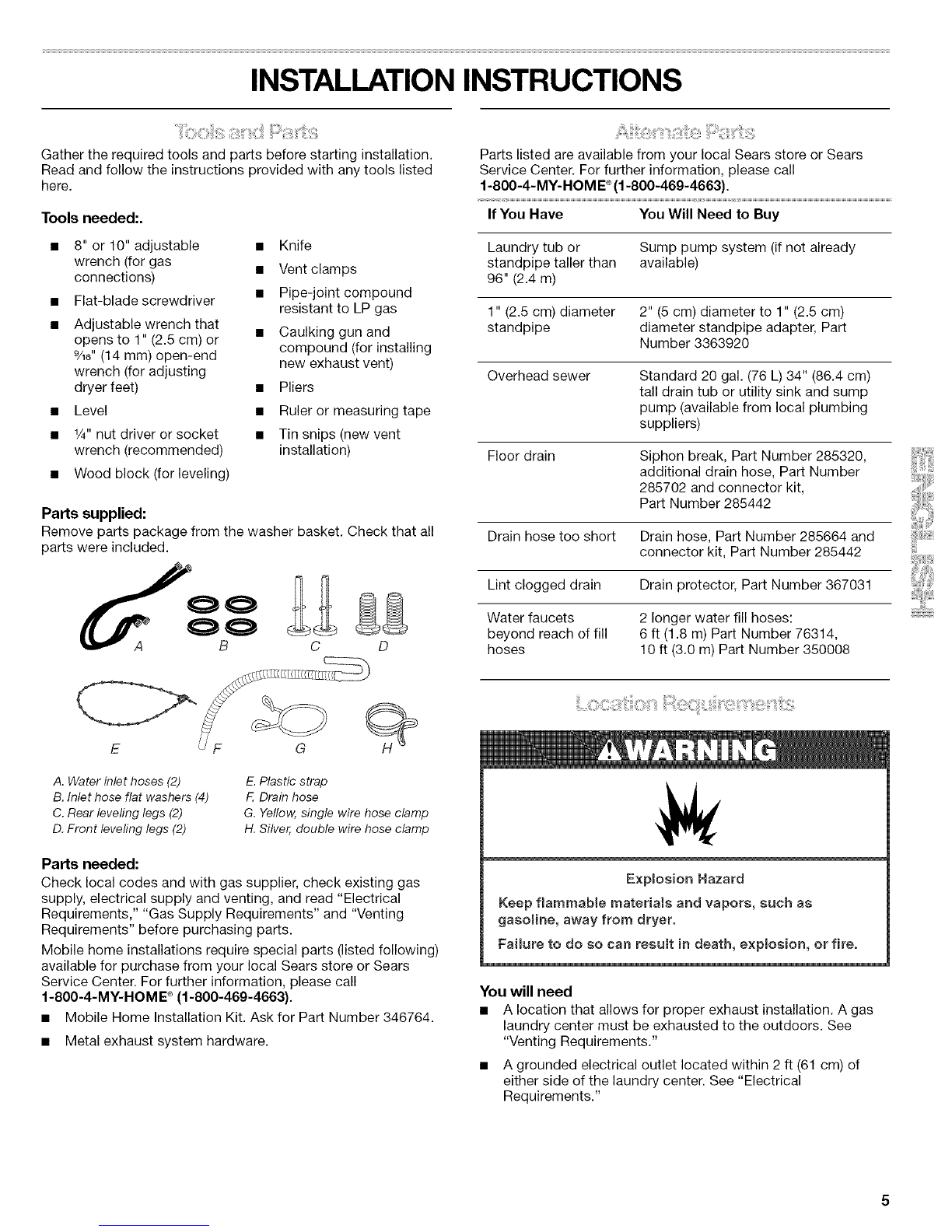

INSTALLATION INSTRUCTIONS

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools needed:.

8" or 10" adjustable • Knife

wrench (for gas

connections) • Vent clamps

Flat-blade screwdriver • Pipe-joint compound

resistant to LP gas

Adjustable wrench that

opens to 1" (2.5 cm) or • Caulking gun and

9/16"(14 mm) open-end compound (for installing

wrench (for adjusting new exhaust vent)

dryer feet) • Pliers

Level • Ruler or measuring tape

1A"nut driver or socket • Tin snips (new vent

wrench (recommended) installation)

• Wood block (for leveling)

Parts supplied:

Remove parts package from the washer basket. Check that all

parts were included.

C D

Parts listed are available from your local Sears store or Sears

Service Center. For further information, please call

1-800-4-MY-HOME® (1-800-469-4663)

If You Have You Will Need to Buy

Laundry tub or Sump pump system (if not already

standpipe taller than available)

96" (2.4 m)

1" (2.5 cm) diameter 2" (5 cm) diameter to 1" (2.5 cm)

standpipe diameter standpipe adapter, Part

Number 3363920

Overhead sewer Standard 20 gal. (76 L) 34" (86.4 cm)

tall drain tub or utility sink and sump

pump (available from local plumbing

suppliers)

Floor drain Siphon break, Part Number 285320,

additional drain hose, Part Number

285702 and connector kit,

Part Number 285442

Drain hose too short Drain hose, Part Number 285664 and

connector kit, Part Number 285442

Lint clogged drain Drain protector, Part Number 367031

Water faucets 2 longer water fill hoses:

beyond reach of fill 6 ft (1.8 m) Part Number 76314,

hoses 10 ft (3.0 m) Part Number 350008

F G

A. Water inlet hoses (2)

B. Inlet hose flat washers (4)

C. Rear leveling legs (2)

D. Front leveling legs (2)

E. Plastic strap

F. Drain hose

G. Yellow, single wire hose clamp

H. Silver, double wire hose clamp

Parts needed:

Check local codes and with gas supplier, check existing gas

supply, electrical supply and venting, and read "Electrical

Requirements," "Gas Supply Requirements" and "Venting

Requirements" before purchasing parts.

Mobile home installations require special parts (listed following)

available for purchase from your local Sears store or Sears

Service Center. For further information, please call

1-800-4-MY-HOME ®(1-800-469-4663).

• Mobile Home Installation Kit. Ask for Part Number 346764.

• Metal exhaust system hardware.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from dryer.

Failure to do so can result in death, explosion, or fire.

You will need

• A location that allows for proper exhaust installation. A gas

laundry center must be exhausted to the outdoors. See

"Venting Requirements."

• A grounded electrical outlet located within 2ft (61 cm) of

either side of the laundry center. See "Electrical

Requirements."

• Asturdyfloortosupportthelaundrycenterweight(laundry

center,waterandload)of500Ibs(226.8kg).

Alevelfloorwithamaximumslopeof1"(2.5cm)underentire

laundrycenter.Clothesmaynottumbleproperlyand

automaticsensorcyclesmaynotoperatecorrectlyiflaundry

centerisnotlevel.Installingoncarpetisnotrecommended.

• Awaterheatersettodeliver120°F(49°C)watertothe

washer.

• Hotandcoldwaterfaucetslocatedwithin4ft(1.2m)of

thehotandcoldwaterfillvalves,andwaterpressureof

5-100psi(34.5-689.6kPa).

Thelaundrycentermustnotbeinstalledorstoredinanarea

whereitwillbeexposedtowaterand/orweather.

Donotoperateyourwasherintemperaturesatorbelow

32°F(0°C).Somewatercanremaininthewasherandcan

causedamageinlowtemperatures.See"Vacation,Storage,and

MovingCare"forwinterizinginformation.

Donotoperateyourdryerattemperaturesbelow45°F(7°C).At

lowertemperatures,thedryermightnotshutoffattheendofan

automaticcycle.Thiscanresultinlongerdryingtimes.

Checkcoderequirements.Somecodeslimit,ordonotpermit,

installationofthelaundrycenteringarages,closets,mobile

homes,orsleepingquarters.Contactyourlocalbuilding

inspector.

NOTE:Nootherfuel-burningappliancecanbeinstalledinthe

sameclosetasadryer.

Installation Clearances

The location must be large enough to allow the dryer door to

open fully.

Laundry Center Dimensions

15%"

(39.05 cm)

71:¼"

(182.25 cm)

*Most installations require a minimum 51/2'' (14 cm) clearance

behind the dryer for the exhaust vent with elbow. See "Venting

Requirements."

Minimum installation spacing for recessed area or closet

installation

The following dimensions shown are for the minimum spacings

allowed.

• Additional spacing should be considered for ease of

installation and servicing.

• Additional clearances might be required for wall, door and

floor moldings.

For closet installation, with a door, minimum ventilation

openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are

acceptable.

• Rear clearance may be 1" (2.5 cm) when house exhaust

system is lined up directly with dryer exhaust.

1" --€*1_- 23Y,,6L_÷1" _ 1" _ 27/_"e_-

2,6 cm 60,64cm 2,6 cm 2,6 cm 66,22cm

A B

JL. 1" ,_

4, (2.6_m)--- 3" (7.6cm)

48i_.2 -

(166cm_) -- _' (7,6cm)

61,,' /

(14ore} C

A. Recessed area

B. Side view -closet or confined area

C. Closet door with vents

Mobile Home -Additional Installation Requirements

This laundry center is suitable for mobile home installations.

The installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR,

Part 3280 (formerly the Federal Standard for Mobile Home

Construction and Safety, Title 24, HUD Part 280).

Mobile home installations require:

• Metal exhaust system hardware which is available for

purchase from your local Sears store or Sears Service Center.

• Mobile Home Installation Kit Part Number 346764. See "Tools

and Parts" section for ordering information.

Special provisions must be made in mobile homes to

introduce outside air into the dryer. The opening (such as a

nearby window) should be at least twice as large as the dryer

exhaust opening.

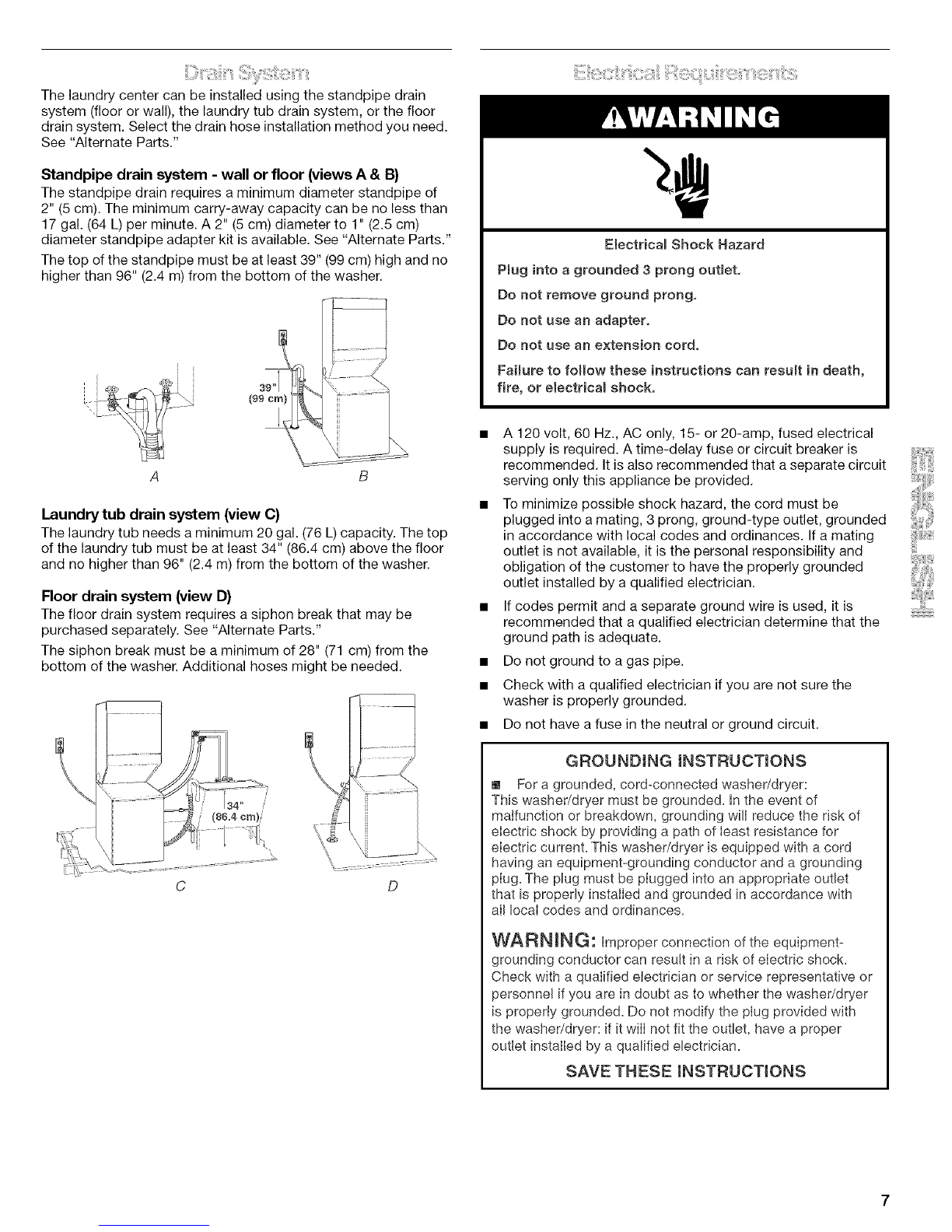

Thelaundrycentercanbeinstalledusingthestandpipedrain

system(floororwall),thelaundrytubdrainsystem,orthefloor

drainsystem.Selectthedrainhoseinstallationmethodyouneed.

See"AlternateParts."

Standpipe drain system - wall or floor (views A & 13}

The standpipe drain requires a minimum diameter standpipe of

2" (5 cm). The minimum carry-away capacity can be no less than

17 gal. (64 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm)

diameter standpipe adapter kit is available. See "Alternate Parts."

The top of the standpipe must be at least 39" (99 cm) high and no

higher than 96" (2.4 m) from the bottom of the washer.

A B

Laundry tub drain system (view C)

The laundry tub needs a minimum 20 gal. (76 L) capacity. The top

of the laundry tub must be at least 34" (86.4 cm) above the floor

and no higher than 96" (2.4 m) from the bottom of the washer.

Floor drain system (view D)

The floor drain system requires a siphon break that may be

purchased separately. See "Alternate Parts."

The siphon break must be a minimum of 28" (71 cm) from the

bottom of the washer. Additional hoses might be needed.

Electricam Shock Hazard

Pmug into a grounded 3prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Faimure to follow these instructions can reeuR in death,

fire, or electricam shock,

A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is also recommended that a separate circuit

serving only this appliance be provided.

To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, ground-type outlet, grounded

in accordance with local codes and ordinances. If a mating

outlet is not available, it is the personal responsibility and

obligation of the customer to have the properly grounded

outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the

washer is properly grounded.

• Do not have a fuse in the neutral or ground circuit.

GROUNDING mNSTRUCTIONS

[] For a grounded, cord-connected washer/dryer:

This washer/dryer must be grounded. In the event of

malfunction or breakdown, grounding will reduce the risk of

electric shock by providing a path of least resistance for

electric current. This washer/dryer is equipped with a cord

having an equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appropriate outlet

that is properly installed and grounded in accordance with

alI local codes and ordinances.

WARNING: improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a quaiified electrician or service representative or

personnel if you are in doubt as to whether the washer/dryer

is properly grounded. Do not modify the plug provided with

the washer/dryer: if it wiII not fit the outlet, have a proper

outlet instailed by a qualified electrician.

SAVE THESE iNSTRUCTiONS

• Must include a shutoff valve:

An individual shutoff valve must be installed within six (6) feet

(1.8 m) of the laundry center in accordance with the National

Fuel Gas Code, ANSI Z223.1. The location should be easy to

reach for opening and closing.

Expmosion Hazard

Use a new CSA Internationam approved gas suppmy line.

_nstaH a shut-off valve.

Securemy tighten aH gas connections.

_fconnected to LP, have a quaBified person make sure

gas pressure does not exceed 13" (33 cm) water

column.

Exampmes of a qualified person incmude:

miceneed heating personneB,

authorized gas company personnel and

authorized service personnel

Faimureto do so can resumt in death, explosion, or fire.

Gas type

IMPORTANT: The gas installation must conform with local

codes, or in the absence of local codes, with the National Fuel

Gas Code, ANSI Z223.1/NFPA 54.

Natural Gas:

This laundry center is equipped for use with Natural gas. It is

design-certified by CSA International for LP (propane or butane)

gases with appropriate conversion.

• Your laundry center must have the correct burner for the type

of gas in your home. Burner information is located on the

rating plate in the door well of your dryer. If this information

does not agree with the type of gas available, contact your

local Sears store or Sears Service Center.

LP gas conversion:

Conversion must be made by a qualified technician.

No attempt shall be made to convert the appliance from the gas

specified on the model/serial rating plate for use with a different

gas without consulting your gas company.

Gas supply line

• r/2" IPS pipe is recommended.

• %" approved tubing is acceptable for lengths under

20 ft (6.1 m) if local codes and gas supplier permit.

• Lengths over 20 ft (6.1 m) should use larger tubing.

• Must include 1/8"NPT minimum plugged tapping accessible

for test gauge connection, immediately upstream of the gas

supply connection to the dryer (see illustration).

• Gas supply line coupling must be 34" (86.4 cm) to 37" (94 cm)

from the floor.

................................A

............................S

..................................C

A. Gas shutoff valve

B. Vs"NPT minimum plugged tapping

C. Y/' NPT gas supply line

D. Gas supply line coupling 34" (86.4 cm) min.

to 37" (94 cm) max. from floor

• If you are using Natural gas, do not use copper tubing.

• If your laundry center has been converted to use LP gas,

%" LP compatible copper tubing can be used. If the total

length of the supply line is more than 20 ft (6.1 m), use larger

tubing.

• Pipe joint compounds that resist the action of LP gas must be

used. Do not use TEFLON °t tape.

Dryer gas connection

• This laundry center is equipped with its own permanent,

flexible gas connector, design-certified by CSA International,

for connecting the laundry center to the gas supply line.

FlexiMe gas connector

Burner input requirements

Elevations up to 10,000 ft (3,048 meters):

• The design of this laundry center is certified by CSA

International for use at altitudes up to 10,000 ft (3,048 m)

above sea level at the B.T.U. rating indicated on the model/

serial number plate. Burner input adjustments are not

required when the dryer is operated up to this elevation.

Elevations above 10,000 ft (3,048 meters):

• When installed above 10,000 ft (3,048 m) a 4% reduction of

the burner B.T.U. rating shown on the model/serial number

plate is required for each 1,000 ft (305 m) increase in

elevation.

1-®TEFLON is a registered trademark of E.I. Du Pont De Nemours and Company.

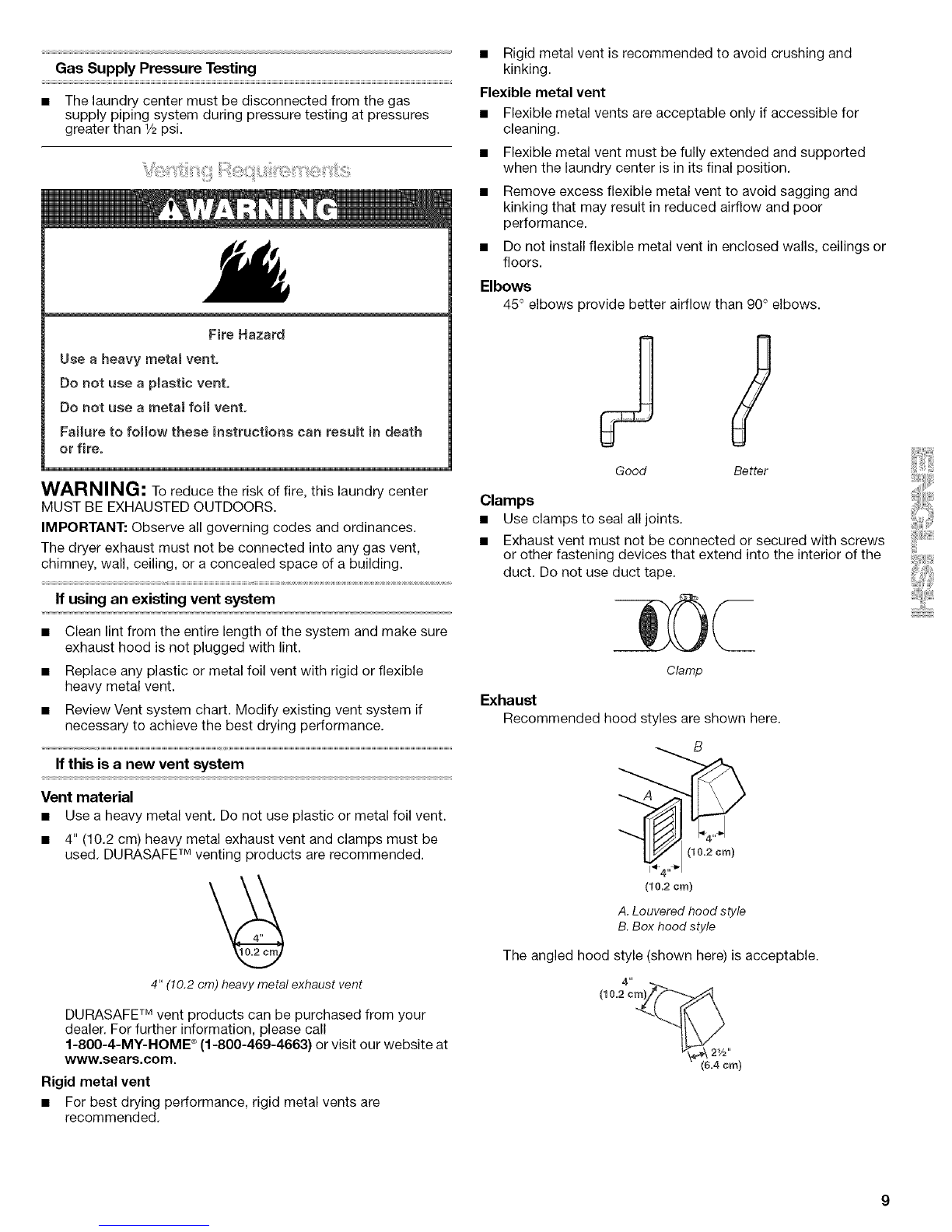

Gas Supply Pressure Testing

• The laundry center must be disconnected from the gas

supply piping system during pressure testing at pressures

greater than 1/2psi.

Fire Hazard

Use a heavy meta_ vent.

Do not use a ptastic vent.

Do not use a meta_ foi_ vent.

Failure to follow these instructions can result in death

or fire.

WARNING; To reduce the risk of fire, this laundry center

MUST BE EXHAUSTED OUTDOORS.

IMPORTANT: Observe all governing codes and ordinances.

The dryer exhaust must not be connected into any gas vent,

chimney, wall, ceiling, or a concealed space of a building.

If using an existing vent system

• Clean lint from the entire length of the system and make sure

exhaust hood is not plugged with lint.

• Replace any plastic or metal foil vent with rigid or flexible

heavy metal vent.

• Review Vent system chart. Modify existing vent system if

necessary to achieve the best drying performance.

If this is a new vent system

Vent material

• Use a heavy metal vent. Do not use plastic or metal foil vent.

• 4" (10.2 cm) heavy metal exhaust vent and clamps must be

used. DURASAFE TMventing products are recommended.

4" (10.2cm)heavy metal exhaust vent

DURASAFE vent products can be purchased from your

dealer. For further information, please call

1-800-4-MY-HOME ®(1-800-469-4663} or visit our website at

www.sears.com.

Rigid metal vent

• For best drying performance, rigid metal vents are

recommended.

• Rigid metal vent is recommended to avoid crushing and

kinking.

Flexible metal vent

• Flexible metal vents are acceptable only if accessible for

cleaning.

• Flexible metal vent must be fully extended and supported

when the laundry center is in its final position.

• Remove excess flexible metal vent to avoid sagging and

kinking that may result in reduced airflow and poor

performance.

• Do not install flexible metal vent in enclosed walls, ceilings or

floors.

Elbows

45° elbows provide better airflow than 90° elbows.

Good Better

Clamps

• Use clamps to seal all joints.

• Exhaust vent must not be connected or secured with screws

or other fastening devices that extend into the interior of the

duct. Do not use duct tape.

Clamp

Exhaust

Recommended hood styles are shown here.

(10.2 cm)

A. Louvered hood style

B. Box hood style

The angled hood style (shown here) is acceptable.

(10.2 c_(f"_

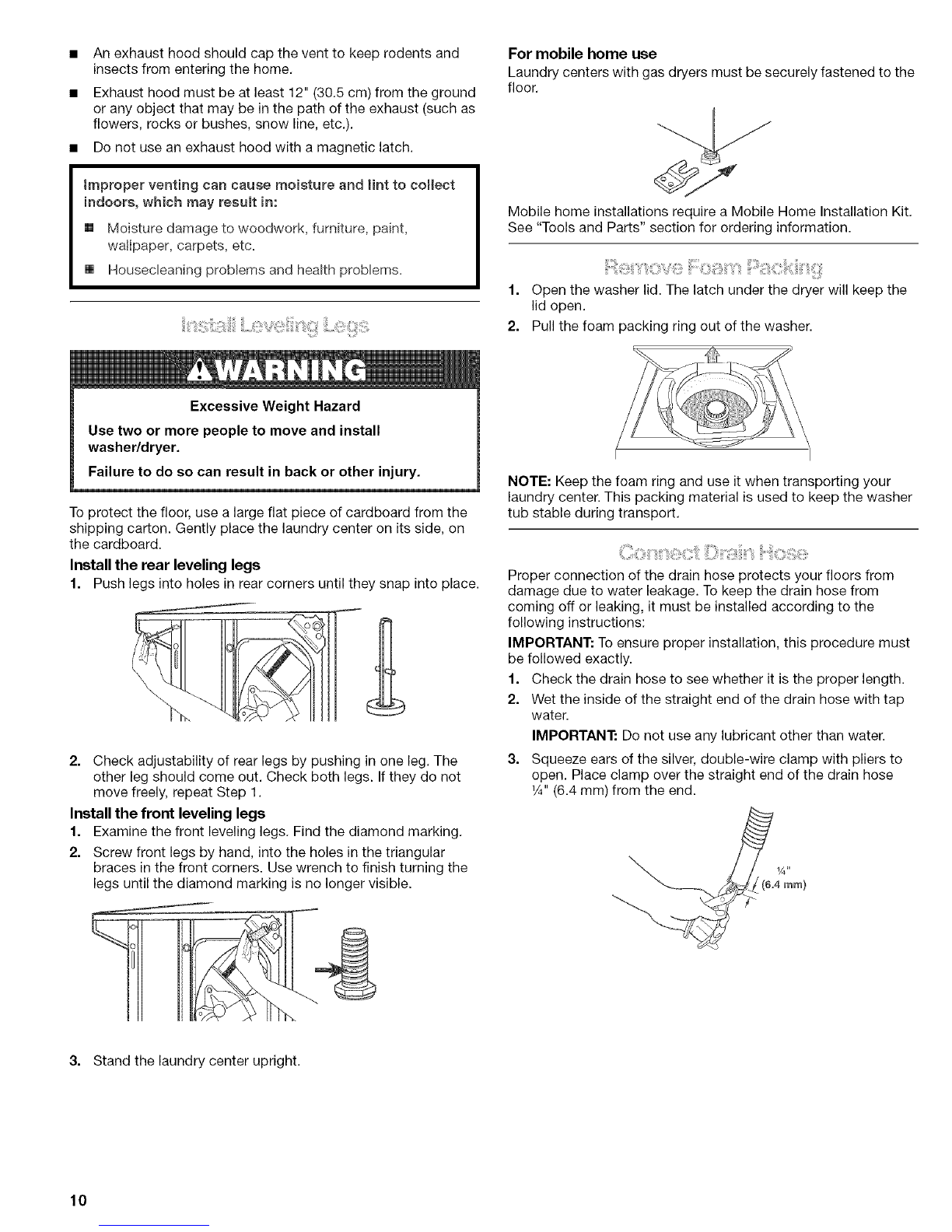

An exhaust hood should cap the vent to keep rodents and

insects from entering the home.

Exhaust hood must be at least 12" (30.5 cm) from the ground

or any object that may be in the path of the exhaust (such as

flowers, rocks or bushes, snow line, etc.).

• Do not use an exhaust hood with a magnetic latch.

improper venting can cause moisture and lint to coUect

indoors, which may result in:

[] Moisture damage to woodwork, furniture, paint,

wallpaper, carpets, etc=

[] Housecleaning problems and health problems.

For mobile home use

Laundry centers with gas dryers must be securely fastened to the

floor.

Mobile home installations require a Mobile Home Installation Kit.

See "Tools and Parts" section for ordering information.

1. Open the washer lid. The latch under the dryer will keep the

lid open.

2. Pull the foam packing ring out of the washer.

Excessive Weight Hazard

Use two or more people to move and install

washer/dryer.

Failure to do so can result in back or other injury.

To protect the floor, use a large flat piece of cardboard from the

shipping carton. Gently place the laundry center on its side, on

the cardboard.

Install the rear leveling legs

1. Push legs into holes in rear corners until they snap into place.

2. Check adjustability of rear legs by pushing in one leg. The

other leg should come out. Check both legs. If they do not

move freely, repeat Step 1.

Install the front leveling legs

1. Examine the front leveling legs. Find the diamond marking.

2. Screw front legs by hand, into the holes in the triangular

braces in the front corners. Use wrench to finish turning the

legs until the diamond marking is no longer visible.

NOTE: Keep the foam ring and use it when transporting your

laundry center. This packing material is used to keep the washer

tub stable during transport.

Proper connection of the drain hose protects your floors from

damage due to water leakage. To keep the drain hose from

coming off or leaking, it must be installed according to the

following instructions:

IMPORTANT: To ensure proper installation, this procedure must

be followed exactly.

1. Check the drain hose to see whether it is the proper length.

2. Wet the inside of the straight end of the drain hose with tap

water.

IMPORTANT: Do not use any lubricant other than water.

3. Squeeze ears of the silver, double-wire clamp with pliers to

open. Place clamp over the straight end of the drain hose

1A"(6.4 mm) from the end.

3. Stand the laundry center upright.

Inhaltsverzeichnis

Sprachen:

Andere Kenmore Waschmaschine Trockner Handbücher

Kenmore

Kenmore 417.6173 Series Bedienungsanleitung

Kenmore

Kenmore Laundry Tower Bedienungsanleitung

Kenmore

Kenmore 27" (69 cm) Wide LAUNDRY CENTER Washer - Electric Dryer P/N... Bedienungsanleitung

Kenmore

Kenmore 41797962702 Bedienungsanleitung

Kenmore

Kenmore 110.80754 Bedienungsanleitung

Kenmore

Kenmore 24-Inch Wide/120-Volt LAUNDRY CENTER and Betriebsanleitung

Kenmore

Kenmore 9791 - 27 in. Laundry Center Bedienungsanleitung

Kenmore

Kenmore 417.93702201 Handbuch

Kenmore

Kenmore 24-inch wide laundry center washer-gas dryer Bedienungsanleitung

Kenmore

Kenmore 110.C94762 Bedienungsanleitung

Kenmore

Kenmore 27" (69 cm) Bedienungsanleitung

Kenmore

Kenmore Kenmore 27-1nch Wide - Extra Large Capacity Plus LAUNDRY CENTER Washer - Electric... Bedienungsanleitung

Kenmore

Kenmore Kenmore 27" Wide LAUNDRY CENTER Washer -... Bedienungsanleitung

Kenmore

Kenmore 417.91122310 Betriebsanleitung

Kenmore

Kenmore 11092976101 Bedienungsanleitung

Kenmore

Kenmore SEARS 91801191901 Bedienungsanleitung

Kenmore

Kenmore Washer/dryer 240 Volts Bedienungsanleitung

Kenmore

Kenmore 9875 - 24 in. Laundry Center Betriebsanleitung

Kenmore

Kenmore Extra Large Capacity Plus LAUNDRY CENTER Bedienungsanleitung

Kenmore

Kenmore 8075 - 24 in. Laundry Center Bedienungsanleitung

Kenmore

Kenmore 11084764301 Bedienungsanleitung

Kenmore

Kenmore 24-inch wide laundry center washer-gas dryer Bedienungsanleitung

Kenmore

Kenmore 417-6171 Series Bedienungsanleitung

Kenmore

Kenmore 8875 - 24 in. Laundry Center Betriebsanleitung

Beliebte Waschmaschine Trockner Handbücher anderer Marken

Whirlpool

Whirlpool WFC8090GX Bedienungsanleitung

Whirlpool

Whirlpool LTE5243DQ6 Bedienungsanleitung

Bosch

Bosch XQG100-WDU285H00W Bedienungsanleitung

montpellier

montpellier MWD7512S Bedienungsanleitung

LG FHD0905 T Series Bedienungsanleitung

Midea

Midea MF200D85B Bedienungsanleitung

Maytag

Maytag MGT3800XW Bedienungsanleitung

Siemens

Siemens WD15G440TR Technisches Datenblatt

Equator

Equator Clothes Processor EZ1500 Bedienungsanleitung

Splendide

Splendide WDC7100XCP Bedienungsanleitung

John Lewis

John Lewis JLWD 1408 Bedienungsanleitung

Ariston

Ariston A1200WD Bedienungsanleitung

Whirlpool

Whirlpool YLTE5243DQ5 Bedienungsanleitung

Whirlpool

Whirlpool WFCR 75230 Installationsanleitung

ATT

ATT Hammer Jet v1 Bedienungsanleitung

AEG

AEG LAVAMAT 63742 VI Bedienungsanleitung

Electrolux

Electrolux EWW8024P5WB Bedienungsanleitung

GE GTD42EASJWH Bedienungsanleitung
