Kensington SD4849Pv Bedienungsanleitung

SD4849Pv USB-C 10Gbps Triple Video Driverless Docking Station - 100W PD - DP++/HDMI/VGA - Windows

Register your dock at kensington.com/register

2

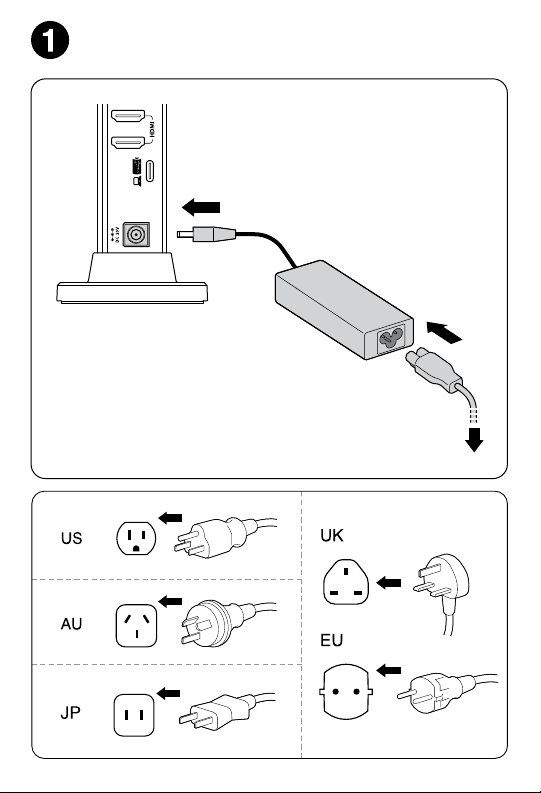

1. Connect the power adapter.

1a. Connect the included AC adapter to the back of the dock.

1b. Connect the power cable to the adapter.

1c. Plug the power cable into a wall outlet.

3

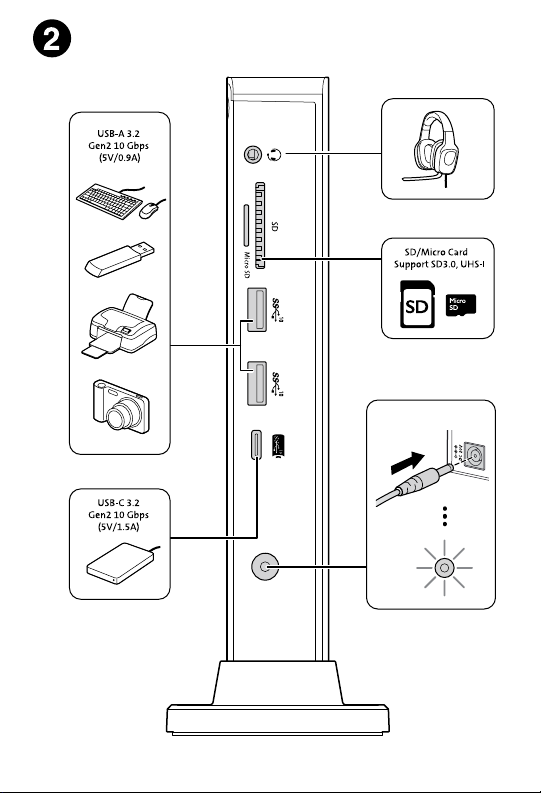

2a. The front of the dock (vertical orientation from top to bottom).

2a1. Headphone jack.

2a2. SD and Micro SD UHS-I 3.0 card readers.

2a3. Two USB-A 3.2 Gen2 / 10 Gbps (5V/0.9A) ports for connecting accessories such as keyboards, mice, USB drives,

cameras, and printers.

2a4. One USB-C 3.2 Gen2 port (up to 5V/1.5A/10Gbps) for connecting devices such as external hard drives.

2a5. Power indicator light.

4

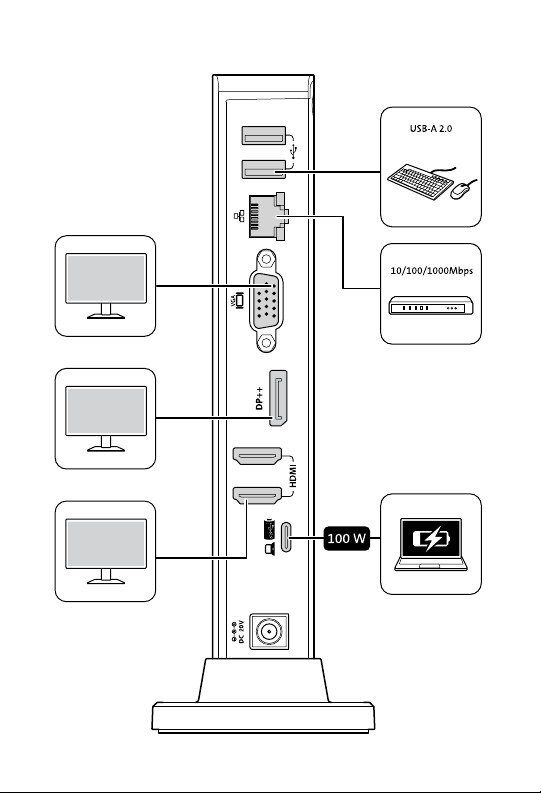

2b. The back of the dock (from top to bottom).

2b1. Two USB-A 2.0 ports for connecting accessories such as keyboards and mice.

2b2. Ethernet port (10/100/1000Mbps).

2b3. One VGA port to support legacy monitors.

2b4. One DP1.4++ port.

2b5. Two HDMI 2.0 ports.

2b6. USB-C PD 3.0 port (100W of laptop charging).

2b7. Power adapter jack.

5

3. Connect one end of the included USB-C cable to the USB-C PD 3.0 port on the back of the dock.

4. Connect the other end of the USB-C cable to a USB-C port on the laptop. This will provide 100W of laptop charging when the dock is plugged in.

6

5. Video specs.

5a. With one monitor.

DP1.2 HDMI/DP++: 3840 x 2160 @ 30Hz.

DP1.4 (DSC ON) HDMI/DP++: 3840 x 2160 @ 60Hz.

VGA: 1080p @ 60Hz.

5b. With two monitors.

DP1.2 HDMI (x2)/DP++ and HDMI/HDMI and VGA: 1080p @60Hz.

DP1.4 (DSC ON) HDMI (x2)/DP++ and HDMI: 3840 x 2160 @ 60Hz.

DP1.4 (DSC ON) HDMI and VGA: 3840 x 2160 @ 60Hz. (for HDMI), 1080p @60Hz. (for VGA).

7

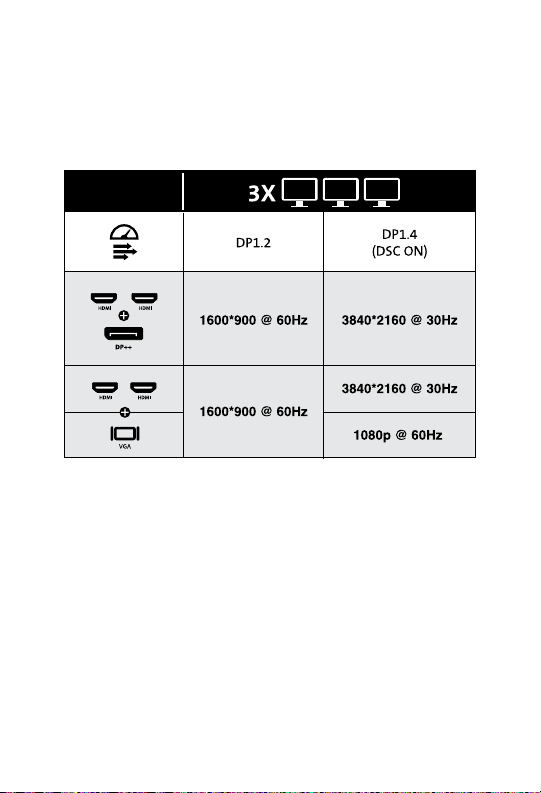

5c. With three monitors.

DP 1.2 HDMI (x2) and DP++/HDMI (x2) and VGA: 1600 x 900 @ 60Hz.

DP1.4 (DSC ON) HDMI (x2) and DP++: 3840 x 2160 @ 30Hz.

DP1.4 (DSC ON) HDMI (x2) and VGA: 3840 x 2160 @ 30Hz. (for HDMI), 1080p @60Hz. (for VGA).

For support, visit kensington.com/support.
