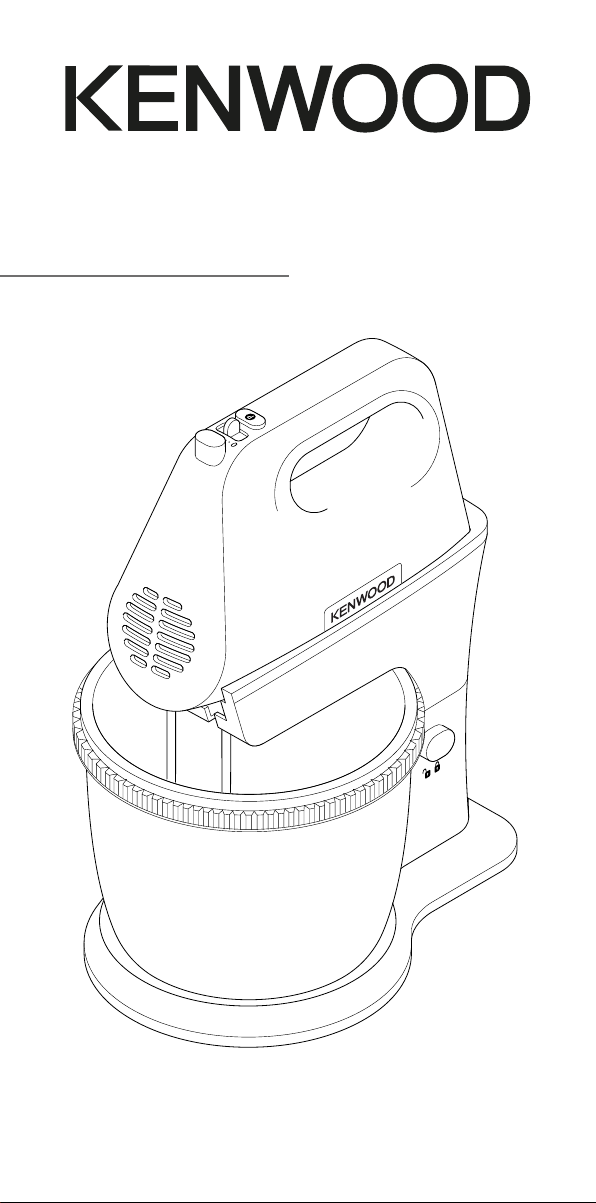

Kenwood HMP34 Bedienungsanleitung

instructions

TYPE HMP32

TYPE HMP34

English 2 - 8

´¸∂w

١٤ - ٩

5 6

A B

C D

E F

G H

Safety

lRead these instructions carefully and

retain for future reference.

lRemove all packaging and any labels.

lIf the plug or cord is damaged it

must, for safety reasons, be replaced

by Kenwood or an authorised

Kenwood repairer in order to avoid a

hazard.

lDO NOT process hot ingredients.

lDo not operate your appliance for

longer than the times specified

below without a rest period.

Processing continuously for longer

periods can damage your appliance.

Function/

Attachment

Maximum

Operation

Time

Rest Period

Between

Operations

Beaters 6 mins Unplug the

appliance

and allow

to cool

down for

15 minutes

Kneaders

Heavy cake

mixes

Bread

doughs

3 mins

lNever put the handmixer body in

water or let the cord or plug get wet.

lKeep fingers, hair, clothing and

utensils away from moving parts.

lNever let the cord touch hot surfaces

or hang down where a child could

grab it.

lNever use a damaged handmixer. Get

it checked or repaired: see ‘Service

and Customer Care’.

English

3 4

Never use an unauthorised attachment.

lAlways switch off the appliance

and disconnect from the power

supply, if it is left unattended,

before assembling, disassembling or

cleaning.

lAppliances can be used by persons

with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if they

have been given supervision or

instruction concerning use of the

appliance in a safe way and if they

understand the hazards involved.

lMisuse of your appliance can result in

injury.

lThe rated power is based on

the chopper attachment. Other

attachments may draw less power.

lChildren should be supervised to

ensure that they do not play with the

appliance.

lThis appliance shall not be used by

children. Keep the appliance and its

cord out of reach of children.

lOnly use the appliance for its

intended domestic use. Kenwood

will not accept any liability if the

appliance is subject to improper

use, or failure to comply with these

instructions.

Care and Cleaning

lAlways switch off, unplug and

remove the beaters or kneaders

before cleaning.

lNever put the handmixer body in

water or let the cord or plug get wet.

lNever use abrasives to clean parts.

3 4

Metal Bowl (TYPE HMP34 only)

lNever use a wire brush, steel wool

or bleach to clean your stainless

steel bowl. Use vinegar to remove

limescale. Keep away from heat

(cooker tops, ovens, microwaves).

Before plugging in

lMake sure your electricity supply is the same as the one shown

on the rear of your Handmixer.

Important – Plug and Fuse Information

l The wires in the cord are coloured as follows:

Blue = Neutral

Brown = Live.

l If the plug supplied with your appliance has a fuse fitted it is

rated 3A. If the fuse fails it must be replaced with one of the

same rating.

Note:

l For non-rewireable plugs the fuse cover MUST be refitted

when replacing the fuse. If the fuse cover is lost then the plug

must not be used until a replacement can be obtained. The

correct fuse cover is identified by colour and a replacement

may be obtained from your Kenwood Authorised Repairer (see

Service).

l If a non-rewireable plug is cut off it must be DESTROYED

IMMEDIATELY. An electric shock hazard may arise if an

unwanted non-rewireable plug is inadvertently inserted into a

13A socket outlet.

l This appliance conforms to EC Regulation 1935/2004 on

materials and articles intended to come into contact with food.

Before using your Handmixer

for the first time

lWash the parts (see

‘Cleaning’).

Key

Tool release button

Speed selector

(P) Pulse button

Mixer

Beater

Beater with gear

Kneader

Kneader with gear

Mixing bowl

Cradle

Mixer release button

Cradle release button

Stand

5 6

To Use your

Handmixer

Refer to illustration

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

Fitting the beaters/kneaders

Insert the beater/kneader with

the plastic gear in the

socket.

Setting Up the Bowl

& Stand

Refer to illustration

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

–

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

1 Fit the beaters/kneaders to

the Handmixer.

2 Hold the front of the cradle

and raise by pressing the

cradle release button.

3 Place the bowl onto the stand.

4 Fit the mixer to the cradle and

push down to secure.

Note: Check that the beater/

kneader with the plastic gear

aligns with the drive gear on

the cradle.

5 Lower the cradle by holding

the Handmixer handle whilst

pressing the cradle release

button at the same time.

6 Plug in and select a speed

(Refer to the recommend

usage chart)

After Use

Refer to illustration

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

–

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z

1 Switch the speed selector to

the ‘O’ OFF position.

2 Hold by the handle and lift

up the cradle by pressing the

cradle release button.

3 Remove the mixer from the

cradle by pressing the mixer

release button and lifting off.

4 Remove the beaters/kneaders

– hold by the shafts and press

the tool release button.

Note: they can only be

removed when the mixer is

released from the cradle and

the speed selector is in the ‘O’

OFF position.

Hints and Tips

lAs the mixture thickens, increase the speed.

lIf the machine starts to slow or labour, increase the speed.

lPress the ‘P‘ pulse button to operate the motor at maximum

speed. The motor will operate for as long as the pulse is held in

position. Note: the ‘P’ pulse button will only operate if a speed

is selected first.

lScrape down the sides and bottom of the bowl at regular

intervals to assist the mixing operation’

lWhen creaming for cake mixtures, use butter or margarine at

room temperature or soften before use.

lFor best results with small quantities, use the handmixer without

the stand.

lLarge quantities and thick mixtures may require a longer mixing

time.

lIf you wish to mix larger quantities or heavier mixes, remove the

mixer from the stand and use a bowl of an appropriate size.

lTo re-knead bread doughs remove the mixer from the stand

and use hand held.

5 6

Recommended Usage Chart

Please note that these are recommendations for using the stand

and supplied mixing bowl. If using the mixer by hand, the speed

you select may depend upon the bowl size (if not using the bowl

supplied), quantities, the ingredients you are mixing and personal

preference.

Gradually increase to the recommended speeds below.

Food type

(Mins)

Beaters

Egg whites 3 - 10 4 – 5 1 - 3

Cream 200 - 500 ml 1 – 5 2 - 3

All-in-one cake mixes 1kg Total weight 1 – 5 1 – 2

Batter 1 litre 5 1

Rubbing fat into flour

Adding water to

combine pastry

ingredients

250g Flour weight

1 – 2

Fruit cake

Creaming fat and sugar

Folding in flour, fruit,

etc.

900g Total

weight 5

1 – 2

3 - 4

Kneaders

Bread

450g Flour weight

750g Total weight

4–5 2 – 3

Optional attachment (not

supplied in pack)

Mini chopper - refer to 'Service

and Customer Care” section to

order.

Service and Customer Care

If you need help with:

lusing your handmixer or

lservicing or repairs (in or out of guarantee)

Zcall Kenwood customer care on 0345 222 0458 or

visit

www.kenwoodworld.com. Have your model number

(e.g. HMP32 or TYPE HM34) and date code (5 digit code e.g.

19C11) ready. They are located on the rear of the power unit.

lspares and attachments

Z call 0844 557 3653.

other countries

lIf you experience any problems with the operation of

your appliance, before requesting assistance refer to the

'Troubleshooting Guide' section in the manual or visit

www.kenwoodworld.com.

lPlease note that your product is covered by a warranty, which

complies with all legal provisions concerning any existing

warranty and consumer rights in the country where the product

was purchased.

lIf your Kenwood product malfunctions or you find any defects,

please send it or bring it to an authorised KENWOOD Service

Centre. To find up to date details of your nearest authorised

KENWOOD Service centre visit www.kenwoodworld.com or the

website specific to your Country.

lDesigned and engineered by Kenwood in the UK.

lMade in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE

ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

At the end of its working life, the product must not be disposed of

as urban waste.

It must be taken to a special local authority differentiated waste

collection centre or to a dealer providing this service.

Guarantee (UK only)

If your handmixer goes wrong

within one year from the date

you bought it, we will repair

or replace it free of charge

provided:

lyou have not misused,

neglected or damaged it;

lit has not been modified

(unless by Kenwood);

lit is not second-hand;

lit has not been used

commercially;

lyou have not fitted a plug

incorrectly; and

lyou supply your receipt to

show when you bought it.

This guarantee does not affect

your statutory rights.

Recipe

White bread dough

10ml/2 tsp dried yeast

(the type that requires

reconstituting)

5ml/1 tsp sugar

250ml warm water

450g bread flour

5ml/1 tsp salt

15g lard

1 Place the dried yeast, with the

sugar and water, in a mixing

bowl and leave to froth. The

correct water temperature

should be 43°C and can be

achieved by mixing one third

boiling water with two thirds

cold water.

2 Add the remaining ingredients.

Fit the kneaders to the

handmixer, then combine

the ingredients together on

a low speed until the flour is

incorporated. Then increase

the speed and knead for

approximately 2-3 minutes,

until the dough is smooth and

elastic. Cover with oiled cling

film and leave the dough to

rise in a warm place for 45-60

minutes.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Kenwood Küchengerät Handbücher

Kenwood

Kenwood Chef and Major KMC010 series Bedienungsanleitung

Kenwood

Kenwood CK 780 Bedienungsanleitung

Kenwood

Kenwood HMP 34.AOWH Bedienungsanleitung

Kenwood

Kenwood Chef KM300 series Montageanleitung

Kenwood

Kenwood KHH30 multizone Bedienungsanleitung

Kenwood

Kenwood HM620 series Bedienungsanleitung

Kenwood

Kenwood AT950A Bedienungsanleitung

Kenwood

Kenwood Cooking Chef XL Davide Oldani Edition... Bedienungsanleitung

Kenwood

Kenwood CookEasy+ CCL50 Bedienungsanleitung

Kenwood

Kenwood CPP40 Bedienungsanleitung

Kenwood

Kenwood MG450 Bedienungsanleitung

Kenwood

Kenwood QuickMix+ HMP50.000BK Bedienungsanleitung

Kenwood

Kenwood DeLonghi Cooking Chef KM070 Betriebsanleitung

Kenwood

Kenwood CH580 series Bedienungsanleitung

Kenwood

Kenwood FP270 series Bedienungsanleitung

Kenwood

Kenwood CHP61 Bedienungsanleitung

Kenwood

Kenwood KHC29.E0WH Bedienungsanleitung

Kenwood

Kenwood KHC29 Bedienungsanleitung

Kenwood

Kenwood KM240 series Bedienungsanleitung

Kenwood

Kenwood Chef XL KVL4100S Bedienungsanleitung

Kenwood

Kenwood JE560 Bedienungsanleitung

Kenwood

Kenwood CK 280 Bedienungsanleitung

Kenwood

Kenwood KXT0010G Bedienungsanleitung

Kenwood

Kenwood KAX970ME Bedienungsanleitung

Beliebte Küchengerät Handbücher anderer Marken

Tayama

Tayama TYG-35AF Bedienungsanleitung

AEG

AEG 43172V-MN Bedienungsanleitung

REBER

REBER Professional 40 Benutzerhandbuch

North American

North American BB12482G / TR-F-04-B-NCT-1 Bedienungsanleitung

Presto

Presto fountain popper Bedienungsanleitung

Westmark

Westmark 1035 2260 Bedienungsanleitung

Zanussi

Zanussi ZCG64396XA Bedienungsanleitung

HOFFEN

HOFFEN SM-9302M Bedienungsanleitung

Philips

Philips HD3133 Bedienungsanleitung

Ronco

Ronco Beef Jerky Bedienungsanleitung

Hendi

Hendi 470411 Bedienungsanleitung

Livoo

Livoo MEN386 Bedienungsanleitung

Vogue

Vogue D446 Bedienungsanleitung

croydon

croydon WR-10313-700 Bedienungsanleitung

ADE

ADE AUTOMATIC-L Bedienungsanleitung

Chefman

Chefman RJ43-SQ Series Bedienungsanleitung

Vacmaster

Vacmaster VP680 Bedienungsanleitung

Jetmaster

Jetmaster 900HG Bedienungsanleitung
