KEPCO PC 15 Bedienungsanleitung
©2018, KEPCO, INC 1
Data subject to change without notice 228-0821 REV 2
INSTRUCTION MANUAL
PC 15
KEPCO
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000FAX (718) 767-1102
http://www.kepcopower.com email: hq@kepcopower.com
An ISO 9001 Company. FOR
BOP 100W,
200W, 400W
REAR PROGRAMMING CONNECTOR
WIRED FOR FRONT PANEL CONTROL
DESCRIPTION: The Kepco Model PC 15 is a 50 terminal connector, equipped with cable shell, cable clamp and lock-
ing screws. The PC-15 is pre-wired to provide the correct termination for local (front panel) control of Kepco BOP
100W, BOP 200W and BOP 400W Models. There are two versions of the PC 15: both serve the same purpose; one
uses connector P/N 195-0039 and the latest version uses connector P/N 195-0121. Refer to Figure 4 for a Mechanical
Outline Drawing.
For 195-0039 (see Figure 1), wires are added directly to the terminals for local control. User-added wires or compo-
nents are connected directly to the terminals.

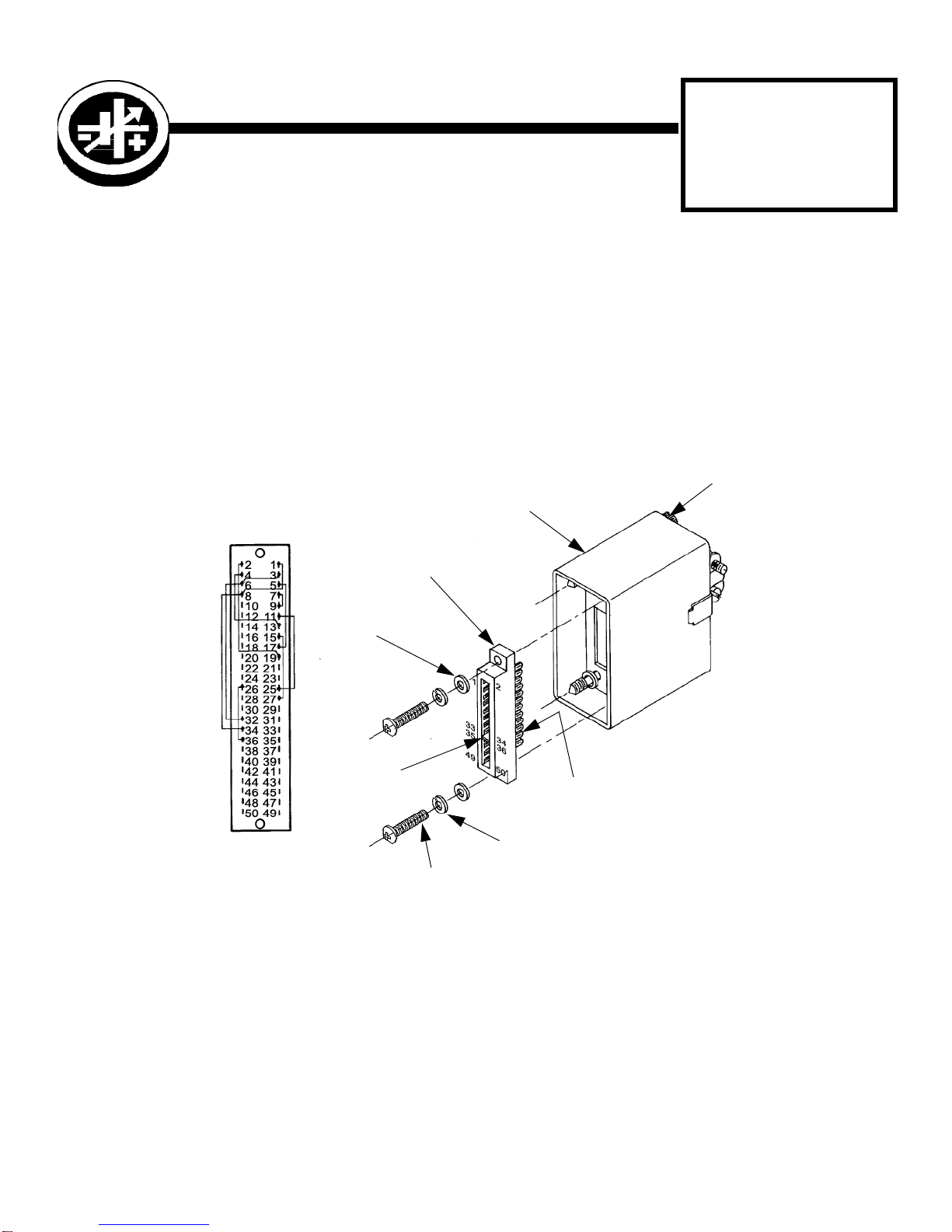

FIGURE 1. PC 15 REAR PROGRAMMING CONNECTOR USING P/N 195-0039.
For P/N 195-0121 (see Figure 2) connections are made via the PWB traces and test points installed at the factory.
Table 1 lists the pins connected when the test points are installed. For complete PWB connections, refer to the sche-
matic diagram, Figure 3. For P/N 195-0121 if necessary to isolate any pins connected by a test point, cut the test point.
CAUTION: Improper soldering technique may damage the PWB beyond repair. Holes are provided at the test
points for user-added wires or components. In addition, three holes per pin are provided on the PWB for user-added
wires or components.
NOTE: PC 12 (unwired) uses connector 195-0039 for custom configurations. See PC 12 Installation Instructions for
more details, available for download at www.kepcopower.com/support/opmanls.htm#pc
SEE
VIEW “A”
CONNECTOR
P/N 195-0039
MOUNTING SCREWS (2)
4-40 x 1/2, PHILLIP
HOUSING
KEY BETWEEN
PINS 34 AND 36
FASTENING
SCREWS (2)
VIEW “A”
P/N 195-0039
REAR VIEW
3044081
CONNECTOR
P/N 195-0039
FLAT WASHERS (2)
NO. 4
LOCKWASHERS (2)
NO. 4
2228-0821 REV 2 110918
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000FAX (718) 767-1102
http://www.kepcopower.com email: hq@kepcopower.com

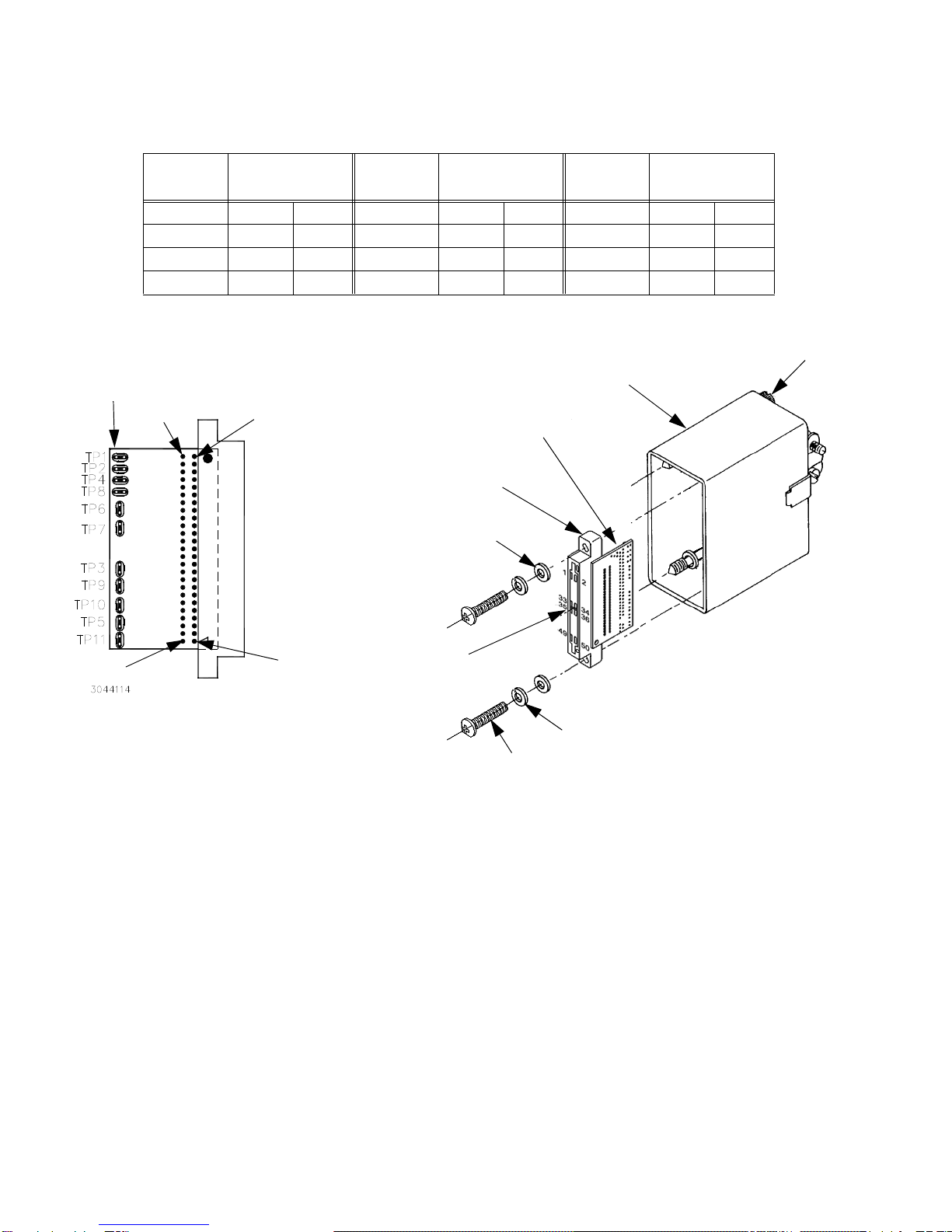

FIGURE 2. PC 15 REAR PROGRAMMING CONNECTOR USING P/N 195-0121.
TABLE 1. P/N 195-0121 TEST POINT CONNECTIONS
TEST POINT PINS CONNECTED
WHEN TEST POINT
INSTALLED TEST POINT PINS CONNECTED
WHEN TEST POINT
INSTALLED TEST POINT PINS CONNECTED
WHEN TEST POINT
INSTALLED
TP1 PIN 1 PIN 8 TP5 PIN 3 PIN 32 TP9 PIN 11 PIN 25
TP2 PIN 1 PIN 34 TP6 PIN 4 PIN 13 TP10 PIN 15 PIN 27
TP3 PIN 2 PIN 19 TP7 PIN 5 PIN 17 TP11 PIN 26 PIN 36
TP4 PIN 3 PIN 6 TP8 PIN 7 PIN 9
HOUSING
CONNECTOR
P/N 195-0121
MOUNTING SCREWS (2)
4-40 x 1/2, PHILLIP
KEY BETWEEN
PINS 34 AND 36
FASTENING
SCREWS (2)
VIEW “B”
SEE
3044081
CONNECTOR
P/N 195-0121
LOCKWASHERS (2)
NO. 4
FLAT WASHERS (2)
NO. 4
VIEW “B”
PIN 1
PIN 49 PIN 50
PIN 2
INSTALLED
(TYPICAL)
P/N 195-0121
PIN AND TEST POINT LOCATIONS
TEST POINT
110918 228-0821 REV 2 3
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000FAX (718) 767-1102
http://www.kepcopower.com email: hq@kepcopower.com

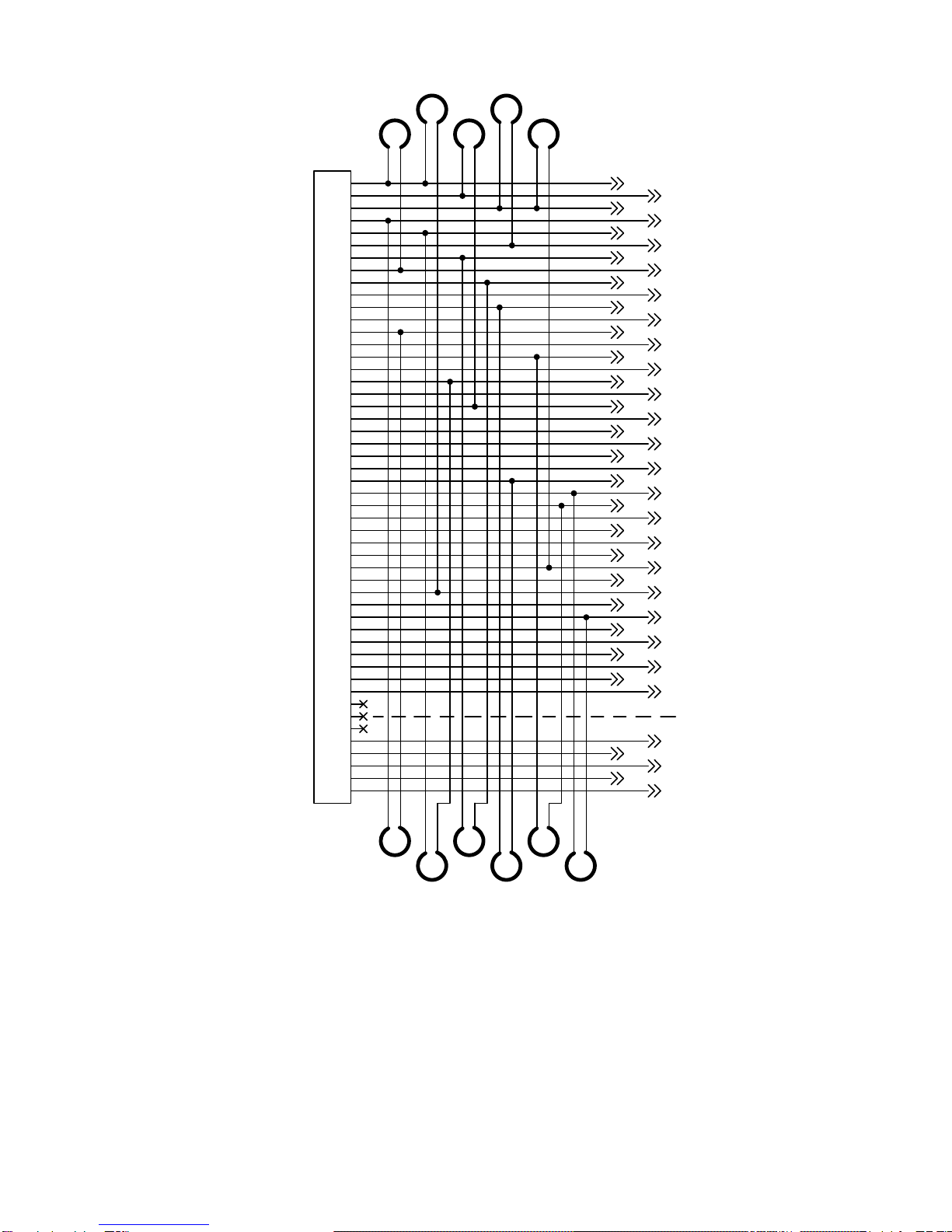

FIGURE 3. P/N 195-0121 PRINTED WIRING BOARD, SCHEMATIC DIAGRAM
INSTALLATION
1. Unpack the Model PC 15 connector from the polyethylene bag.
2. Mate connector with the BOP rear edge connector.
3. Secure Model PC-15 connector to the chassis of the BOP by engaging and hand-tightening the two knurled
fastening screws.
1
3
5
7
9
11
13
15
17
19
21
23
31
27
25
29
2
4
6
8
16
12
10
14
22
28
30
32
18
26
24
20
37
33
35
49
34
36
39
47
41 42
38
40
48
50
46
TP4
1
2
TP5
1
2
TP10
1
2
J1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
TP1
1
2
TP2
1
2
TP3
1
2
TP11
1
2
TP6
1
2
TP8
1
2
TP9
1
2
TP7
1
2
ISOLATED
CIRCUITS
PC12
CONNECTOR
3021008
4228-0821 REV 2 110918
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000FAX (718) 767-1102
http://www.kepcopower.com email: hq@kepcopower.com

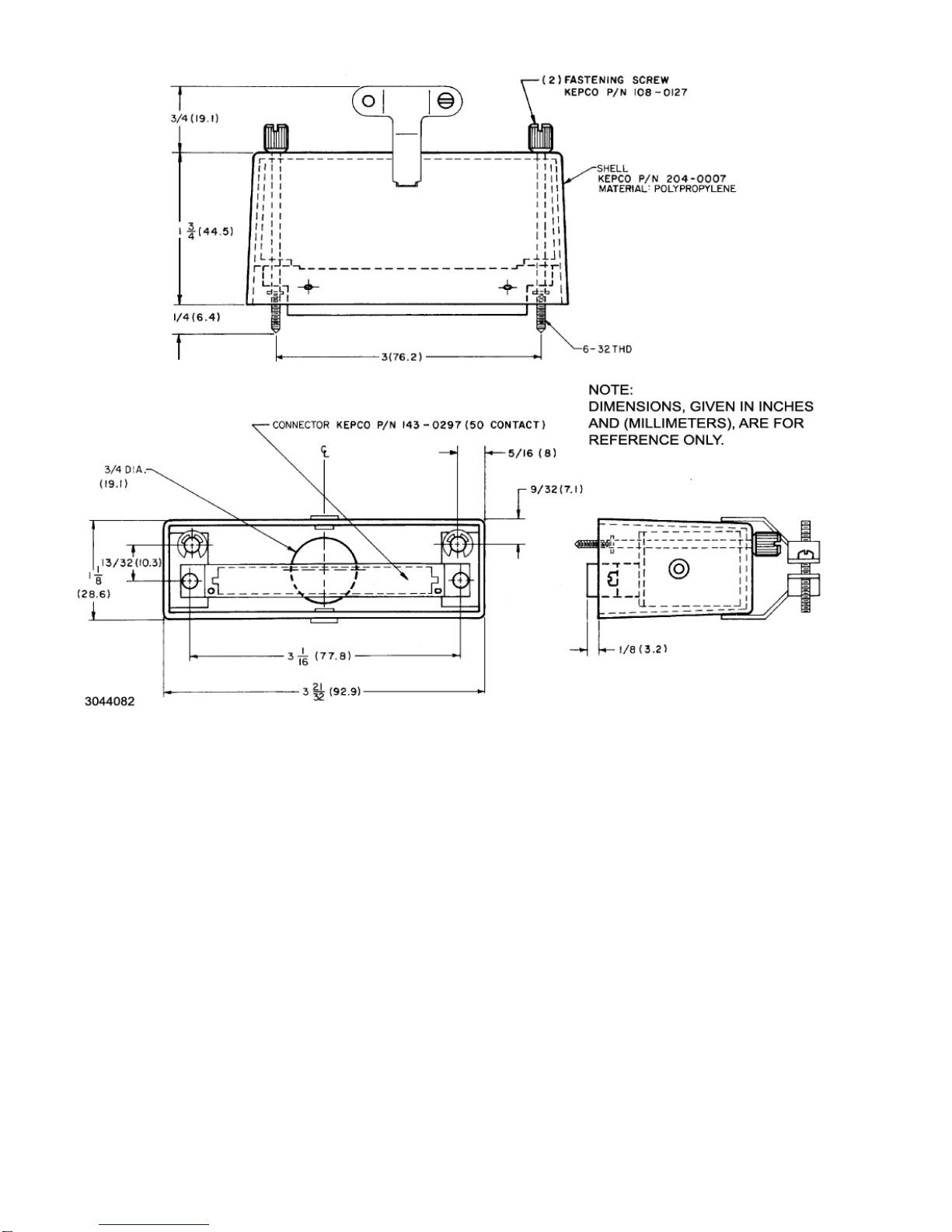

FIGURE 4. MECHANICAL OUTLINE DRAWING, MODEL PC 15
