KEYBOARDPARTNER HX3 Drawbar Controller Bedienungsanleitung

User Manual

HX3.5 Mainboard

(as of Firmware-Version 5.655, July 2021)

keyboardpartner.com

2 HX3.5 Mainboard

Please read this manual carefully before using the HX3 Mainboard.

Only use appropriate power supply as advised. Input voltages exceeding

15V may damage the device.

Designed for indoor use only. Do not use HX3 Mainboard in moist places.

Do not spill liquids or solvents into unit.

Refer to qualified technician or service representative if problems occur.

Only clean with damp soft cloth. Using detergents or solvents may

deteriorate finish and lettering.

Keep packaging in case of service shipment.

EU conformity declaration

The producer/distributor

KEYBOARDPARTNER UG

Entwicklung elektronischer Musikinstrumente

Carsten Meyer

Ithweg 37, D-30851 Langenhagen

info@keyboardpartner.de

hereby declares, that the product

HX3.5 Mainboard

has been designed, produced and examined in compliance with the DIN VDE 0580 standard and in

accordance with the EU Low Voltage Directive.

Following directives, standards and guidelines have been used:

EMV-Richtlinie 2014/30/EU

Niederspannungsrichtlinie 2014/35 EU

RoHS-Richtlinie 2011/65/EU

Langenhagen, May 2021

____________________________

Carsten Meyer / Geschäftsführer

HX3.5 Mainboard 3

Contents

HX3.5 Mainboard.............................................................................................................................4

Features.......................................................................................................................................4

HX3 Apps and Tools........................................................................................................................5

HX3.5 Manager............................................................................................................................5

TouchOSC for HX3.5 ...................................................................................................................5

Jack Connections.............................................................................................................................6

Swell Pedal/Volume Control.........................................................................................................6

Connectors and Jumpers on the Mainboard....................................................................................7

Controls............................................................................................................................................8

Panel16........................................................................................................................................8

Preset12-2/Preset16 ....................................................................................................................8

Menu Panel......................................................................................................................................9

Menu Overview ..........................................................................................................................10

Presets....................................................................................................................................10

Upper Voice............................................................................................................................11

Lower Voice............................................................................................................................12

Pedal Voice.............................................................................................................................13

Audio Setup............................................................................................................................14

Rotary Setup...........................................................................................................................15

Percussion Setup....................................................................................................................15

Vibrato Setup..........................................................................................................................16

Phasing Mode.........................................................................................................................16

Reverb Levels.........................................................................................................................17

Generator Setup.....................................................................................................................17

Keyboard/MIDI........................................................................................................................20

MIDI Control...................................................................................................................................22

Panic button ...............................................................................................................................22

Using HX3 with Voce MIDI Drawbars .....................................................................................23

Using HX3 with Doepfer d3c or other NI B4 drawbar controller..............................................23

Using HX3 with Hammond XK/SK series................................................................................23

Using HX3 with Nord C1 / C2 / C2D / electro 4.......................................................................23

Using HX3 with GSi DMC-122................................................................................................24

How To …?....................................................................................................................................25

HX3 WiFi interface.........................................................................................................................25

Serial numbers and licenses..........................................................................................................26

4 HX3.5 Mainboard

HX3.5 Mainboard

HX3.5 is a tonewheel emulator with all the features of a classic electromagnetic organ. It is

controllable via MIDI with selectable CC sets for various keyboards. The CC sets are editable.

Alternatively, the module can be controlled via Fatar or other keyboards as well as drawbars,

switches and buttons. HX3.5 offers unlimited polyphony, 100 presets, 3 x 15 drawbar presets and

CaM rotor simulation with rotary speaker, scanner vibrato and amp 122. General MIDI sounds

such as piano and strings are also available.

As an option (extended license required), the HX3 RealOrgan engine is capable of emulating all

electromagnetic organs including the famous H100, combo organs, concert organs of the 70s and

80s like Böhm Orchester and Wersi Helios. This implies up to 15 harmonics, up to 12 drawbars

per manual with individual mixtures, including phasing rotor (WersiVoice). An ADSR envelope is

available on all drawbars, also H100 percussion and "Harp Sustain". Various tone generator

waveforms are selectable, for "cheesy" combo organs as well as fully fledged concert organs.

Features

Compact organ emulator circuit board, 200 x 100 mm

Authentic reproduction of the tone generator. Key contacts, percussion, rotary effect, scanner

vibrato and TubeAmp realized using physical modeling in pure hardware.

Extremely low internal latency of 50 microseconds Key-to-Audio. However, MIDI transmission

delay is about 1 ms per note played.

Natural key click due to 9 (B3 mode) or 12 (H100 mode) contacts closing in succession

Authentic ‘CaM Rotor’ simulation with 122 tube amp

General MIDI (GM) Synth, 54x polyphonic

Tunable in range of A = 433 through 447 Hz

Effects DSP providing 3 reverb levels

Dual MIDI IN for two keyboards or bass pedal

LCD display and menu system available

Swell (expression) pedal and footswitch jacks

USB for MIDI over USB, firmware updates, parameter editing

Default MIDI setting: channels 1/2/3 for upper/lower/bass, MIDI CC NI B4.

DC input 9 to 12V, 500 mA min., 5.5/2.1 mm plug, plus on center or through connector PL12,

alternatively 5V through connector PL11.

Trademarks Hammond®, B3® and Leslie® belong to Hammond Suzuki Corporation (Japan). Trademark NI B4

belongs to Native Instruments GmbH, Germany. Product and company names used in this document apply for

illustration and example purposes only. Keyboardpartner is not related to these trade marks in any way.

HX3.5 Mainboard 5

HX3 Apps and Tools

The Menu Panel chapter describes how you can fully control the HX3 system via a menu panel

connected to the HX3.5 mainboard. However, there are other, more comfortable options: Use the

Panel in the HX3.5 Manager for operation via PC or notebook. Use TouchOSC for operation via

tablet or smartphone.

HX3.5 Manager

The HX3.5 Manager supports the use of your HX3 device

with a variety of functions:

The Panel contains switches and drawbars for your HX3

device. In the panel window you can adjust sounds and

effects, create, name and save presets. When the panel is

open, you can recall presets live using the function keys on

your PC keyboard.

The Preset Mover makes it easy to manage presets. It lets

you try out, move, and rename presets. You can transfer

presets from a file to the HX3 device or save them to a file.

The Editor lets you set up the HX3.5 for all conceivable

hardware configurations, gives you access to all available

parameters, and lets you fine-tune sounds and effects.

With the CC Set Editor you can edit the MIDI CC Sets of

the HX3, create CC Sets or load them from a file from your

PC. This allows you to get the most out of your keyboard

controller, even if none of the included CC Sets fit right

away.

The Updater updates the operating software of your HX3

device completely in an automatic process or individual

selected parts. Use the Updater also to activate an

Extended License or to change the username.

TouchOSC for HX3.5

Control your HX3 device via tablet or smartphone with the TouchOSC app from Hexler, which you

can get for a few euros in the Apple App Store or Google Play. For wireless connection of iOS or

Android mobile devices we offer a WLAN interface. iOS devices can also communicate with

TouchOSC via MIDI over USB.

6 HX3.5 Mainboard

Jack Connections

HX3.5 mainboard jack connections from left to right:

SWELL PEDAL ¼” stereo jack: Expression pedal input is compatible with Yamaha FC-7 and

similar expression pedals. Plug connection: Sleeve = ground / potentiometer start, ring =

potentiometer tap, tip = potentiometer end. Expression may also be remote-controlled by MIDI

control change.

FOOT SWITCH ¼” stereo jack: Single or double footswitch controls simulated rotary speed:

SLOW/FAST on plug tip, RUN/STOP on plug ring. Please use latching foot switches;

momentary (button type) switches are not supported. If single footswitch used, Rotary is

always on RUN (no plug ring, input grounded by plug sleeve).

USB USB B-type connector for MIDI over USB, updates, parameter editing. USB port and

MIDI IN/OUT cannot be used at the same time.

MIDI IN/OUT Factory default secondary MIDI input for additional lower manual, bass pedal or

MIDI controller. Optionally jumpered to supply +5V/200ma to our Drawbar Controller (phantom

voltage) or pedal scan board Bass25. May be changed to act as MIDI OUT by internal jumper

swap. See HX3.5 Installation Manual for details.

MIDI IN Primary input from MIDI keyboard.

DC IN: Use stabilized DC wall wart 9 to 12V with at least 500mA current output, inner/outer

plug diameter 2.1/5.5 mm on DC input jack. Polarity: positive voltage on inner tip.

AUDIO1/AUDIO2: Main audio stereo output. Output level is approx. 300 mV at full swell.

For control of parameter settings, we recommend the use of our MenuPanel. Installing the menu

panel and other peripherals is described in the HX3.5 Installation Manual. The menu system for a

standard organ configuration, using drawbars, our Panel16 switch button board, and keybeds

connected through our key scanning boards is described below.

Please note: Factory default programming is the HX3 MIDI Expander firmware. You may set up

the HX3.5 mainboard conveniently for your organ configuration by means of the HX3.5 Editor. See

the HX3.5 Manager User Manual for details. All software, documentation, and manuals are

available online on keyboardpartner.com in section Support & Download.

Swell Pedal/Volume Control

Output level of all output channels is controlled by Master Volume setting in menu or MIDI CC #7

“Volume”, whichever occurs last.

Organ's swell pedal position is controlled by an expression pedal or MIDI CC #11 “Expression”,

whichever occurs last. HX3 resembles a loudness curve similar to the swell pedal of a classic

tonewheel organ, so expression volume will not reach zero. We recommend connecting an

expression pedal Yamaha FC-7 or similar (1/4" jack, 10k to 47k total resistance) directly to the

HX3 module. By using an expression pedal rather than MIDI sweller control will be faster and

more precise.

MIDI CC #11 and #7 may be changed by menu to other valid MIDI CC numbers.

HX3.5 Mainboard 7

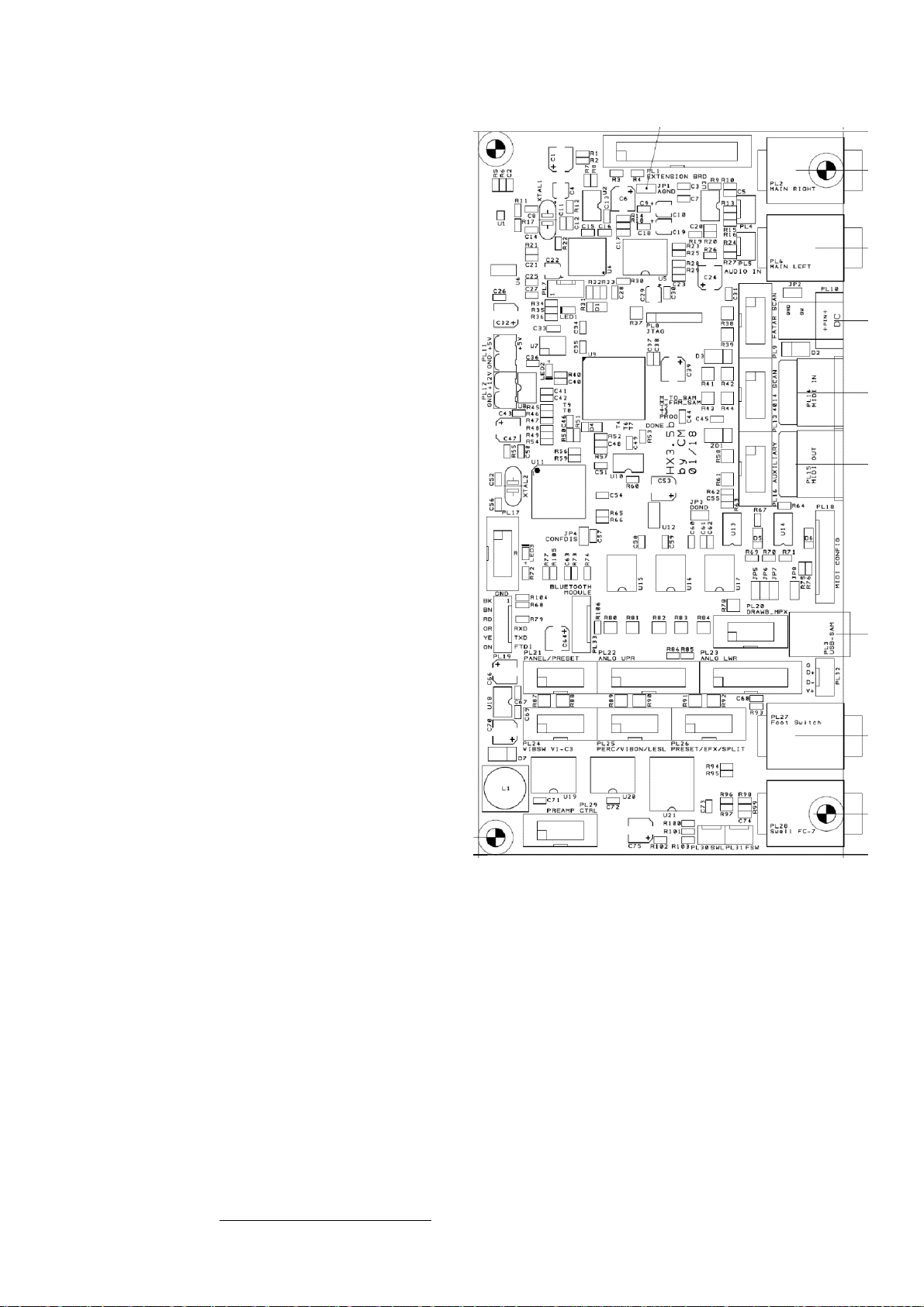

Connectors and Jumpers on the Mainboard

PL1: HX3 Extension Board (optional)

PL2: 1/4" jack Right Audio Output

PL3: USB B type socket (USB MIDI)

PL4: Stereo Audio Output; center = GND

PL5: Stereo Audio Mixer Input; center = GND

PL6: 1/4" jack Left Audio Output

PL7: DSP Debug (do not use)

PL8: FPGA Debug (do not use)

PL9: Scan Board (FatarScan2)

PL10: DC input, 5V or 9..12V/500mA, plus on center

PL11: DC input/output, 5V/500mA

PL12: DC input, 9..12V/500mA

PL13: Scan Board (Scan16, Scan61 or Bass25)

PL14: MIDI IN1

PL15: MIDI IN2/OUT

PL16: Aux digital output (do not use)

PL17: SD Card Adaptor (or ISP AVR)

PL18: MIDI IN/OUT Configuration Jumpers

PL19: Serial Interface for FTDI cable

PL20: MPX Bus (HX3 mk5 new drawbars)

PL21: MenuPanel/Preset-Boards, I2C

PL22: Analog Upper (in mk4 compatibility mode)

PL23: Analog Lower (in mk4 compatibility mode)

PL24: Vibrato Rotary Switch

PL25: Buttons/Switches Perc, Vib, Rotary control

PL26: Buttons/Switches Common Presets or Vibrato

Buttons, Reverb, Bass On Amp, Split

PL27: 1/4" jack Footswitch Rotary control

PL28: 1/4" jack Swell Pedal (FC-7 compatible)

PL29: Preamp control outputs, var. control signals

PL30: 3 pin header Swell Pedal (FC-7 compatible)

PL31: 3 pin header Footswitch Rotary control

PL32: 4pin USB header to HX3.5 Extension Board

PL33: Bluetooth/WiFi Module

JP1: Analog Ground (Probe Connection), both pins

JP2: 5V DC input on PL 10/PL12 if inserted

JP3: Digital Ground (Probe Connection), both pins

JP4: Config Disable (do not use)

JP5: Swell on Analog Input 12 (do not use)

JP6: Swell on AVR analog input PA2 (default)

JP7: Swell on AVR analog input PA7 (do not use)

JP8: Use USB for power supply (not recommended)

Default jumper setting: Insert JP6. Insert 2 jumpers on PL10 pin 2-3 and 5-6 (leftmost pin is 1) for

secondary MIDI IN.

All details about the different possible hardware configurations and a larger picture of the board

can be found in the HX3.5 Installation Manual.

8 HX3.5 Mainboard

Controls

Up to 64 pushbuttons or switches and up to 88 potentiometers (also drawbars) can be connected

to the HX3.5 mainboard.

Panel16

In the default configuration, a Panel16 is required. Default assignment of the Panel16 (parameter

1504 in the editor = 0, 5108 = 60, 5109 = 61, 5110 = 62, 5111 = 63):

If a rotary switch is used to switch between V1...V3/C1...C3 (parameter 1497 = 0), the four buttons

at the bottom left can be used to quickly select presets (parameter 1504 = 2):

The preset buttons are binary coded, i.e. preset 1 toggles between 0 and 1, preset 2 between 0

and 2, preset 3 between 0 and 4, preset 4 between 0 and 8. You can press several buttons

simultaneously and thus select values from 0 to 15.

The buttons of the Panel16 can be assigned differently in the editor as desired. Preset buttons can

optionally be used for drawbar presets (like the inverse buttons of a classic Hammond console).

See section 'Setting up the Hardware Configuration' in the HX3.5 Manager manual.

Preset12-2/Preset16

The drawbar presets (Voices) can be switched independently from the common presets and are

also selectable via the Menu Panel. Register boards Preset12-2 or Preset16 are required for fast

switching by keystroke.

Use the Preset12-2 board in conjunction with inverse preset keys on the keyboard. This allows

you to recall 2 x 12 drawbar presets.

The Preset16 board has two rows of 8 LED buttons each. A second Preset16 board can be added.

All details about the configuration in the HX3.5 Installation Manual.

To save a drawbar setting as a voice, press and hold the target button for two seconds.

If a common preset is selected and thus overwrites the current voice, the LED of the respective

button flashes. Press the button if the voice preset is to take effect again instead of the drawbar

preset stored in the common preset.

HX3.5 Mainboard 9

Menu Panel

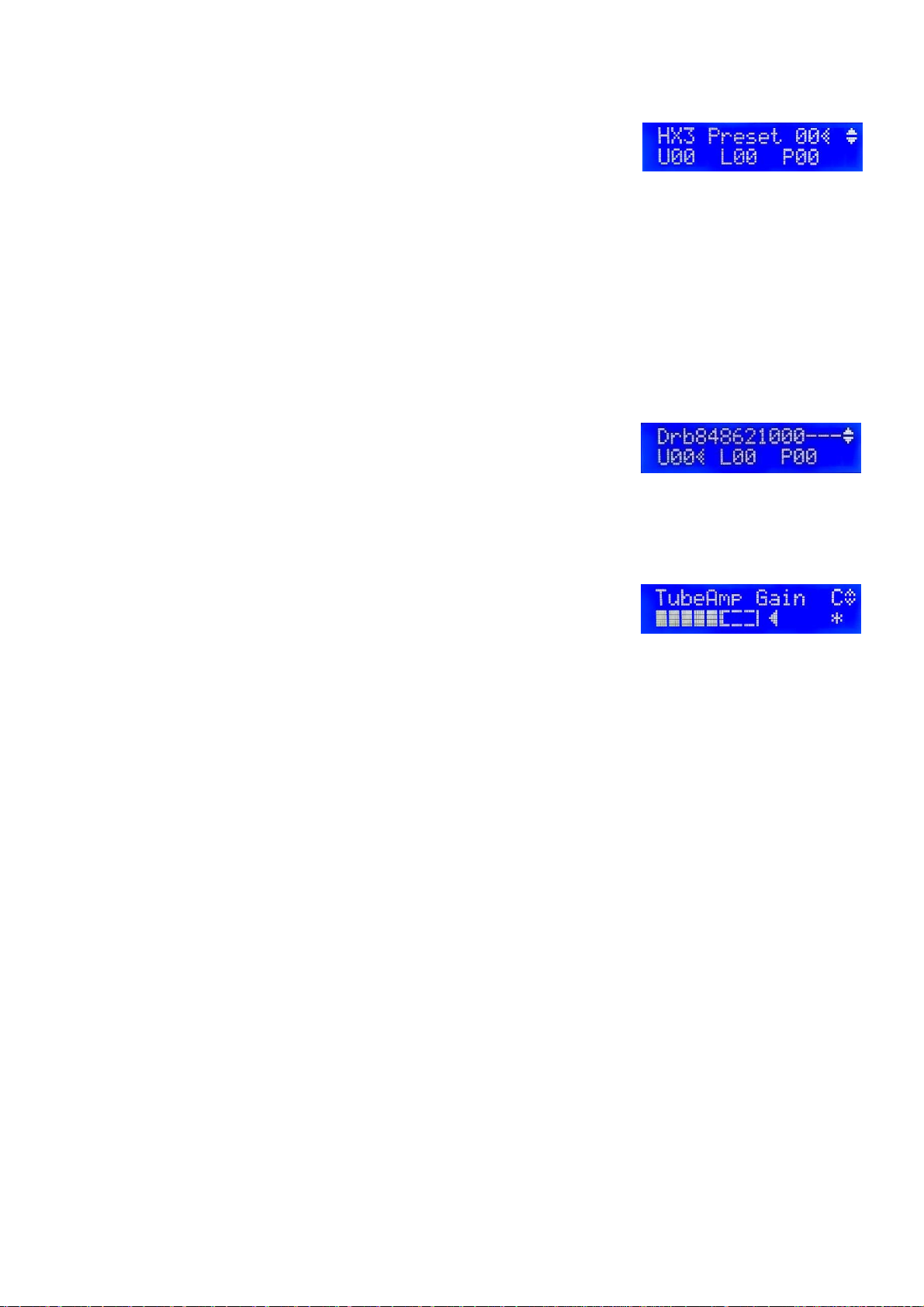

On power on, the Preset/Drawbar Menu is present. Pressing the

rotary knob twice briefly will let you return to the home position from

any other menu position.

Turn the rotary knob to scroll through the menu. A hatched arrow indicates the menu position.

Press the rotary knob once to edit a parameter value. A white arrow indicates the selected

entry that may be altered. Turn the rotary knob to change that value. Press the rotary know once

again to continue scrolling through the menu.

In the preset/drawbar menu the rotary knob selects the Presets 0 …99. Presets consist of

drawbar settings and optionally tab switch settings (percussion, vibrato etc., including rotary

Run/Fast/Slow), volume and 122 tube amp gain as well as all other effects.

Scroll downwards (= turn the rotary knob clockwise) to the drawbar

presets (Voices) for Upper manual, Lower manual, and Pedal. The

top display line shows the drawbar positions as numbers from 0 –8.

Scroll down one more step to get to the Master Volume setting. Master Volume adjusts the

overall volume for all outputs. Higher values are recommended for the best signal to noise ratio.

Scroll down to the TubeAmp Gain setting. TubeAmp Gain sets the

internal tube amp simulation.

A star appears at the bottom right of the display, if a parameter value has been changed and

differs from the stored preset. To store values as Preset, keep the encoder knob pressed until the

prompt “Save to Preset #XX” appears on the display. (“XX” representing the current preset

number). Alter the number as desired and press the knob once again to have all settings stored.

Parameter values tagged by the letter Care part of a single preset. Values tagged by Dapply to

all presets and are stored as defaults. The assignment can be changed in the editor of the HX3.5

manager with parameter #1498 or in the panel.

Values tagged by U, L, or Pare part of the current voice for upper, lower, or pedal. These are

saved as Voice (Drawbar settings only) if you save them while one of these markers is displayed.

10 HX3.5 Mainboard

Menu Overview

The HX3 menu is arranged in function groups and has two levels: The main menu shown in

bold contains the parameters that are frequently used. In the submenu of the respective function

group, shown in blue, you will find parameters that are used less frequently.

Press the lower button to switch from a main menu to a submenu. An "S" symbol then appears at

the bottom right of the display. Press the upper button to return to the main menu.

The menus are arranged in a ring. The last menu item in the list is therefore followed by the first

again when you scroll down further, and the same applies vice versa.

Some menu items are only available with the Extended License. These are shown in italics in the

following overview. It also depends on which organ model is selected (default: B3). In the

overview, a light blue Hmarks menu items that only appear in H100 mode, and a red E marks

menu items that are available in EnvelopeGen (EG) mode. Depending on the device type, some

menu items are omitted or replaced by physical controls.

As of firmware version 5.637, the menu is significantly shorter than in previous versions. Rarely

used parameters have been removed from the menu to improve clarity, but are still adjustable with

TouchOSC, with the Panel or with the Editor of the HX3.5 Manager. Please use this method for

the manifold settings in EG mode.

The editor can be used to remove unwanted menu items from the menu.

Presets

HX3 Preset: Selection of Common Presets 00 ... 99.

Common Presets include Drawbar settings and optionally Tab Switch settings (Percussion,

Vibrato etc.), Rotary Run/Fast/Slow, Master Volume, TubeAmpGain, and other effect settings. In

the HX3.5 Manager panel you can select which parameters are saved in presets.

Preset 0 takes over the live settings of drawbars and switches, if they exist. All other settings in

Preset 0 are stored as default values and take effect when the HX3 device is switched on or

Preset 0 is selected again.

LED Dimmer: Brightness of the LEDs on connected boards and on the menu panel of the HX3

MIDI Expander (from mid 2020).

SD File Exec: Selection of a script file on the SD card when the SD card adapter is connected.

WiFi Init Def: Reset WLAN interface to factory default.

Preset Init: Sets the live preset 0 to a basic B3 organ sound.

Andere Handbücher für HX3 Drawbar Controller

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere KEYBOARDPARTNER Hauptplatine Handbücher

KEYBOARDPARTNER

KEYBOARDPARTNER HX3.5 WiFi Module Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
