Keyestudio KS0358 Bedienungsanleitung
Self-balancing Car
keyestudio
Jun 22, 2022
KS0358 KEYESTUDIO ELECTRONIC PARTS DIY KIT FOR OTTO
ROBOT MAKER
1 1.What is Otto DIY ? 3
2 2.Kit List 5
3 3.3D Printing Parts 7
4 4.Print Settings 9
5 Build Your Own Otto Robot: 11
5.1 Step1: Check Your Parts From Bottom to Top .............................. 13
5.2 Step2: Foot Servos Assembly ...................................... 14
5.3 Step3: Fix Servos to Body ........................................ 17
5.4 Step4: Fix Legs to Body ......................................... 17
5.5 Step5: Fix Foot to Legs ......................................... 18
5.6 Step6: Head Assembly .......................................... 20
5.7 Step7: Electric Connection ........................................ 21
5.8 Step8: Snap the Head .......................................... 24
5.9 Step9: Arduino Programming ...................................... 26
6 Resources 29
i
ii
Self-balancing Car
KS0358 KEYESTUDIO ELECTRONIC PARTS DIY KIT FOR OTTO ROBOT MAKER 1
Self-balancing Car
2 KS0358 KEYESTUDIO ELECTRONIC PARTS DIY KIT FOR OTTO ROBOT MAKER
CHAPTER
ONE
1.WHAT IS OTTO DIY ?
Otto is an interactive robot that anyone can make! It is completely open source, Arduino compatible and 3D printable.
Otto is able to walk, dance, make sounds and avoid obstacles. His small body is in the assembled size, with simple
structure. The shelf parts are designed using 3D printer, simple electronics connections (almost no welding required),
and basic coding skills.
Otto is designed using Autodesk 123D Design software. No need technical knowledge, perfect for beginners. You are
able to modify it or even recreate them to make you own Otto robot and then share to the world!
3
Self-balancing Car
4 Chapter 1. 1.What is Otto DIY ?
CHAPTER
TWO

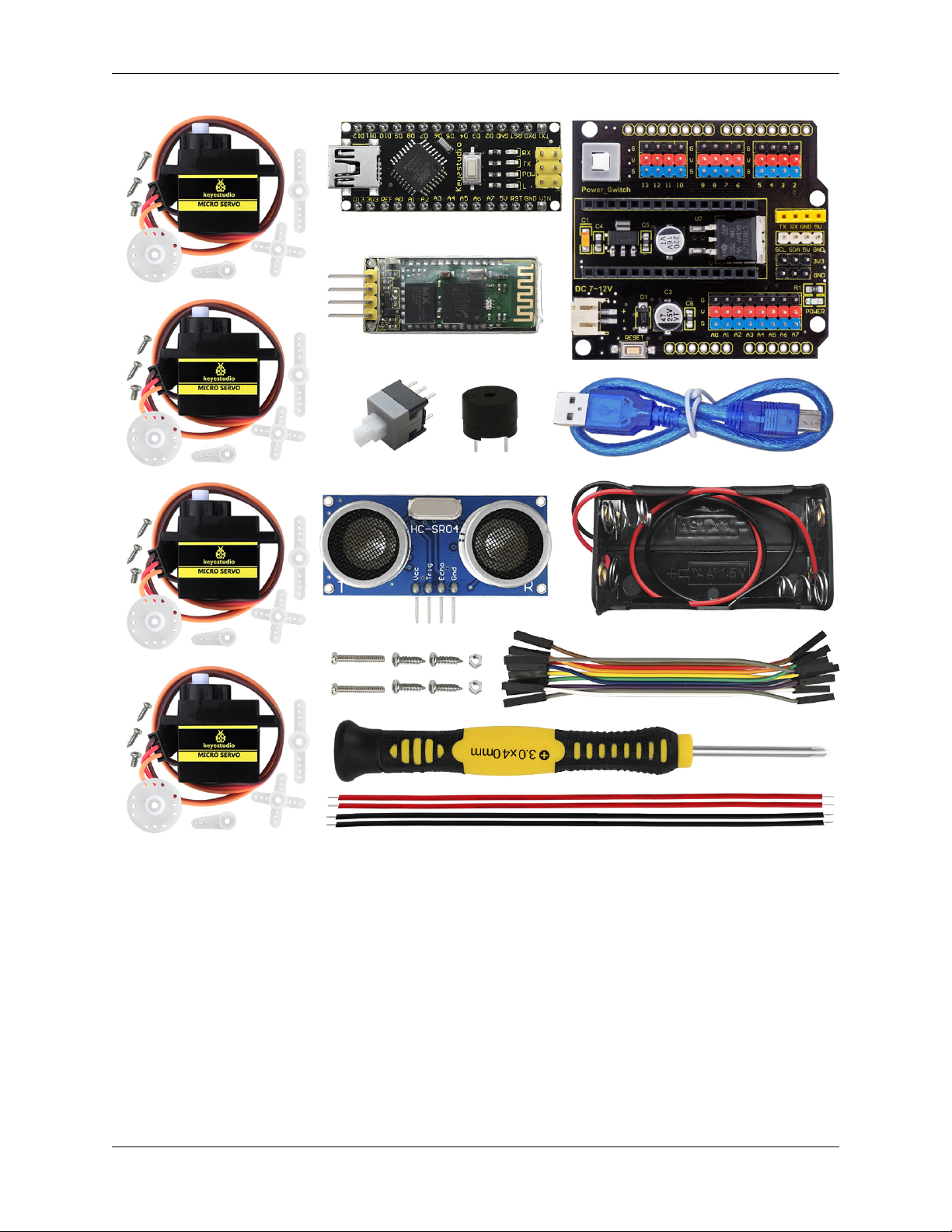

2.KIT LIST
The kit includes everything you need to build your Otto in 1 hour:
NO SOLDERING REQUIRED!
Note: the print parts are Not Included!
5
Self-balancing Car
No. Component Quan-
tity
1 NANO Shield 1
2 Keyestudio Nano CH340 1
3 HC-SR04 Ultrasound
Sensor
1
4 HC-06 Bluetooth Mod-
ule
1
5 Micro Servo 9G 4
6 Passive Buzzer 1
7 Phillips Screwdriver 1
8 200mm Black Connector
Wire
2
9 USB Cable 1
10 200mm Red Connector
Wire
2
11 Female to Female
Jumper Wire
10
12 Self-locking Push Switch 1
13 M2*12MM Round-head
Screw
2
14 M2 Nut 2
15 M2X5MM Tapping
Screw
4
16 4 AA Battery Case with
lead
1
6 Chapter 2. 2.Kit List
