Keysight E6650AU-TRX Module Add

Installation Note

Notice: This document contains references to Agilent.

Please note that Agilent’s Test and Measurement business

has become Keysight Technologies. For more information,

go to www.keysight.com.

Notices

The information contained in this document is subject to change without notice.

Keysight Technologies makes no warranty of any kind with regard to this material, including but

not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Keysight Technologies shall not be liable for errors contained herein or for incidental or

consequential damages in connection with the furnishing, performance, or use of this material.

Manual Part Number

E6650-90013

Edition

Edition 2, February 2015

Printed in USA

Published by:

Keysight Technologies, Inc.

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Installation Note E6650-90013 3

E6650AU-TRX Module Add

STE 9000 software and test equipment is required for making adjustments and for performance

verification testing.

Information on how to obtain these calibration services can be found at:

www.keysight.com/find/calibration

There is no calibration required.

New TRX module additions are fully calibrated from the factory.

Products Affected: E6650A

Serial Numbers: All

Options:

To Be Performed By: (X) Keysight Service Center

(X) Personnel Qualified by Keysight

( ) Customer

Estimated Installation Time:

Estimated Verification Time:

1.0 Hours

5 Minutes

4Installation Note E6650-90013

Introduction

The following instructions will guide you through the process of adding and an additional M9440A

TRX module into the E6650A main frame /chassis.

Table of Contents:

—Tools Required

—Remove Face Plate Panel

—Remove New TRX Module Filler Plate from Dress Panel

—Remove Impact Cover

—Remove Module Slot Fillers

—Install the TRX Module and Cable Connections

—Install Impact Cover and Dress Panel

—Enable the New TRX Module (in the XSA configuration file)

—Enable the New TRX Module (by sending a SCPI command)

—Update the FPGA Code

—Back Up New TRX Module Calibration Data to Hard Drive

—Run Self-Test Manual Verify

Tools Required

— T-10 TORX Driver

— T-20 TORX Driver

— #1 Phillip screwdriver

— Needle nose pliers

— Calibration Void if Broken sticker (PN: 7121-5432)

—USBkeyboardandmouse

— E6650AU-TRX kit

Optional

— Cable removal tool (PN: 5002-3361)

Installation Note E6650-90013 5

Installation Procedure

CAUTION Electrostatic discharge (ESD) can damage or destroy electronic components.

All work on electronic assemblies should be performed at a static-safe

workstation. Observe proper procedures for performing static-safe work.

The E6650A instrument has and Impact cover and face plate panel which cover access to the TRX

modules. The face plate panel and Impact cover frame needs to be removed to perform the module

addition. The following steps are based on the E6650A being a 2 up system.

Remove Face Plate Panel

1. Refer to Figure 1. Use the #1 Phillips screwdriver to loosen the 10 screws (1) on the edge of

the face plate panel till they spin freely. Use the T-10 TORX driver to remove the 4 screws (2)

in the middle of each TRX module. Then remove the 2 screws (3) on the Controller panel and

the Reference panel. Remove the face plate panel.

Figure 1 Face Plate Panel Screws

6Installation Note E6650-90013

Installation Procedure

Remove New TRX Module Filler Plate from Dress Panel

2. When adding an additional TRX module the filler panel will need to be removed. Refer to

Figure 2. Remove the 2 screws (1) that attach the filler panel (2) to the face plate.

Figure 2 Remove Filler Plate from Dress Panel

Installation Note E6650-90013 7

Installation Procedure

Remove Impact Cover

3. Tilt the main frame up in front by extending the front feet down.

4. Refer to Figure 3. After removing the face plate panel you will remove the 4 screws securing

the Controller panel (1) and the 2 securing the Reference panel (2). These can be moved

enough to allow the outer Impact cover to slide over them in the next step.

Figure 3 Controller and Reference Screws

8Installation Note E6650-90013

Installation Procedure

5. Refer to Figure 4. Remove the 4 screws (2) on each side of the Impact cover (1). This will

disconnect it from the chassis frame. Slide the Impact cover away from the chassis and over

the Controller and Reference panels which were disconnected in the previous step.

NOTE The Controller panel cover panel and Reference panel do not need to be

removed with the Impact cover. The Controller panel and the Reference panel

may be tilted in and the Impact cover slipped around them.

Removal of the Impact cover over the Controller panel requires you to move

the Impact cover towards the controller. This will allow you to tilt the

Controller sub-panel. See Figure 5.

Figure 4 Impact Cover Screws

Installation Note E6650-90013 9

Installation Procedure

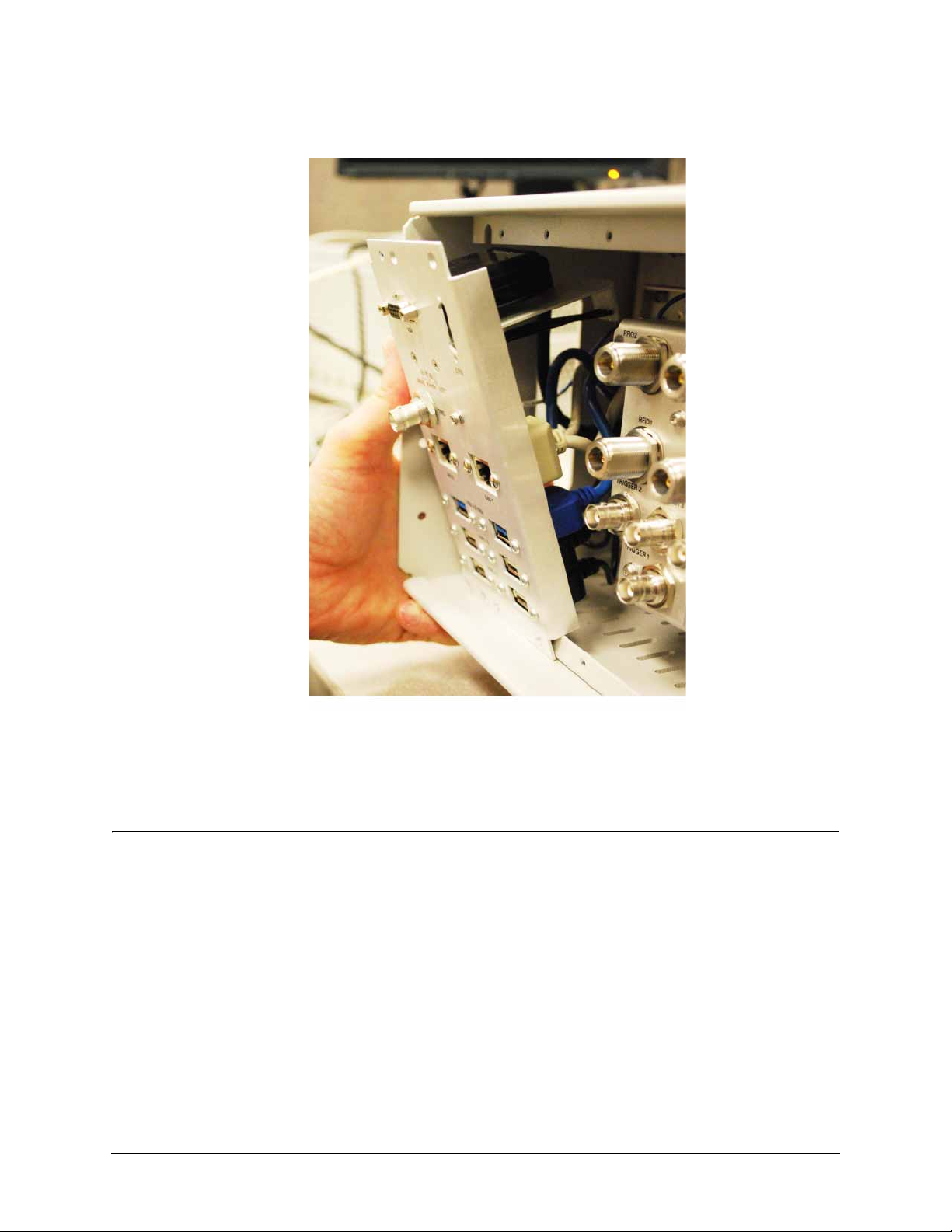

Figure 5 Impact Cover Removal

NOTE On first production units and later, the Controller panel is mounted on the

inside of the Impact cover lip, so the tilting movement shown in the above

picture will be unnecessary.

10 Installation Note E6650-90013

Installation Procedure

Remove Module Slot Fillers

6. Refer to Figure 6. To gain access to the 4 Air blockers/ slot fillers you must first remove the 4

Filler Plates from Slot 3 of the main frame. Remove the 2 screws (1) for each Filler Plate. This is

where you will install your next TRX Module.

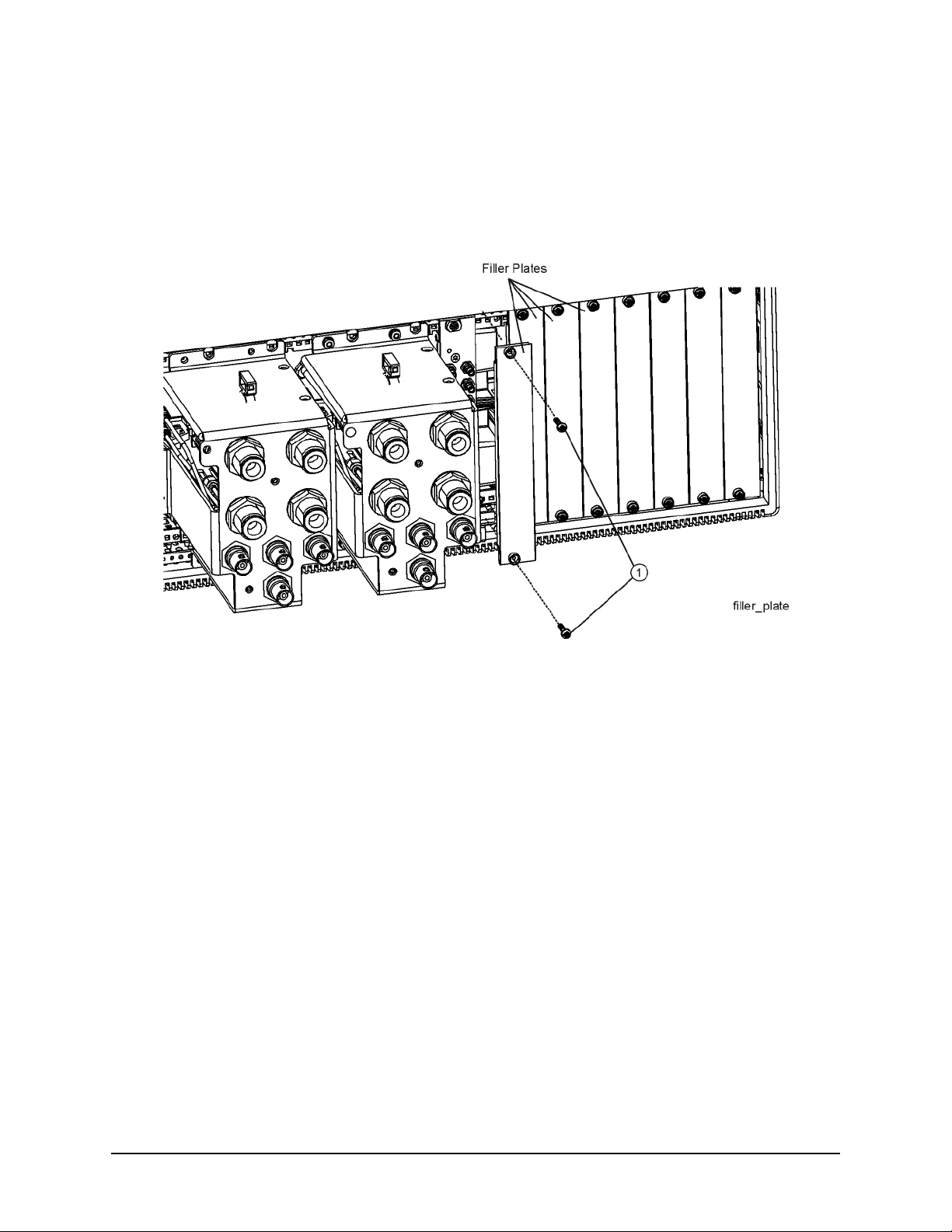

Figure 6 Filler Plate Removal

7. Refer to Figure 7. Remove the 4 Air blockers / slot fillers.
