Keysight Technologies U3050BH11 Handbuch

User's and

Service Guide

Keysight Technologies

U3050BH11

Use this manual with the following documents:

PNA Series Network Analyzer On-line Help

System

Notices

No part of this manual may be

reproduced in any form or by any

means (including electronic storage

and retrieval or translation into a

foreign language) without prior

agreement and written consent

from Keysight Technologies, Inc. as

governed by United States and

international copyright laws.

Trademark Acknowledgments

Manual Part Number

U3050-90006

Edition

Print Date: November 2018

Supersedes: March 2018

Printed in USA

Published by:

Keysight Technologies

1400 Fountaingrove Parkway

Santa Rosa, CA 95403

Warranty

THE MATERIAL CONTAINED IN THIS

DOCUMENT IS PROVIDED “AS IS,”

AND IS SUBJECT TO BEING

CHANGED, WITHOUT NOTICE, IN

FUTURE EDITIONS. FURTHER, TO

THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, KEYSIGHT

DISCLAIMS ALL WARRANTIES,

EITHER EXPRESS OR IMPLIED WITH

REGARD TO THIS MANUAL AND

ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT

LIMITED TO THE IMPLIED

WARRANTIES OF

MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE.

KEYSIGHT SHALL NOT BE LIABLE

FOR ERRORS OR FOR INCIDENTAL

OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE

FURNISHING, USE, OR

PERFORMANCE OF THIS

DOCUMENT OR ANY INFORMATION

CONTAINED HEREIN. SHOULD

KEYSIGHT AND THE USER HAVE A

SEPARATE WRITTEN AGREEMENT

WITH WARRANTY TERMS

COVERING THE MATERIAL IN THIS

DOCUMENT THAT CONFLICT WITH

THESE TERMS, THE WARRANTY

TERMS IN THE SEPARATE

AGREEMENT WILL CONTROL.

Technology Licenses

The hardware and/or software

described in this document are

furnished under a license and may be

used or copied only in accordance

with the terms of such license.

U.S. Government Rights

The Software is “commercial

computer software,” as defined by

Federal Acquisition Regulation

(“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and

Department of Defense FAR

Supplement (“DFARS”) 227.7202, the

U.S. government acquires

commercial computer software

under the same terms by which the

software is customarily provided to

the public. Accordingly, Keysight

provides the Software to U.S.

government customers under its

standard commercial license, which

is embodied in its End User License

Agreement (EULA), a copy of which

can be found at

http://www.keysight.com/find/sweu

la. The license set forth in the EULA

represents the exclusive authority by

which the U.S. government may use,

modify, distribute, or disclose the

Software. The EULA and the license

set forth therein, does not require or

permit, among other things, that

Keysight: (1) Furnish technical

information related to commercial

computer software or commercial

computer software documentation

that is not customarily provided to

the public; or (2) Relinquish to, or

otherwise provide, the government

rights in excess of these rights

customarily provided to the public to

use, modify, reproduce, release,

perform, display, or disclose

commercial computer software or

commercial computer software

documentation. No additional

government requirements beyond

those set forth in the EULA shall

apply, except to the extent that those

terms, rights, or licenses are

explicitly required from all providers

of commercial computer software

pursuant to the FAR and the DFARS

and are set forth specifically in

writing elsewhere in the EULA.

Keysight shall be under no obligation

to update, revise or otherwise modify

the Software. With respect to any

technical data as defined by FAR

2.101, pursuant to FAR 12.211 and

27.404.2 and DFARS 227.7102, the

U.S. government acquires no greater

than Limited Rights as defined in FAR

27.401 or DFAR 227.7103-5 (c), as

applicable in any technical data.

Safety Notices

A CAUTION notice denotes a hazard. It

calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or adhered

to, could result in damage to the

product or loss of important data. Do

not proceed beyond a CAUTION

notice until the indicated conditions

are fully understood and met.

A WARNING notice denotes a hazard.

It calls attention to an operating

procedure, practice, or the like that,

if not correctly performed or adhered

to, could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

Table of Contents

Contents-1

U3050BH11

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Verifying the Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Network Analyzer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Mounting Kit Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

General Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Power Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Maximum Power Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front and Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

System Setup with the N5245A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Preparing the N5245A Network Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

RF Interface Cable Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the U3050BH11 with N5245A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Operational Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Verification Limits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Equipment Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Operational Check Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

S13 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

S11 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

S21 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

S41 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

S22 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

S44 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

S33 Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Replaceable Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Couplers and Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Non-RF Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Front Panel LED is not Illuminated. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Troubleshooting Diagrams and Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Safety and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Before Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Connector Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Statement of Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

General Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Regulatory Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Electrostatic Discharge Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Keysight Support, Services, and Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Service and Support Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Contacting Keysight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Shipping Your Product to Keysight for Service or Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Contents-2

U3050BH11

Keysight U3050BH11 User's and Service Guide

U3050BH11 Introduction

Introduction

This document describes how to use and service the U3050BH11 Amplifier Combiner

Test Set for with the Keysight N5245A PNA-X.

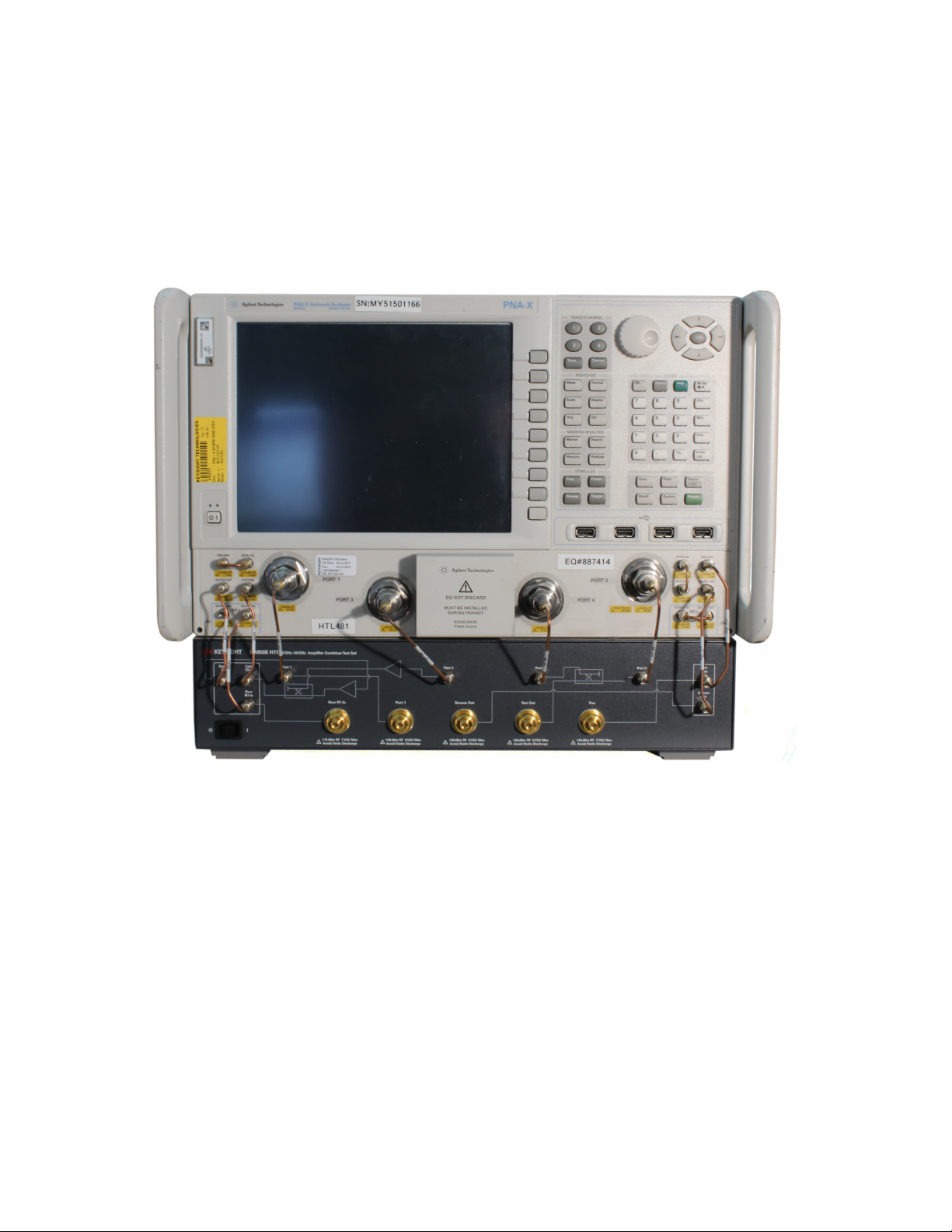

Figure 1 Front Panel N5245A with U3050BH11

Definitions

•Specifications describe the performance of parameters covered by the product warranty

(temperature of 0 to 40 °C, unless otherwise noted.)

•Typical describes additional product performance information that is not covered by the

product warranty. It is performance beyond specification that 80% of the units exhibit with a

95% confidence level over the temperature range 20 to 30 °C. Typical performance does not

include measurement uncertainty.

•Nominal values indicate expected performance or describe product performance that is

useful in the application of the product, but is not covered by the product warranty.

•Characteristic Performance describes performance parameter that the product is expected to

meet before it leaves the factory, but is not verified in the field and is not covered by the

product warranty. A characteristic includes the same guard bands as a specification.

Keysight U3050BH11 User's and Service Guide

U3050BH11 Description

Description

The Keysight U3050BH11 Test Set uses two amplifiers for increased power and a coupler to

combine power from the N5245A Ports 1 and 3 for high power applications. Five bulkhead

access connectors allow for custom configurations and minimizes connections to the PNA-X.

These connections are RCVR R1 IN, PORT 1, SOURCE OUT, DUT OUT, and PXA (2.4 mm

female connectors).

•N5245A Option 400 (4-Port)

More PNA information is available at http://www.keysight.com/find/pna

Mounting Kit Options

•U3050BH11-ICM (Rack Mount Kit without handles)

•U3050BH11-ICN (Front Handle Kit)

•U3050BH11-ICP (Rack Mount Kit with handles)

Verifying the Shipment

To verify the contents shipped with your product, refer to the “Box Content List” included with

the shipment.

Inspect the shipping container. If the container or packing material is damaged, it should be

kept until the contents of the shipment have been checked mechanically and electrically. If there

is physical damage refer to “Contacting Keysight” on page 43. Keep the damaged shipping

materials (if any) for inspection by the carrier and an Keysight Technologies representative.

Network Analyzer Requirements

The N5245A PNA-X Network Analyzers will be referred to throughout this

document as the PNA-X. The U3050BH11 will be referred to as the Test Set.

Table 1U3050BH11/U3050BC11-H01 Accessories Supplied

Description Part Number

U3021-60005 1

Quantity

Lock Link Kit U3021L Option 0451

Semi-rigid RF Cable U3024-20049 1

Semi-rigid RF Cable U3024-20050 1

U3024-20011 3

Semi-rigid RF Cable

Semi-rigid RF Cable U3024-20012 2

Semi-rigid RF CableU3024-20013 1

Keysight U3050BH11 User's and Service Guide

Semi-rigid RF CableU3050-200181

1. For the U3050BH11 Test Set only.

U3050BH11 General Specifications

General Specifications

Specifications for the Test Set (2 GHz to 50 GHz) are characteristic. A functional certificate is only

offered for the Test Set. There are no system specifications.

Power Requirements

Verify that the required ac power is available before installing the Test Set to the PNA-X.

•100/120/220/240 VAC (50/60Hz)

•The instrument can operate with mains supply voltage fluctuations up to ± 10% of the

nominal voltage.

•Air conditioning equipment (or other motor–operated equipment) should not be placed on

the same ac line that powers the Test Set and PNA-X.

•Table 2 contains the maximum wattage for all instruments. This table can be use to

determine the electrical and cooling requirements.

This is a Safety Class I product (provided with a protective earthing ground

incorporated in the power cord). The mains plug shall be inserted only into a

socket outlet provided with a protective earth contact. Any interruption of the

protective conductor, inside or outside the instrument, is likely to make the

instrument dangerous. Intentional interruption is prohibited.

Table 2Power Requirements

Standard Equipment

Instrument Maximum

Wattage

N5245A 450

U3050BH11 350

Keysight U3050BH11 User's and Service Guide

U3050BH11 General Specifications

Environmental Requirements

Refer to the PNA-X standard documentation for environmental requirements.

Environmental Tests

The Test Set complies with all applicable safety and regulatory requirements for the

intended location of use.

•Pressure Altitude (Operation)

3,000 meters (~10,000 feet)

•The instrument can safely operate in a maximum relative humidity of 95%, non-

condensing to temperatures up to 40 degrees C.

Equipment Heating and Cooling

If necessary, install air conditioning and heating to maintain the ambient temperature within the

appropriate range. Air conditioning capacity must be consistent with the BTU ratings given in

Table 2.

Ventilation Requirements: When installing the instrument in a cabinet, the

convection into and out of the instrument must not be restricted. The ambient

temperature (outside the cabinet) must be less than the maximum operating

temperature of the instrument by 4 °C for every 100 watts dissipated in the

cabinet. If the total power dissipated in the cabinet is greater than 800 watts,

forced convection must be used.

Required Conditions for Accuracy Enhanced Measurement

Accuracy–enhanced (error–corrected) measurements require the ambient temperature of the

PNA-X and Test Set to be maintained within ± 1 °C of the ambient temperature at calibration.

Dimensions and Space Requirements

Standard installation of the Test Set and PNA-X includes configuration and installation on a

customer provided lab bench or table top of adequate size and strength. For weight, dimensions

and space requirements, refer to the network analyzer documentation that is used to configure

the Test Set.

Table 3 Instrument Dimensions

Model Weight Height Width Depth

U3050BH11 9.5 kg (20.9 lb) 10.1 cm

(4 in)

42.9 cm

(16.9 in)

58.4 cm

(23 in)

Keysight U3050BH11 User's and Service Guide

U3050BH11 General Specifications

Maximum Power Levels

It is recommended that you do not operate components near damage levels

(+30 dBm). The power levels must be 3 dB below maximum level to ensure

no damage, see Table 4.

Refer to your PNA-X specifications to determine the maximum input power

levels for the access and test ports, or to optimize the power levels in the

receivers.

Damage and maximum levels are not necessarily the optimum level.

Table 4 Test Set Power Levels & Front Panel Connections

Maximum Test Port RF Power Levels:

RCVR R1 IN +15 dBm ± 7 Vdc

Interface Ports:

Port 1+30 dBm 0 Vdc

Port 1 CPLR THRU +30 dBm 0 Vdc

Port 1 SOURCE OUT +26 dBm 0 Vdc

Port 1 RCVR R1 IN +15 dBm 7 Vdc

DUT OUT1

1. If CPLR THRU is connected to RCVR B IN on the PNA-X, then DUT OUT max power level is 15 dBm 7 Vdc.

+30 dBm 0 Vdc

+15 dBm 0 Vdc

Port 2 CPLR ARM +30 dBm 7 Vdc

Port 2 SOURCE OUT +30 dBm 0 Vdc

Port 3 +26 dBm 0 Vdc

Access Ports:

PXA +30 dBm 7 Vdc

Port 4+30 dBm 0 Vdc

Keysight U3050BH11 User's and Service Guide

Inhaltsverzeichnis

Andere Keysight Technologies Prüfgeräte Handbücher

Keysight Technologies

Keysight Technologies 85055A Handbuch

Keysight Technologies

Keysight Technologies M8085A Bedienungsanleitung

Keysight Technologies

Keysight Technologies E6640A EXM Installations- und Betriebshandbuch

Keysight Technologies

Keysight Technologies N7015A Bedienungsanleitung

Keysight Technologies

Keysight Technologies 85051B Handbuch

Keysight Technologies

Keysight Technologies E6640A Bedienungsanleitung

Keysight Technologies

Keysight Technologies N9910X-888 Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 2000 Bedienungsanleitung

Keysight Technologies

Keysight Technologies U3042AM04 Handbuch

Keysight Technologies

Keysight Technologies 16048G Bedienungsanleitung

Keysight Technologies

Keysight Technologies E4982A Bedienungsanleitung

Keysight Technologies

Keysight Technologies PD1500A Kurzanleitung

Keysight Technologies

Keysight Technologies U3020AS62 Handbuch

Keysight Technologies

Keysight Technologies DP001 A Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies 16047A Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 1000 X-Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies 16117B Bedienungsanleitung

Keysight Technologies

Keysight Technologies N7700 Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 6000 X Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies InfiniiVision 4000 X Series Handbuch

Keysight Technologies

Keysight Technologies InfiniVision 6000L Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies Infiniium MXR Series Bedienungsanleitung

Keysight Technologies

Keysight Technologies 11644A Series Handbuch

Keysight Technologies

Keysight Technologies E7515A Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
