Kicker CompVX Series Bedienungsanleitung

CompVX-Series

Subwoofers

Owner’s Manual

Manual del Propietario

Manuel d’utilisatio

Benutzerhandbuch

select language

seleccione

el idioma

choisir la

langue

sprache

auswählen

2English

Contents

Overview........................3

Speciﬁcations........................ 4

Installation ......................5

Wiring Conﬁguration............... 5

Box Building Notes ................ 7

Sealed Enclosures............... 10

Vented Enclosures............... 12

Warranty ......................13

Garantía | Garantie........48

CVX-c-230327

3English

Overview

IMPORTANT SAFETY WARNING

PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR

SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER

CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING

FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS

AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN

VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1

INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND

ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND

LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A

SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING

TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE

SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR

THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE

YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING

VOLUME.

The CVX Subs are a case study in what

makes KICKER subwoofers the absolute

best in the business. They feature the

highest-power handling possible and with

dual-voice coils give you all the wiring

options you could want. The aluminum

basket reduces weight while achieving

higher heat dissipation than steel. Perimeter-

venting is present as usual, but KICKER-

quality means we need our products to

go above and beyond. KICKER has now

introduced our latest innovation of Forced-

Air Cooling, which uses the excursion of

the woofer to force out hot air while drawing

in cool air. This results in a 20% reduction

in heat, increasing the already industry-

leading reliability of our subs. Get ready for

signature KICKER bass, and make sure

you’re using these subwoofers with KICKER

accessories and amps to get the best

results.

4English

Speciﬁcations

Note: All speciﬁcations and performance

ﬁgures are subject to change. Please visit

www.kicker.com for the most current

information. To get the best performance

from your new KICKER speakers, we

recommend using genuine KICKER

accessories and wiring. Please allow two

weeks of break-in time for the speakers to

reach optimum performance.

Pro Tip: You’re a KICKER ampliﬁer and a

few cables away from a full system upgrade

that will dominate any factory system!

KICKER line of ampliﬁers make it easy to

upgrade to solid bass with your existing

or stock source unit. Also, ask your dealer

about KICKER Speaker upgrades.

CVX10 CVX12 CVX15

Woofer [in, mm] 10, 25 12, 30 15, 38

Recommended Ampliﬁer Power [Watts RMS] 300–600 375–750 500–1000

Peak Power Handling [Watts] 1200 1500 2000

Sensitivity [1W, 1m] 85.7 87.1 91.6

Rated Impedance [Ω] 2 or 4 2 or 4 2 or 4

Fs [Hz] 35.4 28.5 23.7

Xmax (Linear Excursion) [mm] 16.25 16.25 19

Re [Ω] 3.4 3.7 4.2

Qts .403 .381 .216

Qms 10.754 10.098 7.521

Qes .419 .396 .222

Vas [ft³, L] .811, 22.99 2.04, 57.82 5.5, 156.71

Outer Frame Dimension [in, cm] 10-11/16, 27.1 12-9/16, 31.8 15-7/16, 39.2

Mounting Cutout [in, cm] 9-3/16, 23.3 11-1/16, 28 13-13/16, 35

Mounting Depth [in, cm] 5-15/16, 15.1 6-11/16, 16.9 8-1/2, 21.5

Frequency Response [Hz] 24–500 20–500 18–500

5English

Wiring Conﬁguration

CompVX-Series subwoofers are made with

dual 2Ω or 4Ω voice coils. Both coils must

be connected to a source of ampliﬁcation.

The Dual 2Ω will provide a 1Ω load wired in

parallel or 4Ω load wired in series. The Dual

4Ω will provide a 2Ω load wired in parallel or

8Ω load wired in series. Make sure your

source unit or ampliﬁer is rated at the

correct ohm load for operation.

The speaker wire should be kept away

from sharp edges and avoid the possibility

of getting pinched by the trunk. If a factory

hole and grommet do not exist or are

inaccessible, you must drill a hole through

which to run the wire. Be careful not to drill

into other wiring or existing mechanisms.

Any time a wire is run through a hole, it

is necessary to insert a rubber or plastic

grommet to protect the wire from damage.

Installation

6English

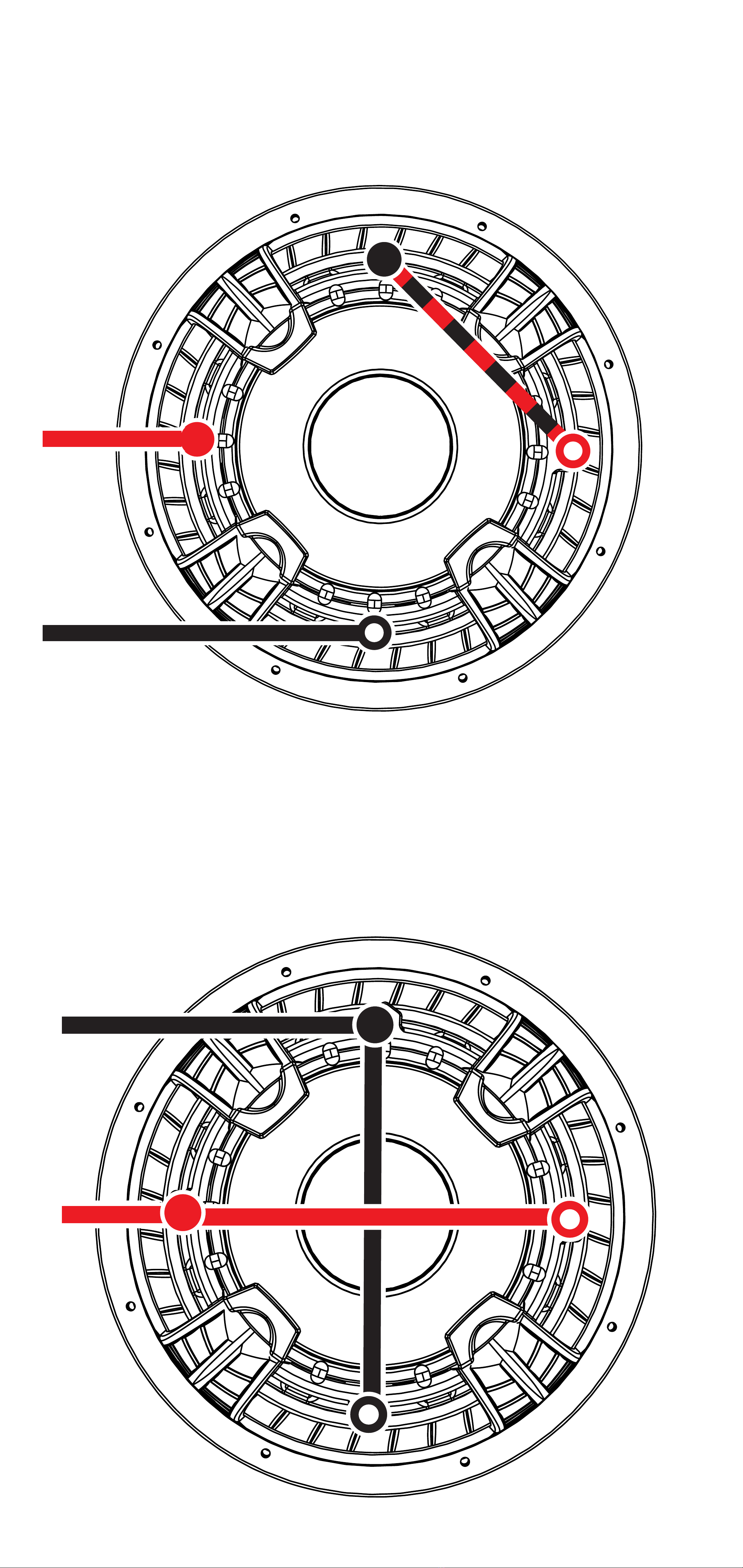

Series Wiring

Parallel Wiring

Dual 2Ω Voice Coils = 4Ω Load

Dual 4Ω Voice Coils = 8Ω Load

Dual 2Ω Voice Coils = 1Ω Load

Dual 4Ω Voice Coils = 2Ω Load

7English

Box Building Notes

Use 3/4” (1.9cm) or thicker MDF (medium

density ﬁberboard) and seal the joints with

silicone. Use the “template” inside your

CompVX subwoofer’s shipping carton to

mark the mounting hole, then cut directly

on the line. These designs need internal

bracing. Add triangular bracing between

each of the larger unsupported panels.

All the cubic feet (L) measurements in this

manual include the displacement of the

woofer. For the vented enclosures the

displacement of the port must be calculated

and added to the internal volume of the

ﬁnal design. Use the outer dimensions of

the port and multiply “X x Y x Z”, convert

to cubic feet, for example the CompVX12

Vented Minimum design’s external port

dimensions are, using 3/4” (1.9cm) MDF:

(12.5” + 1.5” total MDF wall thickness) x

(2.5” + 1.5” total MDF wall thickness) x

(20”) x (1 ft3/ 1728 in3) = .65 ft3

Then, add this number to the internal

volume of the enclosure. 1.75 ft3+ .65 ft3=

2.4 ft3

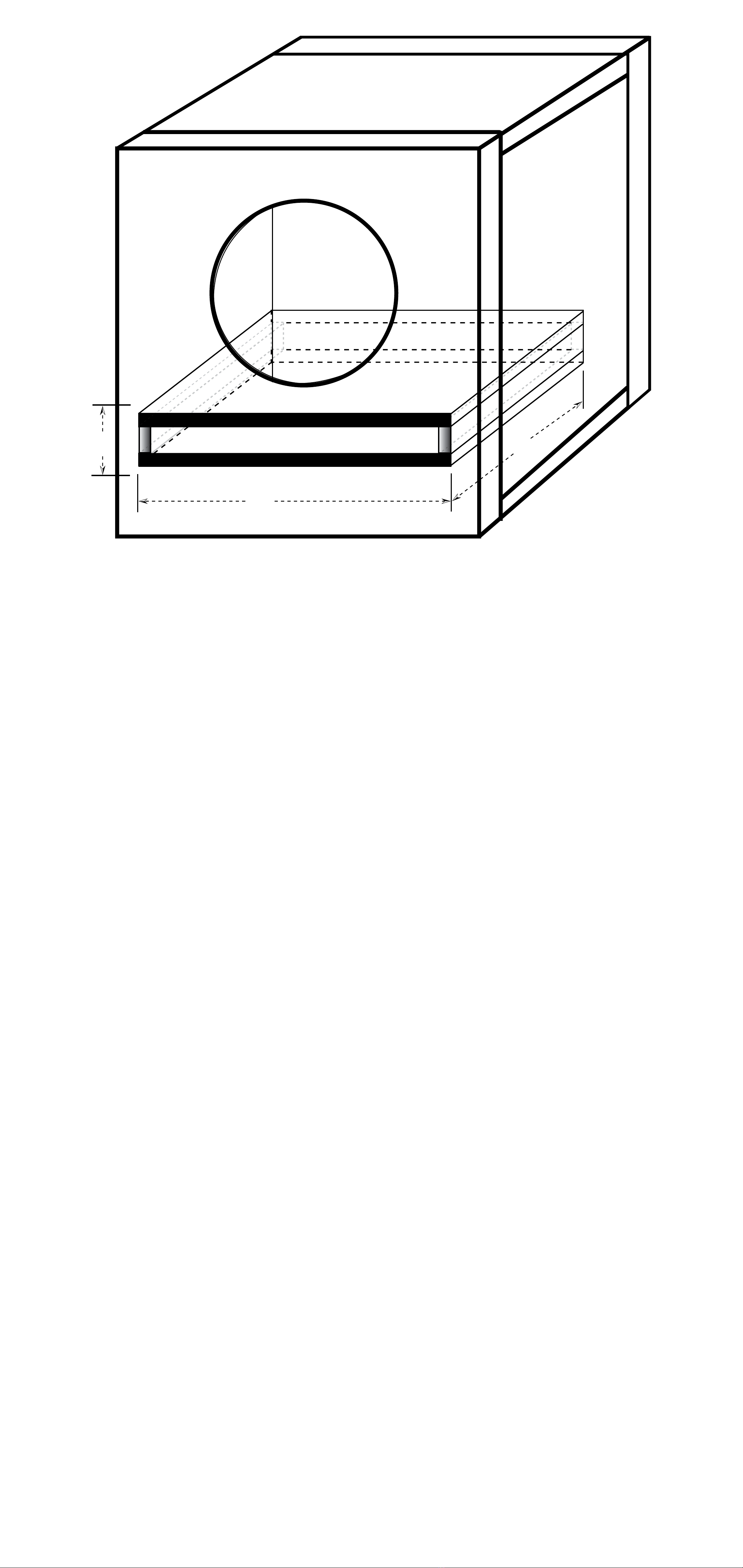

Due to the necessary length of these ports,

you may want to fold the port along the

bottom and back walls. It will be impractical

to use round ports for these designs.

8English

Do not install a port opening against a solid

surface, such as an internal brace, back-

panel or trunk wall, seat or interior panel of

your vehicle. The port opening must remain

unobstructed. Use the smallest dimension

of the rectangular port as the minimum

amount of space between the port opening

and any solid surface to insure unrestricted

airﬂow.

You can loosely ﬁll your enclosure with

poly-ﬁl stufﬁng. Ported designs will require

covering the end of the port (located inside

the box) with grill cloth, chicken wire, or

expanded metal to prevent the poly-ﬁl

from exiting the port. The use of poly-ﬁl will

slightly decrease efﬁciency, but will deepen

and extend the low frequency output by

making your subwoofer think it’s in a bigger

box.

9English

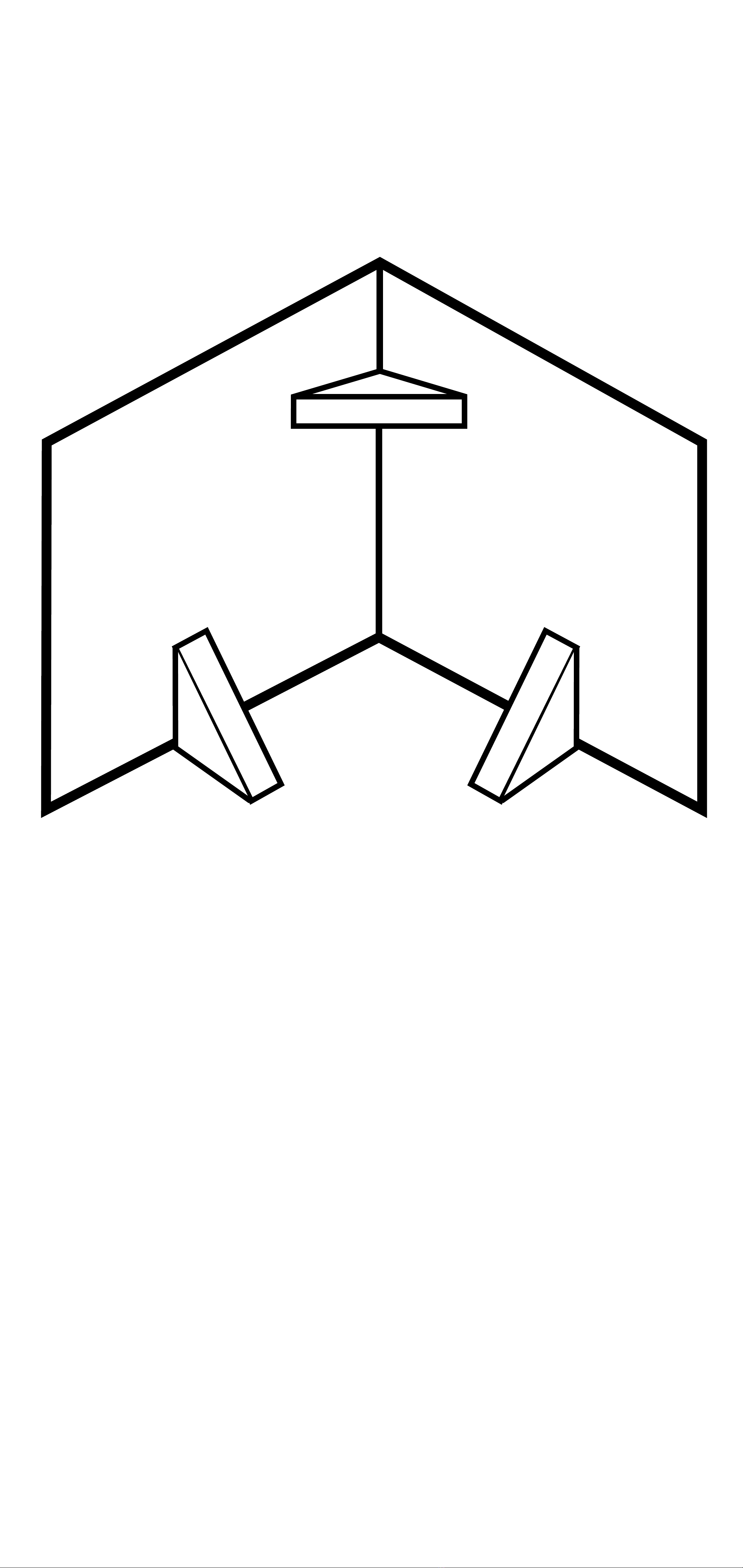

Add triangular bracing between each of the

larger unsupported panels.

For more advice on box building, refer to

your Authorized Kicker Dealer, or click on

the Support tab on the Kicker homepage,

www.kicker.com. Please e-mail

support@kicker.com or call Technical

Support at (405) 624-8583 for speciﬁc or

unanswered questions.

CVX12, CVX15: D = 3” x 3” (8cm x 8cm)

CVX10: D = 2” x 2” (5cm x 5cm)

10English

Sealed Enclosures

These sealed enclosure designs give the

smoothest response with increased energy

at the lowest frequencies, 20 to 30Hz.

These designs deliver massive amounts of

highly-accurate bass and can be driven with

punishing levels of ampliﬁer power.

The CompVX-Series high performance

suspension system can operate in a larger

sealed enclosure. This maximum enclosure

volume application is ideal for SQ (ultra

sound quality) installations. The Maximum

enclosure generates a very ﬂat response

curve and extends the sub-bass response.

Minimum Sealed

Model Volume ft3(L) Power Handling

CVX10 .8 (22.7) 600W RMS

CVX12 1 (28.3) 750W RMS

CVX15 1.8 (51) 1000W RMS

Model Volume ft3(L) Power Handling

CVX10 1.25 (35.4) 300W RMS

CVX12 2 (56.64) 300W RMS

CVX15 3 (85) 500W RMS

Maximum Sealed
