P/N 3101788-EN • REV 03 • ISS 16FEB16 1 / 4
VM-PMI Paging Microphone
Interface Installation Sheet
Description
The VM-PMI Paging Microphone Interface provides controls for
emergency voice/alarm communication and two-way firefighter
telephone communication. The VM-PMI consists of an audio mounting
bracket, EAEC Emergency Audio Evacuation Controller card,
enclosure, and paging microphone.
A separately ordered user interface language kit is available that lets
you change the control and indicator labels. See the VM-PMI-LK
Language Kit Installation Sheet (P/N 3101996-EN) for a list of available
kits and installation instructions.
Installation
WARNING: Electrocution hazard. To avoid personal injury or death
from electrocution, remove all sources of power and allow stored
energy to discharge before installing or removing equipment.
Caution: Circuit boards are sensitive to electrostatic discharge (ESD).
To avoid damage, follow ESD handling procedures.
Note: Two-way firefighter telephone communication requires a
VM-MFK Master Firefighter Telephone Kit.
To install the VM-PMI:
1.Attach the audio mounting bracket to the cabinet backbox using
the K-nuts provided. See Figure 2.
2.Install the EAEC card on the audio mounting bracket using the
screws provided.
3.Mount the audio enclosure on the audio mounting bracket hinges.
See Figure 4.
4.Connect the ribbon cable (P/N 250194-01), with the red edge
down, to J1 on the audio user interface card.
5.Insert the cable under one clip on the cable clamp that is affixed to
the enclosure, and then connect the other cable end to J1 on the
EAEC card. See Figure 4.
6.Loosely secure the cable to the mounting bracket using the nylon
cable tie provided.
7.Connect the ribbon cable (P/N 250188-01) to J3 on the EAEC card
and J5 on the PS10-4B power supply card that is mounted on the
backbox behind the electronics chassis.
8.Swing the audio enclosure toward the backbox to close it, sliding
the screw holes on the right flange onto the two screws on the
backbox. Secure the enclosure using the two #8-32 K-nuts
provided.
9.Peel off the black film on the inside of the bottom viewing window
of the cabinet door.
Wiring
Connect the VM-PMI field wiring as shown in Figure 5.See Table 1 for
descriptions of the connectors on the audio user interface card.
Notes
•All wiring is supervised and power-limited.
•Maintain 0.25 in. (6 mm) separation between power-limited and
nonpower-limited wiring at all times. Keep nonpower-limited wiring
in the shaded area shown in Figure 1.Secure the wiring to the
cabinet using nylon cable ties.
•If a VM-NOC card is not installed on the VM-CPU, connect AUDIO
DATA on the EAEC card to AUDIO A OUT on the VM-CPU
network data and audio terminal. See Figure 5.
If a VM-NOC card is installed, connect AUDIO DATA on the EAEC
card to AUDIO A IN on the VM-CPU network data and audio
terminal.
•Wiring from a remote microphone must be shielded and enclosed
in conduit. Refer to the VM-REMICA Remote Paging Microphone
Installation Sheet (P/N 3101795-EN) for field wiring instructions.
Figure 1: Power-limited and nonpower-limited wiring
(1) Nonpower-limited wiring area
(2) Power-limited wiring area
(3) Battery area
(1) (2)
(3)
2 / 4 P/N 3101788-EN • REV 03 • ISS 16FEB16

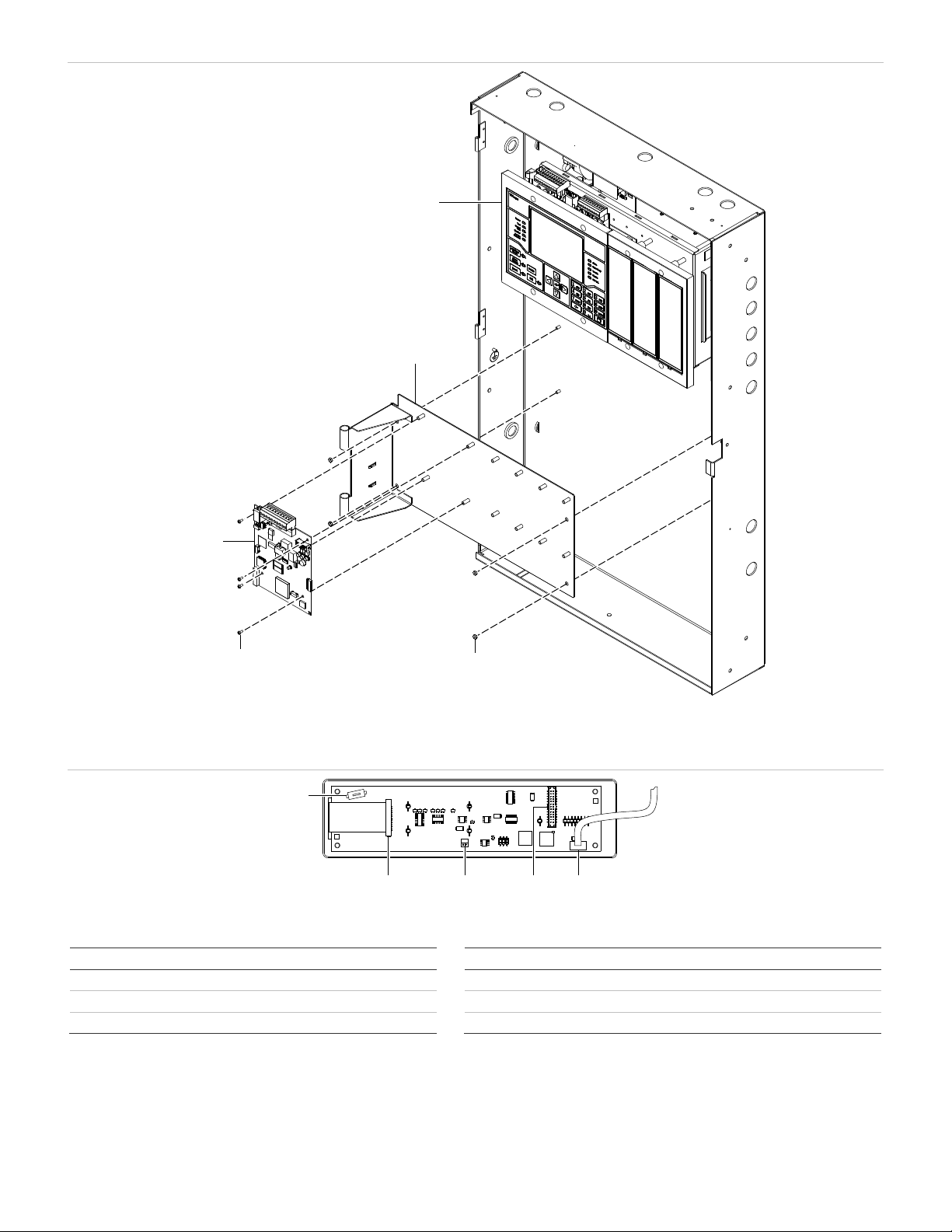

Figure 2: Installing the audio mounting bracket and EAEC card
(1) Electronics chassis
(2) Audio mounting bracket
(3) #6-32 × 5/16 screw (4X)
(4) #8-32 K-nut (4X)
Figure 3: Audio user interface connectors
Table 1: Audio user interface connectors
Label
Description Label Description
J1
EAEC ribbon cable connector J4 Telephone cable connector
J2
Audio user interface to audio control board connector J5 Hook switch card connector
J3
Microphone cable connector
EAEC
(1)
(2)
(3) (4)
TELEPHONE
J1
J2
J5
J4 J3
MIC
J5
J2 J4
TELEPHONE
J1 J3
MIC
P/N 3101788-EN • REV 03 • ISS 16FEB16 3 / 4
Figure 4: Installing the enclosure
(1) PS10-4B power supply protective case
is installed here for ULC applications
(
2) Nylon cable tie
(3) Cable clamp (P/N 362186)
(4) VM-PMI audio enclosure
(5) Audio user interface card
(6) Hinges on the audio mounting bracket
(7) Hinge pins on the audio enclosure
Figure 5: Wiring the EAEC card
(1) Network option card installed
(
2) Network option card not installed
(
3) Remote microphone, key out
(4) Remote microphone, audio out
(5) Remote microphone, shield
(6) No connection
(7) UL 864 Listed equipment with compatible ratings
PS10-4B J5
P/N 250188-01
EAEC J3
EAEC
J1
P/N 250194-01
J1
(1)
(2)
(3)
(4)
(5)
(6)
(7)
VM-CPU
AUDIO
DATA
KEY AUDIO
REMOTE MIC
AUX OUT AUX IN
EAEC
NETWORK AUDIO AUDIO AUDIO AUDIO
OUT IN
+ -
BB
A IN A OUT B IN B OUT
+ - + - + - + -
AB
RS-485
+- +-
RS-485R
X
1
AA
+-
T
X
1
T
S
1
R
O
M
1
C
BUS BUS
(1) (2)
(3)
(4)
(5)
(6)
(7)
4 / 4 P/N 3101788-EN • REV 03 • ISS 16FEB16
Specifications
Voltage
24 VDC
Current
Standby
Alarm
23 mA
29 mA
Remote microphone input
Isolated and supervised
AUX input
Impedance
Level
Frequency response
1 kΩ
0.2 VRMS to 1.0 VRMS
100 Hz to 4 kHz
Ground fault impedance
10 kΩ
Wire
size 18 to 12 AWG (2.5 to 1.0 mm²)
Audio channels
4 simultaneous
Audio
inputs
Local microphone
Remote microphone
Firefighter telephone
Remote audio
Isolated and supervised
Isolated and supervised
Isolated and supervised
Isolated and supervised
Messages
Storage
Length
2 min
39 s max.
Controls and indicators
Common
Paging Volume
Ready To Page
Paging Microphone
All Call
All Call Minus
Indicates relative signal strength
during active page
Flashes during preannouncement
tone, steady when ready to page
Activates/deactivates page to all areas
Activates/deactivates page to areas
not receiving EVAC or Alert message
Page To Evac
Page To Alert
Firefighter Phone
Page By Phone
Buzzer Silence
Activates/deactivates page to areas
currently receiving EVAC message
Activates/deactivates page to areas
currently receiving Alert message
Activates/deactivates remote
firefighter telephone to paging channel
Silences call-in request buzzer
Operating environment
Temperature
Relative humidity
32 to 120°F (0 to 49°C)
0 to 93% noncondensing
Regulatory information
FCC compliance
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Environmental
class
UL: Indoor dry
Contact information
For contact information, see www.kiddelifesafety.com.
© 2016 Walter Kidde Portable Equipment, Inc.
All rights reserved.
