Kikusui PAB 18-1A Bedienungsanleitung

''j

REGULATED DC POWER. SUPPLIES

PAB18-1 A

PAB18-I.8A

PAB18-3A

PAB32-1.2A

PAB32'2A

PAB70r tA

PAB110-6.6A

PAB 250-0,25i

PAB350‘0.1A

-',1

s' ^

KlKUSlil ELECTRONICS CORP.

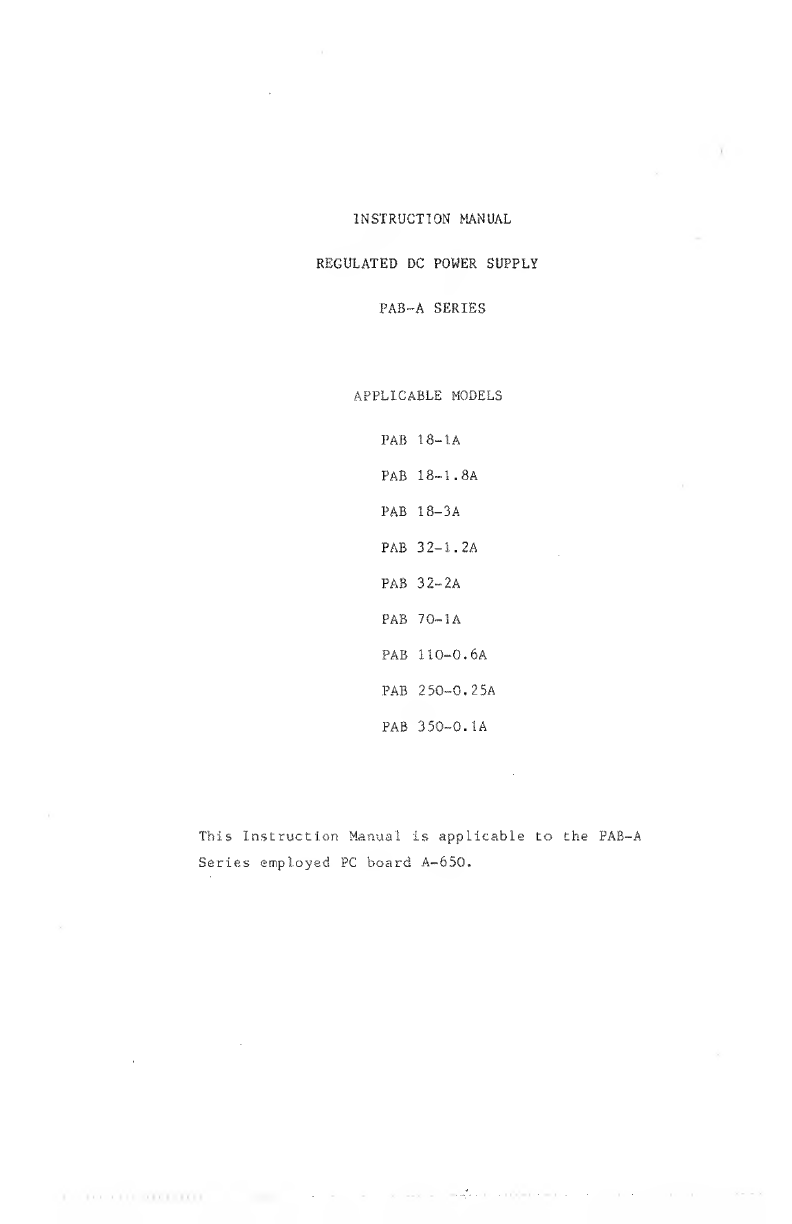

INSTRUCTION MANUAL

REGULATED DC POWER SUPPLY

PAB-A SERIES

APPLICABLE MODELS

PAB 18-1

PAB 18-1.8A

PAB 18-3A

PAB 32-1. 2A

PAB 32-2A

PAB 70-1

PAB 110-0.6A

PAB 250-0. 25A

PAB 350-0.1

This Instruction Manual is applicable to the PAB-A

Series employed PC board A-550.

On Power Supply Source, it is requested to replace the related places in the

instruction manual with the following items.

(Please apply the item of Vmark,

)

Power Supply Voltage; to VAC

Line Fuse; to A

Power Cable; to 3~core cable (See Fig. 1for the colors.

)

Blue (NEUTKAL)

Brown

(LlVf

Green/Yellow (GNO)

fhite (Neutral:

-a

or Black

Fig. 1

Please be advised beforehand that the above matter may cause some alteration

against explanation or circuit diagram in the instruction manual.

*AC Plug; In case of Line Voltage 125V AC or more, AC Plug is in principle

taken off and delivered, in view of the safety.

(AC Plug on 3“Core cable is taken off in regardless of input

voltages.

)

TO connect the AC plug to the AC power cord, connect the respective

pins of the AC plug to the respective core-wires (LIVE, NEUTRAL, and

GND) of the AC power cord by referring to the color codes shown in

Fig. 1.

Before using the instrument, it is requested to fix asuitable plug for the

voltage used.

TABLE OF CONTENTS

SECTION 1. GENERAL

1-1. Description

2. Specifications

*Mechanical Outline Drawing

SECTION 2. OPERATION

1. Precautions Before U.se

2-2. Description of Panel Items

2-3. Operating Procedures

2-4. Modification of FINE Setting Potentiometer

2-5 .Rack Mount

SECTION 3.APPLICATIONS 3^

3-1 .ON/OFF-controI of Output .. . .3"3

3-2. Remote Control of Constant-voltage Output 37

1. Control of Output Voltage With External Voltage 37

2. Control of Output Voltage With External Resistance I.41

3. Control of Output Voltage With External Resistance n.. 4i

3-3 Remoto Control, of constant-current Operation 47

1. Control of Output Current With External Voltage 47

2. Control of Output Current With External Resistance I.5C

3. Control of Output Current With External Resistance II 53

PAGE

3-4. Series or Porallel Operation 56

3-5. One-control Parallel Operation 58

3-6. One-control Series Operation 6i

7. External Battery Drive of Digital Meter 65

SECTION 4. MAINTENANCE 67

1. Inspection 67

4-2. Adjustment and Meter Calibration 70

*Schematic Diagram

SECTION 1. GENERAL

1-1.Description

The PAB-A Regulated DC Power Supply is an automatic constant-voltage/

constant-current transfer type of power supply with an auto-range

display meter (3-1/2 digits, liquid crystal display).

The output voltage and output current can be displayed by selecting

them with the switch on the front panel. An external voltage also

can be. displayed with the meter as an input terminal for such signal

is provided on the front panel (except the PAB250-0.25A and PAB.350-0.1A

which have no external voltage measuring function).

The control circuit is amonolithic IC ba.sed circuit. It employs a

temperature compe.nsation type of reference diode, metal film resistors

of excellent temperature coefficient, and wire wound potentiometers,

thereby realizing stable output characteristics.

The output switch is an electronic switch which causes no chattering

or otl'ier noise and which can be electronically remote-controlled.

When the output switch is off, the output voltmeter indicates the

value corresponding to the voltage setting knob, facilitating the

voltage, preset operation.

The. FINE VOLTAGE setting control can be changed to that for current

setting control by changing the internal connector .setting. The

PAB110-0.6A, PA132.50~0.25A and PAB350-0.1A have no FINE VOLTAGE setting

control.

The operation mode is clearly identified between the CV mode (constant-

voltage mode) and the CC mode (constant-current mode) with the LEDs on

the front panel.

In order to be usable as asy.stem component of an automation system,

the PAB-A Series Power Supply has on Its rear panel the remote-control

terminals for control of the output voltage or output current with an

external control voltage signal. The full-scale adjustment can be

accomplished from the front panel. The remote /local selector .switch,

which is convenient for adjustment and maintenance of the power supply

when it is used as asystem component of an automation system, is pro-

vided underneath the output terminals (binding post terminals).

In order that the power supply is usable as afixed power supply com-

ponent of an equipment as well as for laboratory use ,guard caps for

fixing or semi-fixing the control potentiometers are supplied. The

power supply is incorporated with apotentiometer burn-out protection

feature

Please be sure to thoroughly read this instruction manual before

starting operating the power supply.

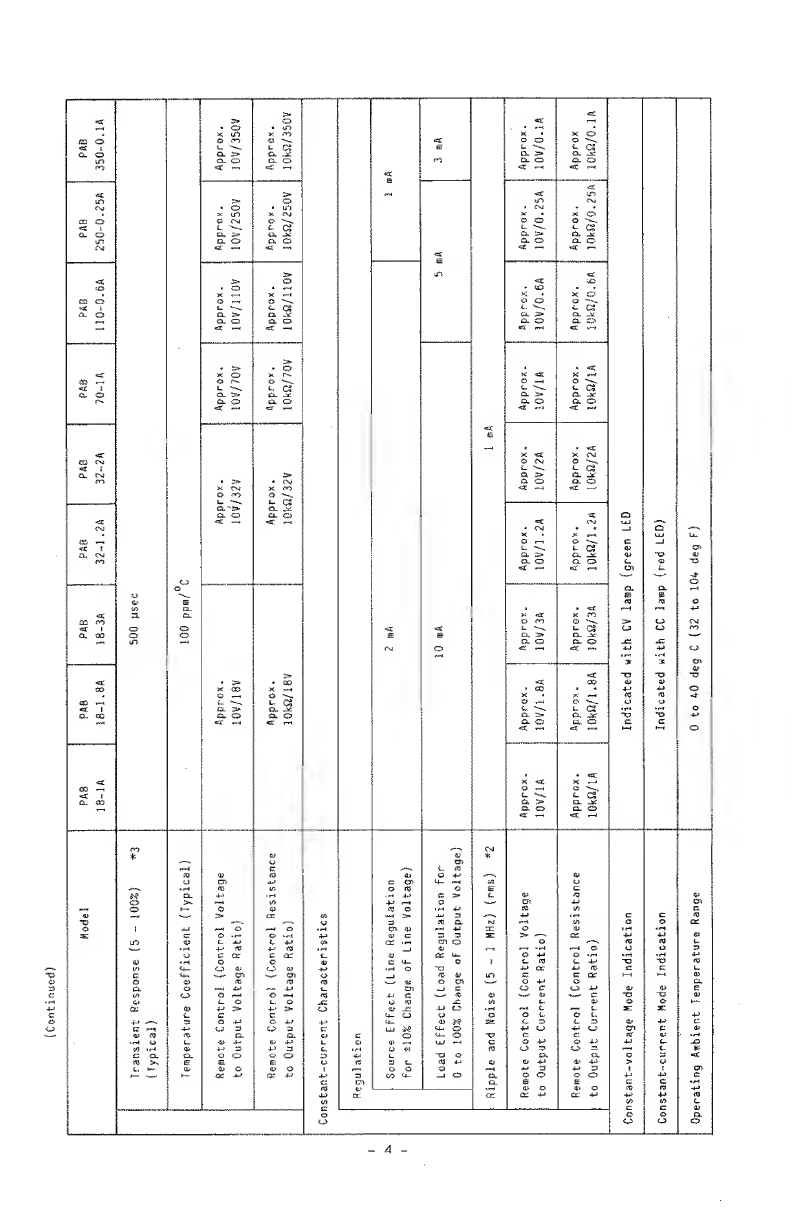

Soec

ions

Source

Effect

(Line

Regulation

for

tiO?

Charge

Line

Voltage)
