Kilotech KWD 750SS Bedienungsanleitung

Operation Manual Page 1

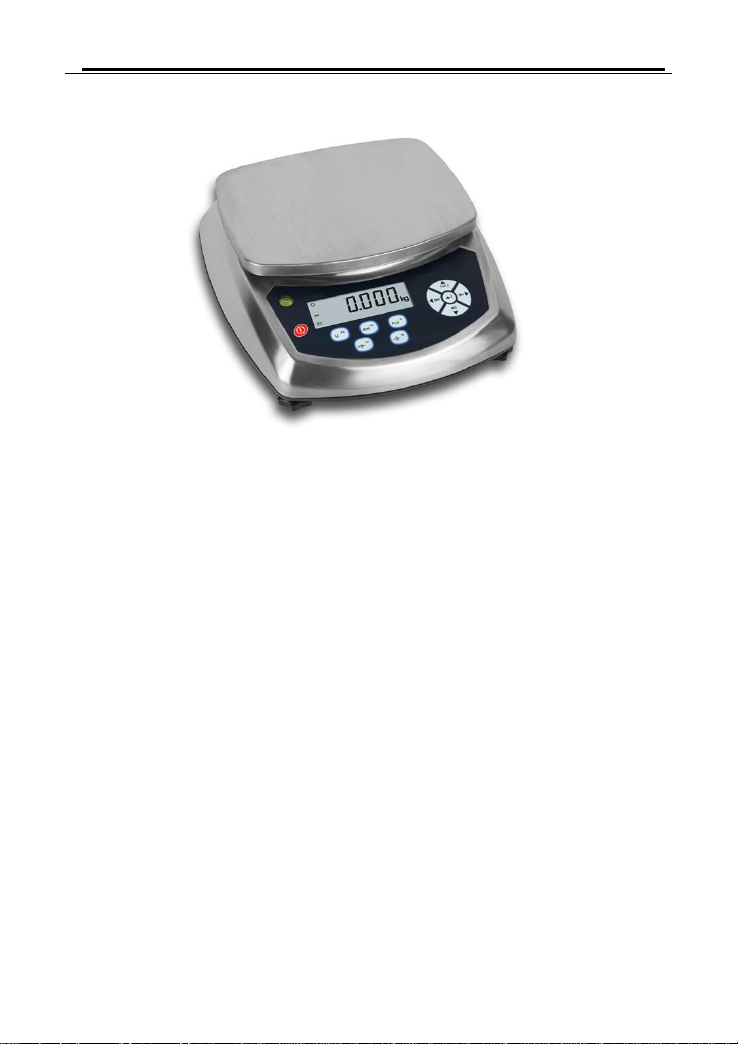

KWD 750SS

Weighing scale

Operation manual

Operation Manual Page 2

INDEX 

1. S a f e t y w a r n i n g s …………………………………3

2. F e a t u r e s ……………………………………………..4

3. Options…………………………………………..………...……..4

4. Product package…..……………………………………………….5

5. Keypad and display description………………………………5

6. Connections……………………………………………….………7

7. Basic function operation…….…………………………………..8

7.1 Zero Adjust………….……………………………...….. 8

7.2 Tare Function…….……….……………………………7

7.3 Auto Tare ……..………….…………………………… 11

7.4 Current Weighting..………..…………………………12

7.5 Accumulative Weighting..............……………………13

7.6 Piece Counting function…………………….……… 14

7.7 Piece Counting Preset………………………………15

Operation Manual Page 3

7.8 Weight limit function…….…….……..……………… 17

7.9 Weight limit saving and reply mode ………….…….17

8. Second Platform ………………………………………....……… 21

9. Advanced Functions …………………….………………………22

9.1 Backlight Activation…………...………….22

9.2 Auto Hold mode function…………….…..23

9.3 Auto Power off ……………………….......24

9.4 Auto Tare……..…………………………….24

9.5 Stable Filter……………………..……….25

9.6 Sound Activation………………………….26

9.7 AD conversor verification function………26

9.8 RS-232C data output configuration…..…27

9.9 Print Format………………………………..27

Manuel en Français et en Espagnol

disponible sur www.kilotech.com

1. Safety warnings

Disconnect from supply before installation or disassembly.

Although scale will withstand regular water spills, never submerge the

scale and never wash the scale with high pressure device. Electrical

adapter must be disconnected when washing scale.

Do not rest the scale of its platter or sub-platter because it can damage

the load cell. When manipulating the device, the scale should rest on

its sides, never on its platter.

Do not drop anything onto the scale platter or sub-platter as this could

damage the load cell. This scale is a precision instrument and should

be treated as such. It should also only be used for its intended use.

Before you start using the scale, make sure adapter is well connected

and wire is not pinched in any way.

Operation Manual Page 4

The scale should only be used under proper environmental conditions

and supervision as indicated in this operation manual.

Do not use this scale in places where there are unstable conditions or

danger of explosion.

Do not place the scale near heat sources or in direct sunlight.

Keep the scale far away from other electromagnetic sources as these

could affect the weighting precision.

When low-battery advisement appears, the battery should be charged.

If the battery remains discharged for on 60 days, the battery

deteriorates and could stop working.

When changing battery, make sure (+) and (-) terminal wires are

connected to the same and correct battery terminals.

IMPORTANT!

Inappropriate use of the scale, modification or tampering with the

scale or abuse / misuse of the scale will void the warranty of the scale.

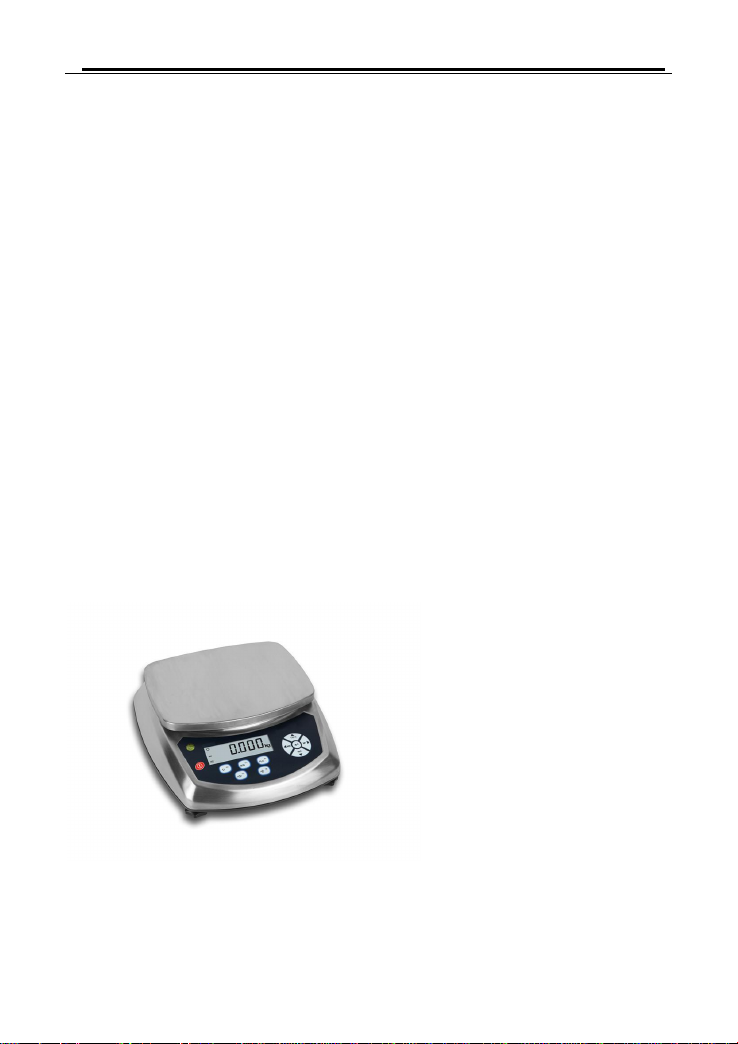

2. Features

Liquid crystal display with backlight

Cross keypad for intuitive menu use

4 weighting units.

Operation Manual Page 5

IP-65 equivalent protection against liquids and dust.

20 numeric tare memory

20 limit weights for +/-control memory.

50 products memory for piece counting.

Checking function for Hi/OK/Low with optical and acoustic indication

Automatic OFF function.

3. Options

Optional rechargeable battery.

Double RS-232C data output ( PC and printer).

External Tare input (pedal or button).

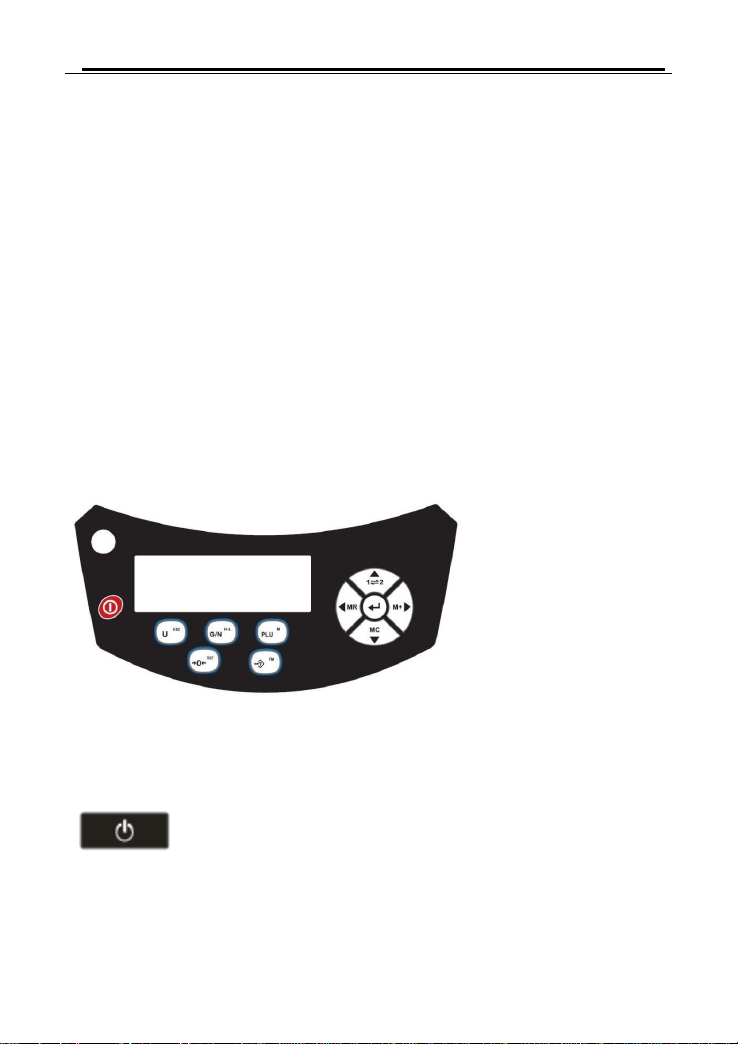

4. Keypad and display description

Keypad:

Turn on/off key. Press button to turn it on. To turn it off,

press and hold the button for one second.

Operation Manual Page 6

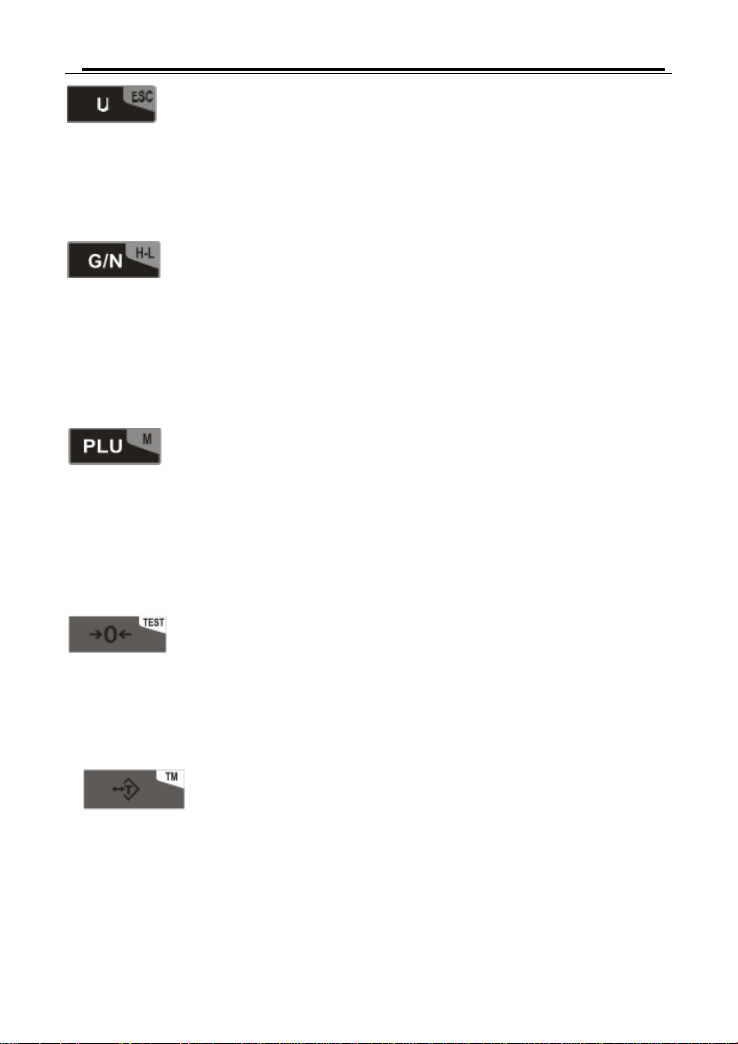

Change unit key. Press it to change unit. In menu

mode, press it to escape from menu and return to

normal mode.

Gross/Net key. When using tare mode, press it to show

total weight, press it again and it will show net weight.

To select “weight limit” mode, press and hold it for a

few seconds.

PLU key. Press it to enter menu, it has access to limit

memories, piece counting, tare mode and other

utility functions.

Zero key. It adjusts scale to zero, correcting its

deviations. Do it always when platter is empty. If you press it longer

than a second, it shows display test.

Tare key. Press it to deduct the weight of any container

or box placed on scale platter. Keep pressing to access tare

memory.

Operation Manual Page 7

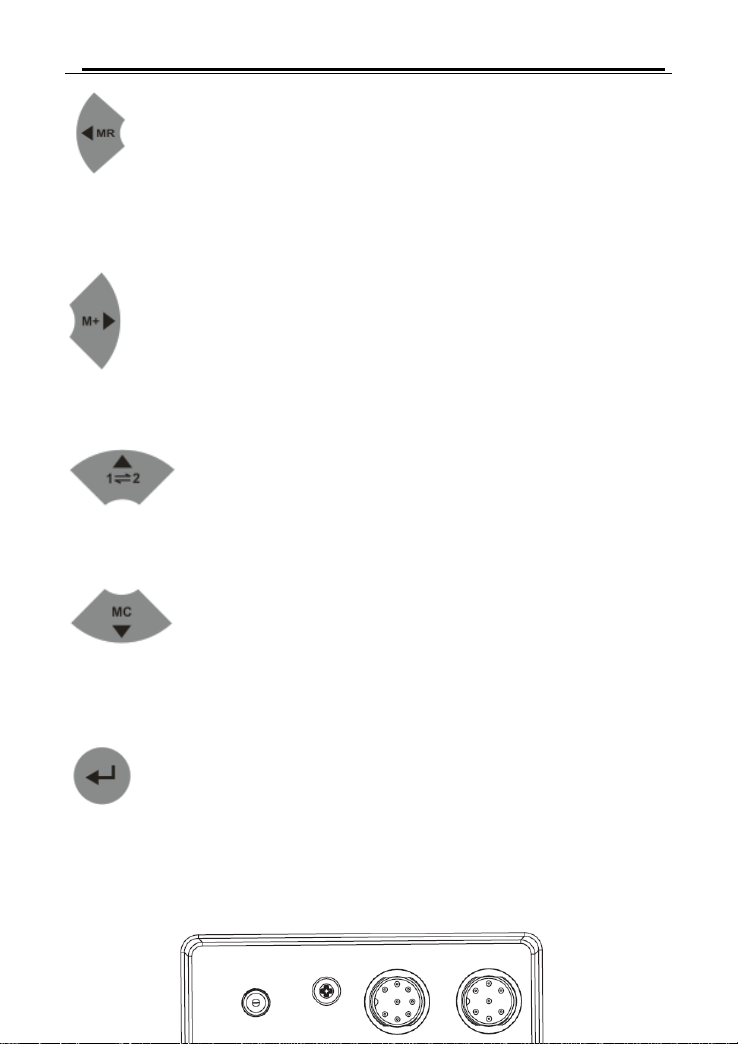

MR and left arrow key. Press it to show accumulated total

weight. In menu mode, confirm the selected adjust value, and return

to previous menu.

M+ and right arrow key. Press it to save the value shown on

the display. In menu mode, it shows the next function.

Up arrow key. In menu mode, it increases the value

(number) on display.

MC and down arrow key. Press it to erase accumulated

weight memory. In menu mode, it decreases the value (number) on

display.

Enter key. To confirm the selection done in programming

mode.

6. Connections

Operation Manual Page 8

AC/DC: Supply connector.

RS-232C: Double RS-232C data output RS-232C and tare (optional)

C2: External platform connector.

7. Basic function operation

7.1 Zero adjust

When scale platter is empty and it does not show zero value, press Zero

key to correct it.

7.2 Tare function

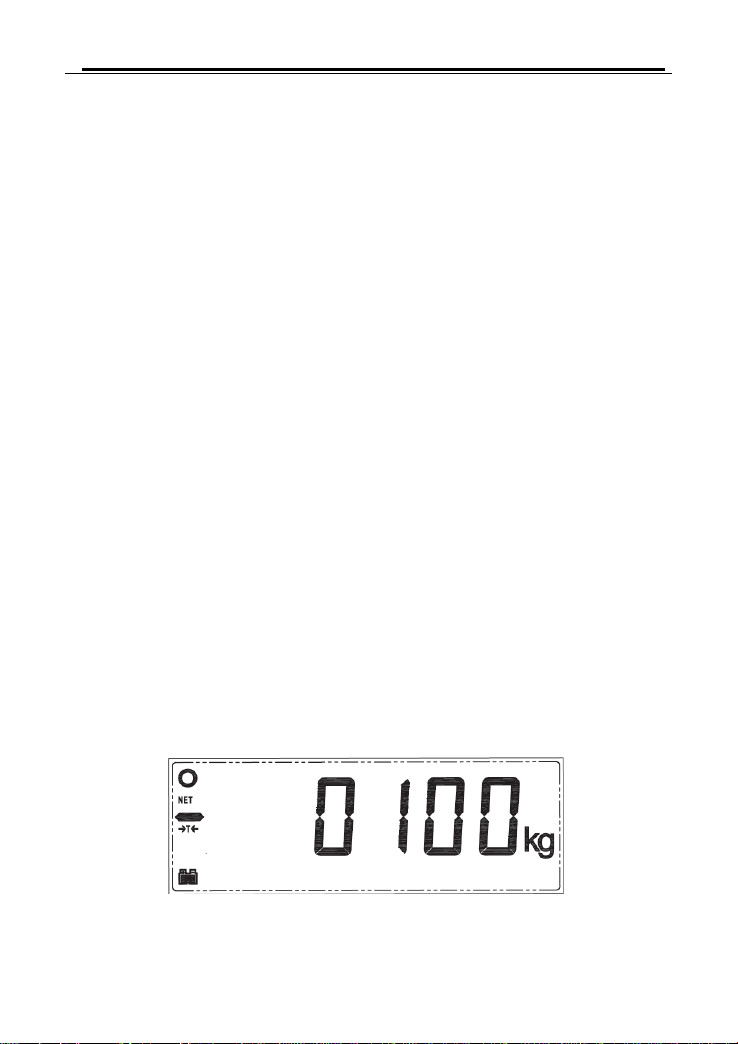

Place a container on the platter. Display will show tare value. Press “TARE”

and it will show “0” value, deducting object weight. Now you can place other

objects on the container, and display will show its net weight.

You can see the total value (gross weight) pressing “G/N” key. Press it again

to return to net weight.

To cancel tare, remove all objects from the platter, and press “TARE”.

Display will show zero value.

Operation Manual Page 9

Tips: If there is instable or temperature differences, display may not show 0

value. In this case, press “Zero” key to correct it.

Max tare range: Tare value cannot exceed the maximum scale capacity. The

real scale capacity is the sum of maximum capacity minus the tare done.

Real cap. = max cap. –tare.

TARE memory

The scale has 20 numeric tares available. To store tares, follow the

procedure below:

Storing a tare

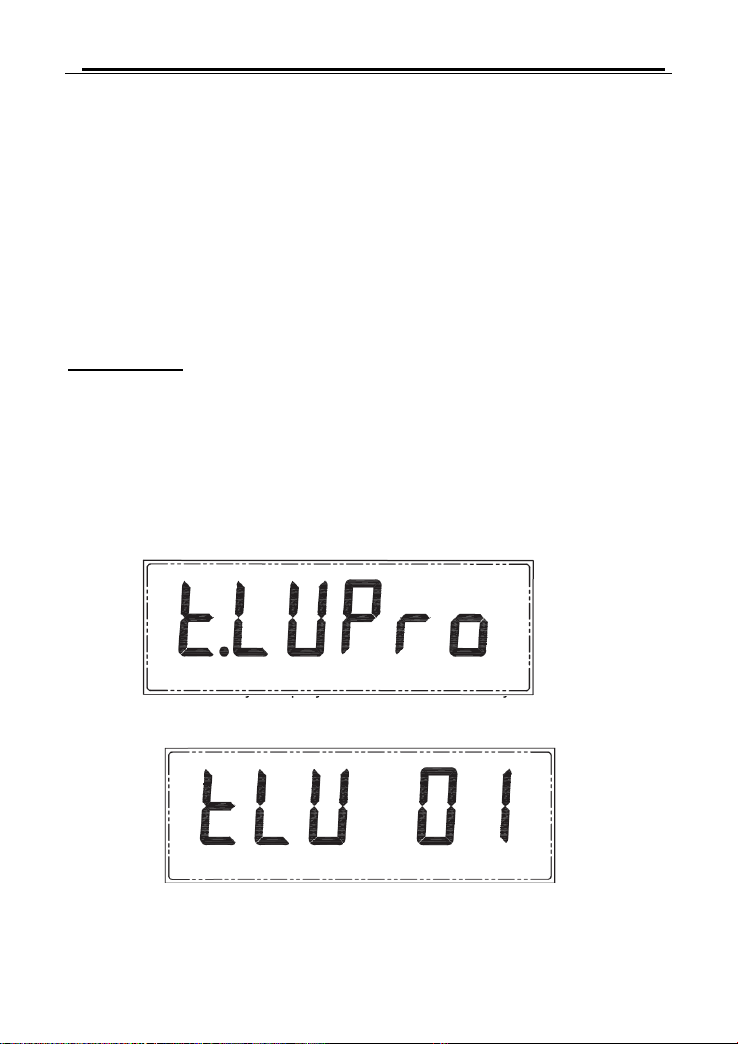

1) Press “PLU” key. Display will show “PLUPro”. Press “RIGHT ARROW”

key several times till display shows “TLUPro”.

2) Press “ENTER” key. Display will show the memory used last time (for

instance “lLU 01”). Last digits indicate the memory number.

Once memory position desired is selected, press “ENTER” and display will

show one number. To modify it and introduce a tare value, use “UP

ARROW” and “DOWN ARROW” to select the desired digit. To go to right

Operation Manual Page 10

digit, press “RIGHT ARROW”, to modify it use “UP ARROW”and “DOWN

ARROW”. To modify any digit on the left, press “LEFT ARROW”.Follow the

same procedure explained before.

To finish, press “ENTER” key and tare will be saved. If we wish to keep

saved tares, press again “ENTER” and follow the same procedure.

To finish, after confirming the last tare saved, display will show “ILUPro”.

Press “U/ESCAPE” to escape to weighting mode.

TARE memory use

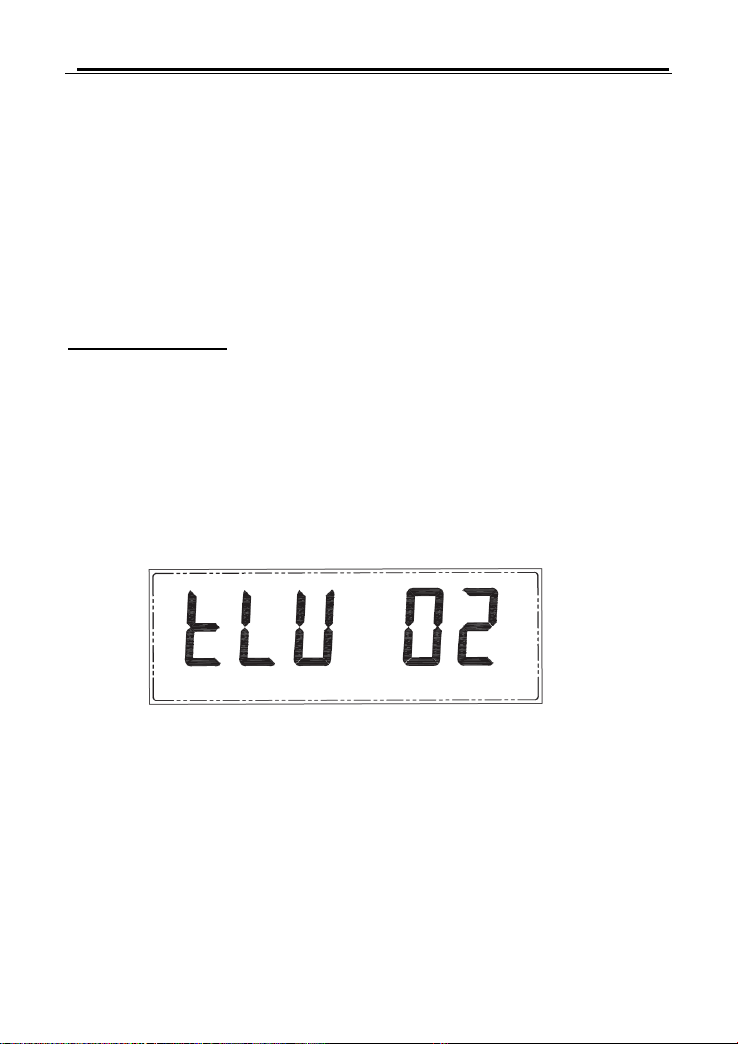

In weighting mode, with empty platter, press “TARE”longer than a second

till “TLU XX” is shown, where XX is the last digit of the TARE memory saved.

To access another memory position, press “UP ARROW”and “DOWN

ARROW” to surf along the tare memories until you find the desired memory

number.

To confirm, press “ENTER”. Display will show tare memory value with

negative sign. Now you can place the object on the platter, and the tare

value will be deducted from weighting value (shows net weight).

You can operate with the object on the platter, then display indicate net

weighting value.

7.3 Auto Tare
