KINCO Servo Quick Start Guide

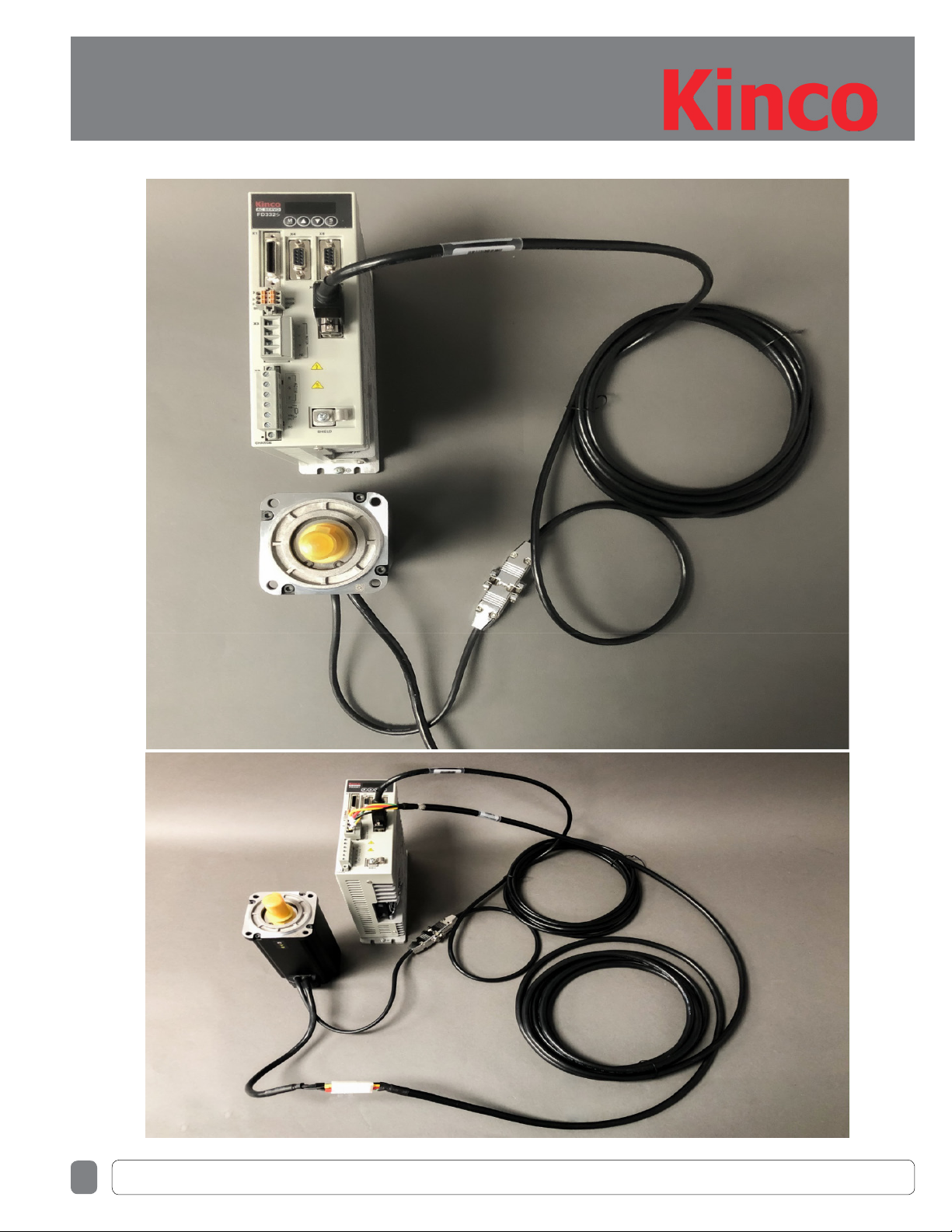

Needed: Kinco Servo Package (motor, driver, phase and encoder cables), 24V power supply,
UT232R-200 Communication Cable (FDxx2S), Flat head screw driver, Kinco Servo+ Software.
1. Remove drive from packaging and ax associated terminal plug to X2, X3 and X7
2. With the power disconnected, connect the power wires to the input terminals.
a. For FD4x2S modules, apply line voltage to R terminal on connector X7, apply Neutral
to S terminal on X7 and connect Ground to Shield screw on chassis. Leave T terminal
oating.
b. For FD3x2S modules, Apply line voltage to L (R) and Neutral to N (S) on X7 terminal.
L011933
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933

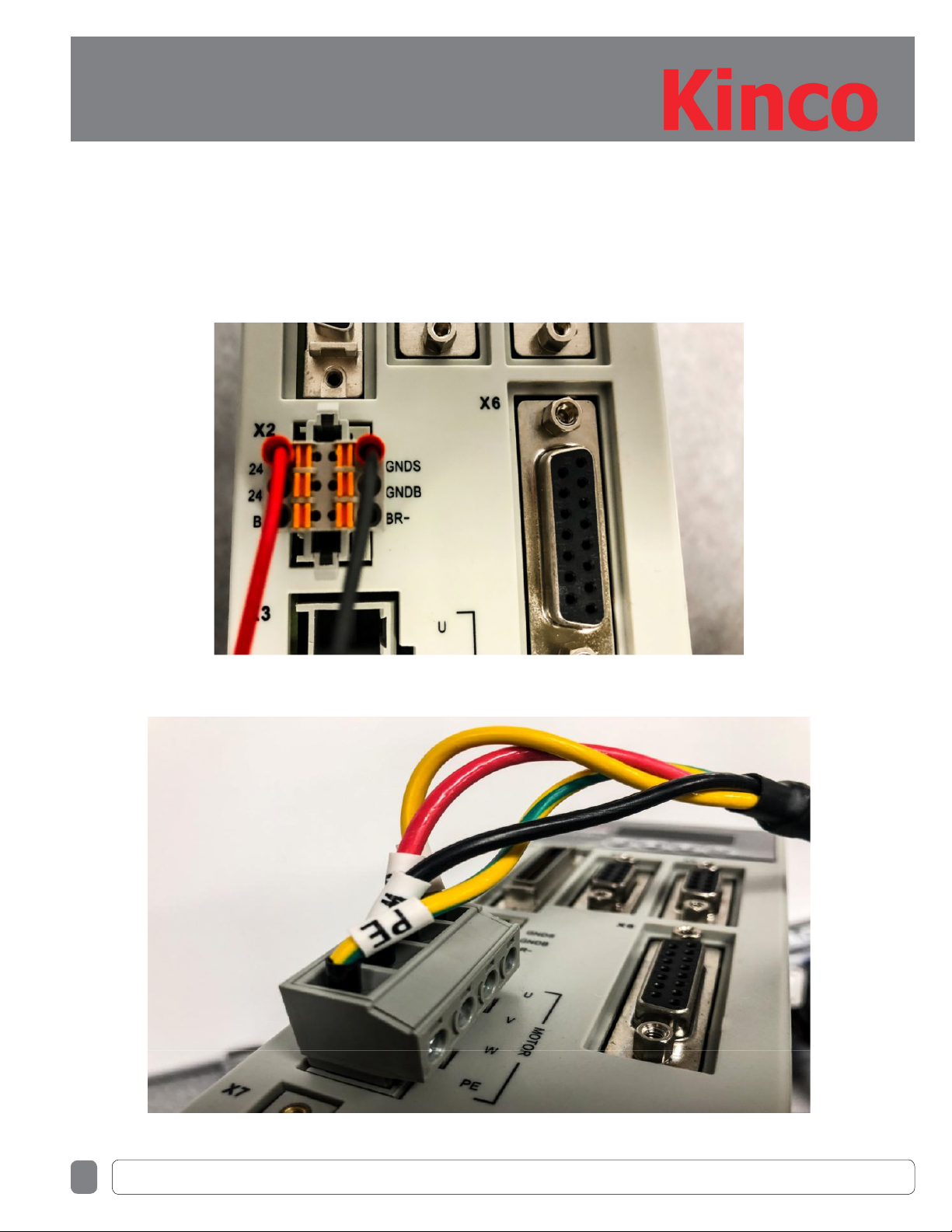

3. Connect a 24Vdc power source to 24VS and GNDS on X2, this will power the display
LEDs and EEPROM logic
4. Connect the Motor phases (ferruled and labeled) to the mating terminals on X3.
a. For the FDxx2S models, a 24Vdc power supply is required to power the control logic
of the driver
b. For motors with a Friction Brake, another 24Vdc must be applied to the 24VB and
GNDB terminals
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933
5. Connect the Encoder cable to mating terminal X6.
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933
6. For programming, attach programming cable to drive connector X5 and connect to a COM
port on your computer.
a. For FDxx2S, an RS232 cable (DB9) is required for the X5 connector.
7. Apply both line power and 24VOC power to the unit and the LEDs should display “FFF.F” by
default.

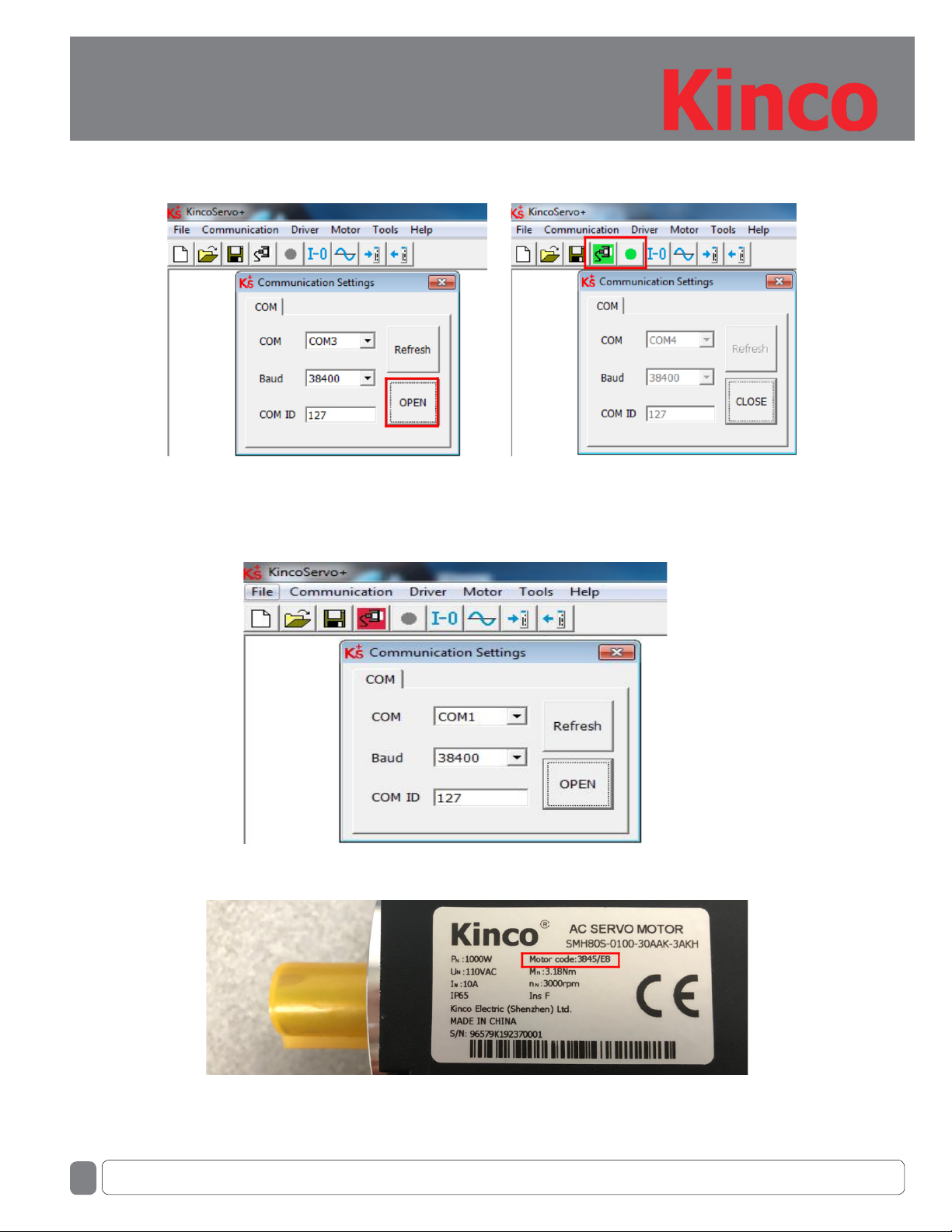

8. Open Kinco Servo+ Software and establish communication to the driver.
a. At the drop-down tabs, Select Communication > Communication Settings
i. Use the dropdown to select the appropriate COM port to which X5 is connected
ii. Baud is default 38,400 and COM ID is default 127.
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933
ii. If so, close out of “Communication Settings” by pressing the red “x” at the top
right corner
9. Change the motor settings on the drive to the motor for your system
a. On the Servo Motor label, there is a “Motor Code” value that is “####/X#” format
b. Press the “Open” Button and it should change to “Close”
i. The Cable and Error buttons below the drop down menu should illuminate Green
Note: This code is either entered onto the LEDs or on the PC. Since we are programming
via PC, we need the “X#” code which is “E8”
Note: If these are Red, there is an Error. Press the red button and review the
error list. Check your wiring appropriately
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933

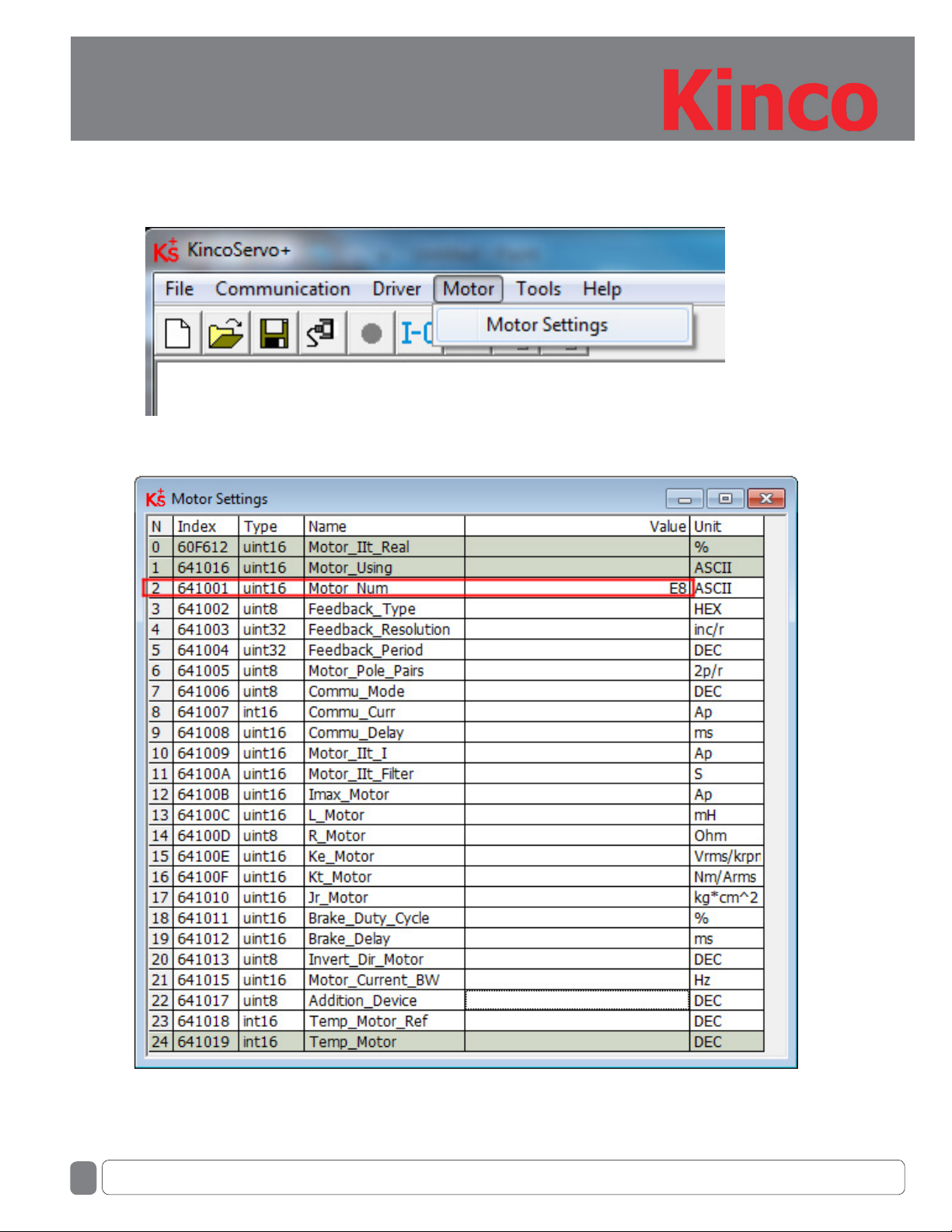

i. The 3rd line will say “Motor_Num” which is defaulted to value “K@”. On the
“Value” column, change this to the “X#” value we found earlier.
b. In the drop down list, go to Motor > Motor Settings
Note: hit “Enter” to save your values
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933

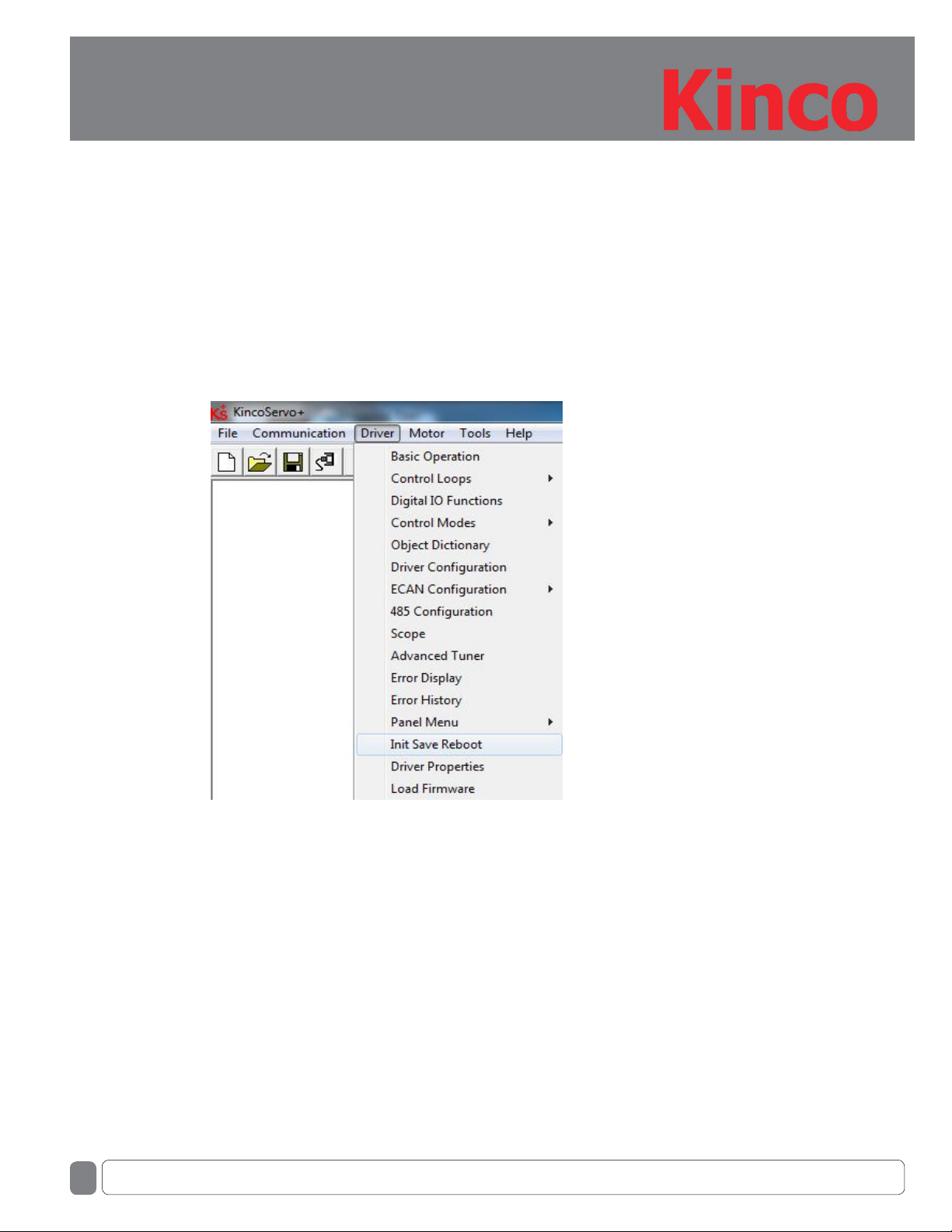

ii. The 2nd line will still say K@ after pressing enter. Go to drop down lists,
Driver > Init Save Reboot and press “SaveMotor Parameters” then
Press “Reboot”.
iii. This should update the “Motor_Using” line to match the Motor_Num line and
the values should update accordingly.
iv. If your motor has a brake, edit line 22 “Addition_Device” to a value of 1, save
motor parameters again, and reboot the driver again.
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933

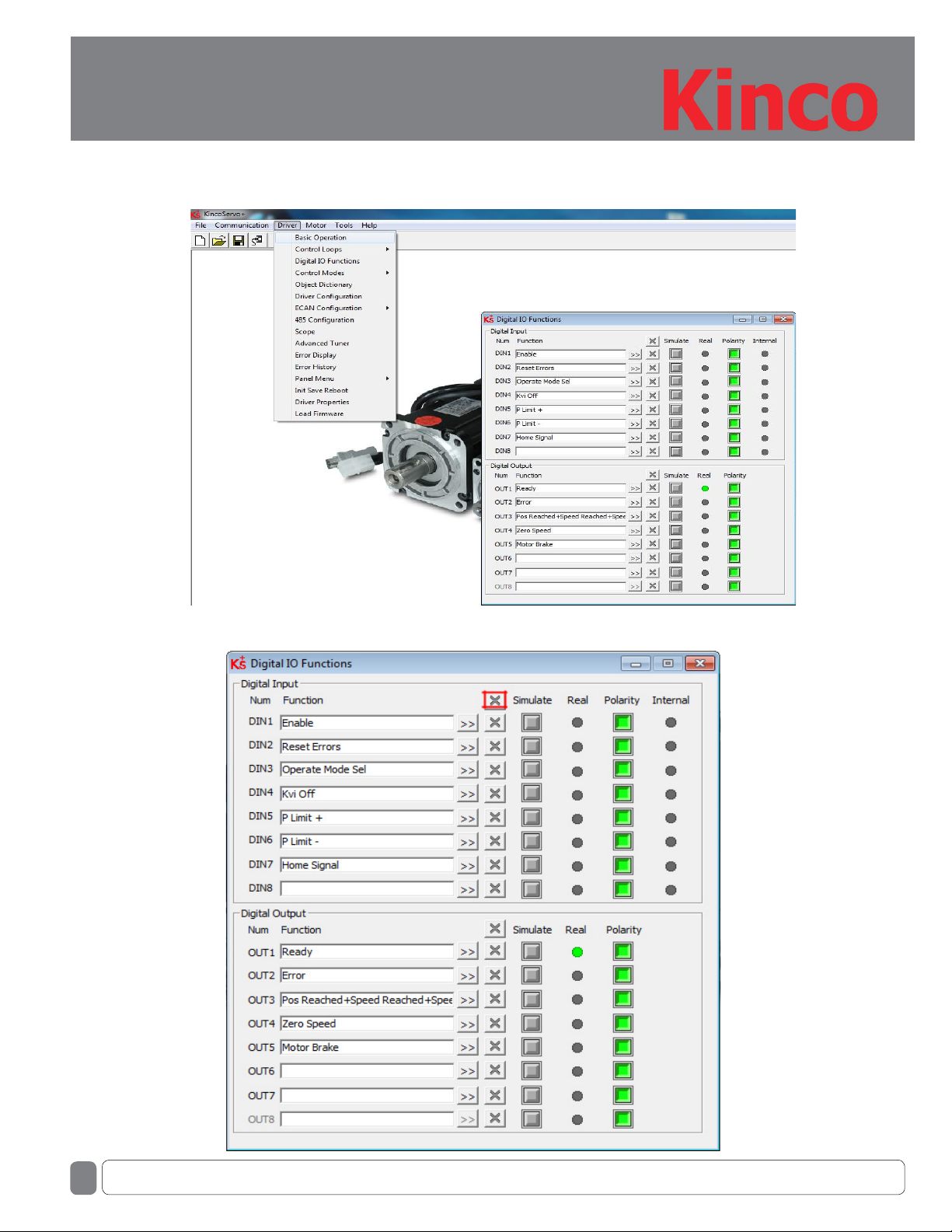

b. Clear all DIN functions by selecting the top “X” to the left of the “Simulate” text on
“Digital IO Functions” Screen.
10. Set up I/O to test your system
a. With the motor sitting freely, open both the I/O and basic operation (drop down list,
Driver > Basic Operation).
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933

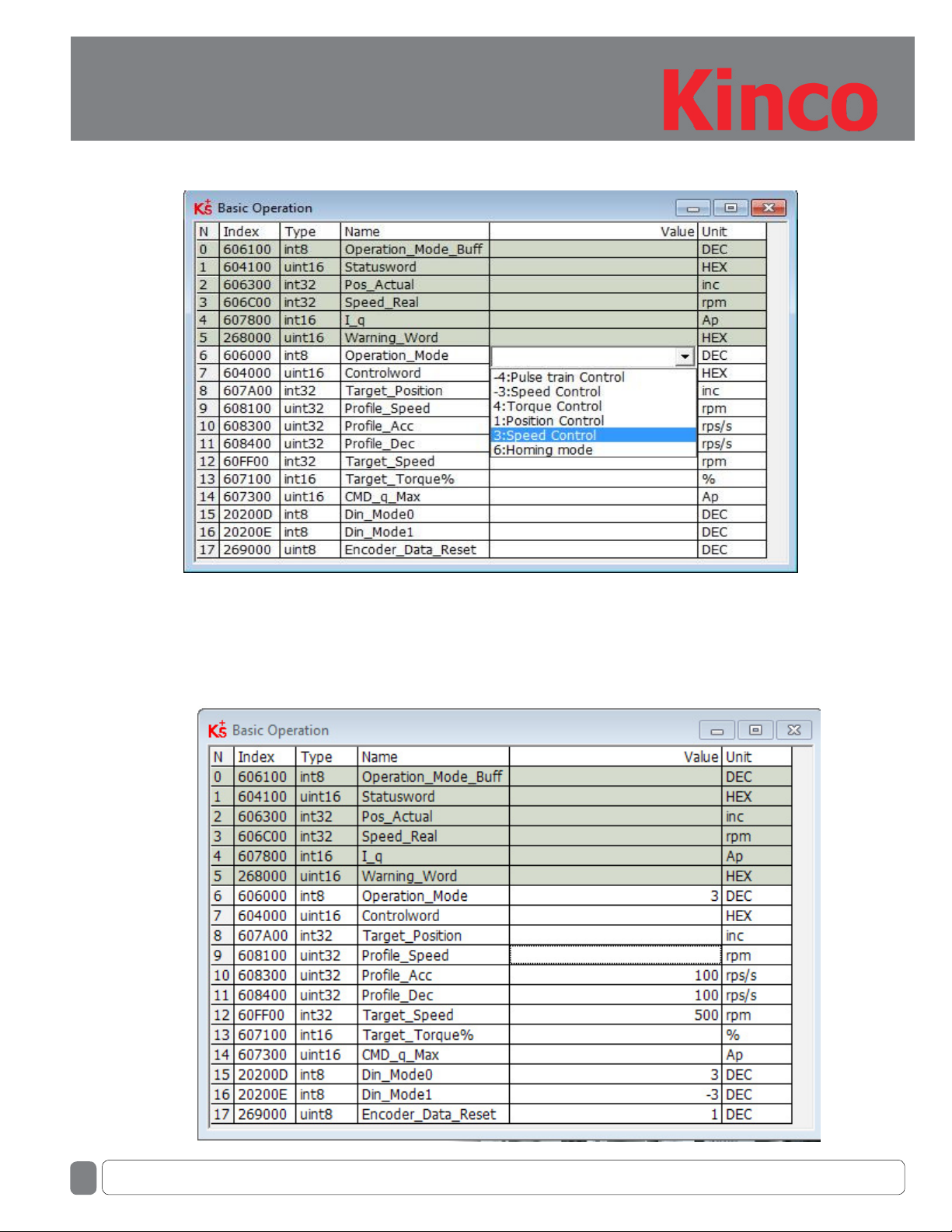

ii. NUM 10 “Prole_Acc” set to 100 rps/s
iii. NUM11 “Prole_Dec” set to 100 rps/s
iv. NUM12 “Target Speed” set to 500 rpm
v. NUM15 “Din_Mode0” set to 3 DEC
vi. NUM16 “Din_Mode1” set to -3 DEC
c. On Basic Operation Screen, set the following:
i. NUM 6 “Operation Mode” change to “3: Speed Control”
Note: “3” references accel/decel parameters and “-3” does not
4985 East Landon Drive Anaheim, CA 92807 Tel. (714) 992-6990 Fax. (714) 992-0471 www.kincoautomation.com
KINCO Servo Quick Start Guide
L011933

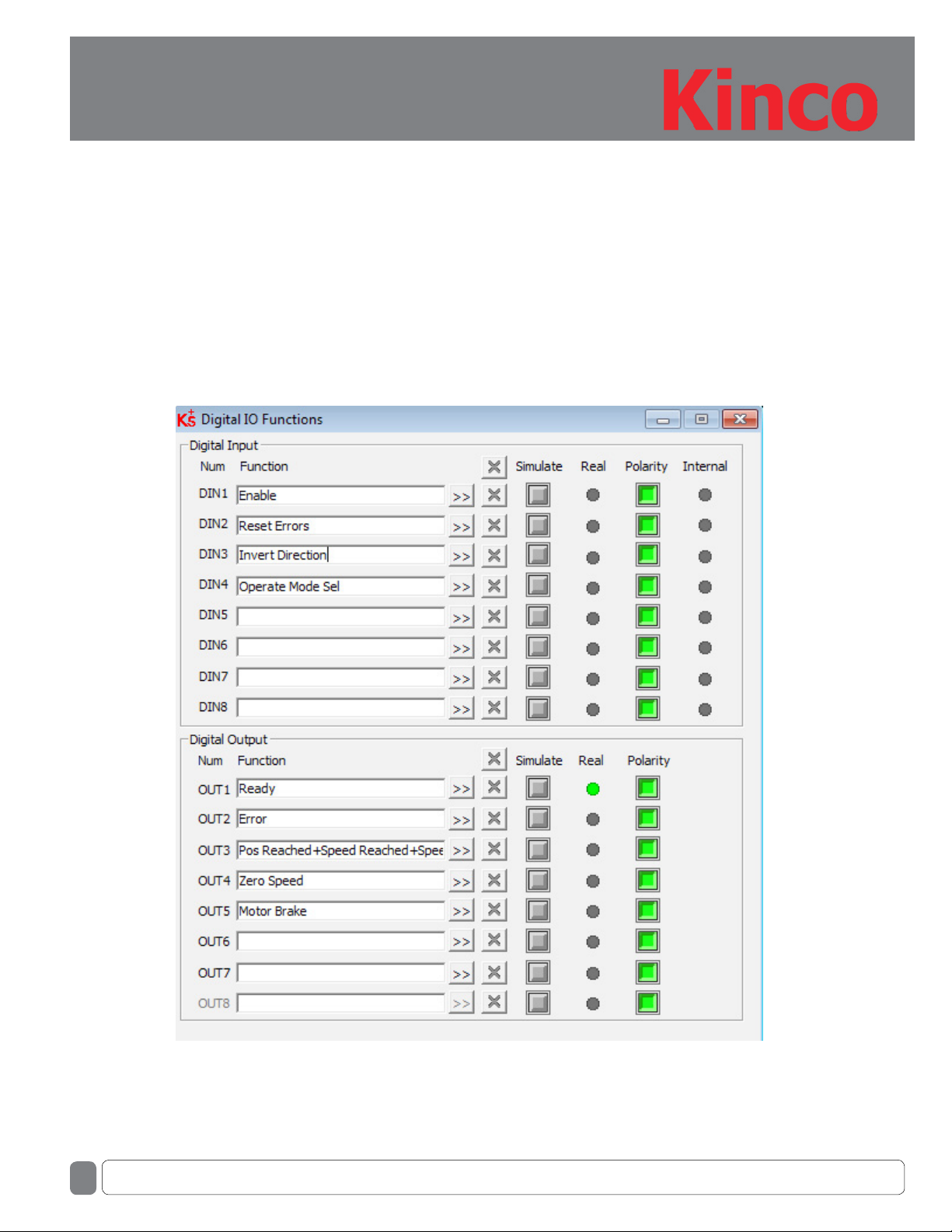

d. On Digital IO Functions Screen, set the following:
i. DIN1 > Enable
ii. DIN2 > Reset Errors
iii. DIN3 > Invert Direction
iv. DIN4 > Operate Mode Sel
Note: Change these setttings by pressing the “>>” Button and checking the check box next
to the command function and pressing “ok” on the bottom right of the pop up window.
