KING CANOPY G0712 Bedienungsanleitung

Storage Garage 7.5 ft x 12 ft

7 ft 7 in Wide x 12 ft Deep x 6 ft 1 in Side Height /

7 ft 8 in Center Height

King Canopy Item # G0712

With 6 Legs, 1 Pc. Cover, 1 Zippered Front Wall,

Elastic Ball Straps, Foot Pads and Stakes.

WARNING:

Keep all ame and heat sources

away from this tent fabric. It is not

re proof. The fabric will burn if

left in continuous contact with

any ame source.

These Tools Are

Recommended:

www.northlineexpress.com

1-877-734-2458

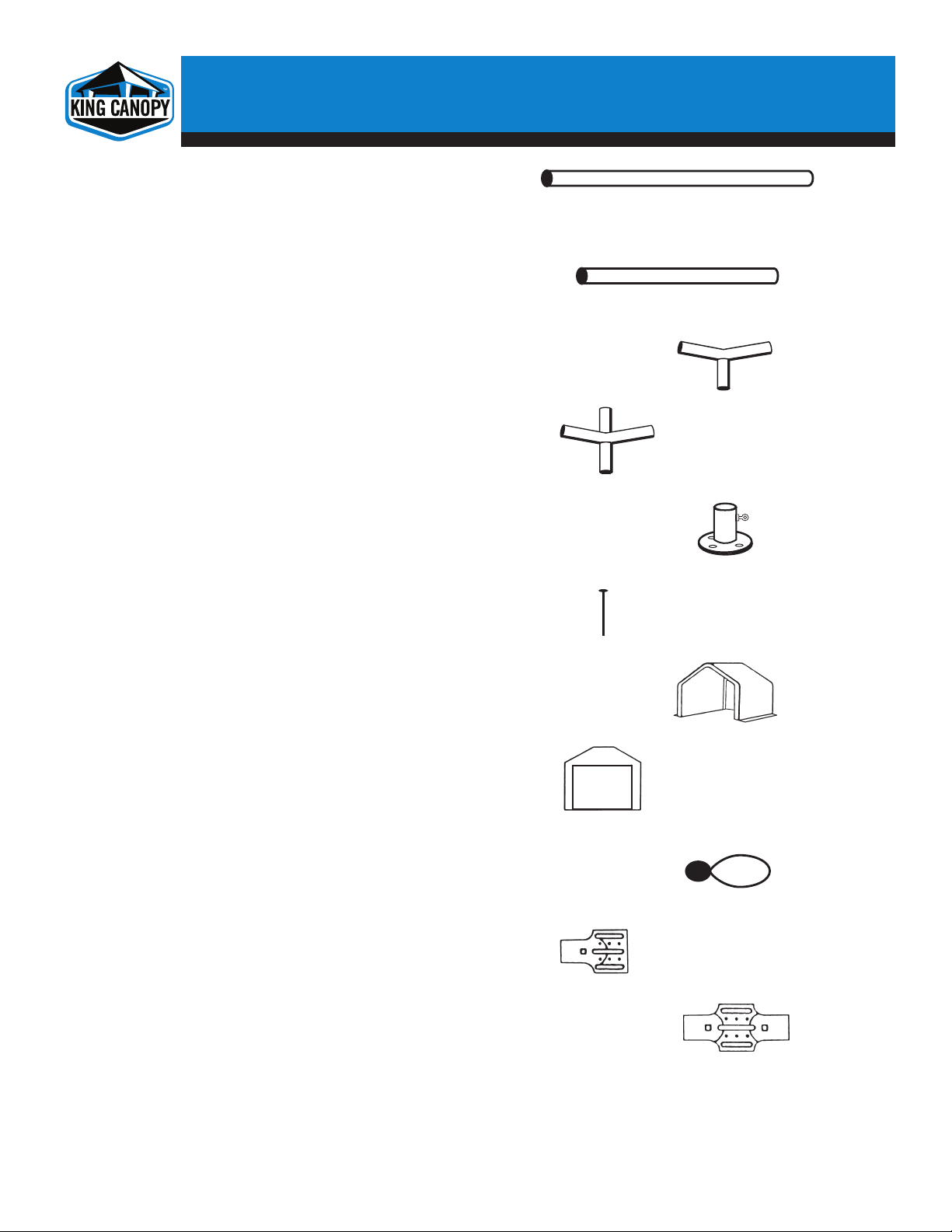

PARTS LIST

5X9-15PC

(16) 69 Inch Pipe

3X0-15PC

(6) 36 Inch Pipe

3W16PC

(6) 3-Way Fittings

4W16PC

(3) 4-Way Fittings

FOOT16PC-SL

(6) Metal Foot Pads

STAKE-GAR

(12) Foot Pad Stakes

T0712SF-GAR

(1) Cover with Rear Wall & Side Walls

T07SEWZF-GAR

(1) Zippered Front Wall

BALL

(35) Elastic Ball Straps

SC15

(4) Single Side Pipe Clamps

DC15

(2) Double Side Pipe Clamps

www.northlineexpress.com

1-877-734-2458

ROOF FRAME ASSEMBLY

1- Start assembly with top frame as shown Diagram A

in Diagram A. The 36 inch pipes are

used for the roof rafters and 69 inch

pipes form the length of frame. Start

assembly with center peak as circled

in Diagram A.

Diagram B

Diagram C

36 Inch Pipe

69 Inch Pipe

2- Once you have assembled the roof frame,

insert the legs on one side using the

69 inch pipes with the foot pads installed.

69 Inch Pipe

3- With the top frame laying over on one side

and the legs inserted on the other side as seen in

Diagram B, drape the one piece cover with

sides and rear wall over the frame.

Make sure you have the open end in

the direction needed. Pull the one side

down over the frame with the legs

inserted. You can also pull the rear

over the frame partially. Next, insert

the legs on the opposite side and pull the

remainder of the cover on.

Foot Pad

Front

Side

www.northlineexpress.com

1-877-734-2458

COVER ASSEMBLY

PICTURE-1

PICTURE-3

ATTACH BALL STRAPS

With frame assembled and cover on, you can now attach cover

to frame using the ball straps. The grommet holes on the cover

for attaching straps are located along the back and front frame

line. Picture # 1 indicates where to nd grommet holes. Attach

the cover by running the strap through the grommet hole,

around the pipe, then loop the strap over the ball. If the straps

are too long for a tight t, you can double wrap them or make an

additional knot in the strap cord to shorten them.

To install side rails and wall support, slide a 69 inch pipe into the

sleeves at the bottom of the side walls, as shown in picture # 2.

Use double side clamp to connect to center leg and single side

clamp to connect to corner legs. (See pictures below.)

Your storage shelter can be used with or without the front

zipped wall. If you choose to use your front wall, install it with

the velcro strips and ball straps through the grommet holes,

then attach it with velcro enclosures as seen in picture # 3. The

wall can be removed quickly and easily at anytime.The front wall

has a zippered door that rolls up to gain access and closes for

storage. The sides and ends are extra long and can be buried in

the ground or use rock, stone or brick over them to help keep

unwanted creatures out. (See pictures below.)

Corner leg Corner leg PICTURE-2

Center leg

www.northlineexpress.com

1-877-734-2458

ANCHORING YOUR UNIT

This canopy is designed for use as a temporary structure. After assembly, the canopy MUST BE securely

anchored to the ground to prevent damage from winds. Your canopy will act like a kite in the wind if not

properly and securely anchored to the ground. Severe winds will cause the frame to twist and unanchored

legs will fall, thereby collapsing the canopy. If severe winds are expected, you must remove the cover from

the frame to prevent damage.

We recommend anchoring your canopy at each corner foot

and center foot on each side. Screw anchor into ground

next to canopy foot using a large screw driver (1). Tilting the

anchor slightly will help the anchor to cut into the ground.

Apply downward pressure while turning the anchor into the

ground. Leave approximately three inches of anchor out of

the ground.

TieRope(2) aroundthepipe,andthenbackthroughtheanchor

eye. Pull as tight as possible and secure. Anchor kits available

online at www.kingcanopy.com or call customer service at

1-800-800-6296 and ask about purchasing our 6-peice anchor

kit, item #A6200. ANCHOR KIT SOLD SEPARATELY

(1)

ANCHORS ARE NOT INCLUDED

(2)

www.northlineexpress.com

1-877-734-2458

IMPORTANT NOTICE: PLEASE READ CAREFULLY

We are condent that you will be completely satised with your King Canopy unit. Please take a moment

to read the very important information below, and call us with any questions you may have.

King Canopy/PIC America, LTD. has no control over wind, snow, ice, rain or any other weather condition and

we are in no way responsible for any damage caused by the canopy or to the canopy. We suggest you contact

your insurance carrier just as you would for any other outside structure.

OTHER PRECAUTIONS WHICH MUST BE FOLLOWED:

Keep all ame and heat sources away from this tent fabric. The tent fabric will burn if left in continuous

contact with any ame source.

DO NOT cook underneath or near canopy.

DO NOT store or use ammable liquids underneath or near canopy.

DO NOT ignite or store reworks underneath or near canopy.

DO NOT use bleach to clean cover.

DO NOT dry clean cover.

DO NOT wash cover in washing machine or dry in dryer. Hand wash with mild soap and water only.

DO NOT allow rain water, snow or ice to accumulate on top of cover.

DO NOT hang or suspend anything from the frame, grommets, truss system or ball straps of the unit.

REMOVE canopy cover before a storm, or disassemble entire canopy unit if possible.

REMOVE rain water, snow and ice from canopy cover.

This is a temporary structure and is not recommended for use as a permanent structure.

www.northlineexpress.com

1-877-734-2458

PRODUCT INFORMATION

Defective Parts

We try our best to eliminate any defective parts that are shipped with our products. If, however, you should nd

a defective part, we will replace – free of charge – any part which is defective. You will need to provide proof

of purchase showing date of purchase and provide us with detailed description of the defective component.

Your replacement will be shipped by ground shipping, freight prepaid. Next day or express shipping will

require freight collect and paid for by you, the consumer. Damages from improper anchoring, strong winds,

snow, ice or rain are not considered defects.

Improper Anchoring, Strong Winds, Rain Snow, or Ice

King Canopy/PIC America, LTD. does not guarantee these canopies under strong weather conditions. These

canopiesaredesigned toprotectagainst damages caused by sun, rain,treesap,birds,etc. Theyarenot designed

to hold roof loads that accompany snow, ice or heavy rains. If your canopy is not anchored securely, it can be

lifted by the wind and will y away. If your canopy takes ight, we are not responsible for any replacement. If

you know strong weather is predicted, remove the cover or take down the canopy unit completely. The cover

is designed to be quickly and easily removed.

Warranty

All components of this canopy feature a 1-year limited warranty and are warranted to be free from defects in

material and workmanship for a period of 1-year. You must complete and return the enclosed warranty card

promptly after purchase. Please retain your proof of purchase receipt; you will be asked to provide this receipt

in order to obtain warranty service.

Non-Warranty Replacement Parts

If after expiration of the warranty period, you require replacement parts please contact us at 1-800-800-6296.

We stock replacement parts and make them available to you at discounted prices. Our customer service

department will be pleased to assist you in any way possible.

Certain regions of the country are extremely hard on covers of any kind. Normal wear and tear is not covered

under the warranty, and should be expected.

In order to receive a discounted or free replacement part, you may be asked to return the part, freight prepaid,

to our warehouse for inspection before we will send a replacement. You must, in all cases, provide a copy of

your receipt showing the date of purchase, model number and price.
