STEP 1: Verify all components and parts are included.

STEP 2: Install the KING Jack Antenna in one of two ways (page 2):

• RV Mounting: Mount to a bat wing style retractable arm using the supplied RV Antenna Bracket.

• Pole Mounting: Mount to a stationary pole (on a house for example) using the supplied Pole Mount

Bracket. DO NOT MOUNT TO A POLE ON A VEHICLE.

STEP 3: READ THE FOLLOWING INFORMATION CAREFULLY, THEN CHOOSE A CONNECTION OPTION

ON PAGE 3 AND MAKE CONNECTIONS.

STEP 4: Read the OPERATING INSTRUCTIONS on page 4 for antenna pointing instructions.

When using an existing power injector already in the RV

WARNING: DO NOT USE BOTH POWER INJECTORS!

existing RV antenna will be a wall

plate or an A/V distribution box with

an ON/OFF type switch.

When using the KING Jack antenna with the supplied power injector

STEP 1

STEP 2

STEP 3

STEP 4

Model OA8300

Power SupplyReception Frequencies

Page 2

POLE MUST BE STATIONARY:

NOT ON A VEHICLE.

This is a directional antenna

and should be rotated on the

maximum signal reception.

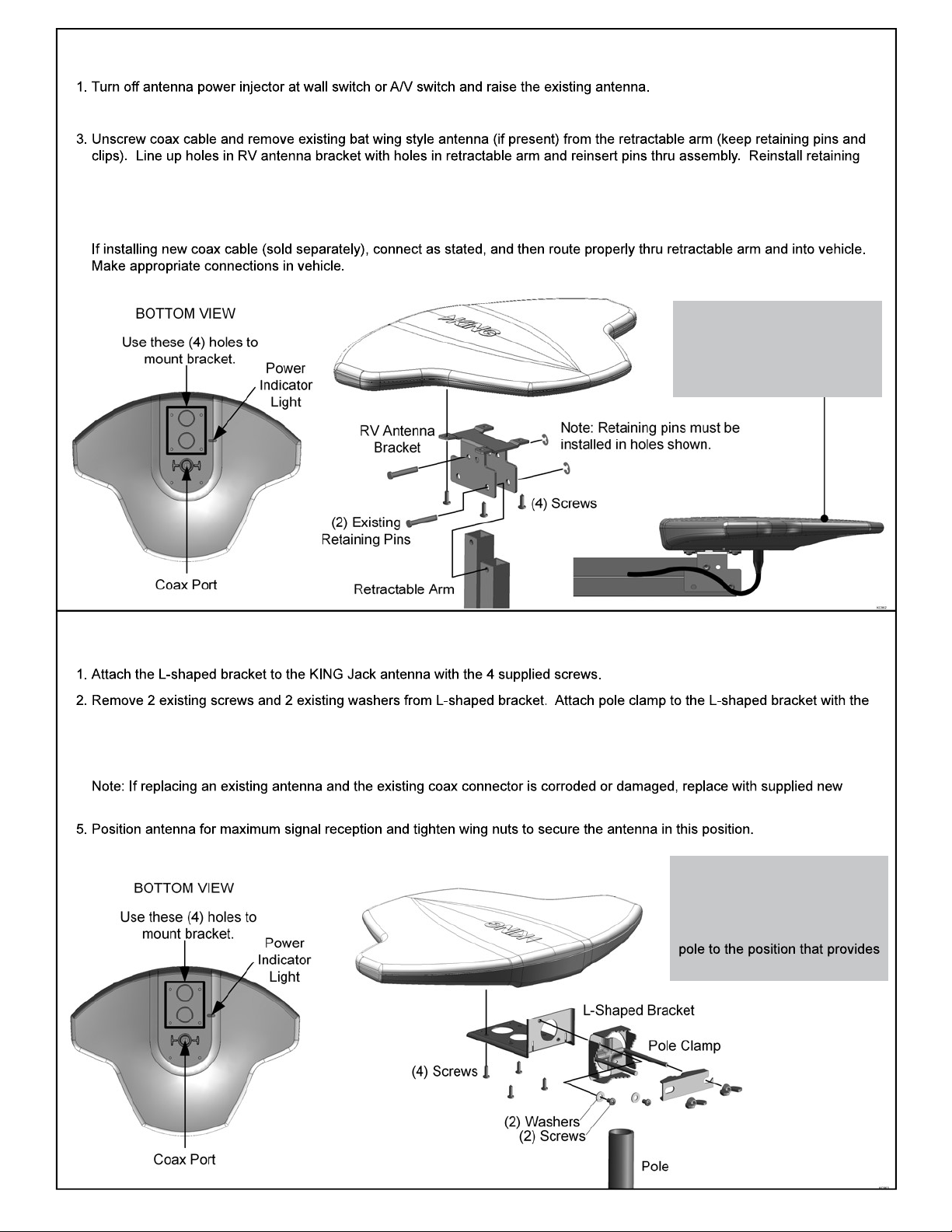

Option 1: BAT WING STYLE REPLACEMENT

2. Attach the RV antenna bracket to the KING Jack antenna with the 4 supplied screws.

clips (use new supplied retaining clips if necessary). You must mount antenna in relation to poles as shown below.

4. Fill end of existing coax cable with supplied dielectric grease and screw to antenna (DO NOT OVERTIGHTEN).

Note: If existing coax connector is corroded or damaged, replace with supplied new connector.

Option 2: POLE MOUNT BRACKET

same screws and washers.

3. Place the clamp around an appropriate pole and tighten wing nuts.

4. Fill end of coax cable (sold separately) with supplied dielectric grease and screw to antenna (DO NOT OVERTIGHTEN).

connector. Route coax cable and make appropriate connections.

IMPORTANT! Make sure to

mount head in relation to pole

heights as shown.

This will allow poles to fully

retract to stowed position.

Page 3

NOTE:

IMPORTANT!

Your RV may have more than one wall

plate. Do not use the power injector

supplied with the KING Jack antenna if

an existing power injector is present.

2. Turn on power to KING Jack antenna.

3. Perform a channel scan per the digital TV or digital TV

Choose one of those channels on your TV. Now monitor the signal strength

Page 4

www.kingconnect.com for additional information.

IMPORTANT! Do not power wash any part of the KING Jack antenna.

OPERATING INSTRUCTIONS: Scanning for Channels

LIMITED WARRANTY

of replacement parts after one year.

• Circumstances beyond the control of KING cause the product to no longer operate correctly.

• Customer is not the original owner.

In no event shall KING be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of the warranty.

TROUBLESHOOTING

COURSE OF ACTION

No TV reception. No power to antenna.

is not lit.)

Antenna pointed in wrong

direction.

(sold separately)

11200 Hampshire Avenue South, Bloomington, MN 55438

PH 952.922.6889 || FAX 952.922.8424 || kingconnect.com

NOTE:

channels each time you change locations.

NOTE:

Winegard is a registered trademark of Winegard Company.

KING Jack are products of KING®

® Company.
