Please scan the barcode to download the APP

Inquiry Onsite Temperature &

Humidity with SMS!

High-Low Threshold alarm

with SMS text Message alert!

Interval Report Onsite

temperature & humidity to

Your Mobile Phone by SMS!

S264/S265/S266

User Manual

Ver 1.2

Date Issued: 2017-09-15

King Pigeon Hi-Tech. Co., Ltd.

www.GPRS-M2M.com

GSM/SMS/GPRS/3G/4G

Temperature & Humidity Data Logger

Temperature & Humidity Monitoring Alarm

Page 2 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

Table of contents

1. Brief introduction -----------------------------------------------------------------------3

2. Safety Directions -----------------------------------------------------------------------3

3. Standard Packing list ------------------------------------------------------------------3

4. Mainly Features -------------------------------------------------------------------------3

5. Physical Layout and Installation Diagram-----------------------------------------4

6. Initialize/Reset the GSM unit --------------------------------------------------------6

7. Settings & Operations------------------------------------------------------------------7

8. Technical specifications -------------------------------------------------------------10

9. Warranty ----------------------------------------------------------------------------10

【UPGRADE HISTORY】

DATE FIRMWARE VERSION

HARDWARE VERSION

DESCRIPTION

Model List

Model GSM/GPRS/3G/4G Relay Output

Sensor Type Record

Measuring Range

S264 Optional 2 Temperature& Humidity

Model: AM230x

200000

Temp:-40-80°C , accuracy is±0.5°C;

Humidity:0-99 RH%, accuracy is± 3%;

S265 Optional 2

S266 Optional 2 DS18B20 Temperature

Probe

Temp:–55°C to +125°C (–67°F to

+257°F), accuracy is±0.5°C.

Notice

1． Default version is GSM；

2． For 3G WCDMA and 4G LTE version, please tell our sales where you would like to use them.

This handbook has been designed as a guide to the installation and operation of S264/265/266 GSM SMS GPRS

3G 4G Temperature&Humidity Monitoring Alarm.

Statements contained in the handbook are general guidelines only and in no way are designed to supersede the

instructions contained with other products.

We recommend that the advice of a registered electrician be sought before any Installation work commences.

King Pigeon Hi-Tech.Co., Ltd, its employees and distributors, accept no liability for any loss or damage including

consequential damage due to reliance on any material contained in this handbook.

King Pigeon Hi-Tech.Co., Ltd, its employees and distributors, accept no liability for GSM Network upgrading or

SIMCard upgrading due to the technology specifications contained in this handbook.

Page 3 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

1. Brief introduction

The GSM SMS GPRS 3G 4G Temperature &Humidity Monitoring Alarm embedded GSM/GPRS/3G/4G module and

high performance MCU to provide an all in one instrument for data logging, Remote data acquisition, alarm and

control. It special for real-time remotely monitoring onsite temperature, humidity, power status and automatically

switch on/off equipments through wireless cellular network.

It provides 4/8 temperature &humidity probe inputs or 8 high precision temperature probe inputs. When the

temperature, humidity exceed high threshold or low threshold value, or external power goes off or on, will send

SMS alert to 10 preset mobile phone immediately or upload event data to remote server by GPRS/3G/4G network.

It provides daily report, schedule upload, event upload by the GPRS/3G/4G to monitoring center or by SMS to the

user mobile phone directly.

The Data Logger with large memory that can save 200000 events. It provides 2 Relay outputs for automatically

switch ON/OFF devices when Temperature & Humidity exceed high/low value and remote switch ON/OFF Device

by SMS or GPRS/3G/4G networks.

It has been designed as a cost effective, low power, easy use, reliable data logger. It can be used in the worldwide

through the wireless cellular network, operation in anywhere, no distance limitation.

Typically applications:

Server room, Warehouse, Drug store, Medicine center, Seafood storage, Aquarium, Supermarket, hospital, Hotel;

Weather Stations remote control and data logging, Transformer stations, BTS room, agriculture, Supervision and

monitoring alarm systems, etc.

2.Safety Directions

Safe Startup

Do not use the unit when using GSM/3G/4G equipment is prohibited or might bring disturbance or

danger.

Interference

All wireless equipment might interfere network signals of the unit and influence its performance.

3. Standard Packing List

Data Logger X 1; Antenna X 1; AC/DC adaptor (12V1.5A) X1; User Manual X 1.

Note: The package does not include any SIM card.

Optional: AM230x Temperature &Humidity Sensor, 1m, 5m, 20m;

DS18B20 Temperature Probe, 1m, 5m, 10m, 20m;

35mm Standard DIN rail fixed Bracket

Page 4 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

4. 1Mainly Features

 Can be operated from anywhere, no distance limitation;

 Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;

 3G UMTS/HSDPA/4G Modules are optional.;

 32 bit MCU, reliable performance with in-built watchdog;

 Support temperature & humidity monitoring remotely in real-time;

 Support 2 relay outputs,7A@125VAC,5A@125VAC, 20A@14VDC;

 Exceed High/Low threshold value will Alert via SMS/Call/GPRS/3G/4G networks;

 Supports 1 DNS or IP address as server, supports Modbus TCP, TCP/IP protocol over GPRS/3G/4G network;

 Automatically resend the data while communication failure, GPRS failure will alert by SMS text;

 Supports remotely restart the device, and configure it by SMS commands remotely;

 Up to 10 user's phone number to receive alarm and daily report SMS/Call;

 Provides daily report, schedule upload, event upload by the GPRS/3G/4G to monitoring center or by SMS to the

user mobile phone directly;

 In-built rechargeable battery, power lost/recover alarm, low maintenance, 24×7 operation;

 Internal 16MB memory, logs more than 200000 records;

 Support Android/IOS APP, easily & friendly for use/configuration.

 Support configure parameters, load profiles, export historical data and upgrade the firmware via PC;

 Wall mount or 35mm standard DIN rail Design, convenient installation,

 Metallic cover, small size, exterior dimension is L70*W88*H30mm.

4. 2 Specifications

Item Reference Scope

DC Power Supply Standard Adapter: DC 12V/1A Range 9~36VDC

Power Consumption Standby:12V/70mA; WorkingMax.:12V/300mA

GSM/3G Frequency

2G: 850/900/1800/1900Mhz

3G version Optional: (UMTS/HSDPA)

W:900/2100@UMTS 900/1800@GSM;

C:850/1900@UMTS 850/900/1800/1900@GSM;

T:850/2100@UMTS 850/900/1800/1900@GSM;

4G LTE

SIM Interface Supporting 3V SIM Card

External Antenna SMA Antenna interface, 50 Ohm

Serial Interfaces 1 USB Port

Temp.&Hum Inputs 4 / 8 channel (Optional)

Relay Outputs 2 Relay Outputs 7A@125VAC 5A@125VAC 20A@14VDC

Memory Capacity 16MB for 200000 record.

Backup Battery 3.7V 900mAH

Exterior Dimension 70*88*30mm

Installation 35mm standard DIN rail(Optional) Wall mount (Default)

Net Weight 500g

Page 5 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

5. Physical Layout and Installation Diagram

5.1 Control Unit physical layout

LED Indicator Instruction

Cellular indicator, registering cellular Network flicks quickly, registered successful will

2seconds flick once.

Alarm indicator, while alarm occurrence, will turn on.

Relay indicator, any one relay close, will turn on.

Armed indicator, in Armed mode, will turn on, in disarm mode, will turn off.

5.2 Interface Instructions for installation

At the backside of the panel, please use the tool to remove the screw, and you can see the below:

1) Insert SIMCard

Power Switch

SIMCard Holder

RESET Button Upgrade Button

Page 6 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

Slide the SIM card holder in the direction of “OPEN” (etched on the SIM card holder), and then flip it open. Then

Insert the SIM card with its gold contacts facing down and its cut-off corner facing out the SIM card slot. See below

photo. Close the SIM card holder and then slide it in the opposite direction of “OPEN” to lock it. See above photo.

2) Connect External DC Power and Temperature & Humidity Sensor

See below interface, please contact the correct wires.

Interface Instruction

DC in 9~36V

DC9~36V positive input, 1.5A, for power on the Unit;

–

DC9~36V negative input, 1.5A, for power on the Unit;

Relay Output R1 Relay 1 output;

R2 Relay 2 output;

USB

USB interface, used it to communicate with the computer.

ANT

GSM/3G/4G antenna.

Temperature &

Humidity Input

VCC

3.3VDC Power Source output for sensors.

Connect to AM230x Sensor VCC wire or

Connect to DS18B20 sensor VCC wire, (Red wire).

GND

GND , Connect to AM230x or DS18B20 GND wire, (black wire).

1~8

Data port, connect to the 2nd ~8th AM230x or DS18B20 Data wire,

(Yellow/Green wire).

3) Connect electrical device to Relay outputs.

The unit provides 2 relay outputs; it can be used for control different device according to requirements. The

connection diagram is below:

Page 7 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

6. Initialize/Reset the GSM unit

The Unit can be reset to factory default once mistake programmed. Please follow below steps to initialize it. After

initialized, the parameters will set as factory default.

1) Switch off the Unit

2) Press and hold the RESET button;

3) Switch the Power Switch to ON side to powered on the Unit, holding 5 seconds, then loose the RESET Button.

4) Restart the unit then recovery to factory default settings, and will enter to work mode.

7. Settings&Operation

The GSM SMS GPRS 3G 4G Temperature &Humidity Monitoring Alarm is user-friendly design. The user can setup it

or export historic data by the PC Configuration through USB cable, and upgrade firmware by USB port. The GSM

SMS GPRS 3G 4G Temperature &Humidity Monitoring Alarm also can be configured some basically parameters by

SMS Commands or Android APP and IOS APP, please refer to Chapter 8.

Tips!

1) Please insert the SIM Card firstly, and install the GSM/3G/4G Antenna, please power on to check the

LEDs status according to above mentioned LED Definitions, keep switch on it during the programming.

2) The PC Configuration in the CD, please click it to run it. Also can download from www.GPRS-M2M.com

under S264/5/6 page directly.

Below is the steps to setup the parameters by PC Configuration, please follow it step by step.

Start to Configure:

Step1: Install the Configurator

The Configurator in the CD or download from www.GPRS-M2M.com, then installs it on the computer.

Step2: Connection

Please insert the SIM Card, and install the GSM/3G/4G Antenna.

Step3: Connect the RTU to the PC by USB Cable. And connect the external DC Power to DC Power

Ports, Power on, and switch on the device, see below:

Step4: Install USB Drvier

Install the USB Driver to the computer from the CD firstly. When successful, it can be found out at

the device manager of the XP or Windows 7 or Win8/Win10, please see the below photo. Also, the

driver for different OS can be downloaded from Silicon Laboratories, Inc. http://www.silabs.com , the

model is CP210x.

Page 8 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

Step5: Run the Configurator (Compatible with Windows XP/7/8/10)

Tips: In some computer, it required download net framework 4.0 while installation, then please click “Yes” to go

to Microsoft website to download this service pack.

Step5: Choose the correct "COM port", then click "open Com port", enter the password(default is

1234),click the "Connect", after that, then can start to programming

Details please check the picture as below:

Basic Settings

Page 9 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

Open Com port: Click it to open the Comport after choose the correct com port;

Connect: Click it to connect the device to PC after enter the correct password;

Model Number: This is model number, will update model number automatically when connect

successfully;

Read Settings: Click it to read all of the current configuration parameters from the Data Logger;

Save Settings: Click it to save all of the PC Configurator parameters to the Data Logger;

Load Profile: Click it to load additional Profile to the PC Configurator;

Export Profile: Click it to save the present configuration parameters as a profile for next Data

Logger configuration or backup the parameter settings;

Tips: The Load Profile and Export Profile is very useful while you need to program bulks of Data Logger with similar

parameters. After programmed the first unit then you can export profile to save it, for the second Data Logger then

you can load profile directly to save you time.

Default: Click it to recovery the parameters to factory defaults;

Reboot: Click it to reboot the data logger;

Help: Click it to the help page;

RefCom: Click it to refresh the com port;

Device ID: (0~65535) non-necessary. This is mainly for monitoring center to identify the data logger,

if the application no needs to identify the data logger, and then no need to fill in it;

Device Description: This is the description of the data logger, e.g.: installation address, usage

instructions and so on;(Max: 60 Characters)

Add Timestamp to Alarm SMS: Tick it stands for while alarm occurrence, the Alarm SMS will

include the data logger’s current time information at the SMS Content.

Arm automatically when Power On: Tick it stands for once the data logger powered up, the data

logger will enter into Arm Mode automatically.

Auto Arm after Disarmed: Fill the timeout to enter into Armed Mode automatically after disarmed

operation. This is usefully for security protection applications.

Tips:

Arm: Under this mode, any alarm occurrence will send SMS and dial the authorized numbers immediately. And

execute the programmed I/O outputs.

Disarmed: Under this mode, alarm occurrence will not send SMS & dial the authorized numbers.

Read Device Time: Click it to read the device time.

Set Device Time: Click it to save the time into the device after adjust the time.

(Left-Click to set Hour, right-click to set Minute, Ctrl key restricts to 5 minutes)

Change Password: Click it to change a new password. (4 Digits, Arabic numerals only)

Device Version: Click it to read the Model No./Firmware Version/IMEI Code/Signal Value;

Page 10 of 21 King Pigeon Hi-Tech. Co., Ltd. Ver 1.0

GSM/SMS/GPRS/3G/4G

Temperature&Humidity Data Logger

Daily/Periodically SMS Report Contents: This is the SMS report Contents.

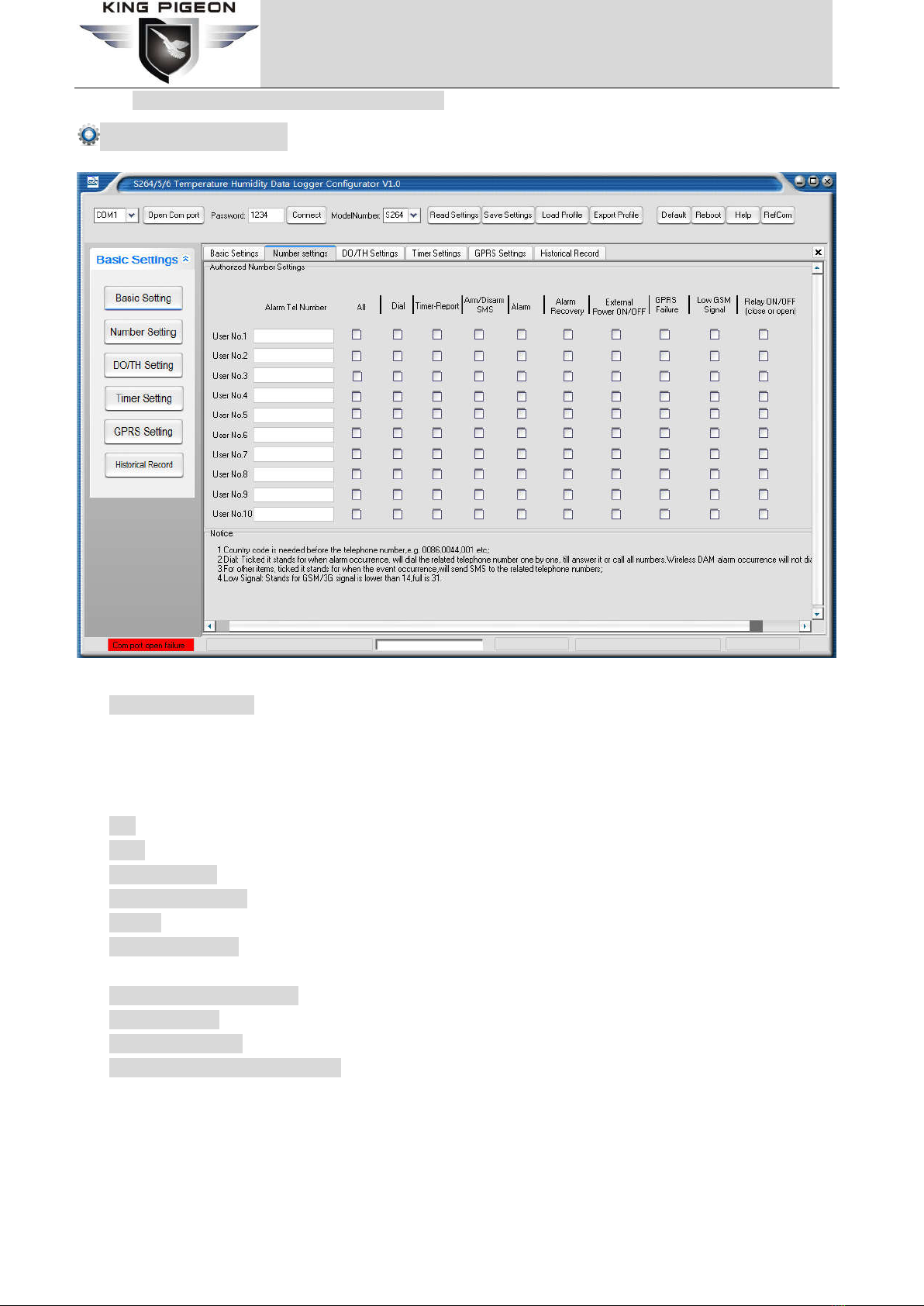

Number Settings

Alarm Tel Number: Set the alarm receiver numbers, please includes the country code, e.g. in China

is 0086, input 008613570810254, if cannot received the SMS or dial, then try to set as

+8613570810254, but cannot be 8613570810254. Also, some GSM/3G Operators not required input

country code, so please remove country code, e.g. in China is 0086, and China Mobile not required

country code, so can set as 13570810254.

All: Tick it stands for enable all of options in this line, from “Dial ~ Relay ON/OFF”.

Dial: Tick it stands for enable while alarm, Dial to the authorized numbers.

Timer-Report: Tick it stands for enable to SMS report to this authorized numbers.

Arm/Disarm SMS: Tick it stands for enable the SMS notification when Arm/Disarm.

Alarm: Tick it stands for enable while alarm, send SMS to the authorized numbers.

Alarm Recovery: Tick it stands for enable the SMS notification when the alarm recovery to normal

value.

External Power ON/OFF: Tick it stands for enable the SMS notification when external power on/off.

GPRS Failure: Tick it stands for enable the SMS notification when the GPRS connection failure.

Low GSM Signal: Tick it stands for enable the SMS notification when the GSM signal is weakness.

Relay ON/OFF(close or open): Tick it stands for enable the SMS notification when the relay

ON/OFF.

Andere Handbücher für S264

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere King Pigeon Datenlogger Handbücher

King Pigeon

King Pigeon S264 Bedienungsanleitung

Beliebte Datenlogger Handbücher anderer Marken

TESTO

TESTO 176 Bedienungsanleitung

HT Italia

HT Italia XL421 Bedienungsanleitung

HBM

HBM SOMAT XR CX22B-R Bedienungsanleitung

Agtrix

Agtrix 380i Bedienungsanleitung

Hobo

Hobo H8 Pro Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech PCI2320 Bedienungsanleitung

Athena

Athena GET SL1 Bedienungsanleitung

Motec Systems

Motec Systems C185 Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech USB2832 Bedienungsanleitung

Rotronic

Rotronic HygroLog HL20 Bedienungsanleitung

MRC

MRC DW-6092 Bedienungsanleitung

Racelogic

Racelogic VBOX LapTimer Bedienungsanleitung

Edu-Logger

Edu-Logger 900-240 Bedienungsanleitung

Elma

Elma DT173 Bedienungsanleitung

MadgeTech

MadgeTech PRTemp140 Technisches Datenblatt

Comet

Comet U0121M Bedienungsanleitung

pico Technology

pico Technology PT-104 Bedienungsanleitung

Soil Instruments

Soil Instruments GTecLink Bedienungsanleitung
