Kingston Technology DataTraveler Locker+ Generation 3 DTLPG3 Bedienungsanleitung

Installation Guide

DataTraveler Locker+ Generation 3

Find the language and latest documentation for your Kingston®DTLPG3 here.

DTLPG3 Installation Guide

Simplied Chinese .....

Traditional Chinese ....

............For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en español

.........Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en français

. . . . . . . . . . . . . . . . . . Per le istruzioni in italiano

............Por as instruções em português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku polskim

. . . . . . . . . . . . . . . . . . Для инструкции на русском

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Thai

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 1 of 22

DataTraveler®Locker+ G3 User Manual

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 2 of 22

Table of Contents

About This User Guide............................................................................................................ 3

System Requirements............................................................................................................. 3

Recommendations .................................................................................................................. 3

Setup (Windows Environment)............................................................................................... 4

Device Initialization (Windows Environment) ....................................................................... 5

Device Usage (Windows Environment) ................................................................................. 9

Device Options (Windows Environment)............................................................................. 10

Setup (Mac Environment) ..................................................................................................... 12

Device Initialization (Mac Environment) .............................................................................. 13

Device Usage (Mac Environment)........................................................................................ 17

Device Options (Mac Environment) ..................................................................................... 18

Help and Troubleshooting.................................................................................................... 20

Device Lockout...........................................................................................................................................................20

Forgot Password........................................................................................................................................................20

Drive Letter Conflict (Windows Operating Systems)........................................................................................22

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 3 of 22

About This User Guide

This user manual covers the DataTraveler®Locker+ G3 (referred to simply as DTL+ G3 from

this point forward) based on the factory image with no implemented customizations.

System Requirements

PC Platform

Pentium III (or faster) processor equivalent

15MB free disk space

USB 2.0 / 3.0 port

Two consecutive drive letters after the last

physical drive*

PC Operating System Support

Windows®7

Windows®Vista SP2

Windows®XP SP3

Windows 8 / 8.1 (RT not supported)

Mac Platform

15MB free disk space

USB 2.0 / 3.0 port

Operating System Support

Mac OS X 10.6.x –10.9x

Recommendations

To ensure there is ample power provided to the DTL+ G3 device, insert it directly into a USB

port on your notebook or desktop, as seen in Figure 1.1.Avoid connecting the DTL+ G3 to any

peripheral device(s) that may feature a USB port, such as a keyboard or USB-powered hub, as

seen in Figure 1.2.

Figure 1.1 –Recommended Usage

Figure 1.2 –Not Recommended

*Note: See ‘Drive Letter Conflict’ on page 22.

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 4 of 22

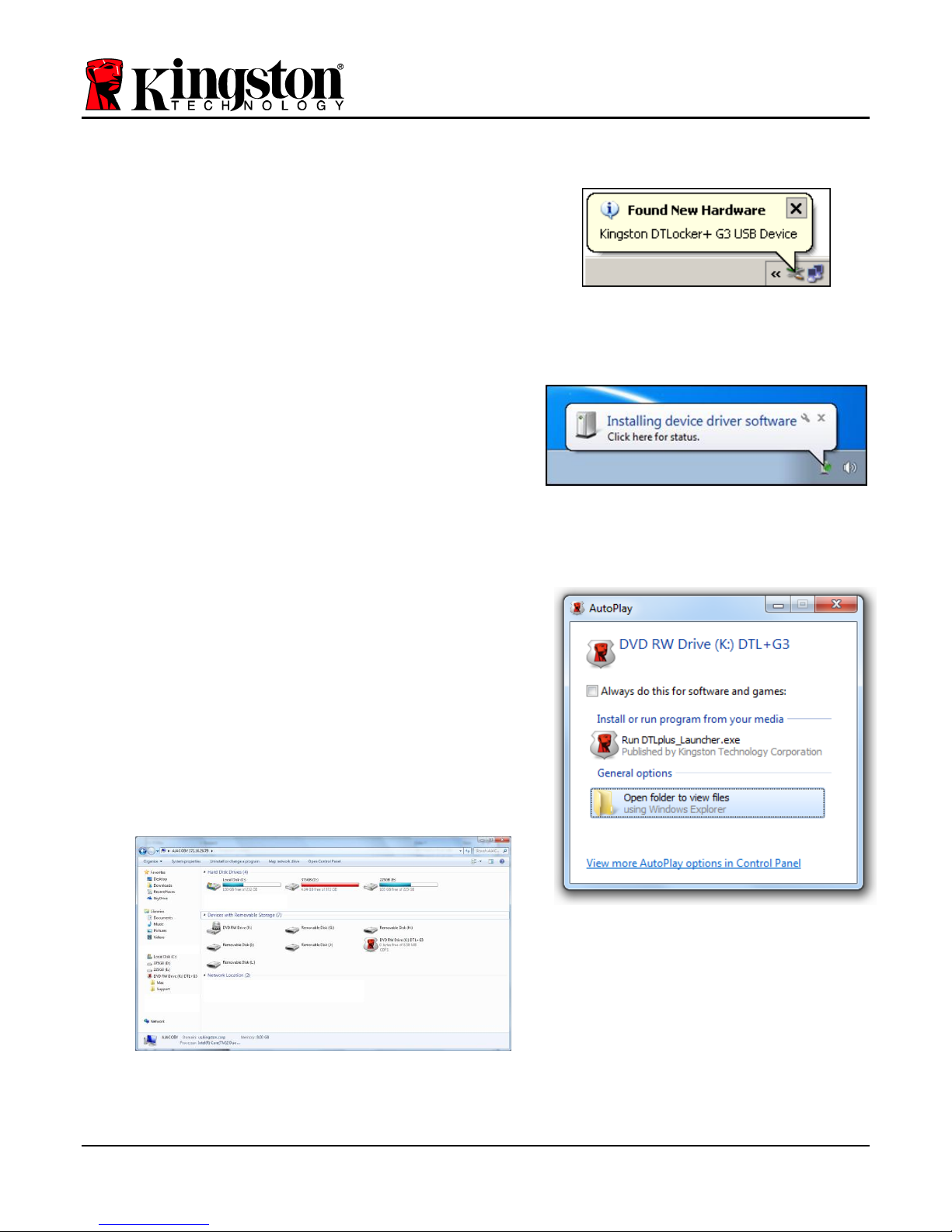

Setup (Windows Environment)

1. Insert the DTL+ G3 into an available USB port on

your notebook or desktop and wait for Windows

to detect it.

Windows XP users will receive a ‘Found New

Hardware’ notification as seen in Figure 2.1.

Windows Vista/7 users will receive a device

driver notification as seen in Figure 2.2.

Once the new hardware detection is complete,

Windows will begin the initialization process.

If the Windows autorun function is enabled,

you can skip the next step and go to page 5 –

Device Initialization.

If the Windows autorun function is disabled, as

it is in Windows 7 by default, you may see an

AutoPlay window similar to the one in Figure

2.3.

2. Select the option ‘Run DTLplus_Launcher.exe’.

If Windows does not AutoPlay, simply browse to the

DVD-RW partition (Figure 2.4) and manually execute

the DTLplus_Launcher program. This will also start

the initialization process.

Figure 2.4 –DTL+ G3 Contents

Figure 2.1 –Found New Hardware

(Windows XP)

Figure 2.2 –Device Driver Installation

(Windows Vista/7)

Figure 2.3 –AutoPlay Window

(Windows Vista/7)

(Note: Menu options in the AutoPlay

window may vary depending on what

programs are currently installed on

your computer.If enabled, AutoRun

will start the initialization process

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 5 of 22

automatically.)

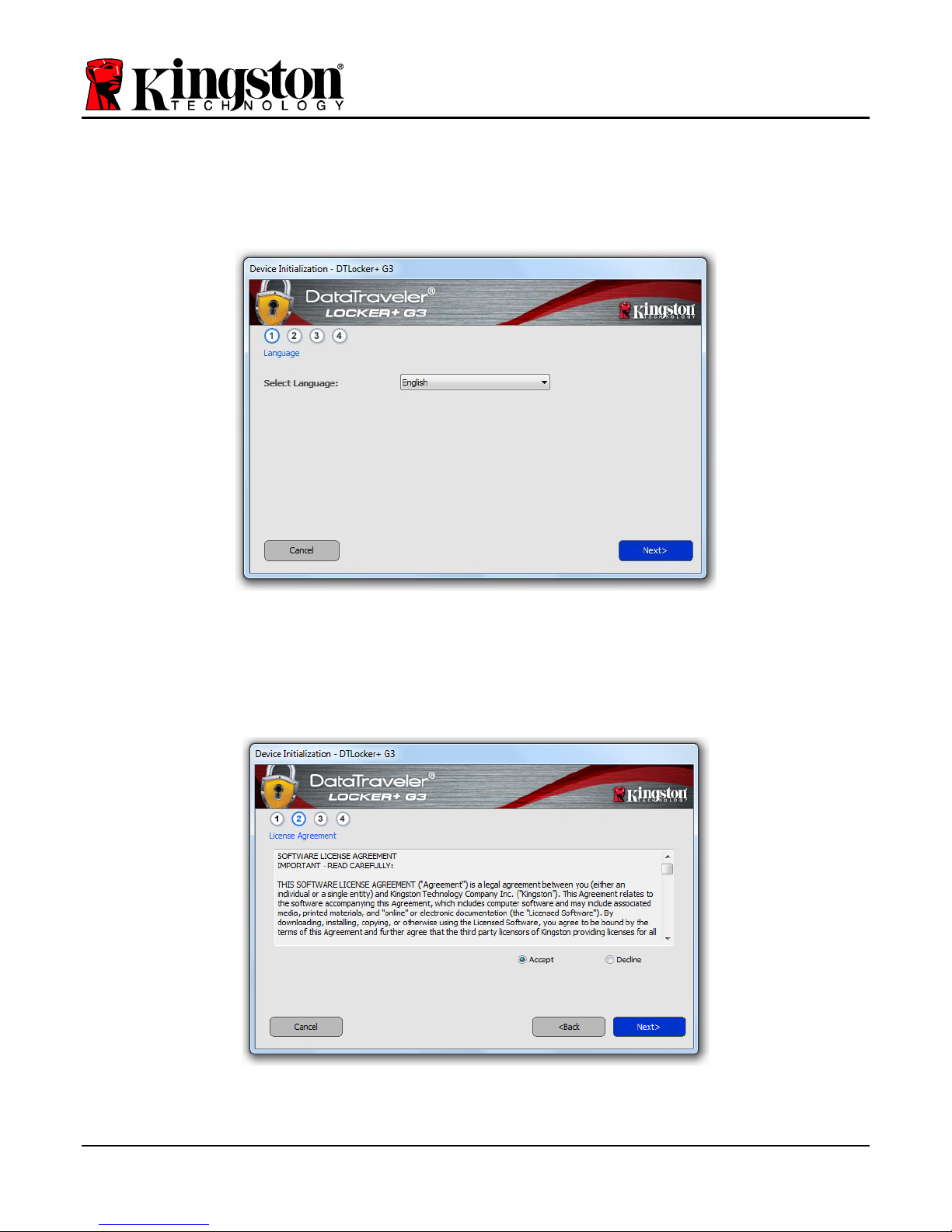

Device Initialization (Windows Environment)

1. Select your language preference from the drop-down menu and click ‘Next’ (Figure 3.1.)

Figure 3.1 –Language Selection

2. Review the license agreement and click ‘Next’ (Figure 3.2.) (Note: You must accept the

license agreement before continuing; otherwise the ‘Next’ button will remain disabled.)

Figure 3.2 –License Agreement

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 6 of 22

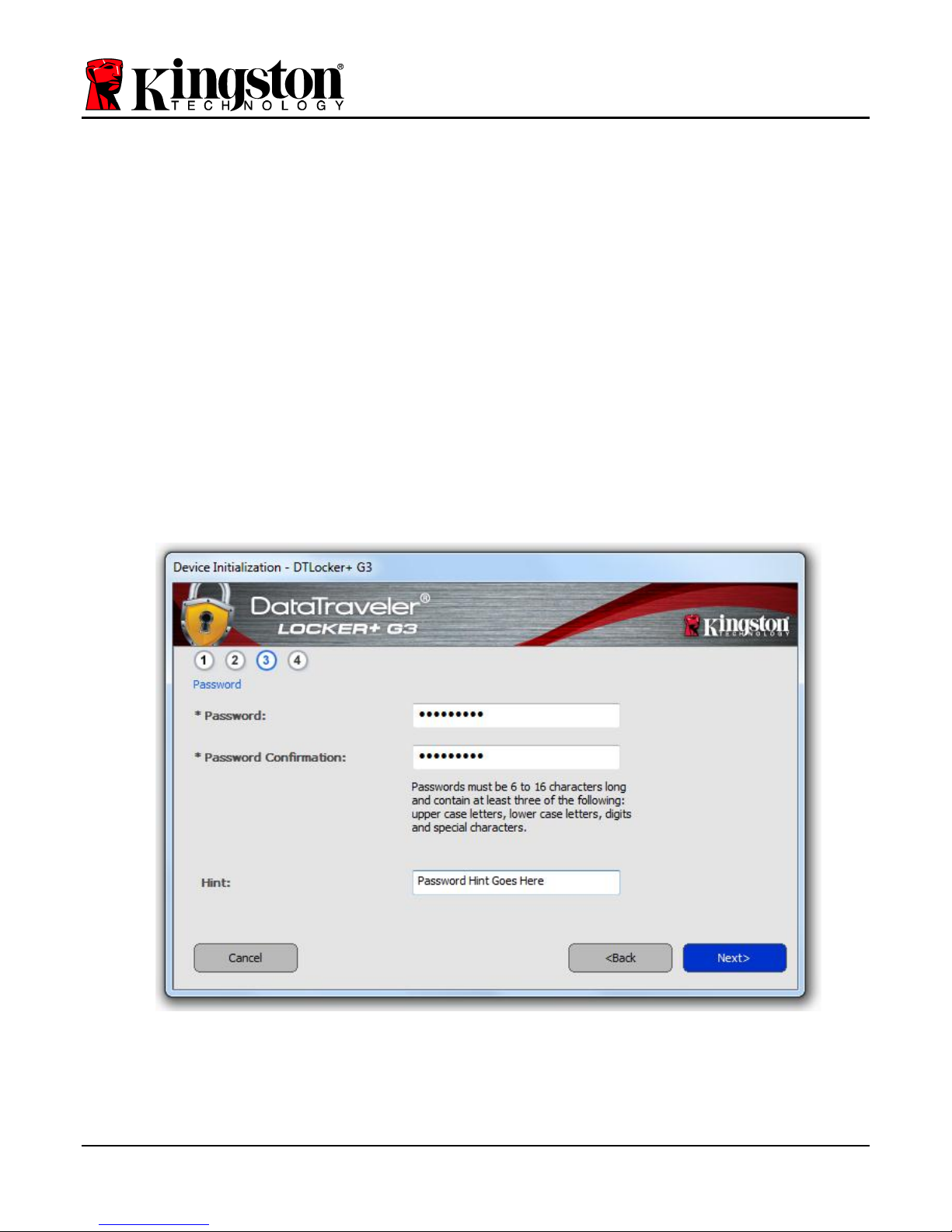

3. Create a password to protect your data on the DTL+ G3. Enter it in the ‘Password’field,

then re-enter it in the ‘Password Confirmation’ field, as seen below in Figure 3.3. The

password you create must meet the following criteria before the initialization process will

allow you to continue:

1. Passwords must contain 6 characters or more (up to 16 characters.)

2. Passwords must contain three (3) of the following criteria options:

- UPPER CASE, lower case, numeric, and/or special characters (!, $, etc.)

You may also enter a password hint, but it is not a mandatory field. The hint field can be

useful in providing a clue as to what the password is, should the password ever be

forgotten. (Note: The hint CANNOT be an exact match to the password.)

Figure 3.3 –Password Setup

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 7 of 22

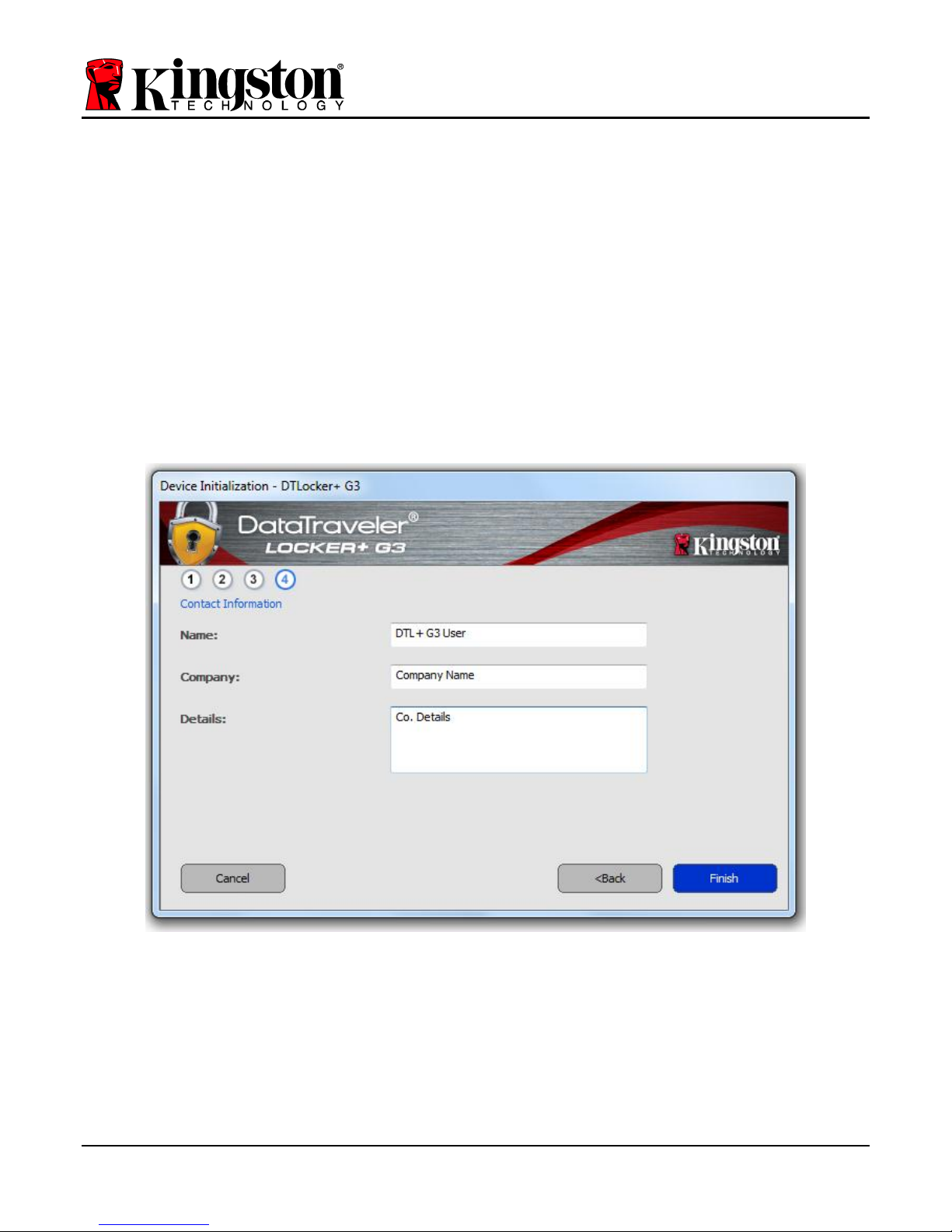

4. Enter your contact information into the text boxes provided (see Figure 3.4) (Note: The

information you enter in these fields may NOT contain the password string you created in

Step 3. However, these fields are optional and can be left blank, if so desired.)

The ‘Name’ field may contain up to 32 characters, but cannot contain the

exact password.

The ‘Company’ field may contain up to 32 characters, but cannot contain

the exact password.

The ‘Details’ field may contain up to 156 characters, but cannot contain

the exact password.

Figure 3.4 –Contact Information

5. Click ‘Finish’ to complete the device initialization process.

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 8 of 22

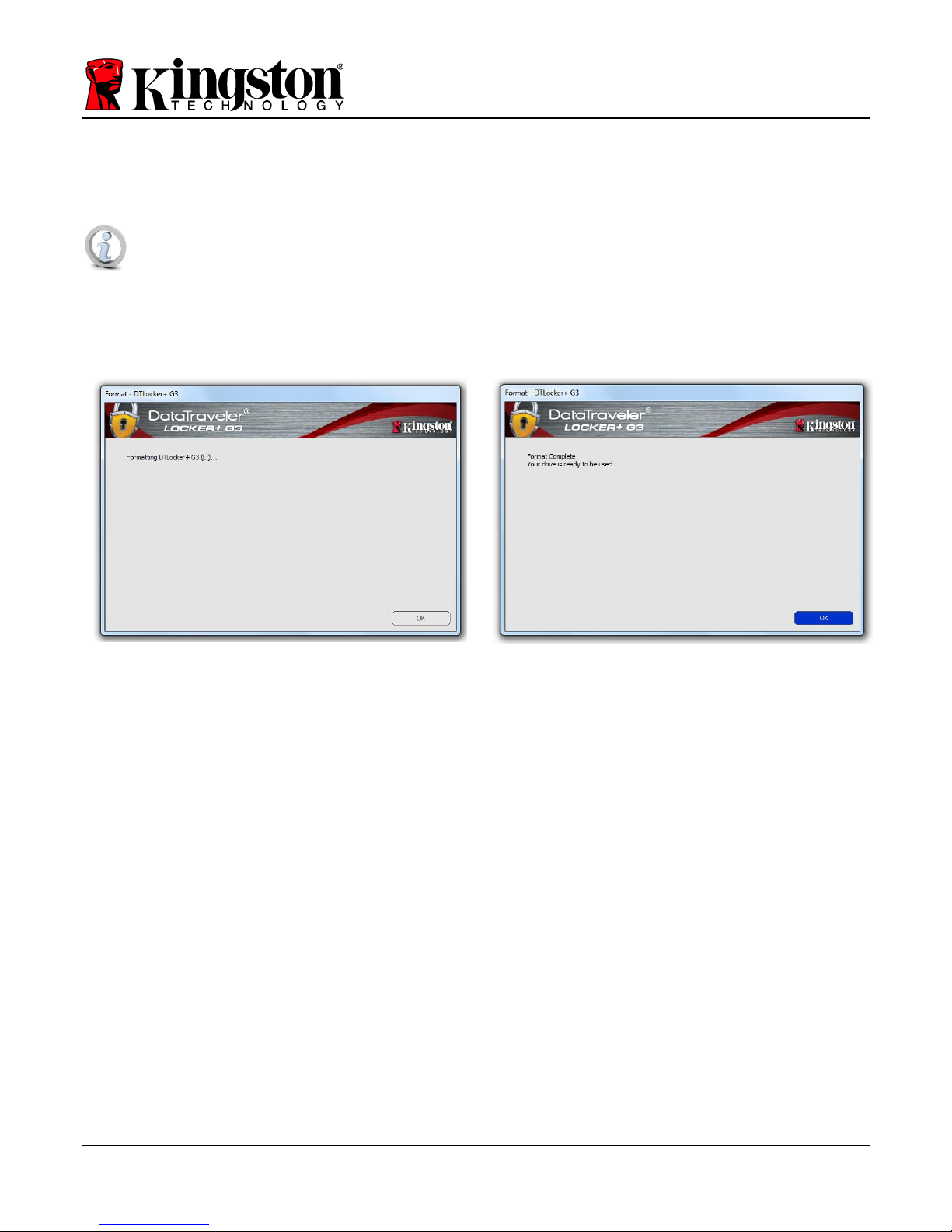

The DTL+ G3 will now format the secure data partition (Figure 3.5) and notify you when it is

complete (Figure 3.6.)

Note: If operating under Windows XP in Non-Admin mode, the ‘Format’ routine

will take longer than formatting in Admin mode.*

6. Click ‘OK’to continue.

Figure 3.5 –Formatting DTL+ G3

Figure 3.6 –Format Complete

Initialization complete.

*Note: Times may vary based on system hardware and the capacity of the DTL+ G3 drive.

Document No. 480G3001-001.A00

DataTraveler®Locker+ G3

Page 9 of 22

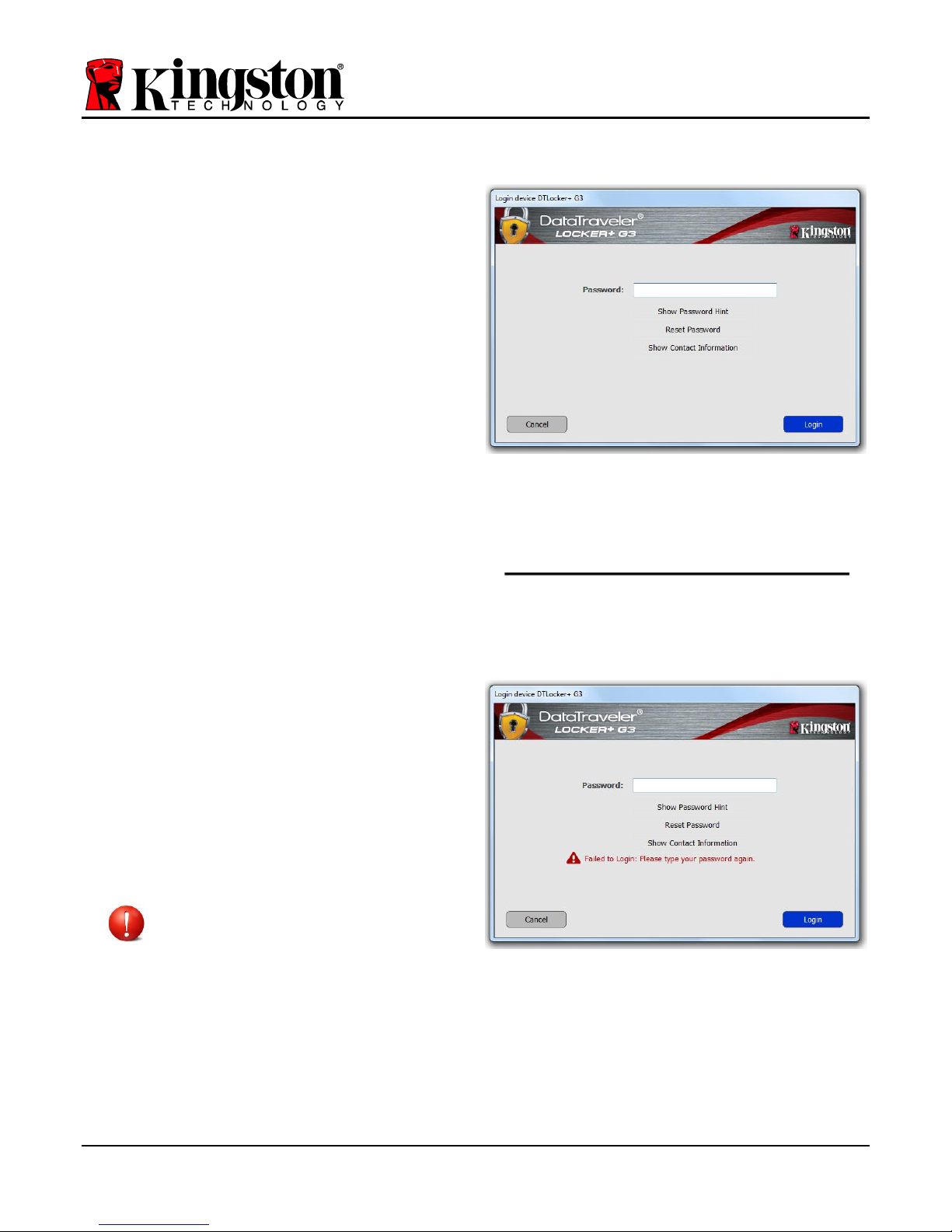

Device Usage (Windows Environment)

Once the DTL+ G3 has been initialized, you

can access the secure data partition and utilize

the device options by logging into the device

with your password. To do so, follow these

steps:

1. Insert the DTL+ G3 into a USB port on your

notebook or desktop and enter your pass-

word (see Figure 4.1.)

2. Once you’ve typed your password, click the

‘Login’ button to continue.

If the correct password is entered, the

DTL+ G3 will unlock and you can

begin using the device.

If an incorrect password is entered, an

error message will appear just below

the ‘Hint’ field, indicating a login

failure (see Figure 4.2.)

Figure 4.1 –Login Window

During the login process, if a bad password

is entered, you will be given another

opportunity to enter the correct password;

however, there is a built-in security feature

that tracks the number of failed login

attempts*. If this number reaches the pre-

configured value of 10 failed attempts, the

DTL+ G3 will lock and require a device

format of the secure data partition prior to

next use.

THIS MEANS THAT ALL DATA STORED

ON THE DTL+ G3 WILL BE LOST.

For more details on this feature, see

‘Device Lockout’ on page 20.

Figure 4.2 –Login Failure

*Note: Once you authenticate to the device successfully, the failed login counter will reset.
