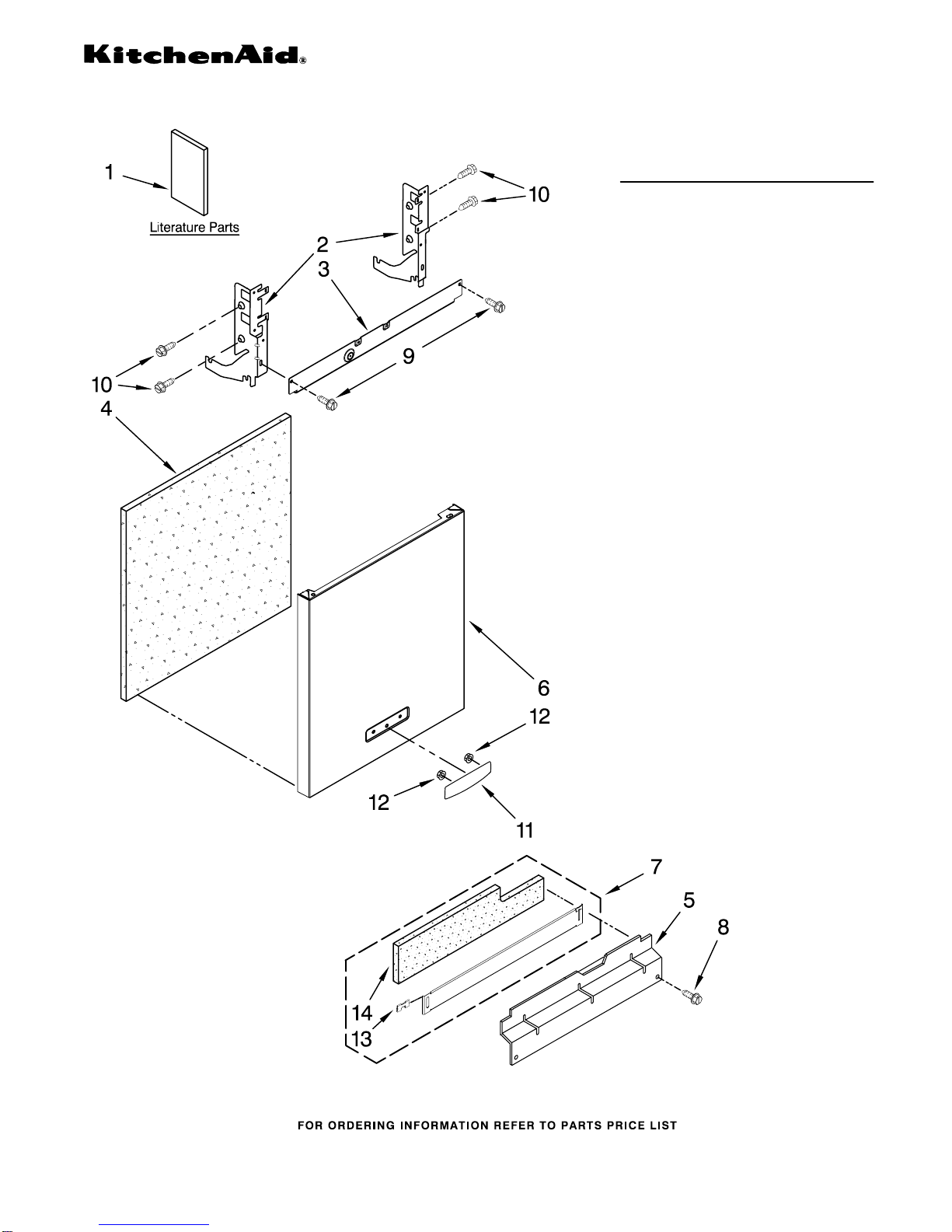

DOOR AND PANEL PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

4−10 Litho in U.S.A. (ELS)(bay) Part No. W10324743 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10056407

Instructions,

Installation

W10247456

Energy Guide

Guide, Use & Care

W10300233

English/French

W10300234

Spanish

W10142800

Tech Sheet

2 Arm, Hinge

8534854 Left

8534853 Right

3 8268983 Stiffener, Door

W10073520

Insulation, Door

5 Access Panel

8573255 Black

8573256 White

6 Panel, Full Front

(Includes Items

4,11 & 12)

W10077995

Black

W10077996

White

W10137620

Stainless Steel

7 Toe Panel

(Includes 13 & 14)

W10205336

Black

W10205337

White

8 Screw

302868 Black

3400836 White

9 304392 Screw

10 3400071 Screw

11 Nameplate

W10021860

Black

W10021870

White

W10021850

Stainless Steel

12 2004333 Nut

13 8269016 Clip, Ground

W10073540

Insulation,

Toe Panel

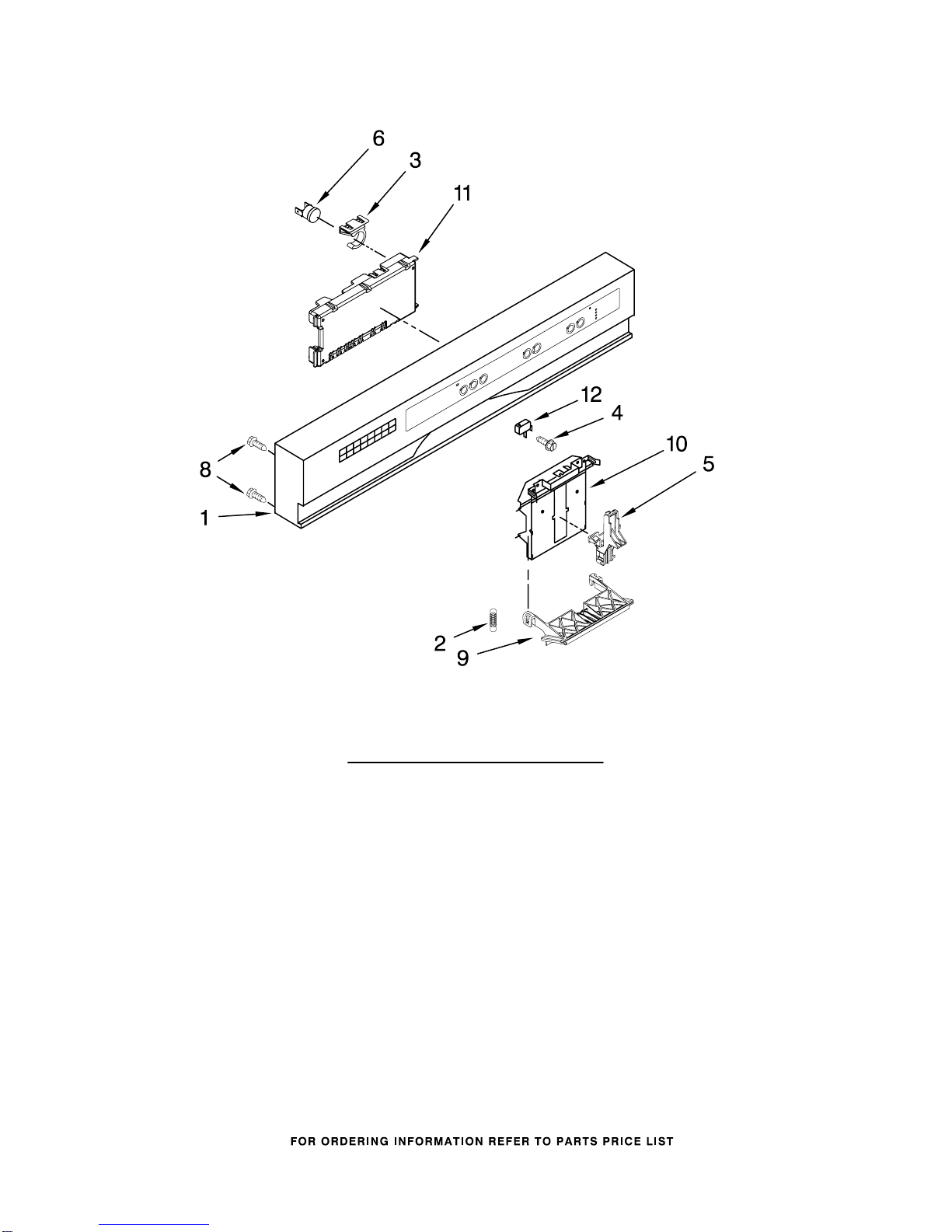

CONTROL PANEL AND LATCH PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10243231

Black

W10243232

White

2 8268540 Spring, Handle

3 8546546 Clip, BI−Metal

4 3400412 Screw

5 8524471 Actuator, Latch

6 661663 Bi−Metal

8 3369051 Screw

9 Handle, Latch

8269117 Black

8269167 White

10 8524476 Bolt, Latch

W10285180

Control,

Electronic

12 8269209 Switch, Door

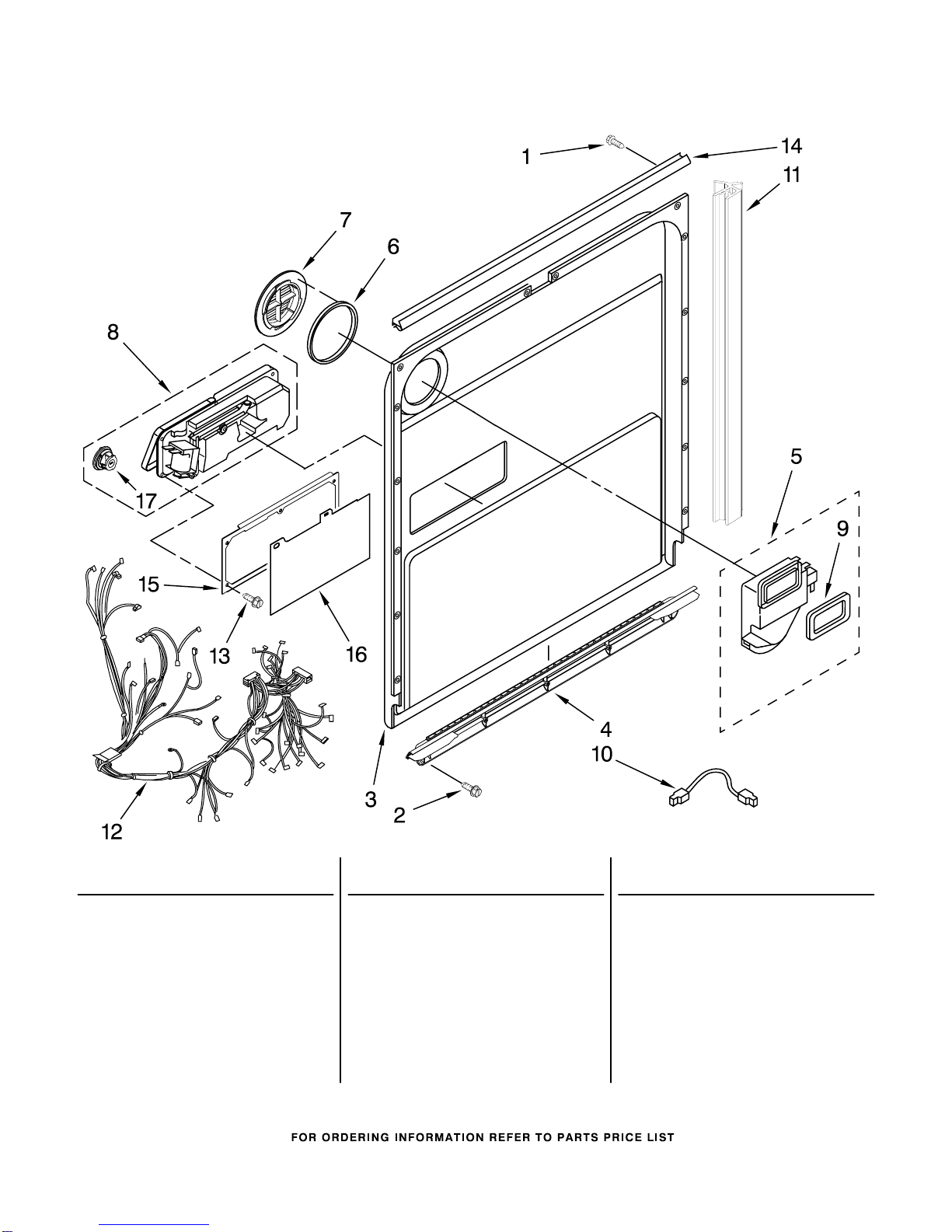

INNER DOOR PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056249

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

W10164259

Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10224431

Dispenser,

Assembly

9 8269258 Seal, Front

10 8545608 Harness, Vent

Motor

11 8574160 Seal, Side

W10224464

Wiring Harness

W10177098

Screw

14 8535660 Seal,

Console/door

15 8535637 Bracket,

Dispenser

16 8531865 Shield,

Dispenser

W10077881

Knob, Rinse Aid

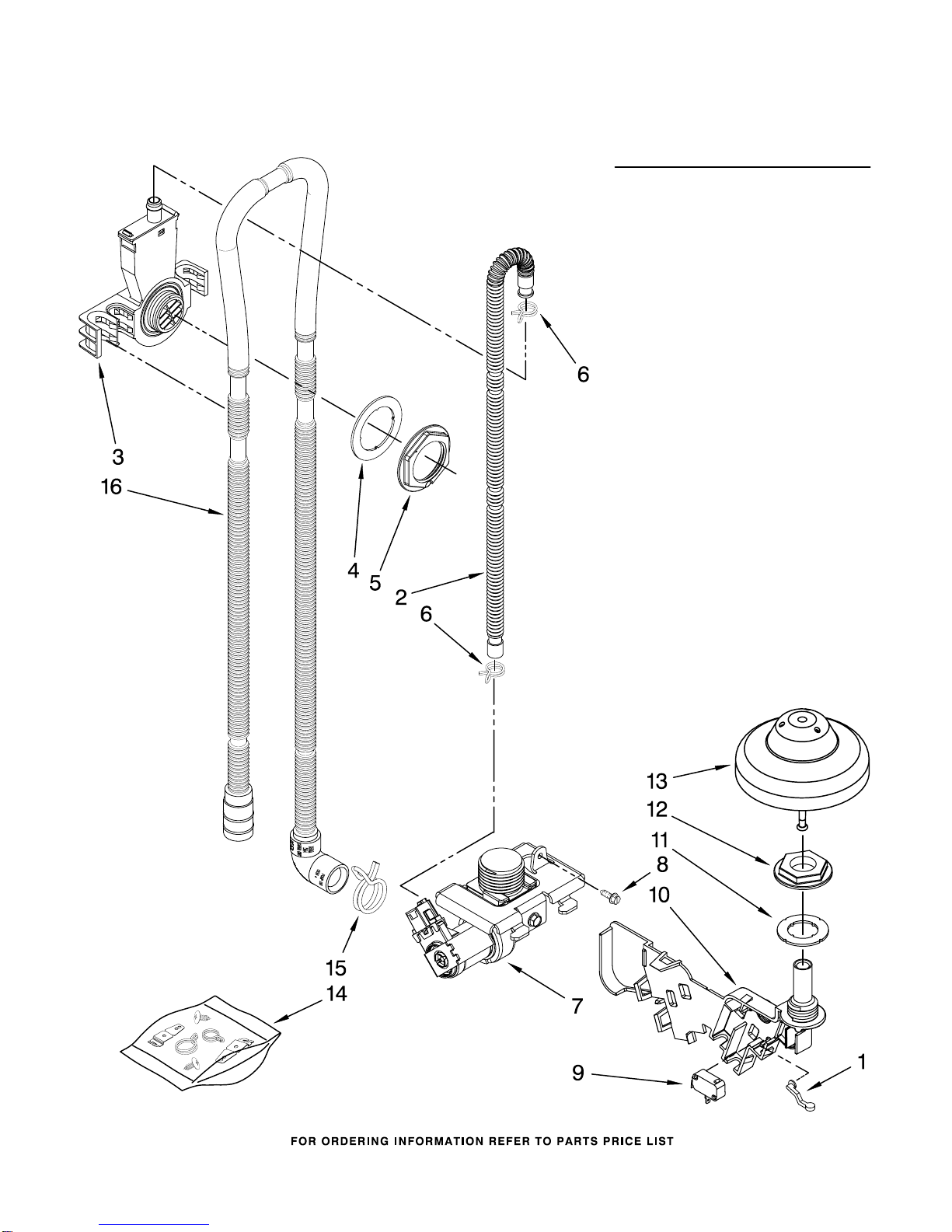

FILL, DRAIN AND OVERFILL PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

W10195536

Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

W10213826

Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10195049

Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

W10292152

Miscellaneous

Parts Bag

(Includes 2 Screws

2 Hose Clamps,

& 2 Brackets)

15 356138 Clamp, Hose

W10137608

Drain Loop

with Check Valve

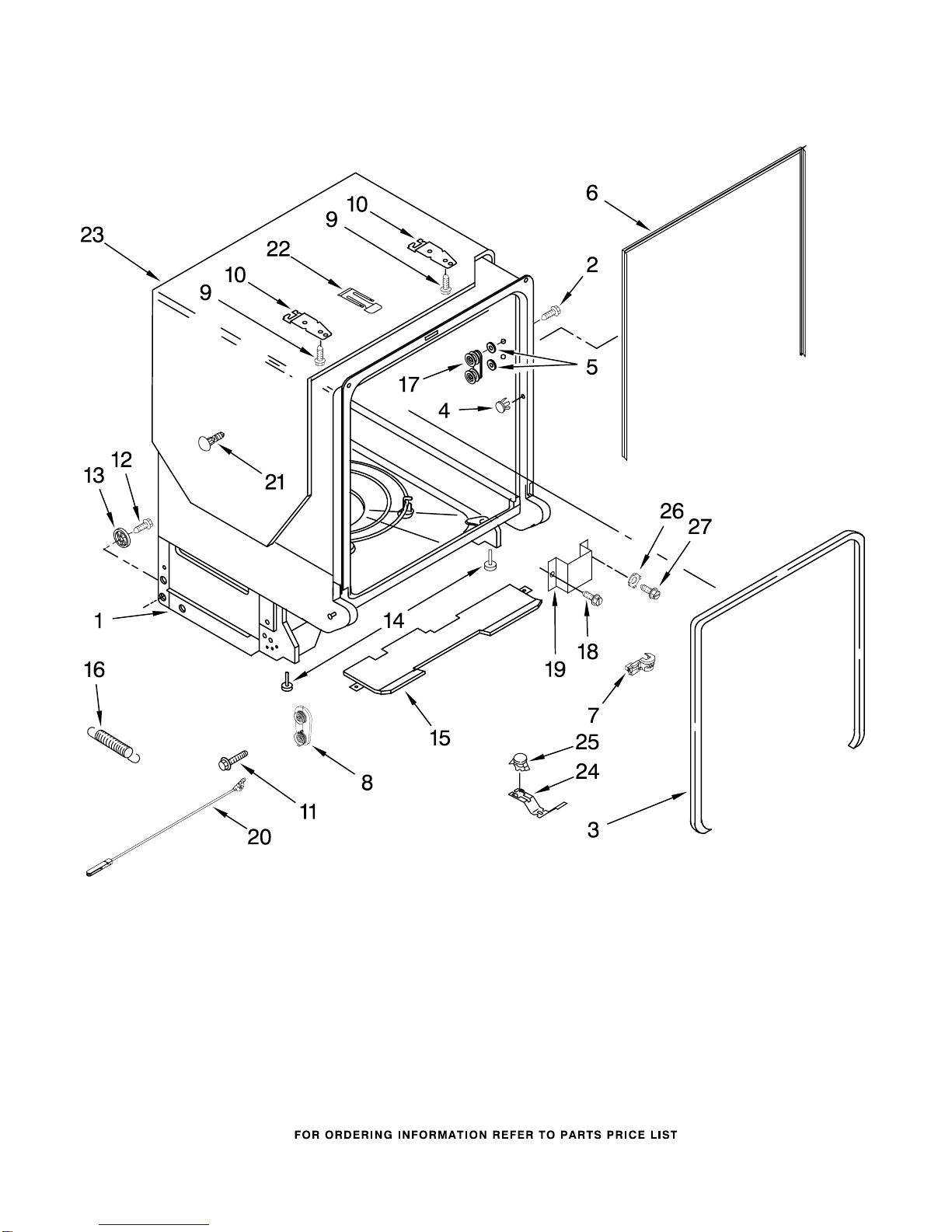

TUB AND FRAME PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

TUB AND FRAME PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION

W10213822

Tub Assembly

(Includes Heater

Assembly)

2 3400072 Screw

W10112096

Door Seal

W10082838

Plug Tub

5 9743002 Gasket, Bracket

Mounting

6 8269110 Seal, Cabinet

7 8573061 Strain Relief

W10084086

Door Balance

Assembly

9 3367670 Screw

10 8269145 Bracket,

Undercounter

11 3400074 Screw

12 3370389 Screw

13 8268977 Wheel Leg

14 8524584 Leveler, Leg

W10266857

Insulation, Sound

Bottom

16 8270020 Spring, Door

Balance

W10078083

Wheel & Mount

Assembly

(Also Order #5)

18 3400892 Screw

19 8268991 Cover, Terminal

Box

W10158291

Link, Door

Balance

21 304666 Retainer, Push

22 8580309 Strike, Latch

23 8573241 Shield, Sound

24 9742648 Bracket,

Thermostat

25 661566 Thermostat

26 3378128 Washer,

Pronged Cup

27 3400014 Screw

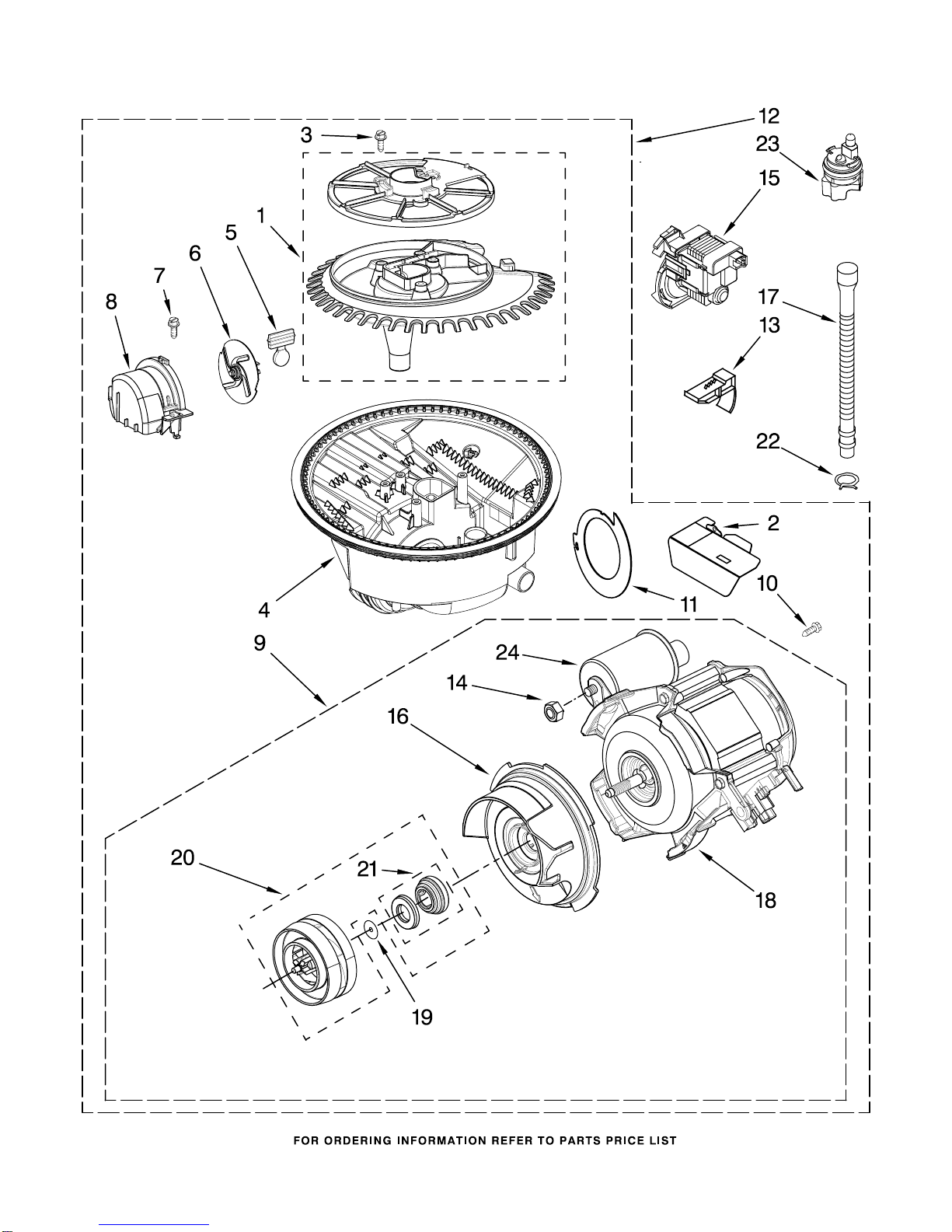

PUMP AND MOTOR PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

PUMP AND MOTOR PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

W10083957

Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

W10239401

Motor Assembly

10 3400217 Screw

W10084567

Screen, Separation

W10237169

Sump & Motor

Assembly

13 8269524 Tab, Sump

14 8533949 Nut

15 8558995 Pump, Drain

W10142656

Volute W/Seal

(Also Order

Items 19 & 21)

17 8269144 Hose, Drain

W10239401

Motor

19 8531018 Washer

W10239404

Impeller Kit

(Also Order

& Item 19)

21 8268403 Face Seal Assembly

(Also Order

& Item 19)

22 356138 Clamp, Hose

W10134017

Optical Water

Indicator

W10216724

Capacitor

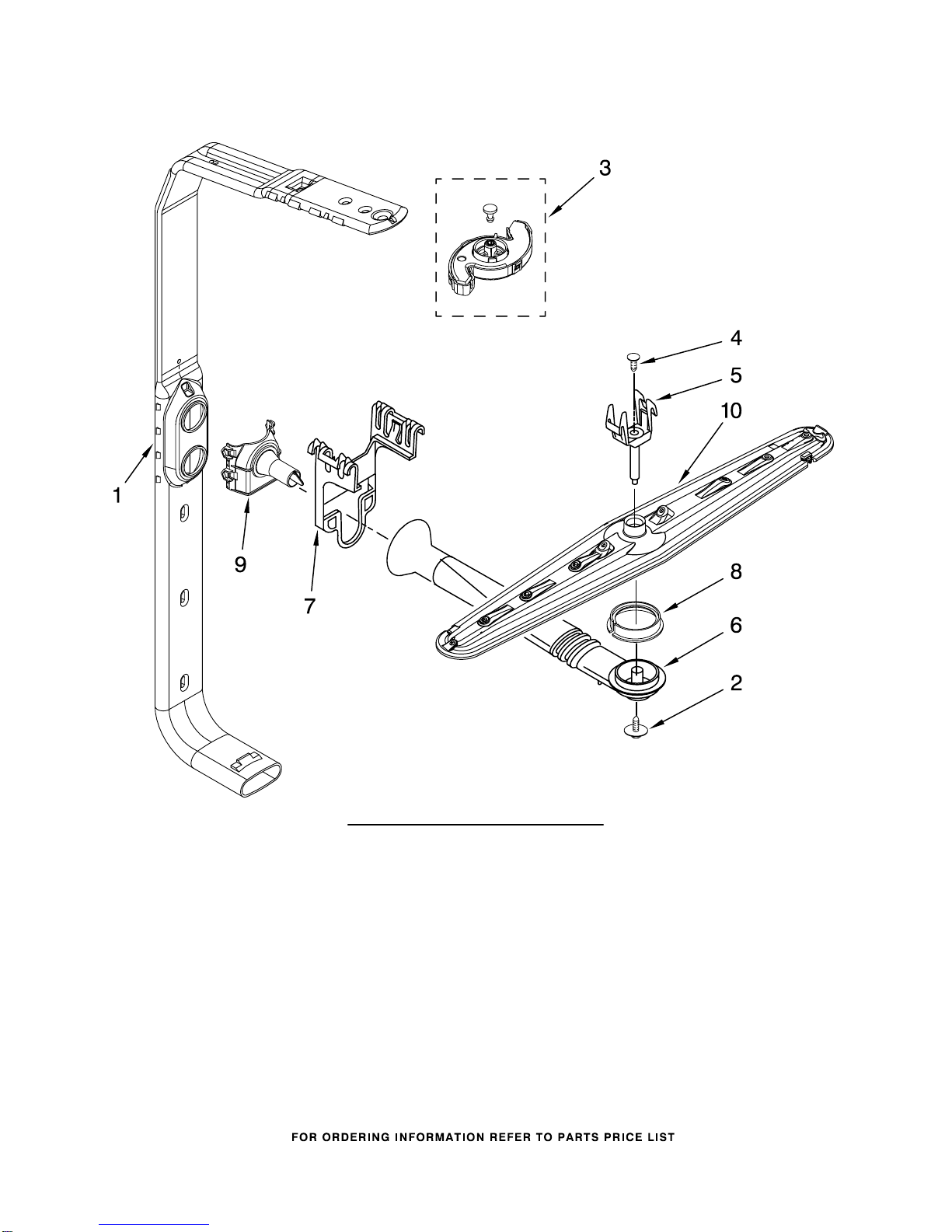

UPPER WASH AND RINSE PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION

W10077896

Feed Tube

Assembly

(Also Includes

Item 3)

2 8533889 Screw

3 8557720 Sprayarm, 3rd

Level

W10118464

Cover, Screw

W10082867

Mount

W10082833

Manifold

W10082832

Hanger

8 8268433 Seal, Sprayarm

W10077923

Nozzle−Feed

W10082841

Sprayarm

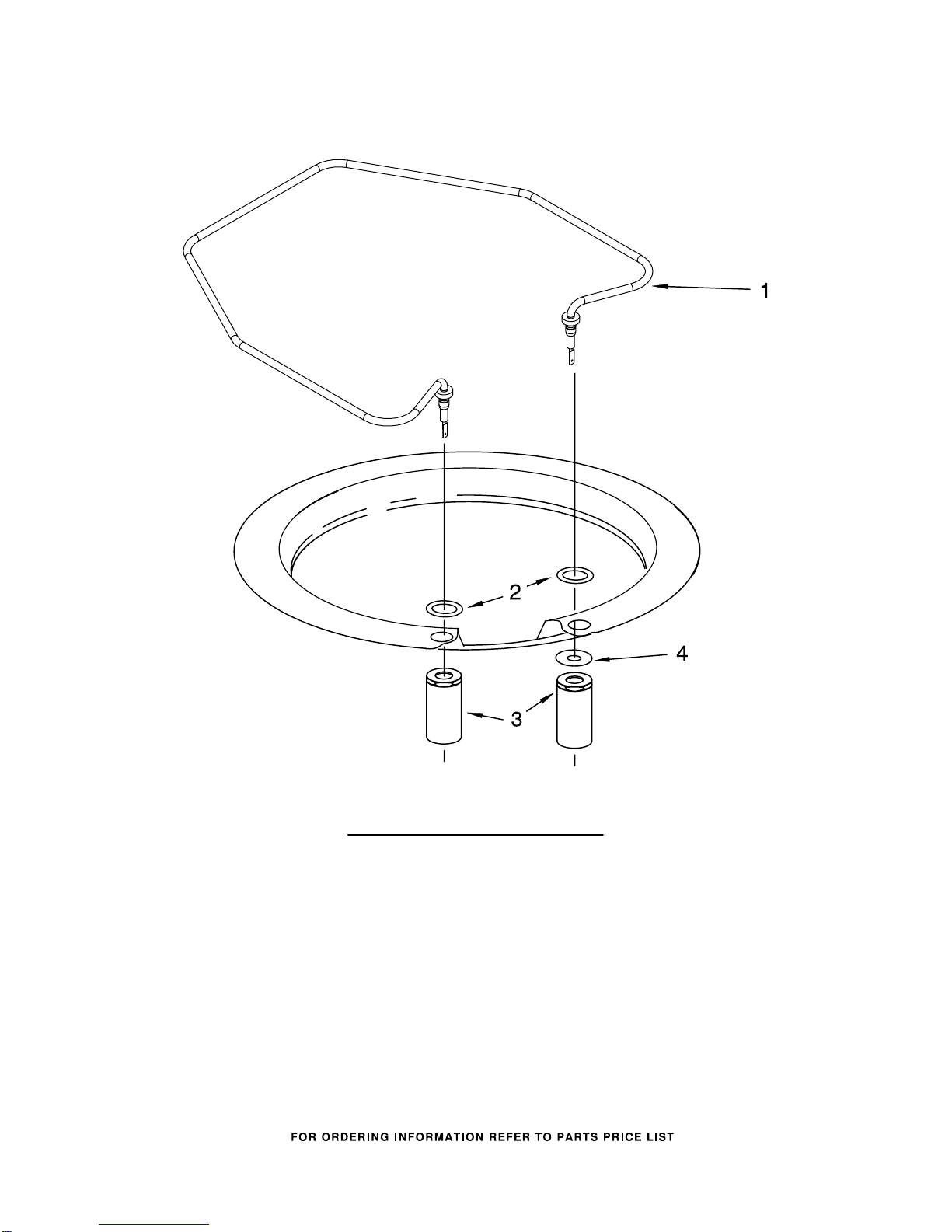

HEATER PARTS

For Models: KUDC03IVBL4, KUDC03IVWH4, KUDC03IVBS4

(Black) (White) (Black/Stainless)

W10324743

Illus. Part

No. No. DESCRIPTION

W10082892

Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
