DOOR AND PANEL PARTS
1
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
03−08 Litho in U.S.A. (els)(mek) Part No. W10201189 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153
Instructions,
Installation
W10084438
Energy Guide
W10193743
Guide, Use & Care
Spanish
W10193742
Guide, Use & Care
English/French
W10142826
Tech Sheet
W10158347
Tech Sheet, French
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4
W10073520
Insulation, Door
5 Access Panel
8573255 Black
8573256 White
6 Panel, Full Front
(Includes Items
4, 10, 16 & 17)
W10078007
Black
W10078008
White
W10137623
Stainless
7 8534008 Screw
8 Toe Panel
(Includes
Items 11 & 18)
8558252 Black
8558253 White
9 Handle Assy
(Includes Item 7)
W10083936
Black
W10083937
White
W10083935
Stainless
10 8564951 Stud, Mounting
11 8268581 Insulation,
Toe Panel
12 Screw
302868 Black
3400836 White
13 304392 Screw
15 3400071 Screw
16 Nameplate
W10021860
Black
W10021870
White
W10021850
Stainless
17 2004333 Nut
18 8269016 Clip, Grounding
CONTROL PANEL PARTS
2
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10084465
Black
W10084466
White
W10084467
Stainless
2 8546546 Clip, Bi−Metal
3 661663 Bi−Metal
4 3369051 Screw
5
W10077360
Latch Assembly
6
W10158345
Control,
Electronic
7
W10134019
Switch, Door
DOOR AND LATCH PARTS
3
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10137633
Wiring Harness
12 8281154 Screw
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser
FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563407 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
15 356138 Clamp, Hose
16
W10137608
Drain Loop
with Check Valve
TUB AND FRAME PARTS
5
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
TUB AND FRAME PARTS
6
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION
1
W10056238
Tub Assembly
2 8574123 Barrier, Moisture
Undercounter
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 8545574 Absorber, Sound
6 3400014 Screw
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 3400924 Retainer, Push−in
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21 8535568 Link, Door
Balance
22 8268582 Insulator, Sound
23 304666 Retainer, Push
24 8573239 Shield, Sound
Tub
25 9742648 Bracket,
Thermostat
26 661566 Thermostat
27
W10077370
Strike, Latch
28 3378128 Washer,
Pronged Cup

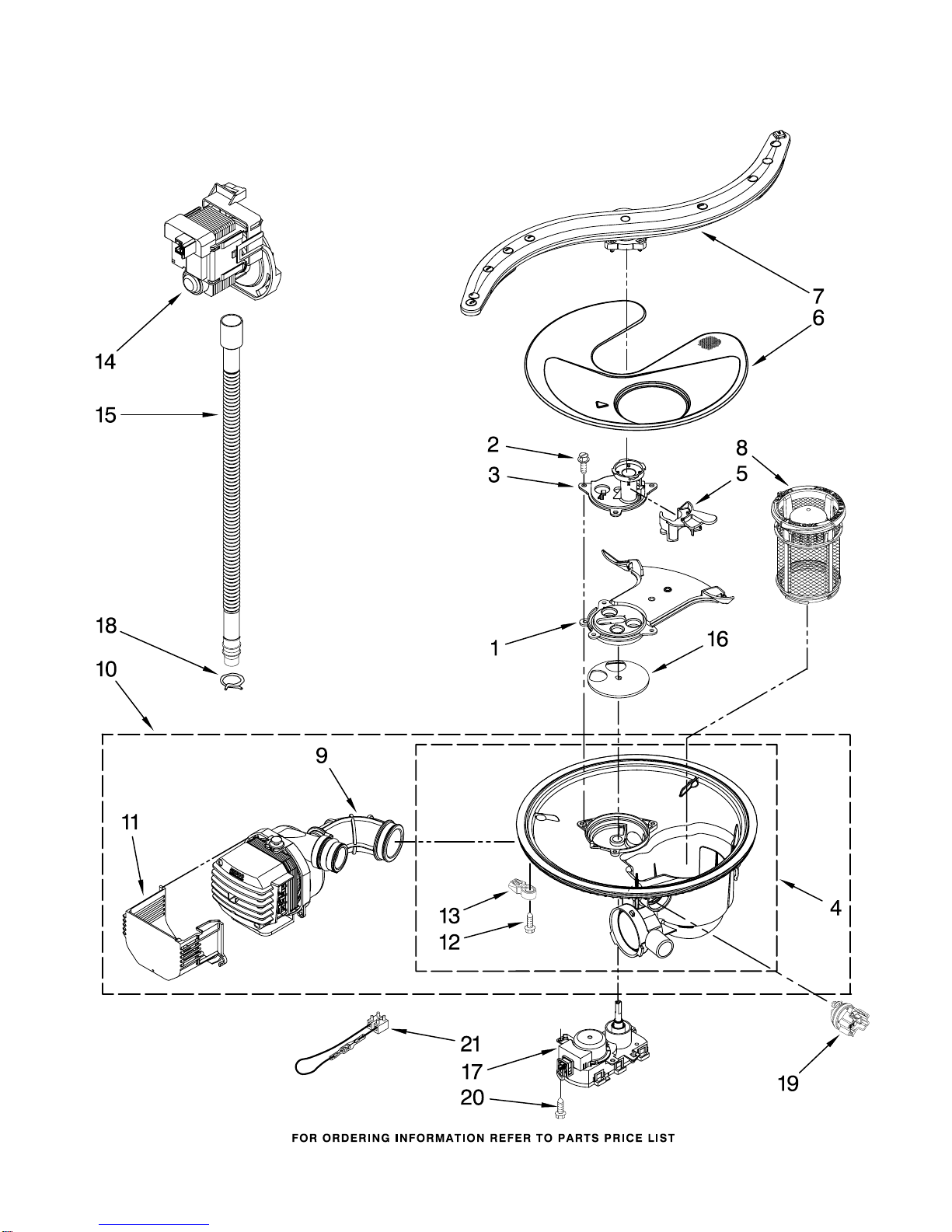

PUMP, WASHARM AND MOTOR PARTS
7
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
PUMP, WASHARM AND MOTOR PARTS
8
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION
1 8579241 Cover, Sieve
2 3400069 Screw
3 8579240 Cover, Outlet
4
W10134035
Sump With Seal
(Includes Items
12, 13 and
2 Hose Clamps)
5 8579298 Retainer,
Feed Tube
6 8579253 Screen
7
W10084508
Wash Arm Assembly
8
W10142911
Filter Cup,
Assembly
9 8579311 Hose, Inlet
(Includes 3 Hose
Clamps)
10
W10164292
Motor & Sump Assy.
(Includes Item 21)
11 8579272 Shield, Motor
12 3400072 Screw
13 8579289 Tab, Sump
14
W10158351
Pump, Drain
15 8269144 Hose, Drain
16 8579251 Disc−Valve
Diverter
17 8579252 Motor, Diverter
Valve
(Includes Item 21)
18 356138 Hose Clamp
19
W10134016
Optical Water
Indicator
20 9741232 Screw
21
W10083167
Fuse In−Line
UPPER WASH AND RINSE PARTS
9
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION
1 8579262 Feed Tube
Assembly
(Also Includes
Item 3)
2 8557720 Sprayarm, 3rd
Level
3 8579242 Mount
4 8579259 Manifold
5 8579279 Sprayarm
6
W10084221
Manifold,
Turbo Wash
HEATER PARTS
10
For Models: KUDE03FTBL1, KUDE03FTWH1, KUDE03FTSS1
(Black) (White) (Stainless)
W10201189
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
