KitchenAid KUDE70CVSS1 Bedienungsanleitung

DOOR AND PANEL PARTS

For Model: KUDE70CVSS1

(Stainless)

3−09 Litho in U.S.A. (ll) (eeb) Part No. W10260781 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10056407

Instructions,

Installation

W10194847

Energy Guide

W10208710

Guide, Use & Care

Spanish

W10208709

Guide, Use & Care

English/French

W10142826

Tech Sheet

W10158347

Tech Sheet, French

2 Arm, Hinge

8534854 Left

8534853 Right

3 8268983 Stiffener, Door

W10073520

Insulation, Door

5 Access Panel

W10194851

Black

6 Panel, Full Front

(Includes Items

4, 10, 16, 17,

19 AND 20)

W10137621

Stainless

7 8534008 Screw

8 Toe Panel

(Includes

Items 11 & 18)

8558252 Black

9 Handle Assy

(Includes Item 7)

W10083935

Stainless

10 8564951 Stud, Mounting

11 8268581 Insulation,

Toe Panel

12 Screw

302868 Black

13 304392 Screw

W10056420

Bezel

15 3400071 Screw

16 Nameplate

W10021850

Stainless

17 2004333 Nut

18 8269016 Clip, Grounding

W10133538

Plate, Backing

W10123421

Screw

W10056310

Panel, Access

Panel

CONTROL PANEL PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10056419

Midnight Grey

2 8546546 Clip, Bi−Metal

3 661663 Bi−Metal

4 3369051 Screw

W10077360

Latch Assembly

W10056352

Control,

Electronic

W10134019

Switch, Door

8 8531873 Board,

Interconnect

9 8531877 Cable−Ribbon

DOOR AND LATCH PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

W10056250

Inner Door

Mastic Assembly

(Also Order

Item 6)

W10077883

Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

W10077877

Deflector, Vent

(Also Order

Item 6)

W10224431

Dispenser,

Assembly

W10077881

Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

W10238390

Wiring Harness

W10177098

Screw

13 8535660 Seal,

Console/door

14 8535637 Bracket,

Dispenser

15 8531865 Shield,

Dispenser

16 3369051 Screw

FILL, DRAIN AND OVERFILL PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION

1 8268892 Lever, Overfill

Switch

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

W10213826

Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

W10158389

Fill Valve

Assembly

8 304392 Screw

9 8268909 Switch, Overfill

Control

10 8545946 Standpipe,

Overfill

(Includes Item 11)

11 8531743 Gasket, Flat

12 9741998 Nut, Standpipe

W10077871

Float & Retainer

Assembly

14 8269297 Miscellaneous

Parts Bag

15 356138 Clamp, Hose

W10193583

Drain Loop

with Check Valve

TUB AND FRAME PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

TUB AND FRAME PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION

W10213821

Tub Assembly

(Also Includes

Heater Assembly)

2 8574123 Barrier, Moisture

Undercounter

W10112096

Door Seal

W10082838

Plug Tub

5 3378128 Washer

Pronged Cup

6 3400014 Screw

W10179427

Seal, Cabinet

8 8573061 Strain Relief

W10084086

Door, Balance

Assembly

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw

13 3400924 Retainer, Push−in

14 3370389 Screw

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

W10077370

Strike, Latch

18 8270020 Spring, Door

Balance

19 3400892 Screw

20 8268991 Cover, Terminal

Box

W10158291

Cable, Door

Balance

22 8268587 Insulator, Sound

23 304666 Retainer, Push

24 8573239 Shield, Sound

Tub

25 9742648 Bracket,

Thermostat

26 661566 Thermostat

W10190766

Panel, Right Side

W10190767

Panel, Left Side

29 3400924 Retainer, Push

PUMP, WASHARM AND MOTOR PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

PUMP, WASHARM AND MOTOR PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION

1 8579241 Cover, Sieve

2 3400069 Screw

3 8579240 Cover, Outlet

W10208687

Sump With Seal

(Includes Items

12, 13 and

2 Hose Clamps)

5 8579298 Retainer,

Feed Tube

6 8579253 Screen

W10084508

Wash Arm Assembly

W10056426

Filter Cup,

Assembly

9 8579311 Hose, Inlet

(Includes 3 Hose

Clamps)

W10056309

Motor & Sump Assy.

(Includes Item 21)

11 8579272 Shield, Motor

12 3400072 Screw

13 8579289 Tab, Sump

W10158351

Pump, Drain

15 8269144 Hose, Drain

16 8579251 Disc−Valve

Diverter

W10208691

Motor, Diverter

Valve

(Includes Item 21)

18 356138 Hose Clamp

W10134017

Optical Water

Indicator

20 9741232 Screw

W10083167

Fuse In−Line

W10179455

Drain, De−Coupler

Assembly

W10056308

Baffle, Sump

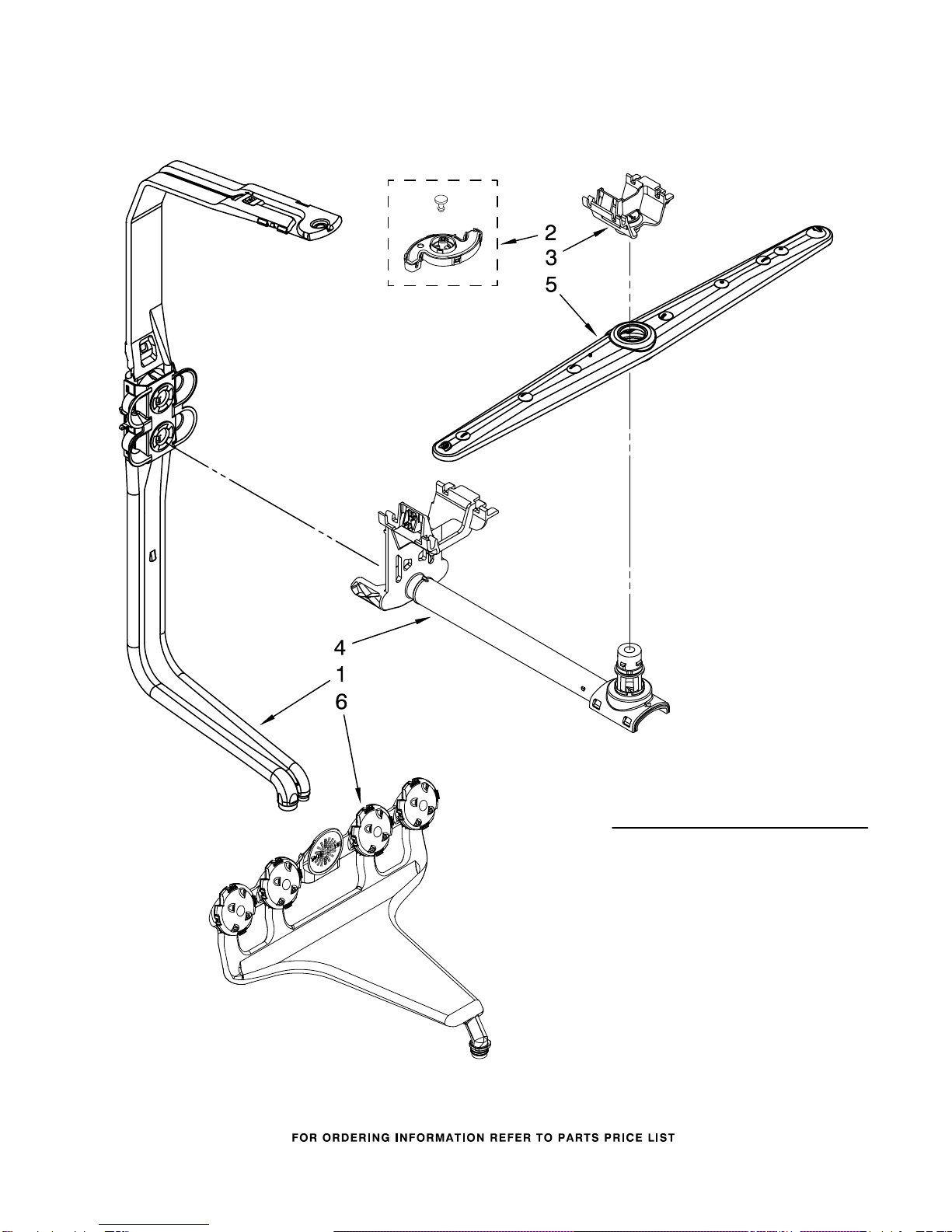

UPPER WASH AND RINSE PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION

1 8579262 Feed Tube

Assembly

(Also Includes

Item 3)

2 8557720 Sprayarm, 3rd

Level

3 8579242 Mount

4 8579259 Manifold

5 8579230 Sprayarm

W10084221

Manifold,

Turbo Wash

HEATER PARTS

For Model: KUDE70CVSS1

(Stainless)

W10260781

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

4 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.
