KitchenAid KUDS24SEAL0 Bedienungsanleitung

DOOR AND PANEL PARTS UNDERCOUNTER

DISHWASHER

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

Part No. 4172106

Illus. Part

No. No. DESCRIPTION

2−96 Litho in U.S.A. (rle)

1 9743028 Door Frame

2 302868 Screw

3 9742964 Stiffener,

Door

4 Panel Front

9743212 Black Model

9743213 White Model

9743214 Almond Model

5 Access Panel

& Clip Assembly

(Includes Items 11 &

12)

9742645 Black Model

9742856 White Model

9742857 Almond Model

6 9743441 Spring, Door (2)

7 3373234 Bushing, Spring

Door (2)

8 Toe Panel

(Includes Item 11)

3375423 Black Model

9742869 White Model

9742870 Almond Model

11 3374767 Insulation

12 3374718 Clip, Grounding

13 3367670 Screw (2)

CONTROL PANEL PARTS

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

Illus. Part

No. No. DESCRIPTION

4172106

1 Console

(Also Order

Item 2)

9743340 Black Model

9743341 White Model

9743342 Almond Model

2 Insert

9743375 Black Model

9743376 White Model

9743377 Almond Model

3 9743241 Switch, Panel

(User Interface)

4 9743350 Spring, Handle

5 9743351 Link, Handle

6 9743412 Sponge, Vent

7 304231 Screw (3)

8 3369051 Screw (4)

9 Handle, Latch

9743188 Black Model

9743189 White Model

9743190 Almond Model

10 9743440 Barrier, Display

11 9743444 Retainer, Barrier

12 9743442 Clip, Retainer

PUMP AND MOTOR PARTS

Note: The Pump Gasket

Must Be Replaced Anytime

The Pump Assembly Is

Removed And Reinstalled

In The Dishwasher.

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

PUMP AND MOTOR PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

1 9740982 Plate, Perforated

(Also Order

Item 30)

See Note A.

2 3367173 Base, Inlet

(Includes Items

1 & 5)

(Also Order

Item 30)

See Note A.

3 9741232 Screw

4 302710 Seal, Inlet Base

5 302709 Ball, Check

6 95080 "O" Ring

7 719929 Ball, Check (2)

9 9742968 Filter Assembly

10 3400001 Screw

11 303510 Impeller, Wash

(Includes Items

12 & 13)

12 3371152 Screw & Seal,

13 302711 Seal, Pump Outlet

14 9742973 Outlet, Pump

(Includes Item 13)

15 3369482 Check Valve

(Includes Item 6)

16 717000 Gasket, Pump

17 9743200 Pump & Motor

Assembly

(Includes Item 16)

18 302707 Bushing, Grind

19 302718 Chopper Kit

(Also Order

Item 30)

See Note A.

20 302705 Sleeve, Drain

Impeller

22 302704 Seal, Drain Cover

23 3376845 Cover, Drain

(Also Order

Item 30 & 40)

See Note A.

24 303539 Impeller,

Drain Kit

(Also Order

Item 30)

See Note A.

25 3376157 Base, Pump

(Also Order

Item 30)

See Note A.

26 3367197 Support, Pump

Mounting (4)

NOTE A:

Pump Centering Tool Required

For Pump Re−Assembling

Order Item 31.

27 3368270 Slinger

(Also Order

Item 30)

(See Note A.)

28 3376765 Motor & Fan

(Assembly)

(Includes Item

27)

(Also Order

Item 30)

See Note A.

29 3369331 Screw (4)

30 675703 Pump Seal Kit

(Includes Items

4, 12, 13 & 22)

31 303918 Tool, Pump

Centering

32 356138 Clamp, Hose

33 3374077 Hose, Drain

34 3371748 Cap, Drain

35 3374757 Shaft, Absorber

36 3374756 Weight, Absorber

37 3378083 Thermostat

38 3376723 Seal, O−Ring

39 3376358 Retainer,

Thermostat

40 9740674 Gasket, Drain

Cover

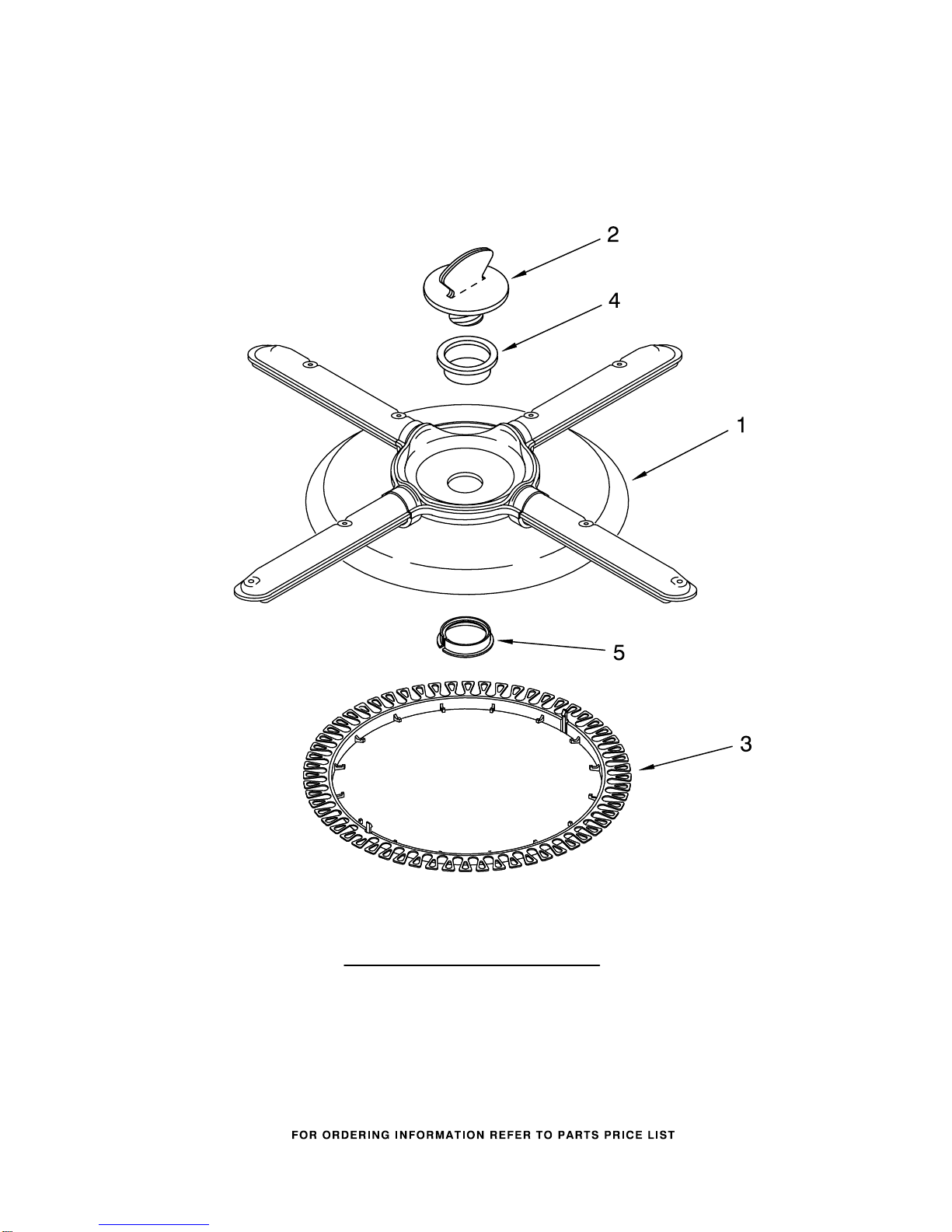

LOWER WASHARM AND STRAINER PARTS

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

Illus. Part

No. No. DESCRIPTION

1 9742947 Wash Arm Assembly

2 9742945 Nut, Washarm

3 9742646 Strainer (Coarse)

4 9742946 Bearing, Radial

5 3376846 Seal, Sprayarm

HEATER PARTS

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

Illus. Part

No. No. DESCRIPTION

1 9743495 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 9743039 Nut, Heater

Element

4 9743166 Pod, Terminal

Heater

FILL AND OVERFILL PARTS

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

Illus. Part

No. No. DESCRIPTION

1 9742938 Control, Overfill

Assembly

(Also Order

Item 14)

2 9742727 Hose, Inlet

3 9742783 Water Inlet

Assembly

(Includes

Items 4 & 5)

4 9742787 Gasket

5 9742786 Bezel, Inlet

6 301958 Clamp, Hose

7 9743175 Fill Valve

Assembly

8 304392 Screw

10 4159424 Screw

11 9740811 Switch, Overfill

Control

12 9742937 Standpipe,

Overfill

13 4161670 Gasket, Flat

14 4161596 Nut, Standpipe

15 4171216 Float & Retainer

Assembly

16 4171116 Lever, Overflow

Switch

UPPER WASH AND RINSE PARTS

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

1 3376846 Seal, Sprayarm

2 3400002 Screw

3 9742989 Sprayarm, Upper

(Also Order

Item 1)

4 9742992 Manifold, Sprayarm

5 9742994 Mount, Tiered

6 9742995 Tube, Connector

7 9742997 Holder, Water

Inlet Funnel

8 9743210 Funnel

9 9743473 Connector

(Includes Items

13, 14 & 15)

10 9742950 Feed Tube

Assembly

13 9743475 Washer

14 9740848 Screw

15 9743474 Gasket, Connector

16 9742953 Seal, Tube

17 9743194 Mount, Top

Upper Sprayarm

Illus. Part

No. No. DESCRIPTION

TUB AND FRAME PARTS

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

4172106

For Models: KUDS24SEBL0, KUDS24SEWH0, KUDS24SEAL0

(Black) (White) (Almond)

Illus. Part

No. No. DESCRIPTION

4172106

TUB AND FRAME PARTS

1 9742605 Tub Assembly

2 9740980 Screw, 10−16 X 1/2

3 9742612 Door Seal

4 9742788 Plug Tub (2)

5 9743468 Wheel & Mount

Assembly

(Also Order

Item 6)

6 9743002 Gasket, Bracket

Mounting

7 3378056 Tub Stiffener

8 3400003 Screw (8)

9 9743149 Rear Support

Assembly

10 343641 Screw

11 9742610 Connector

Tub To Brace

12 90767 Screw (2)

13 304392 Screw

14 3370389 Screw (2)

15 302819 Wheel Leg

16 3376439 Leveler, Leg

19 3370292 Terminal Box

20 3369138 Screw

21 300068 Cover, Terminal

Box

22 3371578 Screw

23 3371579 Nut

24 3370307 Strain, Relief

25 9743460 Trim Strip, Tub

26 304666 Retainer, Push (2)

27 9742789 Corner Trim, Tub

28 9742661 Shield, Sound

Tub

29 9742648 Bracket,

Thermostat

30 3371618 Thermostat

31 9742722 Strike, Latch

32 9743406 Pad, Friction

33 3370225 Screw, Ground
