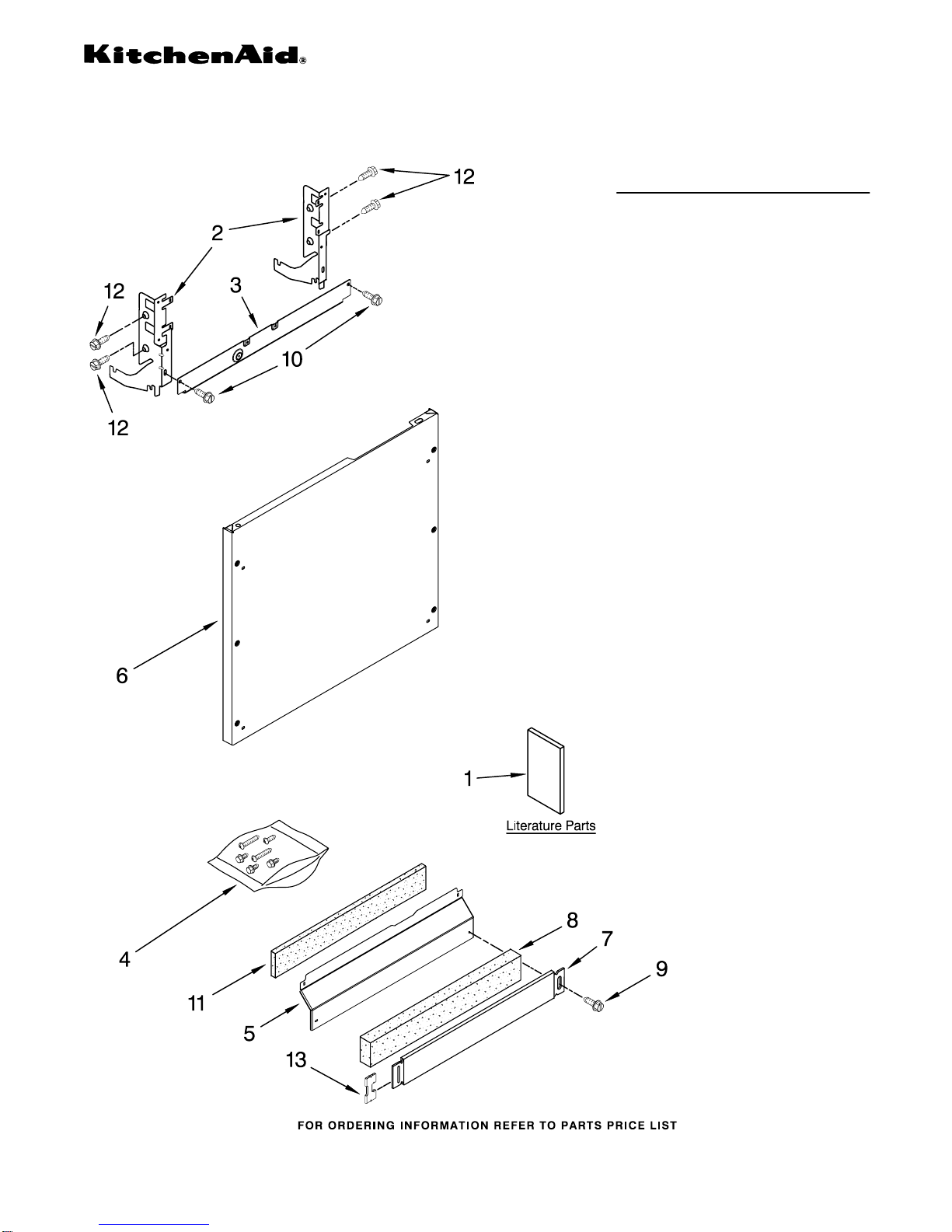

DOOR AND PANEL PARTS
1
For Models: KUDT03FTPA2
(Panel Ready)
09−07 Litho in U.S.A. (els) Part No. W10163068 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10078153
Instructions,
Installation
W10111124
Energy Guide
W10084169
D/W User
Instructions,
Spanish
W10084091
D/W User
Instructions,
English/French
W10082651
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8564886 Stiffener, Door
4 8531882 Screws, Bag
Door Assembly
5 8558260 Access Panel
(Includes Item 11)
6 8535133 Panel, Full Front
7 8558252 Toe Panel
(Includes
Items 8 & 13)
8
W10073550
Insulation,
Toe Panel
9 302868 Screw
10 304392 Screw
11
W10073540
Insulation,
Access Panel
12 3400071 Screw
13 8269016 Clip, Grounding

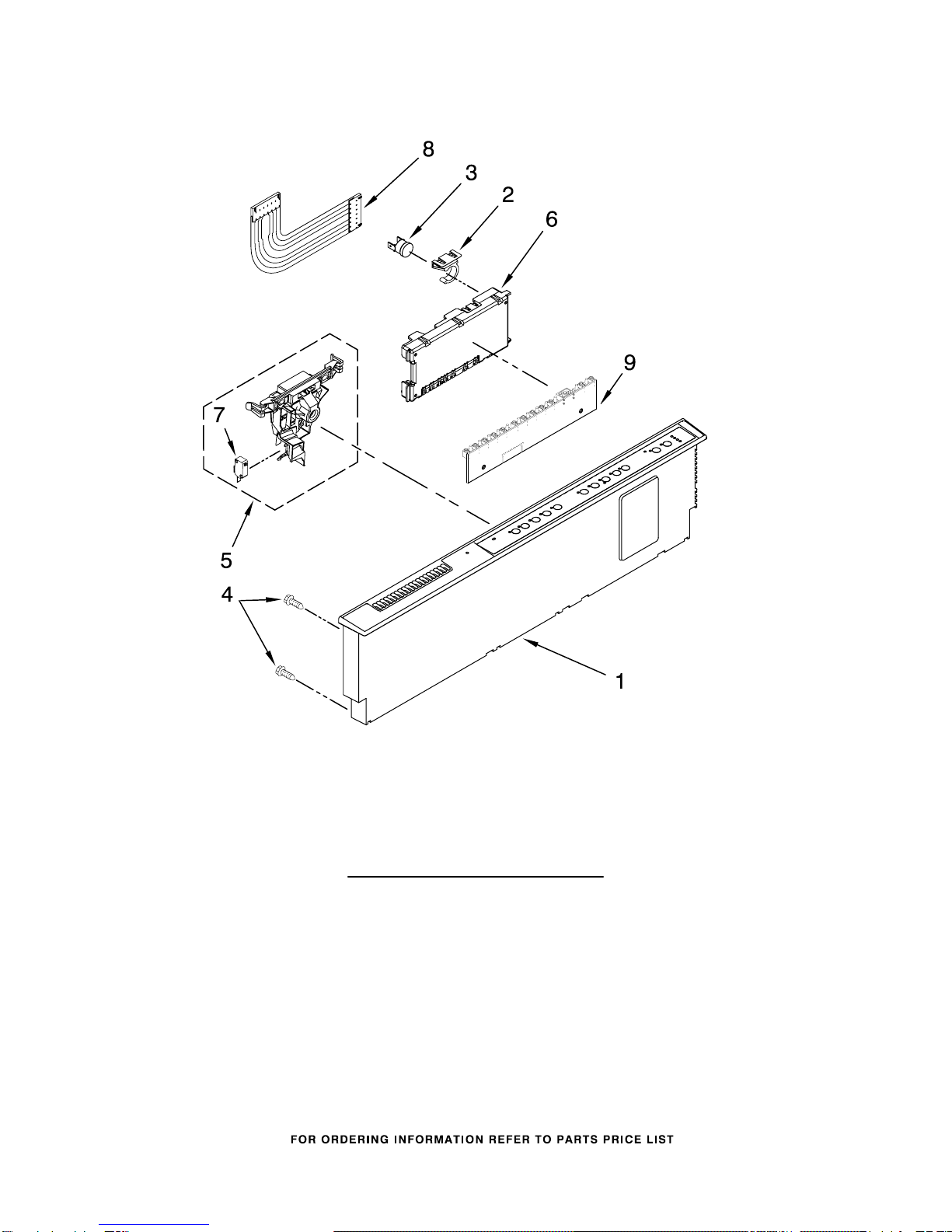

CONTROL PANEL PARTS
2
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION
1
W10084183
Console Assembly
(Includes Insert)
2 8546546 Clip, BI−Metal
3 661663 Bi−Metal
4 3369051 Screw
5
W10077360
Latch Assembly
6
W10084141
Control,
Electronic
7
W10134019
Switch, Door
8 8524447 Cabel, Ribbon
9
W10111537
User Interface
DOOR AND LATCH PARTS
3
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10084288
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5 8572611 Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9
W10077881
Knob, Rinse Aid
10 8545608 Harness, Vent
Motor
11
W10078202
Wiring Harness
12 8281154 Screw
13 8535660 Seal,
Console/door
14 8535637 Bracket,
Dispenser
15 8531865 Shield,
Dispenser

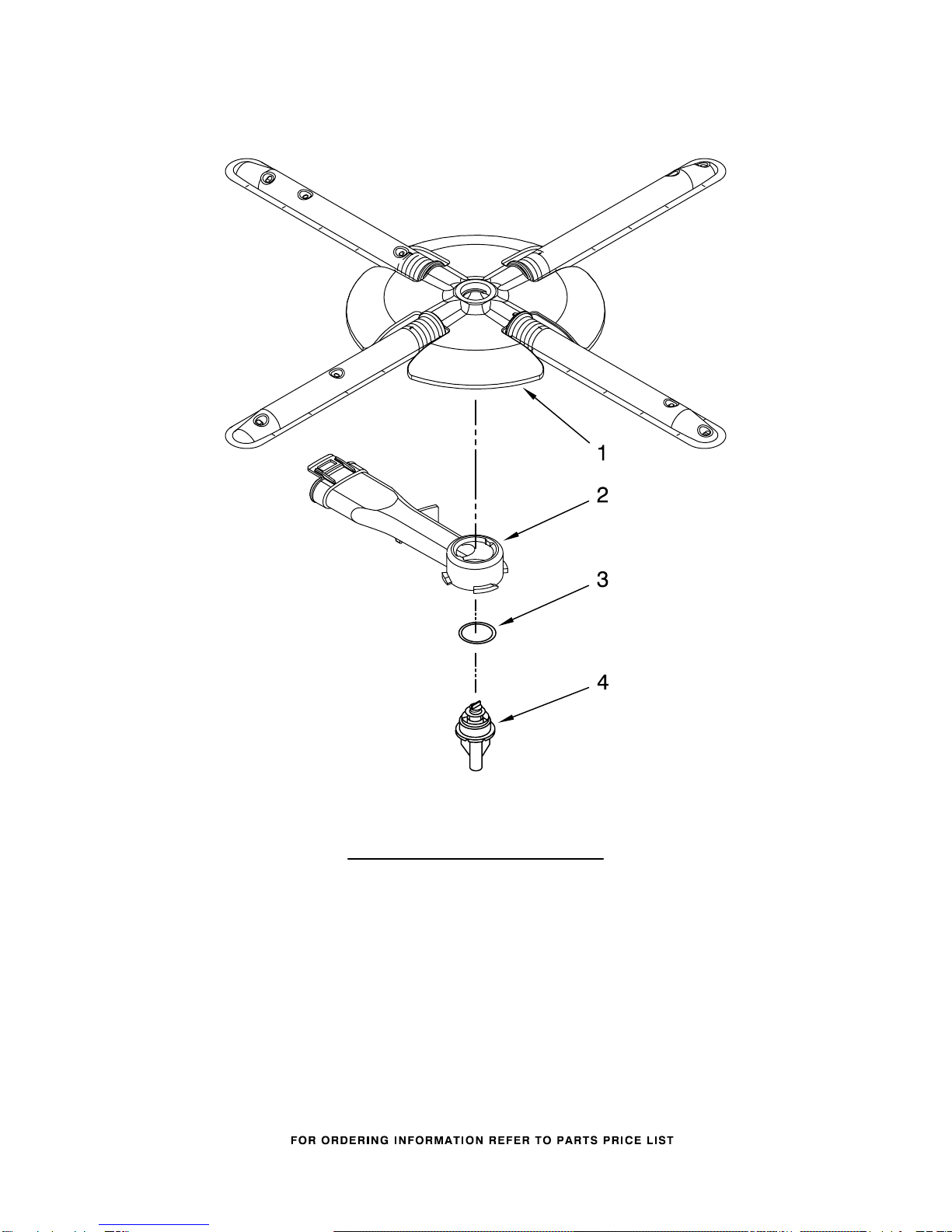

LOWER WASHARM AND STRAINER PARTS
4
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION
1
W10077965
Wash Arm Assembly
2
W10077899
Cap, Internal
Rear Feed
(Also Order
Item 3)
3 8268340 Seal, Sprayarm
4
W10077898
Hub, Lower
Sprayarm
(Also Order
Item 3)

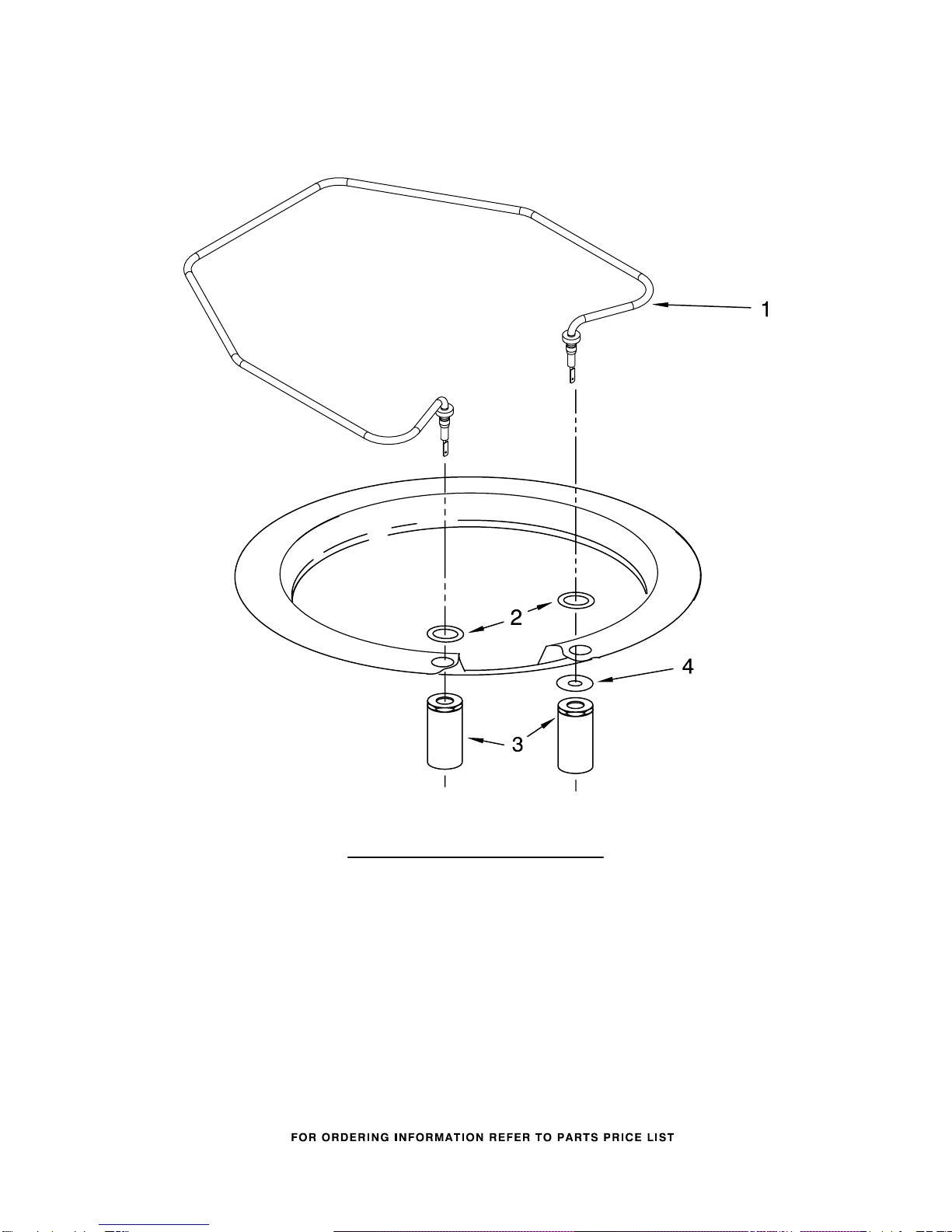

HEATER PARTS
5
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.

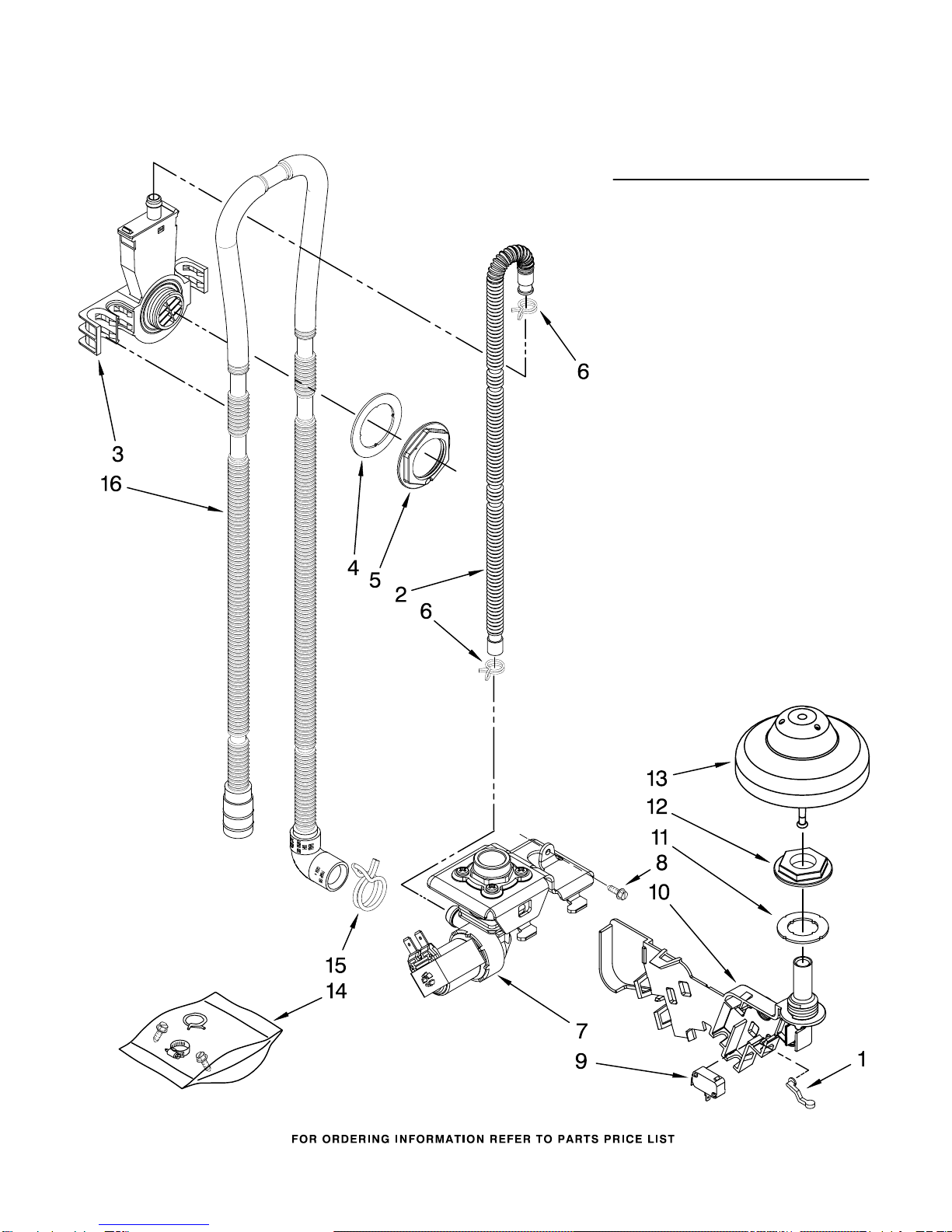

FILL, DRAIN, AND OVERFILL PARTS
6
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2 8531412 Hose, Inlet
3 8531325 Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7 8563405 Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
15 356138 Clamp, Hose
16 8531022 Drain Loop
with Check Valve

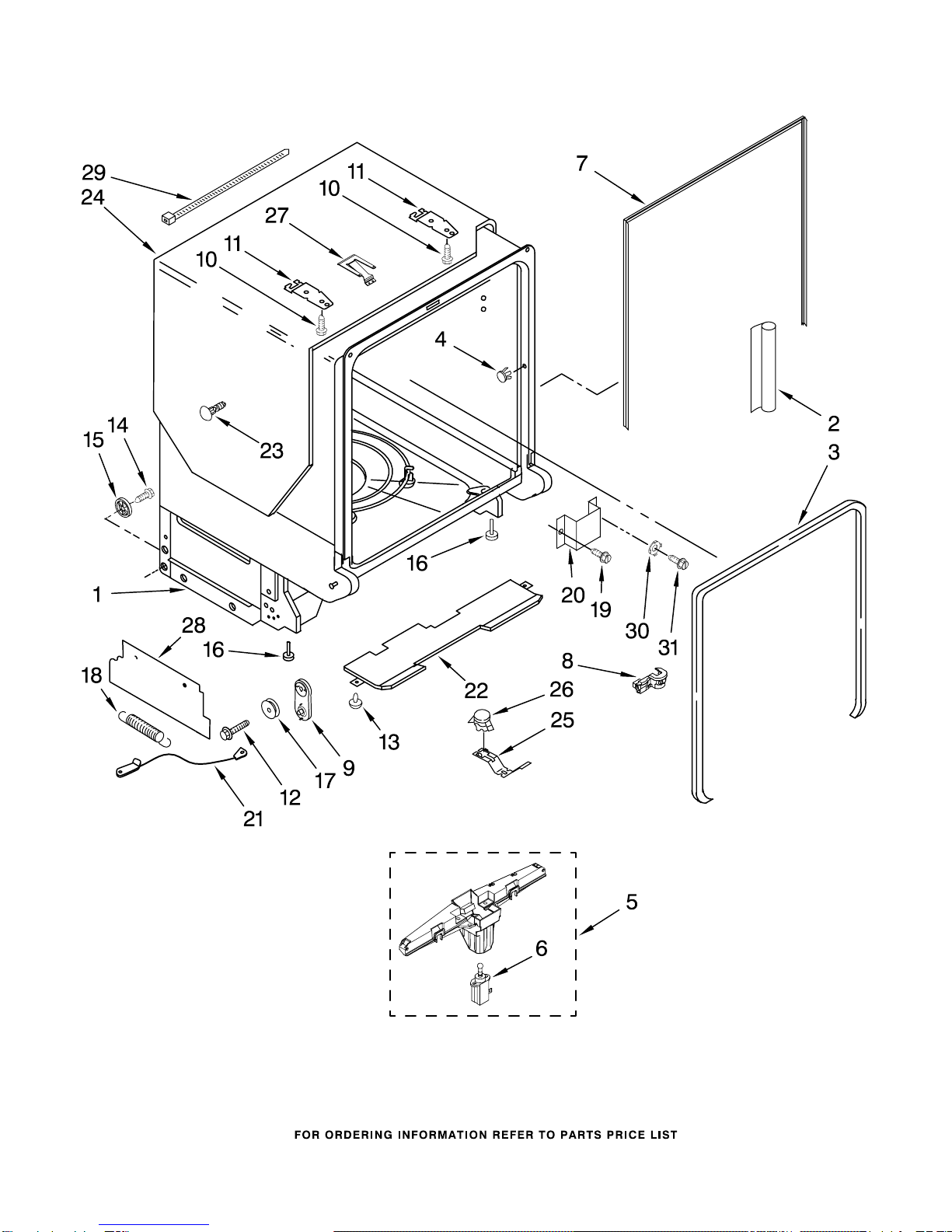

TUB AND FRAME PARTS
7
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
TUB AND FRAME PARTS
8
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION
1
W10084284
Tub Assembly
2 8574123 Barrier, Moisture
Undercounter
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 8572661 Actuator Assembly
6
W10082767
Motor, Wax
7 8269110 Seal, Cabinet
8 8573061 Strain Relief
9 8270021 Mount, Door
Balance
10 3367670 Screw
11 8269145 Bracket,
Undercounter
12 3400074 Screw
13 3400924 Retainer, Push−in
14 3370389 Screw
15 8268977 Wheel Leg
16 8524584 Leveler, Leg
17 8524474 Wheel, door
Balance
18 8270020 Spring, Door
Balance
19 3400892 Screw
20 8268991 Cover, Terminal
Box
21 8535568 Link, Door
Balance
22 8268582 Insulator, Sound
23 304666 Retainer, Push
24 8573239 Shield, Sound
Tub
25 9742648 Bracket,
Thermostat
26 661566 Thermostat
27
W10077370
Strike, Latch
28 8537001 Shield, Side
29 8539404 Strap
30 3378128 Washer, Pronged
31 3400014 Screw

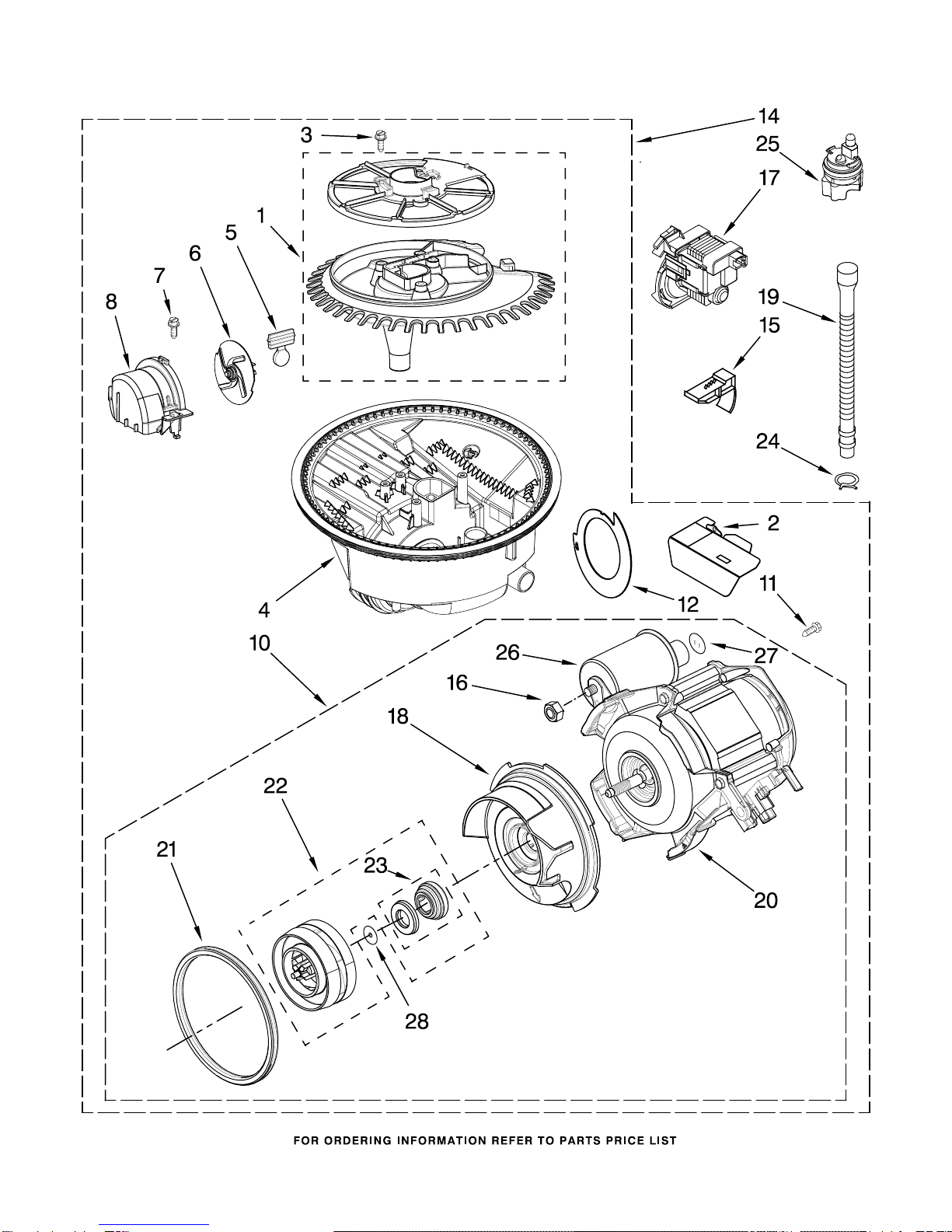

PUMP AND MOTOR PARTS
9
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
PUMP AND MOTOR PARTS
10
For Models: KUDT03FTPA2
(Panel Ready)
W10163068
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
10 8535760 Motor Assembly
11 3400217 Screw
12 8268391 Screen, Separation
14
W10084107
Sump & Motor
Assembly
(Includes
Item 15)
15 8269524 Tab, Sump
16 8533949 Nut
17 661662 Pump, Drain
18 8531019 Volute, Back
(Also Order
Items 21 & 28)
19 8269144 Hose, Drain
20 8535759 Motor
21 8268397 Seal, Volute
22 8531017 Impeller Kit
(Also Order
Item 28)
23 8268403 Face Seal Assembly
(Also Order
Item 28)
24 356138 Clamp, Hose
25
W10082647
Optical Water
Indicator
26 8535474 Capacitor
27 8534946 Shield,
Capacitor
28 8531018 Washer
