KitchenAid KBMS1454RBL0 Bedienungsanleitung

CONTROL PARTS

BUILT−IN MICROWAVE

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0

(Black) (White) (Biscuit) (Stainless)

3−09 Litho in U.S.A. (rek) (eeb) Part No. 8205649 Rev. B

BUILT−IN MICROWAVE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8205303 Installation

Instructions

8205301 Use & Care Guide

8205305 Cook Guide Label

8205302 Guide−Quick

Reference

8205304 Tech Sheet

2 Panel, Control

8205725 Black

8205723 White

8205726 Biscuit

8205724 Stainless

3 Switch, Membrane

8205667 Black

8205666 White

8205668 Biscuit

W10203481

Foil, Touch

5 8205663 Board, Display

6 8205722 Support, Control

Panel

7 8205662 Board, Selector

8 8205665 Board, Interface

9 8205739 Holder, Control

Board

10 8205657 Holder, Display

Board

11 Ring, Knob

8205727 Black

8205728 White

8205729 Biscuit

12 Knob

8205730 Black

8205731 White

8205732 Biscuit

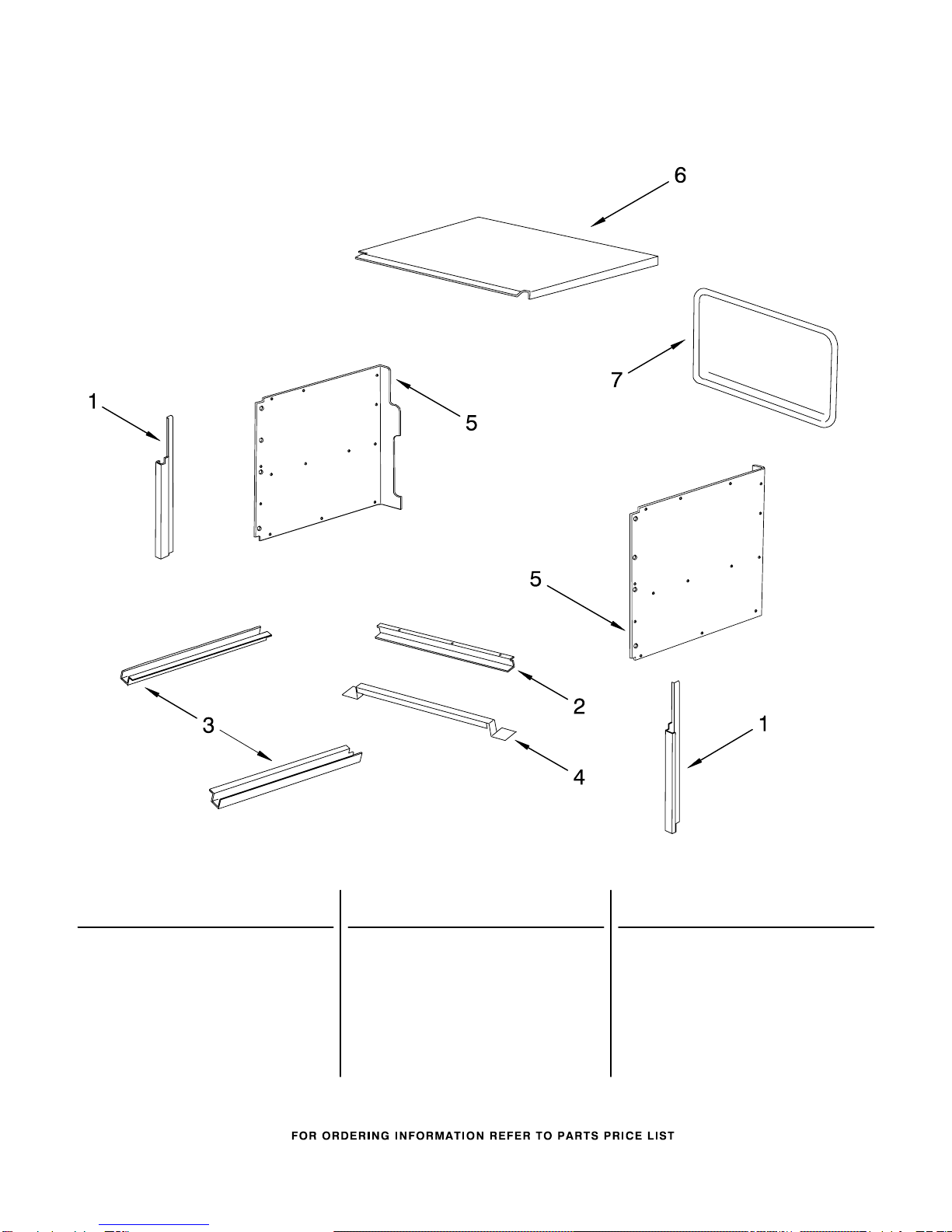

CABINET PARTS

28205649

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

8205715 RH Black

8205718 RH White

8205717 RH Biscuit

8205716 RH Stainless

8205712 LH Black

8205711 LH White

8205714 LH Biscuit

8205713 LH Stainless

2 8205720 Trim, Bottom

3 8205707 Support, Bottom

4 8205708 Bracket, Bottom

5 Chassis, Side

8205674 Left

8205680 Right

6 8205709 Top Plate

7 8205710 Back, Cover

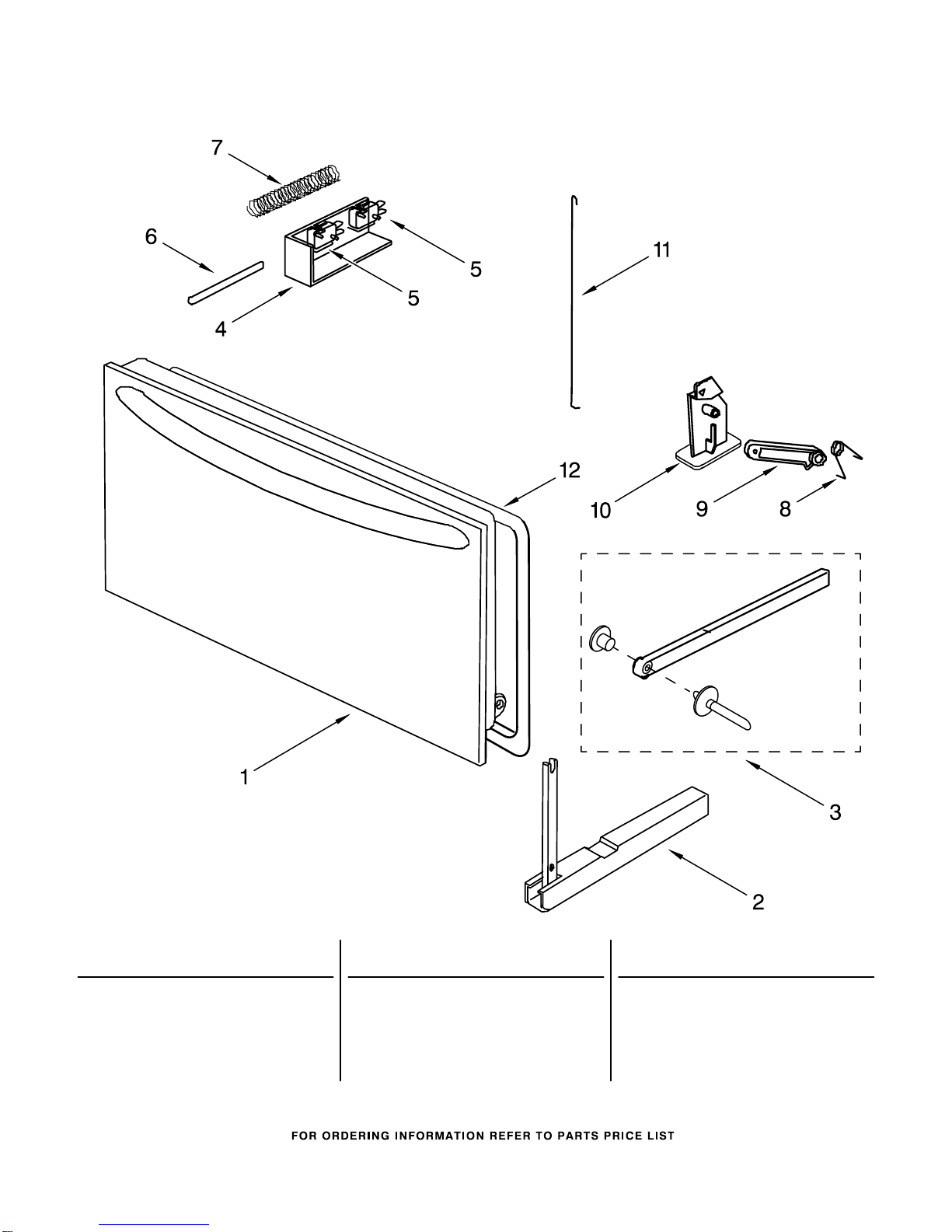

DOOR PARTS

8205649

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door Assembly

8205737 Black

8205736 White

8205738 Biscuit

8205735 Stainless

2 8205733 Hinge Assembly (2)

3 8205687 Sliding Arm Assy

4 8205683 Switch Holder (2)

5 4375346 Switch (3)

6 8205684 Push−Rod (2)

7 8205685 Spring Cam

8 8205689 Spring

9 8205688 Lift Arm

10 8205686 Support

11 8205704 Spring, Torsion

12 8205789 Gasket

TOP VENTING PARTS

48205649

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 8205706 Air Duct

2 8205740 Air Guide

3 8205692 Transformer, Lamp

4 8205721 Motor, Fan Assy

5 8205664 Control,

Electronic

6 8205669 Holder, Control

7 8205705 Top Chassis

8 8205719 Vent, Control

Panel

9 4357202 Screw

OVEN INTERIOR PARTS

8205649

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375321 Fuse

2 8205670 Fuse Holder

3 8205650 Magnetron

4 8205651 Screw

5 8205652 Thermostat

6 8205654 Thermostat

7 8205653 Mains Filter

8 8205655 Turntable Motor

9 8205656 Screw

10 8205659 Thermostat, Cavity

11 8205660 Power cord

12 8205679 Spring,

Lamp Holder

13 8205658 Socket, Lamp

14 4375348 Lamp

15 4375320 Reflector

16 4375318 Lens, Lamp

17 8205671 Transformer

18 8205672 Screw

19 8205673 Reducer, Humidity

20 4375349 H.V. Diode

21 8205661 H.V. Capacitor

22 8205690 Sensor, Humidity

23 8205675 Cover, Inlet

24 8205676 Turntable, Glass

25 8205678 Ring, Turntable

26 8205677 Driver, Turntable

27 8205682 Shaft, Turntable

28 8205681 Holder, Motor

29 4375202 Screw

30 8205788 Holder, Capacitor

INSTALLATION PARTS

68205649

For Models: KBMS1454RBL0, KBMS1454RWH0, KBMS1454RBT0, KBMS1454RSS0

(Black) (White) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205754 Z−Bracket

2 8205755 6 pk. screws

3 Narrow Bracket

8205756 27" Left

8205757 27" Right

4 Narrow Trim

8205758 27" White

8205759 27" Black

8205760 27" Biscuit

8205761 27" Stainless

5 Wide Bracket

8205762 30" Left

8205763 30" Right

6 Wide Trim

8205764 30" White

8205765 30" Black

8205766 30" Biscuit

8205767 30" Stainless

7 4 pk. screws

8205768 White

8205769 Black

8205770 Biscuit

8205771 Stainless

Miscellaneous

8205734 Mounting Kit

WIRING HARNESS PARTS

8205748 Harness, Main

8205749 Harness, Sensor

8205750 Harness, Lamp

8205751 Harness, Fan &

Turntable Motor

8205752 Cable, UI Board

Selector Board

8205753 Cable, UI Board

To Elec. Control
