KitchenAid KCMS1555RBL1 Bedienungsanleitung

DOOR PARTS

For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1

(White) (Black) (Stainless Steel)

11−05 Litho In U.S.A. (dmm) Part No. 8206278

MICROWAVE OVEN

1.5 CUBIC FOOT

Illus. Part

No. No. DESCRIPTION

1 Literature

8205541 Use & Care Guide

8205550 Cook Guide Label

8205542 Tech Sheet

8205554 Instructions,

Installation

(For Trim Kit)

6 8184263 Latch

7 8171918 Spring, Latch

8 8184265 Cap

10 Door Assembly

8205804 White

8205797 Black

8205815 Stainless

CONTROL PANEL PARTS

For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1

(White) (Black) (Stainless Steel)

8206278

Illus. Part

No. No. DESCRIPTION

1 4358381 Screw

2 Release Button

8205806 White

8205799 Black

8205817 Stainless

3 8184272 Spring, Button

5 4359851 Control Panel

6 8205800 P.C.B Sub Assembly

7 Lever, Release

8205805 White

8205798 Black

8205816 Stainless

8 8204891 Lens

10 4358883 Screw

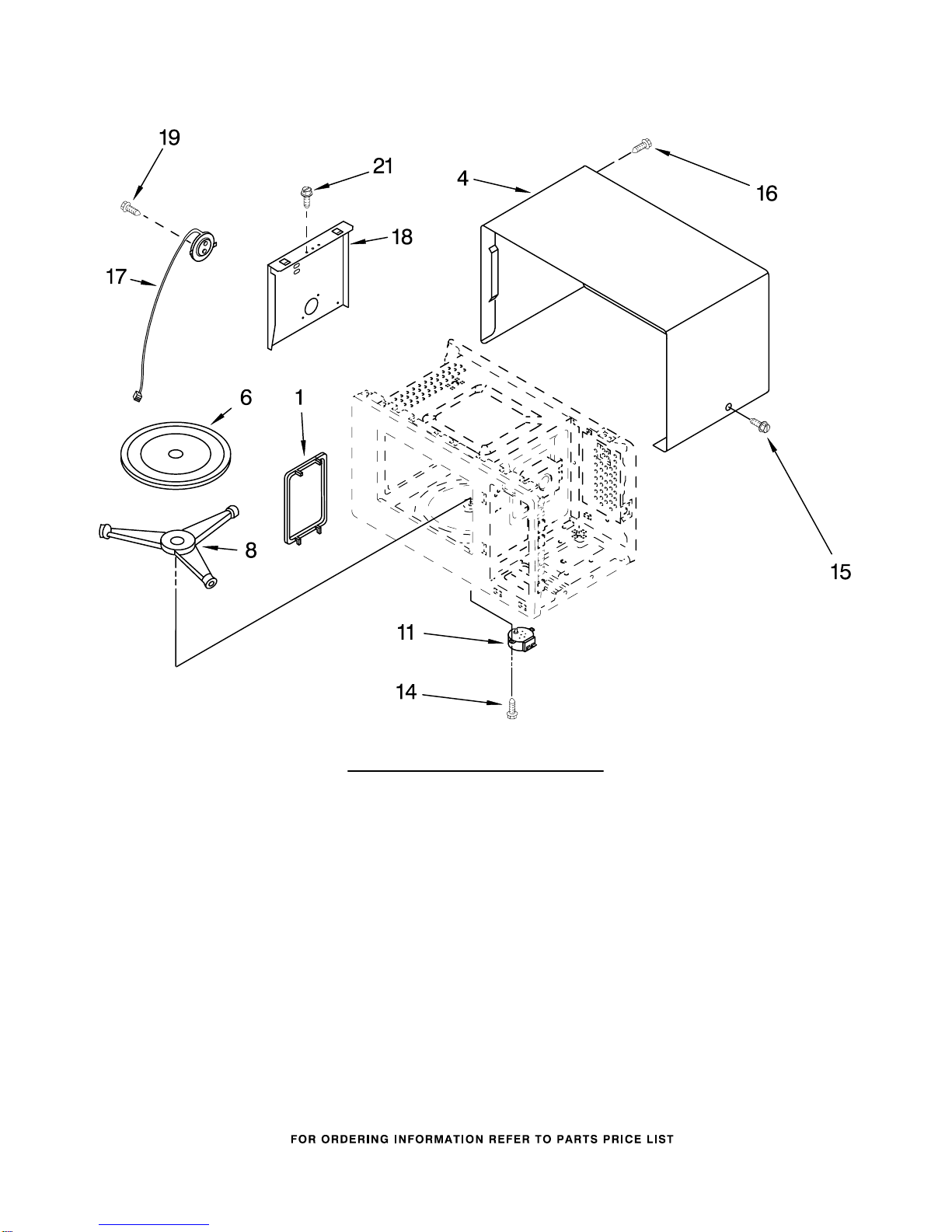

OVEN CAVITY PARTS

For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1

(White) (Black) (Stainless Steel)

8206278

Illus. Part

No. No. DESCRIPTION

1 8184278 Canopy

4 Outer Case

8205453 White

8205801 Black

8205818 Stainless

6 4359780 Tray, Glass

8 8205148 Turntable Support

11 8184375 Motor, Synchronous

14 4358188 Screw

15 Screw

4358362 White & SS Models

4358829 Black Model

16 8171862 Screw

17 8183514 Sensor, Humidity

18 8205457 Guide, Sensor

19 4358376 Screw

21 4358192 Screw

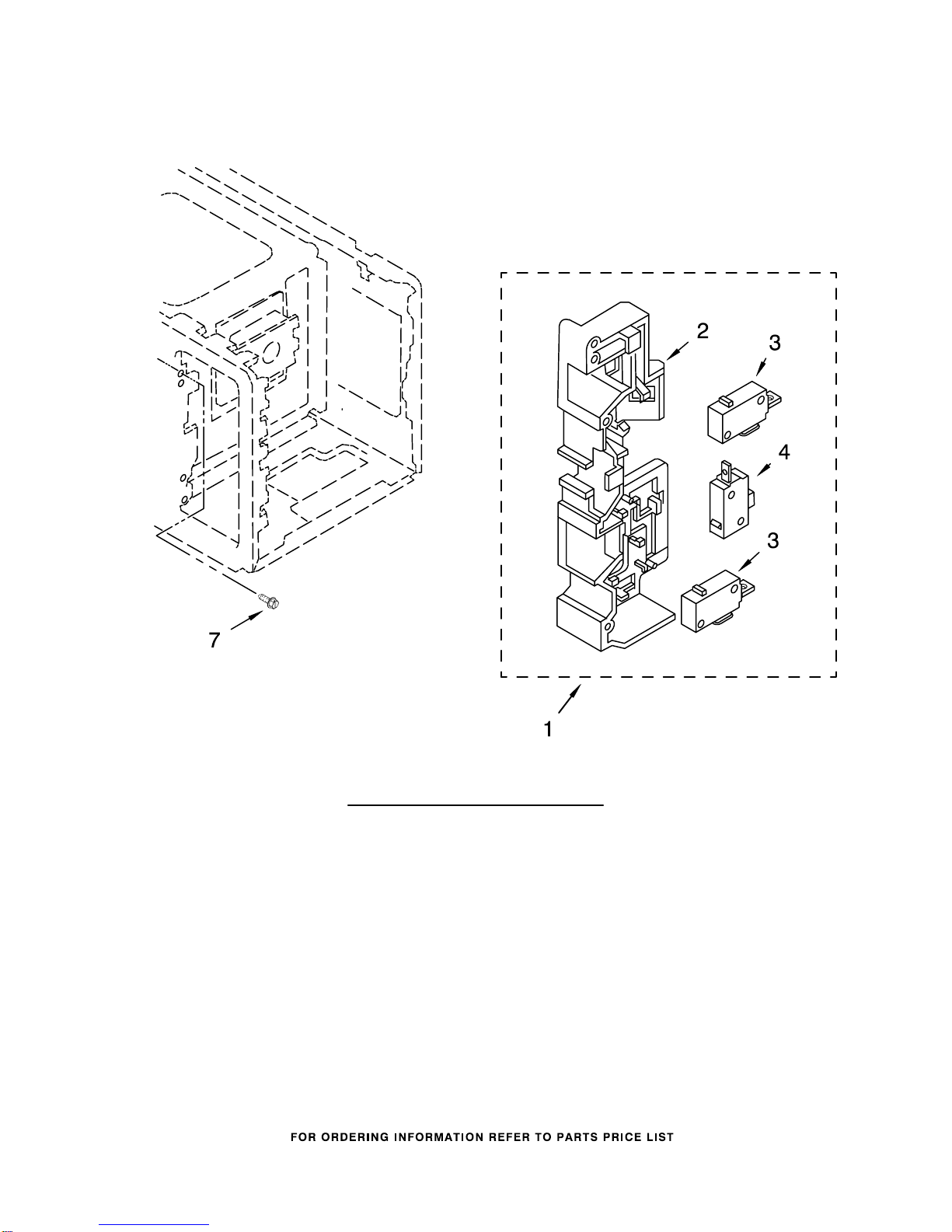

LATCH BOARD PARTS

For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1

(White) (Black) (Stainless Steel)

8206278

Illus. Part

No. No. DESCRIPTION

1 Latch Board Assembly

(Non−Serviceable)

2 8185271 Latch Board

3 8183561 Switch Micro

Primary/Secondary

4 8183562 Switch, Micro

Monitor

7 4358271 Screw

OVEN INTERIOR PARTS

For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1

(White) (Black) (Stainless Steel)

8206278

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205458 Blade, Fan

2 8205456 Guide, Suction

3 8205462 Motor, Fan

4 8185272 H.V. Capacitor

5 8184288 H.V.C Bracket

6 8206283 Leadwire Assembly

7 4359794 Holder, Wire

8 8205489 H.V. Diode Cable

9 8206281 Power Cord

10 4359164 Thermostat

11 8171810 Lamp, Baseless

12 8205483 Cap, Fuse

13 8205460 Magnetron

14 8205509 Bracket

15 8204900 Duct, Air

16 8184290 Bracket, Support

17 8183507 Fuse

18 8206270 Filter, Noise

21 4358381 Screw

22 4358489 Screw

24 4358190 Screw

BASE PLATE PARTS

For Models: KCMS1555RWH1, KCMS1555RBL1, KCMS1555RSS1

(White) (Black) (Stainless Steel)

8206278

Illus. Part

No. No. DESCRIPTION

1 8205464 Base Plate

3 8184385 Leg

4 8205459 Transformer

5 4358192 Screw

7 4358489 Screw

ACCESSORY PARTS

Trim Kits

MK1154XPQ

24" White

MK1154XPB

24" Black

MK1154XPS

24" Stainless

MK1157XPQ

27" White

MK1157XPB

27" Black

MK1157XPS

27" Stainless

MK1150XPQ

30" White

MK1150XPB

30" Black

MK1150XPS

30" Stainless

8172131 Hardware Pack

(Incl in Trim Kit)
