TRASH COMPACTOR
INSTALLATION INSTRUCTIONS
KCS-200
INSTALLER: FINAL CHECK LIST
PLACEMENT OF COMPACTOR
cl 1.
Compactor placed in convenient location.
0 2. Adequate space allowed for full drawer opening.
cl 3. Built-in conversion and installation completed:
a. Properly positioned - Level, Aligned and Square with cabinet opening.
b. Unit snugly positioned in cabinet using leveling legs.
C.
A minimum l/4” clearance MUST BE MAINTAINED between compactor top and
counter top for service accessibility. (See Fig. 2).
ELECTRICAL CONNECTION
cl 1. Properly fused, 115 volt, 60 hertz branch circuit of 15 ampere capacity.
0 2.
q
Compactor properly grounded. (3-Prong grounded receptacle).
3. All connections in conformance with local electrical code.
OPERATIONAL CHECK
Cl 1.
Fully open then close drawer to check drawer operation.
0
2.
Check compacting cycles.
a. With drawer fully closed, turn key to “start” and allow compactor to run one full
cycle (ram goes down, back up, then stops).
b. Turn key to “start” a second time, wait approx. 5 seconds then turn key to “stop/
lock” position (ram should stop).
cl 3. c- Turn key to first position. (ram should return to “up” position and stop).
Check charcoal air filter unit:
a. With drawer fully closed, push charcoal air filter switch on.
THANK YOU INSTALLER:
1. Complete Installation Check List.
2. Leave all literature (Incls. Check List) for customer.
3. Notify dealer that electrical work is completed.
FORDETAILEDINSTRUCTIONS,FOLLOWMETHODDESCRIBEDIN THIS FOLDER
~
IMPORTANT
READ BEFORE INSTALLING TO SAVE TIME, WORK, ASSURE PROPER
PERFORMANCE, AND OWNER’S WARRANTY PROTECTION.
ELECTRICAL SPECIFICATION: Wiring must conform to National Electrical Code,
(N.E.C.), NFPA 970, 1981 and/or all applicable
Voltage & Frequency . . . . . . . 115 volts, 60 hertz local electrical codes.
Operating load . . . . . . . . . . . 9 amperes, 695 watts
Circuit Fuse . . . . . . . . . . . . . . . . . . . . 15 amperes INSTALLATION DIMENSIONS (See Fig. 1):
DRAWER EXTEWD
WIRING MUST CONFORM TO LOCAL AN
NATIONAL ELECTRICAL CODE. TMENT HEIGHT
“I;:” ‘9
Fig. 1
CONNECTING TO ELECTRICITY:
KitchenAid Compactors operate on regular
115-volt, 60 hertz A.C. electrical services to be
supplied by a LISTED 3-PRONG GROUND-
ING RECEPTACLE. The supply circuit should be
protected by a 15 amp. fuse, or circuit breaker.
It is essential that the electrical outlet into which
the 3-pronged power cord is inserted be properly
grounded. If this is in doubt, a competent electri-
cian should be contacted to check the outlet.
To connect the compactor to electricity:
1.
Place compactor in front of proposed under-
counter location. Slide compactor sideways
with enough room to insert 3-pronged plug
into the 3-prong wall receptacle (in shaded area
of Fig. 2). Make certain that the cord is secured
in the clamp at top rear of unit. NOTE: If it is
desired to change the front panels, you should
do it prior to plugging the compactor in. See
the separate instruction sheet included.
THE RECEPTACLE OUTLET MUST BE
GROUNDED:
The power cord on a KitchenAid Compactor is
provided with a 3-pronged grounding plug. The
third prong is designed to ground the cabinet
electrically, thus eliminating the possibility of
shocking the operator if an internal electrical
malfunction should occur. 2. Turn key to “stop/lock” position.
-2-

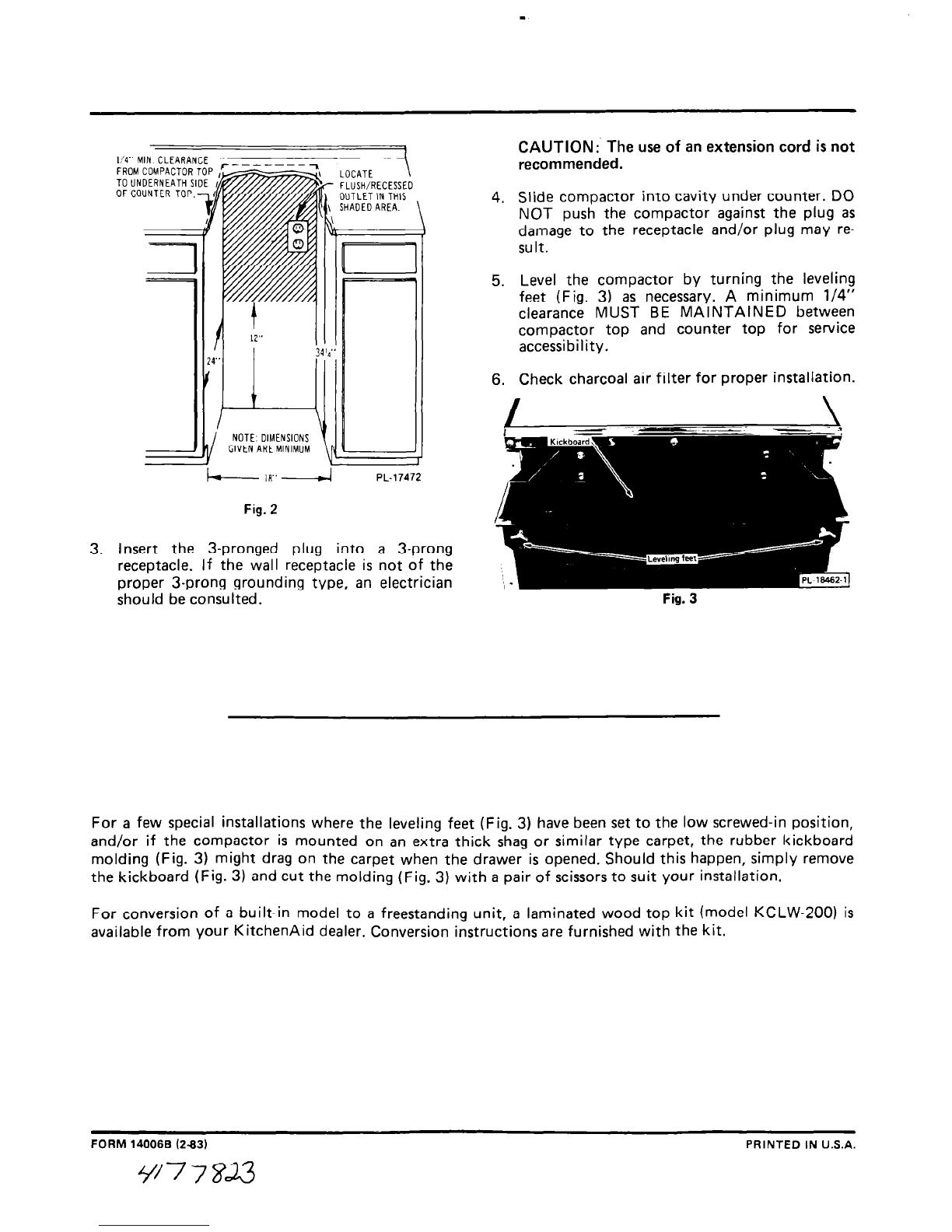

NOTE: DIMENSIONS
GIVEN ARE MINIMUM
- IF’-
Fig. 2
PL-17472
3. Insert the 3-pronged plug into a 3-prong
receptacle. If the wall receptacle is not of the
proper 3-prong grounding type, an electrician
should be consulted.
CAUTION: The use of an extension cord is not
recommended.
4. Slide compactor into cavity under counter. DO
NOT push the compactor against the plug as
damage to the receptacle and/or plug may re-
sult.
5. Level the compactor by turning the leveling
feet (Fig. 3) as necessary. A minimum l/4”
clearance MUST BE MAINTAINED between
compactor top and counter top for service
accessibility.
6. Check charcoal air filter for proper installation.
For a few special installations where the leveling feet (Fig. 3) have been set to the low screwed-in position,
and/or if the compactor is mounted on an extra thick shag or similar type carpet, the rubber kickboard
molding (Fig. 3) might drag on the carpet when the drawer is opened. Should this happen, simply remove
the kickboard (Fig. 3) and cut the molding (Fig. 3) with a pair of scissors to suit your installation.
For conversion of a built-in model to a freestanding unit, a laminated wood top kit (model KCLW-200) is
available from your KitchenAid dealer, Conversion instructions are furnished with the kit.
FORM 140068 (283) PRINTED IN U.S.A.
5477233
