KitchenAid KIRD801XSS3 Bedienungsanleitung

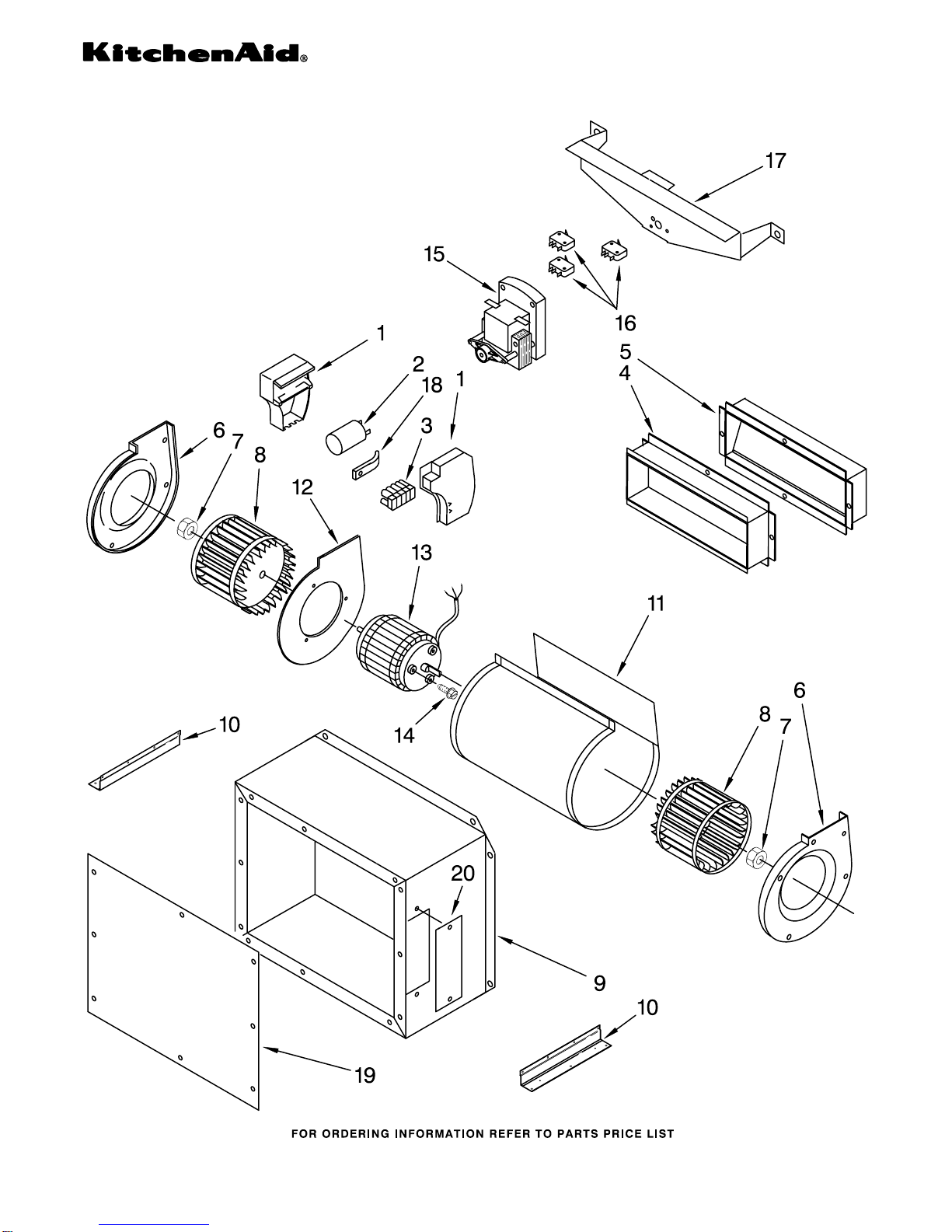

VENTILATION PARTS

For Models: KIRD801XSS3, KIRD861XSS3

30" AND 36"

RETRACTABLE DOWN DRAFT

VENT SYSTEM

10−96 Litho In U.S.A. (jcn) Part No. 4174505 Rev. A (jcn)

VENTILATION PARTS

For Models: KIRD801XSS3, KIRD861XSS3

4174505

Illus. Part

No. No. DESCRIPTION

Cover, Capacitor

4360060

L.H.

4360056

R.H.

4360175

Capacitor

4360176

Terminal

4360177

Guide, Exhaust

4360178

Damper

Cover, Blower

4360179

R.H.

4360188

L.H.

4360180

Nut

Blower Wheel

4360181

R.H.

4360187

L.H.

4360182

Box, Blower

4360183

Support, Blower

4360184

Housing, Blower

4360185

Plate, Motor

4360212

Motor

4360114

Screw

4360154

Motor, Gear

4360035

Micro Switch (3)

4360155

Bracket,

Motor Gear

4360059

Bracket, Capacitor

4360189

Cover, Blower Box

4360190

Cover, Exhaust

Outlet

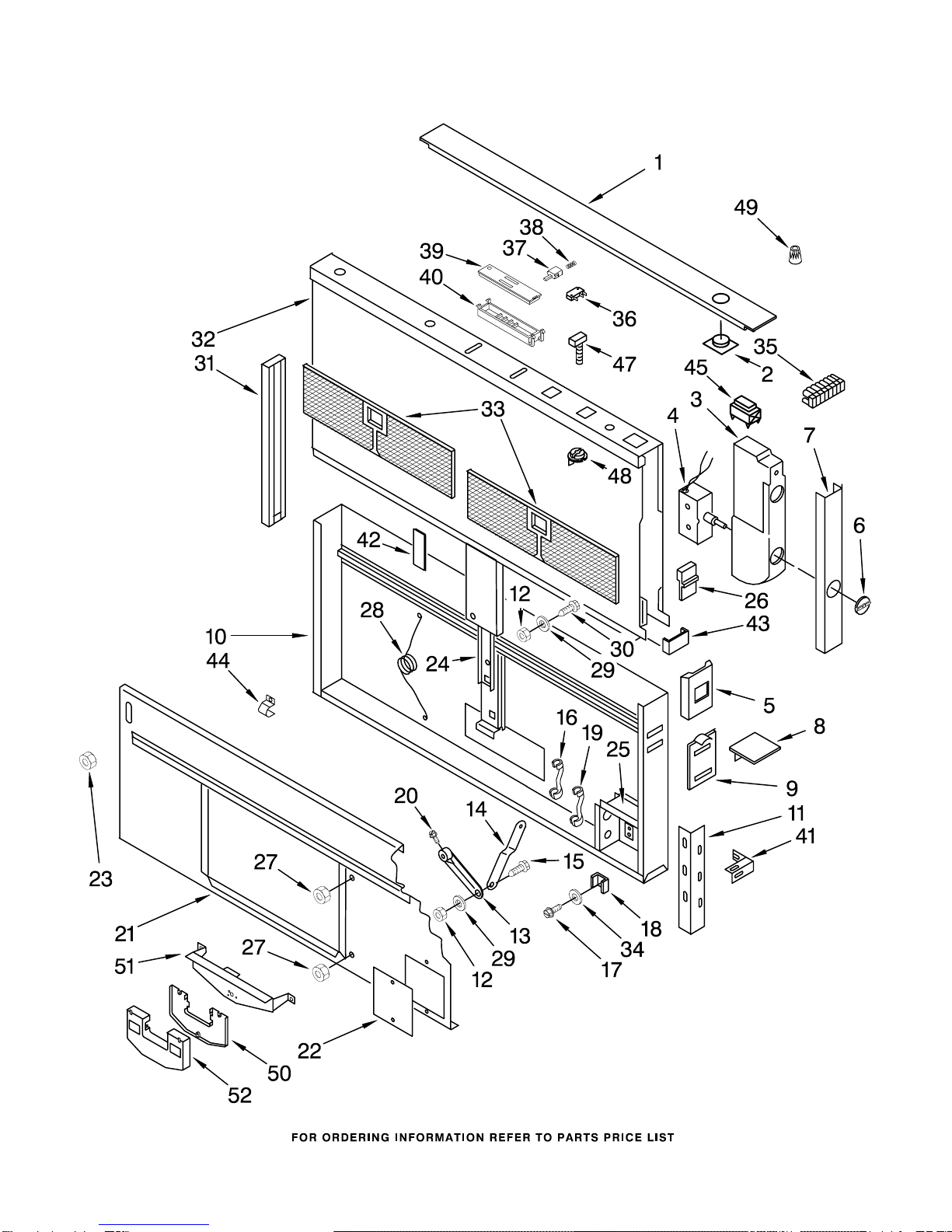

HOUSING AND CONTROL PARTS

For Models: KIRD801XSS3, KIRD861XSS3

4174505

HOUSING AND CONTROL PARTS

For Models: KIRD801XSS3, KIRD861XSS3

4174505

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Cover,

Controls (Top)

4360130

KIRD801

4360131

KIRD861

4360209

Button, Push

4360134

Housing, Switch

4360135

Switch, Fan

4360136

Shield, Support

Bracket (2)

4360137

Knob

4360138

Panel, Control

4360139

End Cap (2)

4360140

Plate, Support

(Upper) (2)

Housing,

Non−Serviceable

Bracket, Support

4360141

Lower R.H.

4360170

Lower L.H.

4360142

Nut

4360143

Arm, Gear Motor

4360144

Arm, Cavity

4360145

Bolt

4360062

Strain Relief

4360006

Screw

4360146

Nut

4360147

Strain Relief

4360148

Screw

Cover, Housing

Non−Serviceable

4360149

Cover, Wiring Box

4360150

Nut

Guide, Housing

Non−Serviceable

4360152

Box, Wiring

4360153

Clamp

4360156

Nut

4360157

Spring

4360158

Washer

4360159

Bolt

4360160

Trim, R.H.

Cavity

Non−Serviceable

Filter, Grease

4360193

KIRD801

4360194

KIRD861

4360005

Washer

4360165

Terminal

4360196

Micro Switch (2)

4360166

Actuator,

Micro Switch (2)

4360167

Spring (2)

4360168

Cover, Switch (2)

4360169

Housing, Switch (2)

Support

4360171

L.H.

4360172

R.H.

4360173

Guide,

Housing (Back)

4360174

Spacer, Cavity (2)

4360044

Clamp, Cable

4360210

Switch

4360163

Bolt

4360164

Nut

4360211

Nut, Wire

4360230

Cover, Box

4360155

Bracket, Motor

4360229

Box, Microswitch

Following Parts Not Illustrated

4360198 Installation Kit

814380 Kit , Motor Mount

LITERATURE PARTS

LIT4360199

Installation

Instructions/

Use And Care Guide

OPTIONAL PARTS NOT INCLUDED

4360205 Trim Kit−White

(KIRD801)

4360207 Trim Kit−Black

(KIRD801)

4360206 Trim Kit−White

(KIRD861)

4360208 Trim Kit−Black

(KIRD861)

FOLLOWING PARTS

NOT ILLUSTRATED

4360227 Cooktop Strip
